KUN126L-DTAHYU (2015)

Toyota Hilux

Production May 2015 - Jul 2017
Engine 1KDFTV
Transmission 5FC ATM
Displacement 2500cc
Power 168 HP (125 kW)

(1505- )5FC

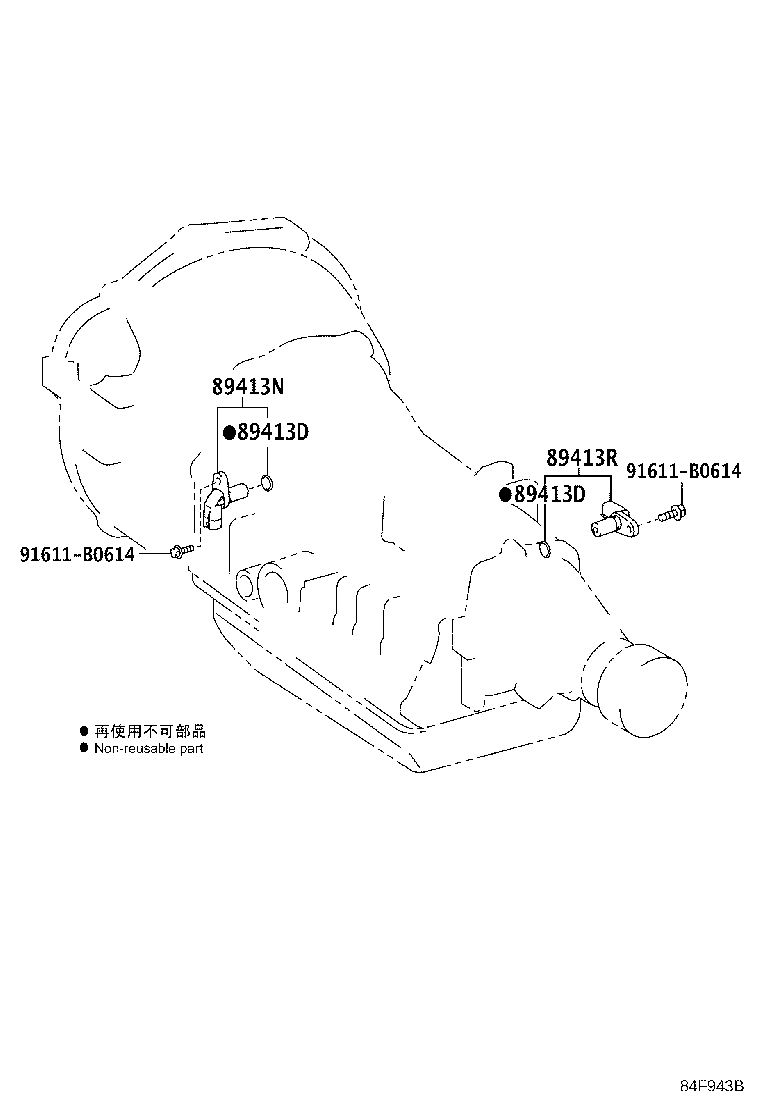

Click highlighted areas on diagram

A750F

diagram 89413D 89413D 89413N 89413R 91611B0614 91611B0614
Part # Description Qty Price
89413D - RING, O(FOR TRANSMISSION REVOLUTION SENSOR)
90301-11008

KUN125,126..5FC;GUN126..6FC..TH;GUN126..6F..H..GEN;GUN126,136..6F..(H,M)..(ARL,BZAGT,GCC,KEN,PH,SA,TH,VN)

 1
89413D - RING, O(FOR TRANSMISSION REVOLUTION SENSOR)
90301-11008

KUN125,126..5FC;GUN126..6FC..TH;GUN126..6F..H..GEN;GUN126,136..6F..(H,M)..(ARL,BZAGT,GCC,KEN,PH,SA,TH,VN)

 1
89413N - SENSOR, TRANSMISSION REVOLUTION, (NT)
89413-32010

KUN125,126..5FC

 1
89413R - SENSOR, TRANSMISSION REVOLUTION (SP2)
89413-32010

KUN125,126..5FC

 1
Common parts
91611-B0614
