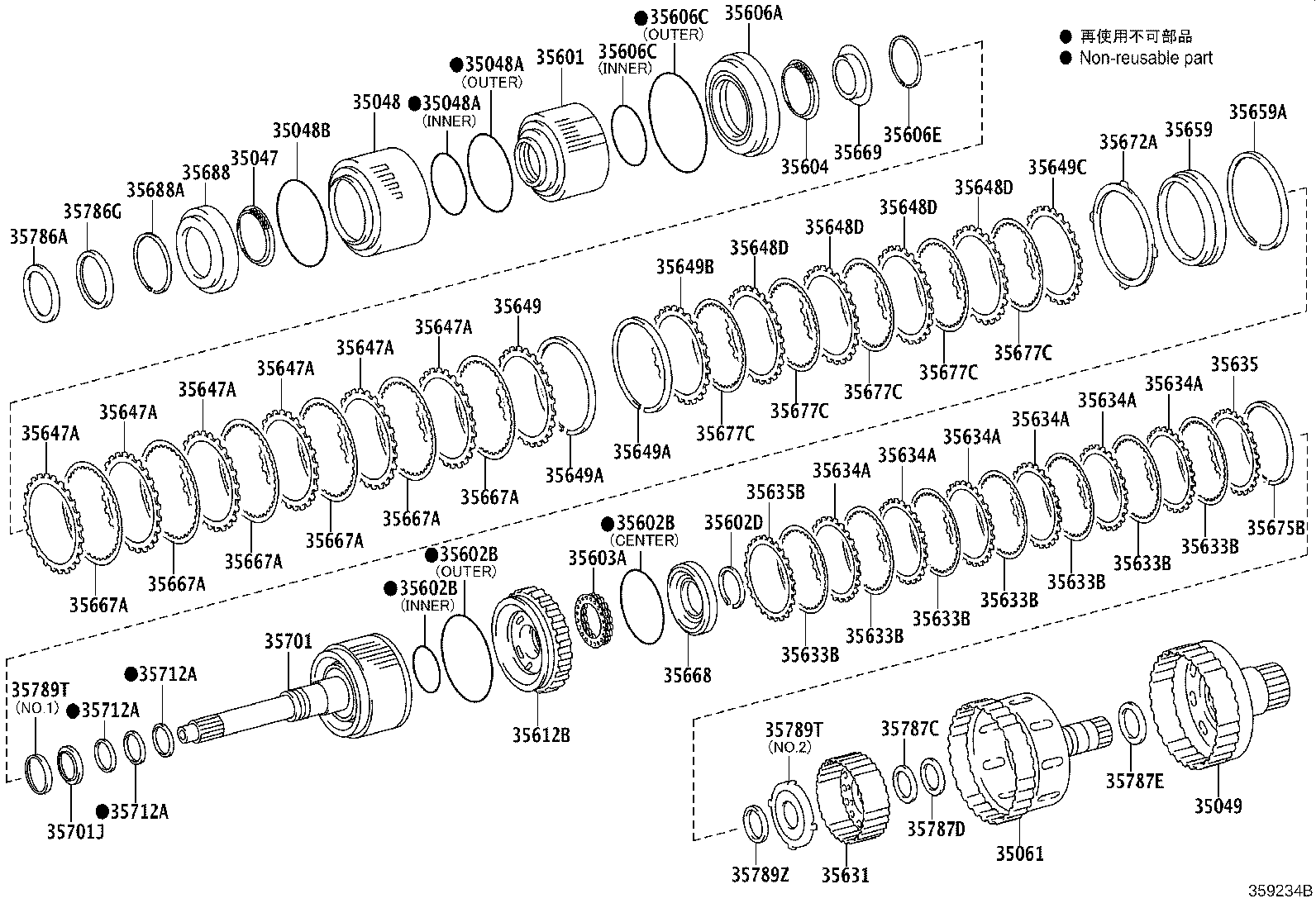

KUN126L-DTAHYU (2015)
Toyota Hilux
(1505- )5FC
A750F
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 35047 - SPRING SUB-ASSY, REVERSE CLUTCH RETURN | ||||
| 35047-60010 |
KUN125,126..TDC..5FC |
1 | ||
| 35048 - PISTON SUB-ASSY, REVERSE CLUTCH | ||||
| 35048-60010 |
KUN125,126..TDC..5FC |
1 | ||
| 35048A - RING, O (FOR REVERSE CLUTCH PISTON) | ||||
| 90301-99147 |
KUN125,126..TDC..5FC INNER |
1 | ||
| 90301-99141 |
KUN125,126..TDC..5FC OUTER |
1 | ||
| 35048A - RING, O (FOR REVERSE CLUTCH PISTON) | ||||
| 90301-99147 |
KUN125,126..TDC..5FC INNER |
1 | ||
| 90301-99141 |
KUN125,126..TDC..5FC OUTER |
1 | ||
| 35048B - RING, O (FOR REVERSE CLUTCH PISTON) | ||||
| 90301-99140 |
KUN125,126..TDC..5FC |
1 | ||
| 35049 - HUB SUB-ASSY, REVERSE CLUTCH | ||||
| 35049-60010 |
KUN125,126..TDC..5FC |
1 | ||
| 35061 - HUB SUB-ASSY, FORWARD CLUTCH | ||||
| 35061-50010 |
KUN125,126..5FC |
1 | ||
| 35601 - DRUM SUB-ASSY, CLUTCH | ||||
| 35601-50030 |
KUN125,126..5FC |
1 | ||
| 35602B - RING, O (FOR FORWARD CLUTCH PISTON) | ||||
| 90301-39012 |
KUN125,126..5FC INNER |
1 | ||
| 90301-99096 |
GUN126..L..GEN;GUN126..(ADC,PDC,SDC,SSC,SXT)..6FC;GUN135,TGN126..6FC..(L,S)..(GEN,MA,SA);GUN125,136..(ADC,SDC,SSC,SXT,TSC)..6FC..(ARL,BZAGT,LA,SA);GGN12#,135,KUN125,126,TGN128,13#..ATM..(ARL,BZAGT,GEN,IDN,LA,PKN,SA,TH,VN) CENTER |
1 | ||
| 90301-99145 |
GUN126..L..GEN;GUN126..(ADC,PDC,SDC,SSC,SXT)..6FC;GUN135,TGN126..6FC..(L,S)..(GEN,MA,SA);GUN125,136..(ADC,SDC,SSC,SXT,TSC)..6FC..(ARL,BZAGT,LA,SA);GGN12#,135,KUN125,126,TGN128,13#..ATM..(ARL,BZAGT,GEN,IDN,LA,PKN,SA,TH,VN) OUTER |
1 | ||
| 35602B - RING, O (FOR FORWARD CLUTCH PISTON) | ||||
| 90301-39012 |
KUN125,126..5FC INNER |
1 | ||
| 90301-99096 |
GUN126..L..GEN;GUN126..(ADC,PDC,SDC,SSC,SXT)..6FC;GUN135,TGN126..6FC..(L,S)..(GEN,MA,SA);GUN125,136..(ADC,SDC,SSC,SXT,TSC)..6FC..(ARL,BZAGT,LA,SA);GGN12#,135,KUN125,126,TGN128,13#..ATM..(ARL,BZAGT,GEN,IDN,LA,PKN,SA,TH,VN) CENTER |
1 | ||
| 90301-99145 |
GUN126..L..GEN;GUN126..(ADC,PDC,SDC,SSC,SXT)..6FC;GUN135,TGN126..6FC..(L,S)..(GEN,MA,SA);GUN125,136..(ADC,SDC,SSC,SXT,TSC)..6FC..(ARL,BZAGT,LA,SA);GGN12#,135,KUN125,126,TGN128,13#..ATM..(ARL,BZAGT,GEN,IDN,LA,PKN,SA,TH,VN) OUTER |
1 | ||
| 35602B - RING, O (FOR FORWARD CLUTCH PISTON) | ||||
| 90301-39012 |
KUN125,126..5FC INNER |
1 | ||
| 90301-99096 |
GUN126..L..GEN;GUN126..(ADC,PDC,SDC,SSC,SXT)..6FC;GUN135,TGN126..6FC..(L,S)..(GEN,MA,SA);GUN125,136..(ADC,SDC,SSC,SXT,TSC)..6FC..(ARL,BZAGT,LA,SA);GGN12#,135,KUN125,126,TGN128,13#..ATM..(ARL,BZAGT,GEN,IDN,LA,PKN,SA,TH,VN) CENTER |
1 | ||
| 90301-99145 |
GUN126..L..GEN;GUN126..(ADC,PDC,SDC,SSC,SXT)..6FC;GUN135,TGN126..6FC..(L,S)..(GEN,MA,SA);GUN125,136..(ADC,SDC,SSC,SXT,TSC)..6FC..(ARL,BZAGT,LA,SA);GGN12#,135,KUN125,126,TGN128,13#..ATM..(ARL,BZAGT,GEN,IDN,LA,PKN,SA,TH,VN) OUTER |
1 | ||
| 35602D - RING, SHAFT SNAP(FOR FORWARD CLUTCH PISTON RETURN SPRIN | ||||
| 90520-35003 |
GUN125,126..(ADC,PDC,SDC,SSC,SXT,TDC,TSC,TXT)..6FC;GGN12#,135,GUN120,13#,KUN125,126,TGN121,126,128,13#..(ADC,MDC,PDC,SDC,SSC,SXT,TDC,TSC,TXT)..ATM |
1 | ||
| 35603A - SPRING SUB-ASSY, FORWARD CLUTCH RETURN | ||||
| 35603-60020 |
GUN126..L..GEN;GUN126..(ADC,PDC,SDC,SSC,SXT)..6FC;GUN135,TGN126..6FC..(L,S)..(GEN,MA,SA);GUN125,136..(ADC,SDC,SSC,SXT,TSC)..6FC..(ARL,BZAGT,LA,SA);GGN12#,135,KUN125,126,TGN128,13#..ATM..(ARL,BZAGT,GEN,IDN,LA,PKN,SA,TH,VN) |
1 | ||
| 35604 - SPRING SUB-ASSY, DIRECT CLUTCH RETURN | ||||
| 35604-60020 |
KUN125,126..5FC |
1 | ||
| 35606A - PISTON SUB-ASSY, DIRECT CLUTCH | ||||
| 35652-60031 |
KUN125,126..TDC..5FC |
1 | ||
| 35606C - RING, O (FOR DIRECT CLUTCH PISTON) | ||||
| 90301-99149 |
KUN125,126..5FC OUTER |
1 | ||
| 90301-74004 |
GUN135..6FC..(MA,SA);GUN125,126,136,TGN126..(ADC,PDC,SDC,SSC,SXT)..6FC;GGN12#,135,KUN125,126,TGN128,138..ATM..(ARL,BZAGT,GEN,IDN,LA,PKN,SA,VN) INNER |
1 | ||
| 35606C - RING, O (FOR DIRECT CLUTCH PISTON) | ||||
| 90301-99149 |
KUN125,126..5FC OUTER |
1 | ||
| 90301-74004 |
GUN135..6FC..(MA,SA);GUN125,126,136,TGN126..(ADC,PDC,SDC,SSC,SXT)..6FC;GGN12#,135,KUN125,126,TGN128,138..ATM..(ARL,BZAGT,GEN,IDN,LA,PKN,SA,VN) INNER |
1 | ||
| 35606E - RING, SHAFT SNAP (FOR DIRECT CLUTCH PISTON RETURN SPRIN | ||||
| 90520-64003 |
KUN125,126..5FC |
1 | ||
| 35612B - PISTON, FORWARD CLUTCH | ||||
| 35612-60020 |
KUN125,126..5FC |
1 | ||
| 35631 - HUB, CLUTCH(FOR MULTIPLE DISC CLUTCH) | ||||
| 35631-60040 |
KUN125,126..5FC |
1 | ||
| 35633B - DISC, CLUTCH (FOR FORWARD MULTIPLE DISC CLUTCH) | ||||
| 35633-60070 |
KUN125,126..5FC |
7 | ||
| 35633B - DISC, CLUTCH (FOR FORWARD MULTIPLE DISC CLUTCH) | ||||
| 35633-60070 |
KUN125,126..5FC |
7 | ||
| 35633B - DISC, CLUTCH (FOR FORWARD MULTIPLE DISC CLUTCH) | ||||
| 35633-60070 |
KUN125,126..5FC |
7 | ||
| 35633B - DISC, CLUTCH (FOR FORWARD MULTIPLE DISC CLUTCH) | ||||
| 35633-60070 |
KUN125,126..5FC |
7 | ||
| 35633B - DISC, CLUTCH (FOR FORWARD MULTIPLE DISC CLUTCH) | ||||
| 35633-60070 |
KUN125,126..5FC |
7 | ||
| 35633B - DISC, CLUTCH (FOR FORWARD MULTIPLE DISC CLUTCH) | ||||
| 35633-60070 |
KUN125,126..5FC |
7 | ||
| 35633B - DISC, CLUTCH (FOR FORWARD MULTIPLE DISC CLUTCH) | ||||
| 35633-60070 |
KUN125,126..5FC |
7 | ||
| 35634A - PLATE, CLUTCH (FOR FORWARD MULTIPLE DISC CLUTCH) | ||||
| 35634-60020 |
KUN125,126..5FC T=1.8 |
6 | ||
| 35634A - PLATE, CLUTCH (FOR FORWARD MULTIPLE DISC CLUTCH) | ||||
| 35634-60020 |
KUN125,126..5FC T=1.8 |
6 | ||
| 35634A - PLATE, CLUTCH (FOR FORWARD MULTIPLE DISC CLUTCH) | ||||
| 35634-60020 |
KUN125,126..5FC T=1.8 |
6 | ||
| 35634A - PLATE, CLUTCH (FOR FORWARD MULTIPLE DISC CLUTCH) | ||||
| 35634-60020 |
KUN125,126..5FC T=1.8 |
6 | ||
| 35634A - PLATE, CLUTCH (FOR FORWARD MULTIPLE DISC CLUTCH) | ||||
| 35634-60020 |
KUN125,126..5FC T=1.8 |
6 | ||
| 35634A - PLATE, CLUTCH (FOR FORWARD MULTIPLE DISC CLUTCH) | ||||
| 35634-60020 |
KUN125,126..5FC T=1.8 |
6 | ||
| 35635 - FLANGE, FORWARD CLUTCH | ||||
| 35635-60020 |
KUN125,126..5FC T=3.1,MARK 1 |
1 | ||
| 35635-60060 |
KUN125,126..5FC T=3.5,MARK 5 |
1 | ||
| 35635-60010 |
KUN125,126..5FC T=3.0,MARK 0 |
1 | ||
| 35635-60040 |
KUN125,126..5FC T=3.3,MARK 3 |
1 | ||
| 35635-60070 |
KUN125,126..5FC T=3.6,MARK 6 |
1 | ||
| 35635-60090 |
KUN125,126..5FC T=3.8,MARK 8 |
1 | ||
| 35635-60110 |
KUN125,126..5FC T=4.0,MARK A |
1 | ||
| 35635-60100 |
KUN125,126..5FC T=3.9,MARK 9 |
1 | ||
| 35635-60030 |
KUN125,126..5FC T=3.2,MARK 2 |
1 | ||
| 35635-60050 |
KUN125,126..5FC T=3.4,MARK 4 |
1 | ||
| 35635-60080 |
KUN125,126..5FC T=3.7,MARK 7 |
1 | ||
| 35635B - FLANGE, FORWARD CLUTCH | ||||
| 35635-60010 |
KUN125,126..TDC..5FC T=3.0,MARK 0 |
1 | ||
| 35647A - PLATE, CLUTCH (FOR DIRECT MULTIPLE DISC CLUTCH) | ||||
| 35647-60010 |
KUN125,126..TDC..5FC |
6 | ||
| 35647A - PLATE, CLUTCH (FOR DIRECT MULTIPLE DISC CLUTCH) | ||||
| 35647-60010 |
KUN125,126..TDC..5FC |
6 | ||
| 35647A - PLATE, CLUTCH (FOR DIRECT MULTIPLE DISC CLUTCH) | ||||
| 35647-60010 |
KUN125,126..TDC..5FC |
6 | ||
| 35647A - PLATE, CLUTCH (FOR DIRECT MULTIPLE DISC CLUTCH) | ||||
| 35647-60010 |
KUN125,126..TDC..5FC |
6 | ||
| 35647A - PLATE, CLUTCH (FOR DIRECT MULTIPLE DISC CLUTCH) | ||||
| 35647-60010 |
KUN125,126..TDC..5FC |
6 | ||
| 35647A - PLATE, CLUTCH (FOR DIRECT MULTIPLE DISC CLUTCH) | ||||
| 35647-60010 |
KUN125,126..TDC..5FC |
6 | ||
| 35648D - PLATE, CLUTCH, NO.3 | ||||
| 35648-60010 |
KUN125,126..TDC..5FC |
4 | ||
| 35648D - PLATE, CLUTCH, NO.3 | ||||
| 35648-60010 |
KUN125,126..TDC..5FC |
4 | ||
| 35648D - PLATE, CLUTCH, NO.3 | ||||
| 35648-60010 |
KUN125,126..TDC..5FC |
4 | ||
| 35648D - PLATE, CLUTCH, NO.3 | ||||
| 35648-60010 |
KUN125,126..TDC..5FC |
4 | ||
| 35649 - FLANGE, REVERSE CLUTCH | ||||
| 35649-60030 |
KUN125,126..TDC..5FC T=3.0,MARK 2 |
1 | ||
| 35649-60040 |
KUN125,126..TDC..5FC T=3.1.MARK 3 |
1 | ||
| 35649-60110 |
KUN125,126..TDC..5FC T=3.8,MARK A |
1 | ||
| 35649-60070 |
KUN125,126..TDC..5FC T=3.4,MARK 6 |
1 | ||
| 35649-60050 |
KUN125,126..TDC..5FC T=3.2,MARK 4 |
1 | ||
| 35649-60060 |
KUN125,126..TDC..5FC T=3.3,MARK 5 |
1 | ||
| 35649-60090 |
KUN125,126..TDC..5FC T=3.6,MARK 8 |
1 | ||
| 35649-60100 |
KUN125,126..TDC..5FC T=3.7,MARK 9 |
1 | ||
| 35649-60080 |
KUN125,126..TDC..5FC T=3.5,MARK 7 |
1 | ||
| 35649A - RING, HOLE SNAP(FOR REVERSE CLUTCH FLANGE) | ||||
| 90520-99074 |
KUN125,126..TDC..5FC |
2 | ||
| 35649A - RING, HOLE SNAP(FOR REVERSE CLUTCH FLANGE) | ||||
| 90520-99074 |
KUN125,126..TDC..5FC |
2 | ||
| 35649B - FLANGE, REVERSE CLUTCH | ||||
| 35649-60030 |
KUN125,126..TDC..5FC T=3.0,MARK 2 |
1 | ||
| 35649C - FLANGE, REVERSE CLUTCH | ||||
| 35649-60040 |
KUN125,126..TDC..5FC T=3.1.MARK 3 |
1 | ||
| 35649-60030 |
KUN125,126..TDC..5FC T=3.0,MARK 2 |
1 | ||
| 35649-60060 |
KUN125,126..TDC..5FC T=3.3,MARK 5 |
1 | ||
| 35649-60010 |
KUN125,126..TDC..5FC T=2.8,MARK 0 |
1 | ||
| 35649-60020 |
KUN125,126..TDC..5FC T=2.9,MARK 1 |
1 | ||
| 35649-60080 |
KUN125,126..TDC..5FC T=3.5,MARK 7 |
1 | ||
| 35649-60050 |
KUN125,126..TDC..5FC T=3.2,MARK 4 |
1 | ||
| 35649-60100 |
KUN125,126..TDC..5FC T=3.7,MARK 9 |
1 | ||
| 35649-60110 |
KUN125,126..TDC..5FC T=3.8,MARK A |
1 | ||
| 35649-60090 |
KUN125,126..TDC..5FC T=3.6,MARK 8 |
1 | ||
| 35649-60070 |
KUN125,126..TDC..5FC T=3.4,MARK 6 |
1 | ||
| 35659 - SLEEVE, REVERSE CLUTCH REACTION | ||||
| 35659-60020 |
KUN125,126..TDC..5FC |
1 | ||
| 35659A - RING, SNAP (FOR REVERSE CLUTCH REACTION SLEEVE) | ||||
| 90520-99083 |
KUN125,126..TDC..5FC |
1 | ||
| 35667A - DISK, DIRECT CLUTCH | ||||
| 35667-60020 |
KUN125,126..5FC |
6 | ||
| 35667A - DISK, DIRECT CLUTCH | ||||
| 35667-60020 |
KUN125,126..5FC |
6 | ||
| 35667A - DISK, DIRECT CLUTCH | ||||
| 35667-60020 |
KUN125,126..5FC |
6 | ||
| 35667A - DISK, DIRECT CLUTCH | ||||
| 35667-60020 |
KUN125,126..5FC |
6 | ||
| 35667A - DISK, DIRECT CLUTCH | ||||
| 35667-60020 |
KUN125,126..5FC |
6 | ||
| 35667A - DISK, DIRECT CLUTCH | ||||
| 35667-60020 |
KUN125,126..5FC |
6 | ||
| 35668 - BALANCER, CLUTCH, NO.1 | ||||
| 35668-60010 |
KUN125,126..5FC |
1 | ||
| 35669 - BALANCER, CLUTCH, NO.2 | ||||
| 35669-60010 |
KUN125,126..5FC |
1 | ||
| 35672A - PLATE, CLUTCH CUSHION (FOR DIRECT MULTIPLE DISC CLUTCH) | ||||
| 35672-60020 |
KUN125,126..TDC..5FC |
1 | ||
| 35675B - RING, HOLE SNAP (FOR FORWARD CLUTCH FLANGE) | ||||
| 90520-99082 |
KUN125,126..5FC |
1 | ||
| 35677C - DISC, REAR CLUTCH | ||||
| 35677-60030 |
KUN125,126..TDC..5FC |
5 | ||
| 35677C - DISC, REAR CLUTCH | ||||
| 35677-60030 |
KUN125,126..TDC..5FC |
5 | ||
| 35677C - DISC, REAR CLUTCH | ||||
| 35677-60030 |
KUN125,126..TDC..5FC |
5 | ||
| 35677C - DISC, REAR CLUTCH | ||||
| 35677-60030 |
KUN125,126..TDC..5FC |
5 | ||
| 35677C - DISC, REAR CLUTCH | ||||
| 35677-60030 |
KUN125,126..TDC..5FC |
5 | ||
| 35688 - BALANCER, CLUTCH, NO.3 | ||||
| 35688-50010 |
KUN125,126..TDC..5FC |
1 | ||
| 35688A - RING, SNAP (FOR REVERSE CLUTCH RETURN SPRING) | ||||
| 90520-79001 |
KUN125,126..TDC..5FC |
1 | ||
| 35701 - SHAFT SUB-ASSY, INPUT | ||||
| 35701-60080 |
KUN125,126..TDC..5FC |
1 | ||
| 35701J - BEARING, THRUST NEEDLE ROLLER (FOR INPUT SHAFT FRONT) | ||||
| 90374-34011 |
KUN125,126..5FC |
1 | ||
| 35712A - RING, INPUT SHAFT OIL SEAL | ||||
| 35712-60010 |
KUN125,126..TDC..5FC |
3 | ||
| 35712A - RING, INPUT SHAFT OIL SEAL | ||||
| 35712-60010 |
KUN125,126..TDC..5FC |
3 | ||
| 35712A - RING, INPUT SHAFT OIL SEAL | ||||
| 35712-60010 |
KUN125,126..TDC..5FC |
3 | ||
| 35786A - RACE, THRUST BEARING, NO.1 | ||||
| 35786-60010 |
KUN125,126..TDC..5FC |
1 | ||
| 35786G - BEARING,THRUST NEEDLE ROLLER | ||||
| 90374-71001 |
KUN125,126..TDC..5FC |
1 | ||
| 35787C - RACE, THRUST BEARING, NO.2 | ||||
| 35787-60010 |
GUN125,126..(ADC,PDC,SDC,SSC,SXT,TDC,TSC,TXT)..6FC;GGN12#,135,GUN120,13#,KUN125,126,TGN121,126,128,13#..(ADC,MDC,PDC,SDC,SSC,SXT,TDC,TSC,TXT)..ATM |
1 | ||
| 35787D - BEARING, THRUST NEEDLE ROLLER | ||||
| 90374-38005 |
GUN125,126..(ADC,PDC,SDC,SSC,SXT,TDC,TSC,TXT)..6FC;GGN12#,135,GUN120,13#,KUN125,126,TGN121,126,128,13#..(ADC,MDC,PDC,SDC,SSC,SXT,TDC,TSC,TXT)..ATM |
1 | ||
| 35787E - BEARING, THRUST NEEDLE ROLLER | ||||
| 90374-42008 |
KUN125,126..TDC..5FC |
1 | ||
| 35789T - RACE, THRUST BEARING (INPUT SHAFT REAR) | ||||
| 35789-50060 |
KUN125,126..5FC NO.1:REFER ILLUST. |
1 | ||
| 35789-60040 |
KUN125,126..5FC NO.2:REFER ILLUST. |
1 | ||
| 35789T - RACE, THRUST BEARING (INPUT SHAFT REAR) | ||||
| 35789-50060 |
KUN125,126..5FC NO.1:REFER ILLUST. |
1 | ||
| 35789-60040 |
KUN125,126..5FC NO.2:REFER ILLUST. |
1 | ||
| 35789Z - BEARING, THRUST NEEDLE ROLLER | ||||
| 90374-21004 |
GUN125,126..(ADC,PDC,SDC,SSC,SXT,TDC,TSC,TXT)..6FC;GGN12#,135,GUN120,13#,KUN125,126,TGN121,126,128,13#..(ADC,MDC,PDC,SDC,SSC,SXT,TDC,TSC,TXT)..ATM |
1 | ||
Part Price Details
Loading price information...
Part Number:
Price:
