KUN125R-BTFMY (2015)
Toyota Hilux
ILLUST NO. 2 OF 2(0408- )
VISOR & ASSIST GRIP
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| Common parts | ||||
| 90159-60353 | ||||
| 90162-T0001 | ||||
ILLUST NO. 2 OF 2(1107- )
VISOR & ASSIST GRIP
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| Common parts | ||||
| 90159-60353 | ||||
| 90162-T0001 | ||||

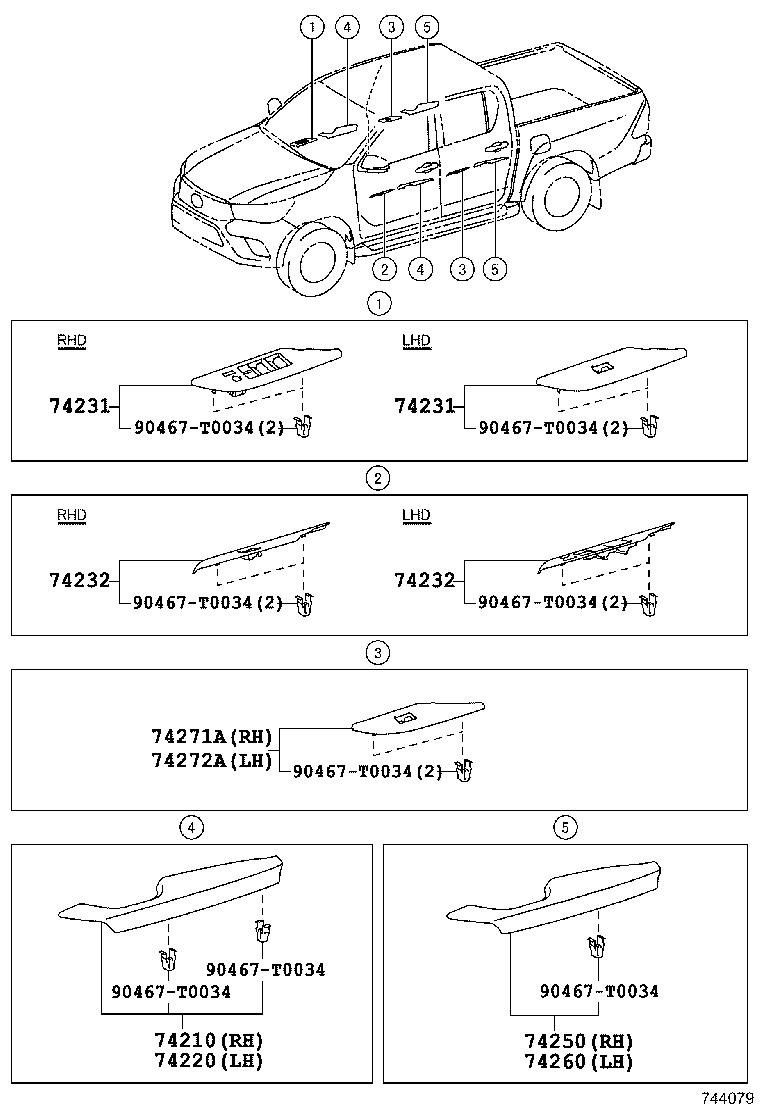

ILLUST NO. 1 OF 2(1505- )
ARMREST
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 74210 - ARMREST ASSY, FRONT, RH | ||||
| 74210-0K020C2 |
GUN125..TSC..6FC..CBU;GUN125..TXT..(GEN,IDN);GUN122,125..TSC..(M,S)..GEN;GUN122,TGN121..TXT..5F..(L,M,S);GUN126,KUN122,125..(TSC,TXT)..(M,S);GUN125..(TSC,TXT)..(S,X)..(ARL,GCC,TH);GUN122,KUN125..(TSC,TXT)..6F..(IDN,TH);GUN112,120,123,13#,TGN136..(TSC,TXT)..(ARL,TH);GUN112,122,KUN112,TGN111,121,126..TSC..(S,X)..(ARL,GCC) BLACK,TRIM2# |
1 | ||
| 74220 - ARMREST ASSY, FRONT, LH | ||||
| 74220-0K020C2 |
GUN125..TSC..6FC..CBU;GUN125..TXT..(GEN,IDN);GUN122,125..TSC..(M,S)..GEN;GUN122,TGN121..TXT..5F..(L,M,S);GUN126,KUN122,125..(TSC,TXT)..(M,S);GUN125..(TSC,TXT)..(S,X)..(ARL,GCC,TH);GUN122,KUN125..(TSC,TXT)..6F..(IDN,TH);GUN112,120,123,13#,TGN136..(TSC,TXT)..(ARL,TH);GUN112,122,KUN112,TGN111,121,126..TSC..(S,X)..(ARL,GCC) BLACK,TRIM2# |
1 | ||
| 74231 - PANEL, FRONT ARMREST BASE, UPPER RH | ||||
| 74231-0K590 |
GUN122,126,13#,KUN12#..RHD..(SSC,SXT,TSC,TXT)..M |
1 | ||
| 74231-0K620 |
GUN125..TSC..6FC..CBU;GUN125,KUN125..TXT..IDN;GUN125,KUN125..TSC..S..GEN;GUN120,122,125,135..(TSC,TXT)..(6F,6FC)..X..(ARL,TH);GUN122,123,126,136,KUN122,TGN121..RHD..(TSC,TXT)..(S,X)..(ARL,GEN) |
1 | ||
| 74231 - PANEL, FRONT ARMREST BASE, UPPER RH | ||||
| 74231-0K590 |
GUN122,126,13#,KUN12#..RHD..(SSC,SXT,TSC,TXT)..M |
1 | ||
| 74231-0K620 |
GUN125..TSC..6FC..CBU;GUN125,KUN125..TXT..IDN;GUN125,KUN125..TSC..S..GEN;GUN120,122,125,135..(TSC,TXT)..(6F,6FC)..X..(ARL,TH);GUN122,123,126,136,KUN122,TGN121..RHD..(TSC,TXT)..(S,X)..(ARL,GEN) |
1 | ||
| 74232 - PANEL, FRONT ARMREST BASE, UPPER LH | ||||
| 74232-0K610 |
GUN125..6FC..MA;KUN125,126,136..RHD..TDC..6F..S..GEN;GGN125,GUN122,126,13#,KUN12#..RHD..(MDC,PDC,TDC,TSC,TXT)..(H,M) |
1 | ||
| 74232-0K600 |
GUN135..L..MA;GUN125..TDC..TH;GUN125..TDC..IV3;GUN122..6F..(L,X);GUN135..6F..S..MA;GUN126,KUN126..ATM..S..GEN;GUN125..6F..(L,S)..(IDN,MA);GUN125..(TSC,TXT)..(ARL,TH);GUN122,TGN121..5F..(L,S)..TH;GUN125,KUN122,125..RHD..TSC..S;GUN125..6FC..(L,X)..(ARL,GEN)..CBU;GUN122,126,KUN125,TGN121..(L,S,X)..(ARL,IDN);GGN12#,GUN112,120,123,13#,TGN136..RHD..(L,S,X)..(ARL,GEN,TH) |
1 | ||
| 74232 - PANEL, FRONT ARMREST BASE, UPPER LH | ||||
| 74232-0K610 |
GUN125..6FC..MA;KUN125,126,136..RHD..TDC..6F..S..GEN;GGN125,GUN122,126,13#,KUN12#..RHD..(MDC,PDC,TDC,TSC,TXT)..(H,M) |
1 | ||
| 74232-0K600 |
GUN135..L..MA;GUN125..TDC..TH;GUN125..TDC..IV3;GUN122..6F..(L,X);GUN135..6F..S..MA;GUN126,KUN126..ATM..S..GEN;GUN125..6F..(L,S)..(IDN,MA);GUN125..(TSC,TXT)..(ARL,TH);GUN122,TGN121..5F..(L,S)..TH;GUN125,KUN122,125..RHD..TSC..S;GUN125..6FC..(L,X)..(ARL,GEN)..CBU;GUN122,126,KUN125,TGN121..(L,S,X)..(ARL,IDN);GGN12#,GUN112,120,123,13#,TGN136..RHD..(L,S,X)..(ARL,GEN,TH) |
1 | ||
| Common parts | ||||
| 90467-T0034 | ||||

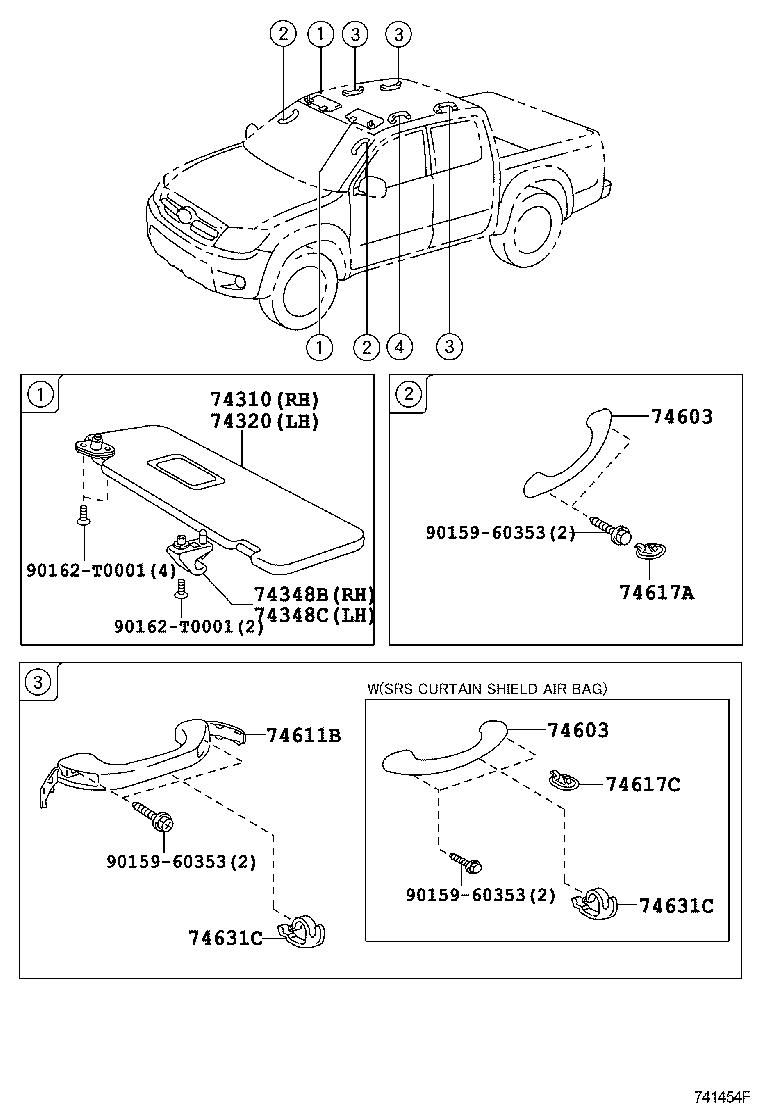

ILLUST NO. 2 OF 2(1505- )
VISOR & ASSIST GRIP
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 74310 - VISOR ASSY, RH | ||||
| 74310-0KC60B0 |
KUN125..TSC..(L,S);KUN126..5FC..(L,S)..GEN;GUN125..RHD..(SDC,SSC)..X..CBU;GUN126,KUN125,TGN126..RHD..(SDC,TDC)..(L,X)..(GEN,SA) SRS AIR BAG-WITH(*DRS ONLY),LT.GRAY,TRIM2# |
1 | ||
| 74310-0KC80B0 |
GGN125..M..ARL;KUN126..RHD..SA;GUN126..RHD..6F..H..GEN;GUN125,126,KUN125..RHD..(KDC,TSC,TXT)..M..(ARL,GEN,KEN) LT.GRAY,TRIM2# |
1 | ||
| 74310-0KC40B0 |
GUN125..TDC..L..IDN;GGN125,TGN126..RHD..(L,S);KUN125,126..RHD..(PDC,TDC)..L;GUN125,126..RHD..TDC..6FC..(L,X);GUN126..(PDC,SDC,SSC,TDC,TSC,TXT)..(L,S,X)..(ARL,PKN,SA,TH);GUN125,KUN125..RHD..(SDC,SSC,TSC,TXT)..(L,S,X)..(ARL,GEN,IDN,SA) LT.GRAY,TRIM2# |
1 | ||
| 74317 - COVER, VISOR BRACKET, RH | ||||
| 74317-60020B1 |
GUN122..PH,SA;GUN136..S..ARL;GUN136..6F..M..ARL;GUN126..6F..ARL..IV3;GUN126..TDC..6FC..IV3;GUN126..(TSC,TXT)..6FC;GUN126..RHD..6F..H..GEN;GUN135..(SSC,TDC,TSC)..X;TGN136..(SDC,TDC)..(GEN,SA);GUN125..LHD..(SSC,TXT)..(M,X);GUN123,LAN125..(SDC,TSC,TXT)..CBU;GUN122,125..RHD..(MDC,SDC,SSC,TSC)..6F;GUN125..LHD..(SDC,TDC)..(L,X)..(GEN,SA);GUN125..(TDC,TSC)..6F..(L,X)..(ARL,IDN,LA)..CBU;TGN126..LHD..(SDC,TDC,TSC)..(L,S,X)..(GEN,LA,SA);GUN125..LHD..(SDC,SSC,SXT,TDC)..6F..S..(LA,PH,SA);TGN121..(SDC,SSC,TDC,TSC)..(L,X)..(ARL,GEN,SA,TH);GUN135..(SDC,SSC,SXT,TDC)..6F..(L,S)..(GEN,LA,PH,SA);GUN125,LAN125..(SSC,TDC,TXT)..(5F,6FC)..(L,X)..(ARL,GEN,SA);GUN126..(PDC,SDC,SSC,TDC,TSC)..(L,S,X)..(ARL,LA,PKN,SA,TH)..CBU;GUN112,120,125,TGN110,120..(SDC,SSC,TSC)..(5F,6FC)..(GEN,IDN,SA,TH) LT.GRAY,TRIM2# |
1 | ||
| 74317-60020B1 |
LAN125..SSC..S;GUN126..BZAGT..IV3;GUN126..ADC..(S,X);KUN125..LHD..(LA,SA);GGN135,KUN135..LA,SA;GUN125..TSC..6FC..IV3;KUN125..TXT..(L,M)..GEN;KUN122..(H,L,S,X)..(GEN,SA);KUN125..RHD..(SDC,SSC,TSC,TXT);GUN122..(TDC,TSC)..5F..X..(ARL,TH);KUN122,126..(SDC,SSC,SXT,TSC,TXT)..M;GUN126..(ASC,TXT)..6F..(ARL,BZAGT)..CBU;GUN122,136..LHD..(5F,6FC)..(M,S,X)..HDCR;GUN13#,TGN126,138..(ADC,ASC,MDC)..(L,S,X);GUN125..(ADC,ASC,TXT)..6F..(ARL,BZAGT,IDN,LA);GUN126,KUN125,126..(ADC,TDC)..L..(BZAGT,GEN,IDN);GGN12#,GUN123,KUN112,TGN126..RHD..(TDC,TSC)..(ARL,GEN,IDN);KUN126,TGN136..(ADC,ASC,PDC,TDC,TSC)..(L,S,X)..(BZAGT,LA,PKN) LT.GRAY,TRIM2# |
1 | ||
| 74318 - COVER, VISOR BRACKET, LH | ||||
| 74317-60020B1 |
LAN125..SSC..S;KUN125..LHD..(LA,SA);GGN135,KUN135..LA,SA;GUN126,135..BZAGT..IV3;KUN125..TXT..(L,M)..GEN;KUN125..RHD..(SDC,SSC,TSC,TXT);GUN125,136..(ADC,TSC)..6FC..(M,S,X);GUN135,TGN136..(ADC,MDC)..MTM..(L,S);KUN122,126..(SDC,SSC,SXT,TSC,TXT)..M;GUN126,KUN122..LHD..(ADC,SSC)..(S,X);GUN126..(ASC,TXT)..6F..(ARL,BZAGT)..CBU;KUN126..(ADC,PDC,TDC)..(L,S,X)..(LA,PKN);KUN122..(SDC,TDC,TSC,TXT)..(H,L,S,X)..(GEN,SA);GUN126,KUN125,126..(ADC,TDC)..L..(BZAGT,GEN,IDN);GUN122,136,TGN138..LHD..(L,S,X)..(HDCR,HTWCF,IART);GUN122,TGN136..(ADC,TDC,TSC)..5F..X..(ARL,BZAGT,TH);GUN135,TGN136..(ASC,MDC,TDC,TSC)..(5F,6FC)..(S,X)..(LA,MA);GGN12#,GUN123,KUN112,TGN126..RHD..(TDC,TSC)..(ARL,GEN,IDN);GUN125,TGN126..(ADC,ASC,TXT)..MTM..(L,S,X)..(ARL,BZAGT,IDN,LA) LT.GRAY,TRIM2# |
1 | ||
| 74320 - VISOR ASSY, LH | ||||
| 74320-0KA70B0 |
GUN126,KUN126..ATM..S..GEN;GUN125,KUN122,125..RHD..TSC..S SRS AIR BAG-WITH(*DRS ONLY),LT.GRAY,TRIM2# |
1 | ||
| 74320-0KB00B0 |
GUN125,KUN125..L..IDN;GUN125,KUN122,125..RHD..TSC..S;GGN12#,GUN112,123,126,136..(L,S)..(ARL,TH) LT.GRAY,TRIM2# |
1 | ||
| 74320-0KB10B0 |
GUN135..S..MA;GGN125..M..ARL;GUN125..6F..S..MA;GUN136..6F..M..ARL;GUN126,KUN122..RHD..MTM..H..GEN;GUN125,126,KUN122,125..RHD..(TSC,TXT)..M..(ARL,GEN) LT.GRAY,TRIM2# |
1 | ||
| 74348 - HOLDER, VISOR | ||||
| 74348-0K070B0 |
GUN136..6F..M..ARL;KUN122..(H,L,S,X)..GEN;GUN125..LHD..(L,X)..GEN;GUN126..RHD..6F..H..GEN;KUN125..TXT..(L,M)..GEN;KUN125..TDC..L..(GEN,IDN);GUN125..6F..S..(BZAGT,LA,PH);GUN125..LHD..(TSC,TXT)..(M,X);GUN126..(ASC,TSC,TXT)..(ARL,BZAGT);GUN122..TDC..(L,S,X)..(ARL,GEN,PH);GUN125,KUN126..RHD..TDC..ATM..(L,X);GUN126..(ADC,TDC)..S..(ARL,BZAGT,LA);KUN126..(ADC,PDC,TDC)..(L,S,X)..(LA,PKN);GUN125..(ADC,ASC,TDC)..(L,X)..(BZAGT,IDN,LA);GUN125,KUN125..RHD..(TSC,TXT)..(ARL,GEN,IDN);GUN13#,TGN126,136..(L,S,X)..(ARL,BZAGT,GEN,LA,MA,PH);GUN122,136,KUN122..(ADC,TSC,TXT)..(5F,6FC)..M..(BZAGT,GEN);GUN126,TGN121..(ADC,PDC,TDC,TSC)..(L,X)..(ARL,BZAGT,GEN,LA,PKN,TH);GUN120,122,TGN138..(ADC,PSC,TSC)..(L,S,X)..(ARL,BZAGT,GEN,PH,PKN,TH);GGN12#,GUN112,123,KUN112,125,135,TGN110..(L,M,S,X)..(DCR,HTWC)..(ARL,IDN,LA,TH) LT.GRAY,TRIM2# |
2 | ||
| 74610A - GRIP SUB-ASSY, ASSIST | ||||
| 74603-0K070B0 |
GUN125,135..BZAGT..IV3;KUN125..RHD..(SSC,TSC,TXT);KUN125,LAN125..LHD..SSC..S;KUN125..LHD..(ASC,TSC,TXT)..(L,M,X);GUN122,TGN121..TDC..(L,S,X)..(GEN,PH);GUN125..RHD..(TSC,TXT)..6F..(GEN,IDN);KUN122..(SDC,TDC)..(H,L,S,X)..(GEN,SA);GUN125,135,TGN126..LHD..(TSC,TXT)..(M,X);GUN126,KUN135,TGN136..(ASC,TSC)..(LA,TH) LT.GRAY,TRIM2# |
3 | ||
| 74603-0K070B0 |
GUN122..RHD..SA;KUN125..TXT..(L,M);GUN125..TSC..X..GEN;GUN125,135..BZAGT..IV3;GUN125..(TSC,TXT)..IDN;KUN125..(ASC,TSC)..(S,X);GUN135..(SSC,SXT)..6F..S;GUN125..RHD..(SSC,TSC)..S;GUN122,125,KUN122..TXT..M..GEN;KUN122..(TSC,TXT)..(L,S,X)..GEN;GUN122,TGN121,136..(ASC,TSC)..5F..(DCR,HTWC)..(GEN,LA,PH,TH);GUN112,123,126,KUN112,135,TGN110,120,126..(ASC,SSC,TSC)..(L,X)..(BZAGT,IDN,LA,SA,TH) ASSIST GRIP-ROOF:4 & PILLAR(FRONT & CENTER):4,LT.GRAY,TRIM2# |
4 | ||
| 74610A - GRIP SUB-ASSY, ASSIST | ||||
| 74603-0K070B0 |
GUN125,135..BZAGT..IV3;KUN125..RHD..(SSC,TSC,TXT);KUN125,LAN125..LHD..SSC..S;KUN125..LHD..(ASC,TSC,TXT)..(L,M,X);GUN122,TGN121..TDC..(L,S,X)..(GEN,PH);GUN125..RHD..(TSC,TXT)..6F..(GEN,IDN);KUN122..(SDC,TDC)..(H,L,S,X)..(GEN,SA);GUN125,135,TGN126..LHD..(TSC,TXT)..(M,X);GUN126,KUN135,TGN136..(ASC,TSC)..(LA,TH) LT.GRAY,TRIM2# |
3 | ||
| 74603-0K070B0 |
GUN122..RHD..SA;KUN125..TXT..(L,M);GUN125..TSC..X..GEN;GUN125,135..BZAGT..IV3;GUN125..(TSC,TXT)..IDN;KUN125..(ASC,TSC)..(S,X);GUN135..(SSC,SXT)..6F..S;GUN125..RHD..(SSC,TSC)..S;GUN122,125,KUN122..TXT..M..GEN;KUN122..(TSC,TXT)..(L,S,X)..GEN;GUN122,TGN121,136..(ASC,TSC)..5F..(DCR,HTWC)..(GEN,LA,PH,TH);GUN112,123,126,KUN112,135,TGN110,120,126..(ASC,SSC,TSC)..(L,X)..(BZAGT,IDN,LA,SA,TH) ASSIST GRIP-ROOF:4 & PILLAR(FRONT & CENTER):4,LT.GRAY,TRIM2# |
4 | ||
| 74610A - GRIP SUB-ASSY, ASSIST | ||||
| 74603-0K070B0 |
GUN125,135..BZAGT..IV3;KUN125..RHD..(SSC,TSC,TXT);KUN125,LAN125..LHD..SSC..S;KUN125..LHD..(ASC,TSC,TXT)..(L,M,X);GUN122,TGN121..TDC..(L,S,X)..(GEN,PH);GUN125..RHD..(TSC,TXT)..6F..(GEN,IDN);KUN122..(SDC,TDC)..(H,L,S,X)..(GEN,SA);GUN125,135,TGN126..LHD..(TSC,TXT)..(M,X);GUN126,KUN135,TGN136..(ASC,TSC)..(LA,TH) LT.GRAY,TRIM2# |
3 | ||
| 74603-0K070B0 |
GUN122..RHD..SA;KUN125..TXT..(L,M);GUN125..TSC..X..GEN;GUN125,135..BZAGT..IV3;GUN125..(TSC,TXT)..IDN;KUN125..(ASC,TSC)..(S,X);GUN135..(SSC,SXT)..6F..S;GUN125..RHD..(SSC,TSC)..S;GUN122,125,KUN122..TXT..M..GEN;KUN122..(TSC,TXT)..(L,S,X)..GEN;GUN122,TGN121,136..(ASC,TSC)..5F..(DCR,HTWC)..(GEN,LA,PH,TH);GUN112,123,126,KUN112,135,TGN110,120,126..(ASC,SSC,TSC)..(L,X)..(BZAGT,IDN,LA,SA,TH) ASSIST GRIP-ROOF:4 & PILLAR(FRONT & CENTER):4,LT.GRAY,TRIM2# |
4 | ||
| Common parts | ||||
| 90119-T0422 | ||||
| 90151-T0002 | ||||
| 91673-80618 | ||||
| 93229-15020 | ||||
