KUN122L-DNMXYN (2016)
Toyota Hilux
ILLUST NO. 3 OF 3(0408- )
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| Common parts | ||||
| 90016-AC102 | ||||
| 90016-AC103 | ||||
| 90016-AX201 | ||||
| 90080-10258 | ||||
| 90080-56074 | ||||
| 90119-08B11 | ||||
| 90119-T0126 | ||||
| 90119-T0200 | ||||
| 94512-00800 | ||||
| 94612-10800 | ||||
ILLUST NO. 3 OF 3(1107- )
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| Common parts | ||||
| 90016-AC102 | ||||
| 90016-AC103 | ||||
| 90016-AX201 | ||||
| 90080-10258 | ||||
| 90080-56074 | ||||
| 90119-T0126 | ||||
| 90119-T0200 | ||||
| 94512-00800 | ||||
| 94612-10800 | ||||

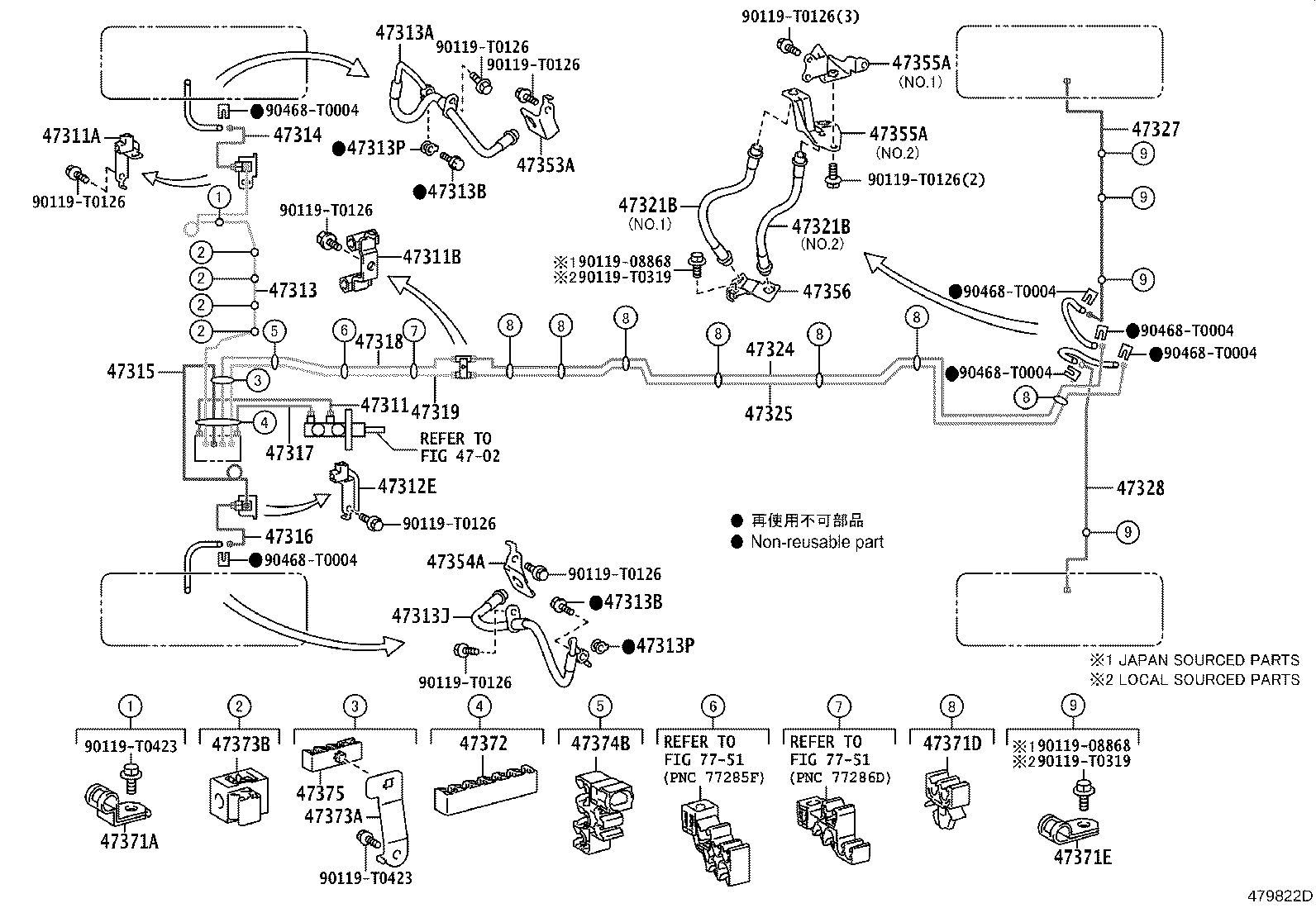

ILLUST NO. 1 OF 2(1505- )GUN122,KUN122,TGN120,121..LHD
BRAKE TUBE, W(ABS)
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 47311 - TUBE, FRONT BRAKE, NO.1 | ||||
| 47311-KK050 |
KUN125..L..GCC;TGN126..BZAGT,SA;TGN13#..ADC..5F..M;KUN126..LHD..H..GEN;GUN125,135..LHD..IV3;GUN126..LHD..(GEN,SA);GUN125..LHD..(SXT,TXT);GUN135..LHD..(GEN,PH,VN);KUN135,TGN121..GEN,LA,VN;GUN125,126..6F..M..(PH,VN);KUN125,TGN138..LHD..(ADC,TXT)..L;GUN122,KUN122..LHD..DCR..(GEN,PH,SA);GUN125..LHD..(SDC,TDC)..S..(PH,SA,VN);TGN136..(ASC,TDC,TSC)..(M,X)..(GEN,LA);GUN122,125..LHD..(SSC,TDC)..X..HDCR..(GEN,SA)..CBU;KUN125..LHD..(ADC,ASC,SDC,SSC,TDC,TSC,TXT)..(M,S,X);GUN126,136,KUN112,126,136..LHD..(ADC,SDC,TDC,TSC)..(5F,5FC,6F)..(M,S,X)..(DCR,IART) VEHICLE STABILITY CONTROL-W(*HSAC & TRAILER SWAY CONTROL) |
1 | ||
| 47311-KK060 |
TGN138..L;TGN136..ADC..M;KUN125,135..LHD;GUN125,135..LHD..IV3;GUN126..LHD..(GEN,SA);GUN125,126..6F..M..(PH,VN);GUN122,KUN122..LHD..(GEN,PH,SA);GUN135,TGN121..LHD..(GEN,PH,VN);TGN136..(ASC,TDC,TSC)..(M,X)..(GEN,LA);TGN126,138..5F..(L,M,X)..(BZAGT,GEN,SA);GUN125,TGN126..LHD..(SDC,TDC)..S..(PH,SA,VN);GUN125,135..LHD..(ASC,SXT,TSC,TXT)..(GEN,LA,SA);GUN125,KUN126..LHD..(SSC,TDC)..(H,L,X)..(GEN,SA)..CBU;GUN126,136,KUN112,126,136,LAN125..LHD..(5F,5FC,6F)..(M,S,X)..(DCR,DEFI,IART) |
1 | ||
| 47311A - WAY(FOR FRONT BRAKE TUBE) | ||||
| 90412-10299 |
TGN121..S..GCC;KUN122..RHD..(L,X);KUN112,122..TSC..(L,X)..(GCC,IDN);GUN122,TGN121..(L,M,X)..(HDCR,HTWC);KUN122..LHD..(SSC,TDC,TSC,TXT)..(M,S,X);GUN112,120,122,123,TGN11#,120..ARL,GCC,IDN,PH,SA,TH |
1 | ||
| 90412-10299 |
GUN122..PKN;KUN122..SDC;GGN120,KUN112..S;KUN122..RHD..(H,M,S);KUN122..LHD..(TDC,TXT)..L;GUN122,TGN121..S..(HDCR,HTWC)..(GEN,TH) |
1 | ||
| 47311B - WAY, NO.1(FOR FRONT BRAKE TUBE) | ||||
| 90412-10301 |
KUN125,126;TGN136..ADC..M;GUN135..6F..L..MA;KUN122..RHD..(H,M,S);TGN136..(ASC,TSC)..LA;TGN136..(TDC,TXT)..(M,S);KUN122..LHD..(TDC,TXT)..L;GUN126,135..6F..(M,S)..VN;GUN126,TGN126..6FC..L..GEN;GUN122,TGN138..L..(BZAGT,PKN);GUN125,135..(ASC,TXT)..6F..IV3;GUN125,TGN126..(ADC,TSC)..(5F,6FC)..(ARL,BZAGT);GGN135,KUN112,135..(H,M,S,X)..(GCC,GEN,LA,SA,VN);GUN126,KUN122..(ADC,SDC)..MTM..(M,S,X)..(DCR,IART);GUN122,126..(TSC,TXT)..MTM..(M,S)..HDCR..(ARL,GEN)..CBU;GGN12#,GUN136,KUN136,LAN125,TGN121..(ADC,SSC,TDC)..(M,S)..(DCR,DEFI,HTWC,IART)..(ARL,BZAGT,GEN,LA,SA,TH) |
1 | ||
| 47312E - WAY, NO.2(FOR FRONT BRAKE TUBE) | ||||
| 90412-10300 |
TGN121..S..GCC;KUN122..RHD..(L,X);KUN112,122..TSC..(L,X)..(GCC,IDN);GUN122,TGN121..(L,M,X)..(HDCR,HTWC);KUN122..LHD..(SSC,TDC,TSC,TXT)..(M,S,X);GUN112,120,122,123,TGN11#,120..ARL,GCC,IDN,PH,SA,TH |
1 | ||
| 90412-10300 |
GUN122..PKN;KUN122..SDC;GGN120,KUN112..S;KUN122..RHD..(H,M,S);KUN122..LHD..(TDC,TXT)..L;GUN122,TGN121..S..(HDCR,HTWC)..(GEN,TH) |
1 | ||
| 47313 - TUBE, FRONT BRAKE, NO.3 | ||||
| 47313-KK060 |
KUN125..L..GCC;TGN126..BZAGT,SA;TGN13#..ADC..5F..M;KUN126..LHD..H..GEN;GUN125,135..LHD..IV3;GUN126..LHD..(GEN,SA);GUN125..LHD..(SXT,TXT);GUN135..LHD..(GEN,PH,VN);KUN135,TGN121..GEN,LA,VN;GUN125,126..6F..M..(PH,VN);KUN125,TGN138..LHD..(ADC,TXT)..L;GUN122,KUN122..LHD..DCR..(GEN,PH,SA);GUN125..LHD..(SDC,TDC)..S..(PH,SA,VN);TGN136..(ASC,TDC,TSC)..(M,X)..(GEN,LA);GUN122,125..LHD..(SSC,TDC)..X..HDCR..(GEN,SA)..CBU;KUN125..LHD..(ADC,ASC,SDC,SSC,TDC,TSC,TXT)..(M,S,X);GUN126,136,KUN112,126,136..LHD..(ADC,SDC,TDC,TSC)..(5F,5FC,6F)..(M,S,X)..(DCR,IART) VEHICLE STABILITY CONTROL-W(*HSAC & TRAILER SWAY CONTROL) |
1 | ||
| 47313-KK040 |
TGN138..L;TGN136..ADC..M;KUN125,135..LHD;GUN125,135..LHD..IV3;GUN126..LHD..(GEN,SA);GUN125,126..6F..M..(PH,VN);GUN122,KUN122..LHD..(GEN,PH,SA);GUN135,TGN121..LHD..(GEN,PH,VN);TGN136..(ASC,TDC,TSC)..(M,X)..(GEN,LA);TGN126,138..5F..(L,M,X)..(BZAGT,GEN,SA);GUN125,TGN126..LHD..(SDC,TDC)..S..(PH,SA,VN);GUN125,135..LHD..(ASC,SXT,TSC,TXT)..(GEN,LA,SA);GUN125,KUN126..LHD..(SSC,TDC)..(H,L,X)..(GEN,SA)..CBU;GUN126,136,KUN112,126,136,LAN125..LHD..(5F,5FC,6F)..(M,S,X)..(DCR,DEFI,IART) |
1 | ||
| 47313A - HOSE, FLEXIBLE, NO.1(FOR FRONT) | ||||
| 90947-T2094 |
GGN120,GUN112,120,122,123,KUN112,122,TGN11#,120,121 |
1 | ||
| 47313B - BOLT, UNION(FOR FRONT FLEXIBLE HOSE) | ||||
| 90401-10058 |
GGN120,GUN112,120,122,123,KUN112,122,TGN11#,120,121 |
2 | ||
| 47313B - BOLT, UNION(FOR FRONT FLEXIBLE HOSE) | ||||
| 90401-10058 |
GGN120,GUN112,120,122,123,KUN112,122,TGN11#,120,121 |
2 | ||
| 47313J - HOSE, FLEXIBLE, NO.2(FOR FRONT) | ||||
| 90947-T2095 |
GGN120,GUN112,120,122,123,KUN112,122,TGN11#,120,121 |
1 | ||
| 47313P - GASKET(FOR FRONT FLEXIBLE HOSE) | ||||
| 47389-50021 |
GGN120,GUN112,120,122,123,KUN112,122,TGN11#,120,121 |
2 | ||
| 47313P - GASKET(FOR FRONT FLEXIBLE HOSE) | ||||
| 47389-50021 |
GGN120,GUN112,120,122,123,KUN112,122,TGN11#,120,121 |
2 | ||
| 47314 - TUBE, FRONT BRAKE, NO.4 | ||||
| 47314-KK010 |
GGN120,GUN112,120,122,123,KUN112,122,TGN11#,120,121 |
1 | ||
| 47315 - TUBE, FRONT BRAKE, NO.5 | ||||
| 47315-KK040 |
TGN138..L;TGN136..ADC..M;KUN125,135..LHD;GUN125,135..LHD..IV3;GUN126..LHD..(GEN,SA);GUN125,126..6F..M..(PH,VN);GUN122,KUN122..LHD..(GEN,PH,SA);GUN135,TGN121..LHD..(GEN,PH,VN);TGN136..(ASC,TDC,TSC)..(M,X)..(GEN,LA);TGN126,138..5F..(L,M,X)..(BZAGT,GEN,SA);GUN125,TGN126..LHD..(SDC,TDC)..S..(PH,SA,VN);GUN125,135..LHD..(ASC,SXT,TSC,TXT)..(GEN,LA,SA);GUN125,KUN126..LHD..(SSC,TDC)..(H,L,X)..(GEN,SA)..CBU;GUN126,136,KUN112,126,136,LAN125..LHD..(5F,5FC,6F)..(M,S,X)..(DCR,DEFI,IART) |
1 | ||
| 47315-KK060 |
KUN125..L..GCC;TGN126..BZAGT,SA;TGN13#..ADC..5F..M;KUN126..LHD..H..GEN;GUN125,135..LHD..IV3;GUN126..LHD..(GEN,SA);GUN125..LHD..(SXT,TXT);GUN135..LHD..(GEN,PH,VN);KUN135,TGN121..GEN,LA,VN;GUN125,126..6F..M..(PH,VN);KUN125,TGN138..LHD..(ADC,TXT)..L;GUN122,KUN122..LHD..DCR..(GEN,PH,SA);GUN125..LHD..(SDC,TDC)..S..(PH,SA,VN);TGN136..(ASC,TDC,TSC)..(M,X)..(GEN,LA);GUN122,125..LHD..(SSC,TDC)..X..HDCR..(GEN,SA)..CBU;KUN125..LHD..(ADC,ASC,SDC,SSC,TDC,TSC,TXT)..(M,S,X);GUN126,136,KUN112,126,136..LHD..(ADC,SDC,TDC,TSC)..(5F,5FC,6F)..(M,S,X)..(DCR,IART) VEHICLE STABILITY CONTROL-W(*HSAC & TRAILER SWAY CONTROL) |
1 | ||
| 47316 - TUBE, FRONT BRAKE, NO.6 | ||||
| 47316-KK010 |
GGN120,GUN112,120,122,123,KUN112,122,TGN11#,120,121 |
1 | ||
| 47317 - TUBE, FRONT BRAKE, NO.7 | ||||
| 47321-KK030 |
TGN138..L;TGN136..ADC..M;KUN125,135..LHD;GUN125,135..LHD..IV3;GUN126..LHD..(GEN,SA);GUN125,126..6F..M..(PH,VN);GUN122,KUN122..LHD..(GEN,PH,SA);GUN135,TGN121..LHD..(GEN,PH,VN);TGN136..(ASC,TDC,TSC)..(M,X)..(GEN,LA);TGN126,138..5F..(L,M,X)..(BZAGT,GEN,SA);GUN125,TGN126..LHD..(SDC,TDC)..S..(PH,SA,VN);GUN125,135..LHD..(ASC,SXT,TSC,TXT)..(GEN,LA,SA);GUN125,KUN126..LHD..(SSC,TDC)..(H,L,X)..(GEN,SA)..CBU;GUN126,136,KUN112,126,136,LAN125..LHD..(5F,5FC,6F)..(M,S,X)..(DCR,DEFI,IART) |
1 | ||
| 47321-KK040 |
KUN125..L..GCC;TGN126..BZAGT,SA;TGN13#..ADC..5F..M;KUN126..LHD..H..GEN;GUN125,135..LHD..IV3;GUN126..LHD..(GEN,SA);GUN125..LHD..(SXT,TXT);GUN135..LHD..(GEN,PH,VN);KUN135,TGN121..GEN,LA,VN;GUN125,126..6F..M..(PH,VN);KUN125,TGN138..LHD..(ADC,TXT)..L;GUN122,KUN122..LHD..DCR..(GEN,PH,SA);GUN125..LHD..(SDC,TDC)..S..(PH,SA,VN);TGN136..(ASC,TDC,TSC)..(M,X)..(GEN,LA);GUN122,125..LHD..(SSC,TDC)..X..HDCR..(GEN,SA)..CBU;KUN125..LHD..(ADC,ASC,SDC,SSC,TDC,TSC,TXT)..(M,S,X);GUN126,136,KUN112,126,136..LHD..(ADC,SDC,TDC,TSC)..(5F,5FC,6F)..(M,S,X)..(DCR,IART) VEHICLE STABILITY CONTROL-W(*HSAC & TRAILER SWAY CONTROL) |
1 | ||
| 47318 - TUBE, FRONT BRAKE, NO.8 | ||||
| 47322-KK050 |
TGN138..L;TGN136..ADC..M;KUN125,135..LHD;GUN125,135..LHD..IV3;GUN126..LHD..(GEN,SA);GUN125,126..6F..M..(PH,VN);GUN122,KUN122..LHD..(GEN,PH,SA);GUN135,TGN121..LHD..(GEN,PH,VN);TGN136..(ASC,TDC,TSC)..(M,X)..(GEN,LA);TGN126,138..5F..(L,M,X)..(BZAGT,GEN,SA);GUN125,TGN126..LHD..(SDC,TDC)..S..(PH,SA,VN);GUN125,135..LHD..(ASC,SXT,TSC,TXT)..(GEN,LA,SA);GUN125,KUN126..LHD..(SSC,TDC)..(H,L,X)..(GEN,SA)..CBU;GUN126,136,KUN112,126,136,LAN125..LHD..(5F,5FC,6F)..(M,S,X)..(DCR,DEFI,IART) |
1 | ||
| 47322-KK040 |
KUN125..L..GCC;TGN126..BZAGT,SA;TGN13#..ADC..5F..M;KUN126..LHD..H..GEN;GUN125,135..LHD..IV3;GUN126..LHD..(GEN,SA);GUN125..LHD..(SXT,TXT);GUN135..LHD..(GEN,PH,VN);KUN135,TGN121..GEN,LA,VN;GUN125,126..6F..M..(PH,VN);KUN125,TGN138..LHD..(ADC,TXT)..L;GUN122,KUN122..LHD..DCR..(GEN,PH,SA);GUN125..LHD..(SDC,TDC)..S..(PH,SA,VN);TGN136..(ASC,TDC,TSC)..(M,X)..(GEN,LA);GUN122,125..LHD..(SSC,TDC)..X..HDCR..(GEN,SA)..CBU;KUN125..LHD..(ADC,ASC,SDC,SSC,TDC,TSC,TXT)..(M,S,X);GUN126,136,KUN112,126,136..LHD..(ADC,SDC,TDC,TSC)..(5F,5FC,6F)..(M,S,X)..(DCR,IART) VEHICLE STABILITY CONTROL-W(*HSAC & TRAILER SWAY CONTROL) |
1 | ||
| 47319 - TUBE, FRONT BRAKE, NO.9 | ||||
| 47323-KK080 |
KUN125..L..GCC;TGN126..BZAGT,SA;TGN13#..ADC..5F..M;KUN126..LHD..H..GEN;GUN125,135..LHD..IV3;GUN126..LHD..(GEN,SA);GUN125..LHD..(SXT,TXT);GUN135..LHD..(GEN,PH,VN);KUN135,TGN121..GEN,LA,VN;GUN125,126..6F..M..(PH,VN);KUN125,TGN138..LHD..(ADC,TXT)..L;GUN122,KUN122..LHD..DCR..(GEN,PH,SA);GUN125..LHD..(SDC,TDC)..S..(PH,SA,VN);TGN136..(ASC,TDC,TSC)..(M,X)..(GEN,LA);GUN122,125..LHD..(SSC,TDC)..X..HDCR..(GEN,SA)..CBU;KUN125..LHD..(ADC,ASC,SDC,SSC,TDC,TSC,TXT)..(M,S,X);GUN126,136,KUN112,126,136..LHD..(ADC,SDC,TDC,TSC)..(5F,5FC,6F)..(M,S,X)..(DCR,IART) VEHICLE STABILITY CONTROL-W(*HSAC & TRAILER SWAY CONTROL) |
1 | ||
| 47323-KK090 |
TGN138..L;TGN136..ADC..M;KUN125,135..LHD;GUN125,135..LHD..IV3;GUN126..LHD..(GEN,SA);GUN125,126..6F..M..(PH,VN);GUN122,KUN122..LHD..(GEN,PH,SA);GUN135,TGN121..LHD..(GEN,PH,VN);TGN136..(ASC,TDC,TSC)..(M,X)..(GEN,LA);TGN126,138..5F..(L,M,X)..(BZAGT,GEN,SA);GUN125,TGN126..LHD..(SDC,TDC)..S..(PH,SA,VN);GUN125,135..LHD..(ASC,SXT,TSC,TXT)..(GEN,LA,SA);GUN125,KUN126..LHD..(SSC,TDC)..(H,L,X)..(GEN,SA)..CBU;GUN126,136,KUN112,126,136,LAN125..LHD..(5F,5FC,6F)..(M,S,X)..(DCR,DEFI,IART) |
1 | ||
| 47321B - HOSE, FLEXIBLE(FOR REAR BRAKE TUBE) | ||||
| 90947-T2109 |
GGN120,GUN112,120,122,123,KUN112,122,TGN11#,120,121 NO.2:REFER ILLUST. |
1 | ||
| 90947-T2108 |
GGN120,GUN112,120,122,123,KUN112,122,TGN11#,120,121 NO.1:REFER ILLUST. |
1 | ||
| 47321B - HOSE, FLEXIBLE(FOR REAR BRAKE TUBE) | ||||
| 90947-T2109 |
GGN120,GUN112,120,122,123,KUN112,122,TGN11#,120,121 NO.2:REFER ILLUST. |
1 | ||
| 90947-T2108 |
GGN120,GUN112,120,122,123,KUN112,122,TGN11#,120,121 NO.1:REFER ILLUST. |
1 | ||
| 47324 - TUBE, REAR BRAKE, NO.4 | ||||
| 47324-KK010 |
GGN120,GUN120,122,123,KUN122,TGN120,121 |
1 | ||
| 47325 - TUBE, REAR BRAKE, NO.5 | ||||
| 47325-KK030 |
GGN120,GUN120,122,123,KUN122,TGN120,121 |
1 | ||
| 47327 - TUBE, REAR BRAKE, NO.7 | ||||
| 47327-KK030 |
KUN112,122,TGN110,120;GUN112,122,123,TGN121..5F..(IDN,PH,TH) |
1 | ||
| 47327-KK060 |
GUN120,122..6F,6FC;GGN120,GUN112,122,123,TGN111,121..ARL,GCC,GEN,PKN,SA |
1 | ||
| 47328 - TUBE, REAR BRAKE, NO.8 | ||||
| 47328-KK030 |
GGN120,GUN112,120,122,123,KUN112,122,TGN11#,120,121 |
1 | ||
| 47353A - BRACKET, FLEXIBLE HOSE, FRONT RH NO.2 | ||||
| 47353-0K011 |
GGN120,GUN112,120,122,123,KUN112,122,TGN11#,120,121 |
1 | ||
| 47354A - BRACKET, FLEXIBLE HOSE, FRONT LH NO.2 | ||||
| 47354-0K010 |
GGN120,GUN112,120,122,123,KUN112,122,TGN11#,120,121 |
1 | ||
| 47355A - BRACKET, FLEXIBLE HOSE, NO.5 | ||||
| 47355-KK020 |
GUN135..L..MA;GUN125..TDC..6FC..ARL;GUN125..ADC,ASC,SDC,SSC,SXT,TSC,TXT;GUN125..TDC..(GCC,GEN,IDN,LA,PH,TH,VN);GGN12#,135,GUN112,TGN136..ADC,ASC,SDC,TDC,TSC,TXT;GUN120,122,123,126,13#,KUN112,12#,13#,LAN125,TGN11#,120,121,126,128,138..ADC,ASC,PDC,PSC,SDC,SSC,SXT,TDC,TSC,TXT NO.1:REFER ILLUST. |
1 | ||
| 47355-KK060 |
GGN120,GUN112,120,122,123,KUN112,122,TGN11#,120,121 NO.2:REFER ILLUST. |
1 | ||
| 47355A - BRACKET, FLEXIBLE HOSE, NO.5 | ||||
| 47355-KK020 |
GUN135..L..MA;GUN125..TDC..6FC..ARL;GUN125..ADC,ASC,SDC,SSC,SXT,TSC,TXT;GUN125..TDC..(GCC,GEN,IDN,LA,PH,TH,VN);GGN12#,135,GUN112,TGN136..ADC,ASC,SDC,TDC,TSC,TXT;GUN120,122,123,126,13#,KUN112,12#,13#,LAN125,TGN11#,120,121,126,128,138..ADC,ASC,PDC,PSC,SDC,SSC,SXT,TDC,TSC,TXT NO.1:REFER ILLUST. |
1 | ||
| 47355-KK060 |
GGN120,GUN112,120,122,123,KUN112,122,TGN11#,120,121 NO.2:REFER ILLUST. |
1 | ||
| 47356 - BRACKET, FLEXIBLE HOSE, NO.6 | ||||
| 47356-KK040 |
GGN120,GUN112,120,122,123,KUN112,122,TGN11#,120,121 |
1 | ||
| 47371A - CLAMP, BRAKE TUBE, NO.1 | ||||
| 90461-T0007 |
GGN125,GUN112,122,125,126,13#,KUN112,12#,13#,LAN125,TGN11#,12#,13#..LHD |
1 | ||
| 47371D - CLAMP, BRAKE TUBE, NO.8 | ||||
| 90949-T1006 |
GUN135..H;GUN135..L..MA;GUN125..TDC..6FC..ARL;TGN136..ADC,ASC,SDC,TDC,TSC,TXT;GUN135..ARL,BZAGT,LA,PH,SA,TH,VN;GUN125..ADC,ASC,SDC,SSC,SXT,TSC,TXT;GUN125..TDC..(GCC,GEN,IDN,LA,PH,TH,VN);GGN12#,135,GUN120,122,123,126,136,KUN12#,13#,LAN125,TGN120,121,126,128,138..ADC,ASC,PDC,PSC,SDC,SSC,SXT,TDC,TSC,TXT |
7 | ||
| 47371E - CLAMP, BRAKE TUBE, NO.9 | ||||
| 90461-T0001 |
GUN135..L..MA;GUN125..TDC..6FC..ARL;GUN125..ADC,ASC,SDC,SSC,SXT,TSC,TXT;GUN125..TDC..(GCC,GEN,IDN,LA,PH,TH,VN);GGN12#,135,GUN112,TGN136..ADC,ASC,SDC,TDC,TSC,TXT;GUN120,122,123,126,13#,KUN112,12#,13#,LAN125,TGN11#,120,121,126,128,138..ADC,ASC,PDC,PSC,SDC,SSC,SXT,TDC,TSC,TXT |
4 | ||
| 47372 - CLAMP, BRAKE TUBE, NO.2 | ||||
| 90949-T1028 |
KUN125..L..GCC;TGN126..BZAGT,SA;TGN13#..ADC..5F..M;KUN126..LHD..H..GEN;GUN125,135..LHD..IV3;GUN126..LHD..(GEN,SA);GUN125..LHD..(SXT,TXT);GUN135..LHD..(GEN,PH,VN);KUN135,TGN121..GEN,LA,VN;GUN125,126..6F..M..(PH,VN);KUN125,TGN138..LHD..(ADC,TXT)..L;GUN122,KUN122..LHD..DCR..(GEN,PH,SA);GUN125..LHD..(SDC,TDC)..S..(PH,SA,VN);TGN136..(ASC,TDC,TSC)..(M,X)..(GEN,LA);GUN122,125..LHD..(SSC,TDC)..X..HDCR..(GEN,SA)..CBU;KUN125..LHD..(ADC,ASC,SDC,SSC,TDC,TSC,TXT)..(M,S,X);GUN126,136,KUN112,126,136..LHD..(ADC,SDC,TDC,TSC)..(5F,5FC,6F)..(M,S,X)..(DCR,IART) VEHICLE STABILITY CONTROL-W(*HSAC & TRAILER SWAY CONTROL) |
1 | ||
| 90949-T1029 |
TGN138..L;TGN136..ADC..M;KUN125,135..LHD;GUN125,135..LHD..IV3;GUN126..LHD..(GEN,SA);GUN125,126..6F..M..(PH,VN);GUN122,KUN122..LHD..(GEN,PH,SA);GUN135,TGN121..LHD..(GEN,PH,VN);TGN136..(ASC,TDC,TSC)..(M,X)..(GEN,LA);TGN126,138..5F..(L,M,X)..(BZAGT,GEN,SA);GUN125,TGN126..LHD..(SDC,TDC)..S..(PH,SA,VN);GUN125,135..LHD..(ASC,SXT,TSC,TXT)..(GEN,LA,SA);GUN125,KUN126..LHD..(SSC,TDC)..(H,L,X)..(GEN,SA)..CBU;GUN126,136,KUN112,126,136,LAN125..LHD..(5F,5FC,6F)..(M,S,X)..(DCR,DEFI,IART) |
1 | ||
| 47373A - BRACKET, TUBE CLAMP | ||||
| 90949-T2003 |
GGN125,GUN112,122,125,126,13#,KUN112,12#,13#,LAN125,TGN11#,12#,13#..LHD |
1 | ||
| 47373B - CLAMP, BRAKE TUBE, NO.3 | ||||
| 90949-T1030 |
GGN125,GUN112,122,125,126,13#,KUN112,12#,13#,LAN125,TGN11#,12#,13#..LHD |
4 | ||
| 47374B - CLAMP, BRAKE TUBE, NO.4 | ||||
| 90949-T1032 |
GGN125,GUN112,122,125,126,13#,KUN112,12#,13#,LAN125,TGN11#,12#,13#..LHD |
1 | ||
| 47375 - CLAMP, BRAKE TUBE, NO.5 | ||||
| 90949-T1031 |
GGN125,GUN112,122,125,126,13#,KUN112,12#,13#,LAN125,TGN11#,12#,13#..LHD |
1 | ||
| Common parts | ||||
| 90119-08868 | ||||
| 90119-T0126 | ||||
| 90119-T0319 | ||||
| 90119-T0423 | ||||
| 90468-T0004 | ||||
| Linked diagrams | ||||
| 4702 | ||||
| 7751 | ||||

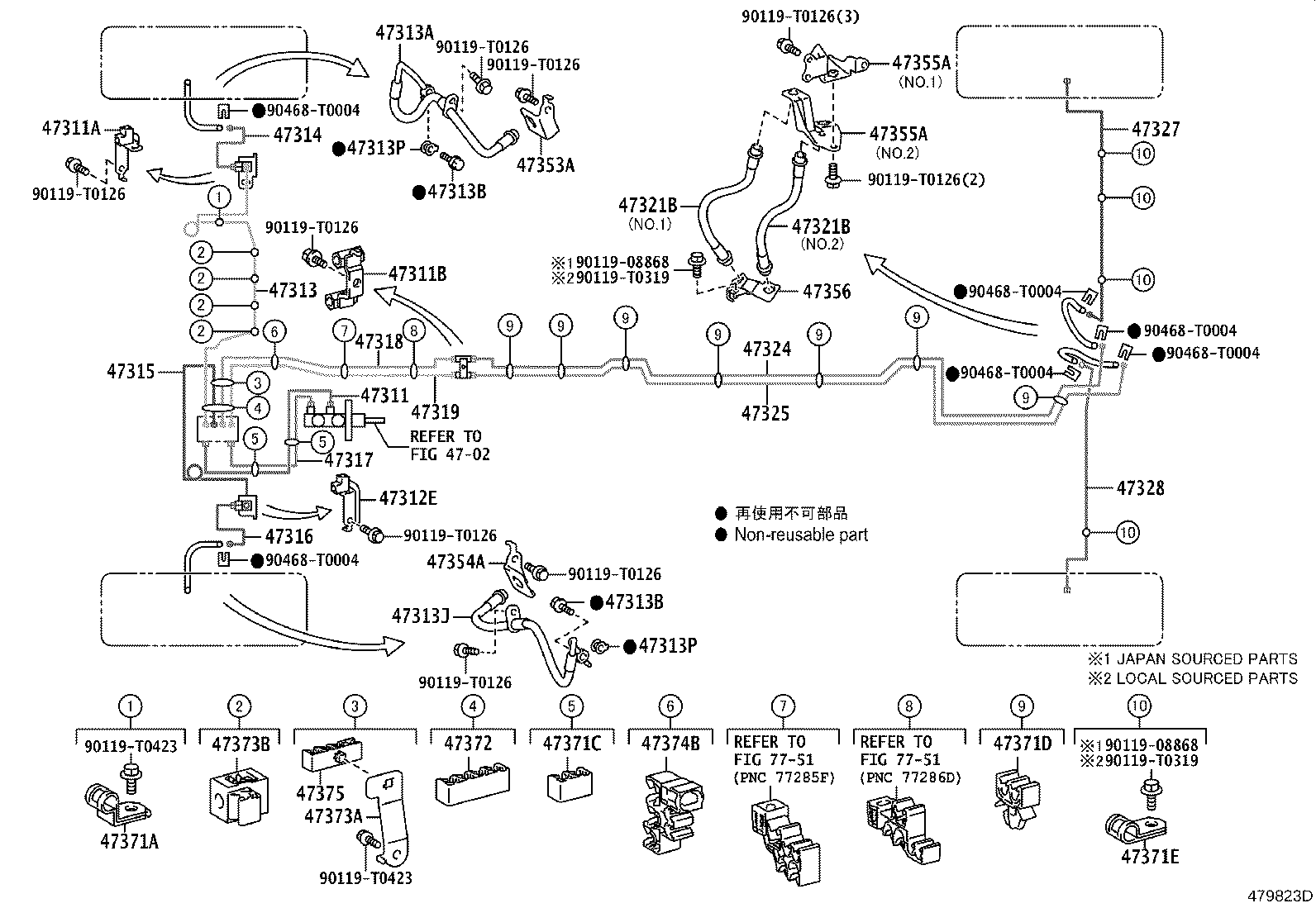

ILLUST NO. 1 OF 2(1505- )GUN122,KUN122,TGN120,121..LHD
BRAKE TUBE, W(VSC)
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 47311 - TUBE, FRONT BRAKE, NO.1 | ||||
| 47311-KK050 |
KUN125..L..GCC;TGN126..BZAGT,SA;TGN13#..ADC..5F..M;KUN126..LHD..H..GEN;GUN125,135..LHD..IV3;GUN126..LHD..(GEN,SA);GUN125..LHD..(SXT,TXT);GUN135..LHD..(GEN,PH,VN);KUN135,TGN121..GEN,LA,VN;GUN125,126..6F..M..(PH,VN);KUN125,TGN138..LHD..(ADC,TXT)..L;GUN122,KUN122..LHD..DCR..(GEN,PH,SA);GUN125..LHD..(SDC,TDC)..S..(PH,SA,VN);TGN136..(ASC,TDC,TSC)..(M,X)..(GEN,LA);GUN122,125..LHD..(SSC,TDC)..X..HDCR..(GEN,SA)..CBU;KUN125..LHD..(ADC,ASC,SDC,SSC,TDC,TSC,TXT)..(M,S,X);GUN126,136,KUN112,126,136..LHD..(ADC,SDC,TDC,TSC)..(5F,5FC,6F)..(M,S,X)..(DCR,IART) VEHICLE STABILITY CONTROL-W(*HSAC & TRAILER SWAY CONTROL) |
1 | ||
| 47311-KK060 |
TGN138..L;TGN136..ADC..M;KUN125,135..LHD;GUN125,135..LHD..IV3;GUN126..LHD..(GEN,SA);GUN125,126..6F..M..(PH,VN);GUN122,KUN122..LHD..(GEN,PH,SA);GUN135,TGN121..LHD..(GEN,PH,VN);TGN136..(ASC,TDC,TSC)..(M,X)..(GEN,LA);TGN126,138..5F..(L,M,X)..(BZAGT,GEN,SA);GUN125,TGN126..LHD..(SDC,TDC)..S..(PH,SA,VN);GUN125,135..LHD..(ASC,SXT,TSC,TXT)..(GEN,LA,SA);GUN125,KUN126..LHD..(SSC,TDC)..(H,L,X)..(GEN,SA)..CBU;GUN126,136,KUN112,126,136,LAN125..LHD..(5F,5FC,6F)..(M,S,X)..(DCR,DEFI,IART) |
1 | ||
| 47311A - WAY(FOR FRONT BRAKE TUBE) | ||||
| 90412-10299 |
TGN121..S..GCC;KUN122..RHD..(L,X);KUN112,122..TSC..(L,X)..(GCC,IDN);GUN122,TGN121..(L,M,X)..(HDCR,HTWC);KUN122..LHD..(SSC,TDC,TSC,TXT)..(M,S,X);GUN112,120,122,123,TGN11#,120..ARL,GCC,IDN,PH,SA,TH |
1 | ||
| 90412-10299 |
GUN122..PKN;KUN122..SDC;GGN120,KUN112..S;KUN122..RHD..(H,M,S);KUN122..LHD..(TDC,TXT)..L;GUN122,TGN121..S..(HDCR,HTWC)..(GEN,TH) |
1 | ||
| 47311B - WAY, NO.1(FOR FRONT BRAKE TUBE) | ||||
| 90412-10301 |
KUN125,126;TGN136..ADC..M;GUN135..6F..L..MA;KUN122..RHD..(H,M,S);TGN136..(ASC,TSC)..LA;TGN136..(TDC,TXT)..(M,S);KUN122..LHD..(TDC,TXT)..L;GUN126,135..6F..(M,S)..VN;GUN126,TGN126..6FC..L..GEN;GUN122,TGN138..L..(BZAGT,PKN);GUN125,135..(ASC,TXT)..6F..IV3;GUN125,TGN126..(ADC,TSC)..(5F,6FC)..(ARL,BZAGT);GGN135,KUN112,135..(H,M,S,X)..(GCC,GEN,LA,SA,VN);GUN126,KUN122..(ADC,SDC)..MTM..(M,S,X)..(DCR,IART);GUN122,126..(TSC,TXT)..MTM..(M,S)..HDCR..(ARL,GEN)..CBU;GGN12#,GUN136,KUN136,LAN125,TGN121..(ADC,SSC,TDC)..(M,S)..(DCR,DEFI,HTWC,IART)..(ARL,BZAGT,GEN,LA,SA,TH) |
1 | ||
| 47312E - WAY, NO.2(FOR FRONT BRAKE TUBE) | ||||
| 90412-10300 |
TGN121..S..GCC;KUN122..RHD..(L,X);KUN112,122..TSC..(L,X)..(GCC,IDN);GUN122,TGN121..(L,M,X)..(HDCR,HTWC);KUN122..LHD..(SSC,TDC,TSC,TXT)..(M,S,X);GUN112,120,122,123,TGN11#,120..ARL,GCC,IDN,PH,SA,TH |
1 | ||
| 90412-10300 |
GUN122..PKN;KUN122..SDC;GGN120,KUN112..S;KUN122..RHD..(H,M,S);KUN122..LHD..(TDC,TXT)..L;GUN122,TGN121..S..(HDCR,HTWC)..(GEN,TH) |
1 | ||
| 47313 - TUBE, FRONT BRAKE, NO.3 | ||||
| 47313-KK060 |
KUN125..L..GCC;TGN126..BZAGT,SA;TGN13#..ADC..5F..M;KUN126..LHD..H..GEN;GUN125,135..LHD..IV3;GUN126..LHD..(GEN,SA);GUN125..LHD..(SXT,TXT);GUN135..LHD..(GEN,PH,VN);KUN135,TGN121..GEN,LA,VN;GUN125,126..6F..M..(PH,VN);KUN125,TGN138..LHD..(ADC,TXT)..L;GUN122,KUN122..LHD..DCR..(GEN,PH,SA);GUN125..LHD..(SDC,TDC)..S..(PH,SA,VN);TGN136..(ASC,TDC,TSC)..(M,X)..(GEN,LA);GUN122,125..LHD..(SSC,TDC)..X..HDCR..(GEN,SA)..CBU;KUN125..LHD..(ADC,ASC,SDC,SSC,TDC,TSC,TXT)..(M,S,X);GUN126,136,KUN112,126,136..LHD..(ADC,SDC,TDC,TSC)..(5F,5FC,6F)..(M,S,X)..(DCR,IART) VEHICLE STABILITY CONTROL-W(*HSAC & TRAILER SWAY CONTROL) |
1 | ||
| 47313-KK040 |
TGN138..L;TGN136..ADC..M;KUN125,135..LHD;GUN125,135..LHD..IV3;GUN126..LHD..(GEN,SA);GUN125,126..6F..M..(PH,VN);GUN122,KUN122..LHD..(GEN,PH,SA);GUN135,TGN121..LHD..(GEN,PH,VN);TGN136..(ASC,TDC,TSC)..(M,X)..(GEN,LA);TGN126,138..5F..(L,M,X)..(BZAGT,GEN,SA);GUN125,TGN126..LHD..(SDC,TDC)..S..(PH,SA,VN);GUN125,135..LHD..(ASC,SXT,TSC,TXT)..(GEN,LA,SA);GUN125,KUN126..LHD..(SSC,TDC)..(H,L,X)..(GEN,SA)..CBU;GUN126,136,KUN112,126,136,LAN125..LHD..(5F,5FC,6F)..(M,S,X)..(DCR,DEFI,IART) |
1 | ||
| 47313A - HOSE, FLEXIBLE, NO.1(FOR FRONT) | ||||
| 90947-T2094 |
GGN120,GUN112,120,122,123,KUN112,122,TGN11#,120,121 |
1 | ||
| 47313B - BOLT, UNION(FOR FRONT FLEXIBLE HOSE) | ||||
| 90401-10058 |
GGN120,GUN112,120,122,123,KUN112,122,TGN11#,120,121 |
2 | ||
| 47313B - BOLT, UNION(FOR FRONT FLEXIBLE HOSE) | ||||
| 90401-10058 |
GGN120,GUN112,120,122,123,KUN112,122,TGN11#,120,121 |
2 | ||
| 47313J - HOSE, FLEXIBLE, NO.2(FOR FRONT) | ||||
| 90947-T2095 |
GGN120,GUN112,120,122,123,KUN112,122,TGN11#,120,121 |
1 | ||
| 47313P - GASKET(FOR FRONT FLEXIBLE HOSE) | ||||
| 47389-50021 |
GGN120,GUN112,120,122,123,KUN112,122,TGN11#,120,121 |
2 | ||
| 47313P - GASKET(FOR FRONT FLEXIBLE HOSE) | ||||
| 47389-50021 |
GGN120,GUN112,120,122,123,KUN112,122,TGN11#,120,121 |
2 | ||
| 47314 - TUBE, FRONT BRAKE, NO.4 | ||||
| 47314-KK010 |
GGN120,GUN112,120,122,123,KUN112,122,TGN11#,120,121 |
1 | ||
| 47315 - TUBE, FRONT BRAKE, NO.5 | ||||
| 47315-KK040 |
TGN138..L;TGN136..ADC..M;KUN125,135..LHD;GUN125,135..LHD..IV3;GUN126..LHD..(GEN,SA);GUN125,126..6F..M..(PH,VN);GUN122,KUN122..LHD..(GEN,PH,SA);GUN135,TGN121..LHD..(GEN,PH,VN);TGN136..(ASC,TDC,TSC)..(M,X)..(GEN,LA);TGN126,138..5F..(L,M,X)..(BZAGT,GEN,SA);GUN125,TGN126..LHD..(SDC,TDC)..S..(PH,SA,VN);GUN125,135..LHD..(ASC,SXT,TSC,TXT)..(GEN,LA,SA);GUN125,KUN126..LHD..(SSC,TDC)..(H,L,X)..(GEN,SA)..CBU;GUN126,136,KUN112,126,136,LAN125..LHD..(5F,5FC,6F)..(M,S,X)..(DCR,DEFI,IART) |
1 | ||
| 47315-KK060 |
KUN125..L..GCC;TGN126..BZAGT,SA;TGN13#..ADC..5F..M;KUN126..LHD..H..GEN;GUN125,135..LHD..IV3;GUN126..LHD..(GEN,SA);GUN125..LHD..(SXT,TXT);GUN135..LHD..(GEN,PH,VN);KUN135,TGN121..GEN,LA,VN;GUN125,126..6F..M..(PH,VN);KUN125,TGN138..LHD..(ADC,TXT)..L;GUN122,KUN122..LHD..DCR..(GEN,PH,SA);GUN125..LHD..(SDC,TDC)..S..(PH,SA,VN);TGN136..(ASC,TDC,TSC)..(M,X)..(GEN,LA);GUN122,125..LHD..(SSC,TDC)..X..HDCR..(GEN,SA)..CBU;KUN125..LHD..(ADC,ASC,SDC,SSC,TDC,TSC,TXT)..(M,S,X);GUN126,136,KUN112,126,136..LHD..(ADC,SDC,TDC,TSC)..(5F,5FC,6F)..(M,S,X)..(DCR,IART) VEHICLE STABILITY CONTROL-W(*HSAC & TRAILER SWAY CONTROL) |
1 | ||
| 47316 - TUBE, FRONT BRAKE, NO.6 | ||||
| 47316-KK010 |
GGN120,GUN112,120,122,123,KUN112,122,TGN11#,120,121 |
1 | ||
| 47317 - TUBE, FRONT BRAKE, NO.7 | ||||
| 47321-KK030 |
TGN138..L;TGN136..ADC..M;KUN125,135..LHD;GUN125,135..LHD..IV3;GUN126..LHD..(GEN,SA);GUN125,126..6F..M..(PH,VN);GUN122,KUN122..LHD..(GEN,PH,SA);GUN135,TGN121..LHD..(GEN,PH,VN);TGN136..(ASC,TDC,TSC)..(M,X)..(GEN,LA);TGN126,138..5F..(L,M,X)..(BZAGT,GEN,SA);GUN125,TGN126..LHD..(SDC,TDC)..S..(PH,SA,VN);GUN125,135..LHD..(ASC,SXT,TSC,TXT)..(GEN,LA,SA);GUN125,KUN126..LHD..(SSC,TDC)..(H,L,X)..(GEN,SA)..CBU;GUN126,136,KUN112,126,136,LAN125..LHD..(5F,5FC,6F)..(M,S,X)..(DCR,DEFI,IART) |
1 | ||
| 47321-KK040 |
KUN125..L..GCC;TGN126..BZAGT,SA;TGN13#..ADC..5F..M;KUN126..LHD..H..GEN;GUN125,135..LHD..IV3;GUN126..LHD..(GEN,SA);GUN125..LHD..(SXT,TXT);GUN135..LHD..(GEN,PH,VN);KUN135,TGN121..GEN,LA,VN;GUN125,126..6F..M..(PH,VN);KUN125,TGN138..LHD..(ADC,TXT)..L;GUN122,KUN122..LHD..DCR..(GEN,PH,SA);GUN125..LHD..(SDC,TDC)..S..(PH,SA,VN);TGN136..(ASC,TDC,TSC)..(M,X)..(GEN,LA);GUN122,125..LHD..(SSC,TDC)..X..HDCR..(GEN,SA)..CBU;KUN125..LHD..(ADC,ASC,SDC,SSC,TDC,TSC,TXT)..(M,S,X);GUN126,136,KUN112,126,136..LHD..(ADC,SDC,TDC,TSC)..(5F,5FC,6F)..(M,S,X)..(DCR,IART) VEHICLE STABILITY CONTROL-W(*HSAC & TRAILER SWAY CONTROL) |
1 | ||
| 47318 - TUBE, FRONT BRAKE, NO.8 | ||||
| 47322-KK050 |
TGN138..L;TGN136..ADC..M;KUN125,135..LHD;GUN125,135..LHD..IV3;GUN126..LHD..(GEN,SA);GUN125,126..6F..M..(PH,VN);GUN122,KUN122..LHD..(GEN,PH,SA);GUN135,TGN121..LHD..(GEN,PH,VN);TGN136..(ASC,TDC,TSC)..(M,X)..(GEN,LA);TGN126,138..5F..(L,M,X)..(BZAGT,GEN,SA);GUN125,TGN126..LHD..(SDC,TDC)..S..(PH,SA,VN);GUN125,135..LHD..(ASC,SXT,TSC,TXT)..(GEN,LA,SA);GUN125,KUN126..LHD..(SSC,TDC)..(H,L,X)..(GEN,SA)..CBU;GUN126,136,KUN112,126,136,LAN125..LHD..(5F,5FC,6F)..(M,S,X)..(DCR,DEFI,IART) |
1 | ||
| 47322-KK040 |
KUN125..L..GCC;TGN126..BZAGT,SA;TGN13#..ADC..5F..M;KUN126..LHD..H..GEN;GUN125,135..LHD..IV3;GUN126..LHD..(GEN,SA);GUN125..LHD..(SXT,TXT);GUN135..LHD..(GEN,PH,VN);KUN135,TGN121..GEN,LA,VN;GUN125,126..6F..M..(PH,VN);KUN125,TGN138..LHD..(ADC,TXT)..L;GUN122,KUN122..LHD..DCR..(GEN,PH,SA);GUN125..LHD..(SDC,TDC)..S..(PH,SA,VN);TGN136..(ASC,TDC,TSC)..(M,X)..(GEN,LA);GUN122,125..LHD..(SSC,TDC)..X..HDCR..(GEN,SA)..CBU;KUN125..LHD..(ADC,ASC,SDC,SSC,TDC,TSC,TXT)..(M,S,X);GUN126,136,KUN112,126,136..LHD..(ADC,SDC,TDC,TSC)..(5F,5FC,6F)..(M,S,X)..(DCR,IART) VEHICLE STABILITY CONTROL-W(*HSAC & TRAILER SWAY CONTROL) |
1 | ||
| 47319 - TUBE, FRONT BRAKE, NO.9 | ||||
| 47323-KK080 |
KUN125..L..GCC;TGN126..BZAGT,SA;TGN13#..ADC..5F..M;KUN126..LHD..H..GEN;GUN125,135..LHD..IV3;GUN126..LHD..(GEN,SA);GUN125..LHD..(SXT,TXT);GUN135..LHD..(GEN,PH,VN);KUN135,TGN121..GEN,LA,VN;GUN125,126..6F..M..(PH,VN);KUN125,TGN138..LHD..(ADC,TXT)..L;GUN122,KUN122..LHD..DCR..(GEN,PH,SA);GUN125..LHD..(SDC,TDC)..S..(PH,SA,VN);TGN136..(ASC,TDC,TSC)..(M,X)..(GEN,LA);GUN122,125..LHD..(SSC,TDC)..X..HDCR..(GEN,SA)..CBU;KUN125..LHD..(ADC,ASC,SDC,SSC,TDC,TSC,TXT)..(M,S,X);GUN126,136,KUN112,126,136..LHD..(ADC,SDC,TDC,TSC)..(5F,5FC,6F)..(M,S,X)..(DCR,IART) VEHICLE STABILITY CONTROL-W(*HSAC & TRAILER SWAY CONTROL) |
1 | ||
| 47323-KK090 |
TGN138..L;TGN136..ADC..M;KUN125,135..LHD;GUN125,135..LHD..IV3;GUN126..LHD..(GEN,SA);GUN125,126..6F..M..(PH,VN);GUN122,KUN122..LHD..(GEN,PH,SA);GUN135,TGN121..LHD..(GEN,PH,VN);TGN136..(ASC,TDC,TSC)..(M,X)..(GEN,LA);TGN126,138..5F..(L,M,X)..(BZAGT,GEN,SA);GUN125,TGN126..LHD..(SDC,TDC)..S..(PH,SA,VN);GUN125,135..LHD..(ASC,SXT,TSC,TXT)..(GEN,LA,SA);GUN125,KUN126..LHD..(SSC,TDC)..(H,L,X)..(GEN,SA)..CBU;GUN126,136,KUN112,126,136,LAN125..LHD..(5F,5FC,6F)..(M,S,X)..(DCR,DEFI,IART) |
1 | ||
| 47321B - HOSE, FLEXIBLE(FOR REAR BRAKE TUBE) | ||||
| 90947-T2109 |
GGN120,GUN112,120,122,123,KUN112,122,TGN11#,120,121 NO.2:REFER ILLUST. |
1 | ||
| 90947-T2108 |
GGN120,GUN112,120,122,123,KUN112,122,TGN11#,120,121 NO.1:REFER ILLUST. |
1 | ||
| 47321B - HOSE, FLEXIBLE(FOR REAR BRAKE TUBE) | ||||
| 90947-T2109 |
GGN120,GUN112,120,122,123,KUN112,122,TGN11#,120,121 NO.2:REFER ILLUST. |
1 | ||
| 90947-T2108 |
GGN120,GUN112,120,122,123,KUN112,122,TGN11#,120,121 NO.1:REFER ILLUST. |
1 | ||
| 47324 - TUBE, REAR BRAKE, NO.4 | ||||
| 47324-KK010 |
GGN120,GUN120,122,123,KUN122,TGN120,121 |
1 | ||
| 47325 - TUBE, REAR BRAKE, NO.5 | ||||
| 47325-KK030 |
GGN120,GUN120,122,123,KUN122,TGN120,121 |
1 | ||
| 47327 - TUBE, REAR BRAKE, NO.7 | ||||
| 47327-KK030 |
KUN112,122,TGN110,120;GUN112,122,123,TGN121..5F..(IDN,PH,TH) |
1 | ||
| 47327-KK060 |
GUN120,122..6F,6FC;GGN120,GUN112,122,123,TGN111,121..ARL,GCC,GEN,PKN,SA |
1 | ||
| 47328 - TUBE, REAR BRAKE, NO.8 | ||||
| 47328-KK030 |
GGN120,GUN112,120,122,123,KUN112,122,TGN11#,120,121 |
1 | ||
| 47353A - BRACKET, FLEXIBLE HOSE, FRONT RH NO.2 | ||||
| 47353-0K011 |
GGN120,GUN112,120,122,123,KUN112,122,TGN11#,120,121 |
1 | ||
| 47354A - BRACKET, FLEXIBLE HOSE, FRONT LH NO.2 | ||||
| 47354-0K010 |
GGN120,GUN112,120,122,123,KUN112,122,TGN11#,120,121 |
1 | ||
| 47355A - BRACKET, FLEXIBLE HOSE, NO.5 | ||||
| 47355-KK020 |
GUN135..L..MA;GUN125..TDC..6FC..ARL;GUN125..ADC,ASC,SDC,SSC,SXT,TSC,TXT;GUN125..TDC..(GCC,GEN,IDN,LA,PH,TH,VN);GGN12#,135,GUN112,TGN136..ADC,ASC,SDC,TDC,TSC,TXT;GUN120,122,123,126,13#,KUN112,12#,13#,LAN125,TGN11#,120,121,126,128,138..ADC,ASC,PDC,PSC,SDC,SSC,SXT,TDC,TSC,TXT NO.1:REFER ILLUST. |
1 | ||
| 47355-KK060 |
GGN120,GUN112,120,122,123,KUN112,122,TGN11#,120,121 NO.2:REFER ILLUST. |
1 | ||
| 47355A - BRACKET, FLEXIBLE HOSE, NO.5 | ||||
| 47355-KK020 |
GUN135..L..MA;GUN125..TDC..6FC..ARL;GUN125..ADC,ASC,SDC,SSC,SXT,TSC,TXT;GUN125..TDC..(GCC,GEN,IDN,LA,PH,TH,VN);GGN12#,135,GUN112,TGN136..ADC,ASC,SDC,TDC,TSC,TXT;GUN120,122,123,126,13#,KUN112,12#,13#,LAN125,TGN11#,120,121,126,128,138..ADC,ASC,PDC,PSC,SDC,SSC,SXT,TDC,TSC,TXT NO.1:REFER ILLUST. |
1 | ||
| 47355-KK060 |
GGN120,GUN112,120,122,123,KUN112,122,TGN11#,120,121 NO.2:REFER ILLUST. |
1 | ||
| 47356 - BRACKET, FLEXIBLE HOSE, NO.6 | ||||
| 47356-KK040 |
GGN120,GUN112,120,122,123,KUN112,122,TGN11#,120,121 |
1 | ||
| 47371A - CLAMP, BRAKE TUBE, NO.1 | ||||
| 90461-T0007 |
GGN125,GUN112,122,125,126,13#,KUN112,12#,13#,LAN125,TGN11#,12#,13#..LHD |
1 | ||
| 47371C - CLAMP, BRAKE TUBE, NO.7 | ||||
| 90949-T1033 |
TGN138..L;GUN125..X..GEN;TGN136..ADC..M..LA;GUN125,135..LHD..IV3;KUN122..LHD..(GEN,SA);GUN136..(H,S)..(SA,TH);GUN125..LHD..(SXT,TXT);KUN122..RHD..(S,X)..GEN;KUN125..LHD..TDC..M..GEN;GUN126,KUN126..LHD..H..GEN;GUN126..(L,S,X)..(GEN,SA,TH);GUN122,126..TDC..MTM..(PH,TH);GUN125..6F..(IDN,MA,PH,TH,VN);KUN125..(H,S,X)..(GEN,IDN,LA);GUN135..(L,M,S)..(PH,SA,TH,VN);GUN125,KUN125..LHD..SDC..6F..S;GUN125..6FC..(L,S)..(GEN,MA,SA);GUN122,135..TDC..(H,M,S,X)..GEN;KUN125..LHD..(SSC,TDC)..(GCC,SA);GUN125..RHD..TDC..6F..(L,M)..GEN;GUN135,KUN122..RHD..(MDC,TSC)..L;GUN125..RHD..6F..(H,S)..(GEN,SA);KUN125..RHD..(TDC,TXT)..6F..(L,M);TGN136..(ASC,TDC,TSC)..(M,X)..(GEN,LA);KUN126,TGN121..(L,M,S,X)..(GEN,LA,TH,VN);GUN126,KUN125,126..LHD..(SDC,TXT)..(L,M,X);GUN126,136..(SSC,TDC,TXT)..M..(GEN,SA,TH,VN);TGN136..(ADC,SDC,TDC,TXT)..(M,S)..(BZAGT,SA,TH);GUN126,136,KUN112..(ADC,TSC)..MTM..(M,S,X)..(DCR,IART);GUN125,TGN138..LHD..(ADC,SSC)..MTM..(M,X)..(BZAGT,SA)..CBU;GUN122,TGN126..(ADC,SDC,SSC,TSC,TXT)..(DCR,HTWC)..(BZAGT,GEN,PH,SA,TH);GUN112,120,123,KUN13#,TGN110,120..(ADC,ASC,SSC,TDC,TSC,TXT)..(GEN,IDN,LA,SA,TH,VN) VEHICLE STABILITY CONTROL-W(*HSAC & TRAILER SWAY CONTROL) |
2 | ||
| 47371D - CLAMP, BRAKE TUBE, NO.8 | ||||
| 90949-T1006 |
GUN135..H;GUN135..L..MA;GUN125..TDC..6FC..ARL;TGN136..ADC,ASC,SDC,TDC,TSC,TXT;GUN135..ARL,BZAGT,LA,PH,SA,TH,VN;GUN125..ADC,ASC,SDC,SSC,SXT,TSC,TXT;GUN125..TDC..(GCC,GEN,IDN,LA,PH,TH,VN);GGN12#,135,GUN120,122,123,126,136,KUN12#,13#,LAN125,TGN120,121,126,128,138..ADC,ASC,PDC,PSC,SDC,SSC,SXT,TDC,TSC,TXT |
7 | ||
| 47371E - CLAMP, BRAKE TUBE, NO.9 | ||||
| 90461-T0001 |
GUN135..L..MA;GUN125..TDC..6FC..ARL;GUN125..ADC,ASC,SDC,SSC,SXT,TSC,TXT;GUN125..TDC..(GCC,GEN,IDN,LA,PH,TH,VN);GGN12#,135,GUN112,TGN136..ADC,ASC,SDC,TDC,TSC,TXT;GUN120,122,123,126,13#,KUN112,12#,13#,LAN125,TGN11#,120,121,126,128,138..ADC,ASC,PDC,PSC,SDC,SSC,SXT,TDC,TSC,TXT |
4 | ||
| 47372 - CLAMP, BRAKE TUBE, NO.2 | ||||
| 90949-T1028 |
KUN125..L..GCC;TGN126..BZAGT,SA;TGN13#..ADC..5F..M;KUN126..LHD..H..GEN;GUN125,135..LHD..IV3;GUN126..LHD..(GEN,SA);GUN125..LHD..(SXT,TXT);GUN135..LHD..(GEN,PH,VN);KUN135,TGN121..GEN,LA,VN;GUN125,126..6F..M..(PH,VN);KUN125,TGN138..LHD..(ADC,TXT)..L;GUN122,KUN122..LHD..DCR..(GEN,PH,SA);GUN125..LHD..(SDC,TDC)..S..(PH,SA,VN);TGN136..(ASC,TDC,TSC)..(M,X)..(GEN,LA);GUN122,125..LHD..(SSC,TDC)..X..HDCR..(GEN,SA)..CBU;KUN125..LHD..(ADC,ASC,SDC,SSC,TDC,TSC,TXT)..(M,S,X);GUN126,136,KUN112,126,136..LHD..(ADC,SDC,TDC,TSC)..(5F,5FC,6F)..(M,S,X)..(DCR,IART) VEHICLE STABILITY CONTROL-W(*HSAC & TRAILER SWAY CONTROL) |
1 | ||
| 90949-T1029 |
TGN138..L;TGN136..ADC..M;KUN125,135..LHD;GUN125,135..LHD..IV3;GUN126..LHD..(GEN,SA);GUN125,126..6F..M..(PH,VN);GUN122,KUN122..LHD..(GEN,PH,SA);GUN135,TGN121..LHD..(GEN,PH,VN);TGN136..(ASC,TDC,TSC)..(M,X)..(GEN,LA);TGN126,138..5F..(L,M,X)..(BZAGT,GEN,SA);GUN125,TGN126..LHD..(SDC,TDC)..S..(PH,SA,VN);GUN125,135..LHD..(ASC,SXT,TSC,TXT)..(GEN,LA,SA);GUN125,KUN126..LHD..(SSC,TDC)..(H,L,X)..(GEN,SA)..CBU;GUN126,136,KUN112,126,136,LAN125..LHD..(5F,5FC,6F)..(M,S,X)..(DCR,DEFI,IART) |
1 | ||
| 47373A - BRACKET, TUBE CLAMP | ||||
| 90949-T2003 |
GGN125,GUN112,122,125,126,13#,KUN112,12#,13#,LAN125,TGN11#,12#,13#..LHD |
1 | ||
| 47373B - CLAMP, BRAKE TUBE, NO.3 | ||||
| 90949-T1030 |
GGN125,GUN112,122,125,126,13#,KUN112,12#,13#,LAN125,TGN11#,12#,13#..LHD |
4 | ||
| 47374B - CLAMP, BRAKE TUBE, NO.4 | ||||
| 90949-T1032 |
GGN125,GUN112,122,125,126,13#,KUN112,12#,13#,LAN125,TGN11#,12#,13#..LHD |
1 | ||
| 47375 - CLAMP, BRAKE TUBE, NO.5 | ||||
| 90949-T1031 |
GGN125,GUN112,122,125,126,13#,KUN112,12#,13#,LAN125,TGN11#,12#,13#..LHD |
1 | ||
| Common parts | ||||
| 90119-08868 | ||||
| 90119-T0126 | ||||
| 90119-T0319 | ||||
| 90119-T0423 | ||||
| 90468-T0004 | ||||
| Linked diagrams | ||||
| 4702 | ||||
| 7751 | ||||
ILLUST NO. 2 OF 2(1505- )LHD
BRAKE ACTUATOR
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 44510 - ACTUATOR ASSY, BRAKE | ||||
| 44050-0K020 |
GUN122..TSC..HDCR;GUN122,TGN120..5F..X..(SA,TH);KUN122..LHD..(SSC,TXT)..(M,X);KUN122..(SDC,TSC,TXT)..(L,S,X)..(GEN,SA) VEHICLE STABILITY CONTROL-W(*HSAC & TRAILER SWAY CONTROL)&TIRE & DISC WHEEL-215/65R16C STEEL |
1 | ||
| 44050-0K020 |
TGN121..GEN,TH;GUN122..TSC..HDCR;GUN122..DCR..(GEN,PH,PKN,SA,TH);GUN120,123,KUN122,TGN120..GEN,PKN,SA,TH |
1 | ||
| 44540A - ACTUATOR ASSY, VSC | ||||
| 44050-71420 |
KUN122..SDC,TXT;GUN122..(SDC,TXT)..X;GUN122,TGN121..L..(GEN,PH) VEHICLE STABILITY CONTROL-W(*HSAC & TRAILER SWAY CONTROL)&TIRE & DISC WHEEL-215/65R16C STEEL |
1 | ||
| 44546A - CUSHION, BRAKE ACTUATOR BOLT | ||||
| 44546-12120 |
GUN126,136..ADC,ASC,SSC;GUN122,125,135,KUN12#,13#,LAN125,TGN12#,13#..ADC,ASC,SDC,SSC,SXT |
3 | ||
| 44546-12120 |
GUN135..ADC..X;GUN135..X..BZAGT;GUN126..ADC..M..LA;GUN126..SSC..6F..M;TGN136..ADC,ASC,SDC;GUN125..LHD..SSC..S;GUN125..(ADC,ASC)..6F;GUN126..ADC..6F..S..LA;GUN125..LHD..SDC..(M,X);GUN125..RHD..6F..S..SA..CBU;GUN126,TGN138..(6F,6FC)..BZAGT;GUN135..(ADC,SDC,SSC,SXT)..6F..(L,S);GUN136..(ADC,SSC)..6F..(M,S)..(BZAGT,SA);GUN122,KUN122,LAN125,TGN120,121,126,128..(ADC,ASC,SDC,SSC)..CBU (J) |
3 | ||
| 44546-0K010 |
GUN135..ADC..X;GUN135..X..BZAGT;GUN126..ADC..M..LA;GUN126..SSC..6F..M;TGN136..ADC,ASC,SDC;GUN125..LHD..SSC..S;GUN125..(ADC,ASC)..6F;GUN126..ADC..6F..S..LA;GUN125..LHD..SDC..(M,X);GUN125..RHD..6F..S..SA..CBU;GUN126,TGN138..(6F,6FC)..BZAGT;GUN135..(ADC,SDC,SSC,SXT)..6F..(L,S);GUN136..(ADC,SSC)..6F..(M,S)..(BZAGT,SA);GUN122,KUN122,LAN125,TGN120,121,126,128..(ADC,ASC,SDC,SSC)..CBU (L) |
3 | ||
| 44546A - CUSHION, BRAKE ACTUATOR BOLT | ||||
| 44546-12120 |
GUN126,136..ADC,ASC,SSC;GUN122,125,135,KUN12#,13#,LAN125,TGN12#,13#..ADC,ASC,SDC,SSC,SXT |
3 | ||
| 44546-12120 |
GUN135..ADC..X;GUN135..X..BZAGT;GUN126..ADC..M..LA;GUN126..SSC..6F..M;TGN136..ADC,ASC,SDC;GUN125..LHD..SSC..S;GUN125..(ADC,ASC)..6F;GUN126..ADC..6F..S..LA;GUN125..LHD..SDC..(M,X);GUN125..RHD..6F..S..SA..CBU;GUN126,TGN138..(6F,6FC)..BZAGT;GUN135..(ADC,SDC,SSC,SXT)..6F..(L,S);GUN136..(ADC,SSC)..6F..(M,S)..(BZAGT,SA);GUN122,KUN122,LAN125,TGN120,121,126,128..(ADC,ASC,SDC,SSC)..CBU (J) |
3 | ||
| 44546-0K010 |
GUN135..ADC..X;GUN135..X..BZAGT;GUN126..ADC..M..LA;GUN126..SSC..6F..M;TGN136..ADC,ASC,SDC;GUN125..LHD..SSC..S;GUN125..(ADC,ASC)..6F;GUN126..ADC..6F..S..LA;GUN125..LHD..SDC..(M,X);GUN125..RHD..6F..S..SA..CBU;GUN126,TGN138..(6F,6FC)..BZAGT;GUN135..(ADC,SDC,SSC,SXT)..6F..(L,S);GUN136..(ADC,SSC)..6F..(M,S)..(BZAGT,SA);GUN122,KUN122,LAN125,TGN120,121,126,128..(ADC,ASC,SDC,SSC)..CBU (L) |
3 | ||
| 44546A - CUSHION, BRAKE ACTUATOR BOLT | ||||
| 44546-12120 |
GUN126,136..ADC,ASC,SSC;GUN122,125,135,KUN12#,13#,LAN125,TGN12#,13#..ADC,ASC,SDC,SSC,SXT |
3 | ||
| 44546-12120 |
GUN135..ADC..X;GUN135..X..BZAGT;GUN126..ADC..M..LA;GUN126..SSC..6F..M;TGN136..ADC,ASC,SDC;GUN125..LHD..SSC..S;GUN125..(ADC,ASC)..6F;GUN126..ADC..6F..S..LA;GUN125..LHD..SDC..(M,X);GUN125..RHD..6F..S..SA..CBU;GUN126,TGN138..(6F,6FC)..BZAGT;GUN135..(ADC,SDC,SSC,SXT)..6F..(L,S);GUN136..(ADC,SSC)..6F..(M,S)..(BZAGT,SA);GUN122,KUN122,LAN125,TGN120,121,126,128..(ADC,ASC,SDC,SSC)..CBU (J) |
3 | ||
| 44546-0K010 |
GUN135..ADC..X;GUN135..X..BZAGT;GUN126..ADC..M..LA;GUN126..SSC..6F..M;TGN136..ADC,ASC,SDC;GUN125..LHD..SSC..S;GUN125..(ADC,ASC)..6F;GUN126..ADC..6F..S..LA;GUN125..LHD..SDC..(M,X);GUN125..RHD..6F..S..SA..CBU;GUN126,TGN138..(6F,6FC)..BZAGT;GUN135..(ADC,SDC,SSC,SXT)..6F..(L,S);GUN136..(ADC,SSC)..6F..(M,S)..(BZAGT,SA);GUN122,KUN122,LAN125,TGN120,121,126,128..(ADC,ASC,SDC,SSC)..CBU (L) |
3 | ||
| 44546A - CUSHION, BRAKE ACTUATOR BOLT | ||||
| 44546-12120 |
GUN126,136..ADC,ASC,SSC;GUN122,125,135,KUN12#,13#,LAN125,TGN12#,13#..ADC,ASC,SDC,SSC,SXT |
3 | ||
| 44546-12120 |
GUN135..ADC..X;GUN135..X..BZAGT;GUN126..ADC..M..LA;GUN126..SSC..6F..M;TGN136..ADC,ASC,SDC;GUN125..LHD..SSC..S;GUN125..(ADC,ASC)..6F;GUN126..ADC..6F..S..LA;GUN125..LHD..SDC..(M,X);GUN125..RHD..6F..S..SA..CBU;GUN126,TGN138..(6F,6FC)..BZAGT;GUN135..(ADC,SDC,SSC,SXT)..6F..(L,S);GUN136..(ADC,SSC)..6F..(M,S)..(BZAGT,SA);GUN122,KUN122,LAN125,TGN120,121,126,128..(ADC,ASC,SDC,SSC)..CBU (J) |
3 | ||
| 44546-0K010 |
GUN135..ADC..X;GUN135..X..BZAGT;GUN126..ADC..M..LA;GUN126..SSC..6F..M;TGN136..ADC,ASC,SDC;GUN125..LHD..SSC..S;GUN125..(ADC,ASC)..6F;GUN126..ADC..6F..S..LA;GUN125..LHD..SDC..(M,X);GUN125..RHD..6F..S..SA..CBU;GUN126,TGN138..(6F,6FC)..BZAGT;GUN135..(ADC,SDC,SSC,SXT)..6F..(L,S);GUN136..(ADC,SSC)..6F..(M,S)..(BZAGT,SA);GUN122,KUN122,LAN125,TGN120,121,126,128..(ADC,ASC,SDC,SSC)..CBU (L) |
3 | ||
| 44546A - CUSHION, BRAKE ACTUATOR BOLT | ||||
| 44546-12120 |
GUN126,136..ADC,ASC,SSC;GUN122,125,135,KUN12#,13#,LAN125,TGN12#,13#..ADC,ASC,SDC,SSC,SXT |
3 | ||
| 44546-12120 |
GUN135..ADC..X;GUN135..X..BZAGT;GUN126..ADC..M..LA;GUN126..SSC..6F..M;TGN136..ADC,ASC,SDC;GUN125..LHD..SSC..S;GUN125..(ADC,ASC)..6F;GUN126..ADC..6F..S..LA;GUN125..LHD..SDC..(M,X);GUN125..RHD..6F..S..SA..CBU;GUN126,TGN138..(6F,6FC)..BZAGT;GUN135..(ADC,SDC,SSC,SXT)..6F..(L,S);GUN136..(ADC,SSC)..6F..(M,S)..(BZAGT,SA);GUN122,KUN122,LAN125,TGN120,121,126,128..(ADC,ASC,SDC,SSC)..CBU (J) |
3 | ||
| 44546-0K010 |
GUN135..ADC..X;GUN135..X..BZAGT;GUN126..ADC..M..LA;GUN126..SSC..6F..M;TGN136..ADC,ASC,SDC;GUN125..LHD..SSC..S;GUN125..(ADC,ASC)..6F;GUN126..ADC..6F..S..LA;GUN125..LHD..SDC..(M,X);GUN125..RHD..6F..S..SA..CBU;GUN126,TGN138..(6F,6FC)..BZAGT;GUN135..(ADC,SDC,SSC,SXT)..6F..(L,S);GUN136..(ADC,SSC)..6F..(M,S)..(BZAGT,SA);GUN122,KUN122,LAN125,TGN120,121,126,128..(ADC,ASC,SDC,SSC)..CBU (L) |
3 | ||
| 44546A - CUSHION, BRAKE ACTUATOR BOLT | ||||
| 44546-12120 |
GUN126,136..ADC,ASC,SSC;GUN122,125,135,KUN12#,13#,LAN125,TGN12#,13#..ADC,ASC,SDC,SSC,SXT |
3 | ||
| 44546-12120 |
GUN135..ADC..X;GUN135..X..BZAGT;GUN126..ADC..M..LA;GUN126..SSC..6F..M;TGN136..ADC,ASC,SDC;GUN125..LHD..SSC..S;GUN125..(ADC,ASC)..6F;GUN126..ADC..6F..S..LA;GUN125..LHD..SDC..(M,X);GUN125..RHD..6F..S..SA..CBU;GUN126,TGN138..(6F,6FC)..BZAGT;GUN135..(ADC,SDC,SSC,SXT)..6F..(L,S);GUN136..(ADC,SSC)..6F..(M,S)..(BZAGT,SA);GUN122,KUN122,LAN125,TGN120,121,126,128..(ADC,ASC,SDC,SSC)..CBU (J) |
3 | ||
| 44546-0K010 |
GUN135..ADC..X;GUN135..X..BZAGT;GUN126..ADC..M..LA;GUN126..SSC..6F..M;TGN136..ADC,ASC,SDC;GUN125..LHD..SSC..S;GUN125..(ADC,ASC)..6F;GUN126..ADC..6F..S..LA;GUN125..LHD..SDC..(M,X);GUN125..RHD..6F..S..SA..CBU;GUN126,TGN138..(6F,6FC)..BZAGT;GUN135..(ADC,SDC,SSC,SXT)..6F..(L,S);GUN136..(ADC,SSC)..6F..(M,S)..(BZAGT,SA);GUN122,KUN122,LAN125,TGN120,121,126,128..(ADC,ASC,SDC,SSC)..CBU (L) |
3 | ||
| Common parts | ||||
| 44521-0D010 | ||||
| 44521-12050 | ||||
| 90119-T0199 | ||||
| 90179-08200 | ||||
| 90182-T0036 | ||||
Part Price Details
Loading price information...
Part Number:
Price:
