KUN122L-DNMXYN (2016)

Toyota Hilux

Production Jan 2016 - Jul 2018
Engine 2KDFTV
Transmission 5F MTM
Displacement 2500cc
Power 168 HP (125 kW)

ILLUST NO. 1 OF 2(1107- )1KDFTV,2KDFTV

Click highlighted areas on diagram

diagram 16261 16261A 16261A 16264 16264A 16264A 16361 16400 16400F 16400R 16400S 16407A 16417 16418 16453 16454 16455 16470 16470M 16471 16546 16571 16571A 16571A 16572 16572A 16572A 16711 888990K020 8889952050 90119T0254 90119T0254 90119T0347 9017906293
Part # Description Qty Price
Common parts
88899-0K020
88899-52050
90119-T0254
90119-T0347
90179-06293

ILLUST NO. 1 OF 2(1505- )1KDFTV,2KDFTV

Click highlighted areas on diagram

RADIATOR SIDE

diagram 16261 16261A 16261A 16264 16264A 16264A 16361 16400 16400B 16400F 16400R 16400R 16400S 16400S 16453 16453 16454 16454 16455 16455 16455 16455 16465 16470 16470M 16471 16533B 16534 16546 16547 16547 16565A 16571 16571A 16571A 16572 16572A 16572A 16593 16711 90119T0384 90119T0384 90119T0526 9017906293
Part # Description Qty Price
16261 - HOSE, WATER BY-PASS
16261-0L121

1KDFTV,2KDFTV..KUN112,12#,13#..SDC,SSC,SXT,TDC,TSC,TXT

 1
16261A - CLAMP OR CLIP, HOSE(FOR WATER BY-PASS HOSE)
96136-51901

1KDFTV,2KDFTV..KUN112,12#,13#

 2
90466-T0065

1KDFTV,2KDFTV..KUN112,12#,13#

 2
16261A - CLAMP OR CLIP, HOSE(FOR WATER BY-PASS HOSE)
96136-51901

1KDFTV,2KDFTV..KUN112,12#,13#

 2
90466-T0065

1KDFTV,2KDFTV..KUN112,12#,13#

 2
16264 - HOSE, WATER BY-PASS, NO.2
16264-0L110

1KDFTV,2KDFTV..KUN112,12#,13#..SDC,SSC,SXT,TDC,TSC,TXT

 1
16264A - CLAMP OR CLIP(FOR WATER BY-PASS HOSE NO.2)
90466-T0031

1KDFTV,2KDFTV..KUN112,12#,13#

 2
90466-T0020

1KDFTV,2KDFTV..KUN112,12#,13#

 2
16264A - CLAMP OR CLIP(FOR WATER BY-PASS HOSE NO.2)
90466-T0031

1KDFTV,2KDFTV..KUN112,12#,13#

 2
90466-T0020

1KDFTV,2KDFTV..KUN112,12#,13#

 2
16361 - FAN
16361-0L020

1KDFTV,2KDFTV..KUN112,12#,13#

 1
16470 - TANK ASSY, RADIATOR RESERVE
16470-0L120

1KDFTV,2KDFTV..KUN12#,135..SA

 1
16470M - GROMMET
90480-T0004

1KDFTV,2KDFTV..KUN112,12#,13#

 1
16471 - CAP SUB-ASSY, RESERVE TANK
16401-30012

1KDFTV,2KDFTV..KUN112,12#,13#

 1
16533B - SUPPORT, RADIATOR, NO.1
16533-0L010

1KDFTV,2KDFTV..KUN125,126;1KDFTV,2KDFTV..KUN112,122,13#..ADC,ASC,PSC,SDC,TDC,TSC,TXT

 2
16534 - SUPPORT, RADIATOR, NO.2
16534-0L010

1KDFTV,2KDFTV..KUN125,126;1KDFTV,2KDFTV..KUN112,122,13#..ADC,ASC,PSC,SDC,TDC,TSC,TXT

 2
16547 - BUSH, RADIATOR SUPPORT, NO.1
16547-0L010

1KDFTV,2KDFTV..KUN125,126;1KDFTV,2KDFTV..KUN112,122,13#..ADC,ASC,PSC,SDC,TDC,TSC,TXT

 4
16547 - BUSH, RADIATOR SUPPORT, NO.1
16547-0L010

1KDFTV,2KDFTV..KUN125,126;1KDFTV,2KDFTV..KUN112,122,13#..ADC,ASC,PSC,SDC,TDC,TSC,TXT

 4
16571 - HOSE, RADIATOR, INLET
16571-0L130

1KDFTV,2KDFTV..KUN112,12#,13#..SDC,SSC,SXT,TDC,TSC,TXT

 1
16571A - CLAMP OR CLIP, HOSE(FOR RADIATOR INLET)
90466-T0024

1KDFTV,2KDFTV..KUN112,12#,13#

 2
90466-T0068

1KDFTV,2KDFTV..KUN112,12#,13#

 2
16571A - CLAMP OR CLIP, HOSE(FOR RADIATOR INLET)
90466-T0024

1KDFTV,2KDFTV..KUN112,12#,13#

 2
90466-T0068

1KDFTV,2KDFTV..KUN112,12#,13#

 2
16572 - HOSE, RADIATOR, OUTLET
16572-0L130

1KDFTV,2KDFTV..KUN112,12#,13#..SDC,SSC,SXT,TDC,TSC,TXT

 1
16572A - CLAMP OR CLIP, HOSE(FOR RADIATOR OUTLET NO.1)
90466-T0024

1KDFTV,2KDFTV..KUN112,12#,13#

 2
90466-T0068

1KDFTV,2KDFTV..KUN112,12#,13#

 2
16572A - CLAMP OR CLIP, HOSE(FOR RADIATOR OUTLET NO.1)
90466-T0024

1KDFTV,2KDFTV..KUN112,12#,13#

 2
90466-T0068

1KDFTV,2KDFTV..KUN112,12#,13#

 2
Common parts
90119-T0384
90119-T0526
90179-06293

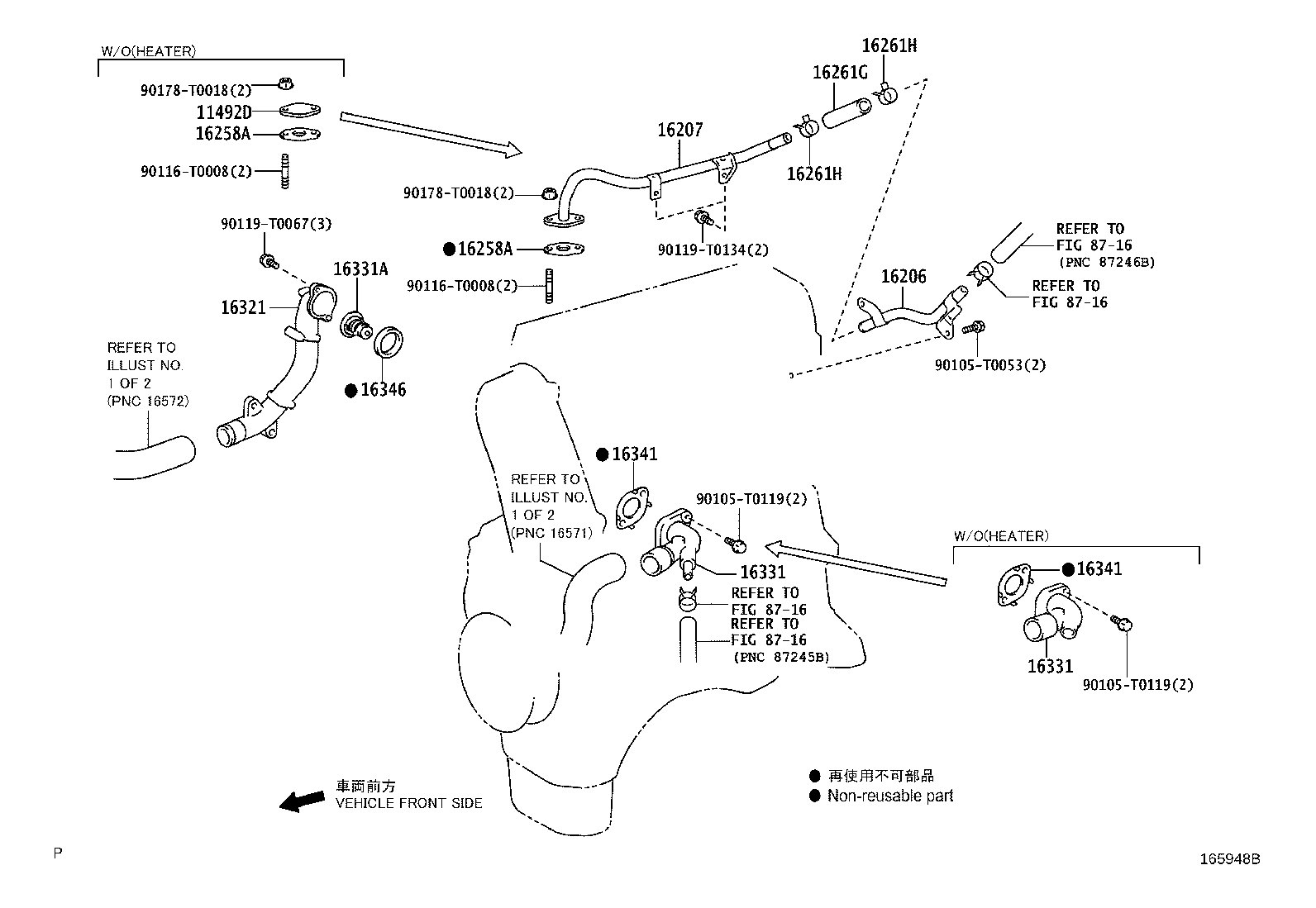

ILLUST NO. 2 OF 2(1505- )2KDFTV..DCR

Click highlighted areas on diagram

ENGINE SIDE

diagram 11492D 16206 16207 16258A 16258A 16261G 16261H 16261H 16321 16331 16331 16331A 16341 16341 16346 8716 8716 8716 8716 90105T0053 90105T0119 90105T0119 90116T0008 90116T0008 90119T0067 90119T0134 90178T0018 90178T0018
Part # Description Qty Price
16206 - PIPE SUB-ASSY, WATER BY-PASS
16206-0L010

2KDFTV..KUN125..M..IDN;1KDFTV,2KDFTV..KUN112,12#,13#..GCC,GEN,LA,PKN,SA,VN

 1
16207 - PIPE SUB-ASSY, WATER BY-PASS, NO.2
16207-0L020

2KDFTV..KUN112,122,125,135..GCC,GEN,LA,PKN,SA

 1
16258A - GASKET(FOR HEATER RETURN)
16258-0L010

1KDFTV,2KDFTV..KUN112,12#,13#

 1
16258A - GASKET(FOR HEATER RETURN)
16258-0L010

1KDFTV,2KDFTV..KUN112,12#,13#

 1
16261G - HOSE, WATER BY-PASS, NO.1
16261-0L050

2KDFTV..KUN125..M..IDN;1KDFTV,2KDFTV..KUN112,12#,13#..GCC,GEN,LA,PKN,SA,VN

 1
16261H - CLIP(FOR WATER BY-PASS HOSE NO.1)
90466-T0010

2KDFTV..KUN125..M..IDN;1KDFTV,2KDFTV..KUN112,12#,13#..GCC,GEN,LA,PKN,SA,VN

 2
16261H - CLIP(FOR WATER BY-PASS HOSE NO.1)
90466-T0010

2KDFTV..KUN125..M..IDN;1KDFTV,2KDFTV..KUN112,12#,13#..GCC,GEN,LA,PKN,SA,VN

 2
16321 - INLET, WATER
16321-0L010

1KDFTV,2KDFTV..KUN112,12#,13#

 1
16331 - OUTLET, WATER
16331-0L040

2KDFTV..KUN125..M..IDN;1KDFTV,2KDFTV..KUN112,12#,13#..GCC,GEN,LA,PKN,SA,VN

 1
16331 - OUTLET, WATER
16331-0L040

2KDFTV..KUN125..M..IDN;1KDFTV,2KDFTV..KUN112,12#,13#..GCC,GEN,LA,PKN,SA,VN

 1
16331A - THERMOSTAT
90916-03118

1KDFTV,2KDFTV..KUN112,12#,13#

*WAX 82-95

 1
16341 - GASKET, WATER OUTLET
16341-0L010

1KDFTV,2KDFTV..KUN112,12#,13#

 1
16341 - GASKET, WATER OUTLET
16341-0L010

1KDFTV,2KDFTV..KUN112,12#,13#

 1
16346 - GASKET, THERMOSTAT
16346-0K010

1KDFTV,2KDFTV..KUN112,12#,13#

 1
Common parts
90105-T0053
90105-T0119
90116-T0008
90119-T0067
90119-T0134
90178-T0018
Linked diagrams
8716
