KUN112R-BTMXYD (2015)

Toyota Hilux

Production May 2015 - Apr 2019
Engine 2KDFTV
Transmission 5F MTM
Displacement 2500cc
Power 168 HP (125 kW)

(1505- )RHD

Click highlighted areas on diagram

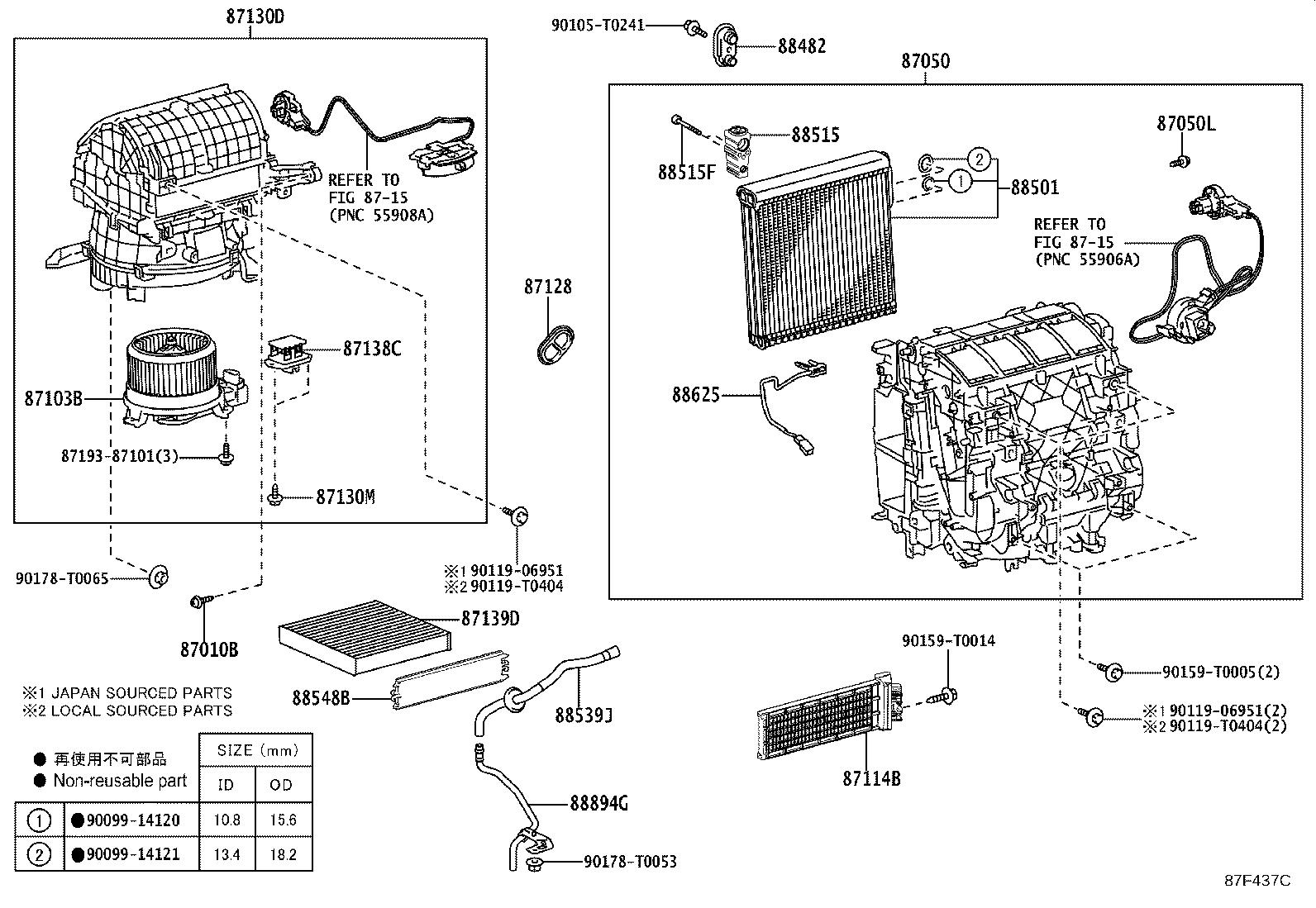

AUTO AIR CONDITIONER

diagram 82210K 87010B 87050 87050C 87050D 87050L 87103B 87107A 87114B 87124B 87128 87130D 87130K 87130M 87139D 87165C 8719387101 87710G 88501 88515 88515F 88539J 88548B 88625 88650N 887180A020 88894G 9009914120 9009914121 9011906951 9011906951 90119T0404 90119T0404 90159T0005 90159T0014 90178T0053 90178T0065 9017906323 90185T0001 9167380616
Part # Description Qty Price
87010B - SCREW(FOR AIR CONDITIONER UNIT)
88718-0A020

GUN122..6F..M;GUN135..6F..S..VN;TGN121..(L,S)..TH;GUN125..TSC..S..GCC;GUN125..TSC..6FC..IV3;GUN126..TXT..6F..ARL..CBU;GUN125..TXT..6F..(ARL,IDN);GUN126,TGN126..6FC..L..GEN;GUN125,13#..LHD..TDC..(H,M);GUN122,126..LHD..(H,S,X)..HDCR..GEN;GUN122,126,TGN121,126..(H,M)..(GCC,PH,TAIW,VN);GUN122,TGN136..(TDC,TSC,TXT)..(5F,6FC)..(ARL,LA,TH);GGN12#,GUN123,KUN112,12#,13#..(TDC,TSC,TXT)..(ARL,GCC,GEN,IDN,LA,VN)

 2
87050 - RADIATOR ASSY, AIR CONDITIONER
87050-0KC70

GUN112,12#,135,KUN112,125,TGN110,121,136..(L,S,X)..(IDN,TH)

 1
87050L - SCREW(FOR AIR CONDITIONER RADIATOR)
88718-0A020

TGN121..L..CBU;TGN126..(TDC,TSC)..CBU;TGN121..(TDC,TSC)..(M,S,X);GGN12#,GUN112,12#,13#,KUN112,12#,13#,TGN11#,120,136..TDC,TSC,TXT

 1
87103B - MOTOR SUB-ASSY, BLOWER W/FAN
87103-0K320

GUN112,12#,135,KUN112,125,TGN110,121,136..(L,S,X)..(IDN,TH)

 1
87114B - COVER, HEATER
87114-0K040

TGN121..L..CBU;GUN135..TDC..6F;GUN125..M..(GCC,VN);GUN125..LHD..TDC..(L,S,X);TGN121..(TDC,TSC)..(M,S,X);GUN125..RHD..TDC..(GEN,IDN,TH);GUN122,123,125,126,13#..PDC,PSC,TSC,TXT;GUN122,126,136..TDC..(GCC,GEN,LA,PH,TAIW,TH,VN);GUN135,TGN126..(TDC,TSC)..(5F,6FC)..(GCC,GEN,LA,PH,TH,VN)..CBU;GGN12#,GUN112,120,KUN112,12#,13#,TGN11#,120,136..PDC,PSC,TDC,TSC,TXT

 1
87128 - GROMMET, HEATER
87128-0K170

GUN112,12#,135,KUN112,125,TGN110,121,136..(L,S,X)..(IDN,PH,TH)

 1
87130D - BLOWER ASSY
87130-0K530

GUN112,12#,135,KUN112,125,TGN110,121,136..(L,S,X)..(IDN,TH)

 1
87130M - SCREW(FOR BLOWER)
88718-0A020

GUN135..6FC..GEN;TGN121..(L,S)..TH;GUN125..TSC..S..GCC;GUN125..TSC..6FC..IV3;GUN126..TXT..6F..ARL..CBU;GUN125..TXT..6F..(ARL,IDN);GUN126,TGN126..6FC..L..GEN;GUN135..6F..(H,S)..(GEN,VN);GUN122,125..(6F,6FC)..M..(GCC,TH,VN);GUN122,126,TGN121,126..M..(GCC,TAIW,VN);GUN122,126..LHD..(H,S,X)..HDCR..(GEN,VN);GUN122,TGN136..(TDC,TSC,TXT)..(5F,6FC)..(ARL,LA,TH);GGN12#,GUN123,KUN112,12#,13#..(TDC,TSC,TXT)..(ARL,GCC,GEN,IDN,LA,VN)

 1
87139D - ELEMENT, AIR REFINER
87139-58010

TGN121..M,S,X;TGN121..L..CBU;GUN125..TDC..6FC..ARL;GUN125..ADC,ASC,SDC,SSC,SXT,TSC,TXT;GUN125..TDC..(GCC,GEN,IDN,LA,PH,TH,VN);TGN126,136..(ADC,ASC,SDC,TDC,TSC,TXT)..CBU;GGN12#,GUN135..ADC,ASC,MDC,SDC,SSC,SXT,TDC,TSC,TXT;GGN135,GUN112,120,122,123,126,136,KUN112,12#,13#,LAN125,TGN11#,120,128,138..ADC,ASC,PDC,PSC,SDC,SSC,SXT,TDC,TSC,TXT

DEODORANT FILTER

 1
87139-0K060

GUN122..5F..M..TH;GUN122..(L,S,X)..(PH,TH);GUN112,120,123,125,126,13#,KUN112,125,TGN110,121,136..IDN,PH,TH

POLLEN FILTER

 1
88501 - EVAPORATOR SUB-ASSY, COOLER, NO.1
88501-0K320

GUN126..6F..H..TH;GUN126..RHD..H..GEN;GUN126..RHD..(L,M,S,X)..(ARL,GEN,TH);GGN12#,GUN112,120,122,123,125,13#,KUN112,12#,136,TGN110,121,126,136..RHD..(TDC,TSC,TXT)

 1
88515 - VALVE, COOLER EXPANSION
88515-0K580

TGN121..M,S,X;TGN121..L..CBU;GUN126..6F..H..TH;KUN125..SDC..(M,S);GUN135..(SDC,SSC)..S;GUN125..TDC..6FC..ARL;GUN122,KUN122..LHD..SSC;GUN125..ADC,ASC,TSC,TXT;GUN135,KUN125..LHD..X..SA;GUN125..LHD..(SDC,SSC,TDC)..X;GUN126..H..(BZAGT,GEN,PKN,VN);GUN122,KUN122..PSC,SDC,TDC,TSC,TXT;KUN125..ADC,ASC,SSC,SXT,TDC,TSC,TXT;GUN135..ADC,ASC,MDC,SXT,TDC,TSC,TXT;GUN125..(SDC,SSC,SXT,TDC)..(H,L,M,S);TGN120,126,136..(ADC,ASC,SDC,TDC,TSC,TXT)..CBU;GUN126..(ADC,ASC,PDC,PSC,SDC,SSC,SXT,TDC,TSC,TXT)..(L,M,S,X);GGN12#,135,GUN112,120,123,136,KUN112,126,13#,LAN125,TGN11#,128,138..ARL,BZAGT,GCC,GEN,IDN,LA,PKN,SA,TH,VN

 1
88515F - BOLT(FOR COOLER EXPANSION VALVE)
90099-04542

TGN121..L..CBU;GUN125..TDC..6FC..ARL;TGN126..(TDC,TSC)..CBU;GUN125..MDC,MSC,TSC,TXT;TGN121..(TDC,TSC)..(M,S,X);GUN125..TDC..(GCC,GEN,IDN,LA,PH,TH,VN);GGN12#,GUN112,120,122,123,126,13#,KUN112,12#,13#,TGN11#,120,136..MDC,TDC,TSC,TXT

 2
88539J - HOSE, DRAIN COOLER
88539-0K390

GUN112,12#,13#,KUN112,12#,136,TGN110,121,126,136..RHD..(TDC,TSC,TXT)

 1
88548B - CASE, AIR FILTER
88548-0K080

TGN121..L..CBU;TGN126..(TDC,TSC)..CBU;TGN121..(TDC,TSC)..(M,S,X);GGN12#,GUN112,12#,13#,KUN112,12#,13#,TGN11#,120,136..PDC,PSC,TDC,TSC,TXT

 1
88899-06330

GUN125..TSC,TXT;GUN125..TDC..6FC..ARL;GUN125..TDC..(GCC,GEN,IDN,LA,PH,TH,VN);GGN125,GUN112,120,122,123,126,13#,KUN112,122,TGN11#,120,121,126,136..PDC,PSC,TDC,TSC,TXT

 1
88625 - THERMISTOR, COOLER, NO.1
88620-0K010

TGN121..M,S,X;TGN121..L..CBU;GUN126..6F..H..TH;KUN125..SDC..(M,S);GUN135..(SDC,SSC)..S;GUN125..TDC..6FC..ARL;GUN122,KUN122..LHD..SSC;GUN125..ADC,ASC,TSC,TXT;GUN135,KUN125..LHD..X..SA;GUN125..LHD..(SDC,SSC,TDC)..X;GUN126..H..(BZAGT,GEN,PKN,VN);GUN122,KUN122..PSC,SDC,TDC,TSC,TXT;KUN125..ADC,ASC,SSC,SXT,TDC,TSC,TXT;GUN135..ADC,ASC,MDC,SXT,TDC,TSC,TXT;GUN125..(SDC,SSC,SXT,TDC)..(H,L,M,S);TGN120,126,136..(ADC,ASC,SDC,TDC,TSC,TXT)..CBU;GUN126..(ADC,ASC,PDC,PSC,SDC,SSC,SXT,TDC,TSC,TXT)..(L,M,S,X);GGN12#,135,GUN112,120,123,136,KUN112,126,13#,LAN125,TGN11#,128,138..ARL,BZAGT,GCC,GEN,IDN,LA,PKN,SA,TH,VN

 1
88894G - CONNECTOR, DRAIN HOSE
88894-0K020

GUN125..TDC..6FC..ARL;GUN125..RHD..(TSC,TXT);GUN125..RHD..TDC..(GEN,IDN,TH);GUN112,120,122,123,126,13#,KUN112,12#,136,TGN110,121,126,136..RHD..(ARL,GEN,IDN,PKN,TH)

 1
Common parts
87193-87101
88718-0A020
90099-14120
90099-14121
90119-06951
90119-T0404
90159-T0005
90159-T0014
90178-T0053
90178-T0065
90179-06323
90185-T0001
91673-80616

(1505- )RHD

Click highlighted areas on diagram

MANUAL AIR CONDITIONER

diagram 87010B 87050 87050L 87103B 87107A 87114B 87124B 87128 87130D 87130M 87138C 87139D 8715 8715 8715 8719387101 87710G 88501 88515 88515F 88539J 88548B 88625 88650N 88894G 9009914120 9009914121 9011906951 9011906951 90119T0404 90119T0404 90159T0005 90159T0014 90178T0053 90178T0065 9017906323 90185T0001 9167380616
Part # Description Qty Price
87010B - SCREW(FOR AIR CONDITIONER UNIT)
88718-0A020

GUN122..6F..M;GUN135..6F..S..VN;TGN121..(L,S)..TH;GUN125..TSC..S..GCC;GUN125..TSC..6FC..IV3;GUN126..TXT..6F..ARL..CBU;GUN125..TXT..6F..(ARL,IDN);GUN126,TGN126..6FC..L..GEN;GUN125,13#..LHD..TDC..(H,M);GUN122,126..LHD..(H,S,X)..HDCR..GEN;GUN122,126,TGN121,126..(H,M)..(GCC,PH,TAIW,VN);GUN122,TGN136..(TDC,TSC,TXT)..(5F,6FC)..(ARL,LA,TH);GGN12#,GUN123,KUN112,12#,13#..(TDC,TSC,TXT)..(ARL,GCC,GEN,IDN,LA,VN)

 2
87050 - RADIATOR ASSY, AIR CONDITIONER
87050-0KC70

GUN112,12#,135,KUN112,125,TGN110,121,136..(L,S,X)..(IDN,TH)

 1
87050L - SCREW(FOR AIR CONDITIONER RADIATOR)
88718-0A020

TGN121..L..CBU;TGN126..(TDC,TSC)..CBU;TGN121..(TDC,TSC)..(M,S,X);GGN12#,GUN112,12#,13#,KUN112,12#,13#,TGN11#,120,136..TDC,TSC,TXT

 1
87103B - MOTOR SUB-ASSY, BLOWER W/FAN
87103-0K320

GUN112,12#,135,KUN112,125,TGN110,121,136..(L,S,X)..(IDN,TH)

 1
87114B - COVER, HEATER
87114-0K040

TGN121..L..CBU;GUN135..TDC..6F;GUN125..M..(GCC,VN);GUN125..LHD..TDC..(L,S,X);TGN121..(TDC,TSC)..(M,S,X);GUN125..RHD..TDC..(GEN,IDN,TH);GUN122,123,125,126,13#..PDC,PSC,TSC,TXT;GUN122,126,136..TDC..(GCC,GEN,LA,PH,TAIW,TH,VN);GUN135,TGN126..(TDC,TSC)..(5F,6FC)..(GCC,GEN,LA,PH,TH,VN)..CBU;GGN12#,GUN112,120,KUN112,12#,13#,TGN11#,120,136..PDC,PSC,TDC,TSC,TXT

 1
87128 - GROMMET, HEATER
87128-0K170

GUN112,12#,135,KUN112,125,TGN110,121,136..(L,S,X)..(IDN,PH,TH)

 1
87130D - BLOWER ASSY
87130-0K530

GUN112,12#,135,KUN112,125,TGN110,121,136..(L,S,X)..(IDN,TH)

 1
87130M - SCREW(FOR BLOWER)
88718-0A020

GUN135..6FC..GEN;TGN121..(L,S)..TH;GUN125..TSC..S..GCC;GUN125..TSC..6FC..IV3;GUN126..TXT..6F..ARL..CBU;GUN125..TXT..6F..(ARL,IDN);GUN126,TGN126..6FC..L..GEN;GUN135..6F..(H,S)..(GEN,VN);GUN122,125..(6F,6FC)..M..(GCC,TH,VN);GUN122,126,TGN121,126..M..(GCC,TAIW,VN);GUN122,126..LHD..(H,S,X)..HDCR..(GEN,VN);GUN122,TGN136..(TDC,TSC,TXT)..(5F,6FC)..(ARL,LA,TH);GGN12#,GUN123,KUN112,12#,13#..(TDC,TSC,TXT)..(ARL,GCC,GEN,IDN,LA,VN)

 1
87138C - RESISTOR, BLOWER
87138-0K360

KUN126..RHD..(L,M,S);GUN125..TDC..6FC..ARL;GUN125..RHD..TDC..(L,S);TGN136..RHD..(SDC,TDC,TXT);KUN122,125..RHD..MTM..(L,M,S,X);GUN125..RHD..(SDC,SSC,SXT,TSC,TXT);GUN125,126,136..RHD..(PDC,SSC,SXT,TDC)..M..(GEN,PKN,SA);GGN12#,GUN112,120,122,123,126,13#,KUN112,13#,TGN110,120,121,126..RHD..(L,S,X)..(ARL,GEN,IDN,MA,PKN,SA,TH)

 1
87139D - ELEMENT, AIR REFINER
87139-58010

TGN121..M,S,X;TGN121..L..CBU;GUN125..TDC..6FC..ARL;GUN125..ADC,ASC,SDC,SSC,SXT,TSC,TXT;GUN125..TDC..(GCC,GEN,IDN,LA,PH,TH,VN);TGN126,136..(ADC,ASC,SDC,TDC,TSC,TXT)..CBU;GGN12#,GUN135..ADC,ASC,MDC,SDC,SSC,SXT,TDC,TSC,TXT;GGN135,GUN112,120,122,123,126,136,KUN112,12#,13#,LAN125,TGN11#,120,128,138..ADC,ASC,PDC,PSC,SDC,SSC,SXT,TDC,TSC,TXT

DEODORANT FILTER

 1
87139-0K060

GUN122..5F..M..TH;GUN122..(L,S,X)..(PH,TH);GUN112,120,123,125,126,13#,KUN112,125,TGN110,121,136..IDN,PH,TH

POLLEN FILTER

 1
88501 - EVAPORATOR SUB-ASSY, COOLER, NO.1
88501-0K320

GUN126..6F..H..TH;GUN126..RHD..H..GEN;GUN126..RHD..(L,M,S,X)..(ARL,GEN,TH);GGN12#,GUN112,120,122,123,125,13#,KUN112,12#,136,TGN110,121,126,136..RHD..(TDC,TSC,TXT)

 1
88515 - VALVE, COOLER EXPANSION
88515-0K580

TGN121..M,S,X;TGN121..L..CBU;GUN126..6F..H..TH;KUN125..SDC..(M,S);GUN135..(SDC,SSC)..S;GUN125..TDC..6FC..ARL;GUN122,KUN122..LHD..SSC;GUN125..ADC,ASC,TSC,TXT;GUN135,KUN125..LHD..X..SA;GUN125..LHD..(SDC,SSC,TDC)..X;GUN126..H..(BZAGT,GEN,PKN,VN);GUN122,KUN122..PSC,SDC,TDC,TSC,TXT;KUN125..ADC,ASC,SSC,SXT,TDC,TSC,TXT;GUN135..ADC,ASC,MDC,SXT,TDC,TSC,TXT;GUN125..(SDC,SSC,SXT,TDC)..(H,L,M,S);TGN120,126,136..(ADC,ASC,SDC,TDC,TSC,TXT)..CBU;GUN126..(ADC,ASC,PDC,PSC,SDC,SSC,SXT,TDC,TSC,TXT)..(L,M,S,X);GGN12#,135,GUN112,120,123,136,KUN112,126,13#,LAN125,TGN11#,128,138..ARL,BZAGT,GCC,GEN,IDN,LA,PKN,SA,TH,VN

 1
88515F - BOLT(FOR COOLER EXPANSION VALVE)
90099-04542

TGN121..L..CBU;GUN125..TDC..6FC..ARL;TGN126..(TDC,TSC)..CBU;GUN125..MDC,MSC,TSC,TXT;TGN121..(TDC,TSC)..(M,S,X);GUN125..TDC..(GCC,GEN,IDN,LA,PH,TH,VN);GGN12#,GUN112,120,122,123,126,13#,KUN112,12#,13#,TGN11#,120,136..MDC,TDC,TSC,TXT

 2
88539J - HOSE, DRAIN COOLER
88539-0K390

GUN112,12#,13#,KUN112,12#,136,TGN110,121,126,136..RHD..(TDC,TSC,TXT)

 1
88548B - CASE, AIR FILTER
88548-0K080

TGN121..L..CBU;TGN126..(TDC,TSC)..CBU;TGN121..(TDC,TSC)..(M,S,X);GGN12#,GUN112,12#,13#,KUN112,12#,13#,TGN11#,120,136..PDC,PSC,TDC,TSC,TXT

 1
88899-06330

GUN125..TSC,TXT;GUN125..TDC..6FC..ARL;GUN125..TDC..(GCC,GEN,IDN,LA,PH,TH,VN);GGN125,GUN112,120,122,123,126,13#,KUN112,122,TGN11#,120,121,126,136..PDC,PSC,TDC,TSC,TXT

 1
88625 - THERMISTOR, COOLER, NO.1
88620-0K010

TGN121..M,S,X;TGN121..L..CBU;GUN126..6F..H..TH;KUN125..SDC..(M,S);GUN135..(SDC,SSC)..S;GUN125..TDC..6FC..ARL;GUN122,KUN122..LHD..SSC;GUN125..ADC,ASC,TSC,TXT;GUN135,KUN125..LHD..X..SA;GUN125..LHD..(SDC,SSC,TDC)..X;GUN126..H..(BZAGT,GEN,PKN,VN);GUN122,KUN122..PSC,SDC,TDC,TSC,TXT;KUN125..ADC,ASC,SSC,SXT,TDC,TSC,TXT;GUN135..ADC,ASC,MDC,SXT,TDC,TSC,TXT;GUN125..(SDC,SSC,SXT,TDC)..(H,L,M,S);TGN120,126,136..(ADC,ASC,SDC,TDC,TSC,TXT)..CBU;GUN126..(ADC,ASC,PDC,PSC,SDC,SSC,SXT,TDC,TSC,TXT)..(L,M,S,X);GGN12#,135,GUN112,120,123,136,KUN112,126,13#,LAN125,TGN11#,128,138..ARL,BZAGT,GCC,GEN,IDN,LA,PKN,SA,TH,VN

 1
88894G - CONNECTOR, DRAIN HOSE
88894-0K020

GUN125..TDC..6FC..ARL;GUN125..RHD..(TSC,TXT);GUN125..RHD..TDC..(GEN,IDN,TH);GUN112,120,122,123,126,13#,KUN112,12#,136,TGN110,121,126,136..RHD..(ARL,GEN,IDN,PKN,TH)

 1
Common parts
87193-87101
90099-14120
90099-14121
90119-06951
90119-T0404
90159-T0005
90159-T0014
90178-T0053
90178-T0065
90179-06323
90185-T0001
91673-80616
Linked diagrams
8715

(1505- )RHD

Click highlighted areas on diagram

MANUAL COOLER

diagram 87010B 87050 87050L 87103B 87114B 87128 87130D 87130M 87138C 87139D 8715 8715 8719387101 88501 88515 88515F 88539J 88548B 88625 88650N 88894G 9009914120 9009914121 9011906951 9011906951 90119T0404 90119T0404 90159T0005 90159T0014 90178T0053 90178T0065 9017906323 90185T0001 9167380616
Part # Description Qty Price
87010B - SCREW(FOR AIR CONDITIONER UNIT)
88718-0A020

GUN122..6F..M;GUN135..6F..S..VN;TGN121..(L,S)..TH;GUN125..TSC..S..GCC;GUN125..TSC..6FC..IV3;GUN126..TXT..6F..ARL..CBU;GUN125..TXT..6F..(ARL,IDN);GUN126,TGN126..6FC..L..GEN;GUN125,13#..LHD..TDC..(H,M);GUN122,126..LHD..(H,S,X)..HDCR..GEN;GUN122,126,TGN121,126..(H,M)..(GCC,PH,TAIW,VN);GUN122,TGN136..(TDC,TSC,TXT)..(5F,6FC)..(ARL,LA,TH);GGN12#,GUN123,KUN112,12#,13#..(TDC,TSC,TXT)..(ARL,GCC,GEN,IDN,LA,VN)

 2
87050 - RADIATOR ASSY, AIR CONDITIONER
87050-0KC70

GUN112,12#,135,KUN112,125,TGN110,121,136..(L,S,X)..(IDN,TH)

 1
87050L - SCREW(FOR AIR CONDITIONER RADIATOR)
88718-0A020

TGN121..L..CBU;TGN126..(TDC,TSC)..CBU;TGN121..(TDC,TSC)..(M,S,X);GGN12#,GUN112,12#,13#,KUN112,12#,13#,TGN11#,120,136..TDC,TSC,TXT

 1
87103B - MOTOR SUB-ASSY, BLOWER W/FAN
87103-0K320

GUN112,12#,135,KUN112,125,TGN110,121,136..(L,S,X)..(IDN,TH)

 1
87114B - COVER, HEATER
87114-0K040

TGN121..L..CBU;GUN135..TDC..6F;GUN125..M..(GCC,VN);GUN125..LHD..TDC..(L,S,X);TGN121..(TDC,TSC)..(M,S,X);GUN125..RHD..TDC..(GEN,IDN,TH);GUN122,123,125,126,13#..PDC,PSC,TSC,TXT;GUN122,126,136..TDC..(GCC,GEN,LA,PH,TAIW,TH,VN);GUN135,TGN126..(TDC,TSC)..(5F,6FC)..(GCC,GEN,LA,PH,TH,VN)..CBU;GGN12#,GUN112,120,KUN112,12#,13#,TGN11#,120,136..PDC,PSC,TDC,TSC,TXT

 1
87128 - GROMMET, HEATER
87128-0K170

GUN112,12#,135,KUN112,125,TGN110,121,136..(L,S,X)..(IDN,PH,TH)

 1
87130D - BLOWER ASSY
87130-0K530

GUN112,12#,135,KUN112,125,TGN110,121,136..(L,S,X)..(IDN,TH)

 1
87130M - SCREW(FOR BLOWER)
88718-0A020

GUN135..6FC..GEN;TGN121..(L,S)..TH;GUN125..TSC..S..GCC;GUN125..TSC..6FC..IV3;GUN126..TXT..6F..ARL..CBU;GUN125..TXT..6F..(ARL,IDN);GUN126,TGN126..6FC..L..GEN;GUN135..6F..(H,S)..(GEN,VN);GUN122,125..(6F,6FC)..M..(GCC,TH,VN);GUN122,126,TGN121,126..M..(GCC,TAIW,VN);GUN122,126..LHD..(H,S,X)..HDCR..(GEN,VN);GUN122,TGN136..(TDC,TSC,TXT)..(5F,6FC)..(ARL,LA,TH);GGN12#,GUN123,KUN112,12#,13#..(TDC,TSC,TXT)..(ARL,GCC,GEN,IDN,LA,VN)

 1
87138C - RESISTOR, BLOWER
87138-0K360

KUN126..RHD..(L,M,S);GUN125..TDC..6FC..ARL;GUN125..RHD..TDC..(L,S);TGN136..RHD..(SDC,TDC,TXT);KUN122,125..RHD..MTM..(L,M,S,X);GUN125..RHD..(SDC,SSC,SXT,TSC,TXT);GUN125,126,136..RHD..(PDC,SSC,SXT,TDC)..M..(GEN,PKN,SA);GGN12#,GUN112,120,122,123,126,13#,KUN112,13#,TGN110,120,121,126..RHD..(L,S,X)..(ARL,GEN,IDN,MA,PKN,SA,TH)

 1
87139D - ELEMENT, AIR REFINER
87139-58010

TGN121..M,S,X;TGN121..L..CBU;GUN125..TDC..6FC..ARL;GUN125..ADC,ASC,SDC,SSC,SXT,TSC,TXT;GUN125..TDC..(GCC,GEN,IDN,LA,PH,TH,VN);TGN126,136..(ADC,ASC,SDC,TDC,TSC,TXT)..CBU;GGN12#,GUN135..ADC,ASC,MDC,SDC,SSC,SXT,TDC,TSC,TXT;GGN135,GUN112,120,122,123,126,136,KUN112,12#,13#,LAN125,TGN11#,120,128,138..ADC,ASC,PDC,PSC,SDC,SSC,SXT,TDC,TSC,TXT

DEODORANT FILTER

 1
87139-0K060

GUN122..5F..M..TH;GUN122..(L,S,X)..(PH,TH);GUN112,120,123,125,126,13#,KUN112,125,TGN110,121,136..IDN,PH,TH

POLLEN FILTER

 1
88501 - EVAPORATOR SUB-ASSY, COOLER, NO.1
88501-0K320

GUN126..6F..H..TH;GUN126..RHD..H..GEN;GUN126..RHD..(L,M,S,X)..(ARL,GEN,TH);GGN12#,GUN112,120,122,123,125,13#,KUN112,12#,136,TGN110,121,126,136..RHD..(TDC,TSC,TXT)

 1
88515 - VALVE, COOLER EXPANSION
88515-0K580

TGN121..M,S,X;TGN121..L..CBU;GUN126..6F..H..TH;KUN125..SDC..(M,S);GUN135..(SDC,SSC)..S;GUN125..TDC..6FC..ARL;GUN122,KUN122..LHD..SSC;GUN125..ADC,ASC,TSC,TXT;GUN135,KUN125..LHD..X..SA;GUN125..LHD..(SDC,SSC,TDC)..X;GUN126..H..(BZAGT,GEN,PKN,VN);GUN122,KUN122..PSC,SDC,TDC,TSC,TXT;KUN125..ADC,ASC,SSC,SXT,TDC,TSC,TXT;GUN135..ADC,ASC,MDC,SXT,TDC,TSC,TXT;GUN125..(SDC,SSC,SXT,TDC)..(H,L,M,S);TGN120,126,136..(ADC,ASC,SDC,TDC,TSC,TXT)..CBU;GUN126..(ADC,ASC,PDC,PSC,SDC,SSC,SXT,TDC,TSC,TXT)..(L,M,S,X);GGN12#,135,GUN112,120,123,136,KUN112,126,13#,LAN125,TGN11#,128,138..ARL,BZAGT,GCC,GEN,IDN,LA,PKN,SA,TH,VN

 1
88515F - BOLT(FOR COOLER EXPANSION VALVE)
90099-04542

TGN121..L..CBU;GUN125..TDC..6FC..ARL;TGN126..(TDC,TSC)..CBU;GUN125..MDC,MSC,TSC,TXT;TGN121..(TDC,TSC)..(M,S,X);GUN125..TDC..(GCC,GEN,IDN,LA,PH,TH,VN);GGN12#,GUN112,120,122,123,126,13#,KUN112,12#,13#,TGN11#,120,136..MDC,TDC,TSC,TXT

 2
88539J - HOSE, DRAIN COOLER
88539-0K390

GUN112,12#,13#,KUN112,12#,136,TGN110,121,126,136..RHD..(TDC,TSC,TXT)

 1
88548B - CASE, AIR FILTER
88548-0K080

TGN121..L..CBU;TGN126..(TDC,TSC)..CBU;TGN121..(TDC,TSC)..(M,S,X);GGN12#,GUN112,12#,13#,KUN112,12#,13#,TGN11#,120,136..PDC,PSC,TDC,TSC,TXT

 1
88899-06330

GUN125..TSC,TXT;GUN125..TDC..6FC..ARL;GUN125..TDC..(GCC,GEN,IDN,LA,PH,TH,VN);GGN125,GUN112,120,122,123,126,13#,KUN112,122,TGN11#,120,121,126,136..PDC,PSC,TDC,TSC,TXT

 1
88625 - THERMISTOR, COOLER, NO.1
88620-0K010

TGN121..M,S,X;TGN121..L..CBU;GUN126..6F..H..TH;KUN125..SDC..(M,S);GUN135..(SDC,SSC)..S;GUN125..TDC..6FC..ARL;GUN122,KUN122..LHD..SSC;GUN125..ADC,ASC,TSC,TXT;GUN135,KUN125..LHD..X..SA;GUN125..LHD..(SDC,SSC,TDC)..X;GUN126..H..(BZAGT,GEN,PKN,VN);GUN122,KUN122..PSC,SDC,TDC,TSC,TXT;KUN125..ADC,ASC,SSC,SXT,TDC,TSC,TXT;GUN135..ADC,ASC,MDC,SXT,TDC,TSC,TXT;GUN125..(SDC,SSC,SXT,TDC)..(H,L,M,S);TGN120,126,136..(ADC,ASC,SDC,TDC,TSC,TXT)..CBU;GUN126..(ADC,ASC,PDC,PSC,SDC,SSC,SXT,TDC,TSC,TXT)..(L,M,S,X);GGN12#,135,GUN112,120,123,136,KUN112,126,13#,LAN125,TGN11#,128,138..ARL,BZAGT,GCC,GEN,IDN,LA,PKN,SA,TH,VN

 1
88894G - CONNECTOR, DRAIN HOSE
88894-0K020

GUN125..TDC..6FC..ARL;GUN125..RHD..(TSC,TXT);GUN125..RHD..TDC..(GEN,IDN,TH);GUN112,120,122,123,126,13#,KUN112,12#,136,TGN110,121,126,136..RHD..(ARL,GEN,IDN,PKN,TH)

 1
Common parts
87193-87101
90099-14120
90099-14121
90119-06951
90119-T0404
90159-T0005
90159-T0014
90178-T0053
90178-T0065
90179-06323
90185-T0001
91673-80616
Linked diagrams
8715

(1505- )RHD

Click highlighted areas on diagram

MANUAL HEATER

diagram 87010B 87050 87050L 87103B 87107A 87114B 87124B 87128 87130D 87130M 87138C 87139D 8715 8715 8715 8719387101 87710G 88482 88501 88515 88515F 88539J 88548B 88625 88894G 9009914120 9009914121 90105T0241 9011906951 9011906951 90119T0404 90119T0404 90159T0005 90159T0014 90178T0053 90178T0065
Part # Description Qty Price
87010B - SCREW(FOR AIR CONDITIONER UNIT)
88718-0A020

GUN122..6F..M;GUN135..6F..S..VN;TGN121..(L,S)..TH;GUN125..TSC..S..GCC;GUN125..TSC..6FC..IV3;GUN126..TXT..6F..ARL..CBU;GUN125..TXT..6F..(ARL,IDN);GUN126,TGN126..6FC..L..GEN;GUN125,13#..LHD..TDC..(H,M);GUN122,126..LHD..(H,S,X)..HDCR..GEN;GUN122,126,TGN121,126..(H,M)..(GCC,PH,TAIW,VN);GUN122,TGN136..(TDC,TSC,TXT)..(5F,6FC)..(ARL,LA,TH);GGN12#,GUN123,KUN112,12#,13#..(TDC,TSC,TXT)..(ARL,GCC,GEN,IDN,LA,VN)

 2
87050 - RADIATOR ASSY, AIR CONDITIONER
87050-0KC70

GUN112,12#,135,KUN112,125,TGN110,121,136..(L,S,X)..(IDN,TH)

 1
87050L - SCREW(FOR AIR CONDITIONER RADIATOR)
88718-0A020

TGN121..L..CBU;TGN126..(TDC,TSC)..CBU;TGN121..(TDC,TSC)..(M,S,X);GGN12#,GUN112,12#,13#,KUN112,12#,13#,TGN11#,120,136..TDC,TSC,TXT

 1
87103B - MOTOR SUB-ASSY, BLOWER W/FAN
87103-0K320

GUN112,12#,135,KUN112,125,TGN110,121,136..(L,S,X)..(IDN,TH)

 1
87114B - COVER, HEATER
87114-0K040

TGN121..L..CBU;GUN135..TDC..6F;GUN125..M..(GCC,VN);GUN125..LHD..TDC..(L,S,X);TGN121..(TDC,TSC)..(M,S,X);GUN125..RHD..TDC..(GEN,IDN,TH);GUN122,123,125,126,13#..PDC,PSC,TSC,TXT;GUN122,126,136..TDC..(GCC,GEN,LA,PH,TAIW,TH,VN);GUN135,TGN126..(TDC,TSC)..(5F,6FC)..(GCC,GEN,LA,PH,TH,VN)..CBU;GGN12#,GUN112,120,KUN112,12#,13#,TGN11#,120,136..PDC,PSC,TDC,TSC,TXT

 1
87128 - GROMMET, HEATER
87128-0K170

GUN112,12#,135,KUN112,125,TGN110,121,136..(L,S,X)..(IDN,PH,TH)

 1
87130D - BLOWER ASSY
87130-0K530

GUN112,12#,135,KUN112,125,TGN110,121,136..(L,S,X)..(IDN,TH)

 1
87130M - SCREW(FOR BLOWER)
88718-0A020

GUN135..6FC..GEN;TGN121..(L,S)..TH;GUN125..TSC..S..GCC;GUN125..TSC..6FC..IV3;GUN126..TXT..6F..ARL..CBU;GUN125..TXT..6F..(ARL,IDN);GUN126,TGN126..6FC..L..GEN;GUN135..6F..(H,S)..(GEN,VN);GUN122,125..(6F,6FC)..M..(GCC,TH,VN);GUN122,126,TGN121,126..M..(GCC,TAIW,VN);GUN122,126..LHD..(H,S,X)..HDCR..(GEN,VN);GUN122,TGN136..(TDC,TSC,TXT)..(5F,6FC)..(ARL,LA,TH);GGN12#,GUN123,KUN112,12#,13#..(TDC,TSC,TXT)..(ARL,GCC,GEN,IDN,LA,VN)

 1
87138C - RESISTOR, BLOWER
87138-0K360

KUN126..RHD..(L,M,S);GUN125..TDC..6FC..ARL;GUN125..RHD..TDC..(L,S);TGN136..RHD..(SDC,TDC,TXT);KUN122,125..RHD..MTM..(L,M,S,X);GUN125..RHD..(SDC,SSC,SXT,TSC,TXT);GUN125,126,136..RHD..(PDC,SSC,SXT,TDC)..M..(GEN,PKN,SA);GGN12#,GUN112,120,122,123,126,13#,KUN112,13#,TGN110,120,121,126..RHD..(L,S,X)..(ARL,GEN,IDN,MA,PKN,SA,TH)

 1
87139D - ELEMENT, AIR REFINER
87139-58010

TGN121..M,S,X;TGN121..L..CBU;GUN125..TDC..6FC..ARL;GUN125..ADC,ASC,SDC,SSC,SXT,TSC,TXT;GUN125..TDC..(GCC,GEN,IDN,LA,PH,TH,VN);TGN126,136..(ADC,ASC,SDC,TDC,TSC,TXT)..CBU;GGN12#,GUN135..ADC,ASC,MDC,SDC,SSC,SXT,TDC,TSC,TXT;GGN135,GUN112,120,122,123,126,136,KUN112,12#,13#,LAN125,TGN11#,120,128,138..ADC,ASC,PDC,PSC,SDC,SSC,SXT,TDC,TSC,TXT

DEODORANT FILTER

 1
87139-0K060

GUN122..5F..M..TH;GUN122..(L,S,X)..(PH,TH);GUN112,120,123,125,126,13#,KUN112,125,TGN110,121,136..IDN,PH,TH

POLLEN FILTER

 1
88482 - CAP, COOLER
88482-0K010

GUN122..S..HDCR;GUN122..TSC..X..GEN;GUN125..TDC..X..GEN;GUN112,122,126,KUN112,122,126,TGN110..(L,X)..(IDN,PKN)

 1
88501 - EVAPORATOR SUB-ASSY, COOLER, NO.1
88501-0K320

GUN126..6F..H..TH;GUN126..RHD..H..GEN;GUN126..RHD..(L,M,S,X)..(ARL,GEN,TH);GGN12#,GUN112,120,122,123,125,13#,KUN112,12#,136,TGN110,121,126,136..RHD..(TDC,TSC,TXT)

 1
88515 - VALVE, COOLER EXPANSION
88515-0K580

TGN121..M,S,X;TGN121..L..CBU;GUN126..6F..H..TH;KUN125..SDC..(M,S);GUN135..(SDC,SSC)..S;GUN125..TDC..6FC..ARL;GUN122,KUN122..LHD..SSC;GUN125..ADC,ASC,TSC,TXT;GUN135,KUN125..LHD..X..SA;GUN125..LHD..(SDC,SSC,TDC)..X;GUN126..H..(BZAGT,GEN,PKN,VN);GUN122,KUN122..PSC,SDC,TDC,TSC,TXT;KUN125..ADC,ASC,SSC,SXT,TDC,TSC,TXT;GUN135..ADC,ASC,MDC,SXT,TDC,TSC,TXT;GUN125..(SDC,SSC,SXT,TDC)..(H,L,M,S);TGN120,126,136..(ADC,ASC,SDC,TDC,TSC,TXT)..CBU;GUN126..(ADC,ASC,PDC,PSC,SDC,SSC,SXT,TDC,TSC,TXT)..(L,M,S,X);GGN12#,135,GUN112,120,123,136,KUN112,126,13#,LAN125,TGN11#,128,138..ARL,BZAGT,GCC,GEN,IDN,LA,PKN,SA,TH,VN

 1
88515F - BOLT(FOR COOLER EXPANSION VALVE)
90099-04542

TGN121..L..CBU;GUN125..TDC..6FC..ARL;TGN126..(TDC,TSC)..CBU;GUN125..MDC,MSC,TSC,TXT;TGN121..(TDC,TSC)..(M,S,X);GUN125..TDC..(GCC,GEN,IDN,LA,PH,TH,VN);GGN12#,GUN112,120,122,123,126,13#,KUN112,12#,13#,TGN11#,120,136..MDC,TDC,TSC,TXT

 2
88539J - HOSE, DRAIN COOLER
88539-0K390

GUN112,12#,13#,KUN112,12#,136,TGN110,121,126,136..RHD..(TDC,TSC,TXT)

 1
88548B - CASE, AIR FILTER
88548-0K080

TGN121..L..CBU;TGN126..(TDC,TSC)..CBU;TGN121..(TDC,TSC)..(M,S,X);GGN12#,GUN112,12#,13#,KUN112,12#,13#,TGN11#,120,136..PDC,PSC,TDC,TSC,TXT

 1
88899-06330

GUN125..TSC,TXT;GUN125..TDC..6FC..ARL;GUN125..TDC..(GCC,GEN,IDN,LA,PH,TH,VN);GGN125,GUN112,120,122,123,126,13#,KUN112,122,TGN11#,120,121,126,136..PDC,PSC,TDC,TSC,TXT

 1
88625 - THERMISTOR, COOLER, NO.1
88620-0K010

TGN121..M,S,X;TGN121..L..CBU;GUN126..6F..H..TH;KUN125..SDC..(M,S);GUN135..(SDC,SSC)..S;GUN125..TDC..6FC..ARL;GUN122,KUN122..LHD..SSC;GUN125..ADC,ASC,TSC,TXT;GUN135,KUN125..LHD..X..SA;GUN125..LHD..(SDC,SSC,TDC)..X;GUN126..H..(BZAGT,GEN,PKN,VN);GUN122,KUN122..PSC,SDC,TDC,TSC,TXT;KUN125..ADC,ASC,SSC,SXT,TDC,TSC,TXT;GUN135..ADC,ASC,MDC,SXT,TDC,TSC,TXT;GUN125..(SDC,SSC,SXT,TDC)..(H,L,M,S);TGN120,126,136..(ADC,ASC,SDC,TDC,TSC,TXT)..CBU;GUN126..(ADC,ASC,PDC,PSC,SDC,SSC,SXT,TDC,TSC,TXT)..(L,M,S,X);GGN12#,135,GUN112,120,123,136,KUN112,126,13#,LAN125,TGN11#,128,138..ARL,BZAGT,GCC,GEN,IDN,LA,PKN,SA,TH,VN

 1
88894G - CONNECTOR, DRAIN HOSE
88894-0K020

GUN125..TDC..6FC..ARL;GUN125..RHD..(TSC,TXT);GUN125..RHD..TDC..(GEN,IDN,TH);GUN112,120,122,123,126,13#,KUN112,12#,136,TGN110,121,126,136..RHD..(ARL,GEN,IDN,PKN,TH)

 1
Common parts
87193-87101
90099-14120
90099-14121
90105-T0241
90119-06951
90119-T0404
90159-T0005
90159-T0014
90178-T0053
90178-T0065
Linked diagrams
8715

(1505- )GUN112,KUN112,TGN110..IDN

Click highlighted areas on diagram

BOOST VENTILATOR

diagram 87010B 87050 87050L 87103B 87114B 87128 87130D 87130M 87138C 87139D 8715 8715 8719387101 88482 88501 88515 88515F 88539J 88548B 88625 88894G 9009914120 9009914121 90105T0241 9011906951 9011906951 90119T0404 90119T0404 90159T0005 90159T0014 90178T0053 90178T0065
Part # Description Qty Price
87010B - SCREW(FOR AIR CONDITIONER UNIT)
88718-0A020

GUN122..6F..M;GUN135..6F..S..VN;TGN121..(L,S)..TH;GUN125..TSC..S..GCC;GUN125..TSC..6FC..IV3;GUN126..TXT..6F..ARL..CBU;GUN125..TXT..6F..(ARL,IDN);GUN126,TGN126..6FC..L..GEN;GUN125,13#..LHD..TDC..(H,M);GUN122,126..LHD..(H,S,X)..HDCR..GEN;GUN122,126,TGN121,126..(H,M)..(GCC,PH,TAIW,VN);GUN122,TGN136..(TDC,TSC,TXT)..(5F,6FC)..(ARL,LA,TH);GGN12#,GUN123,KUN112,12#,13#..(TDC,TSC,TXT)..(ARL,GCC,GEN,IDN,LA,VN)

 2
87050 - RADIATOR ASSY, AIR CONDITIONER
87050-0KC70

GUN112,12#,135,KUN112,125,TGN110,121,136..(L,S,X)..(IDN,TH)

 1
87050L - SCREW(FOR AIR CONDITIONER RADIATOR)
88718-0A020

TGN121..L..CBU;TGN126..(TDC,TSC)..CBU;TGN121..(TDC,TSC)..(M,S,X);GGN12#,GUN112,12#,13#,KUN112,12#,13#,TGN11#,120,136..TDC,TSC,TXT

 1
87103B - MOTOR SUB-ASSY, BLOWER W/FAN
87103-0K320

GUN112,12#,135,KUN112,125,TGN110,121,136..(L,S,X)..(IDN,TH)

 1
87114B - COVER, HEATER
87114-0K040

TGN121..L..CBU;GUN135..TDC..6F;GUN125..M..(GCC,VN);GUN125..LHD..TDC..(L,S,X);TGN121..(TDC,TSC)..(M,S,X);GUN125..RHD..TDC..(GEN,IDN,TH);GUN122,123,125,126,13#..PDC,PSC,TSC,TXT;GUN122,126,136..TDC..(GCC,GEN,LA,PH,TAIW,TH,VN);GUN135,TGN126..(TDC,TSC)..(5F,6FC)..(GCC,GEN,LA,PH,TH,VN)..CBU;GGN12#,GUN112,120,KUN112,12#,13#,TGN11#,120,136..PDC,PSC,TDC,TSC,TXT

 1
87128 - GROMMET, HEATER
87128-0K170

GUN112,12#,135,KUN112,125,TGN110,121,136..(L,S,X)..(IDN,PH,TH)

 1
87130D - BLOWER ASSY
87130-0K530

GUN112,12#,135,KUN112,125,TGN110,121,136..(L,S,X)..(IDN,TH)

 1
87130M - SCREW(FOR BLOWER)
88718-0A020

GUN135..6FC..GEN;TGN121..(L,S)..TH;GUN125..TSC..S..GCC;GUN125..TSC..6FC..IV3;GUN126..TXT..6F..ARL..CBU;GUN125..TXT..6F..(ARL,IDN);GUN126,TGN126..6FC..L..GEN;GUN135..6F..(H,S)..(GEN,VN);GUN122,125..(6F,6FC)..M..(GCC,TH,VN);GUN122,126,TGN121,126..M..(GCC,TAIW,VN);GUN122,126..LHD..(H,S,X)..HDCR..(GEN,VN);GUN122,TGN136..(TDC,TSC,TXT)..(5F,6FC)..(ARL,LA,TH);GGN12#,GUN123,KUN112,12#,13#..(TDC,TSC,TXT)..(ARL,GCC,GEN,IDN,LA,VN)

 1
87138C - RESISTOR, BLOWER
87138-0K360

KUN126..RHD..(L,M,S);GUN125..TDC..6FC..ARL;GUN125..RHD..TDC..(L,S);TGN136..RHD..(SDC,TDC,TXT);KUN122,125..RHD..MTM..(L,M,S,X);GUN125..RHD..(SDC,SSC,SXT,TSC,TXT);GUN125,126,136..RHD..(PDC,SSC,SXT,TDC)..M..(GEN,PKN,SA);GGN12#,GUN112,120,122,123,126,13#,KUN112,13#,TGN110,120,121,126..RHD..(L,S,X)..(ARL,GEN,IDN,MA,PKN,SA,TH)

 1
87139D - ELEMENT, AIR REFINER
87139-58010

TGN121..M,S,X;TGN121..L..CBU;GUN125..TDC..6FC..ARL;GUN125..ADC,ASC,SDC,SSC,SXT,TSC,TXT;GUN125..TDC..(GCC,GEN,IDN,LA,PH,TH,VN);TGN126,136..(ADC,ASC,SDC,TDC,TSC,TXT)..CBU;GGN12#,GUN135..ADC,ASC,MDC,SDC,SSC,SXT,TDC,TSC,TXT;GGN135,GUN112,120,122,123,126,136,KUN112,12#,13#,LAN125,TGN11#,120,128,138..ADC,ASC,PDC,PSC,SDC,SSC,SXT,TDC,TSC,TXT

DEODORANT FILTER

 1
87139-0K060

GUN122..5F..M..TH;GUN122..(L,S,X)..(PH,TH);GUN112,120,123,125,126,13#,KUN112,125,TGN110,121,136..IDN,PH,TH

POLLEN FILTER

 1
88482 - CAP, COOLER
88482-0K010

GUN122..S..HDCR;GUN122..TSC..X..GEN;GUN125..TDC..X..GEN;GUN112,122,126,KUN112,122,126,TGN110..(L,X)..(IDN,PKN)

 1
88501 - EVAPORATOR SUB-ASSY, COOLER, NO.1
88501-0K320

GUN126..6F..H..TH;GUN126..RHD..H..GEN;GUN126..RHD..(L,M,S,X)..(ARL,GEN,TH);GGN12#,GUN112,120,122,123,125,13#,KUN112,12#,136,TGN110,121,126,136..RHD..(TDC,TSC,TXT)

 1
88515 - VALVE, COOLER EXPANSION
88515-0K580

TGN121..M,S,X;TGN121..L..CBU;GUN126..6F..H..TH;KUN125..SDC..(M,S);GUN135..(SDC,SSC)..S;GUN125..TDC..6FC..ARL;GUN122,KUN122..LHD..SSC;GUN125..ADC,ASC,TSC,TXT;GUN135,KUN125..LHD..X..SA;GUN125..LHD..(SDC,SSC,TDC)..X;GUN126..H..(BZAGT,GEN,PKN,VN);GUN122,KUN122..PSC,SDC,TDC,TSC,TXT;KUN125..ADC,ASC,SSC,SXT,TDC,TSC,TXT;GUN135..ADC,ASC,MDC,SXT,TDC,TSC,TXT;GUN125..(SDC,SSC,SXT,TDC)..(H,L,M,S);TGN120,126,136..(ADC,ASC,SDC,TDC,TSC,TXT)..CBU;GUN126..(ADC,ASC,PDC,PSC,SDC,SSC,SXT,TDC,TSC,TXT)..(L,M,S,X);GGN12#,135,GUN112,120,123,136,KUN112,126,13#,LAN125,TGN11#,128,138..ARL,BZAGT,GCC,GEN,IDN,LA,PKN,SA,TH,VN

 1
88515F - BOLT(FOR COOLER EXPANSION VALVE)
90099-04542

TGN121..L..CBU;GUN125..TDC..6FC..ARL;TGN126..(TDC,TSC)..CBU;GUN125..MDC,MSC,TSC,TXT;TGN121..(TDC,TSC)..(M,S,X);GUN125..TDC..(GCC,GEN,IDN,LA,PH,TH,VN);GGN12#,GUN112,120,122,123,126,13#,KUN112,12#,13#,TGN11#,120,136..MDC,TDC,TSC,TXT

 2
88539J - HOSE, DRAIN COOLER
88539-0K390

GUN112,12#,13#,KUN112,12#,136,TGN110,121,126,136..RHD..(TDC,TSC,TXT)

 1
88548B - CASE, AIR FILTER
88548-0K080

TGN121..L..CBU;TGN126..(TDC,TSC)..CBU;TGN121..(TDC,TSC)..(M,S,X);GGN12#,GUN112,12#,13#,KUN112,12#,13#,TGN11#,120,136..PDC,PSC,TDC,TSC,TXT

 1
88899-06330

GUN125..TSC,TXT;GUN125..TDC..6FC..ARL;GUN125..TDC..(GCC,GEN,IDN,LA,PH,TH,VN);GGN125,GUN112,120,122,123,126,13#,KUN112,122,TGN11#,120,121,126,136..PDC,PSC,TDC,TSC,TXT

 1
88625 - THERMISTOR, COOLER, NO.1
88620-0K010

TGN121..M,S,X;TGN121..L..CBU;GUN126..6F..H..TH;KUN125..SDC..(M,S);GUN135..(SDC,SSC)..S;GUN125..TDC..6FC..ARL;GUN122,KUN122..LHD..SSC;GUN125..ADC,ASC,TSC,TXT;GUN135,KUN125..LHD..X..SA;GUN125..LHD..(SDC,SSC,TDC)..X;GUN126..H..(BZAGT,GEN,PKN,VN);GUN122,KUN122..PSC,SDC,TDC,TSC,TXT;KUN125..ADC,ASC,SSC,SXT,TDC,TSC,TXT;GUN135..ADC,ASC,MDC,SXT,TDC,TSC,TXT;GUN125..(SDC,SSC,SXT,TDC)..(H,L,M,S);TGN120,126,136..(ADC,ASC,SDC,TDC,TSC,TXT)..CBU;GUN126..(ADC,ASC,PDC,PSC,SDC,SSC,SXT,TDC,TSC,TXT)..(L,M,S,X);GGN12#,135,GUN112,120,123,136,KUN112,126,13#,LAN125,TGN11#,128,138..ARL,BZAGT,GCC,GEN,IDN,LA,PKN,SA,TH,VN

 1
88894G - CONNECTOR, DRAIN HOSE
88894-0K020

GUN125..TDC..6FC..ARL;GUN125..RHD..(TSC,TXT);GUN125..RHD..TDC..(GEN,IDN,TH);GUN112,120,122,123,126,13#,KUN112,12#,136,TGN110,121,126,136..RHD..(ARL,GEN,IDN,PKN,TH)

 1
Common parts
87193-87101
90099-14120
90099-14121
90105-T0241
90119-06951
90119-T0404
90159-T0005
90159-T0014
90178-T0053
90178-T0065
Linked diagrams
8715
