KDN190R-GRPSYT (2002)
Toyota Hilux
Production
Aug 2002
-
Nov 2004
Engine
2KDFTV
Transmission
ATM
Displacement
2500cc
Power
168 HP (125 kW)
(0208- )SRWGN

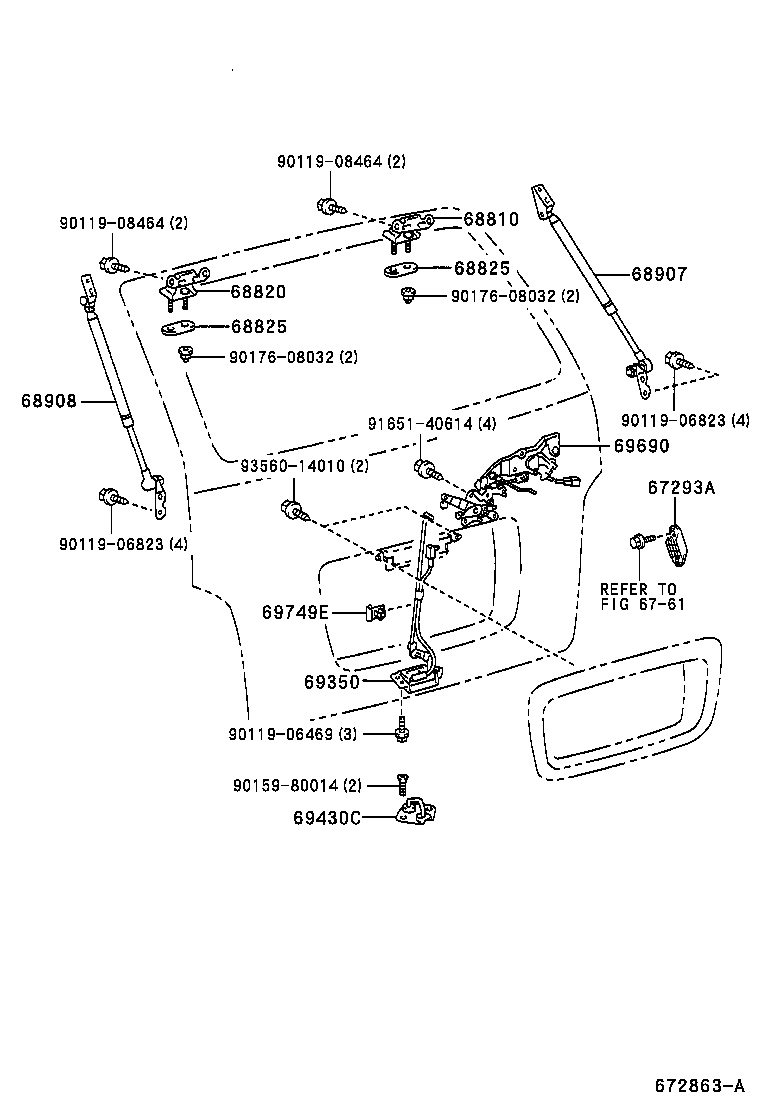

Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 67293A - CUSHION, BACK DOOR STOPPER | ||||
| 67293-D0010 |
KDN16#,190..SRWGN RH |
1 | ||
| 67294-D0010 |
KDN16#,190..SRWGN LH |
1 | ||
| 68810 - HINGE ASSY, BACK DOOR, UPPER | ||||
| 68810-95J02 |
KDN16#,190..SRWGN |
1 | ||
| 68820 - HINGE ASSY, BACK DOOR, LOWER | ||||
| 68820-95J02 |
KDN16#,190..SRWGN |
1 | ||
| 68825 - PLATE, BACK DOOR HINGE | ||||
| 68825-95700 |
KDN16#,190..SRWGN |
2 | ||
| 68825 - PLATE, BACK DOOR HINGE | ||||
| 68825-95700 |
KDN16#,190..SRWGN |
2 | ||
| 68907 - STAY SUB-ASSY, BACK DOOR DAMPER, RH | ||||
| C4650-01020 |
KDN16#,190..SRWGN |
1 | ||
| 68908 - STAY SUB-ASSY, BACK DOOR DAMPER, LH | ||||
| C4660-01020 |
KDN16#,190..SRWGN |
1 | ||
| 69350 - LOCK ASSY, BACK DOOR | ||||
| C4770-01010 |
KDN16#,190..SRWGN |
1 | ||
| 69430C - STRIKER ASSY, BACK DOOR LOCK | ||||
| C4709-01010 |
KDN16#,190..SRWGN |
1 | ||
| 69690 - CONTROL ASSY, BACK DOOR REMOTE | ||||
| C4830-01010 |
KDN16#,190..SRWGN |
1 | ||
| 69749E - CLAMP, BACK DOOR LOCK LINK | ||||
| 69749-30020 |
KDN16#,190..SRWGN |
1 | ||
| Common parts | ||||
| 90119-06469 | ||||
| 90119-06823 | ||||
| 90119-08464 | ||||
| 90159-80014 | ||||
| 90176-08032 | ||||
| 91651-40614 | ||||
| 93560-14010 | ||||
| Linked diagrams | ||||
| 6761 | ||||
