KDN190R-CRPSYT (2001)
Toyota Hilux
Production
Dec 2001
-
Aug 2004
Engine
2KDFTV
Transmission
ATM
Displacement
2500cc
Power
168 HP (125 kW)
(9708-0308)KDN166,RZN149,154,VZN167,172..ATM ; (0308- )VZN167,172..ATM ; (0308-

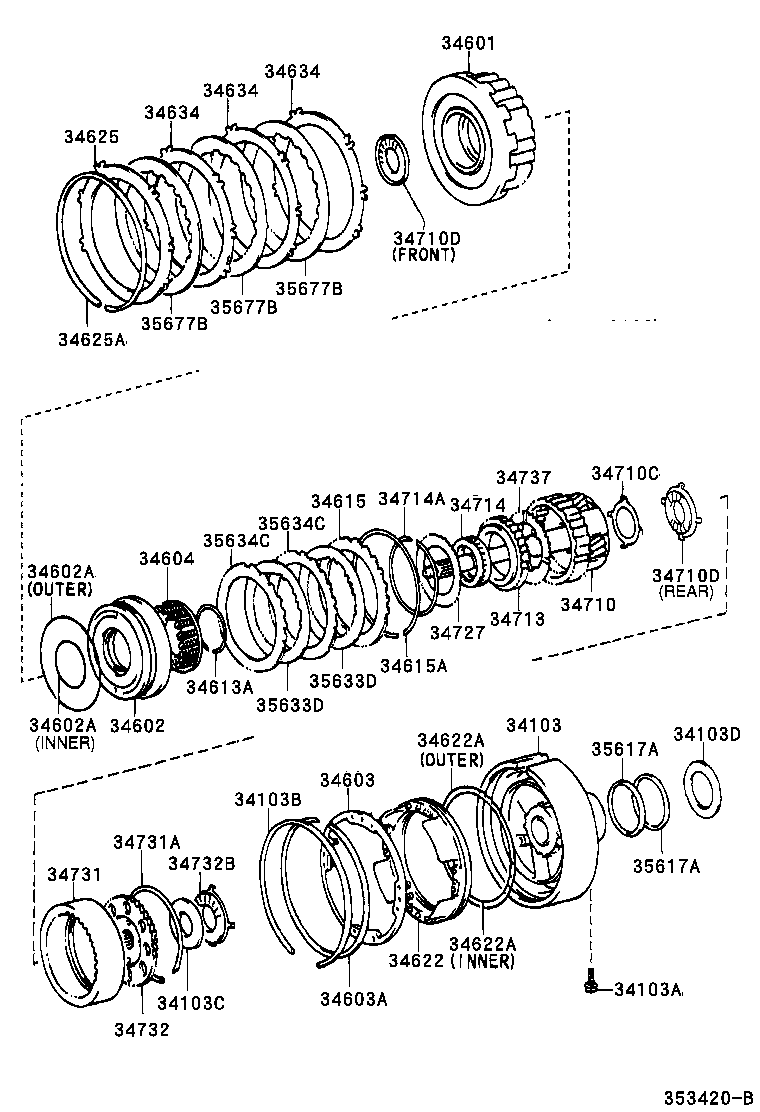

Click highlighted areas on diagram
A340E,A340F
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 34710C - RACE, THRUST BEARING(FOR OVERDRIVE PLANETARY GEAR) | ||||
| 35789-30051 |
VZN167,172..ATM;KDN190,RZN149..CO,MA,TH |
1 | ||
| 34710D - BEARING, THRUST NEEDLE ROLLER(FOR OVERDRIVE PLANETARY G | ||||
| 90374-24004 |
VZN167,172..ATM;KDN190,RZN149..CO,MA,TH REAR |
1 | ||
| 34710D - BEARING, THRUST NEEDLE ROLLER(FOR OVERDRIVE PLANETARY G | ||||
| 90374-24004 |
VZN167,172..ATM;KDN190,RZN149..CO,MA,TH REAR |
1 | ||
| 34710D - BEARING, THRUST NEEDLE ROLLER(FOR OVERDRIVE PLANETARY G | ||||
| 90374-24004 |
VZN167,172..ATM;KDN190,RZN149..CO,MA,TH REAR |
1 | ||
| 34732 - FLANGE, OVERDRIVE PLANETARY RING GEAR | ||||
| 34732-22010 |
VZN167,172..ATM;KDN190,RZN149..CO,MA,TH |
1 | ||
(0112- )KDN190
Click highlighted areas on diagram
A340E
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 34710C - RACE, THRUST BEARING(FOR OVERDRIVE PLANETARY GEAR) | ||||
| 35789-30051 |
VZN167,172..ATM;KDN190,RZN149..CO,MA,TH |
1 | ||
| 34710D - BEARING, THRUST NEEDLE ROLLER(FOR OVERDRIVE PLANETARY G | ||||
| 90374-24004 |
VZN167,172..ATM;KDN190,RZN149..CO,MA,TH REAR |
1 | ||
| 34710D - BEARING, THRUST NEEDLE ROLLER(FOR OVERDRIVE PLANETARY G | ||||
| 90374-24004 |
VZN167,172..ATM;KDN190,RZN149..CO,MA,TH REAR |
1 | ||
| 34732 - FLANGE, OVERDRIVE PLANETARY RING GEAR | ||||
| 34732-22010 |
VZN167,172..ATM;KDN190,RZN149..CO,MA,TH |
1 | ||
