KDN165R-GRMSYT (2002)

Toyota Hilux

Production Aug 2002 - Nov 2004
Engine 2KDFTV
Transmission MTM
Displacement 2500cc
Power 168 HP (125 kW)

(0208- )SRWGN

Click highlighted areas on diagram

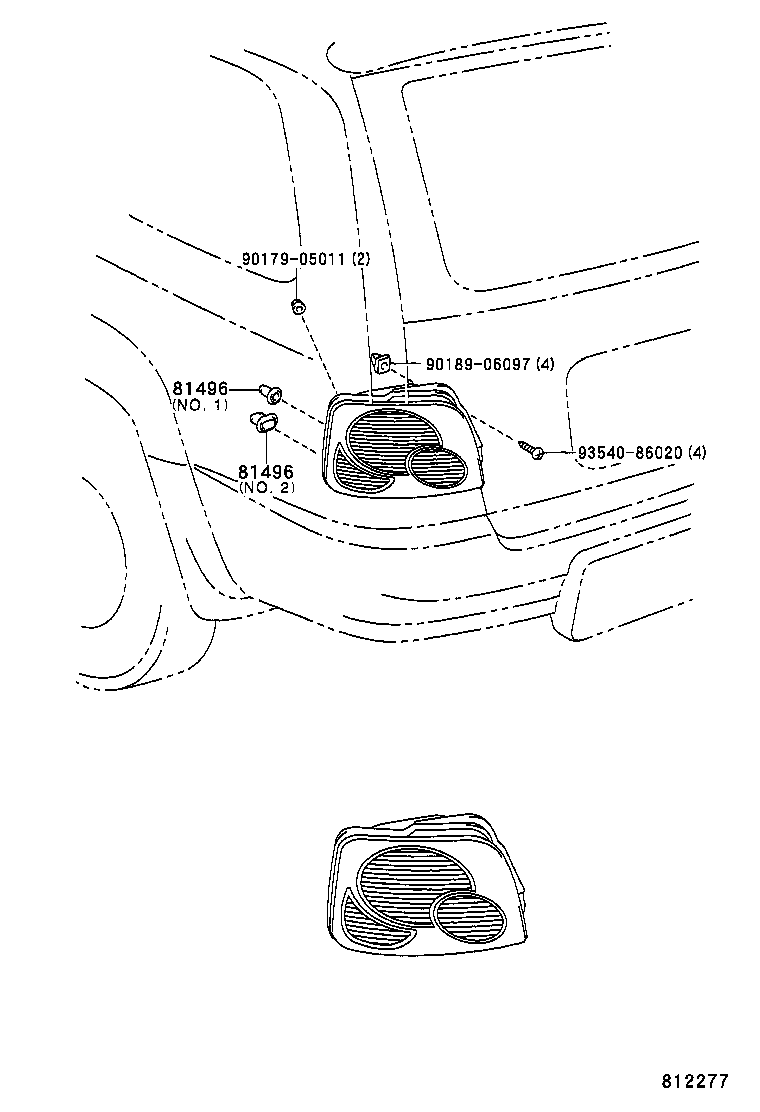

diagram 81496 81496 9017905011 9018906097 9354086020
Part # Description Qty Price
81496 - GUIDE, REAR COMBINATION LAMP
81496-44010

KDN16#,190..SRWGN

NO.1

 2
81496-44020

KDN16#,190..SRWGN

NO.2

 2
81496 - GUIDE, REAR COMBINATION LAMP
81496-44010

KDN16#,190..SRWGN

NO.1

 2
81496-44020

KDN16#,190..SRWGN

NO.2

 2
Common parts
90179-05011
90189-06097
93540-86020
