KDN165R-GRMSYT (2002)

Toyota Hilux

Production Aug 2002 - Nov 2004
Engine 2KDFTV
Transmission MTM
Displacement 2500cc
Power 168 HP (125 kW)

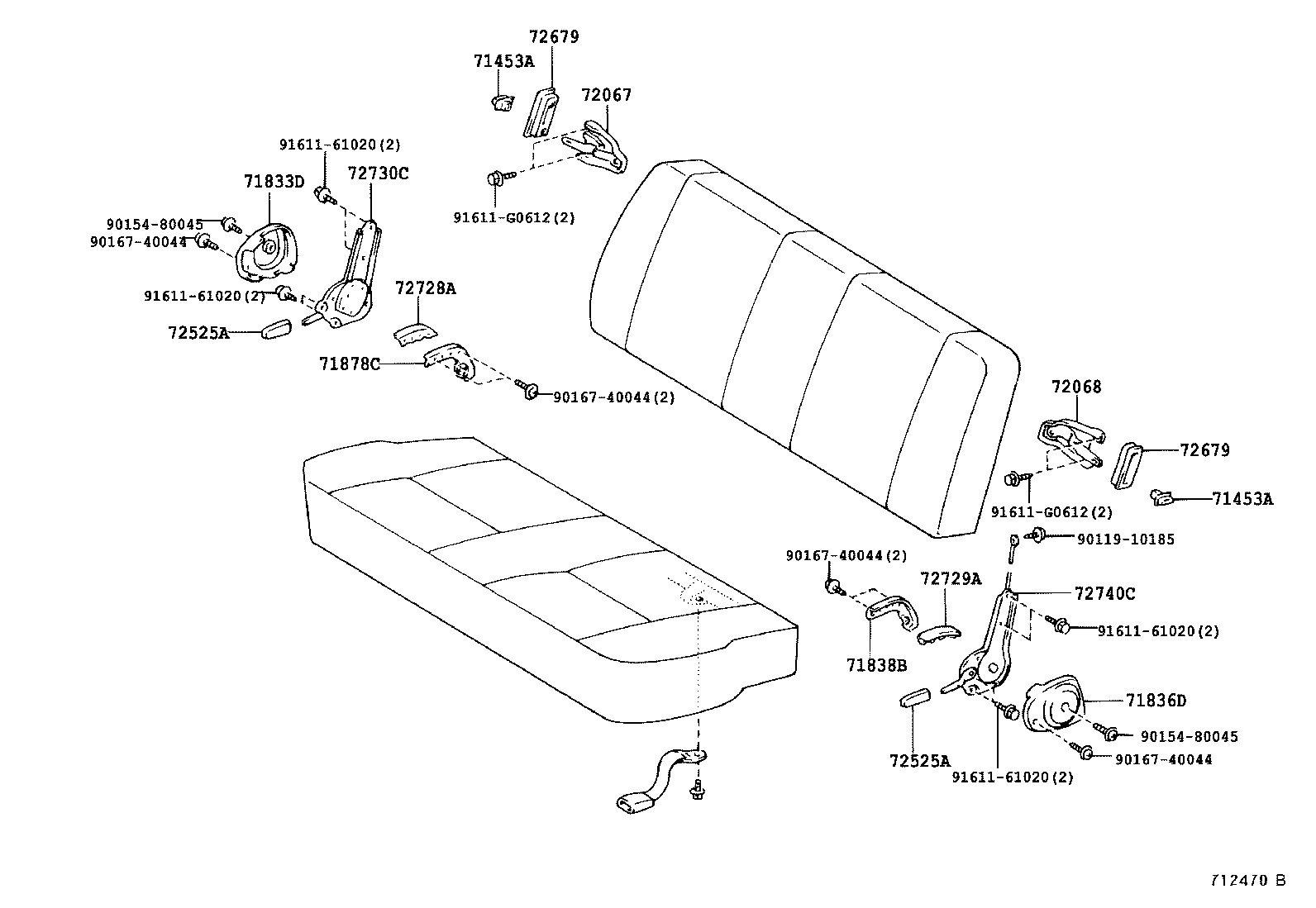

ILLUST NO. 3 OF 3(0208- )SRWGN

Click highlighted areas on diagram

NO.1 REAR SEAT

diagram 71453A 71453A 71833D 71836D 71838B 71878C 72067 72068 72525A 72525A 72679 72679 72728A 72729A 72730C 72740C 9011910185 91611G0612 91611G0612
Part # Description Qty Price
71453A - KNOB, REAR SEAT HINGE
71453-44010E0

KDN16#,190..SRWGN

SANDAL WOOD,TRIM4#

 2
71453A - KNOB, REAR SEAT HINGE
71453-44010E0

KDN16#,190..SRWGN

SANDAL WOOD,TRIM4#

 2
71833D - COVER REAR SEAT RECLINING, RH
71835-95J00E1

KDN16#,190..SRWGN

SANDAL WOOD,TRIM4#

 1
71836D - COVER, REAR SEAT RECLINING, LOWER LH
71836-95J00E1

KDN16#,190..SRWGN

SANDAL WOOD,TRIM4#

 1
71838B - COVER, REAR SEAT RECLINING, INNER LH
71838-95J01E1

KDN16#,190..SRWGN

SANDAL WOOD,TRIM4#

 1
71878C - COVER, REAR SEAT RECLINING, INNER RH
71878-95J01E1

KDN16#,190..SRWGN

SANDAL WOOD,TRIM4#

 1
72067 - LEVER SUB-ASSY, REAR BACK LOCK CONTROL, RH
72067-44010

KDN16#,190..SRWGN

 1
72068 - LEVER SUB-ASSY, REAR BACK LOCK CONTROL, LH
72068-44010

KDN16#,190..SRWGN

 1
72525A - HANDLE, RECLINING ADJUSTER RELEASE, RH
72525-95J01E1

KDN16#,190..SRWGN

SANDAL WOOD,TRIM4#

 2
72525A - HANDLE, RECLINING ADJUSTER RELEASE, RH
72525-95J01E1

KDN16#,190..SRWGN

SANDAL WOOD,TRIM4#

 2
72679 - BEZEL, REAR SEAT BACK LOCK CONTROL
72679-44010E0

KDN16#,190..SRWGN

SANDAL WOOD,TRIM4#

 2
72679 - BEZEL, REAR SEAT BACK LOCK CONTROL
72679-44010E0

KDN16#,190..SRWGN

SANDAL WOOD,TRIM4#

 2
72728A - PROTECTOR, FRONT SEAT RECLINING, INNER RH
72728-95J04

KDN16#,190..SRWGN

 1
72729A - PROTECTOR, FRONT SEAT RECLINING, INNER LH
72729-95J00

KDN16#,190..SRWGN

 1
72730C - ADJUSTER ASSY, NO.2 SEAT RECLINING, RH
C7300-01010

KDN16#,190..SRWGN

 1
72740C - ADJUSTER ASSY, NO.2 SEAT RECLINING, LH
C7400-01010

KDN16#,190..SRWGN

 1
Common parts
90119-10185
91611-G0612

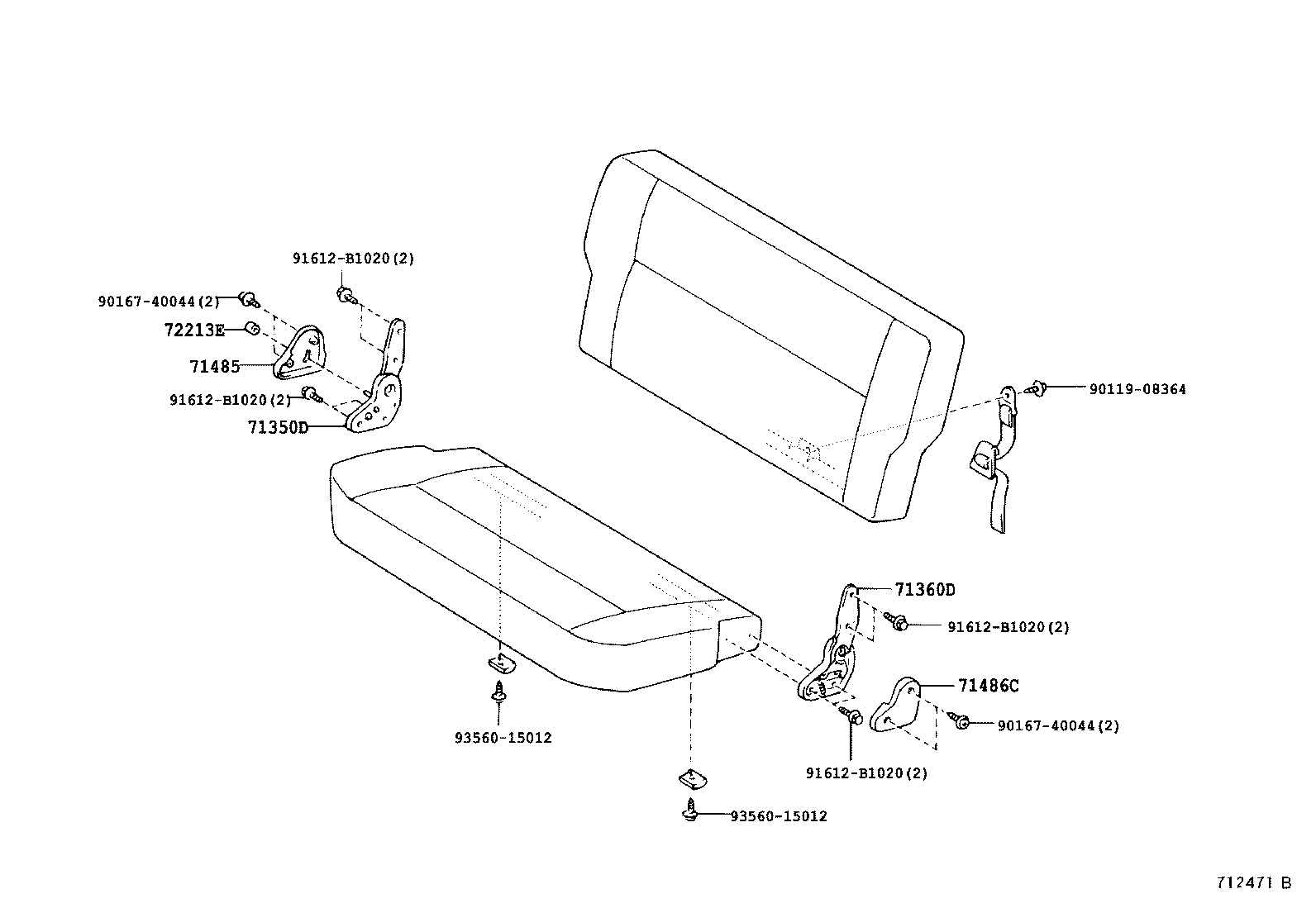

ILLUST NO. 3 OF 3(0208- )SRWGN

Click highlighted areas on diagram

NO.2 REAR SEAT

diagram 71350D 71360D 71485 71486C 72213E 9011908364
Part # Description Qty Price
Common parts
90119-08364
