KDN155R-TRMDYT (2001)

Toyota Hilux

Production Oct 2001 - Sep 2004
Engine 2KDFTV
Transmission MTM
Displacement 2500cc
Power 168 HP (125 kW)

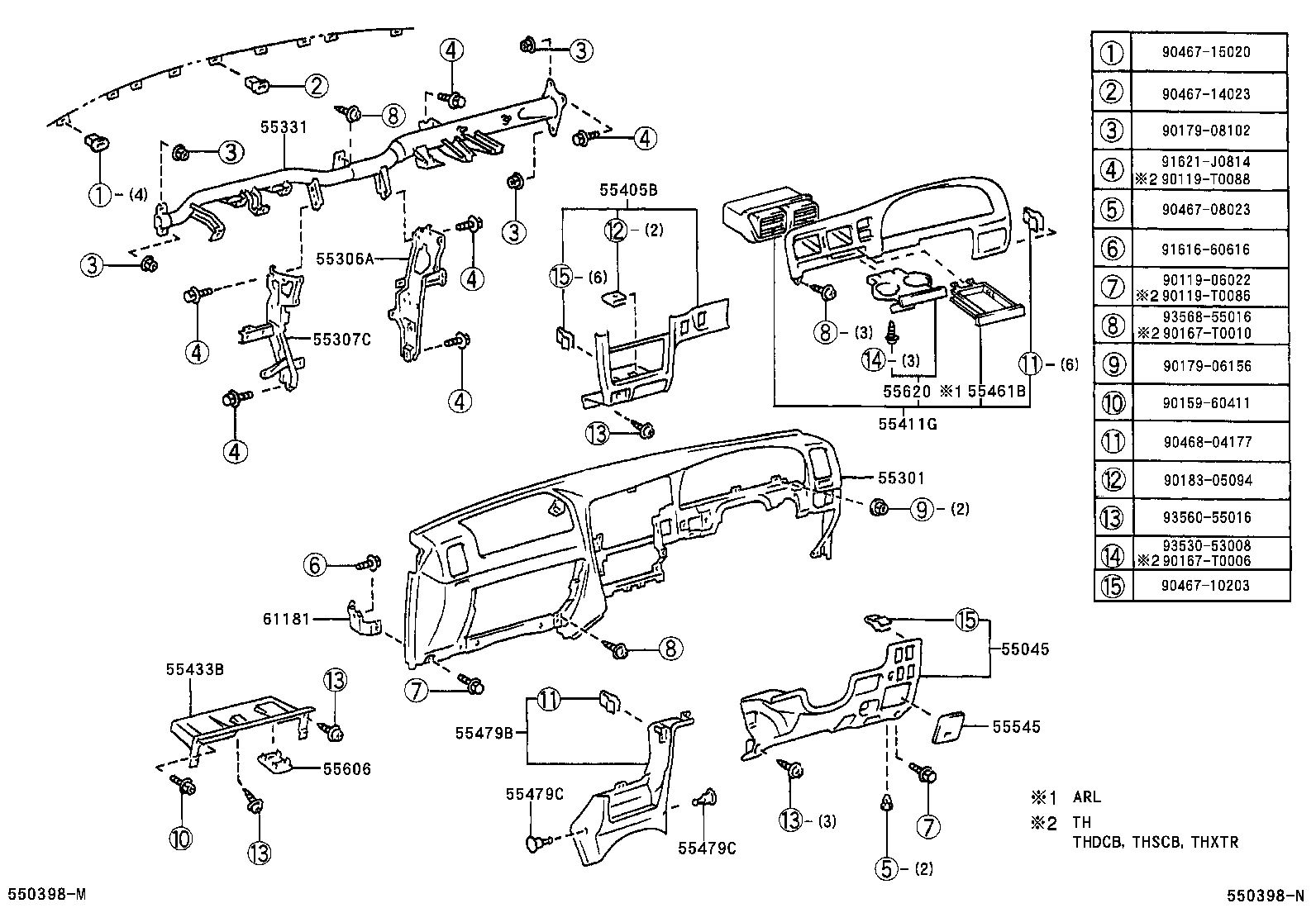

ILLUST NO. 1 OF 2(9708- )RHD

Click highlighted areas on diagram

diagram 55045 55301 55306A 55307C 55331 55405B 55411G 55433B 55461B 55479B 55479C 55479C 55545 55606 55620 61181 9011906022 90119T0086 90119T0088 9015960411 90167T0006 90167T0010 9017906156 9017908102 9018305094 9046708023 9046710203 9046714023 9046715020 9046804177 9161660616 91621J0814 9353053008 9356055016 9356855016
Part # Description Qty Price
55479C - CLIP(FOR INSTRUMENT LOWER COVER)
90467-07041B5

LN167..DSL;LN145..DCB..GEN;LN152..DEFI..IV3;LN150,RZN194..SR;LN145..LHD..DLX..TH;RZN169..DLX..(ARL,SA);LN167..DCB..DLX..DEFI..ARL;RZN149..DLX..EFI..(ARL,GEN);LN145,152..(SCB,THXTR,XTR)..DSL;LN167..(SCB,THDCB,THSCB)..DLX..DEFI;LN192,RZN144,149,154,169..CBR,DEFI,DSL;KZN165,RZN154..(DCB,SCB,THXTR,XTR)..(ARL,SA);KZN165,LN152..(THDCB,THSCB,XTR)..SR..(DEFI,TDE);LN167,RZN169..(DCB,XTR)..SR..(DEFI,EFI)..(SA,TH);KZN190,LN140,141,146,147,155,157,166,17#,191,RZN142,147,148,168,174,193,YN140..DLX..(ARL,GCC,GEN,SA,TH)

MD.MOON MIST,TRIM1#

 2
90467-07076P4

KDN155,LN155..RHD

MD.MOON MIST,TRIM1#

 2
55479C - CLIP(FOR INSTRUMENT LOWER COVER)
90467-07041B5

LN167..DSL;LN145..DCB..GEN;LN152..DEFI..IV3;LN150,RZN194..SR;LN145..LHD..DLX..TH;RZN169..DLX..(ARL,SA);LN167..DCB..DLX..DEFI..ARL;RZN149..DLX..EFI..(ARL,GEN);LN145,152..(SCB,THXTR,XTR)..DSL;LN167..(SCB,THDCB,THSCB)..DLX..DEFI;LN192,RZN144,149,154,169..CBR,DEFI,DSL;KZN165,RZN154..(DCB,SCB,THXTR,XTR)..(ARL,SA);KZN165,LN152..(THDCB,THSCB,XTR)..SR..(DEFI,TDE);LN167,RZN169..(DCB,XTR)..SR..(DEFI,EFI)..(SA,TH);KZN190,LN140,141,146,147,155,157,166,17#,191,RZN142,147,148,168,174,193,YN140..DLX..(ARL,GCC,GEN,SA,TH)

MD.MOON MIST,TRIM1#

 2
90467-07076P4

KDN155,LN155..RHD

MD.MOON MIST,TRIM1#

 2
55620 - HOLDER ASSY, INSTRUMENT PANEL CUP
55620-35050

KZN165,LN140,145,147,15#,16#,172,192,RZN147,149,154,169,174,194..RHD

 1
61181 - BRACKET, INSTRUMENT PANEL SIDE
61181-35020

LN167..DSL;LN152..DEFI..IV3;LN150,RZN194..SR;KZN165..SR..(ARL,SA);LN145..RHD..DCB..GEN;RZN169..DLX..(ARL,SA);KZN165,LN145..RHD..SCB..DLX;LN192,RZN169..RHD..(CBR,DEFI,DSL);LN167..(SCB,THDCB,THSCB)..DLX..DEFI;KZN165,LN152..(THXTR,XTR)..(DSL,TDE);KZN165,LN167..DCB..DLX..(DEFI,TDE)..ARL..CBU;LN152,167,RZN169..(DCB,XTR)..SR..(DEFI,EFI)..(SA,TH);KZN190,LN140,147,155,157,166,172,RZN142,147,149,154,174,YN140..RHD..DLX..(ARL,GEN,SA,TH)

 1
Common parts
90119-06022
90119-T0086
90119-T0088
90159-60411
90167-T0006
90167-T0010
90179-06156
90179-08102
90183-05094
90467-08023
90467-10203
90467-14023
90467-15020
90468-04177
91616-60616
91621-J0814
93530-53008
93560-55016
93568-55016

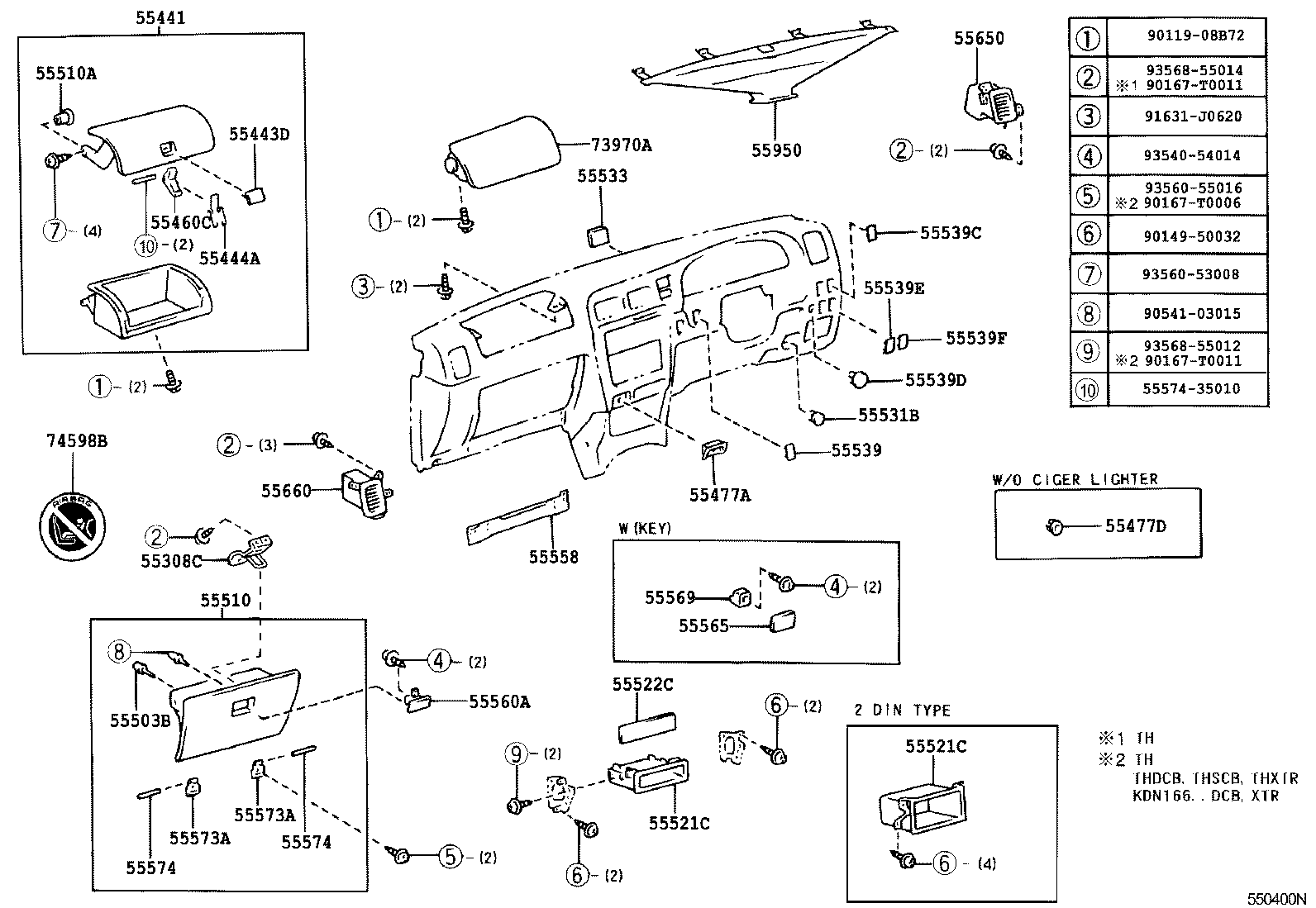

ILLUST NO. 2 OF 2(9708- )RHD

Click highlighted areas on diagram

diagram 55308C 55441 55443D 55444A 55460C 55477A 55477D 55503B 55510 55510A 55521C 55521C 55522C 55531B 55533 55539 55539C 55539D 55539E 55539F 55558 55560A 55565 55569 55573A 55573A 55574 55574 5557435010 55650 55660 55950 73970A 74598B 9011908B72 9014950032 90167T0006 90167T0011 90167T0011 9054103015 91631J0620 9354054014 9356053008 9356055016 9356855012 9356855014
Part # Description Qty Price
55308C - BRACKET SUB-ASSY, INSTRUMENT PANEL, CENTER
55308-35020

LN167..DSL;LN145..DCB..GEN;LN152..DEFI..IV3;LN150,RZN194..SR;LN145..LHD..DLX..TH;KZN165..SR..(ARL,SA);RZN169..DLX..(ARL,SA);KZN165,LN145..SCB..DLX;RZN149..DLX..EFI..(ARL,GEN);LN167..(SCB,THDCB,THSCB)..DLX..DEFI;KZN165,LN152..(THXTR,XTR)..(DSL,TDE);LN192,RZN144,149,154,169..CBR,DEFI,DSL;LN152,167,RZN169..(DCB,XTR)..SR..(DEFI,EFI)..(SA,TH);KZN165,LN167,RZN154..(DCB,THXTR,XTR)..DLX..(DEFI,EFI,TDE)..ARL..CBU;KZN190,LN140,141,146,147,155,157,166,17#,191,RZN142,147,148,168,174,193,YN140..DLX..(ARL,GCC,GEN,SA,TH)

 1
55477A - BEZEL, CIGARETTE LIGHTER HOLE
55477-35010

LN167..DSL;LN145..DCB..GEN;LN152..DEFI..IV3;LN150,RZN194..SR;LN145..LHD..DLX..TH;KZN165..SR..(ARL,SA);RZN169..DLX..(ARL,SA);KZN165,LN145..SCB..DLX;RZN149..DLX..EFI..(ARL,GEN);LN167..(SCB,THDCB,THSCB)..DLX..DEFI;KZN165,LN152..(THXTR,XTR)..(DSL,TDE);LN192,RZN144,149,154,169..CBR,DEFI,DSL;LN152,167,RZN169..(DCB,XTR)..SR..(DEFI,EFI)..(SA,TH);KZN165,LN167,RZN154..(DCB,THXTR,XTR)..DLX..(DEFI,EFI,TDE)..ARL..CBU;KZN190,LN140,141,146,147,155,157,166,17#,191,RZN142,147,148,168,174,193,YN140..DLX..(ARL,GCC,GEN,SA,TH)

 1
55477D - COVER, CIGARETTE LIGHTER HOLE
55477-35020

LN145..DCB..IV3;LN145..LHD..IV3;RZN169..CBR..GEN;LN145,155,157,166,191,RZN142,147,148,149,168,193..MTM..DLX..(GEN,TH)..(CBU,IV1)

 1
55533 - COVER, AUTO CLOCK HOLE
55533-35030

LN167,RZN169,194..DCB,SCB,THDCB,THSCB;LN14#,152,155,157,166,17#,19#,RZN14#,154,168,174,193,YN140..DLX

 1
55539 - COVER, SPARE SWITCH HOLE
55539-32010B2

KZN165,190,LN14#,15#,16#,17#,19#,RZN14#,154,16#,174,19#,YN140

MD.MOON MIST,TRIM1#

 1
55539C - COVER, SPARE SWITCH HOLE
55539-20080B2

LN14#,15#,16#,17#,19#,RZN14#,154,16#,174,19#,YN140

MD.MOON MIST,TRIM1#

 1
55539E - COVER, SPARE SWITCH HOLE
55539-20080B2

LN14#,15#,16#,17#,19#,RZN14#,154,16#,174,19#,YN140

MD.MOON MIST,TRIM1#

 1
55539F - COVER, SPARE SWITCH HOLE
55539-20080B2

LN167..ARL,TH;LN192..SCB,XTR;LN167..DLX..SA;LN14#,15#,166,17#,191,RZN14#,154,16#,174,193,YN140

MD.MOON MIST,TRIM1#

 1
55560A - LOCK ASSY, GLOVE COMPARTMENT DOOR
55560-34020B0

RZN148..DLX..CBU;RZN149..ATM..ARL;RZN169..CBR..GEN;RZN154,169..DLX..(ARL,SA);RZN147,154..(DCB,XTR)..CBR..GEN;KZN190,LN150,192,RZN147..(SCB,THSCB,XTR)..(ARL,GEN,SA,TH);KZN165,LN140,145,147,152,155,157,16#,17#,191,RZN142,149,168,174,193,YN140..MTM..DLX..(ARL,GEN,SA,TH)

MD.MOON MIST,TRIM1#

 1
Common parts
55574-35010
90119-08B72
90149-50032
90167-T0006
90167-T0011
90541-03015
91631-J0620
93540-54014
93560-53008
93560-55016
93568-55012
93568-55014
