KDN155R-TRMDYT (2001)

Toyota Hilux

Production Oct 2001 - Sep 2004
Engine 2KDFTV
Transmission MTM
Displacement 2500cc
Power 168 HP (125 kW)

(9708- )LN140,145,147,15#,16#,172,192..RHD

Click highlighted areas on diagram

diagram 44318 44319 44348A 44410 44410 44411 44411 44412D 44412D 44412E 44412E 44416 44416 44443 4505 4505 4505 4505 9010510042 9010510113 9010510255 9010512109 9046716019 9046716019 9046721010 9161160814 91641H0820 91641H0820
Part # Description Qty Price
44318 - SPACER, VANE PUMP DRIVE PULLEY
44318-26010

LN145,15#,167,192..RHD..TH

 1
44319 - PULLEY, VANE PUMP DRIVE
44319-22010

LN145,150,155..RHD..TH;LN147,152,157,167,172,192..DEFI..(ARL,TH)

 1
44348A - HOSE, OIL RESERVOIR TO PUMP, NO.1
44348-35260

KDN145,15#,165,190

 1
44410 - TUBE ASSY, PRESSURE FEED
44410-35610

KDN145,15#

 1
44410 - TUBE ASSY, PRESSURE FEED
44410-35610

KDN145,15#

 1
44411 - HOSE, PRESSURE FEED
44411-35630

KDN145,15#

 1
44411 - HOSE, PRESSURE FEED
44411-35630

KDN145,15#

 1
44412E - HOSE, RETURN, NO.2
44412-35350

KDN145,15#

 1
44412E - HOSE, RETURN, NO.2
44412-35350

KDN145,15#

 1
44443 - BRACKET, PUMP
44443-26041

LN145,147,15#,167,172,192..RHD..(ARL,TH)

 1
Common parts
90105-10042
90105-10113
90105-10255
90105-12109
90467-16019
90467-21010
91611-60814
91641-H0820
Linked diagrams
4505

(0110- )KDN145,15#

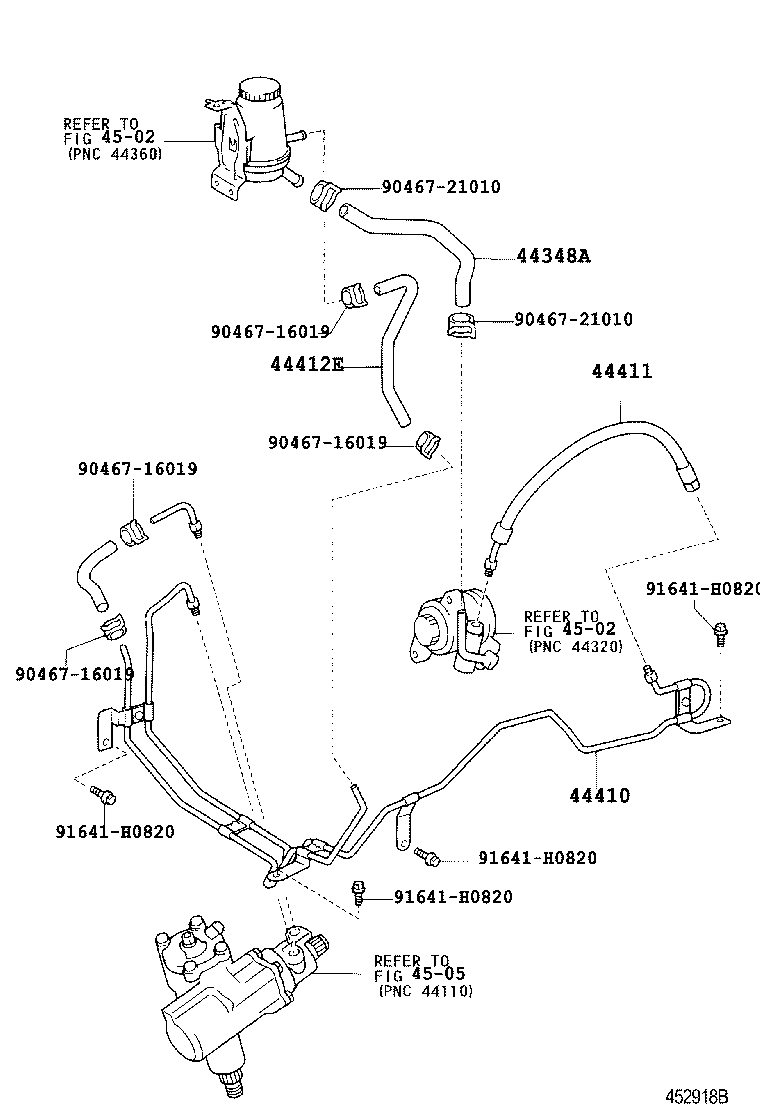

Click highlighted areas on diagram

diagram 44348A 44410 44411 44412E 4502 4502 4505 9046716019 9046716019 9046716019 9046716019 9046721010 9046721010 91641H0820 91641H0820 91641H0820 91641H0820
Part # Description Qty Price
44348A - HOSE, OIL RESERVOIR TO PUMP, NO.1
44348-35260

KDN145,15#,165,190

 1
44410 - TUBE ASSY, PRESSURE FEED
44410-35610

KDN145,15#

 1
44411 - HOSE, PRESSURE FEED
44411-35630

KDN145,15#

 1
44412E - HOSE, RETURN, NO.2
44412-35350

KDN145,15#

 1
Common parts
90467-16019
90467-21010
91641-H0820
Linked diagrams
4502
4505
