KDN155R-TRMDYT (2001)

Toyota Hilux

Production Oct 2001 - Sep 2004
Engine 2KDFTV
Transmission MTM
Displacement 2500cc
Power 168 HP (125 kW)

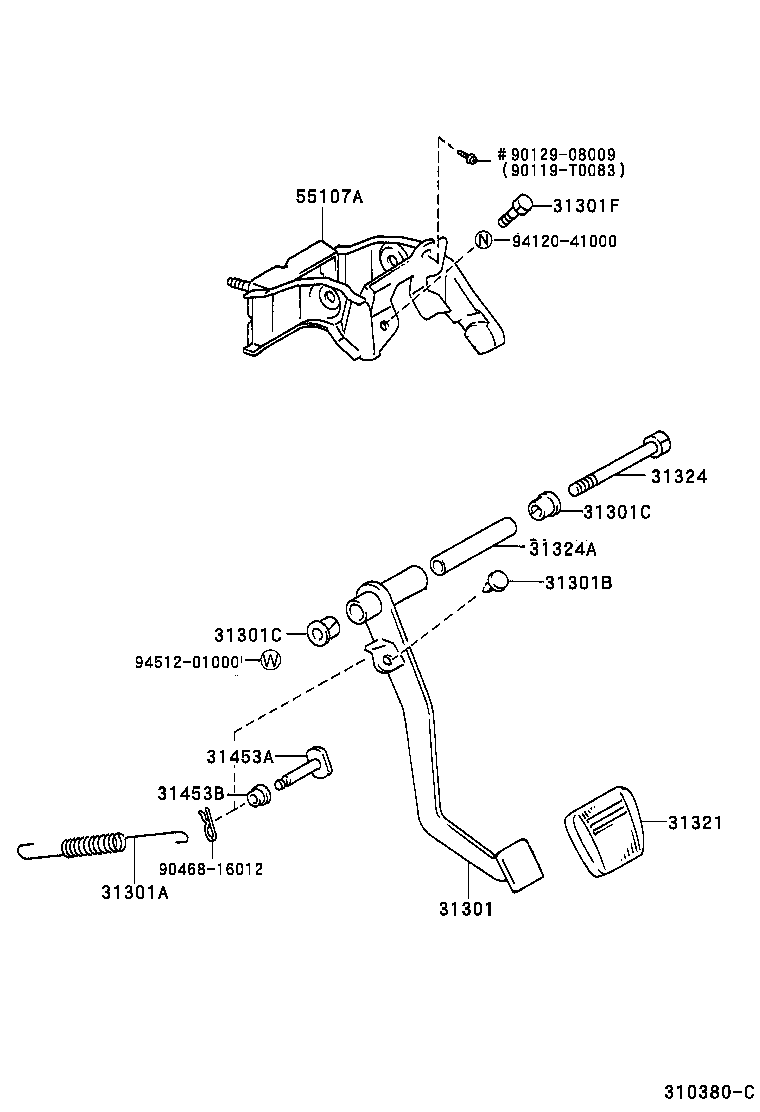

ILLUST NO. 1 OF 2(9708- )KDN145,150,155,LN140,145,147,15#,16#,172,192,RZN142,147,YN140..RHD..MTM

Click highlighted areas on diagram

diagram 31301 31301A 31301B 31301C 31301C 31301F 31321 31324 31324A 31453A 31453B 55107A 90119T0083 9012908009 9046816012 9412041000 9451201000
Part # Description Qty Price
31301 - PEDAL SUB-ASSY, CLUTCH
31301-35240

LN145,150,155..RHD..TH;LN147,152,157,167,172,192,RZN147..MTM..(DEFI,EFI)..(ARL,TH)

 1
31301A - SPRING(FOR CLUTCH PEDAL)
90507-14030

LN150..SR;LN167..DSL;LN145..DCB..GEN;LN152..DEFI..IV3;LN145..LHD..DLX..TH;LN152,167..MTM..DEFI..TH;LN167..DCB..DLX..DEFI..ARL;LN192,RZN144,149,154..CBR,DEFI,DSL;LN167..(SCB,THDCB,THSCB)..DLX..DEFI;LN145,152..(SCB,THXTR,XTR)..MTM..DSL;LN140,141,146,147,155,157,166,17#,191,RZN142,147,148,168,193,YN140..DLX..(ARL,GCC,GEN,SA,TH)

 1
31301B - CUSHION, NO.1(FOR CLUTCH PEDAL)
90541-06036

KZN165..SCB..DLX;KZN165..(DCB,THDCB,XTR)..(ARL,TH);LN147,152,157,167,172,192..MTM..DEFI..(ARL,TH);LN145,150,155,RZN147,149,154,169,174..MTM..(ARL,TH)

 1
31301C - BUSH(FOR CLUTCH PEDAL)
90386-13007

LN150..SR;LN167..DSL;LN145..DCB..GEN;LN152..DEFI..IV3;RZN169..LHD..CBR;LN145..LHD..DLX..TH;LN152,167..MTM..DEFI..TH;LN167..DCB..DLX..DEFI..ARL;LN192,RZN144,149,154..CBR,DEFI,DSL;LN167..(SCB,THDCB,THSCB)..DLX..DEFI;LN145,152..(SCB,THXTR,XTR)..MTM..DSL;LN140,141,146,147,155,157,166,17#,191,RZN142,147,148,168,193,YN140..DLX..(ARL,GCC,GEN,SA,TH)

 2
31301C - BUSH(FOR CLUTCH PEDAL)
90386-13007

LN150..SR;LN167..DSL;LN145..DCB..GEN;LN152..DEFI..IV3;RZN169..LHD..CBR;LN145..LHD..DLX..TH;LN152,167..MTM..DEFI..TH;LN167..DCB..DLX..DEFI..ARL;LN192,RZN144,149,154..CBR,DEFI,DSL;LN167..(SCB,THDCB,THSCB)..DLX..DEFI;LN145,152..(SCB,THXTR,XTR)..MTM..DSL;LN140,141,146,147,155,157,166,17#,191,RZN142,147,148,168,193,YN140..DLX..(ARL,GCC,GEN,SA,TH)

 2
31301F - BOLT(FOR CLUTCH PEDAL STOPPER)
90101-10369

LN167..DSL;LN145..DCB..GEN;LN152..DEFI..IV3;LN150,RZN194..SR;LN145..LHD..DLX..TH;KZN165..SR..(ARL,SA);KZN165,LN145..SCB..DLX;RZN149,169..MTM..DLX..(ARL,SA);LN167..(SCB,THDCB,THSCB)..DLX..DEFI;LN192,RZN144,149,154,169..CBR,DEFI,DSL;KZN165,LN152..(THXTR,XTR)..MTM..(DSL,TDE);LN152,167,RZN169..(DCB,XTR)..MTM..SR..(DEFI,EFI)..(SA,TH);KZN165,LN167,RZN154..(DCB,THXTR,XTR)..MTM..DLX..(DEFI,EFI,TDE)..ARL..CBU;KZN190,LN140,141,146,147,155,157,166,17#,191,RZN142,147,148,168,174,193,YN140..DLX..(ARL,GCC,GEN,SA,TH)

 1
31321 - PAD, CLUTCH PEDAL
31321-14020

KZN165..SCB..DLX;LN145,150,155..RHD..TH;KZN165..(DCB,THDCB,XTR)..(ARL,TH);LN147,152,157,167,172,192,RZN147,149,154,169,174..MTM..(DEFI,EFI)..(ARL,TH)

 1
31324 - SHAFT, CLUTCH PEDAL
90101-10177

LN167..DSL;LN152..DEFI..IV3;LN150,RZN194..SR;KZN165..SR..(ARL,SA);LN145..RHD..DCB..GEN;RZN169..DLX..(ARL,SA);KZN165,LN145..RHD..SCB..DLX;LN192,RZN169..RHD..(CBR,DEFI,DSL);LN167..(SCB,THDCB,THSCB)..DLX..DEFI;KZN165,LN152..(THXTR,XTR)..MTM..(DSL,TDE);KZN165,LN167..DCB..DLX..(DEFI,TDE)..ARL..CBU;LN152,167,RZN169..(DCB,XTR)..MTM..SR..(DEFI,EFI)..(SA,TH);KZN190,LN140,147,155,157,166,172,RZN142,147,149,154,174,YN140..RHD..MTM..DLX..(ARL,GEN,SA,TH)

 1
31324A - COLLAR, CLUTCH PEDAL SHAFT
90387-10082

LN167..DSL;LN152..DEFI..IV3;LN150,RZN194..SR;KZN165..SR..(ARL,SA);LN145..RHD..DCB..GEN;RZN169..DLX..(ARL,SA);KZN165,LN145..RHD..SCB..DLX;LN192,RZN169..RHD..(CBR,DEFI,DSL);LN167..(SCB,THDCB,THSCB)..DLX..DEFI;KZN165,LN152..(THXTR,XTR)..MTM..(DSL,TDE);KZN165,LN167..DCB..DLX..(DEFI,TDE)..ARL..CBU;LN152,167,RZN169..(DCB,XTR)..MTM..SR..(DEFI,EFI)..(SA,TH);KZN190,LN140,147,155,157,166,172,RZN142,147,149,154,174,YN140..RHD..MTM..DLX..(ARL,GEN,SA,TH)

 1
31453A - PIN, W/HOLE(FOR CLUTCH MASTER CYLINDER PUSH ROD CLEVIS)
47148-34010

LN167..DSL;LN145..DCB..GEN;LN152..DEFI..IV3;LN150,RZN194..SR;LN145..LHD..DLX..TH;KZN165..SR..(ARL,SA);KZN165,LN145..SCB..DLX;RZN149,169..MTM..DLX..(ARL,SA);LN167..(SCB,THDCB,THSCB)..DLX..DEFI;LN192,RZN144,149,154,169..CBR,DEFI,DSL;KZN165,LN152..(THXTR,XTR)..MTM..(DSL,TDE);LN152,167,RZN169..(DCB,XTR)..MTM..SR..(DEFI,EFI)..(SA,TH);KZN165,LN167,RZN154..(DCB,THXTR,XTR)..MTM..DLX..(DEFI,EFI,TDE)..ARL..CBU;KZN190,LN140,141,146,147,155,157,166,17#,191,RZN142,147,148,168,174,193,YN140..DLX..(ARL,GCC,GEN,SA,TH)

L=27

 1
31453B - BUSH(FOR CLUTCH MASTER CYLINDER PUSH ROD CLEVIS)
90386-08002

LN150..SR;LN167..DSL;LN145..DCB..GEN;LN152..DEFI..IV3;RZN169..LHD..CBR;LN145..LHD..DLX..TH;LN152,167..MTM..DEFI..TH;LN167..DCB..DLX..DEFI..ARL;LN192,RZN144,149,154..CBR,DEFI,DSL;LN167..(SCB,THDCB,THSCB)..DLX..DEFI;LN145,152..(SCB,THXTR,XTR)..MTM..DSL;LN140,141,146,147,155,157,166,17#,191,RZN142,147,148,168,193,YN140..DLX..(ARL,GCC,GEN,SA,TH)

 1
Common parts
90119-T0083
90129-08009
90468-16012
94120-41000
94512-01000

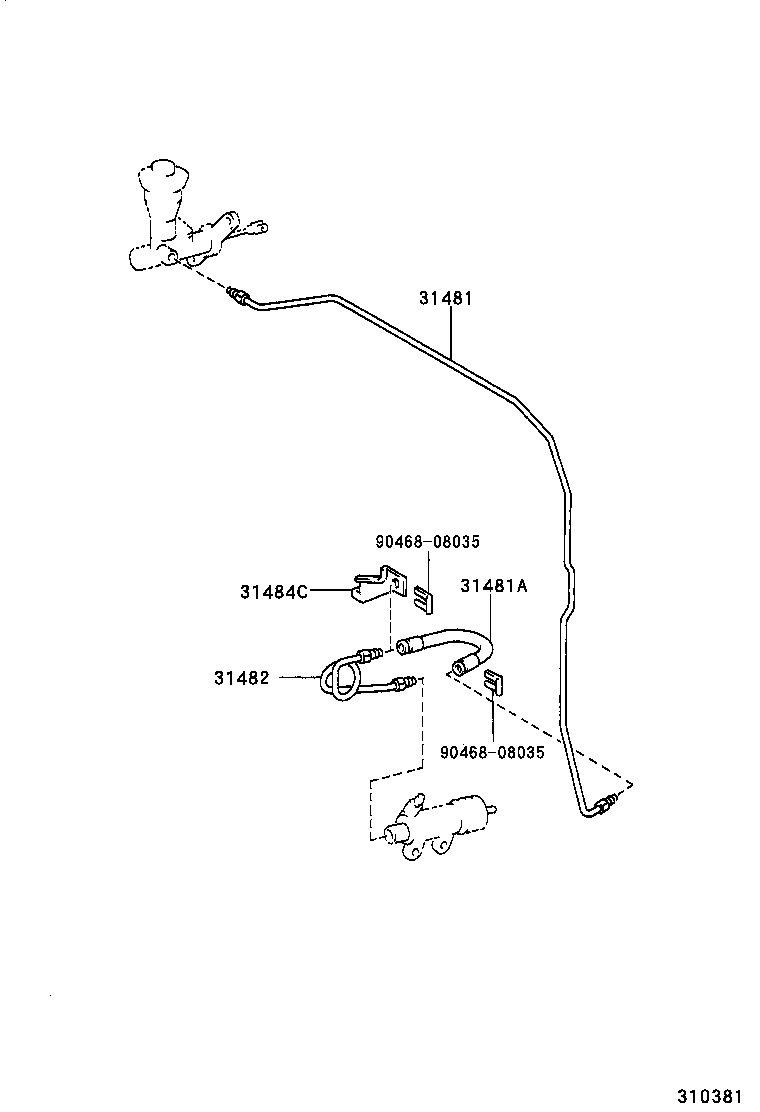

ILLUST NO. 2 OF 2(9708- )LN140,145,147,15#,16#,172,192..RHD..MTM

Click highlighted areas on diagram

diagram 31481 31481A 31482 31484C 9046808035 9046808035
Part # Description Qty Price
31481 - TUBE, CLUTCH MASTER CYLINDER TO FLEXIBLE HOSE
31481-35440

LN140,145,147,15#,16#,172,192,RZN142,147,149,154,169,174,194..RHD..MTM

 1
31481A - HOSE, CLUTCH, NO.1
90947-02953

LN167..DSL;LN145..DCB..GEN;LN152..DEFI..IV3;LN150,RZN194..SR;LN145..LHD..DLX..TH;KZN165,LN145..SCB..DLX;RZN147,174..DCB,SCB,XTR;LN167..(SCB,THDCB,THSCB)..DLX..DEFI;KZN165..(DCB,SCB,THSCB)..SR..(ARL,SA);LN192,RZN144,149,154,169..CBR,DEFI,DSL;KZN165,LN152..(THXTR,XTR)..MTM..(DSL,TDE);RZN149,169..(DCB,SCB)..MTM..DLX..(ARL,SA);LN152,167,RZN169..(DCB,XTR)..MTM..SR..(DEFI,EFI)..(SA,TH);KZN165,LN167,RZN154..(DCB,XTR)..MTM..DLX..(DEFI,EFI,TDE)..ARL..CBU;KZN190,LN140,141,146,147,155,157,166,17#,191,RZN142,148,168,193..DLX..(ARL,GCC,GEN,SA,TH)

(J)

 1
31482 - TUBE, CLUTCH RELEASE CYLINDER TO FLEXIBLE HOSE
31482-35410

LN192;LN150..SR;LN167..DSL;LN145..DCB..GEN;LN152..DEFI..IV3;LN145..LHD..DLX..TH;LN152,167..MTM..DEFI..TH;LN167..DCB..DLX..DEFI..ARL;LN167..(SCB,THDCB,THSCB)..DLX..DEFI;LN145,152..(SCB,THXTR,XTR)..MTM..DSL;LN140,141,146,147,155,157,166,17#,191..DLX..(ARL,GCC,GEN,SA,TH)

 1
31484C - BRACKET, CLUTCH TUBE, NO.1
31484-35310

LN192;LN150..SR;LN167..DSL;LN145..DCB..GEN;LN152..DEFI..IV3;LN145..LHD..DLX..TH;LN152,167..MTM..DEFI..TH;LN167..DCB..DLX..DEFI..ARL;LN167..(SCB,THDCB,THSCB)..DLX..DEFI;LN145,152..(SCB,THXTR,XTR)..MTM..DSL;LN140,141,146,147,155,157,166,17#,191..DLX..(ARL,GCC,GEN,SA,TH)

 1
Common parts
90468-08035

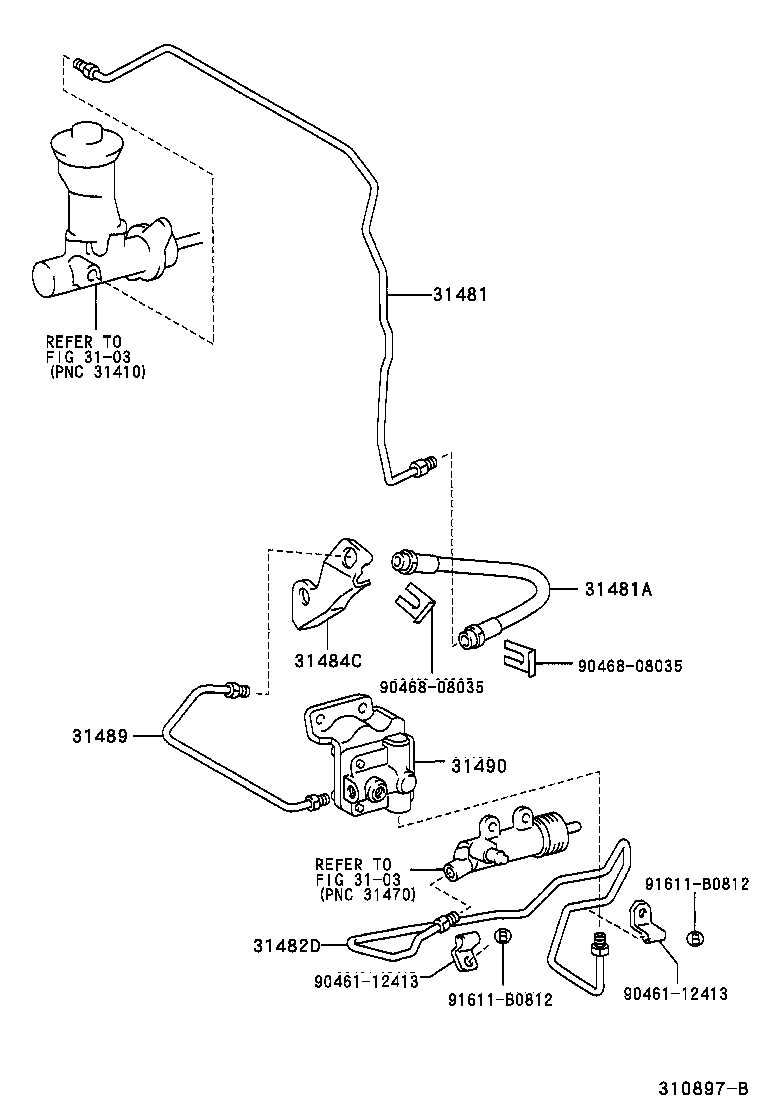

ILLUST NO. 2 OF 2(0110- )KDN145,15#,16#..MTM

Click highlighted areas on diagram

diagram 3103 3103 31481 31481A 31482D 31484C 31489 31490 9046112413 9046112413 9046808035 9046808035 91611B0812 91611B0812
Part # Description Qty Price
31481 - TUBE, CLUTCH MASTER CYLINDER TO FLEXIBLE HOSE
31481-35440

LN140,145,147,15#,16#,172,192,RZN142,147,149,154,169,174,194..RHD..MTM

 1
31481A - HOSE, CLUTCH, NO.1
90947-02953

LN167..DSL;LN145..DCB..GEN;LN152..DEFI..IV3;LN150,RZN194..SR;LN145..LHD..DLX..TH;KZN165,LN145..SCB..DLX;RZN147,174..DCB,SCB,XTR;LN167..(SCB,THDCB,THSCB)..DLX..DEFI;KZN165..(DCB,SCB,THSCB)..SR..(ARL,SA);LN192,RZN144,149,154,169..CBR,DEFI,DSL;KZN165,LN152..(THXTR,XTR)..MTM..(DSL,TDE);RZN149,169..(DCB,SCB)..MTM..DLX..(ARL,SA);LN152,167,RZN169..(DCB,XTR)..MTM..SR..(DEFI,EFI)..(SA,TH);KZN165,LN167,RZN154..(DCB,XTR)..MTM..DLX..(DEFI,EFI,TDE)..ARL..CBU;KZN190,LN140,141,146,147,155,157,166,17#,191,RZN142,148,168,193..DLX..(ARL,GCC,GEN,SA,TH)

(J)

 1
31482D - TUBE, CLUTCH RELEASE CYLINDER TO ACCUMULATOR
31482-35430

KDN145,15#,16#..MTM..TH..CBU

 1
31484C - BRACKET, CLUTCH TUBE, NO.1
31484-35310

LN192;LN150..SR;LN167..DSL;LN145..DCB..GEN;LN152..DEFI..IV3;LN145..LHD..DLX..TH;LN152,167..MTM..DEFI..TH;LN167..DCB..DLX..DEFI..ARL;LN167..(SCB,THDCB,THSCB)..DLX..DEFI;LN145,152..(SCB,THXTR,XTR)..MTM..DSL;LN140,141,146,147,155,157,166,17#,191..DLX..(ARL,GCC,GEN,SA,TH)

 1
31490 - ACCUMULATOR ASSY, CLUTCH
31490-35080

KDN145,15#,165

 1
Common parts
90461-12413
90468-08035
91611-B0812
Linked diagrams
3103
