KDN155R-TRMDYT (2001)

Toyota Hilux

Production Oct 2001 - Sep 2004
Engine 2KDFTV
Transmission MTM
Displacement 2500cc
Power 168 HP (125 kW)

(0110-0208)2KDFTV

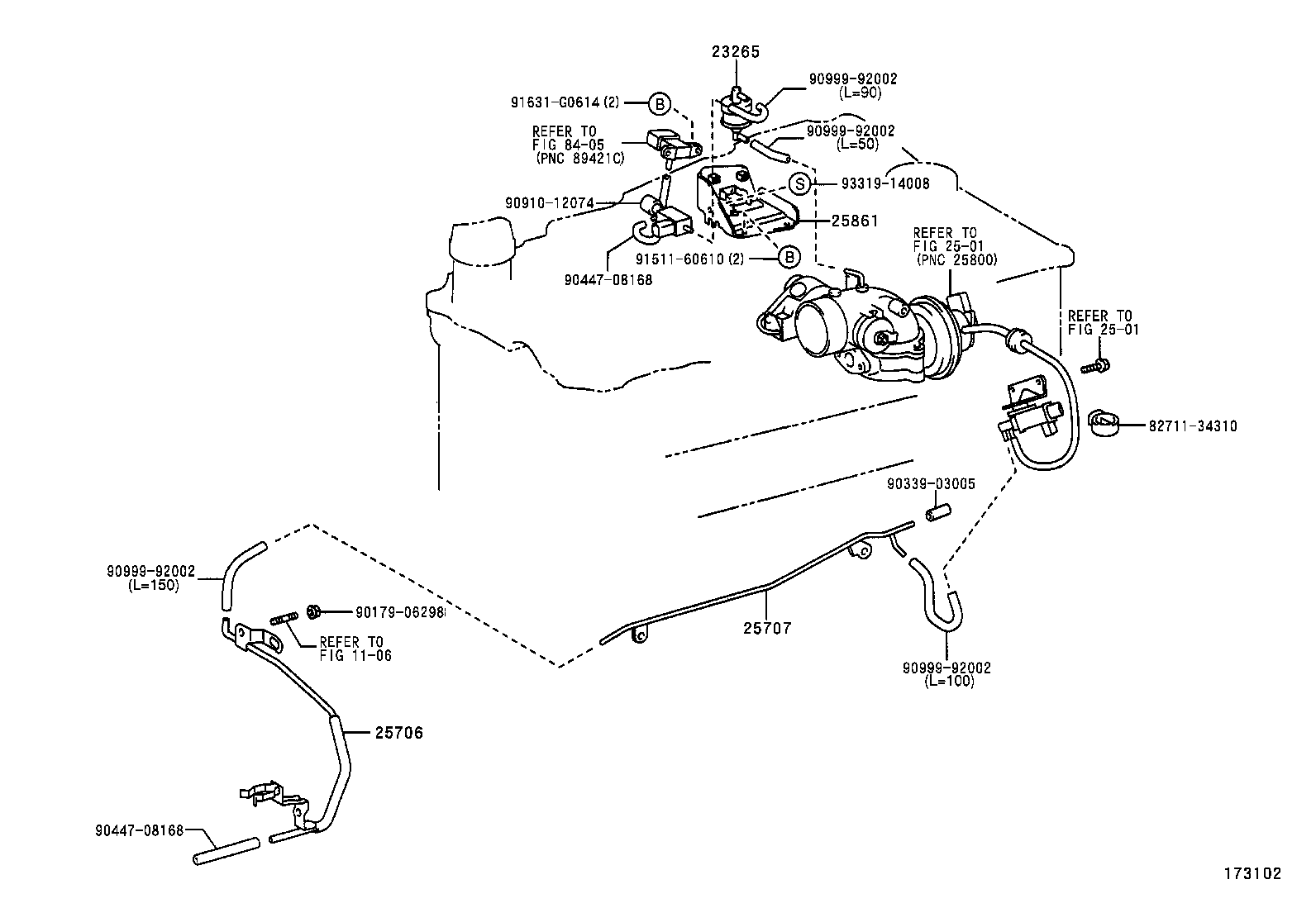

Click highlighted areas on diagram

diagram 1106 23265 2501 2501 25706 25707 25861 8271134310 8405 9017906298 9033903005 9044708168 9044708168 9091012074 9099992002 9099992002 9099992002 9099992002 9151160610 91631G0614 9331914008
Part # Description Qty Price
25706 - PIPE SUB-ASSY, VACUUM TRANSMITTING, NO.1
25706-30020

1KDFTV,2KDFTV..KDN145,15#,16#,190

 1
25861 - BRACKET, VACUUM SWITCHING VALVE
25862-30020

2KDFTV..KDN145,15#,165,190

 1
Common parts
82711-34310
90179-06298
90339-03005
90447-08168
90910-12074
90999-92002
91511-60610
91631-G0614
93319-14008
Linked diagrams
1106
2501
8405

(0208- )1KDFTV,2KDFTV

Click highlighted areas on diagram

diagram 1104 1104 1104 1104 1106 23265 2501 2501 25706 25707 8271134310 8405 9017906298 9033903005 90339T0001 9044708168 90447T0001 9091012074 9099992002 9099992002 9099992002 9099992002 9099992002 9099992002 91631G0614 9331914008
Part # Description Qty Price
25706 - PIPE SUB-ASSY, VACUUM TRANSMITTING, NO.1
25706-30020

1KDFTV,2KDFTV..KDN145,15#,16#,190

 1
Common parts
82711-34310
90179-06298
90339-03005
90339-T0001
90447-08168
90447-T0001
90910-12074
90999-92002
91631-G0614
93319-14008
Linked diagrams
1104
1106
2501
8405
