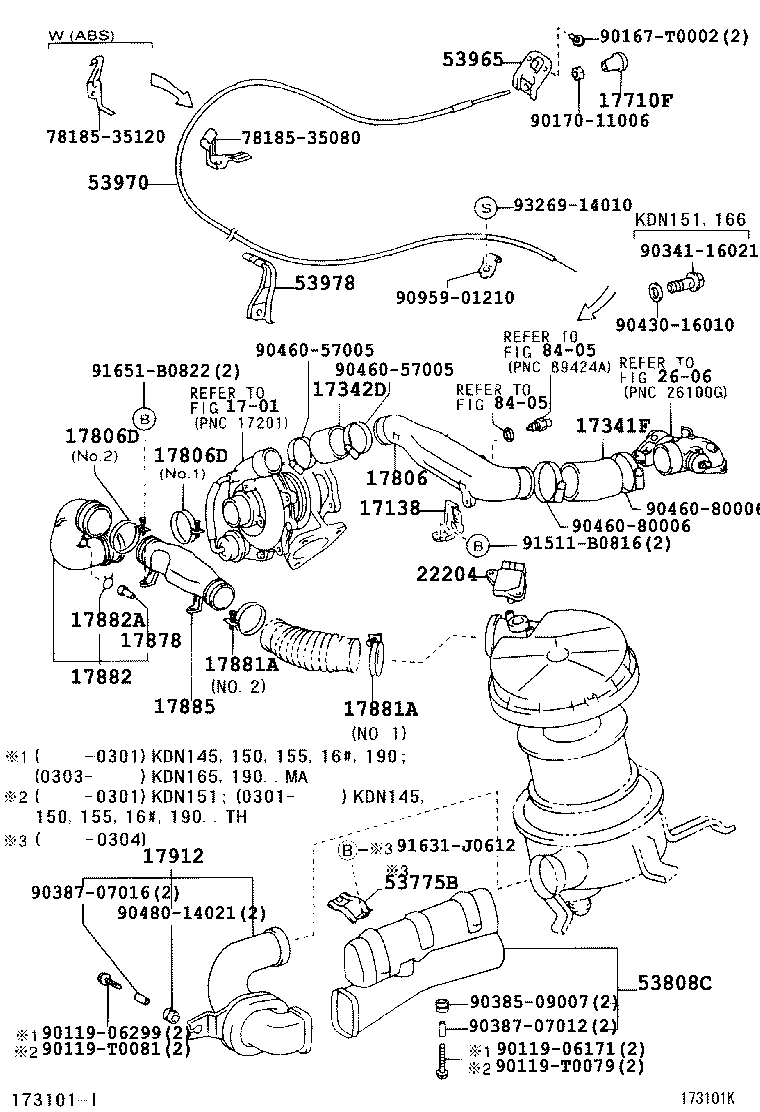

Toyota Hilux KDN155 AIR CLEANER - JDM Part Detective

Part #	Description	Period	Qty
17138 - STAY, INTAKE PIPE OR HOSE
17138-30030	2KDFTV..KDN145,15#,165,190	10/2001 - 05/2002	1
17138-30031	2KDFTV..KDN155	05/2002 - 09/2004	1
17341F - HOSE, AIR, NO.1
17341-30040	2KDFTV..KDN155	08/2002 - 09/2004	1
17341-30030	2KDFTV..KDN145,15#,165,190	10/2001 - 08/2002	1
17342D - HOSE, AIR, NO.2
17342-30030	2KDFTV..KDN145,15#,165,190	10/2001 - 08/2002	1
17342-30050	2KDFTV..KDN155	08/2002 - 09/2004	1
17710F - KNOB SUB-ASSY, CONTROL
55905-89111	1KDFTV,2KDFTV..KDN145,15#	10/2001 - 09/2004	1
17806 - PIPE SUB-ASSY, AIR CLEANER, NO.2
17113-30010	2KDFTV..KDN145,15#,165,190	10/2001 - 05/2002	1
17113-30011	1KDFTV,2KDFTV..KDN145,15#,16#,190..CBU	05/2002 - 09/2002	1
17113-0L010	2KDFTV..KDN155 (L)	09/2002 - 09/2004	1
17113-30011	2KDFTV..KDN155 (J)	09/2002 - 09/2004	1
17806D - CLAMP(FOR AIR CLEANER PIPE)
96111-10730	1KDFTV,2KDFTV..KDN15#,16#,190..TH..CBU NO.2	10/2001 - 08/2004	1
96111-10650	1KDFTV,2KDFTV..KDN15#,16#,190..TH..CBU NO.1	10/2001 - 08/2004	1
17806D - CLAMP(FOR AIR CLEANER PIPE)
96111-10730	1KDFTV,2KDFTV..KDN15#,16#,190..TH..CBU NO.2	10/2001 - 08/2004	1
96111-10650	1KDFTV,2KDFTV..KDN15#,16#,190..TH..CBU NO.1	10/2001 - 08/2004	1
17878 - PIPE, INTAKE AIR CONNECTOR, NO.3
17878-30010	2KDFTV..KDN150,155,165,190..TH..CBU	10/2001 - 08/2004	1
17881A - CLAMP(FOR AIR CLEANER HOSE, NO.1)
96111-10750	1KDFTV,2KDFTV..KDN145,15#,16#,190..TH..CBU NO.2	10/2001 - 02/2004	1
17881A - CLAMP(FOR AIR CLEANER HOSE, NO.1)
96111-10750	1KDFTV,2KDFTV..KDN145,15#,16#,190..TH..CBU NO.2	10/2001 - 02/2004	1
17882 - HOSE, AIR CLEANER, NO.2
17882-30040	2KDFTV..KDN155	10/2001 - 08/2004	1
17882A - CLAMP(FOR AIR CLEANER HOSE, NO.2)
90467-31110	2KDFTV..KDN155	10/2001 - 08/2004	1
17885 - PIPE, AIR CLEANER
17885-30020	2KDFTV..KDN155	10/2001 - 08/2004	1
22204 - METER SUB-ASSY, INTAKE AIR FLOW
22204-30010	2KDFTV..KDN145,150,155	10/2001 - 07/2004	1
53775B - BRACKET, COOL AIR INTAKE DUCT MOUNTING
53775-35010	KDN145,15#,16#,190..CBU	10/2001 - 04/2003	1
53775-35010	LN192;LN150..SR;LN167..DSL;LN145..DCB..GEN;LN152..DEFI..IV3;LN152,167..DEFI..TH;LN145..LHD..DLX..TH;LN167..DCB..DLX..DEFI..ARL;LN145,152..(SCB,THXTR,XTR)..DSL;LN167..(SCB,THDCB,THSCB)..DLX..DEFI;LN140,141,146,147,155,157,166,17#,191..DLX..(ARL,GCC,GEN,SA,TH)	08/1997 - 12/2999	1
53965 - BRACKET, AIR CLEANER INLET SHUTTER CONTROL CABLE
53965-35010	KDN145,15#	10/2001 - 09/2004	1
53978 - BRACKET, AIR CLEANER SHUTTER
53978-35020	KDN145,15#	10/2001 - 09/2004	1
Common parts
78185-35080
78185-35120
90119-06171
90119-06299
90119-T0079
90119-T0081
90167-T0002
90170-11006
90341-16021
90385-09007
90387-07012
90387-07016
90430-16010
90460-57005
90460-80006
90480-14021
90959-01210
91511-B0816
91631-J0612
91651-B0822
93269-14010
Linked diagrams
1701
2606
8405

KDN155R-TRMDYT (2001)

(0110- )1KDFTV,2KDFTV
