KDN155R-TRMDYT (2001)
Toyota Hilux

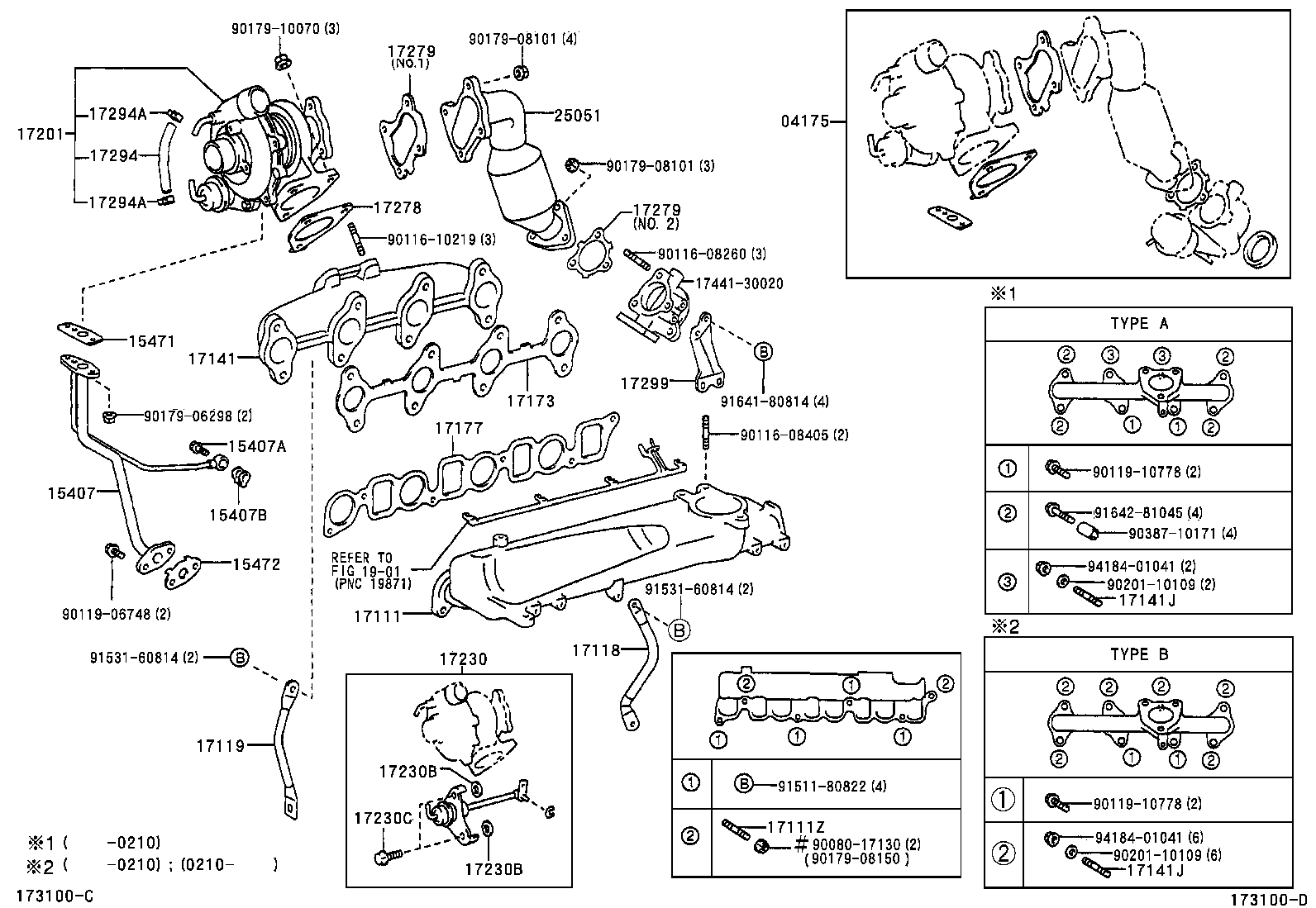

(0110-0211)2KDFTV
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 04175 - GASKET KIT, TURBOCHARGER | ||||
| 04175-30030 |
2KDFTV..KDN145,150,155,165,190..DCB,SCB,XTR |
1 | ||
| 04175-0L050 |
2KDFTV..KDN145,150,155,165,190 |
1 | ||
| 15407 - PIPE SUB-ASSY, TURBO OIL INLET | ||||
| 15407-30030 |
1KDFTV,2KDFTV..KDN145,15#,16#,190 |
1 | ||
| 15471 - GASKET, TURBO OIL INLET | ||||
| 15471-30010 |
1KDFTV,2KDFTV..KDN145,15#,16#,190 |
1 | ||
| 17111 - MANIFOLD, INTAKE | ||||
| 17111-30070 |
2KDFTV..KDN145,15#,165,190 (J) |
1 | ||
| 17111-0L010 |
2KDFTV..KDN145,15#,165 (L) |
1 | ||
| 17111Z - BOLT, STUD(FOR INTAKE MANIFOLD TO CYLINDER HEAD) | ||||
| 90116-T0011 |
1KDFTV,2KDFTV..KDN155,166..SCB,SRWGN (L) |
2 | ||
| 92122-80822 |
1KDFTV,2KDFTV..KDN145,15#,16#,190..CBU |
2 | ||
| 92122-80822 |
1KDFTV,2KDFTV..KDN155,166..SCB,SRWGN (J) |
2 | ||
| 17118 - STAY, MANIFOLD | ||||
| 17118-30030 |
2KDFTV..KDN155 (J) |
1 | ||
| 17118-30030 |
2KDFTV..KDN145,150,155,165,190..CBU |
1 | ||
| 17118-0L020 |
2KDFTV..KDN155 (L) |
1 | ||
| 17119 - STAY, MANIFOLD, NO.2 | ||||
| 17118-30020 |
2KDFTV..KDN155 (J) |
1 | ||
| 17118-30020 |
2KDFTV..KDN145,15#,165,190 |
1 | ||
| 17118-0L010 |
2KDFTV..KDN155 (L) |
1 | ||
| 17141 - MANIFOLD, EXHAUST | ||||
| 17141-30030 |
1KDFTV,2KDFTV..KDN145,15#,16#,190 (J) |
1 | ||
| 17141-30030 |
2KDFTV..KDN145,15#,165,190 |
1 | ||
| 17141J - BOLT, STUD(FOR EXHAUST MANIFOLD, RH) | ||||
| 90126-10017 |
2KDFTV..KDN155 |
2 | ||
| 17141J - BOLT, STUD(FOR EXHAUST MANIFOLD, RH) | ||||
| 90126-10017 |
2KDFTV..KDN155 |
2 | ||
| 17177 - GASKET, INTAKE MANIFOLD TO HEAD, NO.1 | ||||
| 17177-30010 |
1KDFTV,2KDFTV..KDN145,15#,16#,190 |
1 | ||
| 17177-30010 |
1KDFTV,2KDFTV..KDN145,15#,16#,190 (J) |
1 | ||
| 17201 - TURBOCHARGER SUB-ASSY | ||||
| 17201-30040 |
2KDFTV..KDN145,150,155,165,190..CBU |
1 | ||
| 17201-0L020 |
2KDFTV..KDN155 |
1 | ||
| 17230 - ACTUATOR ASSY, W/BRACKET | ||||
| 17230-39025 |
2KDFTV..KDN145,150,155,165,190 |
1 | ||
| 17230-09010 |
2KDFTV..KDN155 |
1 | ||
| 17230B - WASHER, PLATE(FOR REPAIR ACTUATOR SET) | ||||
| 90201-06045 |
2KDFTV..KDN155 T=3.0 |
2 | ||
| 90201-06043 |
2KDFTV..KDN155 T=1.0 |
2 | ||
| 90201-06044 |
2KDFTV..KDN155 T=2.0 |
2 | ||
| 90201-06042 |
2KDFTV..KDN155 T=0.5 |
2 | ||
| 17230B - WASHER, PLATE(FOR REPAIR ACTUATOR SET) | ||||
| 90201-06045 |
2KDFTV..KDN155 T=3.0 |
2 | ||
| 90201-06043 |
2KDFTV..KDN155 T=1.0 |
2 | ||
| 90201-06044 |
2KDFTV..KDN155 T=2.0 |
2 | ||
| 90201-06042 |
2KDFTV..KDN155 T=0.5 |
2 | ||
| 17230C - BOLT, W/WASHER(FOR REPAIR ACTUATOR SET) | ||||
| 91621-60620 |
2KDFTV..KDN155 |
2 | ||
| 17278 - GASKET, TURBO TO EXHAUST MANIFOLD | ||||
| 17278-67010 |
2KDFTV..KDN155 |
1 | ||
| 17278-67010 |
1KDFTV..KDN166..DCB,XTR;1KDFTV,2KDFTV..KDN145,15#,165,190..CBU |
1 | ||
| 17279 - GASKET, TURBINE OUTLET ELBOW | ||||
| 17279-30030 |
2KDFTV..KDN145,150,155,165,190 NO.2 |
1 | ||
| 17279 - GASKET, TURBINE OUTLET ELBOW | ||||
| 17279-30030 |
2KDFTV..KDN145,150,155,165,190 NO.2 |
1 | ||
| 17294 - HOSE, ACTUATOR | ||||
| 90445-T0010 |
2KDFTV..KDN155 |
1 | ||
| 90445-12151 |
1KDFTV,2KDFTV..KDN145,15#,16#,190..CBU |
1 | ||
| 90445-T0001 |
1KDFTV,2KDFTV..KDN145,15#,16#,190 |
1 | ||
| 17294A - CLIP(FOR ACTUATOR HOSE) | ||||
| 90466-T0001 |
1KDFTV,2KDFTV..KDN145,15#,16#,190 |
2 | ||
| 90466-T0008 |
2KDFTV..KDN155 |
2 | ||
| 17294A - CLIP(FOR ACTUATOR HOSE) | ||||
| 90466-T0001 |
1KDFTV,2KDFTV..KDN145,15#,16#,190 |
2 | ||
| 90466-T0008 |
2KDFTV..KDN155 |
2 | ||
| 17299 - STAY, TURBINE OUTLET ELBOW | ||||
| 17299-30020 |
2KDFTV..KDN145,150,155,165,190..CBU |
1 | ||
| 17299-0L010 |
2KDFTV..KDN155 |
1 | ||
| 25051 - CONVERTER SUB-ASSY, EXHAUST MANIFOLD | ||||
| 25051-30020 |
2KDFTV..KDN145,150,155,165,190..CBU *115=TOYOTA/01-/N |
1 | ||
| 25051-0L010 |
2KDFTV..KDN155 |
1 | ||
| Common parts | ||||
| 17441-30020 | ||||
| 90080-17130 | ||||
| 90116-08260 | ||||
| 90116-08405 | ||||
| 90116-10219 | ||||
| 90119-06748 | ||||
| 90119-10778 | ||||
| 90179-06298 | ||||
| 90179-08101 | ||||
| 90179-08150 | ||||
| 90179-10070 | ||||
| 90201-10109 | ||||
| 90387-10171 | ||||
| 91511-80822 | ||||
| 91531-60814 | ||||
| 91641-80814 | ||||
| 91642-81045 | ||||
| 94184-01041 | ||||
| Linked diagrams | ||||
| 1901 | ||||

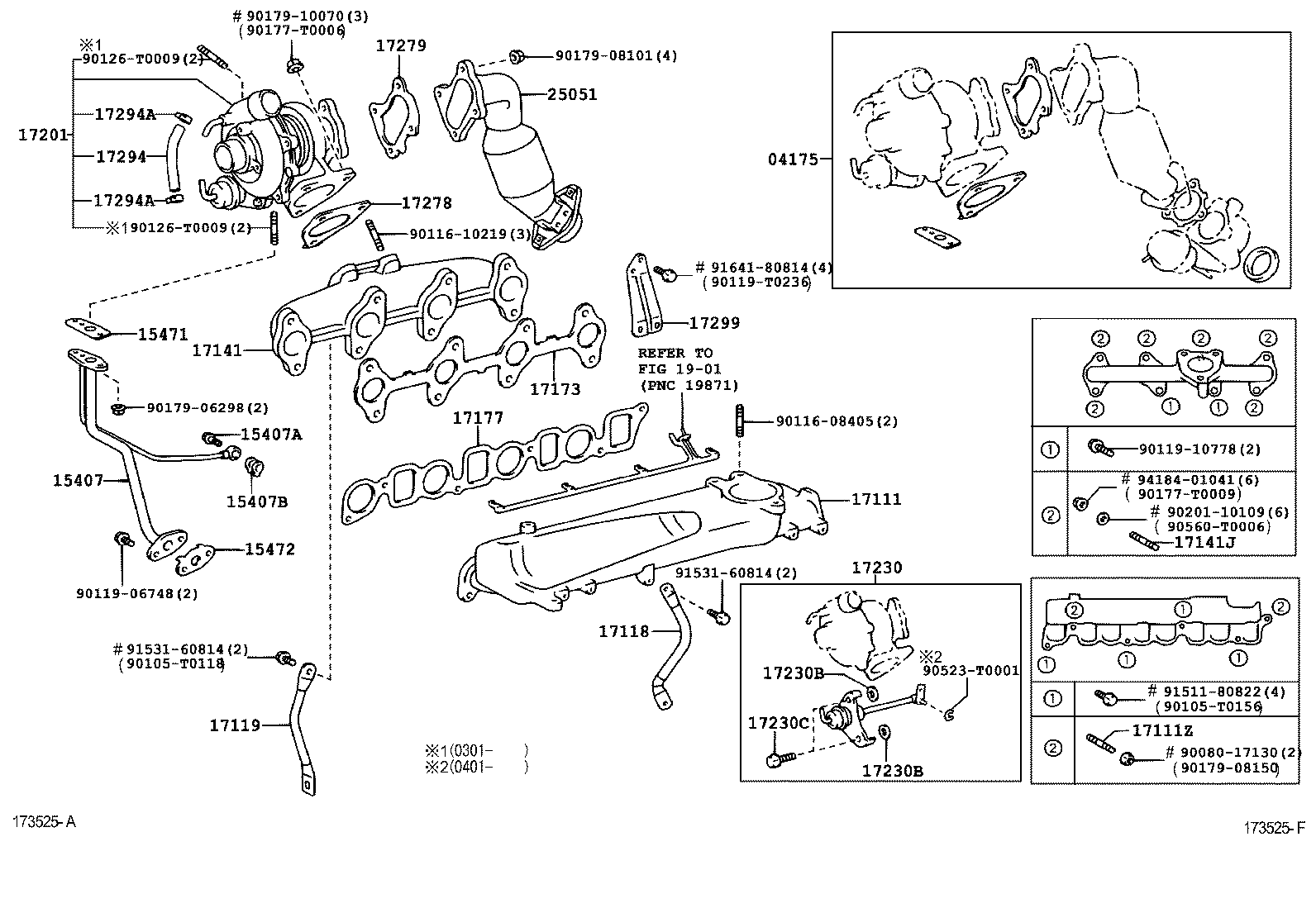

(0211- )2KDFTV
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 04175 - GASKET KIT, TURBOCHARGER | ||||
| 04175-30030 |
2KDFTV..KDN145,150,155,165,190..DCB,SCB,XTR |
1 | ||
| 04175-0L050 |
2KDFTV..KDN145,150,155,165,190 |
1 | ||
| 15407 - PIPE SUB-ASSY, TURBO OIL INLET | ||||
| 15407-30030 |
1KDFTV,2KDFTV..KDN145,15#,16#,190 |
1 | ||
| 15471 - GASKET, TURBO OIL INLET | ||||
| 15471-30010 |
1KDFTV,2KDFTV..KDN145,15#,16#,190 |
1 | ||
| 17111 - MANIFOLD, INTAKE | ||||
| 17111-30070 |
2KDFTV..KDN145,15#,165,190 (J) |
1 | ||
| 17111-0L010 |
2KDFTV..KDN145,15#,165 (L) |
1 | ||
| 17111Z - BOLT, STUD(FOR INTAKE MANIFOLD TO CYLINDER HEAD) | ||||
| 90116-T0011 |
1KDFTV,2KDFTV..KDN155,166..SCB,SRWGN (L) |
2 | ||
| 92122-80822 |
1KDFTV,2KDFTV..KDN145,15#,16#,190..CBU |
2 | ||
| 92122-80822 |
1KDFTV,2KDFTV..KDN155,166..SCB,SRWGN (J) |
2 | ||
| 17118 - STAY, MANIFOLD | ||||
| 17118-30030 |
2KDFTV..KDN155 (J) |
1 | ||
| 17118-30030 |
2KDFTV..KDN145,150,155,165,190..CBU |
1 | ||
| 17118-0L020 |
2KDFTV..KDN155 (L) |
1 | ||
| 17119 - STAY, MANIFOLD, NO.2 | ||||
| 17118-30020 |
2KDFTV..KDN155 (J) |
1 | ||
| 17118-30020 |
2KDFTV..KDN145,15#,165,190 |
1 | ||
| 17118-0L010 |
2KDFTV..KDN155 (L) |
1 | ||
| 17141 - MANIFOLD, EXHAUST | ||||
| 17141-30030 |
1KDFTV,2KDFTV..KDN145,15#,16#,190 (J) |
1 | ||
| 17141-30030 |
2KDFTV..KDN145,15#,165,190 |
1 | ||
| 17141J - BOLT, STUD(FOR EXHAUST MANIFOLD, RH) | ||||
| 90126-10017 |
2KDFTV..KDN155 |
2 | ||
| 17177 - GASKET, INTAKE MANIFOLD TO HEAD, NO.1 | ||||
| 17177-30010 |
1KDFTV,2KDFTV..KDN145,15#,16#,190 |
1 | ||
| 17177-30010 |
1KDFTV,2KDFTV..KDN145,15#,16#,190 (J) |
1 | ||
| 17201 - TURBOCHARGER SUB-ASSY | ||||
| 17201-30040 |
2KDFTV..KDN145,150,155,165,190..CBU |
1 | ||
| 17201-0L020 |
2KDFTV..KDN155 |
1 | ||
| 17230 - ACTUATOR ASSY, W/BRACKET | ||||
| 17230-39025 |
2KDFTV..KDN145,150,155,165,190 |
1 | ||
| 17230-09010 |
2KDFTV..KDN155 |
1 | ||
| 17230B - WASHER, PLATE(FOR REPAIR ACTUATOR SET) | ||||
| 90201-06045 |
2KDFTV..KDN155 T=3.0 |
2 | ||
| 90201-06043 |
2KDFTV..KDN155 T=1.0 |
2 | ||
| 90201-06044 |
2KDFTV..KDN155 T=2.0 |
2 | ||
| 90201-06042 |
2KDFTV..KDN155 T=0.5 |
2 | ||
| 17230B - WASHER, PLATE(FOR REPAIR ACTUATOR SET) | ||||
| 90201-06045 |
2KDFTV..KDN155 T=3.0 |
2 | ||
| 90201-06043 |
2KDFTV..KDN155 T=1.0 |
2 | ||
| 90201-06044 |
2KDFTV..KDN155 T=2.0 |
2 | ||
| 90201-06042 |
2KDFTV..KDN155 T=0.5 |
2 | ||
| 17230C - BOLT, W/WASHER(FOR REPAIR ACTUATOR SET) | ||||
| 91621-60620 |
2KDFTV..KDN155 |
2 | ||
| 17278 - GASKET, TURBO TO EXHAUST MANIFOLD | ||||
| 17278-67010 |
2KDFTV..KDN155 |
1 | ||
| 17278-67010 |
1KDFTV..KDN166..DCB,XTR;1KDFTV,2KDFTV..KDN145,15#,165,190..CBU |
1 | ||
| 17279 - GASKET, TURBINE OUTLET ELBOW | ||||
| 17279-30030 |
2KDFTV..KDN145,150,155,165,190 NO.2 |
1 | ||
| 17294 - HOSE, ACTUATOR | ||||
| 90445-T0010 |
2KDFTV..KDN155 |
1 | ||
| 90445-12151 |
1KDFTV,2KDFTV..KDN145,15#,16#,190..CBU |
1 | ||
| 90445-T0001 |
1KDFTV,2KDFTV..KDN145,15#,16#,190 |
1 | ||
| 17294A - CLIP(FOR ACTUATOR HOSE) | ||||
| 90466-T0001 |
1KDFTV,2KDFTV..KDN145,15#,16#,190 |
2 | ||
| 90466-T0008 |
2KDFTV..KDN155 |
2 | ||
| 17294A - CLIP(FOR ACTUATOR HOSE) | ||||
| 90466-T0001 |
1KDFTV,2KDFTV..KDN145,15#,16#,190 |
2 | ||
| 90466-T0008 |
2KDFTV..KDN155 |
2 | ||
| 17299 - STAY, TURBINE OUTLET ELBOW | ||||
| 17299-30020 |
2KDFTV..KDN145,150,155,165,190..CBU |
1 | ||
| 17299-0L010 |
2KDFTV..KDN155 |
1 | ||
| 25051 - CONVERTER SUB-ASSY, EXHAUST MANIFOLD | ||||
| 25051-30020 |
2KDFTV..KDN145,150,155,165,190..CBU *115=TOYOTA/01-/N |
1 | ||
| 25051-0L010 |
2KDFTV..KDN155 |
1 | ||
| Common parts | ||||
| 90080-17130 | ||||
| 90105-T0118 | ||||
| 90105-T0156 | ||||
| 90116-08405 | ||||
| 90116-10219 | ||||
| 90119-06748 | ||||
| 90119-10778 | ||||
| 90119-T0236 | ||||
| 90126-T0009 | ||||
| 90177-T0006 | ||||
| 90177-T0009 | ||||
| 90179-06298 | ||||
| 90179-08101 | ||||
| 90179-08150 | ||||
| 90179-10070 | ||||
| 90201-10109 | ||||
| 90523-T0001 | ||||
| 90560-T0006 | ||||
| 91511-80822 | ||||
| 91531-60814 | ||||
| 91641-80814 | ||||
| 94184-01041 | ||||
| Linked diagrams | ||||
| 1901 | ||||
