Toyota Hilux KDN155 RADIATOR & WATER OUTLET

Manufacturers Home
Toyota
GR
HILUX
KDN155R-TRMDYT (2001)
1603 - RADIATOR & WATER OUTLET

KDN155R-TRMDYT (2001)

Toyota Hilux

Production Oct 2001 - Sep 2004

Engine 2KDFTV

Transmission MTM

Displacement 2500cc

Power 168 HP (125 kW)

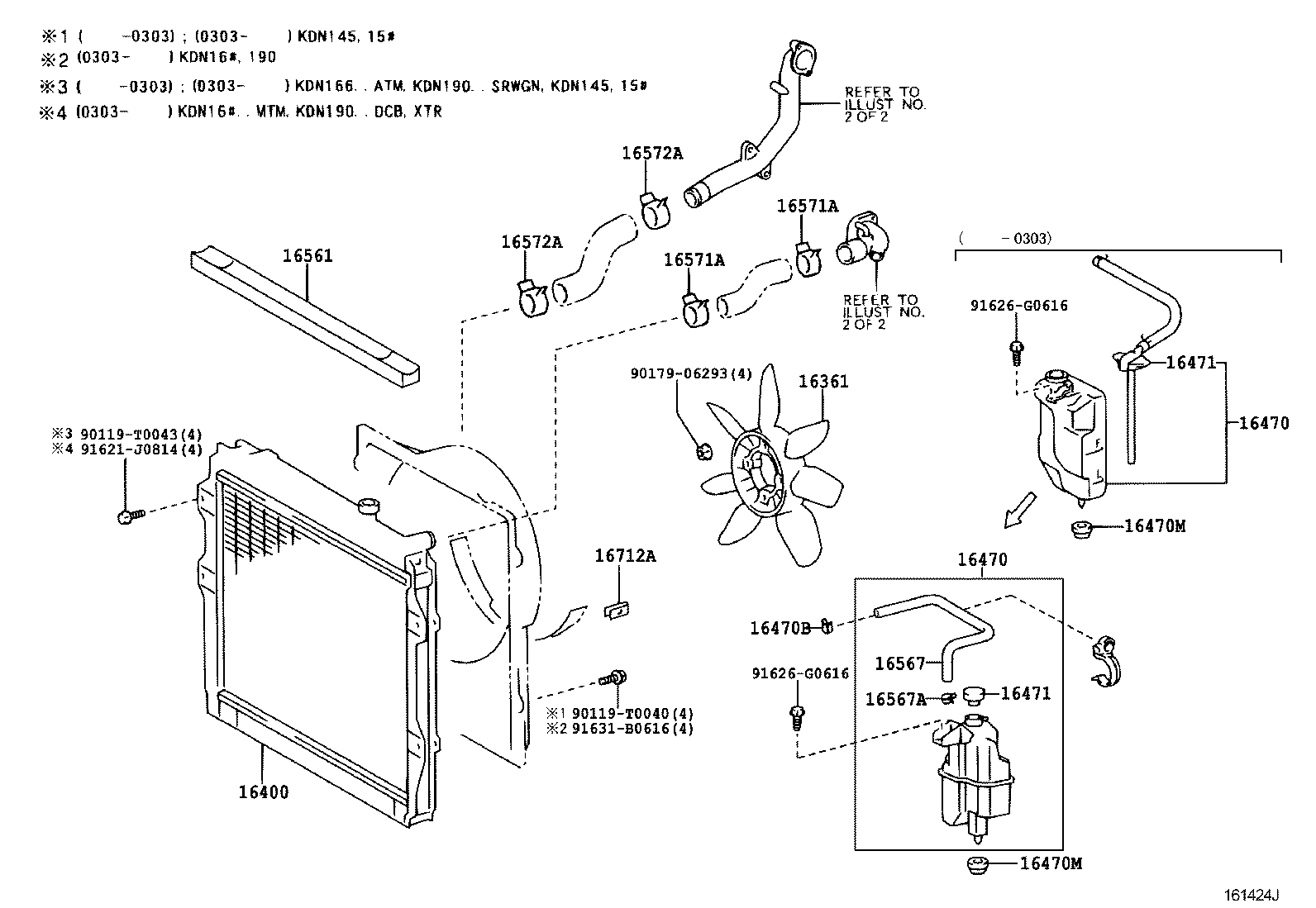

ILLUST NO. 1 OF 2(0110- )1KDFTV,2KDFTV

Click highlighted areas on diagram

Part #	Description	Period	Qty
16361 - FAN
16361-67020	1KDFTV,2KDFTV..KDN145,15#,16#,190	10/2001 - 09/2002	1
16361-0L010	1KDFTV,2KDFTV..KDN145,15#,16#,190..TH (L)	09/2002 - 07/2004	1
16400 - RADIATOR ASSY
16410-0L020	1KDFTV,2KDFTV..KDN145,15#	10/2001 - 02/2003	1
16410-0L060	1KDFTV,2KDFTV..KDN145,15#	02/2003 - 07/2004	1
16470 - TANK ASSY, RADIATOR RESERVE
16470-30020	1KDFTV,2KDFTV..KDN145,15#,16#,190..TH	03/2003 - 02/2004	1
16470 - TANK ASSY, RADIATOR RESERVE
16470-30020	1KDFTV,2KDFTV..KDN145,15#,16#,190..TH	03/2003 - 02/2004	1
16470B - CLAMP OR CLIP(FOR RADIATOR RESERVE TANK HOSE)
96135-51300	1KDFTV,2KDFTV..KDN145,15#,16#,190..TH	03/2003 - 02/2004	1
16471 - CAP SUB-ASSY, RESERVE TANK
16401-53010	1KDFTV,2KDFTV..KDN145,15#,16#,190..TH	03/2003 - 02/2004	1
16471 - CAP SUB-ASSY, RESERVE TANK
16401-53010	1KDFTV,2KDFTV..KDN145,15#,16#,190..TH	03/2003 - 02/2004	1
16567 - HOSE(FOR RADIATOR RESERVE TANK)
16567-67010	1KDFTV,2KDFTV..KDN145,15#,16#,190..TH	03/2003 - 02/2004	1
16567A - CLIP(FOR RADIATOR RESERVE TANK HOSE)
96135-51300	1KDFTV,2KDFTV..KDN145,15#,16#,190..TH	03/2003 - 02/2004	1
Common parts
90119-T0040
90119-T0043
90179-06293
91621-J0814
91626-G0616
91631-B0616

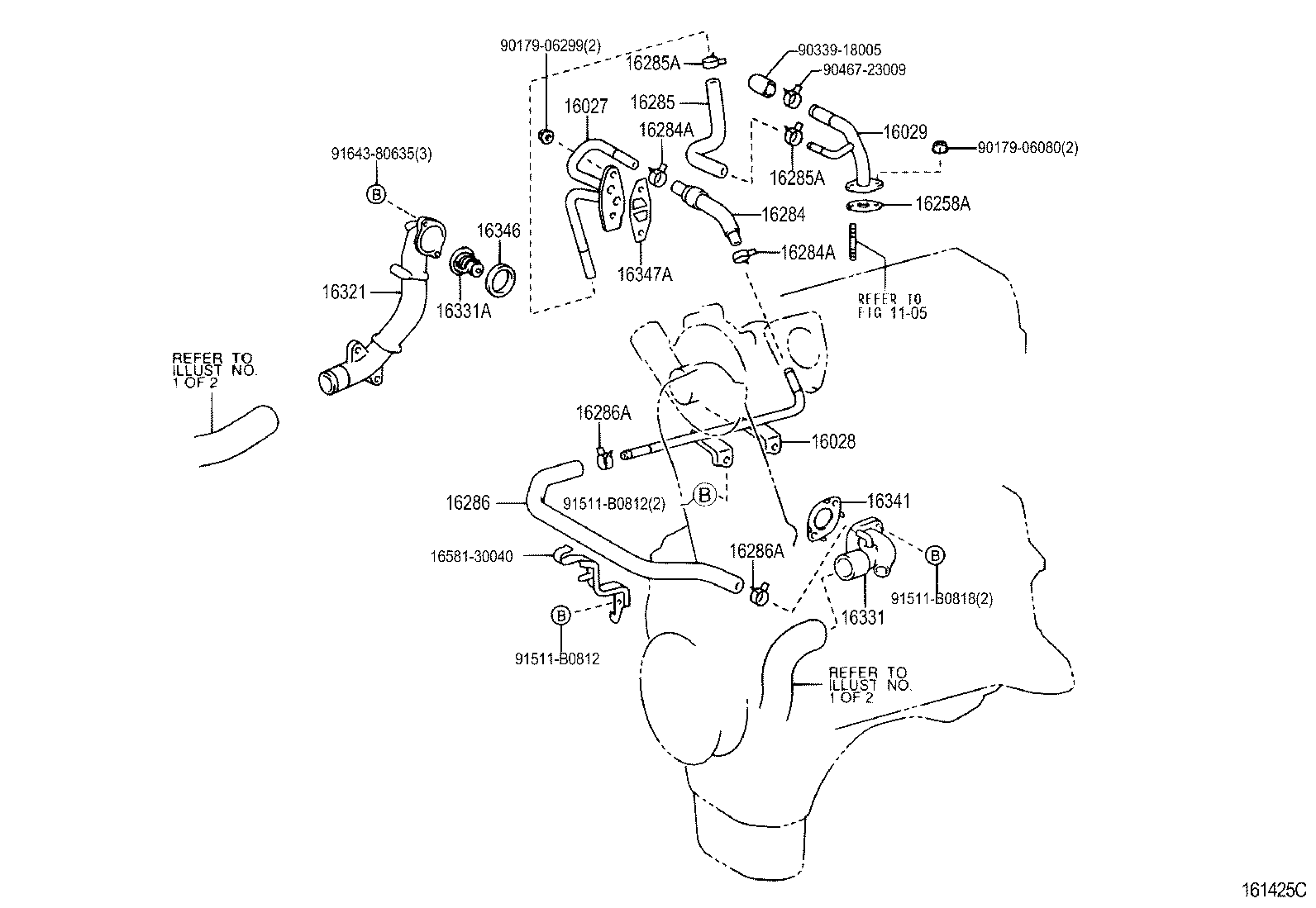

ILLUST NO. 2 OF 2(0110- )2KDFTV

Click highlighted areas on diagram

Part #	Description	Period	Qty
16028 - PIPE SUB-ASSY, TURBO WATER, NO.2
16028-30010	2KDFTV..KDN155	10/2001 - 09/2004	1
16029 - PIPE SUB-ASSY, TURBO WATER, NO.3
16029-30010	2KDFTV..KDN155	10/2001 - 09/2004	1
16258A - GASKET(FOR HEATER RETURN)
16258-67010	1KDFTV,2KDFTV..KDN145,15#,16#,190..CBU	10/2001 - 09/2002	1
16258-67010	2KDFTV..KDN155 (J)	09/2002 - 09/2004	1
16258-0L010	2KDFTV..KDN155 (L)	09/2002 - 09/2004	1
16284 - HOSE, TURBO WATER, NO.1
16284-30040	2KDFTV..KDN145,15#,165,190	10/2001 - 08/2002	1
16284-30060	2KDFTV..KDN155	08/2002 - 09/2004	1
16284A - CLIP(FOR TURBO WATER HOSE NO.1)
90467-13073	1KDFTV,2KDFTV..KDN145,15#,16#,190..CBU	10/2001 - 05/2004	2
90467-13073	2KDFTV..KDN155 (J)	05/2004 - 09/2004	2
90466-T0014	2KDFTV..KDN155 (L)	05/2004 - 09/2004	2
16284A - CLIP(FOR TURBO WATER HOSE NO.1)
90467-13073	1KDFTV,2KDFTV..KDN145,15#,16#,190..CBU	10/2001 - 05/2004	2
90467-13073	2KDFTV..KDN155 (J)	05/2004 - 09/2004	2
90466-T0014	2KDFTV..KDN155 (L)	05/2004 - 09/2004	2
16285A - CLIP(FOR TURBO WATER HOSE NO.2)
90467-13073	1KDFTV,2KDFTV..KDN145,15#,16#,190	10/2001 - 05/2004	2
16285A - CLIP(FOR TURBO WATER HOSE NO.2)
90467-13073	1KDFTV,2KDFTV..KDN145,15#,16#,190	10/2001 - 05/2004	2
16286 - HOSE, TURBO WATER, NO.3
16286-30030	1KDFTV,2KDFTV..KDN145,15#,16#,190	10/2001 - 09/2002	1
16286A - CLIP(FOR TURBO WATER HOSE NO.3)
90467-13073	1KDFTV,2KDFTV..KDN145,15#,16#,190	10/2001 - 05/2004	2
16286A - CLIP(FOR TURBO WATER HOSE NO.3)
90467-13073	1KDFTV,2KDFTV..KDN145,15#,16#,190	10/2001 - 05/2004	2
16331 - OUTLET, WATER
16331-30050	2KDFTV..KDN145,15#,165,190	10/2001 - 07/2002	1
16341 - GASKET, WATER OUTLET
16341-30020	1KDFTV,2KDFTV..KDN145,15#,16#,190	10/2001 - 09/2002	1
Common parts
16581-30040
90179-06080
90179-06299
90339-18005
90467-23009
91511-B0812
91511-B0818
91643-80635
Linked diagrams
1105

KDN155R-TRMDYT (2001)

ILLUST NO. 1 OF 2(0110- )1KDFTV,2KDFTV

ILLUST NO. 2 OF 2(0110- )2KDFTV
