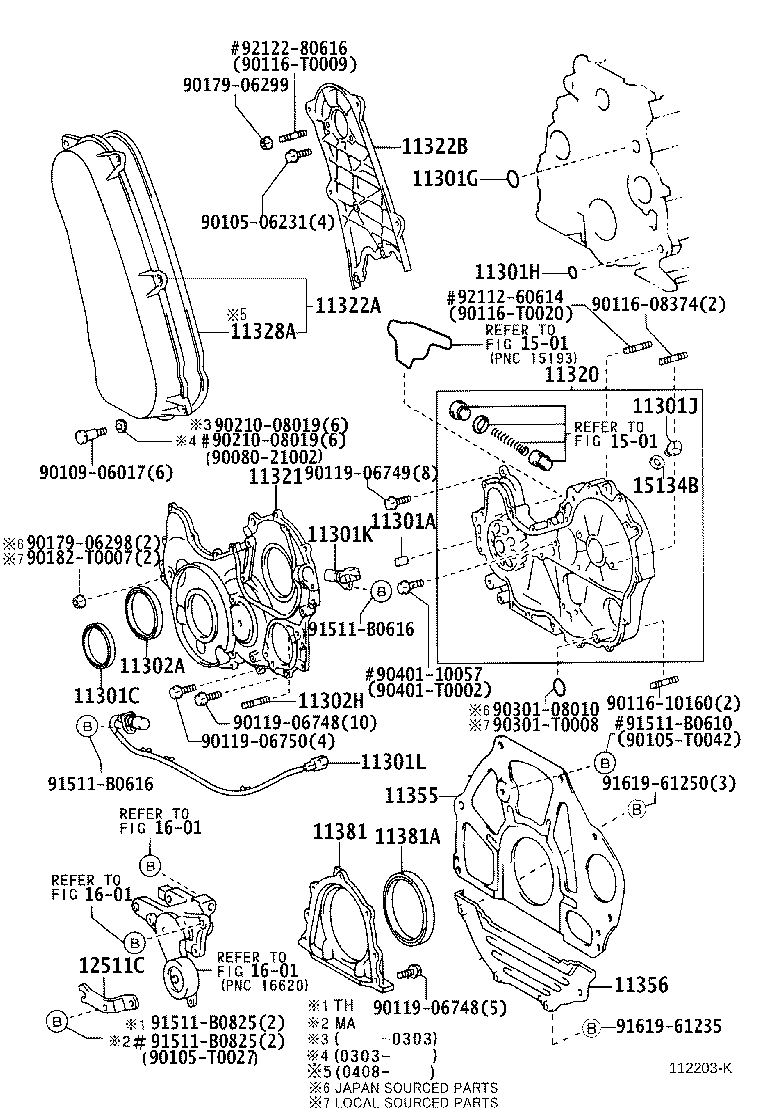

Toyota Hilux KDN155 TIMING GEAR COVER & REAR END PLATE

Part #	Description	Period	Qty
11301K - SENSOR, CRANK POSITION
90919-05052	2KDFTV..KDN155	10/2001 - 09/2004	1
11301L - SENSOR, CRANK POSITION NO.2
90919-05050	2KDFTV..KDN155	10/2001 - 09/2004	1
11302A - SEAL, OIL(FOR TIMING CHAIN OR BELT COVER)
90311-65003	1KDFTV,2KDFTV..KDN145,15#,16#,190	10/2001 - 09/2002	1
11320 - CASE ASSY, TIMING GEAR
11320-30020	2KDFTV..KDN145,150,155,165,190	10/2001 - 09/2002	1
11320-0L010	2KDFTV..KDN145,150,155,165,190 (L)	09/2002 - 06/2004	1
11321 - CASE, TIMING GEAR
11321-30020	1KDFTV,2KDFTV..KDN145,15#,16#,190	10/2001 - 09/2002	1
11322A - COVER, TIMING BELT, NO.1
11332-30010	1KDFTV,2KDFTV..KDN145,15#,16#,190..CBU	10/2001 - 08/2004	1
11332-0L010	2KDFTV..KDN155	08/2004 - 09/2004	1
11322B - COVER, TIMING BELT, NO.2
11322-30010	1KDFTV,2KDFTV..KDN145,15#,16#,190..CBU	10/2001 - 11/2003	1
11322-0L010	2KDFTV..KDN155 (L)	11/2003 - 09/2004	1
11322-30010	2KDFTV..KDN155 (J)	11/2003 - 09/2004	1
11328A - GASKET, TIMING BELT COVER, NO.1
11328-30020	2KDFTV..KDN155	08/2004 - 09/2004	1
11356 - PLATE, REAR END, NO.2
11356-30020	2KDFTV..KDN155	10/2001 - 08/2004	1
12511C - BRACKET, ALTERNATOR
12511-30030	1KDFTV,2KDFTV..KDN155,16#,190..SCB,SRWGN	10/2001 - 09/2004	1
Common parts
90080-21002
90105-06231
90105-T0027
90105-T0042
90109-06017
90116-08374
90116-10160
90116-T0009
90116-T0020
90119-06748
90119-06749
90119-06750
90179-06298
90179-06299
90182-T0007
90210-08019
90301-08010
90301-T0008
90401-10057
90401-T0002
91511-B0610
91511-B0616
91511-B0825
91619-61235
91619-61250
92112-60614
92122-80616
Linked diagrams
1501
1601

KDN155R-TRMDYT (2001)
