KDN155R-TRMDYT (2001)
Toyota Hilux

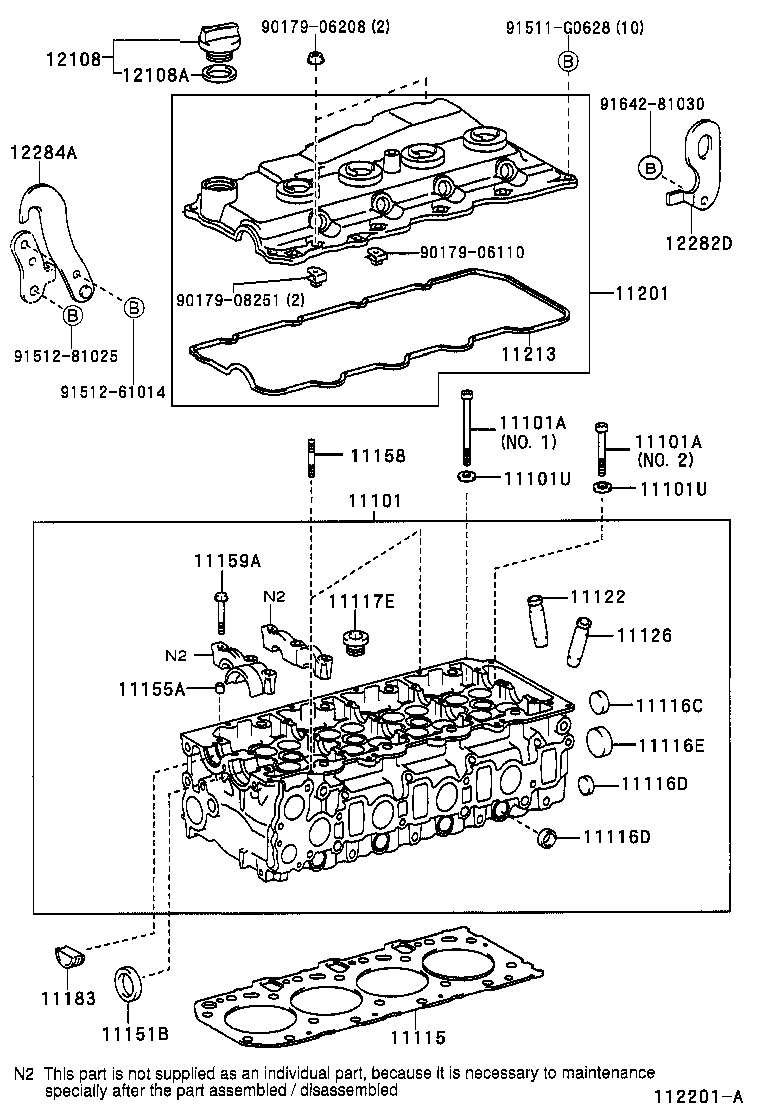

(0110-0208)2KDFTV
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 11101 - HEAD SUB-ASSY, CYLINDER | ||||
| 11101-0L010 |
2KDFTV..KDN145,150,155,165,190 (L) |
1 | ||
| 11101-30040 |
2KDFTV..KDN145,15#,165,190 |
1 | ||
| 11101-0L030 |
2KDFTV..KDN145,150,155,165,190 (L) |
1 | ||
| 11101-30040 |
2KDFTV..KDN145,15#,165,190 (J) |
1 | ||
| 11101-30041 |
2KDFTV..KDN145,150,155,165,190 (J) |
1 | ||
| 11101-30060 |
2KDFTV..KDN145,150,155,165,190 (J) |
1 | ||
| 11101A - BOLT(FOR CYLINDER HEAD SET) | ||||
| 90910-02146 |
1KDFTV,2KDFTV..KDN145,15#,16#,190..CBU NO.1 |
8 | ||
| 90910-02145 |
1KDFTV,2KDFTV..KDN145,15#,16#,190..CBU NO.2 |
10 | ||
| 90910-02145 |
2KDFTV..KDN155 NO.2,(J) |
10 | ||
| 90910-02146 |
2KDFTV..KDN155 NO.1,(J) |
8 | ||
| 90910-T2006 |
2KDFTV..KDN155 NO.1,(L) |
8 | ||
| 11101A - BOLT(FOR CYLINDER HEAD SET) | ||||
| 90910-02146 |
1KDFTV,2KDFTV..KDN145,15#,16#,190..CBU NO.1 |
8 | ||
| 90910-02145 |
1KDFTV,2KDFTV..KDN145,15#,16#,190..CBU NO.2 |
10 | ||
| 90910-02145 |
2KDFTV..KDN155 NO.2,(J) |
10 | ||
| 90910-02146 |
2KDFTV..KDN155 NO.1,(J) |
8 | ||
| 90910-T2006 |
2KDFTV..KDN155 NO.1,(L) |
8 | ||
| 11101U - SPACER(FOR CYLINDER HEAD SET BOLT) | ||||
| 90560-13023 |
1KDFTV,2KDFTV..KDN15#,16#,190..TH (J) |
18 | ||
| 90560-T0005 |
1KDFTV,2KDFTV..KDN15#,16#,190..TH (L) |
18 | ||
| 11101U - SPACER(FOR CYLINDER HEAD SET BOLT) | ||||
| 90560-13023 |
1KDFTV,2KDFTV..KDN15#,16#,190..TH (J) |
18 | ||
| 90560-T0005 |
1KDFTV,2KDFTV..KDN15#,16#,190..TH (L) |
18 | ||
| 11115 - GASKET, CYLINDER HEAD | ||||
| 11115-30040B0 |
2KDFTV..KDN145,150,155,165,190 MARK B |
1 | ||
| 11115-30040A0 |
2KDFTV..KDN145,150,155,165,190 MARK A |
1 | ||
| 11115-30040C0 |
2KDFTV..KDN145,150,155,165,190 MARK C |
1 | ||
| 11115-30040D0 |
2KDFTV..KDN145,150,155,165,190 MARK D |
1 | ||
| 11115-30040E0 |
2KDFTV..KDN145,150,155,165,190 MARK E |
1 | ||
| 11116C - PLUG, TIGHT, NO.3 | ||||
| 96411-63000 |
2KDFTV..KDN145,150,155,165,190 |
1 | ||
| 11116D - PLUG, TIGHT, NO.4 | ||||
| 96411-62000 |
2KDFTV..KDN145,150,155,165,190 |
5 | ||
| 11116D - PLUG, TIGHT, NO.4 | ||||
| 96411-62000 |
2KDFTV..KDN145,150,155,165,190 |
5 | ||
| 11116E - PLUG, TIGHT, NO.5 | ||||
| 96411-63500 |
2KDFTV..KDN145,150,155,165,190 |
2 | ||
| 11117E - PLUG, W/HEAD STRAIGHT SCREW, NO.1 | ||||
| 90341-14015 |
1KDFTV,2KDFTV..KDN15#,16#,190..TH..CBU (J) |
4 | ||
| 11122 - BUSH, INTAKE VALVE GUIDE | ||||
| 11123-30020 |
1KDFTV,2KDFTV..KDN145,15#,16#,190 STD |
8 | ||
| 11122-30020 |
1KDFTV,2KDFTV..KDN145,15#,16#,190..CBU O/S 0.05 |
8 | ||
| 11126 - BUSH, EXHAUST VALVE GUIDE | ||||
| 11123-30020 |
1KDFTV,2KDFTV..KDN145,15#,16#,190 STD |
8 | ||
| 11122-30020 |
1KDFTV,2KDFTV..KDN145,15#,16#,190..CBU O/S 0.05 |
8 | ||
| 11151B - SEAL, OIL(FOR CAMSHAFT SETTING) | ||||
| 90080-31097 |
1KDFTV,2KDFTV..KDN155,166..SCB,SRWGN (L) |
1 | ||
| 90311-32019 |
1KDFTV,2KDFTV..KDN145,15#,16#,190..CBU |
1 | ||
| 90311-32019 |
1KDFTV,2KDFTV..KDN155,166..SCB,SRWGN (J) |
1 | ||
| 11155A - PIN, RING W/HEAD | ||||
| 90253-10004 |
2KDFTV..KDN165,190..SRWGN;2KDFTV..KDN155,165,190..DLX (J) |
4 | ||
| 90253-10004 |
1KDFTV,2KDFTV..KDN145,15#,16#,190 |
4 | ||
| 11201 - COVER SUB-ASSY, CYLINDER HEAD | ||||
| 11210-30081 |
2KDFTV..KDN145,15#,165,190 |
1 | ||
| 11213 - GASKET, CYLINDER HEAD COVER | ||||
| 11213-30020 |
2KDFTV..KDN145,15#,165,190 |
1 | ||
| 12108 - CAP SUB-ASSY, OIL FILLER | ||||
| 12180-21010 |
1KDFTV,2KDFTV..KDN145,15#,16#,190 |
1 | ||
| 12108A - GASKET(FOR OIL FILLER CAP) | ||||
| 90430-37140 |
2KDFTV..KDN145,15#,165,190 |
1 | ||
| 12282D - HANGER, ENGINE, NO.2 | ||||
| 12282-67030 |
2KDFTV..KDN155 |
1 | ||
| 12284A - HANGER, ENGINE, NO.1 UPPER | ||||
| 12284-30020 |
2KDFTV..KDN155 |
1 | ||
| Common parts | ||||
| 90179-06110 | ||||
| 90179-06208 | ||||
| 90179-08251 | ||||
| 91511-G0628 | ||||
| 91512-61014 | ||||
| 91512-81025 | ||||
| 91642-81030 | ||||

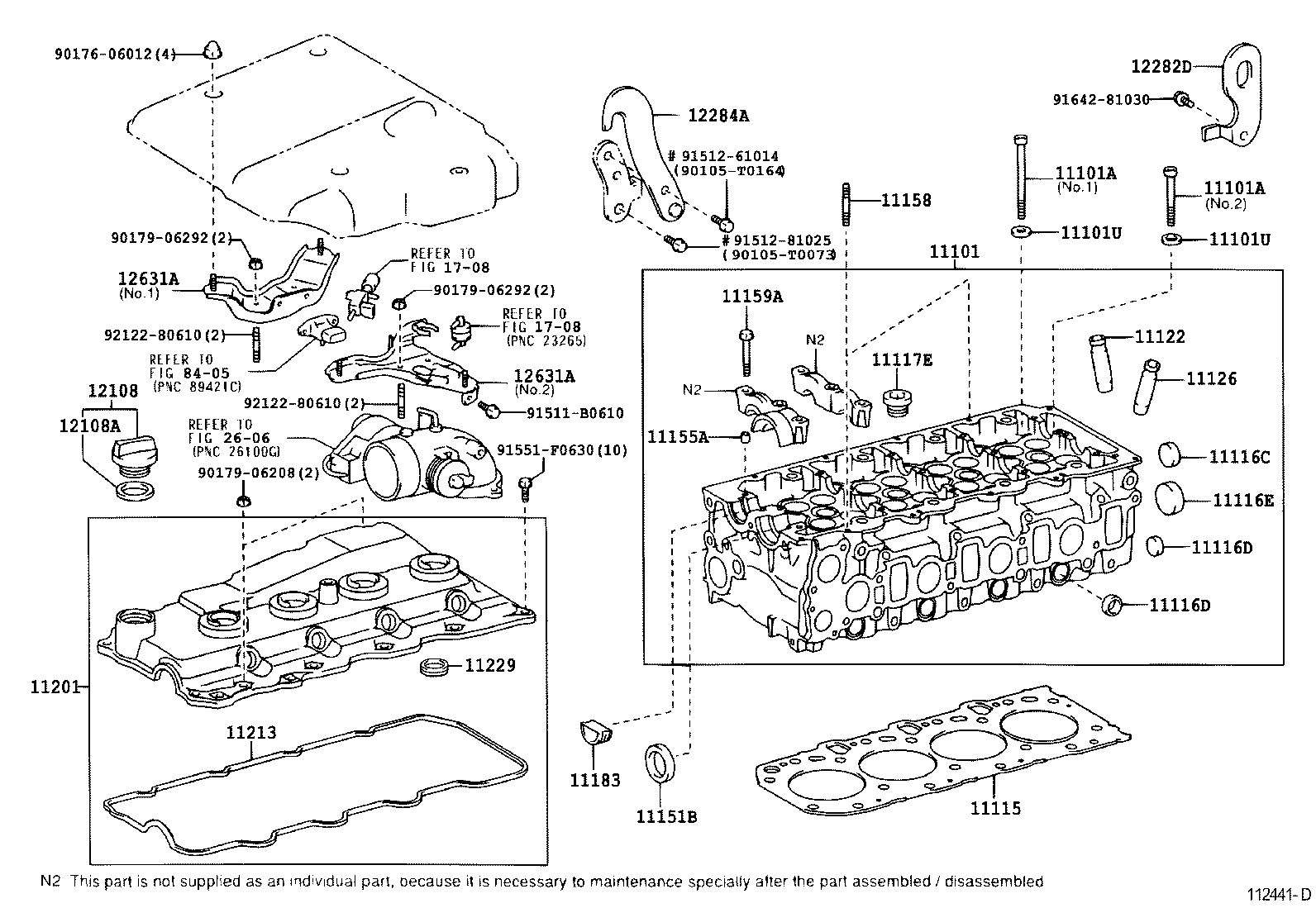

(0208- )1KDFTV,2KDFTV
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 11101 - HEAD SUB-ASSY, CYLINDER | ||||
| 11101-0L010 |
2KDFTV..KDN145,150,155,165,190 (L) |
1 | ||
| 11101-30040 |
2KDFTV..KDN145,15#,165,190 |
1 | ||
| 11101-0L030 |
2KDFTV..KDN145,150,155,165,190 (L) |
1 | ||
| 11101-30040 |
2KDFTV..KDN145,15#,165,190 (J) |
1 | ||
| 11101-30041 |
2KDFTV..KDN145,150,155,165,190 (J) |
1 | ||
| 11101-30060 |
2KDFTV..KDN145,150,155,165,190 (J) |
1 | ||
| 11101A - BOLT(FOR CYLINDER HEAD SET) | ||||
| 90910-02146 |
1KDFTV,2KDFTV..KDN145,15#,16#,190..CBU NO.1 |
8 | ||
| 90910-02145 |
1KDFTV,2KDFTV..KDN145,15#,16#,190..CBU NO.2 |
10 | ||
| 90910-02145 |
2KDFTV..KDN155 NO.2,(J) |
10 | ||
| 90910-02146 |
2KDFTV..KDN155 NO.1,(J) |
8 | ||
| 90910-T2006 |
2KDFTV..KDN155 NO.1,(L) |
8 | ||
| 11101A - BOLT(FOR CYLINDER HEAD SET) | ||||
| 90910-02146 |
1KDFTV,2KDFTV..KDN145,15#,16#,190..CBU NO.1 |
8 | ||
| 90910-02145 |
1KDFTV,2KDFTV..KDN145,15#,16#,190..CBU NO.2 |
10 | ||
| 90910-02145 |
2KDFTV..KDN155 NO.2,(J) |
10 | ||
| 90910-02146 |
2KDFTV..KDN155 NO.1,(J) |
8 | ||
| 90910-T2006 |
2KDFTV..KDN155 NO.1,(L) |
8 | ||
| 11101U - SPACER(FOR CYLINDER HEAD SET BOLT) | ||||
| 90560-13023 |
1KDFTV,2KDFTV..KDN15#,16#,190..TH (J) |
18 | ||
| 90560-T0005 |
1KDFTV,2KDFTV..KDN15#,16#,190..TH (L) |
18 | ||
| 11101U - SPACER(FOR CYLINDER HEAD SET BOLT) | ||||
| 90560-13023 |
1KDFTV,2KDFTV..KDN15#,16#,190..TH (J) |
18 | ||
| 90560-T0005 |
1KDFTV,2KDFTV..KDN15#,16#,190..TH (L) |
18 | ||
| 11115 - GASKET, CYLINDER HEAD | ||||
| 11115-30040B0 |
2KDFTV..KDN145,150,155,165,190 MARK B |
1 | ||
| 11115-30040A0 |
2KDFTV..KDN145,150,155,165,190 MARK A |
1 | ||
| 11115-30040C0 |
2KDFTV..KDN145,150,155,165,190 MARK C |
1 | ||
| 11115-30040D0 |
2KDFTV..KDN145,150,155,165,190 MARK D |
1 | ||
| 11115-30040E0 |
2KDFTV..KDN145,150,155,165,190 MARK E |
1 | ||
| 11116C - PLUG, TIGHT, NO.3 | ||||
| 96411-63000 |
2KDFTV..KDN145,150,155,165,190 |
1 | ||
| 11116D - PLUG, TIGHT, NO.4 | ||||
| 96411-62000 |
2KDFTV..KDN145,150,155,165,190 |
5 | ||
| 11116D - PLUG, TIGHT, NO.4 | ||||
| 96411-62000 |
2KDFTV..KDN145,150,155,165,190 |
5 | ||
| 11116E - PLUG, TIGHT, NO.5 | ||||
| 96411-63500 |
2KDFTV..KDN145,150,155,165,190 |
2 | ||
| 11117E - PLUG, W/HEAD STRAIGHT SCREW, NO.1 | ||||
| 90341-14015 |
1KDFTV,2KDFTV..KDN15#,16#,190..TH..CBU (J) |
4 | ||
| 11122 - BUSH, INTAKE VALVE GUIDE | ||||
| 11123-30020 |
1KDFTV,2KDFTV..KDN145,15#,16#,190 STD |
8 | ||
| 11122-30020 |
1KDFTV,2KDFTV..KDN145,15#,16#,190..CBU O/S 0.05 |
8 | ||
| 11126 - BUSH, EXHAUST VALVE GUIDE | ||||
| 11123-30020 |
1KDFTV,2KDFTV..KDN145,15#,16#,190 STD |
8 | ||
| 11122-30020 |
1KDFTV,2KDFTV..KDN145,15#,16#,190..CBU O/S 0.05 |
8 | ||
| 11151B - SEAL, OIL(FOR CAMSHAFT SETTING) | ||||
| 90080-31097 |
1KDFTV,2KDFTV..KDN155,166..SCB,SRWGN (L) |
1 | ||
| 90311-32019 |
1KDFTV,2KDFTV..KDN145,15#,16#,190..CBU |
1 | ||
| 90311-32019 |
1KDFTV,2KDFTV..KDN155,166..SCB,SRWGN (J) |
1 | ||
| 11155A - PIN, RING W/HEAD | ||||
| 90253-10004 |
2KDFTV..KDN165,190..SRWGN;2KDFTV..KDN155,165,190..DLX (J) |
4 | ||
| 90253-10004 |
1KDFTV,2KDFTV..KDN145,15#,16#,190 |
4 | ||
| 11201 - COVER SUB-ASSY, CYLINDER HEAD | ||||
| 11210-30081 |
2KDFTV..KDN145,15#,165,190 |
1 | ||
| 11213 - GASKET, CYLINDER HEAD COVER | ||||
| 11213-30020 |
2KDFTV..KDN145,15#,165,190 |
1 | ||
| 12108 - CAP SUB-ASSY, OIL FILLER | ||||
| 12180-21010 |
1KDFTV,2KDFTV..KDN145,15#,16#,190 |
1 | ||
| 12108A - GASKET(FOR OIL FILLER CAP) | ||||
| 90430-37140 |
2KDFTV..KDN145,15#,165,190 |
1 | ||
| 12282D - HANGER, ENGINE, NO.2 | ||||
| 12282-67030 |
2KDFTV..KDN155 |
1 | ||
| 12284A - HANGER, ENGINE, NO.1 UPPER | ||||
| 12284-30020 |
2KDFTV..KDN155 |
1 | ||
| 12631A - BRACKET, ENGINE COVER | ||||
| 12631-30010 |
2KDFTV..KDN155 NO.1 |
1 | ||
| 12631-30020 |
2KDFTV..KDN155 NO.2 |
1 | ||
| 12631A - BRACKET, ENGINE COVER | ||||
| 12631-30010 |
2KDFTV..KDN155 NO.1 |
1 | ||
| 12631-30020 |
2KDFTV..KDN155 NO.2 |
1 | ||
| Common parts | ||||
| 90105-T0073 | ||||
| 90105-T0164 | ||||
| 90176-06012 | ||||
| 90179-06208 | ||||
| 90179-06292 | ||||
| 91511-B0610 | ||||
| 91512-61014 | ||||
| 91512-81025 | ||||
| 91551-F0630 | ||||
| 91642-81030 | ||||
| 92122-80610 | ||||
| Linked diagrams | ||||
| 1708 | ||||
| 2606 | ||||
| 8405 | ||||
