KDN151R-CRMSYT (2002)

Toyota Hilux

Production Aug 2002 - Aug 2004
Engine 1KDFTV
Transmission MTM
Displacement 2500cc
Power 168 HP (125 kW)

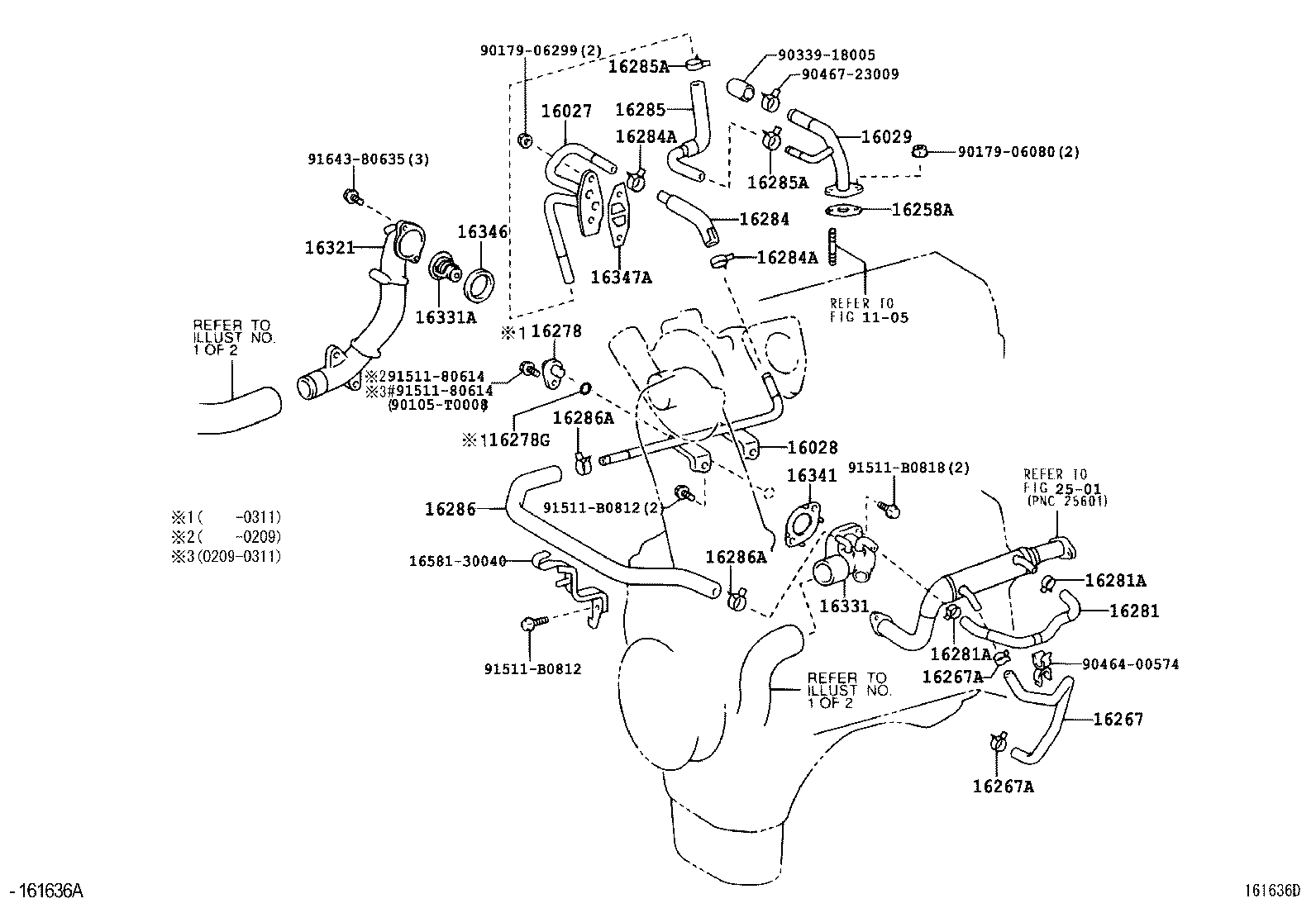

ILLUST NO. 2 OF 2(0208- )1KDFTV

Click highlighted areas on diagram

diagram 1105 16027 16028 16029 16258A 16267 16267A 16267A 16278 16278G 16281 16281A 16281A 16284 16284A 16284A 16285 16285A 16285A 16286 16286A 16286A 16321 16331 16331A 16341 16346 16347A 1658130040 2501 90105T0008 9017906080 9017906299 9033918005 9046400574 9046723009 9151180614 9151180614 91511B0812 91511B0812 91511B0818 9164380635
Part # Description Qty Price
16258A - GASKET(FOR HEATER RETURN)
16258-0L010

1KDFTV,2KDFTV..KDN145,150,151,16#,190..(DCB,XTR)..TH

(L)

 1
16258-67010

1KDFTV,2KDFTV..KDN145,150,151,16#,190..(DCB,XTR)..TH

(J)

 1
16267 - HOSE, WATER BY-PASS, NO.3
16267-30020

1KDFTV..KDN151,166

 1
16267A - CLAMP OR CLIP(FOR WATER BY-PASS HOSE NO.3)
90467-19022

1KDFTV..KDN151,166

 2
16267A - CLAMP OR CLIP(FOR WATER BY-PASS HOSE NO.3)
90467-19022

1KDFTV..KDN151,166

 2
16278 - PIPE, WATER BY-PASS, NO.2
16278-30010

1KDFTV..KDN151,166

 1
16281 - HOSE, WATER BY-PASS, NO.4
16281-30020

1KDFTV..KDN151,166

 1
16281A - CLAMP OR CLIP(FOR WATER BY-PASS HOSE NO.4)
90467-19022

1KDFTV..KDN151,166

 2
16281A - CLAMP OR CLIP(FOR WATER BY-PASS HOSE NO.4)
90467-19022

1KDFTV..KDN151,166

 2
16284 - HOSE, TURBO WATER, NO.1
16284-30060

1KDFTV,2KDFTV..KDN145,150,151,16#,190..(DCB,XTR)..TH

 1
16284A - CLIP(FOR TURBO WATER HOSE NO.1)
90466-T0014

1KDFTV,2KDFTV..KDN145,150,151,16#,190..(DCB,XTR)..TH

(L)

 2
90467-13073

1KDFTV,2KDFTV..KDN145,150,151,16#,190..(DCB,XTR)..TH

(J)

 2
16284A - CLIP(FOR TURBO WATER HOSE NO.1)
90466-T0014

1KDFTV,2KDFTV..KDN145,150,151,16#,190..(DCB,XTR)..TH

(L)

 2
90467-13073

1KDFTV,2KDFTV..KDN145,150,151,16#,190..(DCB,XTR)..TH

(J)

 2
Common parts
16581-30040
90105-T0008
90179-06080
90179-06299
90339-18005
90464-00574
90467-23009
91511-80614
91511-B0812
91511-B0818
91643-80635
Linked diagrams
1105
2501
