Toyota Hilux GUN136 FRONT BUMPER & BUMPER STAY

Manufacturers Home
Toyota
GR
HILUX
GUN136R-DTTSHQ (2015)
5252 - FRONT BUMPER & BUMPER STAY

GUN136R-DTTSHQ (2015)

Toyota Hilux

Production May 2015 - May 2020

Engine 1GDFTV

Transmission 6FC ATM

Displacement 2500cc

Power 168 HP (125 kW)

(1107- )

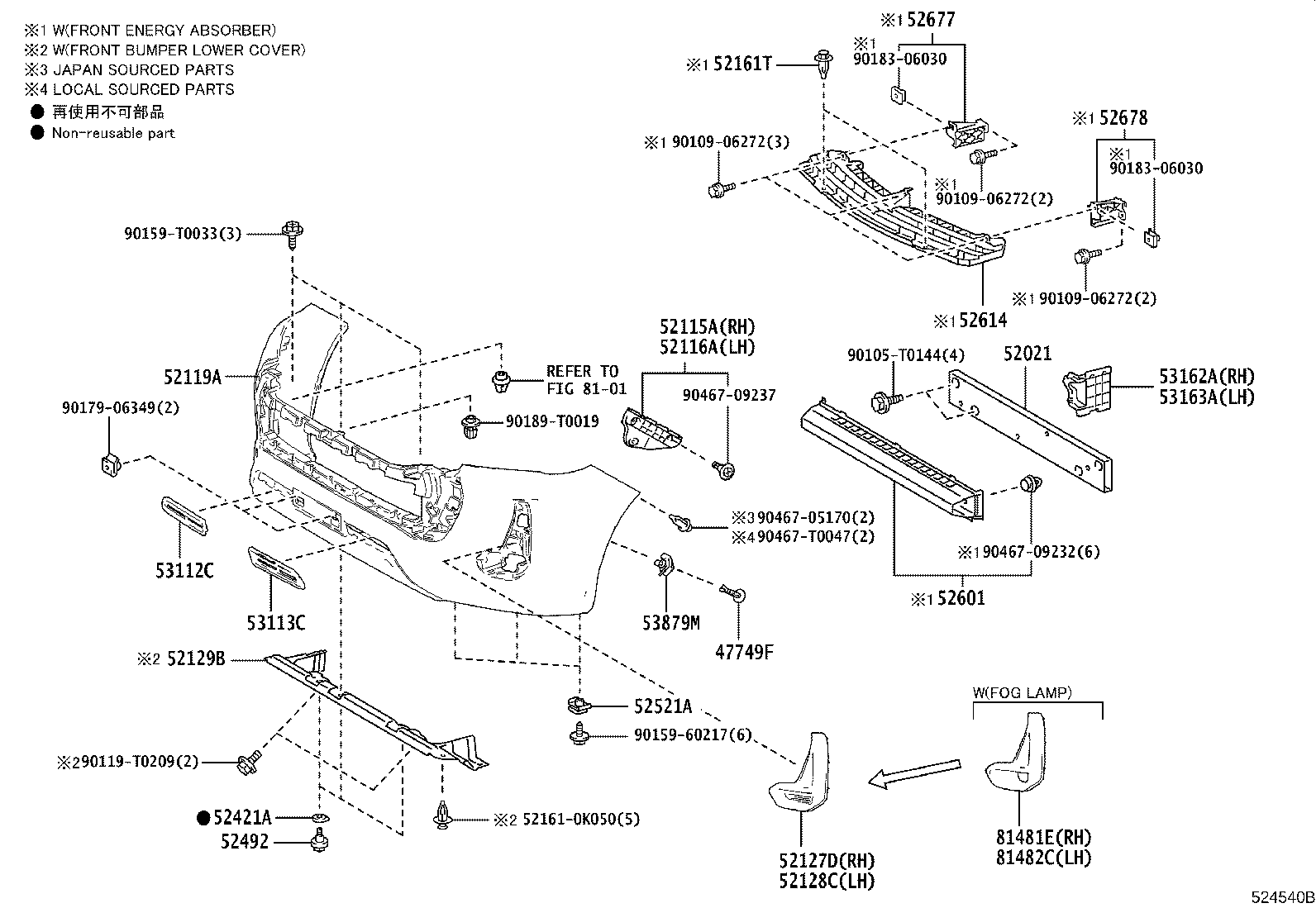

Click highlighted areas on diagram

Part #	Description	Period	Qty	Price
Common parts
90109-T0027
90119-T0146
90119-T0229
90159-T0009
90178-T0011
90179-06127
Linked diagrams
5353
8101
8102

(1505- )

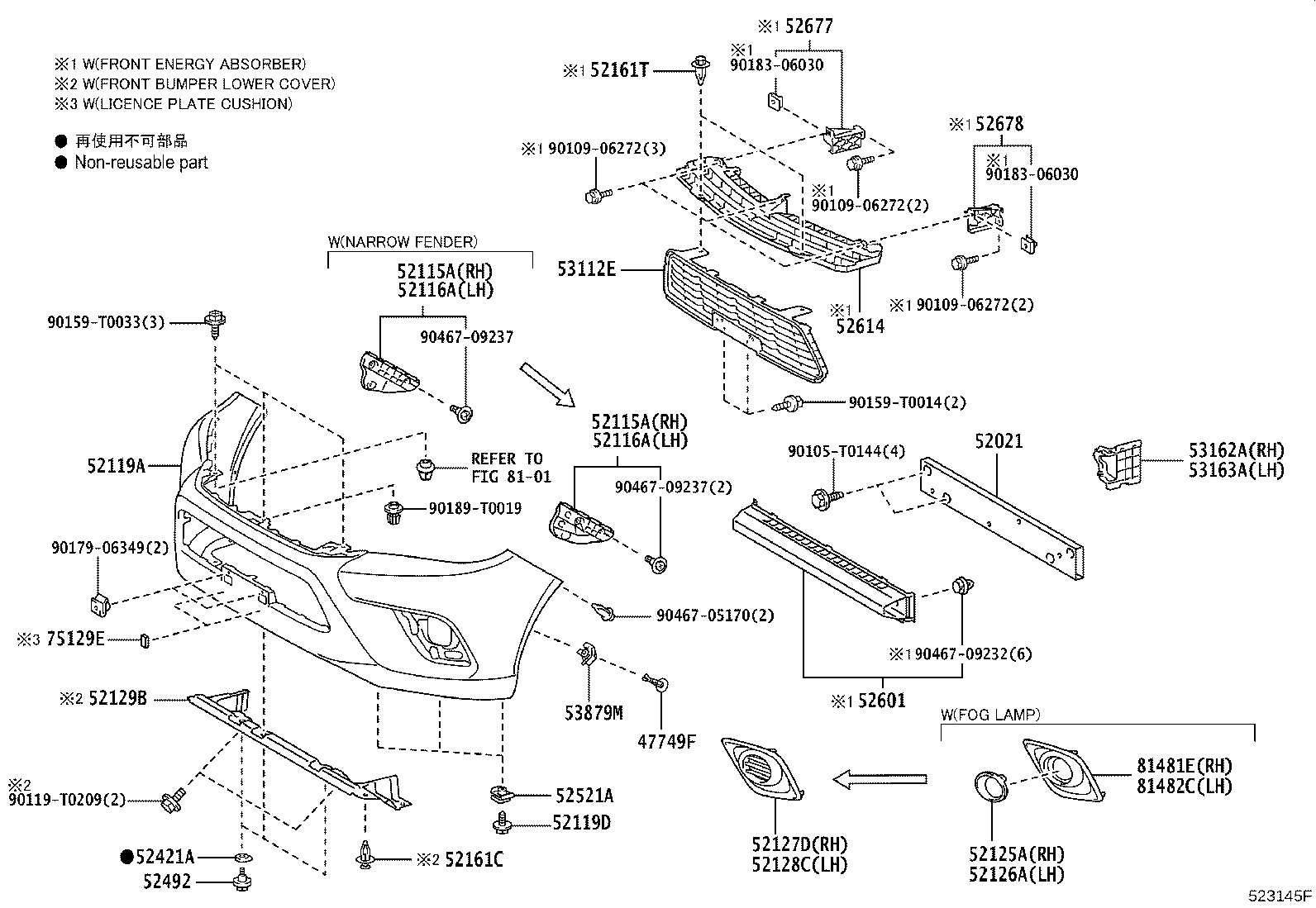

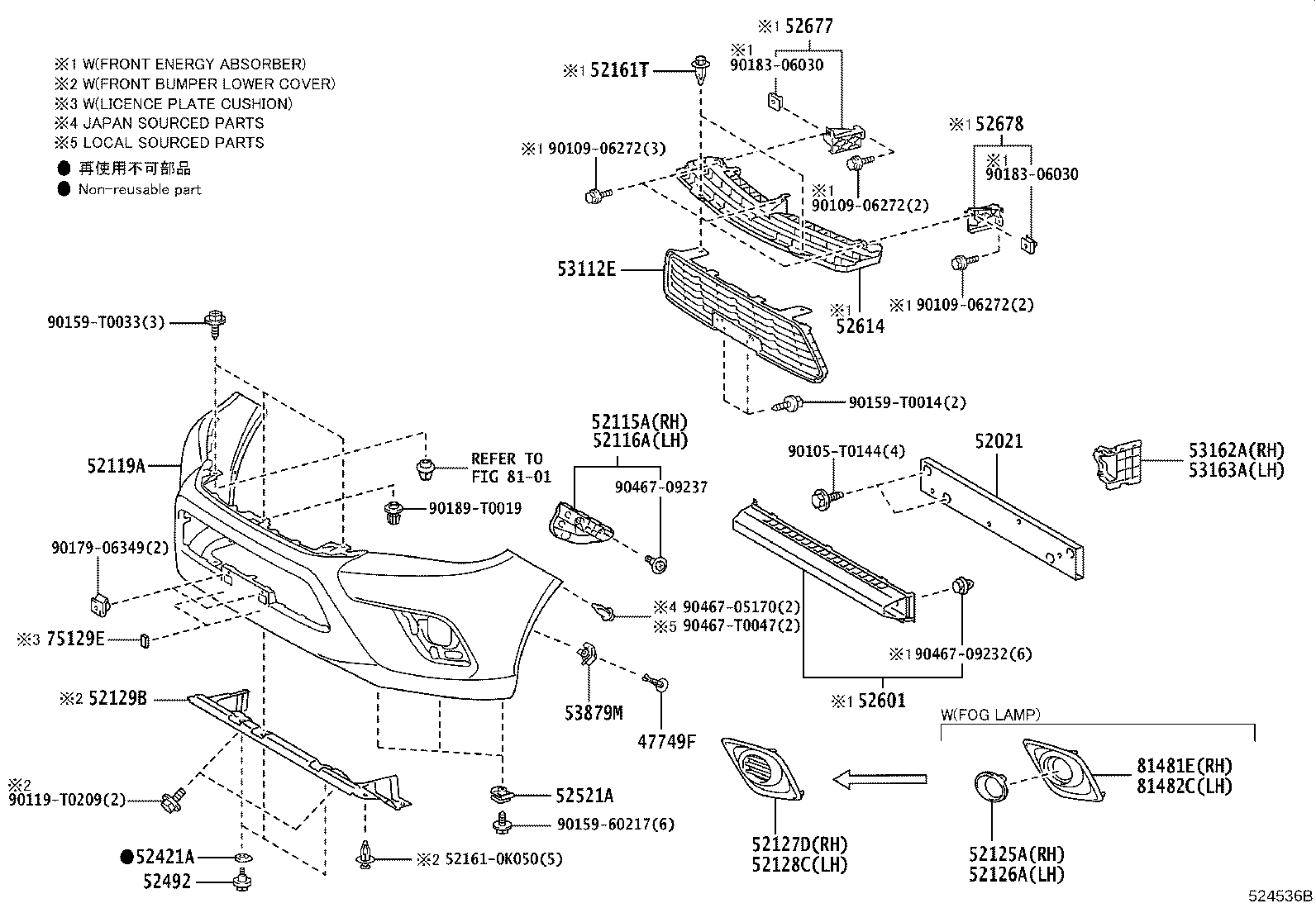

Click highlighted areas on diagram

W(RESIN BUMPER)

Part #	Description	Period	Qty
47749F - CLIP, PIN HOLD
47749-50090	GUN125..TDC..6FC..ARL;TGN136..ADC,ASC,SDC,TDC,TSC,TXT;GUN125..ADC,ASC,SDC,SSC,SXT,TSC,TXT;GUN125..TDC..(GCC,GEN,IDN,LA,PH,TH,VN);GUN112,122,135,KUN112,122,TGN110,120,121..ARL,BZAGT,GEN,IDN,LA,MA,PH,PKN,SA,TH,VN;GGN12#,135,GUN120,123,126,136,KUN125,126,13#,LAN125,TGN126,128,138..ADC,ASC,PDC,PSC,SDC,SSC,SXT,TDC,TSC,TXT	05/2015 - 12/2999	2
52021 - REINFORCEMENT SUB-ASSY, FRONT BUMPER
52021-KK010	GUN125..TDC..6FC..ARL;TGN136..ADC,ASC,SDC,TDC,TSC,TXT;GUN125..ADC,ASC,SDC,SSC,SXT,TSC,TXT;GUN125..TDC..(GCC,GEN,IDN,LA,PH,TH,VN);GGN12#,135,GUN112,135..ADC,ASC,MDC,SDC,SSC,SXT,TDC,TSC,TXT;GUN120,122,123,126,136,KUN112,12#,13#,LAN125,TGN11#,120,121,126,128,138..ADC,ASC,PDC,PSC,SDC,SSC,SXT,TDC,TSC,TXT	05/2015 - 12/2999	1
52115A - SUPPORT, FRONT BUMPER SIDE, RH
52115-0K180	GUN135..M..PH;GUN125..6F..M..GCC;GUN125..TDC..L..IDN;GUN135..(H,S)..(GEN,LA);TGN126..(M,S)..(BZAGT,GEN,LA);GUN126,TGN136..ADC..(L,X)..BZAGT;GUN125..(ADC,TXT)..(ARL,BZAGT,GEN,IDN,TH);GUN126,KUN125..(ADC,PDC,TDC,TXT)..(H,M,S);GUN125,TGN126..TDC..(5F,6FC)..(M,X)..(ARL,GCC);GUN135..(ADC,MDC,TDC,TXT)..(ARL,BZAGT,MA,TH,VN);GGN125,GUN136,KUN13#,TGN128,13#..(ADC,TDC,TXT)..(H,L,M,S);GUN125,KUN126..(ADC,PDC,TDC)..(H,M,S)..(GEN,IDN,LA,PKN,TH,VN)	05/2015 - 12/2999	1
52115A - SUPPORT, FRONT BUMPER SIDE, RH
52115-0K180	GUN135..M..PH;GUN125..6F..M..GCC;GUN125..TDC..L..IDN;GUN135..(H,S)..(GEN,LA);TGN126..(M,S)..(BZAGT,GEN,LA);GUN126,TGN136..ADC..(L,X)..BZAGT;GUN125..(ADC,TXT)..(ARL,BZAGT,GEN,IDN,TH);GUN126,KUN125..(ADC,PDC,TDC,TXT)..(H,M,S);GUN125,TGN126..TDC..(5F,6FC)..(M,X)..(ARL,GCC);GUN135..(ADC,MDC,TDC,TXT)..(ARL,BZAGT,MA,TH,VN);GGN125,GUN136,KUN13#,TGN128,13#..(ADC,TDC,TXT)..(H,L,M,S);GUN125,KUN126..(ADC,PDC,TDC)..(H,M,S)..(GEN,IDN,LA,PKN,TH,VN)	05/2015 - 12/2999	1
52116A - SUPPORT, FRONT BUMPER SIDE, LH
52116-0K180	GUN135..M..PH;GUN125..6F..M..GCC;GUN125..TDC..L..IDN;GUN135..(H,S)..(GEN,LA);TGN126..(M,S)..(BZAGT,GEN,LA);GUN126,TGN136..ADC..(L,X)..BZAGT;GUN125..(ADC,TXT)..(ARL,BZAGT,GEN,IDN,TH);GUN126,KUN125..(ADC,PDC,TDC,TXT)..(H,M,S);GUN125,TGN126..TDC..(5F,6FC)..(M,X)..(ARL,GCC);GUN135..(ADC,MDC,TDC,TXT)..(ARL,BZAGT,MA,TH,VN);GGN125,GUN136,KUN13#,TGN128,13#..(ADC,TDC,TXT)..(H,L,M,S);GUN125,KUN126..(ADC,PDC,TDC)..(H,M,S)..(GEN,IDN,LA,PKN,TH,VN)	05/2015 - 12/2999	1
52116A - SUPPORT, FRONT BUMPER SIDE, LH
52116-0K180	GUN135..M..PH;GUN125..6F..M..GCC;GUN125..TDC..L..IDN;GUN135..(H,S)..(GEN,LA);TGN126..(M,S)..(BZAGT,GEN,LA);GUN126,TGN136..ADC..(L,X)..BZAGT;GUN125..(ADC,TXT)..(ARL,BZAGT,GEN,IDN,TH);GUN126,KUN125..(ADC,PDC,TDC,TXT)..(H,M,S);GUN125,TGN126..TDC..(5F,6FC)..(M,X)..(ARL,GCC);GUN135..(ADC,MDC,TDC,TXT)..(ARL,BZAGT,MA,TH,VN);GGN125,GUN136,KUN13#,TGN128,13#..(ADC,TDC,TXT)..(H,L,M,S);GUN125,KUN126..(ADC,PDC,TDC)..(H,M,S)..(GEN,IDN,LA,PKN,TH,VN)	05/2015 - 12/2999	1
52119A - COVER, FRONT BUMPER
52119-0K840	GUN135..M..PH;GUN125..(TDC,TXT)..6F..(M,S);GUN125,126..6FC..(H,M)..(GCC,VN);GUN135..(TDC,TXT)..(L,M,S)..(LA,TH);GGN125,GUN126,136,TGN126,136..(TDC,TXT)..(H,M,S)..(ARL,GCC,GEN,LA,PH,TH)	05/2015 - 07/2017	1
52119-YP908	GUN126,136..TDC..6FC..M..ARL PAINT REQ.,"BLACK RALLY EDITION"*(B)&TIRE & DISC WHEEL-265/60R18, ALUMINUM&FRONT BUMPER-PAINTED & WITH(WIDE FENDER),FOR(MLM)&FRONT FOG LAMP-WITH(LED)	12/2017 - 06/2018	1
52119-YP908	GUN136..6FC..M..ARL PAINT REQ.,"BLACK RALLY EDITION"*(B)&TIRE & DISC WHEEL-265/60R18, ALUMINUM&FRONT BUMPER-PAINTED & WITH(WIDE FENDER),FOR(MLM)	12/2017 - 06/2018	1
52119-0K840	GUN126,136..TDC..M..ARL FRONT BUMPER-MATERIAL COLOR & WITH(WIDE FENDER)&FRONT FOG LAMP-WITH(LED)	08/2017 - 05/2019	1
52119-YP904	GUN126,136..TDC..M..ARL PAINT REQ., PREMIUM BASIC PACKAGE(HOOD MOLD=BLACK)&FRONT BUMPER-PAINTED & WITH(WIDE FENDER),FOR(MLM)&FRONT FOG LAMP-WITH(LED)	06/2018 - 05/2019	1
52119-YP908	GUN126,136..TDC..6FC..M..ARL PAINT REQ.,"BLACK RALLY EDITION"*(B)&TIRE & DISC WHEEL-265/60R18, ALUMINUM&FRONT BUMPER-PAINTED & W(WIDE FENDER & SKID),FOR(MLM)&FRONT FOG LAMP-WITH(LED)	06/2018 - 05/2019	1
52119-YP908	GUN126,136..TDC..6FC..M..ARL PAINT REQ.,"BLACK RALLY EDITION"*(B)&TIRE & DISC WHEEL-265/60R18(WHITE LETTER), ALUMINUM&FRONT BUMPER-PAINTED & W(WIDE FENDER & SKID),FOR(MLM)&FRONT FOG LAMP-WITH(LED)	06/2018 - 05/2019	1
52119-0K840	GUN126,135..6F..(M,S)..VN;GUN125,135..(TDC,TXT)..ARL;KUN125,126,13#..(TDC,TXT)..(H,M,S)	05/2015 - 05/2020	1
52119-0K840	GUN136..M..ARL;GUN126..TDC..ARL..CBU FRONT BUMPER-MATERIAL COLOR & WITH(WIDE FENDER)	08/2017 - 05/2020	1
52119-0M978	GUN125,TGN136..TH,VN;GUN135..(H,M,S)..(GEN,TH);GUN135,TGN126..TDC..(L,M)..(LA,PH,VN);GUN126..(TDC,TXT)..(H,M)..(ARL,GEN,LA,PH,TAIW,TH,VN);GGN125,GUN125,136,TGN136..(TDC,TXT)..(H,M)..(ARL,GEN,LA,TH)	08/2017 - 05/2020	1
52119-0M978	GUN135..L..TH;GUN125,126..M..GCC;TGN126..M..(GCC,GEN);GUN125..(TDC,TXT)..(L,M,S)..(IDN,LA);GGN125,GUN125,136..(TDC,TXT)..S..(ARL,GEN);GUN126,135,TGN126,136..(TDC,TXT)..S..(ARL,GEN,LA,VN)	08/2017 - 05/2020	1
52119-0M978	GUN126,136..TDC..S..ARL FRONT FOG LAMP-WITH	06/2018 - 05/2020	1
52119-YP904	GUN126..TXT..S;GUN126..TDC..IV3;GUN125,TGN126..TDC..MTM..S..LA;GUN126,135..TDC..S..(GEN,LA,VN);GUN125,136..(TDC,TXT)..S..(ARL,GEN) PREMIUM BASIC PACKAGE(HOOD MOLD=BLACK)&FRONT FOG LAMP-WITH	06/2018 - 05/2020	1
52119-YP904	GUN136..M..ARL;GUN126..TDC..6FC..M..LA PREMIUM BASIC PACKAGE(HOOD MOLD=BLACK)&FRONT BUMPER-PAINTED & WITH(WIDE FENDER),FOR(MLM)	06/2018 - 05/2020	1
52119-YP908	GUN136..6FC..M..ARL "BLACK RALLY EDITION"*(B)&TIRE & DISC WHEEL-265/60R18, ALUMINUM&FRONT BUMPER-PAINTED & W(WIDE FENDER & SKID),FOR(MLM)	06/2018 - 05/2020	1
52119-YP908	GUN136..6FC..M..ARL "BLACK RALLY EDITION"*(B)&TIRE & DISC WHEEL-265/60R18(WHITE LETTER), ALUMINUM&FRONT BUMPER-PAINTED & W(WIDE FENDER & SKID),FOR(MLM)	06/2018 - 05/2020	1
52119D - SCREW, NO.1
90159-60217	GUN125..TDC..6FC..ARL;TGN136..ADC,ASC,SDC,TDC,TSC,TXT;GUN125..ADC,ASC,SDC,SSC,SXT,TSC,TXT;GUN125..TDC..(GCC,GEN,IDN,LA,PH,TH,VN);GUN112,122,135,KUN112,122,TGN110,120,121..ARL,BZAGT,GEN,IDN,LA,MA,PH,PKN,SA,TH,VN;GGN12#,135,GUN120,123,126,136,KUN125,126,13#,LAN125,TGN126,128,138..ADC,ASC,PDC,PSC,SDC,SSC,SXT,TDC,TSC,TXT	05/2015 - 12/2999	6
52125A - BRACKET, FOG LAMP MOUNTING, RH
52125-YP050	GUN126,136..TDC..6FC..M..ARL "BLACK RALLY EDITION"*(B)&TIRE & DISC WHEEL-265/60R18, ALUMINUM&FRONT BUMPER-PAINTED & WITH(WIDE FENDER),FOR(MLM)&FRONT FOG LAMP-WITH(LED)	12/2017 - 06/2018	1
52125-YP050	GUN136..6FC..M..ARL "BLACK RALLY EDITION"*(B)&TIRE & DISC WHEEL-265/60R18, ALUMINUM&FRONT BUMPER-PAINTED & WITH(WIDE FENDER),FOR(MLM)	12/2017 - 06/2018	1
52125-YP030	GUN126,136..TDC..M..ARL PREMIUM BASIC PACKAGE(HOOD MOLD=BLACK)&FRONT BUMPER-PAINTED & WITH(WIDE FENDER),FOR(MLM)&FRONT FOG LAMP-WITH(LED)	06/2018 - 05/2019	1
52125-YP050	GUN126,136..TDC..6FC..M..ARL "BLACK RALLY EDITION"*(B)&TIRE & DISC WHEEL-265/60R18, ALUMINUM&FRONT BUMPER-PAINTED & W(WIDE FENDER & SKID),FOR(MLM)&FRONT FOG LAMP-WITH(LED)	06/2018 - 05/2019	1
52125-YP050	GUN126,136..TDC..6FC..M..ARL "BLACK RALLY EDITION"*(B)&TIRE & DISC WHEEL-265/60R18(WHITE LETTER), ALUMINUM&FRONT BUMPER-PAINTED & W(WIDE FENDER & SKID),FOR(MLM)&FRONT FOG LAMP-WITH(LED)	06/2018 - 05/2019	1
52125-YP030	GUN136..M..ARL;GUN126..TDC..6FC..M..LA PREMIUM BASIC PACKAGE(HOOD MOLD=BLACK)&FRONT BUMPER-PAINTED & WITH(WIDE FENDER),FOR(MLM)	06/2018 - 05/2020	1
52125-YP050	GUN136..6FC..M..ARL "BLACK RALLY EDITION"*(B)&TIRE & DISC WHEEL-265/60R18, ALUMINUM&FRONT BUMPER-PAINTED & W(WIDE FENDER & SKID),FOR(MLM)	06/2018 - 05/2020	1
52125-YP050	GUN136..6FC..M..ARL "BLACK RALLY EDITION"*(B)&TIRE & DISC WHEEL-265/60R18(WHITE LETTER), ALUMINUM&FRONT BUMPER-PAINTED & W(WIDE FENDER & SKID),FOR(MLM)	06/2018 - 05/2020	1
52125-0K030	GUN125..TXT..M;GUN135..6F..S..VN;GUN135..LHD..TDC..(L,M);GUN125..RHD..(H,M)..GEN;GUN125..(M,S)..(MA,TH,VN);GUN135..(H,M,S)..(GEN,MA,TH);KUN135,TGN136..(H,S)..(GEN,TH,VN);GUN122,TGN126..5F..M..(BZAGT,GEN,LA,TH);GGN125,GUN126,136,KUN12#,136,TGN128,13#..(H,M)..(ARL,BZAGT,GEN,LA,MA,PH,TAIW,TH,VN)	05/2015 - 12/2020	1
52126A - BRACKET, FOG LAMP MOUNTING, LH
52126-YP050	GUN126,136..TDC..6FC..M..ARL "BLACK RALLY EDITION"*(B)&TIRE & DISC WHEEL-265/60R18, ALUMINUM&FRONT BUMPER-PAINTED & WITH(WIDE FENDER),FOR(MLM)&FRONT FOG LAMP-WITH(LED)	12/2017 - 06/2018	1
52126-YP050	GUN136..6FC..M..ARL "BLACK RALLY EDITION"*(B)&TIRE & DISC WHEEL-265/60R18, ALUMINUM&FRONT BUMPER-PAINTED & WITH(WIDE FENDER),FOR(MLM)	12/2017 - 06/2018	1
52126-YP030	GUN126,136..TDC..M..ARL PREMIUM BASIC PACKAGE(HOOD MOLD=BLACK)&FRONT BUMPER-PAINTED & WITH(WIDE FENDER),FOR(MLM)&FRONT FOG LAMP-WITH(LED)	06/2018 - 05/2019	1
52126-YP050	GUN126,136..TDC..6FC..M..ARL "BLACK RALLY EDITION"*(B)&TIRE & DISC WHEEL-265/60R18, ALUMINUM&FRONT BUMPER-PAINTED & W(WIDE FENDER & SKID),FOR(MLM)&FRONT FOG LAMP-WITH(LED)	06/2018 - 05/2019	1
52126-YP050	GUN126,136..TDC..6FC..M..ARL "BLACK RALLY EDITION"*(B)&TIRE & DISC WHEEL-265/60R18(WHITE LETTER), ALUMINUM&FRONT BUMPER-PAINTED & W(WIDE FENDER & SKID),FOR(MLM)&FRONT FOG LAMP-WITH(LED)	06/2018 - 05/2019	1
52126-YP030	GUN136..M..ARL;GUN126..TDC..6FC..M..LA PREMIUM BASIC PACKAGE(HOOD MOLD=BLACK)&FRONT BUMPER-PAINTED & WITH(WIDE FENDER),FOR(MLM)	06/2018 - 05/2020	1
52126-YP050	GUN136..6FC..M..ARL "BLACK RALLY EDITION"*(B)&TIRE & DISC WHEEL-265/60R18, ALUMINUM&FRONT BUMPER-PAINTED & W(WIDE FENDER & SKID),FOR(MLM)	06/2018 - 05/2020	1
52126-YP050	GUN136..6FC..M..ARL "BLACK RALLY EDITION"*(B)&TIRE & DISC WHEEL-265/60R18(WHITE LETTER), ALUMINUM&FRONT BUMPER-PAINTED & W(WIDE FENDER & SKID),FOR(MLM)	06/2018 - 05/2020	1
52126-0K030	GUN125..TXT..M;GUN135..6F..S..VN;GUN135..LHD..TDC..(L,M);GUN125..RHD..(H,M)..GEN;GUN125..(M,S)..(MA,TH,VN);GUN135..(H,M,S)..(GEN,MA,TH);KUN135,TGN136..(H,S)..(GEN,TH,VN);GUN122,TGN126..5F..M..(BZAGT,GEN,LA,TH);GGN125,GUN126,136,KUN12#,136,TGN128,13#..(H,M)..(ARL,BZAGT,GEN,LA,MA,PH,TAIW,TH,VN)	05/2015 - 12/2020	1
52127D - COVER, FRONT BUMPER HOLE, RH
52127-0K200	GUN126..M..GCC;GUN135..S..(BZAGT,LA,PH);GUN125..TDC..S..(GCC,GEN,IDN,LA,PH);GUN135,TGN136..LHD..(5F,6FC)..(S,X);GUN122..5F..(L,S,X)..(ARL,GEN,PH,TH);GUN125,KUN125..(5FC,6F)..M..(GCC,IDN);GUN135..(L,X)..(ARL,BZAGT,GEN,LA,MA,TH);GUN125..(MDC,TDC)..(L,X)..(GCC,GEN,IDN,LA,MA);GUN125,TGN126..TDC..(5F,6FC)..(M,X)..(ARL,GCC,IDN);GUN126,KUN125,TGN126..(ADC,ASC,TDC,TSC,TXT)..(L,S,X);GUN125..(ADC,ASC,MSC,TSC,TXT)..(L,S,X)..(ARL,BZAGT,GCC,GEN,IDN,LA,MA);GGN12#,GUN112,123,136,KUN112,122,126,13#,TGN110,121,138..(L,S,X)..(ARL,BZAGT,GEN,IDN,LA,TH)	05/2015 - 12/2020	1
52128C - COVER, FRONT BUMPER HOLE, LH
52128-0K200	GUN126..M..GCC;GUN135..S..(BZAGT,LA,PH);GUN125..TDC..S..(GCC,GEN,IDN,LA,PH);GUN135,TGN136..LHD..(5F,6FC)..(S,X);GUN122..5F..(L,S,X)..(ARL,GEN,PH,TH);GUN125,KUN125..(5FC,6F)..M..(GCC,IDN);GUN135..(L,X)..(ARL,BZAGT,GEN,LA,MA,TH);GUN125..(MDC,TDC)..(L,X)..(GCC,GEN,IDN,LA,MA);GUN125,TGN126..TDC..(5F,6FC)..(M,X)..(ARL,GCC,IDN);GUN126,KUN125,TGN126..(ADC,ASC,TDC,TSC,TXT)..(L,S,X);GUN125..(ADC,ASC,MSC,TSC,TXT)..(L,S,X)..(ARL,BZAGT,GCC,GEN,IDN,LA,MA);GGN12#,GUN112,123,136,KUN112,122,126,13#,TGN110,121,138..(L,S,X)..(ARL,BZAGT,GEN,IDN,LA,TH)	05/2015 - 12/2020	1
52129B - COVER, FRONT BUMPER, LOWER
52129-KK010	GUN136..H,M;GUN135..SSC..X;GUN135..LHD..SA;GUN135..6F..S..SA;GUN125..LHD..TDC..X;GUN125..TDC..6FC..ARL;GUN136..S..(ARL,BZAGT);GUN125..(SXT,TDC)..(H,L,M,S);GUN125..(ADC,ASC,TSC)..6F..LA;GUN135..ADC,ASC,MDC,TDC,TSC,TXT;TGN136..ADC,ASC,SDC,TDC,TSC,TXT;GUN126,TGN126,128,138..ADC,ASC,PDC,PSC,SDC,SSC,SXT,TDC,TSC,TXT;GGN125,135,KUN125,126,13#,LAN125..ARL,GCC,GEN,IDN,LA,PKN,SA,VN;GUN125..(ADC,ASC,SDC,SSC,TSC,TXT)..(ARL,BZAGT,GCC,GEN,IDN,SA,TH)	05/2015 - 12/2999	1
52161C - PIECE, FRONT BUMPER
52161-0K050	GUN136..H,M;GUN135..SSC..X;GUN135..LHD..SA;GUN135..6F..S..SA;GUN125..LHD..TDC..X;GUN125..TDC..6FC..ARL;GUN136..S..(ARL,BZAGT);GUN125..(SXT,TDC)..(H,L,M,S);GUN125..(ADC,ASC,TSC)..6F..LA;GUN135..ADC,ASC,MDC,TDC,TSC,TXT;TGN136..ADC,ASC,SDC,TDC,TSC,TXT;GUN126,TGN126,128,138..ADC,ASC,PDC,PSC,SDC,SSC,SXT,TDC,TSC,TXT;GGN125,135,KUN125,126,13#,LAN125..ARL,GCC,GEN,IDN,LA,PKN,SA,VN;GUN125..(ADC,ASC,SDC,SSC,TSC,TXT)..(ARL,BZAGT,GCC,GEN,IDN,SA,TH)	05/2015 - 12/2999	5
52161T - PIECE, FRONT BUMPER
52161-0K040	TGN126..M..GEN;GGN12#,GUN122,123,125,126,13#,TGN121..ARL	05/2015 - 05/2020	2
52421A - PAD, FRONT BUMPER
52421-60191	GUN125..TDC..6FC..ARL;GUN125..ADC,ASC,SDC,SSC,SXT,TSC,TXT;GUN125..TDC..(GCC,GEN,IDN,LA,PH,TH,VN);KUN122,TGN136..(ADC,ASC,PSC,SDC,TDC,TSC,TXT)..(BZAGT,GEN,LA,PKN,SA,TH);GUN112,122,135,KUN112,TGN110,120,121..ARL,BZAGT,GEN,IDN,LA,MA,PH,PKN,SA,TH,VN;GGN12#,135,GUN120,123,126,136,KUN125,126,13#,LAN125,TGN126,128,138..ADC,ASC,PDC,PSC,SDC,SSC,SXT,TDC,TSC,TXT	05/2015 - 12/2999	3
52492 - BOLT, BUMPER PAD, NO.2
52491-60010	GUN125..TDC..6FC..ARL;GUN122..5F..(ARL,GEN,PH,PKN,SA,TH);GUN125..ADC,ASC,SDC,SSC,SXT,TSC,TXT;GUN125..TDC..(GCC,GEN,IDN,LA,PH,TH,VN);GUN112,135,KUN112,TGN110,120,121..ARL,BZAGT,GEN,IDN,LA,MA,PH,SA,TH,VN;KUN122,TGN136..(ADC,ASC,PSC,SDC,TDC,TSC,TXT)..(BZAGT,GEN,LA,PKN,SA,TH);GGN12#,135,GUN123,126,136,KUN125,126,13#,LAN125,TGN126,128,138..ADC,ASC,PDC,PSC,SDC,SSC,SXT,TDC,TSC,TXT	05/2015 - 12/2999	3
52521A - CLIP(FOR FRONT BUMPER RETAINER)
90467-05114	GUN125..TDC..6FC..ARL;GUN122..5F..(ARL,GEN,PH,PKN,SA,TH);GUN125..ADC,ASC,SDC,SSC,SXT,TSC,TXT;GUN125..TDC..(GCC,GEN,IDN,LA,PH,TH,VN);GUN112,135,KUN112,TGN110,120,121..ARL,BZAGT,GEN,IDN,LA,MA,PH,SA,TH,VN;KUN122,TGN136..(ADC,ASC,PSC,SDC,TDC,TSC,TXT)..(BZAGT,GEN,LA,PKN,SA,TH);GGN12#,135,GUN123,126,136,KUN125,126,13#,LAN125,TGN126,128,138..ADC,ASC,PDC,PSC,SDC,SSC,SXT,TDC,TSC,TXT	05/2015 - 12/2999	6
52601 - ABSORBER SUB-ASSY, FRONT BUMPER ENERGY
52601-0K010	TGN126..M..GEN;GGN12#,GUN122,123,125,126,13#,TGN121..ARL	05/2015 - 05/2020	1
52614 - ABSORBER, FRONT BUMPER ENERGY, NO.2
52614-0K010	TGN126..M..GEN;GGN12#,GUN122,123,125,126,13#,TGN121..ARL	05/2015 - 05/2020	1
52677 - SUPPORT, FRONT BUMPER SIDE, NO.2, RH
52675-0K010	TGN126..M..GEN;GGN12#,GUN122,123,125,126,13#,TGN121..ARL	05/2015 - 05/2020	1
52678 - SUPPORT, FRONT BUMPER SIDE, NO.2, LH
52676-0K010	TGN126..M..GEN;GGN12#,GUN122,123,125,126,13#,TGN121..ARL	05/2015 - 05/2020	1
53112E - GRILLE, RADIATOR, LOWER NO.1
53112-YP050	GUN136..6FC..M..ARL NO PAINT REQ.,"BLACK RALLY EDITION"*(B)&TIRE & DISC WHEEL-265/60R18, ALUMINUM&FRONT BUMPER-PAINTED & WITH(WIDE FENDER),FOR(MLM)	12/2017 - 06/2018	1
53112-YP050	GUN126,136..TDC..6FC..M..ARL NO PAINT REQ.,"BLACK RALLY EDITION"*(B)&TIRE & DISC WHEEL-265/60R18, ALUMINUM&FRONT BUMPER-PAINTED & WITH(WIDE FENDER),FOR(MLM)&FRONT FOG LAMP-WITH(LED)	12/2017 - 06/2018	1
53112-YP050	GUN126,136..TDC..6FC..M..ARL NO PAINT REQ.,"BLACK RALLY EDITION"*(B)&TIRE & DISC WHEEL-265/60R18, ALUMINUM&FRONT BUMPER-PAINTED & W(WIDE FENDER & SKID),FOR(MLM)&FRONT FOG LAMP-WITH(LED)	06/2018 - 05/2019	1
53112-YP050	GUN126,136..TDC..6FC..M..ARL NO PAINT REQ.,"BLACK RALLY EDITION"*(B)&TIRE & DISC WHEEL-265/60R18(WHITE LETTER), ALUMINUM&FRONT BUMPER-PAINTED & W(WIDE FENDER & SKID),FOR(MLM)&FRONT FOG LAMP-WITH(LED)	06/2018 - 05/2019	1
53112-YP050	GUN126,136..TDC..M..ARL NO PAINT REQ., PREMIUM BASIC PACKAGE(HOOD MOLD=BLACK)&FRONT BUMPER-PAINTED & WITH(WIDE FENDER),FOR(MLM)&FRONT FOG LAMP-WITH(LED)	06/2018 - 05/2019	1
53112-0K120	GUN112,122,KUN112,122,TGN110,121..(5F,6FC)..(ARL,GEN,IDN,PH,TH);GGN12#,GUN123,125,126,13#,KUN125,126,13#,TGN126,136..TDC,TSC,TXT	05/2015 - 05/2020	1
53112-YP050	GUN136..6FC..M..ARL "BLACK RALLY EDITION"*(B)&TIRE & DISC WHEEL-265/60R18(WHITE LETTER), ALUMINUM&FRONT BUMPER-PAINTED & W(WIDE FENDER & SKID),FOR(MLM)	06/2018 - 05/2020	1
53112-YP050	GUN126..TXT..S;GUN126..TDC..IV3;GUN125,TGN126..TDC..MTM..S..LA;GUN126,135..TDC..S..(GEN,LA,VN);GUN125,136..(TDC,TXT)..S..(ARL,GEN) PREMIUM BASIC PACKAGE(HOOD MOLD=BLACK)&FRONT FOG LAMP-WITH	06/2018 - 05/2020	1
53112-YP050	GUN136..M..ARL;GUN126..TDC..6FC..M..LA PREMIUM BASIC PACKAGE(HOOD MOLD=BLACK)&FRONT BUMPER-PAINTED & WITH(WIDE FENDER),FOR(MLM)	06/2018 - 05/2020	1
53112-YP050	GUN136..6FC..M..ARL "BLACK RALLY EDITION"*(B)&TIRE & DISC WHEEL-265/60R18, ALUMINUM&FRONT BUMPER-PAINTED & W(WIDE FENDER & SKID),FOR(MLM)	06/2018 - 05/2020	1
53162A - DEFLECTOR, FRONT BUMPER STONE, RH
53162-KK010	GUN125..TDC..6FC..ARL;TGN136..ADC,ASC,SDC,TDC,TSC,TXT;GUN125..ADC,ASC,SDC,SSC,SXT,TSC,TXT;GUN125..TDC..(GCC,GEN,IDN,LA,PH,TH,VN);GUN112,122,135,KUN112,122,TGN110,120,121..ARL,BZAGT,GEN,IDN,LA,MA,PH,PKN,SA,TH,VN;GGN12#,135,GUN120,123,126,136,KUN125,126,13#,LAN125,TGN126,128,138..ADC,ASC,PDC,PSC,SDC,SSC,SXT,TDC,TSC,TXT	05/2015 - 12/2999	1
53163A - DEFLECTOR, FRONT BUMPER STONE, LH
53163-KK010	GUN125..TDC..6FC..ARL;TGN136..ADC,ASC,SDC,TDC,TSC,TXT;GUN125..ADC,ASC,SDC,SSC,SXT,TSC,TXT;GUN125..TDC..(GCC,GEN,IDN,LA,PH,TH,VN);GUN112,122,135,KUN112,122,TGN110,120,121..ARL,BZAGT,GEN,IDN,LA,MA,PH,PKN,SA,TH,VN;GGN12#,135,GUN120,123,126,136,KUN125,126,13#,LAN125,TGN126,128,138..ADC,ASC,PDC,PSC,SDC,SSC,SXT,TDC,TSC,TXT	05/2015 - 12/2999	1
53879M - RETAINER, FRONT FENDER LINER
53879-50020	GUN125..TDC..6FC..ARL;GUN122..5F..(ARL,GEN,PH,PKN,SA,TH);GUN125..ADC,ASC,SDC,SSC,SXT,TSC,TXT;GUN125..TDC..(GCC,GEN,IDN,LA,PH,TH,VN);GUN112,135,KUN112,TGN110,120,121..ARL,BZAGT,GEN,IDN,LA,MA,PH,SA,TH,VN;KUN122,TGN136..(ADC,ASC,PSC,SDC,TDC,TSC,TXT)..(BZAGT,GEN,LA,PKN,SA,TH);GGN12#,135,GUN123,126,136,KUN125,126,13#,LAN125,TGN126,128,138..ADC,ASC,PDC,PSC,SDC,SSC,SXT,TDC,TSC,TXT	05/2015 - 12/2999	2
81481E - COVER, FOG LAMP, RH
52127-YP100	GUN136..6FC..M..ARL "BLACK RALLY EDITION"*(B)&TIRE & DISC WHEEL-265/60R18, ALUMINUM&FRONT BUMPER-PAINTED & WITH(WIDE FENDER),FOR(MLM)	12/2017 - 06/2018	1
52127-YP100	GUN126,136..TDC..6FC..M..ARL "BLACK RALLY EDITION"*(B)&TIRE & DISC WHEEL-265/60R18, ALUMINUM&FRONT BUMPER-PAINTED & WITH(WIDE FENDER),FOR(MLM)&FRONT FOG LAMP-WITH(LED)	12/2017 - 06/2018	1
52127-YP100	GUN126,136..TDC..M..ARL PREMIUM BASIC PACKAGE(HOOD MOLD=BLACK)&FRONT BUMPER-PAINTED & WITH(WIDE FENDER),FOR(MLM)&FRONT FOG LAMP-WITH(LED)	06/2018 - 05/2019	1
52127-YP100	GUN126,136..TDC..6FC..M..ARL "BLACK RALLY EDITION"*(B)&TIRE & DISC WHEEL-265/60R18(WHITE LETTER), ALUMINUM&FRONT BUMPER-PAINTED & W(WIDE FENDER & SKID),FOR(MLM)&FRONT FOG LAMP-WITH(LED)	06/2018 - 05/2019	1
52127-YP100	GUN126,136..TDC..6FC..M..ARL "BLACK RALLY EDITION"*(B)&TIRE & DISC WHEEL-265/60R18, ALUMINUM&FRONT BUMPER-PAINTED & W(WIDE FENDER & SKID),FOR(MLM)&FRONT FOG LAMP-WITH(LED)	06/2018 - 05/2019	1
52127-YP100	GUN136..M..ARL;GUN126..TDC..6FC..M..LA PREMIUM BASIC PACKAGE(HOOD MOLD=BLACK)&FRONT BUMPER-PAINTED & WITH(WIDE FENDER),FOR(MLM)	06/2018 - 05/2020	1
52127-YP100	GUN136..6FC..M..ARL "BLACK RALLY EDITION"*(B)&TIRE & DISC WHEEL-265/60R18, ALUMINUM&FRONT BUMPER-PAINTED & W(WIDE FENDER & SKID),FOR(MLM)	06/2018 - 05/2020	1
52127-YP100	GUN136..6FC..M..ARL "BLACK RALLY EDITION"*(B)&TIRE & DISC WHEEL-265/60R18(WHITE LETTER), ALUMINUM&FRONT BUMPER-PAINTED & W(WIDE FENDER & SKID),FOR(MLM)	06/2018 - 05/2020	1
52127-0K170	GUN135..6F..S..VN;GUN135..LHD..TDC..(L,M);GUN122..5F..M..(GEN,TH);GUN125..(M,S)..(MA,TH,VN);GUN135..(H,M,S)..(GEN,MA,TH);KUN135,TGN136..(H,S)..(GEN,TH,VN);GUN126,KUN126..(H,M)..(ARL,BZAGT,GEN,LA,MA,PH,TAIW,TH,VN);GGN125,GUN125,136,KUN122,125,136,TGN126,128,13#..(H,M)..(ARL,BZAGT,GEN,LA,TH)	05/2015 - 12/2020	1
81482C - COVER, FOG LAMP, LH
52128-YP100	GUN126,136..TDC..6FC..M..ARL "BLACK RALLY EDITION"*(B)&TIRE & DISC WHEEL-265/60R18, ALUMINUM&FRONT BUMPER-PAINTED & WITH(WIDE FENDER),FOR(MLM)&FRONT FOG LAMP-WITH(LED)	12/2017 - 06/2018	1
52128-YP100	GUN136..6FC..M..ARL "BLACK RALLY EDITION"*(B)&TIRE & DISC WHEEL-265/60R18, ALUMINUM&FRONT BUMPER-PAINTED & WITH(WIDE FENDER),FOR(MLM)	12/2017 - 06/2018	1
52128-YP100	GUN126,136..TDC..6FC..M..ARL "BLACK RALLY EDITION"*(B)&TIRE & DISC WHEEL-265/60R18, ALUMINUM&FRONT BUMPER-PAINTED & W(WIDE FENDER & SKID),FOR(MLM)&FRONT FOG LAMP-WITH(LED)	06/2018 - 05/2019	1
52128-YP100	GUN126,136..TDC..M..ARL PREMIUM BASIC PACKAGE(HOOD MOLD=BLACK)&FRONT BUMPER-PAINTED & WITH(WIDE FENDER),FOR(MLM)&FRONT FOG LAMP-WITH(LED)	06/2018 - 05/2019	1
52128-YP100	GUN126,136..TDC..6FC..M..ARL "BLACK RALLY EDITION"*(B)&TIRE & DISC WHEEL-265/60R18(WHITE LETTER), ALUMINUM&FRONT BUMPER-PAINTED & W(WIDE FENDER & SKID),FOR(MLM)&FRONT FOG LAMP-WITH(LED)	06/2018 - 05/2019	1
52128-YP100	GUN136..6FC..M..ARL "BLACK RALLY EDITION"*(B)&TIRE & DISC WHEEL-265/60R18(WHITE LETTER), ALUMINUM&FRONT BUMPER-PAINTED & W(WIDE FENDER & SKID),FOR(MLM)	06/2018 - 05/2020	1
52128-YP100	GUN136..M..ARL;GUN126..TDC..6FC..M..LA PREMIUM BASIC PACKAGE(HOOD MOLD=BLACK)&FRONT BUMPER-PAINTED & WITH(WIDE FENDER),FOR(MLM)	06/2018 - 05/2020	1
52128-YP100	GUN136..6FC..M..ARL "BLACK RALLY EDITION"*(B)&TIRE & DISC WHEEL-265/60R18, ALUMINUM&FRONT BUMPER-PAINTED & W(WIDE FENDER & SKID),FOR(MLM)	06/2018 - 05/2020	1
52128-0K170	GUN135..6F..S..VN;GUN135..LHD..TDC..(L,M);GUN122..5F..M..(GEN,TH);GUN125..(M,S)..(MA,TH,VN);GUN135..(H,M,S)..(GEN,MA,TH);KUN135,TGN136..(H,S)..(GEN,TH,VN);GUN126,KUN126..(H,M)..(ARL,BZAGT,GEN,LA,MA,PH,TAIW,TH,VN);GGN125,GUN125,136,KUN122,125,136,TGN126,128,13#..(H,M)..(ARL,BZAGT,GEN,LA,TH)	05/2015 - 12/2020	1
Common parts
90105-T0144
90109-06272
90119-T0209
90159-T0014
90159-T0033
90179-06349
90183-06030
90189-T0019
90467-05170
90467-09232
90467-09237
Linked diagrams
8101

(1505- )

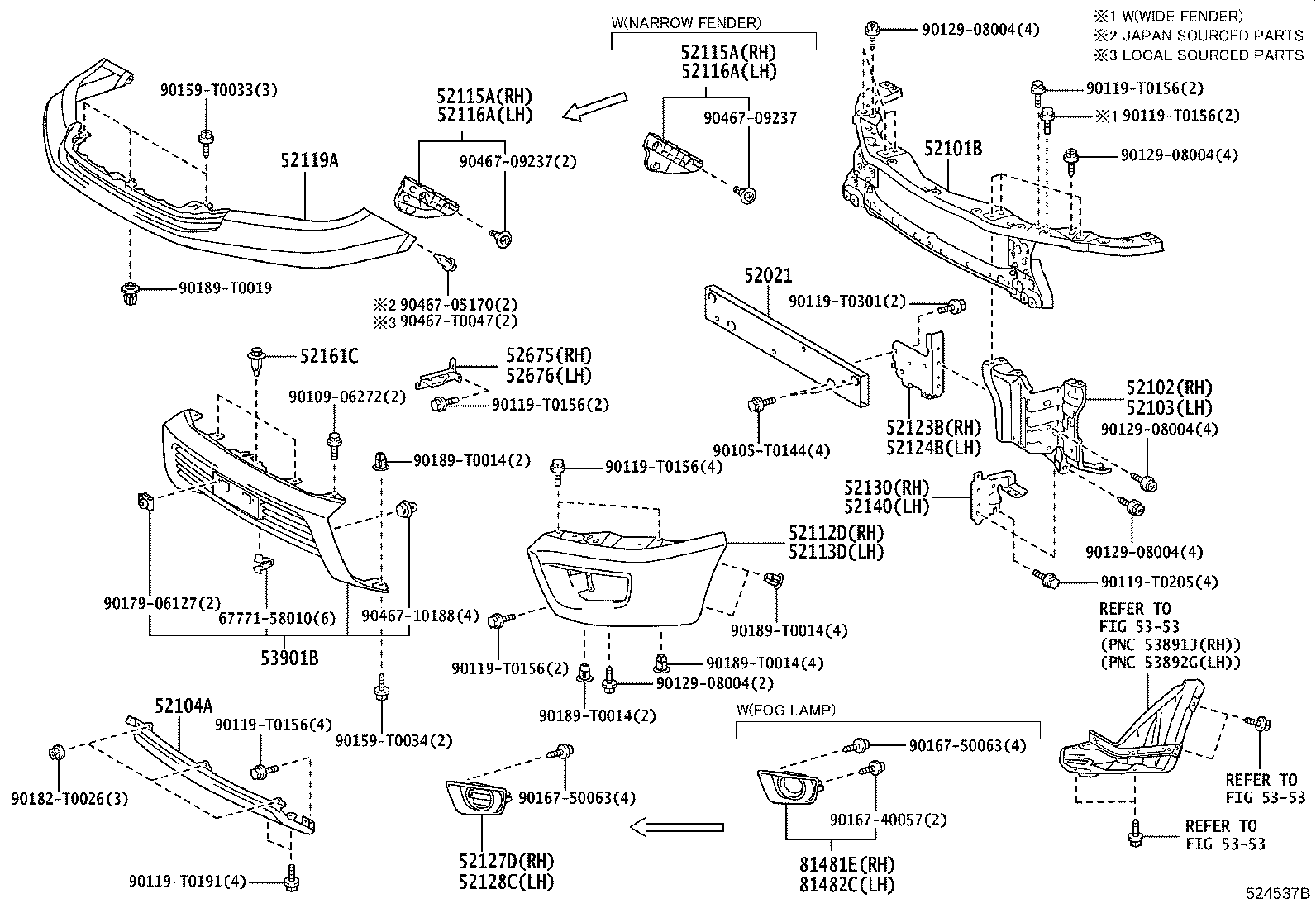

Click highlighted areas on diagram

W(STEEL BUMPER)

Part #	Description	Period	Qty
52021 - REINFORCEMENT SUB-ASSY, FRONT BUMPER
52021-KK010	GUN125..TDC..6FC..ARL;TGN136..ADC,ASC,SDC,TDC,TSC,TXT;GUN125..ADC,ASC,SDC,SSC,SXT,TSC,TXT;GUN125..TDC..(GCC,GEN,IDN,LA,PH,TH,VN);GGN12#,135,GUN112,135..ADC,ASC,MDC,SDC,SSC,SXT,TDC,TSC,TXT;GUN120,122,123,126,136,KUN112,12#,13#,LAN125,TGN11#,120,121,126,128,138..ADC,ASC,PDC,PSC,SDC,SSC,SXT,TDC,TSC,TXT	05/2015 - 12/2999	1
52115A - SUPPORT, FRONT BUMPER SIDE, RH
52115-0K180	GUN135..M..PH;GUN125..6F..M..GCC;GUN125..TDC..L..IDN;GUN135..(H,S)..(GEN,LA);TGN126..(M,S)..(BZAGT,GEN,LA);GUN126,TGN136..ADC..(L,X)..BZAGT;GUN125..(ADC,TXT)..(ARL,BZAGT,GEN,IDN,TH);GUN126,KUN125..(ADC,PDC,TDC,TXT)..(H,M,S);GUN125,TGN126..TDC..(5F,6FC)..(M,X)..(ARL,GCC);GUN135..(ADC,MDC,TDC,TXT)..(ARL,BZAGT,MA,TH,VN);GGN125,GUN136,KUN13#,TGN128,13#..(ADC,TDC,TXT)..(H,L,M,S);GUN125,KUN126..(ADC,PDC,TDC)..(H,M,S)..(GEN,IDN,LA,PKN,TH,VN)	05/2015 - 12/2999	1
52115A - SUPPORT, FRONT BUMPER SIDE, RH
52115-0K180	GUN135..M..PH;GUN125..6F..M..GCC;GUN125..TDC..L..IDN;GUN135..(H,S)..(GEN,LA);TGN126..(M,S)..(BZAGT,GEN,LA);GUN126,TGN136..ADC..(L,X)..BZAGT;GUN125..(ADC,TXT)..(ARL,BZAGT,GEN,IDN,TH);GUN126,KUN125..(ADC,PDC,TDC,TXT)..(H,M,S);GUN125,TGN126..TDC..(5F,6FC)..(M,X)..(ARL,GCC);GUN135..(ADC,MDC,TDC,TXT)..(ARL,BZAGT,MA,TH,VN);GGN125,GUN136,KUN13#,TGN128,13#..(ADC,TDC,TXT)..(H,L,M,S);GUN125,KUN126..(ADC,PDC,TDC)..(H,M,S)..(GEN,IDN,LA,PKN,TH,VN)	05/2015 - 12/2999	1
52116A - SUPPORT, FRONT BUMPER SIDE, LH
52116-0K180	GUN135..M..PH;GUN125..6F..M..GCC;GUN125..TDC..L..IDN;GUN135..(H,S)..(GEN,LA);TGN126..(M,S)..(BZAGT,GEN,LA);GUN126,TGN136..ADC..(L,X)..BZAGT;GUN125..(ADC,TXT)..(ARL,BZAGT,GEN,IDN,TH);GUN126,KUN125..(ADC,PDC,TDC,TXT)..(H,M,S);GUN125,TGN126..TDC..(5F,6FC)..(M,X)..(ARL,GCC);GUN135..(ADC,MDC,TDC,TXT)..(ARL,BZAGT,MA,TH,VN);GGN125,GUN136,KUN13#,TGN128,13#..(ADC,TDC,TXT)..(H,L,M,S);GUN125,KUN126..(ADC,PDC,TDC)..(H,M,S)..(GEN,IDN,LA,PKN,TH,VN)	05/2015 - 12/2999	1
52116A - SUPPORT, FRONT BUMPER SIDE, LH
52116-0K180	GUN135..M..PH;GUN125..6F..M..GCC;GUN125..TDC..L..IDN;GUN135..(H,S)..(GEN,LA);TGN126..(M,S)..(BZAGT,GEN,LA);GUN126,TGN136..ADC..(L,X)..BZAGT;GUN125..(ADC,TXT)..(ARL,BZAGT,GEN,IDN,TH);GUN126,KUN125..(ADC,PDC,TDC,TXT)..(H,M,S);GUN125,TGN126..TDC..(5F,6FC)..(M,X)..(ARL,GCC);GUN135..(ADC,MDC,TDC,TXT)..(ARL,BZAGT,MA,TH,VN);GGN125,GUN136,KUN13#,TGN128,13#..(ADC,TDC,TXT)..(H,L,M,S);GUN125,KUN126..(ADC,PDC,TDC)..(H,M,S)..(GEN,IDN,LA,PKN,TH,VN)	05/2015 - 12/2999	1
52119A - COVER, FRONT BUMPER
52119-0K840	GUN135..M..PH;GUN125..(TDC,TXT)..6F..(M,S);GUN125,126..6FC..(H,M)..(GCC,VN);GUN135..(TDC,TXT)..(L,M,S)..(LA,TH);GGN125,GUN126,136,TGN126,136..(TDC,TXT)..(H,M,S)..(ARL,GCC,GEN,LA,PH,TH)	05/2015 - 07/2017	1
52119-YP908	GUN126,136..TDC..6FC..M..ARL PAINT REQ.,"BLACK RALLY EDITION"*(B)&TIRE & DISC WHEEL-265/60R18, ALUMINUM&FRONT BUMPER-PAINTED & WITH(WIDE FENDER),FOR(MLM)&FRONT FOG LAMP-WITH(LED)	12/2017 - 06/2018	1
52119-YP908	GUN136..6FC..M..ARL PAINT REQ.,"BLACK RALLY EDITION"*(B)&TIRE & DISC WHEEL-265/60R18, ALUMINUM&FRONT BUMPER-PAINTED & WITH(WIDE FENDER),FOR(MLM)	12/2017 - 06/2018	1
52119-0K840	GUN126,136..TDC..M..ARL FRONT BUMPER-MATERIAL COLOR & WITH(WIDE FENDER)&FRONT FOG LAMP-WITH(LED)	08/2017 - 05/2019	1
52119-YP904	GUN126,136..TDC..M..ARL PAINT REQ., PREMIUM BASIC PACKAGE(HOOD MOLD=BLACK)&FRONT BUMPER-PAINTED & WITH(WIDE FENDER),FOR(MLM)&FRONT FOG LAMP-WITH(LED)	06/2018 - 05/2019	1
52119-YP908	GUN126,136..TDC..6FC..M..ARL PAINT REQ.,"BLACK RALLY EDITION"*(B)&TIRE & DISC WHEEL-265/60R18, ALUMINUM&FRONT BUMPER-PAINTED & W(WIDE FENDER & SKID),FOR(MLM)&FRONT FOG LAMP-WITH(LED)	06/2018 - 05/2019	1
52119-YP908	GUN126,136..TDC..6FC..M..ARL PAINT REQ.,"BLACK RALLY EDITION"*(B)&TIRE & DISC WHEEL-265/60R18(WHITE LETTER), ALUMINUM&FRONT BUMPER-PAINTED & W(WIDE FENDER & SKID),FOR(MLM)&FRONT FOG LAMP-WITH(LED)	06/2018 - 05/2019	1
52119-0K840	GUN126,135..6F..(M,S)..VN;GUN125,135..(TDC,TXT)..ARL;KUN125,126,13#..(TDC,TXT)..(H,M,S)	05/2015 - 05/2020	1
52119-0K840	GUN136..M..ARL;GUN126..TDC..ARL..CBU FRONT BUMPER-MATERIAL COLOR & WITH(WIDE FENDER)	08/2017 - 05/2020	1
52119-0M978	GUN125,TGN136..TH,VN;GUN135..(H,M,S)..(GEN,TH);GUN135,TGN126..TDC..(L,M)..(LA,PH,VN);GUN126..(TDC,TXT)..(H,M)..(ARL,GEN,LA,PH,TAIW,TH,VN);GGN125,GUN125,136,TGN136..(TDC,TXT)..(H,M)..(ARL,GEN,LA,TH)	08/2017 - 05/2020	1
52119-0M978	GUN135..L..TH;GUN125,126..M..GCC;TGN126..M..(GCC,GEN);GUN125..(TDC,TXT)..(L,M,S)..(IDN,LA);GGN125,GUN125,136..(TDC,TXT)..S..(ARL,GEN);GUN126,135,TGN126,136..(TDC,TXT)..S..(ARL,GEN,LA,VN)	08/2017 - 05/2020	1
52119-0M978	GUN126,136..TDC..S..ARL FRONT FOG LAMP-WITH	06/2018 - 05/2020	1
52119-YP904	GUN126..TXT..S;GUN126..TDC..IV3;GUN125,TGN126..TDC..MTM..S..LA;GUN126,135..TDC..S..(GEN,LA,VN);GUN125,136..(TDC,TXT)..S..(ARL,GEN) PREMIUM BASIC PACKAGE(HOOD MOLD=BLACK)&FRONT FOG LAMP-WITH	06/2018 - 05/2020	1
52119-YP904	GUN136..M..ARL;GUN126..TDC..6FC..M..LA PREMIUM BASIC PACKAGE(HOOD MOLD=BLACK)&FRONT BUMPER-PAINTED & WITH(WIDE FENDER),FOR(MLM)	06/2018 - 05/2020	1
52119-YP908	GUN136..6FC..M..ARL "BLACK RALLY EDITION"*(B)&TIRE & DISC WHEEL-265/60R18, ALUMINUM&FRONT BUMPER-PAINTED & W(WIDE FENDER & SKID),FOR(MLM)	06/2018 - 05/2020	1
52119-YP908	GUN136..6FC..M..ARL "BLACK RALLY EDITION"*(B)&TIRE & DISC WHEEL-265/60R18(WHITE LETTER), ALUMINUM&FRONT BUMPER-PAINTED & W(WIDE FENDER & SKID),FOR(MLM)	06/2018 - 05/2020	1
52127D - COVER, FRONT BUMPER HOLE, RH
52127-0K200	GUN126..M..GCC;GUN135..S..(BZAGT,LA,PH);GUN125..TDC..S..(GCC,GEN,IDN,LA,PH);GUN135,TGN136..LHD..(5F,6FC)..(S,X);GUN122..5F..(L,S,X)..(ARL,GEN,PH,TH);GUN125,KUN125..(5FC,6F)..M..(GCC,IDN);GUN135..(L,X)..(ARL,BZAGT,GEN,LA,MA,TH);GUN125..(MDC,TDC)..(L,X)..(GCC,GEN,IDN,LA,MA);GUN125,TGN126..TDC..(5F,6FC)..(M,X)..(ARL,GCC,IDN);GUN126,KUN125,TGN126..(ADC,ASC,TDC,TSC,TXT)..(L,S,X);GUN125..(ADC,ASC,MSC,TSC,TXT)..(L,S,X)..(ARL,BZAGT,GCC,GEN,IDN,LA,MA);GGN12#,GUN112,123,136,KUN112,122,126,13#,TGN110,121,138..(L,S,X)..(ARL,BZAGT,GEN,IDN,LA,TH)	05/2015 - 12/2020	1
52128C - COVER, FRONT BUMPER HOLE, LH
52128-0K200	GUN126..M..GCC;GUN135..S..(BZAGT,LA,PH);GUN125..TDC..S..(GCC,GEN,IDN,LA,PH);GUN135,TGN136..LHD..(5F,6FC)..(S,X);GUN122..5F..(L,S,X)..(ARL,GEN,PH,TH);GUN125,KUN125..(5FC,6F)..M..(GCC,IDN);GUN135..(L,X)..(ARL,BZAGT,GEN,LA,MA,TH);GUN125..(MDC,TDC)..(L,X)..(GCC,GEN,IDN,LA,MA);GUN125,TGN126..TDC..(5F,6FC)..(M,X)..(ARL,GCC,IDN);GUN126,KUN125,TGN126..(ADC,ASC,TDC,TSC,TXT)..(L,S,X);GUN125..(ADC,ASC,MSC,TSC,TXT)..(L,S,X)..(ARL,BZAGT,GCC,GEN,IDN,LA,MA);GGN12#,GUN112,123,136,KUN112,122,126,13#,TGN110,121,138..(L,S,X)..(ARL,BZAGT,GEN,IDN,LA,TH)	05/2015 - 12/2020	1
52161C - PIECE, FRONT BUMPER
52161-0K050	GUN136..H,M;GUN135..SSC..X;GUN135..LHD..SA;GUN135..6F..S..SA;GUN125..LHD..TDC..X;GUN125..TDC..6FC..ARL;GUN136..S..(ARL,BZAGT);GUN125..(SXT,TDC)..(H,L,M,S);GUN125..(ADC,ASC,TSC)..6F..LA;GUN135..ADC,ASC,MDC,TDC,TSC,TXT;TGN136..ADC,ASC,SDC,TDC,TSC,TXT;GUN126,TGN126,128,138..ADC,ASC,PDC,PSC,SDC,SSC,SXT,TDC,TSC,TXT;GGN125,135,KUN125,126,13#,LAN125..ARL,GCC,GEN,IDN,LA,PKN,SA,VN;GUN125..(ADC,ASC,SDC,SSC,TSC,TXT)..(ARL,BZAGT,GCC,GEN,IDN,SA,TH)	05/2015 - 12/2999	5
81481E - COVER, FOG LAMP, RH
52127-YP100	GUN136..6FC..M..ARL "BLACK RALLY EDITION"*(B)&TIRE & DISC WHEEL-265/60R18, ALUMINUM&FRONT BUMPER-PAINTED & WITH(WIDE FENDER),FOR(MLM)	12/2017 - 06/2018	1
52127-YP100	GUN126,136..TDC..6FC..M..ARL "BLACK RALLY EDITION"*(B)&TIRE & DISC WHEEL-265/60R18, ALUMINUM&FRONT BUMPER-PAINTED & WITH(WIDE FENDER),FOR(MLM)&FRONT FOG LAMP-WITH(LED)	12/2017 - 06/2018	1
52127-YP100	GUN126,136..TDC..M..ARL PREMIUM BASIC PACKAGE(HOOD MOLD=BLACK)&FRONT BUMPER-PAINTED & WITH(WIDE FENDER),FOR(MLM)&FRONT FOG LAMP-WITH(LED)	06/2018 - 05/2019	1
52127-YP100	GUN126,136..TDC..6FC..M..ARL "BLACK RALLY EDITION"*(B)&TIRE & DISC WHEEL-265/60R18(WHITE LETTER), ALUMINUM&FRONT BUMPER-PAINTED & W(WIDE FENDER & SKID),FOR(MLM)&FRONT FOG LAMP-WITH(LED)	06/2018 - 05/2019	1
52127-YP100	GUN126,136..TDC..6FC..M..ARL "BLACK RALLY EDITION"*(B)&TIRE & DISC WHEEL-265/60R18, ALUMINUM&FRONT BUMPER-PAINTED & W(WIDE FENDER & SKID),FOR(MLM)&FRONT FOG LAMP-WITH(LED)	06/2018 - 05/2019	1
52127-YP100	GUN136..M..ARL;GUN126..TDC..6FC..M..LA PREMIUM BASIC PACKAGE(HOOD MOLD=BLACK)&FRONT BUMPER-PAINTED & WITH(WIDE FENDER),FOR(MLM)	06/2018 - 05/2020	1
52127-YP100	GUN136..6FC..M..ARL "BLACK RALLY EDITION"*(B)&TIRE & DISC WHEEL-265/60R18, ALUMINUM&FRONT BUMPER-PAINTED & W(WIDE FENDER & SKID),FOR(MLM)	06/2018 - 05/2020	1
52127-YP100	GUN136..6FC..M..ARL "BLACK RALLY EDITION"*(B)&TIRE & DISC WHEEL-265/60R18(WHITE LETTER), ALUMINUM&FRONT BUMPER-PAINTED & W(WIDE FENDER & SKID),FOR(MLM)	06/2018 - 05/2020	1
52127-0K170	GUN135..6F..S..VN;GUN135..LHD..TDC..(L,M);GUN122..5F..M..(GEN,TH);GUN125..(M,S)..(MA,TH,VN);GUN135..(H,M,S)..(GEN,MA,TH);KUN135,TGN136..(H,S)..(GEN,TH,VN);GUN126,KUN126..(H,M)..(ARL,BZAGT,GEN,LA,MA,PH,TAIW,TH,VN);GGN125,GUN125,136,KUN122,125,136,TGN126,128,13#..(H,M)..(ARL,BZAGT,GEN,LA,TH)	05/2015 - 12/2020	1
81482C - COVER, FOG LAMP, LH
52128-YP100	GUN126,136..TDC..6FC..M..ARL "BLACK RALLY EDITION"*(B)&TIRE & DISC WHEEL-265/60R18, ALUMINUM&FRONT BUMPER-PAINTED & WITH(WIDE FENDER),FOR(MLM)&FRONT FOG LAMP-WITH(LED)	12/2017 - 06/2018	1
52128-YP100	GUN136..6FC..M..ARL "BLACK RALLY EDITION"*(B)&TIRE & DISC WHEEL-265/60R18, ALUMINUM&FRONT BUMPER-PAINTED & WITH(WIDE FENDER),FOR(MLM)	12/2017 - 06/2018	1
52128-YP100	GUN126,136..TDC..6FC..M..ARL "BLACK RALLY EDITION"*(B)&TIRE & DISC WHEEL-265/60R18, ALUMINUM&FRONT BUMPER-PAINTED & W(WIDE FENDER & SKID),FOR(MLM)&FRONT FOG LAMP-WITH(LED)	06/2018 - 05/2019	1
52128-YP100	GUN126,136..TDC..M..ARL PREMIUM BASIC PACKAGE(HOOD MOLD=BLACK)&FRONT BUMPER-PAINTED & WITH(WIDE FENDER),FOR(MLM)&FRONT FOG LAMP-WITH(LED)	06/2018 - 05/2019	1
52128-YP100	GUN126,136..TDC..6FC..M..ARL "BLACK RALLY EDITION"*(B)&TIRE & DISC WHEEL-265/60R18(WHITE LETTER), ALUMINUM&FRONT BUMPER-PAINTED & W(WIDE FENDER & SKID),FOR(MLM)&FRONT FOG LAMP-WITH(LED)	06/2018 - 05/2019	1
52128-YP100	GUN136..6FC..M..ARL "BLACK RALLY EDITION"*(B)&TIRE & DISC WHEEL-265/60R18(WHITE LETTER), ALUMINUM&FRONT BUMPER-PAINTED & W(WIDE FENDER & SKID),FOR(MLM)	06/2018 - 05/2020	1
52128-YP100	GUN136..M..ARL;GUN126..TDC..6FC..M..LA PREMIUM BASIC PACKAGE(HOOD MOLD=BLACK)&FRONT BUMPER-PAINTED & WITH(WIDE FENDER),FOR(MLM)	06/2018 - 05/2020	1
52128-YP100	GUN136..6FC..M..ARL "BLACK RALLY EDITION"*(B)&TIRE & DISC WHEEL-265/60R18, ALUMINUM&FRONT BUMPER-PAINTED & W(WIDE FENDER & SKID),FOR(MLM)	06/2018 - 05/2020	1
52128-0K170	GUN135..6F..S..VN;GUN135..LHD..TDC..(L,M);GUN122..5F..M..(GEN,TH);GUN125..(M,S)..(MA,TH,VN);GUN135..(H,M,S)..(GEN,MA,TH);KUN135,TGN136..(H,S)..(GEN,TH,VN);GUN126,KUN126..(H,M)..(ARL,BZAGT,GEN,LA,MA,PH,TAIW,TH,VN);GGN125,GUN125,136,KUN122,125,136,TGN126,128,13#..(H,M)..(ARL,BZAGT,GEN,LA,TH)	05/2015 - 12/2020	1
Common parts
67771-58010
90105-T0144
90109-06272
90119-T0156
90119-T0191
90119-T0205
90119-T0301
90129-08004
90159-T0033
90159-T0034
90167-40057
90167-50063
90179-06127
90182-T0026
90189-T0014
90189-T0019
90467-05170
90467-09237
90467-10188
Linked diagrams
5353

(1712- )

Click highlighted areas on diagram

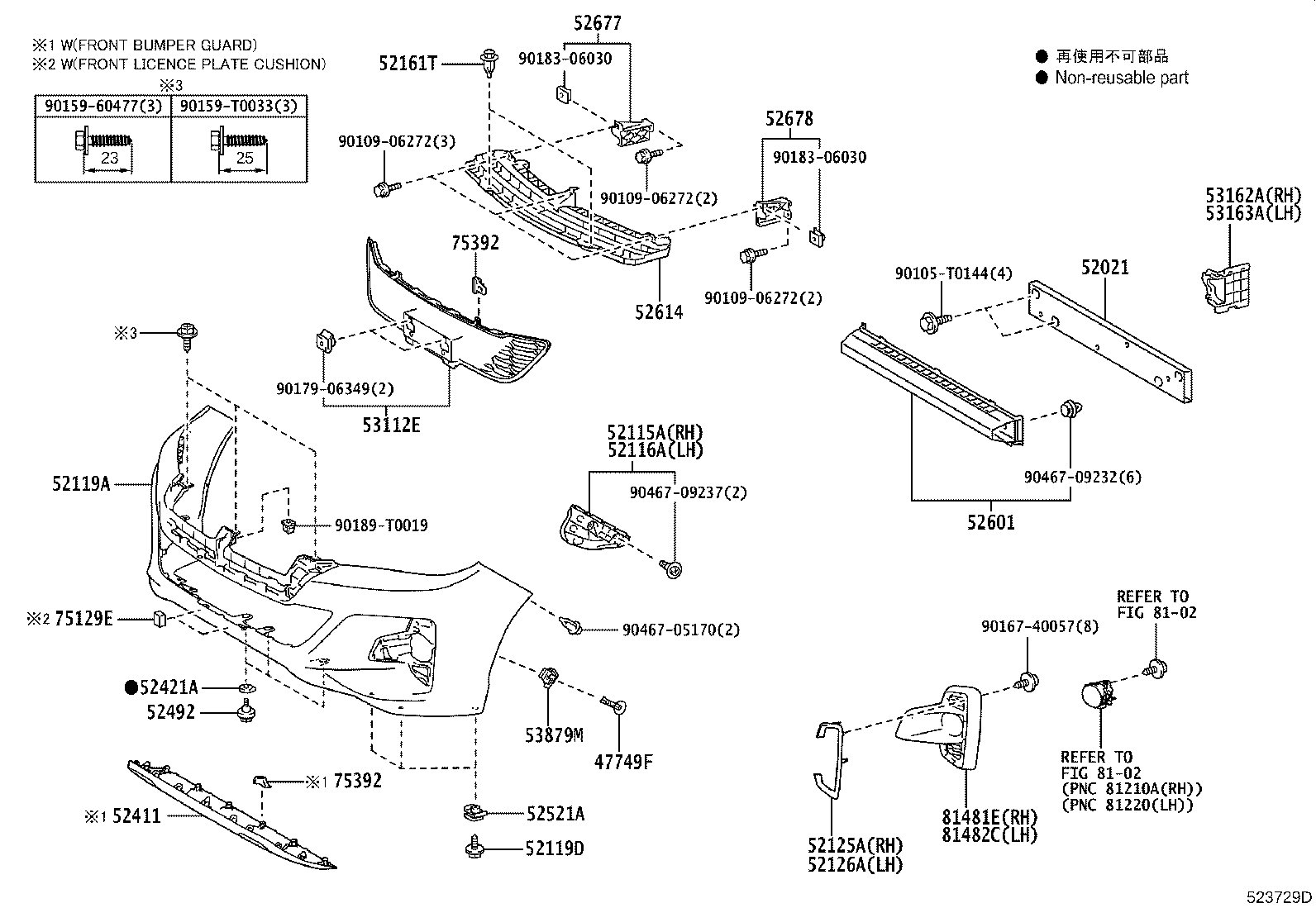

PREMIUM PACKAGE OR RALLY PACKAGE

Part #	Description	Period	Qty
47749F - CLIP, PIN HOLD
47749-50090	GUN125..TDC..6FC..ARL;TGN136..ADC,ASC,SDC,TDC,TSC,TXT;GUN125..ADC,ASC,SDC,SSC,SXT,TSC,TXT;GUN125..TDC..(GCC,GEN,IDN,LA,PH,TH,VN);GUN112,122,135,KUN112,122,TGN110,120,121..ARL,BZAGT,GEN,IDN,LA,MA,PH,PKN,SA,TH,VN;GGN12#,135,GUN120,123,126,136,KUN125,126,13#,LAN125,TGN126,128,138..ADC,ASC,PDC,PSC,SDC,SSC,SXT,TDC,TSC,TXT	05/2015 - 12/2999	2
52021 - REINFORCEMENT SUB-ASSY, FRONT BUMPER
52021-KK010	GUN125..TDC..6FC..ARL;TGN136..ADC,ASC,SDC,TDC,TSC,TXT;GUN125..ADC,ASC,SDC,SSC,SXT,TSC,TXT;GUN125..TDC..(GCC,GEN,IDN,LA,PH,TH,VN);GGN12#,135,GUN112,135..ADC,ASC,MDC,SDC,SSC,SXT,TDC,TSC,TXT;GUN120,122,123,126,136,KUN112,12#,13#,LAN125,TGN11#,120,121,126,128,138..ADC,ASC,PDC,PSC,SDC,SSC,SXT,TDC,TSC,TXT	05/2015 - 12/2999	1
52115A - SUPPORT, FRONT BUMPER SIDE, RH
52115-0K180	GUN135..M..PH;GUN125..6F..M..GCC;GUN125..TDC..L..IDN;GUN135..(H,S)..(GEN,LA);TGN126..(M,S)..(BZAGT,GEN,LA);GUN126,TGN136..ADC..(L,X)..BZAGT;GUN125..(ADC,TXT)..(ARL,BZAGT,GEN,IDN,TH);GUN126,KUN125..(ADC,PDC,TDC,TXT)..(H,M,S);GUN125,TGN126..TDC..(5F,6FC)..(M,X)..(ARL,GCC);GUN135..(ADC,MDC,TDC,TXT)..(ARL,BZAGT,MA,TH,VN);GGN125,GUN136,KUN13#,TGN128,13#..(ADC,TDC,TXT)..(H,L,M,S);GUN125,KUN126..(ADC,PDC,TDC)..(H,M,S)..(GEN,IDN,LA,PKN,TH,VN)	05/2015 - 12/2999	1
52116A - SUPPORT, FRONT BUMPER SIDE, LH
52116-0K180	GUN135..M..PH;GUN125..6F..M..GCC;GUN125..TDC..L..IDN;GUN135..(H,S)..(GEN,LA);TGN126..(M,S)..(BZAGT,GEN,LA);GUN126,TGN136..ADC..(L,X)..BZAGT;GUN125..(ADC,TXT)..(ARL,BZAGT,GEN,IDN,TH);GUN126,KUN125..(ADC,PDC,TDC,TXT)..(H,M,S);GUN125,TGN126..TDC..(5F,6FC)..(M,X)..(ARL,GCC);GUN135..(ADC,MDC,TDC,TXT)..(ARL,BZAGT,MA,TH,VN);GGN125,GUN136,KUN13#,TGN128,13#..(ADC,TDC,TXT)..(H,L,M,S);GUN125,KUN126..(ADC,PDC,TDC)..(H,M,S)..(GEN,IDN,LA,PKN,TH,VN)	05/2015 - 12/2999	1
52119A - COVER, FRONT BUMPER
52119-0K840	GUN135..M..PH;GUN125..(TDC,TXT)..6F..(M,S);GUN125,126..6FC..(H,M)..(GCC,VN);GUN135..(TDC,TXT)..(L,M,S)..(LA,TH);GGN125,GUN126,136,TGN126,136..(TDC,TXT)..(H,M,S)..(ARL,GCC,GEN,LA,PH,TH)	05/2015 - 07/2017	1
52119-YP908	GUN126,136..TDC..6FC..M..ARL PAINT REQ.,"BLACK RALLY EDITION"*(B)&TIRE & DISC WHEEL-265/60R18, ALUMINUM&FRONT BUMPER-PAINTED & WITH(WIDE FENDER),FOR(MLM)&FRONT FOG LAMP-WITH(LED)	12/2017 - 06/2018	1
52119-YP908	GUN136..6FC..M..ARL PAINT REQ.,"BLACK RALLY EDITION"*(B)&TIRE & DISC WHEEL-265/60R18, ALUMINUM&FRONT BUMPER-PAINTED & WITH(WIDE FENDER),FOR(MLM)	12/2017 - 06/2018	1
52119-0K840	GUN126,136..TDC..M..ARL FRONT BUMPER-MATERIAL COLOR & WITH(WIDE FENDER)&FRONT FOG LAMP-WITH(LED)	08/2017 - 05/2019	1
52119-YP904	GUN126,136..TDC..M..ARL PAINT REQ., PREMIUM BASIC PACKAGE(HOOD MOLD=BLACK)&FRONT BUMPER-PAINTED & WITH(WIDE FENDER),FOR(MLM)&FRONT FOG LAMP-WITH(LED)	06/2018 - 05/2019	1
52119-YP908	GUN126,136..TDC..6FC..M..ARL PAINT REQ.,"BLACK RALLY EDITION"*(B)&TIRE & DISC WHEEL-265/60R18, ALUMINUM&FRONT BUMPER-PAINTED & W(WIDE FENDER & SKID),FOR(MLM)&FRONT FOG LAMP-WITH(LED)	06/2018 - 05/2019	1
52119-YP908	GUN126,136..TDC..6FC..M..ARL PAINT REQ.,"BLACK RALLY EDITION"*(B)&TIRE & DISC WHEEL-265/60R18(WHITE LETTER), ALUMINUM&FRONT BUMPER-PAINTED & W(WIDE FENDER & SKID),FOR(MLM)&FRONT FOG LAMP-WITH(LED)	06/2018 - 05/2019	1
52119-0K840	GUN126,135..6F..(M,S)..VN;GUN125,135..(TDC,TXT)..ARL;KUN125,126,13#..(TDC,TXT)..(H,M,S)	05/2015 - 05/2020	1
52119-0K840	GUN136..M..ARL;GUN126..TDC..ARL..CBU FRONT BUMPER-MATERIAL COLOR & WITH(WIDE FENDER)	08/2017 - 05/2020	1
52119-0M978	GUN125,TGN136..TH,VN;GUN135..(H,M,S)..(GEN,TH);GUN135,TGN126..TDC..(L,M)..(LA,PH,VN);GUN126..(TDC,TXT)..(H,M)..(ARL,GEN,LA,PH,TAIW,TH,VN);GGN125,GUN125,136,TGN136..(TDC,TXT)..(H,M)..(ARL,GEN,LA,TH)	08/2017 - 05/2020	1
52119-0M978	GUN135..L..TH;GUN125,126..M..GCC;TGN126..M..(GCC,GEN);GUN125..(TDC,TXT)..(L,M,S)..(IDN,LA);GGN125,GUN125,136..(TDC,TXT)..S..(ARL,GEN);GUN126,135,TGN126,136..(TDC,TXT)..S..(ARL,GEN,LA,VN)	08/2017 - 05/2020	1
52119-0M978	GUN126,136..TDC..S..ARL FRONT FOG LAMP-WITH	06/2018 - 05/2020	1
52119-YP904	GUN126..TXT..S;GUN126..TDC..IV3;GUN125,TGN126..TDC..MTM..S..LA;GUN126,135..TDC..S..(GEN,LA,VN);GUN125,136..(TDC,TXT)..S..(ARL,GEN) PREMIUM BASIC PACKAGE(HOOD MOLD=BLACK)&FRONT FOG LAMP-WITH	06/2018 - 05/2020	1
52119-YP904	GUN136..M..ARL;GUN126..TDC..6FC..M..LA PREMIUM BASIC PACKAGE(HOOD MOLD=BLACK)&FRONT BUMPER-PAINTED & WITH(WIDE FENDER),FOR(MLM)	06/2018 - 05/2020	1
52119-YP908	GUN136..6FC..M..ARL "BLACK RALLY EDITION"*(B)&TIRE & DISC WHEEL-265/60R18, ALUMINUM&FRONT BUMPER-PAINTED & W(WIDE FENDER & SKID),FOR(MLM)	06/2018 - 05/2020	1
52119-YP908	GUN136..6FC..M..ARL "BLACK RALLY EDITION"*(B)&TIRE & DISC WHEEL-265/60R18(WHITE LETTER), ALUMINUM&FRONT BUMPER-PAINTED & W(WIDE FENDER & SKID),FOR(MLM)	06/2018 - 05/2020	1
52119D - SCREW, NO.1
90159-60217	GUN125..TDC..6FC..ARL;TGN136..ADC,ASC,SDC,TDC,TSC,TXT;GUN125..ADC,ASC,SDC,SSC,SXT,TSC,TXT;GUN125..TDC..(GCC,GEN,IDN,LA,PH,TH,VN);GUN112,122,135,KUN112,122,TGN110,120,121..ARL,BZAGT,GEN,IDN,LA,MA,PH,PKN,SA,TH,VN;GGN12#,135,GUN120,123,126,136,KUN125,126,13#,LAN125,TGN126,128,138..ADC,ASC,PDC,PSC,SDC,SSC,SXT,TDC,TSC,TXT	05/2015 - 12/2999	6
52125A - BRACKET, FOG LAMP MOUNTING, RH
52125-YP050	GUN126,136..TDC..6FC..M..ARL "BLACK RALLY EDITION"*(B)&TIRE & DISC WHEEL-265/60R18, ALUMINUM&FRONT BUMPER-PAINTED & WITH(WIDE FENDER),FOR(MLM)&FRONT FOG LAMP-WITH(LED)	12/2017 - 06/2018	1
52125-YP050	GUN136..6FC..M..ARL "BLACK RALLY EDITION"*(B)&TIRE & DISC WHEEL-265/60R18, ALUMINUM&FRONT BUMPER-PAINTED & WITH(WIDE FENDER),FOR(MLM)	12/2017 - 06/2018	1
52125-YP030	GUN126,136..TDC..M..ARL PREMIUM BASIC PACKAGE(HOOD MOLD=BLACK)&FRONT BUMPER-PAINTED & WITH(WIDE FENDER),FOR(MLM)&FRONT FOG LAMP-WITH(LED)	06/2018 - 05/2019	1
52125-YP050	GUN126,136..TDC..6FC..M..ARL "BLACK RALLY EDITION"*(B)&TIRE & DISC WHEEL-265/60R18, ALUMINUM&FRONT BUMPER-PAINTED & W(WIDE FENDER & SKID),FOR(MLM)&FRONT FOG LAMP-WITH(LED)	06/2018 - 05/2019	1
52125-YP050	GUN126,136..TDC..6FC..M..ARL "BLACK RALLY EDITION"*(B)&TIRE & DISC WHEEL-265/60R18(WHITE LETTER), ALUMINUM&FRONT BUMPER-PAINTED & W(WIDE FENDER & SKID),FOR(MLM)&FRONT FOG LAMP-WITH(LED)	06/2018 - 05/2019	1
52125-YP030	GUN136..M..ARL;GUN126..TDC..6FC..M..LA PREMIUM BASIC PACKAGE(HOOD MOLD=BLACK)&FRONT BUMPER-PAINTED & WITH(WIDE FENDER),FOR(MLM)	06/2018 - 05/2020	1
52125-YP050	GUN136..6FC..M..ARL "BLACK RALLY EDITION"*(B)&TIRE & DISC WHEEL-265/60R18, ALUMINUM&FRONT BUMPER-PAINTED & W(WIDE FENDER & SKID),FOR(MLM)	06/2018 - 05/2020	1
52125-YP050	GUN136..6FC..M..ARL "BLACK RALLY EDITION"*(B)&TIRE & DISC WHEEL-265/60R18(WHITE LETTER), ALUMINUM&FRONT BUMPER-PAINTED & W(WIDE FENDER & SKID),FOR(MLM)	06/2018 - 05/2020	1
52125-0K030	GUN125..TXT..M;GUN135..6F..S..VN;GUN135..LHD..TDC..(L,M);GUN125..RHD..(H,M)..GEN;GUN125..(M,S)..(MA,TH,VN);GUN135..(H,M,S)..(GEN,MA,TH);KUN135,TGN136..(H,S)..(GEN,TH,VN);GUN122,TGN126..5F..M..(BZAGT,GEN,LA,TH);GGN125,GUN126,136,KUN12#,136,TGN128,13#..(H,M)..(ARL,BZAGT,GEN,LA,MA,PH,TAIW,TH,VN)	05/2015 - 12/2020	1
52126A - BRACKET, FOG LAMP MOUNTING, LH
52126-YP050	GUN126,136..TDC..6FC..M..ARL "BLACK RALLY EDITION"*(B)&TIRE & DISC WHEEL-265/60R18, ALUMINUM&FRONT BUMPER-PAINTED & WITH(WIDE FENDER),FOR(MLM)&FRONT FOG LAMP-WITH(LED)	12/2017 - 06/2018	1
52126-YP050	GUN136..6FC..M..ARL "BLACK RALLY EDITION"*(B)&TIRE & DISC WHEEL-265/60R18, ALUMINUM&FRONT BUMPER-PAINTED & WITH(WIDE FENDER),FOR(MLM)	12/2017 - 06/2018	1
52126-YP030	GUN126,136..TDC..M..ARL PREMIUM BASIC PACKAGE(HOOD MOLD=BLACK)&FRONT BUMPER-PAINTED & WITH(WIDE FENDER),FOR(MLM)&FRONT FOG LAMP-WITH(LED)	06/2018 - 05/2019	1
52126-YP050	GUN126,136..TDC..6FC..M..ARL "BLACK RALLY EDITION"*(B)&TIRE & DISC WHEEL-265/60R18, ALUMINUM&FRONT BUMPER-PAINTED & W(WIDE FENDER & SKID),FOR(MLM)&FRONT FOG LAMP-WITH(LED)	06/2018 - 05/2019	1
52126-YP050	GUN126,136..TDC..6FC..M..ARL "BLACK RALLY EDITION"*(B)&TIRE & DISC WHEEL-265/60R18(WHITE LETTER), ALUMINUM&FRONT BUMPER-PAINTED & W(WIDE FENDER & SKID),FOR(MLM)&FRONT FOG LAMP-WITH(LED)	06/2018 - 05/2019	1
52126-YP030	GUN136..M..ARL;GUN126..TDC..6FC..M..LA PREMIUM BASIC PACKAGE(HOOD MOLD=BLACK)&FRONT BUMPER-PAINTED & WITH(WIDE FENDER),FOR(MLM)	06/2018 - 05/2020	1
52126-YP050	GUN136..6FC..M..ARL "BLACK RALLY EDITION"*(B)&TIRE & DISC WHEEL-265/60R18, ALUMINUM&FRONT BUMPER-PAINTED & W(WIDE FENDER & SKID),FOR(MLM)	06/2018 - 05/2020	1
52126-YP050	GUN136..6FC..M..ARL "BLACK RALLY EDITION"*(B)&TIRE & DISC WHEEL-265/60R18(WHITE LETTER), ALUMINUM&FRONT BUMPER-PAINTED & W(WIDE FENDER & SKID),FOR(MLM)	06/2018 - 05/2020	1
52126-0K030	GUN125..TXT..M;GUN135..6F..S..VN;GUN135..LHD..TDC..(L,M);GUN125..RHD..(H,M)..GEN;GUN125..(M,S)..(MA,TH,VN);GUN135..(H,M,S)..(GEN,MA,TH);KUN135,TGN136..(H,S)..(GEN,TH,VN);GUN122,TGN126..5F..M..(BZAGT,GEN,LA,TH);GGN125,GUN126,136,KUN12#,136,TGN128,13#..(H,M)..(ARL,BZAGT,GEN,LA,MA,PH,TAIW,TH,VN)	05/2015 - 12/2020	1
52161T - PIECE, FRONT BUMPER
52161-0K040	TGN126..M..GEN;GGN12#,GUN122,123,125,126,13#,TGN121..ARL	05/2015 - 05/2020	2
52411 - GUARD, FRONT BUMPER
52411-YP020	GUN126,136..TDC..6FC..M..ARL "BLACK RALLY EDITION"*(B)&TIRE & DISC WHEEL-265/60R18, ALUMINUM&FRONT BUMPER-PAINTED & WITH(WIDE FENDER),FOR(MLM)&FRONT FOG LAMP-WITH(LED)	12/2017 - 06/2018	1
52411-YP020	GUN136..6FC..M..ARL "BLACK RALLY EDITION"*(B)&TIRE & DISC WHEEL-265/60R18, ALUMINUM&FRONT BUMPER-PAINTED & WITH(WIDE FENDER),FOR(MLM)	12/2017 - 06/2018	1
52411-YP020	GUN126,136..TDC..6FC..M..ARL "BLACK RALLY EDITION"*(B)&TIRE & DISC WHEEL-265/60R18(WHITE LETTER), ALUMINUM&FRONT BUMPER-PAINTED & W(WIDE FENDER & SKID),FOR(MLM)&FRONT FOG LAMP-WITH(LED)	06/2018 - 05/2019	1
52411-YP020	GUN126,136..TDC..6FC..M..ARL "BLACK RALLY EDITION"*(B)&TIRE & DISC WHEEL-265/60R18, ALUMINUM&FRONT BUMPER-PAINTED & W(WIDE FENDER & SKID),FOR(MLM)&FRONT FOG LAMP-WITH(LED)	06/2018 - 05/2019	1
52411-YP020	GUN136..6FC..M..ARL "BLACK RALLY EDITION"*(B)&TIRE & DISC WHEEL-265/60R18(WHITE LETTER), ALUMINUM&FRONT BUMPER-PAINTED & W(WIDE FENDER & SKID),FOR(MLM)	06/2018 - 05/2020	1
52411-YP020	GUN136..6FC..M..ARL "BLACK RALLY EDITION"*(B)&TIRE & DISC WHEEL-265/60R18, ALUMINUM&FRONT BUMPER-PAINTED & W(WIDE FENDER & SKID),FOR(MLM)	06/2018 - 05/2020	1
52421A - PAD, FRONT BUMPER
52421-60191	GUN125..TDC..6FC..ARL;GUN125..ADC,ASC,SDC,SSC,SXT,TSC,TXT;GUN125..TDC..(GCC,GEN,IDN,LA,PH,TH,VN);KUN122,TGN136..(ADC,ASC,PSC,SDC,TDC,TSC,TXT)..(BZAGT,GEN,LA,PKN,SA,TH);GUN112,122,135,KUN112,TGN110,120,121..ARL,BZAGT,GEN,IDN,LA,MA,PH,PKN,SA,TH,VN;GGN12#,135,GUN120,123,126,136,KUN125,126,13#,LAN125,TGN126,128,138..ADC,ASC,PDC,PSC,SDC,SSC,SXT,TDC,TSC,TXT	05/2015 - 12/2999	3
52492 - BOLT, BUMPER PAD, NO.2
52491-60010	GUN125..TDC..6FC..ARL;GUN122..5F..(ARL,GEN,PH,PKN,SA,TH);GUN125..ADC,ASC,SDC,SSC,SXT,TSC,TXT;GUN125..TDC..(GCC,GEN,IDN,LA,PH,TH,VN);GUN112,135,KUN112,TGN110,120,121..ARL,BZAGT,GEN,IDN,LA,MA,PH,SA,TH,VN;KUN122,TGN136..(ADC,ASC,PSC,SDC,TDC,TSC,TXT)..(BZAGT,GEN,LA,PKN,SA,TH);GGN12#,135,GUN123,126,136,KUN125,126,13#,LAN125,TGN126,128,138..ADC,ASC,PDC,PSC,SDC,SSC,SXT,TDC,TSC,TXT	05/2015 - 12/2999	3
52521A - CLIP(FOR FRONT BUMPER RETAINER)
90467-05114	GUN125..TDC..6FC..ARL;GUN122..5F..(ARL,GEN,PH,PKN,SA,TH);GUN125..ADC,ASC,SDC,SSC,SXT,TSC,TXT;GUN125..TDC..(GCC,GEN,IDN,LA,PH,TH,VN);GUN112,135,KUN112,TGN110,120,121..ARL,BZAGT,GEN,IDN,LA,MA,PH,SA,TH,VN;KUN122,TGN136..(ADC,ASC,PSC,SDC,TDC,TSC,TXT)..(BZAGT,GEN,LA,PKN,SA,TH);GGN12#,135,GUN123,126,136,KUN125,126,13#,LAN125,TGN126,128,138..ADC,ASC,PDC,PSC,SDC,SSC,SXT,TDC,TSC,TXT	05/2015 - 12/2999	6
52601 - ABSORBER SUB-ASSY, FRONT BUMPER ENERGY
52601-0K010	TGN126..M..GEN;GGN12#,GUN122,123,125,126,13#,TGN121..ARL	05/2015 - 05/2020	1
52614 - ABSORBER, FRONT BUMPER ENERGY, NO.2
52614-0K010	TGN126..M..GEN;GGN12#,GUN122,123,125,126,13#,TGN121..ARL	05/2015 - 05/2020	1
52677 - SUPPORT, FRONT BUMPER SIDE, NO.2, RH
52675-0K010	TGN126..M..GEN;GGN12#,GUN122,123,125,126,13#,TGN121..ARL	05/2015 - 05/2020	1
52678 - SUPPORT, FRONT BUMPER SIDE, NO.2, LH
52676-0K010	TGN126..M..GEN;GGN12#,GUN122,123,125,126,13#,TGN121..ARL	05/2015 - 05/2020	1
53112E - GRILLE, RADIATOR, LOWER NO.1
53112-YP050	GUN136..6FC..M..ARL NO PAINT REQ.,"BLACK RALLY EDITION"*(B)&TIRE & DISC WHEEL-265/60R18, ALUMINUM&FRONT BUMPER-PAINTED & WITH(WIDE FENDER),FOR(MLM)	12/2017 - 06/2018	1
53112-YP050	GUN126,136..TDC..6FC..M..ARL NO PAINT REQ.,"BLACK RALLY EDITION"*(B)&TIRE & DISC WHEEL-265/60R18, ALUMINUM&FRONT BUMPER-PAINTED & WITH(WIDE FENDER),FOR(MLM)&FRONT FOG LAMP-WITH(LED)	12/2017 - 06/2018	1
53112-YP050	GUN126,136..TDC..6FC..M..ARL NO PAINT REQ.,"BLACK RALLY EDITION"*(B)&TIRE & DISC WHEEL-265/60R18, ALUMINUM&FRONT BUMPER-PAINTED & W(WIDE FENDER & SKID),FOR(MLM)&FRONT FOG LAMP-WITH(LED)	06/2018 - 05/2019	1
53112-YP050	GUN126,136..TDC..6FC..M..ARL NO PAINT REQ.,"BLACK RALLY EDITION"*(B)&TIRE & DISC WHEEL-265/60R18(WHITE LETTER), ALUMINUM&FRONT BUMPER-PAINTED & W(WIDE FENDER & SKID),FOR(MLM)&FRONT FOG LAMP-WITH(LED)	06/2018 - 05/2019	1
53112-YP050	GUN126,136..TDC..M..ARL NO PAINT REQ., PREMIUM BASIC PACKAGE(HOOD MOLD=BLACK)&FRONT BUMPER-PAINTED & WITH(WIDE FENDER),FOR(MLM)&FRONT FOG LAMP-WITH(LED)	06/2018 - 05/2019	1
53112-0K120	GUN112,122,KUN112,122,TGN110,121..(5F,6FC)..(ARL,GEN,IDN,PH,TH);GGN12#,GUN123,125,126,13#,KUN125,126,13#,TGN126,136..TDC,TSC,TXT	05/2015 - 05/2020	1
53112-YP050	GUN136..6FC..M..ARL "BLACK RALLY EDITION"*(B)&TIRE & DISC WHEEL-265/60R18(WHITE LETTER), ALUMINUM&FRONT BUMPER-PAINTED & W(WIDE FENDER & SKID),FOR(MLM)	06/2018 - 05/2020	1
53112-YP050	GUN126..TXT..S;GUN126..TDC..IV3;GUN125,TGN126..TDC..MTM..S..LA;GUN126,135..TDC..S..(GEN,LA,VN);GUN125,136..(TDC,TXT)..S..(ARL,GEN) PREMIUM BASIC PACKAGE(HOOD MOLD=BLACK)&FRONT FOG LAMP-WITH	06/2018 - 05/2020	1
53112-YP050	GUN136..M..ARL;GUN126..TDC..6FC..M..LA PREMIUM BASIC PACKAGE(HOOD MOLD=BLACK)&FRONT BUMPER-PAINTED & WITH(WIDE FENDER),FOR(MLM)	06/2018 - 05/2020	1
53112-YP050	GUN136..6FC..M..ARL "BLACK RALLY EDITION"*(B)&TIRE & DISC WHEEL-265/60R18, ALUMINUM&FRONT BUMPER-PAINTED & W(WIDE FENDER & SKID),FOR(MLM)	06/2018 - 05/2020	1
53162A - DEFLECTOR, FRONT BUMPER STONE, RH
53162-KK010	GUN125..TDC..6FC..ARL;TGN136..ADC,ASC,SDC,TDC,TSC,TXT;GUN125..ADC,ASC,SDC,SSC,SXT,TSC,TXT;GUN125..TDC..(GCC,GEN,IDN,LA,PH,TH,VN);GUN112,122,135,KUN112,122,TGN110,120,121..ARL,BZAGT,GEN,IDN,LA,MA,PH,PKN,SA,TH,VN;GGN12#,135,GUN120,123,126,136,KUN125,126,13#,LAN125,TGN126,128,138..ADC,ASC,PDC,PSC,SDC,SSC,SXT,TDC,TSC,TXT	05/2015 - 12/2999	1
53163A - DEFLECTOR, FRONT BUMPER STONE, LH
53163-KK010	GUN125..TDC..6FC..ARL;TGN136..ADC,ASC,SDC,TDC,TSC,TXT;GUN125..ADC,ASC,SDC,SSC,SXT,TSC,TXT;GUN125..TDC..(GCC,GEN,IDN,LA,PH,TH,VN);GUN112,122,135,KUN112,122,TGN110,120,121..ARL,BZAGT,GEN,IDN,LA,MA,PH,PKN,SA,TH,VN;GGN12#,135,GUN120,123,126,136,KUN125,126,13#,LAN125,TGN126,128,138..ADC,ASC,PDC,PSC,SDC,SSC,SXT,TDC,TSC,TXT	05/2015 - 12/2999	1
53879M - RETAINER, FRONT FENDER LINER
53879-50020	GUN125..TDC..6FC..ARL;GUN122..5F..(ARL,GEN,PH,PKN,SA,TH);GUN125..ADC,ASC,SDC,SSC,SXT,TSC,TXT;GUN125..TDC..(GCC,GEN,IDN,LA,PH,TH,VN);GUN112,135,KUN112,TGN110,120,121..ARL,BZAGT,GEN,IDN,LA,MA,PH,SA,TH,VN;KUN122,TGN136..(ADC,ASC,PSC,SDC,TDC,TSC,TXT)..(BZAGT,GEN,LA,PKN,SA,TH);GGN12#,135,GUN123,126,136,KUN125,126,13#,LAN125,TGN126,128,138..ADC,ASC,PDC,PSC,SDC,SSC,SXT,TDC,TSC,TXT	05/2015 - 12/2999	2
75392 - RETAINER, OUTSIDE MOULDING
75392-0K010	GUN136..6FC..M..ARL "BLACK RALLY EDITION"*(B)&TIRE & DISC WHEEL-265/60R18, ALUMINUM&FRONT BUMPER-PAINTED & WITH(WIDE FENDER),FOR(MLM)	12/2017 - 06/2018	19
75392-0K010	GUN126,136..TDC..6FC..M..ARL "BLACK RALLY EDITION"*(B)&TIRE & DISC WHEEL-265/60R18, ALUMINUM&FRONT BUMPER-PAINTED & WITH(WIDE FENDER),FOR(MLM)&FRONT FOG LAMP-WITH(LED)	12/2017 - 06/2018	19
75392-0K010	GUN126,136..TDC..M..ARL PREMIUM BASIC PACKAGE(HOOD MOLD=BLACK)&FRONT BUMPER-PAINTED & WITH(WIDE FENDER),FOR(MLM)&FRONT FOG LAMP-WITH(LED)	06/2018 - 05/2019	4
75392-0K010	GUN126,136..TDC..6FC..M..ARL "BLACK RALLY EDITION"*(B)&TIRE & DISC WHEEL-265/60R18(WHITE LETTER), ALUMINUM&FRONT BUMPER-PAINTED & W(WIDE FENDER & SKID),FOR(MLM)&FRONT FOG LAMP-WITH(LED)	06/2018 - 05/2019	19
75392-0K010	GUN126,136..TDC..6FC..M..ARL "BLACK RALLY EDITION"*(B)&TIRE & DISC WHEEL-265/60R18, ALUMINUM&FRONT BUMPER-PAINTED & W(WIDE FENDER & SKID),FOR(MLM)&FRONT FOG LAMP-WITH(LED)	06/2018 - 05/2019	19
75392-0K010	GUN136..M..ARL;GUN126..TDC..6FC..M..LA PREMIUM BASIC PACKAGE(HOOD MOLD=BLACK)&FRONT BUMPER-PAINTED & WITH(WIDE FENDER),FOR(MLM)	06/2018 - 05/2020	4
75392-0K010	GUN136..6FC..M..ARL "BLACK RALLY EDITION"*(B)&TIRE & DISC WHEEL-265/60R18(WHITE LETTER), ALUMINUM&FRONT BUMPER-PAINTED & W(WIDE FENDER & SKID),FOR(MLM)	06/2018 - 05/2020	19
75392-0K010	GUN136..6FC..M..ARL "BLACK RALLY EDITION"*(B)&TIRE & DISC WHEEL-265/60R18, ALUMINUM&FRONT BUMPER-PAINTED & W(WIDE FENDER & SKID),FOR(MLM)	06/2018 - 05/2020	19
75392 - RETAINER, OUTSIDE MOULDING
75392-0K010	GUN136..6FC..M..ARL "BLACK RALLY EDITION"*(B)&TIRE & DISC WHEEL-265/60R18, ALUMINUM&FRONT BUMPER-PAINTED & WITH(WIDE FENDER),FOR(MLM)	12/2017 - 06/2018	19
75392-0K010	GUN126,136..TDC..6FC..M..ARL "BLACK RALLY EDITION"*(B)&TIRE & DISC WHEEL-265/60R18, ALUMINUM&FRONT BUMPER-PAINTED & WITH(WIDE FENDER),FOR(MLM)&FRONT FOG LAMP-WITH(LED)	12/2017 - 06/2018	19
75392-0K010	GUN126,136..TDC..M..ARL PREMIUM BASIC PACKAGE(HOOD MOLD=BLACK)&FRONT BUMPER-PAINTED & WITH(WIDE FENDER),FOR(MLM)&FRONT FOG LAMP-WITH(LED)	06/2018 - 05/2019	4
75392-0K010	GUN126,136..TDC..6FC..M..ARL "BLACK RALLY EDITION"*(B)&TIRE & DISC WHEEL-265/60R18(WHITE LETTER), ALUMINUM&FRONT BUMPER-PAINTED & W(WIDE FENDER & SKID),FOR(MLM)&FRONT FOG LAMP-WITH(LED)	06/2018 - 05/2019	19
75392-0K010	GUN126,136..TDC..6FC..M..ARL "BLACK RALLY EDITION"*(B)&TIRE & DISC WHEEL-265/60R18, ALUMINUM&FRONT BUMPER-PAINTED & W(WIDE FENDER & SKID),FOR(MLM)&FRONT FOG LAMP-WITH(LED)	06/2018 - 05/2019	19
75392-0K010	GUN136..M..ARL;GUN126..TDC..6FC..M..LA PREMIUM BASIC PACKAGE(HOOD MOLD=BLACK)&FRONT BUMPER-PAINTED & WITH(WIDE FENDER),FOR(MLM)	06/2018 - 05/2020	4
75392-0K010	GUN136..6FC..M..ARL "BLACK RALLY EDITION"*(B)&TIRE & DISC WHEEL-265/60R18(WHITE LETTER), ALUMINUM&FRONT BUMPER-PAINTED & W(WIDE FENDER & SKID),FOR(MLM)	06/2018 - 05/2020	19
75392-0K010	GUN136..6FC..M..ARL "BLACK RALLY EDITION"*(B)&TIRE & DISC WHEEL-265/60R18, ALUMINUM&FRONT BUMPER-PAINTED & W(WIDE FENDER & SKID),FOR(MLM)	06/2018 - 05/2020	19
81481E - COVER, FOG LAMP, RH
52127-YP100	GUN136..6FC..M..ARL "BLACK RALLY EDITION"*(B)&TIRE & DISC WHEEL-265/60R18, ALUMINUM&FRONT BUMPER-PAINTED & WITH(WIDE FENDER),FOR(MLM)	12/2017 - 06/2018	1
52127-YP100	GUN126,136..TDC..6FC..M..ARL "BLACK RALLY EDITION"*(B)&TIRE & DISC WHEEL-265/60R18, ALUMINUM&FRONT BUMPER-PAINTED & WITH(WIDE FENDER),FOR(MLM)&FRONT FOG LAMP-WITH(LED)	12/2017 - 06/2018	1
52127-YP100	GUN126,136..TDC..M..ARL PREMIUM BASIC PACKAGE(HOOD MOLD=BLACK)&FRONT BUMPER-PAINTED & WITH(WIDE FENDER),FOR(MLM)&FRONT FOG LAMP-WITH(LED)	06/2018 - 05/2019	1
52127-YP100	GUN126,136..TDC..6FC..M..ARL "BLACK RALLY EDITION"*(B)&TIRE & DISC WHEEL-265/60R18(WHITE LETTER), ALUMINUM&FRONT BUMPER-PAINTED & W(WIDE FENDER & SKID),FOR(MLM)&FRONT FOG LAMP-WITH(LED)	06/2018 - 05/2019	1
52127-YP100	GUN126,136..TDC..6FC..M..ARL "BLACK RALLY EDITION"*(B)&TIRE & DISC WHEEL-265/60R18, ALUMINUM&FRONT BUMPER-PAINTED & W(WIDE FENDER & SKID),FOR(MLM)&FRONT FOG LAMP-WITH(LED)	06/2018 - 05/2019	1
52127-YP100	GUN136..M..ARL;GUN126..TDC..6FC..M..LA PREMIUM BASIC PACKAGE(HOOD MOLD=BLACK)&FRONT BUMPER-PAINTED & WITH(WIDE FENDER),FOR(MLM)	06/2018 - 05/2020	1
52127-YP100	GUN136..6FC..M..ARL "BLACK RALLY EDITION"*(B)&TIRE & DISC WHEEL-265/60R18, ALUMINUM&FRONT BUMPER-PAINTED & W(WIDE FENDER & SKID),FOR(MLM)	06/2018 - 05/2020	1
52127-YP100	GUN136..6FC..M..ARL "BLACK RALLY EDITION"*(B)&TIRE & DISC WHEEL-265/60R18(WHITE LETTER), ALUMINUM&FRONT BUMPER-PAINTED & W(WIDE FENDER & SKID),FOR(MLM)	06/2018 - 05/2020	1
52127-0K170	GUN135..6F..S..VN;GUN135..LHD..TDC..(L,M);GUN122..5F..M..(GEN,TH);GUN125..(M,S)..(MA,TH,VN);GUN135..(H,M,S)..(GEN,MA,TH);KUN135,TGN136..(H,S)..(GEN,TH,VN);GUN126,KUN126..(H,M)..(ARL,BZAGT,GEN,LA,MA,PH,TAIW,TH,VN);GGN125,GUN125,136,KUN122,125,136,TGN126,128,13#..(H,M)..(ARL,BZAGT,GEN,LA,TH)	05/2015 - 12/2020	1
81482C - COVER, FOG LAMP, LH
52128-YP100	GUN126,136..TDC..6FC..M..ARL "BLACK RALLY EDITION"*(B)&TIRE & DISC WHEEL-265/60R18, ALUMINUM&FRONT BUMPER-PAINTED & WITH(WIDE FENDER),FOR(MLM)&FRONT FOG LAMP-WITH(LED)	12/2017 - 06/2018	1
52128-YP100	GUN136..6FC..M..ARL "BLACK RALLY EDITION"*(B)&TIRE & DISC WHEEL-265/60R18, ALUMINUM&FRONT BUMPER-PAINTED & WITH(WIDE FENDER),FOR(MLM)	12/2017 - 06/2018	1
52128-YP100	GUN126,136..TDC..6FC..M..ARL "BLACK RALLY EDITION"*(B)&TIRE & DISC WHEEL-265/60R18, ALUMINUM&FRONT BUMPER-PAINTED & W(WIDE FENDER & SKID),FOR(MLM)&FRONT FOG LAMP-WITH(LED)	06/2018 - 05/2019	1
52128-YP100	GUN126,136..TDC..M..ARL PREMIUM BASIC PACKAGE(HOOD MOLD=BLACK)&FRONT BUMPER-PAINTED & WITH(WIDE FENDER),FOR(MLM)&FRONT FOG LAMP-WITH(LED)	06/2018 - 05/2019	1
52128-YP100	GUN126,136..TDC..6FC..M..ARL "BLACK RALLY EDITION"*(B)&TIRE & DISC WHEEL-265/60R18(WHITE LETTER), ALUMINUM&FRONT BUMPER-PAINTED & W(WIDE FENDER & SKID),FOR(MLM)&FRONT FOG LAMP-WITH(LED)	06/2018 - 05/2019	1
52128-YP100	GUN136..6FC..M..ARL "BLACK RALLY EDITION"*(B)&TIRE & DISC WHEEL-265/60R18(WHITE LETTER), ALUMINUM&FRONT BUMPER-PAINTED & W(WIDE FENDER & SKID),FOR(MLM)	06/2018 - 05/2020	1
52128-YP100	GUN136..M..ARL;GUN126..TDC..6FC..M..LA PREMIUM BASIC PACKAGE(HOOD MOLD=BLACK)&FRONT BUMPER-PAINTED & WITH(WIDE FENDER),FOR(MLM)	06/2018 - 05/2020	1
52128-YP100	GUN136..6FC..M..ARL "BLACK RALLY EDITION"*(B)&TIRE & DISC WHEEL-265/60R18, ALUMINUM&FRONT BUMPER-PAINTED & W(WIDE FENDER & SKID),FOR(MLM)	06/2018 - 05/2020	1
52128-0K170	GUN135..6F..S..VN;GUN135..LHD..TDC..(L,M);GUN122..5F..M..(GEN,TH);GUN125..(M,S)..(MA,TH,VN);GUN135..(H,M,S)..(GEN,MA,TH);KUN135,TGN136..(H,S)..(GEN,TH,VN);GUN126,KUN126..(H,M)..(ARL,BZAGT,GEN,LA,MA,PH,TAIW,TH,VN);GGN125,GUN125,136,KUN122,125,136,TGN126,128,13#..(H,M)..(ARL,BZAGT,GEN,LA,TH)	05/2015 - 12/2020	1
Common parts
90105-T0144
90109-06272
90159-60477
90159-T0033
90167-40057
90179-06349
90183-06030
90189-T0019
90467-05170
90467-09232
90467-09237
Linked diagrams
8102

(2006- )ARL,BZAG,GCC,GEN,IDN,KEN,LA,MA,MMR,PH,PKN,SA,TH,TWN,VN

Click highlighted areas on diagram

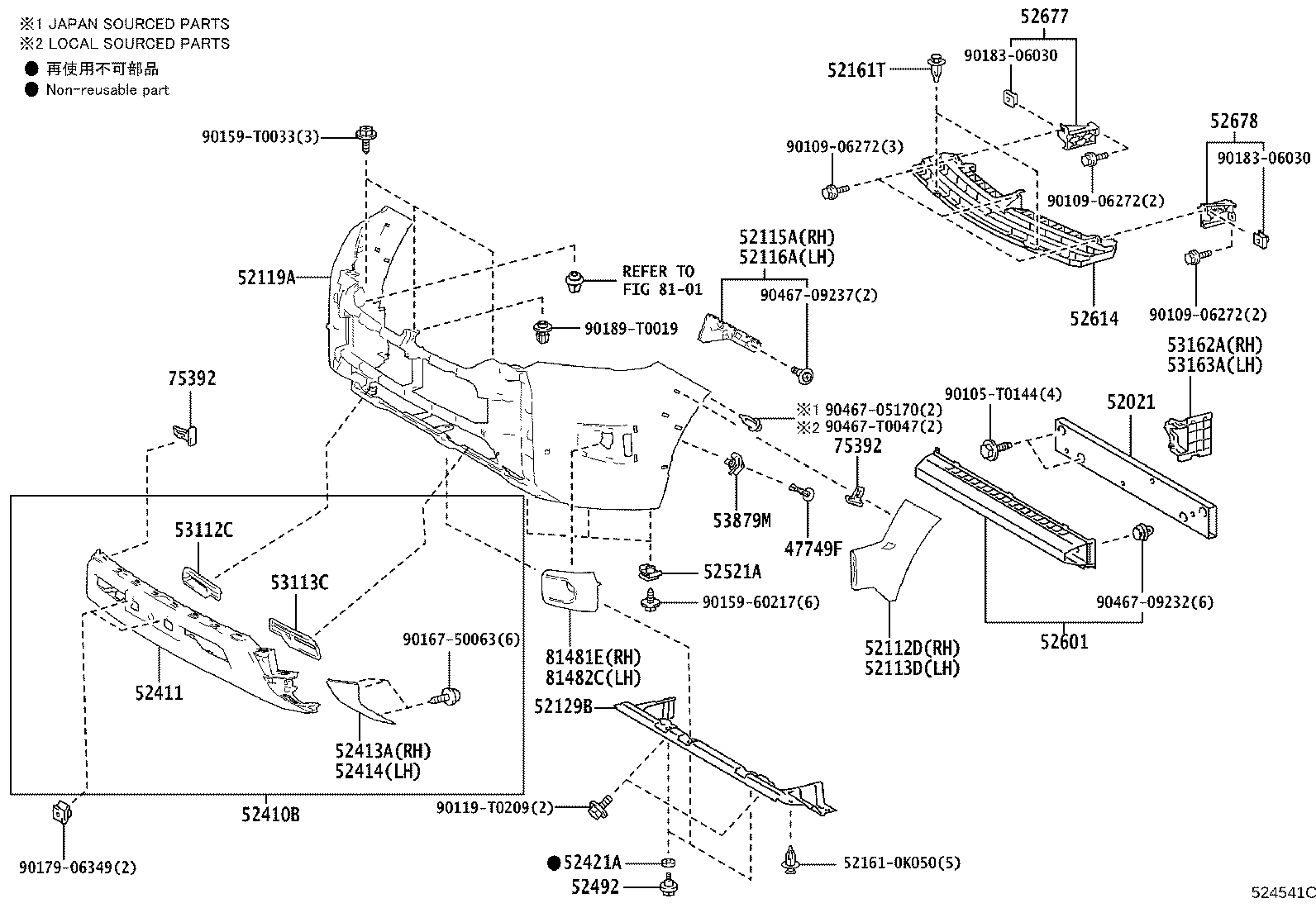

NARROW TYPE

Part #	Description	Period	Qty	Price
Common parts
52161-0K050
90105-T0144
90109-06272
90119-T0209
90159-60217
90159-T0014
90159-T0033
90179-06349
90183-06030
90189-T0019
90467-05170
90467-09232
90467-09237
90467-T0047
Linked diagrams
8101

(2006- )ARL,BZAG,GCC,GEN,IDN,KEN,LA,MA,MMR,PH,PKN,SA,TH,TWN,VN

Click highlighted areas on diagram

W(STEEL BUMPER)

Part #	Description	Period	Qty	Price
Common parts
67771-58010
90105-T0144
90109-06272
90119-T0156
90119-T0191
90119-T0205
90119-T0301
90129-08004
90159-T0033
90159-T0034
90167-40057
90167-50063
90179-06127
90182-T0026
90189-T0014
90189-T0019
90467-05170
90467-09237
90467-10188
90467-T0047
Linked diagrams
5353

(2006- )ARL,BZAG,GCC,GEN,IDN,KEN,LA,MA,MMR,PH,PKN,SA,TH,TWN,VN

Click highlighted areas on diagram

WIDE TYPE

Part #	Description	Period	Qty	Price
Common parts
52161-0K050
90105-T0144
90109-06272
90119-T0209
90159-60217
90159-T0033
90179-06349
90183-06030
90189-T0019
90467-05170
90467-09232
90467-09237
90467-T0047
Linked diagrams
8101

(2006- )ARL,BZAG,GCC,GEN,IDN,KEN,LA,MA,MMR,PH,PKN,SA,TH,TWN,VN

Click highlighted areas on diagram

MLM SPEC,NARROW TYPE

Part #	Description	Period	Qty	Price
Common parts
52161-0K050
90105-T0144
90109-06272
90119-T0209
90159-60217
90159-T0033
90179-06349
90183-06030
90189-T0019
90467-05170
90467-09232
90467-09237
90467-T0047
Linked diagrams
8101

(2006- )ARL,BZAG,GCC,GEN,IDN,KEN,LA,MA,MMR,PH,PKN,SA,TH,TWN,VN

Click highlighted areas on diagram

MLM SPEC & W(WIDE FENDER)

Part #	Description	Period	Qty	Price
Common parts
52161-0K050
90105-T0144
90109-06272
90119-T0209
90159-60217
90159-T0033
90167-50063
90179-06349
90183-06030
90189-T0019
90467-05170
90467-09232
90467-09237
90467-T0047
Linked diagrams
8101

GUN136R-DTTSHQ (2015)

(1107- )

(1505- )

(1505- )

(1712- )

(2006- )ARL,BZAG,GCC,GEN,IDN,KEN,LA,MA,MMR,PH,PKN,SA,TH,TWN,VN

(2006- )ARL,BZAG,GCC,GEN,IDN,KEN,LA,MA,MMR,PH,PKN,SA,TH,TWN,VN

(2006- )ARL,BZAG,GCC,GEN,IDN,KEN,LA,MA,MMR,PH,PKN,SA,TH,TWN,VN

(2006- )ARL,BZAG,GCC,GEN,IDN,KEN,LA,MA,MMR,PH,PKN,SA,TH,TWN,VN

(2006- )ARL,BZAG,GCC,GEN,IDN,KEN,LA,MA,MMR,PH,PKN,SA,TH,TWN,VN

Part Price Details
