GUN136R-DNTMHN (2016)

Toyota Hilux

Production Jan 2016 - Sep 2020
Engine 1GDFTV
Transmission 6FC ATM
Displacement 2500cc
Power 168 HP (125 kW)

(1505- )1GDFTV,2GDFTV

Click highlighted areas on diagram

12V 80A,100A,130A(DENSO)

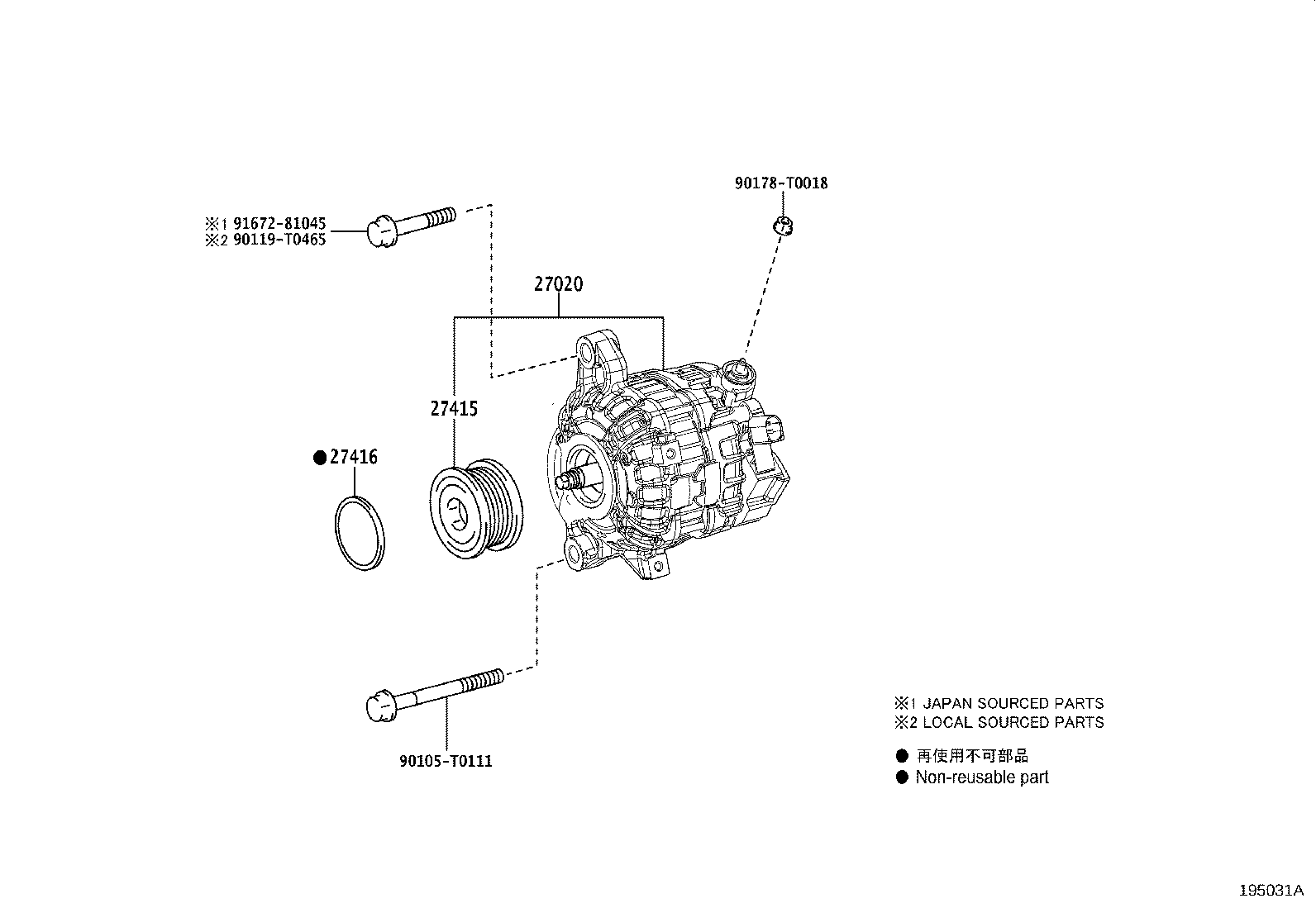

diagram 27020 27039 27039B 27310 27310B 27310F 27312 27330 27360 27360A 27370 27370B 27387 27415 27416 27444 90105T0111 90119T0465 90178T0018 9167281045
Part # Description Qty Price
27020 - ALTERNATOR ASSY
27060-0L190

1GDFTV,2GDFTV..GUN122,125,126,13#..SA

12V 80A,DENSO

 1
27039B - BOLT(FOR ALTERNATOR REAR END COVER)
90068-04047

1GDFTV,2GDFTV..GUN122,125,126,13#..SA

 3
27310 - FRAME ASSY, DRIVE END, ALTERNATOR
27310-0L220

1GDFTV,2GDFTV..GUN122,125,126,13#..SA

DENSO

 1
27310B - BEARING(FOR ALTERNATOR DRIVE END FRAME)
90068-10040

1GDFTV,2GDFTV..GUN122,125,126,13#..SA

DENSO

 1
27310F - SCREW(FOR ALTERNATOR DRIVE END FRAME)
90068-00022

1GDFTV,2GDFTV..GUN122,125,126,13#..SA

 4
27360A - BOLT(FOR ALTERNATOR COIL)
90068-04048

1GDFTV,2GDFTV..GUN122,125,126,13#..SA

 4
27370B - SCREW(FOR ALTERNATOR BRUSH HOLDER)
90068-00023

1GDFTV,2GDFTV..GUN122,125,126,13#..SA

 2
Common parts
90105-T0111
90119-T0465
90178-T0018
91672-81045

(1601- )1GDFTV,2GDFTV..GUN122,125,126,13#..KEN,SA

Click highlighted areas on diagram

12V 90A(BOSCH)

diagram 27020 27415 27416 90105T0111 90119T0465 90178T0018 9167281045
Part # Description Qty Price
27020 - ALTERNATOR ASSY
27060-0L190

1GDFTV,2GDFTV..GUN122,125,126,13#..SA

12V 80A,DENSO

 1
Common parts
90105-T0111
90119-T0465
90178-T0018
91672-81045
