GUN135R-CNFSXN (2020)

Toyota Hilux

Production Sep 2020 - Sep 2021
Engine 2GDFTV
Transmission 6F MTM
Displacement 2500cc
Power 168 HP (125 kW)

ILLUST NO. 1 OF 3(2009- )GUN122,125,135,TGN136..MTM..L,S..BZAG,SA

Click highlighted areas on diagram

W/O(DIFFERENTIAL LOCK)

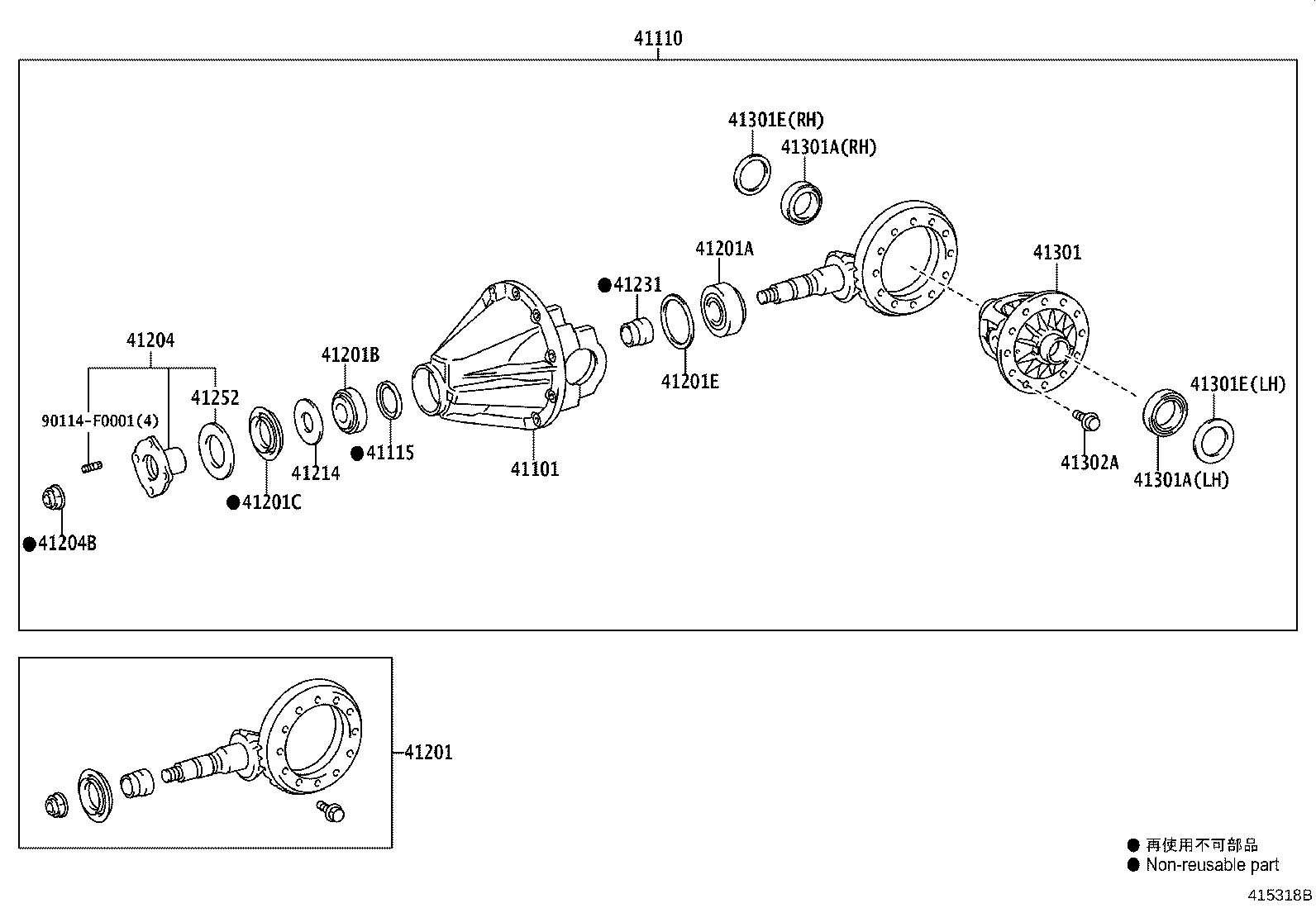

diagram 41101 41110 41115 41201 41201A 41201B 41201C 41201E 41204 41204B 41214 41231 41252 41301 41301A 41301A 41301E 41301E 41302A 90114F0001
Part # Description Qty Price
41110 - CARRIER ASSY, DIFFERENTIAL, REAR
41110-0K820

GUN125..L..SA;GUN135..SS..L;GUN125..S..IV3;GUN125..LHD..SS..S;GUN135..(SD,SX)..6F;GUN125,126,136..(SD,SX)..6F..S

*FGR=43:12=3.583,DIFFERENTIAL LOCK-WITH

 1
41110-0K820

GUN125..L..SA;GUN135..SS..L;GUN125..S..IV3;GUN125..LHD..SS..S;GUN135..(SD,SX)..6F;GUN125,126,136..(SD,SX)..6F..S

*FGR=43:12=3.583,DIFFERENTIAL LOCK-WITH

 1
41110-0K820

GUN125..L..SA;GUN135..SS..L;GUN125..S..IV3;GUN125..LHD..SS..S;GUN135..(SD,SX)..6F;GUN125,126,136..(SD,SX)..6F..S

*FGR=43:12=3.583,DIFFERENTIAL LOCK-WITH

 1
41204 - FLANGE SUB-ASSY, REAR DRIVE PINION COMPANION, REAR
41204-0K130

GGN125,GUN122,125,126,13#,TGN121,126,128,13#..AD,AS,SD,SS,SX

 1
41204-0K130

GGN125,GUN122,125,126,13#,TGN121,126,128,13#..AD,AS,SD,SS,SX

 1
41204-0K130

GGN125,GUN122,125,126,13#,TGN121,126,128,13#..AD,AS,SD,SS,SX

 1
41252 - DEFLECTOR, DUST (FOR REAR DIFFERENTIAL)
41252-0K110

GGN125,GUN122,125,126,13#,TGN121,126,128,13#..AD,AS,SD,SS,SX

 1
41252-0K110

GGN125,GUN122,125,126,13#,TGN121,126,128,13#..AD,AS,SD,SS,SX

 1
41252-0K110

GGN125,GUN122,125,126,13#,TGN121,126,128,13#..AD,AS,SD,SS,SX

 1
Common parts
90114-F0001

ILLUST NO. 1 OF 3(2009- )GUN126,136..AD,AS,SD..L,S..BZAG,SA ;(2009- )GUN125,126,135,TGN136..A

Click highlighted areas on diagram

W/O(DIFFERENTIAL LOCK)

diagram 41101 41110 41115 41201 41201A 41201B 41201C 41201E 41204 41204B 41214 41231 41252 41301 41301A 41301A 41301E 41301E 41302A 90114F0001
Part # Description Qty Price
41110 - CARRIER ASSY, DIFFERENTIAL, REAR
41110-0K820

GUN125..L..SA;GUN135..SS..L;GUN125..S..IV3;GUN125..LHD..SS..S;GUN135..(SD,SX)..6F;GUN125,126,136..(SD,SX)..6F..S

*FGR=43:12=3.583,DIFFERENTIAL LOCK-WITH

 1
41110-0K820

GUN125..L..SA;GUN135..SS..L;GUN125..S..IV3;GUN125..LHD..SS..S;GUN135..(SD,SX)..6F;GUN125,126,136..(SD,SX)..6F..S

*FGR=43:12=3.583,DIFFERENTIAL LOCK-WITH

 1
41110-0K820

GUN125..L..SA;GUN135..SS..L;GUN125..S..IV3;GUN125..LHD..SS..S;GUN135..(SD,SX)..6F;GUN125,126,136..(SD,SX)..6F..S

*FGR=43:12=3.583,DIFFERENTIAL LOCK-WITH

 1
41204 - FLANGE SUB-ASSY, REAR DRIVE PINION COMPANION, REAR
41204-0K130

GGN125,GUN122,125,126,13#,TGN121,126,128,13#..AD,AS,SD,SS,SX

 1
41204-0K130

GGN125,GUN122,125,126,13#,TGN121,126,128,13#..AD,AS,SD,SS,SX

 1
41204-0K130

GGN125,GUN122,125,126,13#,TGN121,126,128,13#..AD,AS,SD,SS,SX

 1
41252 - DEFLECTOR, DUST (FOR REAR DIFFERENTIAL)
41252-0K110

GGN125,GUN122,125,126,13#,TGN121,126,128,13#..AD,AS,SD,SS,SX

 1
41252-0K110

GGN125,GUN122,125,126,13#,TGN121,126,128,13#..AD,AS,SD,SS,SX

 1
41252-0K110

GGN125,GUN122,125,126,13#,TGN121,126,128,13#..AD,AS,SD,SS,SX

 1
Common parts
90114-F0001

ILLUST NO. 1 OF 3(2009- )TGN126..AD,SD ; (2009- )GGN125,GUN125,126,13#,LAN125,TGN128,13#..AD,A

Click highlighted areas on diagram

W(DIFFERENTIAL LOCK)

diagram 41101 41101J 41110 41115 41201 41201A 41201B 41201C 41201E 41204 41204B 41214 41231 41252 41301A 41301A 41301E 41301E 41302A 84222Q 90105F0002 90105F0002 90114F0001
Part # Description Qty Price
41101J - CONNECTOR, WIRING HARNESS
82824-0K080

GUN125..L..SA;GUN135..SS..L;GUN125..S..IV3;GUN135..SD..6FC;GUN125..LHD..SS..S;GUN135..(SD,SX)..6F;GUN125,126,TGN136..(SD,SX)..S;GUN136,LAN125,TGN126..(L,S)..SA

DIFFERENTIAL LOCK-WITH

 1
41110 - CARRIER ASSY, DIFFERENTIAL, REAR
41110-0K820

GUN125..L..SA;GUN135..SS..L;GUN125..S..IV3;GUN125..LHD..SS..S;GUN135..(SD,SX)..6F;GUN125,126,136..(SD,SX)..6F..S

*FGR=43:12=3.583,DIFFERENTIAL LOCK-WITH

 1
41204 - FLANGE SUB-ASSY, REAR DRIVE PINION COMPANION, REAR
41204-0K130

GGN125,GUN122,125,126,13#,TGN121,126,128,13#..AD,AS,SD,SS,SX

 1
41252 - DEFLECTOR, DUST (FOR REAR DIFFERENTIAL)
41252-0K110

GGN125,GUN122,125,126,13#,TGN121,126,128,13#..AD,AS,SD,SS,SX

 1
84222Q - SWITCH, DIFFERENTIAL LOCK INDICATOR
84222-0K030

GUN125..L..SA;GUN135..SS..L;GUN125..S..IV3;GUN135..SD..6FC;GUN125..LHD..SS..S;GUN135..(SD,SX)..6F;GUN125,126,TGN136..(SD,SX)..S;GUN136,LAN125,TGN126..(L,S)..SA

DIFFERENTIAL LOCK-WITH

 1
Common parts
90105-F0002
90114-F0001
