GUN135R-BTFXHQ3 (2019)

Toyota Hilux

Production May 2019 - May 2020
Engine 2GDFTV
Transmission 6F MTM
Displacement 2500cc
Power 168 HP (125 kW)

ILLUST NO. 1 OF 2(1107- )

Click highlighted areas on diagram

diagram 53301 53301B 53341B 53341C 53381 53381A 53384A 53801 53802 53882K 53882K 76180 76181 76183 76186 90109T0047 90119T0004 90119T0004 90119T0004 90119T0004 90119T0004 90178T0029 9046707175 90950T6002
Part # Description Qty Price
Common parts
90109-T0047
90119-T0004
90178-T0029
90467-07175
90950-T6002

ILLUST NO. 2 OF 2(1107- )

Click highlighted areas on diagram

FENDER LINER

diagram 5252 53805 53806 53851C 53851C 53875P 53875Q 9015960496 9015960496 90189T0014
Part # Description Qty Price
Common parts
90159-60496
90189-T0014
Linked diagrams
5252

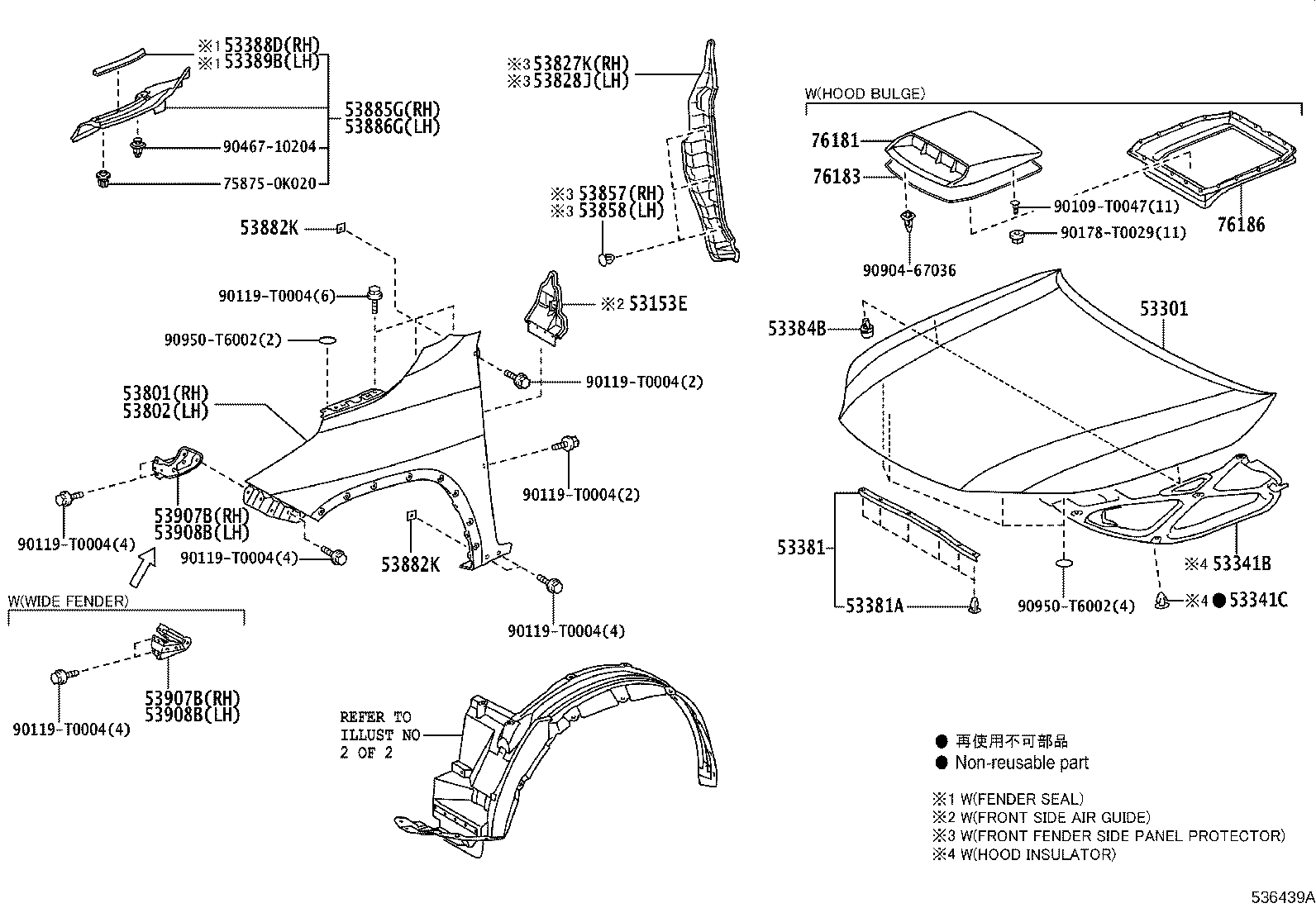

ILLUST NO. 1 OF 2(1505- )

Click highlighted areas on diagram

W(RESIN BUMPER)

diagram 53153E 53301 53341B 53341C 53381 53381A 53384B 53388D 53389B 53801 53802 53827K 53828J 53857 53858 53882K 53882K 53885G 53886G 53907B 53907B 53908B 53908B 758750K020 76181 76183 76186 90109T0047 90119T0004 90119T0004 90119T0004 90119T0004 90119T0004 90119T0004 90119T0004 90178T0029 9046710204 9090467036 90950T6002 90950T6002
Part # Description Qty Price
53153E - GUIDE, FRONT SIDE AIR
53153-0K090

KUN126,135..L,X;GUN135..TDC..X..LA;GUN125,136..ASC,TSC;KUN125..RHD..(TSC,TXT);GUN135..(L,S)..(GEN,PH);GUN135..(ADC,ASC,TSC)..X;GUN125..TDC..S..(GCC,PH);KUN125..(ADC,ASC,TDC)..(L,X);KUN125..LHD..(TSC,TXT)..(L,X);GUN126..(ASC,PDC,PSC,TSC)..(L,S,X);GUN125,126..(ADC,TDC)..(L,X)..(GCC,GEN,LA);GUN112,120,122,123,KUN112,122..PSC,TDC,TSC,TXT

 1
53341B - INSULATOR, HOOD
53341-0K250

GUN125..TSC,TXT;TGN121..(L,S)..TH;TGN126..M..(GCC,GEN);GUN125..TDC..6FC..ARL;KUN135..(TDC,TSC)..DCR;TGN121..(M,X)..(ARL,GCC,TH);TGN126,136..(TDC,TSC,TXT)..(LA,TH);GUN125..TDC..(GCC,GEN,IDN,LA,PH,TH,VN);GUN135,KUN125..(MDC,TDC,TSC,TXT)..(ARL,GCC,GEN,LA,MA,PH,TH,VN);GGN12#,GUN112,120,122,123,126,136,KUN112,122..PDC,PSC,TDC,TSC,TXT

 1
53341C - CLIP(FOR HOOD INSULATOR)
90467-T0014

TGN126..BZAGT,LA;TGN121..(L,S)..TH;TGN126..M..(GCC,GEN);GUN125..TDC..6FC..ARL;KUN135,TGN120..GEN,LA,SA;TGN121..(M,X)..(ARL,GCC,SA,TH);GUN125..ADC,ASC,SDC,SSC,SXT,TSC,TXT;GUN125..TDC..(GCC,GEN,IDN,LA,PH,TH,VN);GUN135,KUN125..ARL,BZAGT,GCC,GEN,LA,MA,PH,SA,TH,VN;TGN136..(ADC,ASC,SDC,TDC,TSC,TXT)..(BZAGT,LA,SA,TH);GGN12#,135,GUN112,120,122,123,126,136,KUN112,122,LAN125,TGN128,138..ADC,ASC,PDC,PSC,SDC,SSC,SXT,TDC,TSC,TXT

 12
53381 - SEAL, HOOD TO RADIATOR SUPPORT
53381-0K080

LAN125..SSC..S;GGN135,KUN12#,135;GUN125..TDC..6FC..ARL;GUN125..ADC,ASC,TSC,TXT;GUN135..ADC,ASC,MDC,TDC,TSC,TXT;GUN125..TDC..(GCC,GEN,IDN,LA,PH,TH,VN);GGN12#,GUN112,120,122,123,126,136,KUN112,136,TGN11#,120,121,126,128,13#..ADC,ASC,PDC,PSC,TDC,TSC,TXT

 1
53381A - CLIP(FOR HOOD TO RADIATOR SUPPORT SEAL)
90467-T0013

GUN125..TDC..6FC..ARL;TGN136..ADC,ASC,SDC,TDC,TSC,TXT;GUN125..ADC,ASC,SDC,SSC,SXT,TSC,TXT;GUN125..TDC..(GCC,GEN,IDN,LA,PH,TH,VN);GGN12#,135,GUN112,135..ADC,ASC,MDC,SDC,SSC,SXT,TDC,TSC,TXT;GUN120,122,123,126,136,KUN112,12#,13#,LAN125,TGN11#,120,121,126,128,138..ADC,ASC,PDC,PSC,SDC,SSC,SXT,TDC,TSC,TXT

 6
53384B - CUSHION, HOOD, CENTER
53384-0K040

GUN125..TDC..6FC..ARL;TGN136..ADC,ASC,SDC,TDC,TSC,TXT;GUN125..ADC,ASC,SDC,SSC,SXT,TSC,TXT;GUN125..TDC..(GCC,GEN,IDN,LA,PH,TH,VN);GGN12#,135,GUN112,135..ADC,ASC,MDC,SDC,SSC,SXT,TDC,TSC,TXT;GUN120,122,123,126,136,KUN112,12#,13#,LAN125,TGN11#,120,121,126,128,138..ADC,ASC,PDC,PSC,SDC,SSC,SXT,TDC,TSC,TXT

 2
53801 - FENDER SUB-ASSY, FRONT RH
53811-KK010

KUN122..L..GCC;GUN125,135..S..PH;GUN125..TSC..L..GCC;KUN122..(L,S,X)..(GEN,PKN,SA);KUN125,TGN126..LHD..(SDC,SSC)..S;KUN125..LHD..(SDC,TSC,TXT)..(L,X);GUN122..(PSC,SDC,SSC,TSC)..5F..(L,X);KUN125..RHD..(SDC,SSC,TSC,TXT)..(L,S,X);GUN122,TGN136..(ADC,TXT)..5F..X..(LA,TH);TGN121,136..(ASC,SDC,SSC,TDC,TSC)..(L,X);GGN120,GUN123,LAN125,TGN110,120..ARL,GCC,IDN,SA;GUN125,135,KUN135..(ADC,TDC)..(L,X)..(GCC,GEN,LA);GUN122,TGN136..(SDC,TDC,TSC)..S..(DCR,HTWC)..(GEN,SA);GUN112,KUN112,126,TGN111,126..(L,X)..(GCC,GEN,IDN,LA,PKN,SA);GUN122,126,KUN125..(ADC,ASC,TDC)..(L,X)..(ARL,GCC,GEN,IDN,LA,PH);GUN125,126,13#,KUN135..(ASC,PDC,PSC,SDC,SSC,TSC)..(L,S,X)..(ARL,BZAGT,GEN,IDN,LA,PKN,SA,TH)

 1
53802 - FENDER SUB-ASSY, FRONT LH
53812-KK010

KUN122..L..GCC;GUN125,135..S..PH;GUN125..TSC..L..GCC;KUN122..(L,S,X)..(GEN,PKN,SA);KUN125,TGN126..LHD..(SDC,SSC)..S;KUN125..LHD..(SDC,TSC,TXT)..(L,X);GUN122..(PSC,SDC,SSC,TSC)..5F..(L,X);KUN125..RHD..(SDC,SSC,TSC,TXT)..(L,S,X);GUN122,TGN136..(ADC,TXT)..5F..X..(LA,TH);TGN121,136..(ASC,SDC,SSC,TDC,TSC)..(L,X);GGN120,GUN123,LAN125,TGN110,120..ARL,GCC,IDN,SA;GUN125,135,KUN135..(ADC,TDC)..(L,X)..(GCC,GEN,LA);GUN122,TGN136..(SDC,TDC,TSC)..S..(DCR,HTWC)..(GEN,SA);GUN112,KUN112,126,TGN111,126..(L,X)..(GCC,GEN,IDN,LA,PKN,SA);GUN122,126,KUN125..(ADC,ASC,TDC)..(L,X)..(ARL,GCC,GEN,IDN,LA,PH);GUN125,126,13#,KUN135..(ASC,PDC,PSC,SDC,SSC,TSC)..(L,S,X)..(ARL,BZAGT,GEN,IDN,LA,PKN,SA,TH)

 1
53882K - SEAL, FRONT FENDER
53882-33060

GUN125..TDC..6FC..ARL;KUN126,135..GEN,LA,PKN,SA;TGN136..ADC,ASC,SDC,TDC,TSC,TXT;GUN125..ADC,ASC,SDC,SSC,SXT,TSC,TXT;GUN125..TDC..(GCC,GEN,IDN,LA,PH,TH,VN);GGN12#,135,GUN112,120,135..ADC,ASC,MDC,SDC,SSC,SXT,TDC,TSC,TXT;GUN122,123,126,136,KUN112,122,125,136,LAN125,TGN11#,120,121,126,128,138..ADC,ASC,PDC,PSC,SDC,SSC,SXT,TDC,TSC,TXT

 6
53882K - SEAL, FRONT FENDER
53882-33060

GUN125..TDC..6FC..ARL;KUN126,135..GEN,LA,PKN,SA;TGN136..ADC,ASC,SDC,TDC,TSC,TXT;GUN125..ADC,ASC,SDC,SSC,SXT,TSC,TXT;GUN125..TDC..(GCC,GEN,IDN,LA,PH,TH,VN);GGN12#,135,GUN112,120,135..ADC,ASC,MDC,SDC,SSC,SXT,TDC,TSC,TXT;GUN122,123,126,136,KUN112,122,125,136,LAN125,TGN11#,120,121,126,128,138..ADC,ASC,PDC,PSC,SDC,SSC,SXT,TDC,TSC,TXT

 6
53885G - SEAL SUB-ASSY, FENDER APRON MUDGUARD, RH
53807-0K110

GUN135..TXT..L;GUN125..LHD..TSC;GUN125..TDC..6FC..ARL;KUN125..LHD..(TSC,TXT)..(L,X);GUN122,KUN122,TGN121..PSC,TDC,TSC,TXT;GUN125,KUN125..RHD..(TSC,TXT)..(ARL,GEN,IDN);GUN126,13#,TGN136..(MDC,PDC,PSC,TDC,TSC)..(L,S,X);GUN125,KUN125..TDC..(L,S,X)..(GCC,GEN,IDN,LA,PH,TH,VN);GGN12#,GUN112,120,123,KUN112,126,13#,TGN11#,120,126..(PDC,PSC,TDC,TSC,TXT)..(L,S,X)

 1
53886G - SEAL, FENDER APRON MUDGUARD, LH
53808-0K110

GUN135..TXT..L;GUN125..LHD..TSC;GUN125..TDC..6FC..ARL;KUN125..LHD..(TSC,TXT)..(L,X);GUN122,KUN122,TGN121..PSC,TDC,TSC,TXT;GUN125,KUN125..RHD..(TSC,TXT)..(ARL,GEN,IDN);GUN126,13#,TGN136..(MDC,PDC,PSC,TDC,TSC)..(L,S,X);GUN125,KUN125..TDC..(L,S,X)..(GCC,GEN,IDN,LA,PH,TH,VN);GGN12#,GUN112,120,123,KUN112,126,13#,TGN11#,120,126..(PDC,PSC,TDC,TSC,TXT)..(L,S,X)

 1
53907B - EXTENSION SUB-ASSY, FRONT END PANEL, RH
53907-KK010

TGN126..L,X;TGN136..SDC;GUN125..TSC..LA;TGN136..ADC..X..LA;TGN136..(ASC,TDC,TSC)..X;GUN125..RHD..(SDC,SSC,TSC);GUN125,135..TDC..S..(GCC,PH);KUN125..(ADC,ASC,TDC)..(L,X);KUN125..RHD..(SDC,SSC,TSC,TXT);KUN125..LHD..(SDC,TSC,TXT)..(L,X);KUN125,TGN126..LHD..(SDC,SSC,TSC)..S;GUN126,135,KUN135..(ADC,TDC)..(L,X)..(GEN,LA);GUN126,13#,KUN135..(ASC,PDC,PSC,SDC,SSC,TSC)..(L,S,X);GUN125..LHD..(ASC,SDC,SSC,TSC)..(L,S,X)..(BZAGT,GCC,SA);GUN125,KUN126..(ADC,ASC,PDC,PSC,TDC)..(L,X)..(GCC,GEN,LA,PKN);GGN120,GUN112,122,123,KUN112,122,LAN125,TGN11#,120,121..5F,6FC

 1
53907B - EXTENSION SUB-ASSY, FRONT END PANEL, RH
53907-KK010

TGN126..L,X;TGN136..SDC;GUN125..TSC..LA;TGN136..ADC..X..LA;TGN136..(ASC,TDC,TSC)..X;GUN125..RHD..(SDC,SSC,TSC);GUN125,135..TDC..S..(GCC,PH);KUN125..(ADC,ASC,TDC)..(L,X);KUN125..RHD..(SDC,SSC,TSC,TXT);KUN125..LHD..(SDC,TSC,TXT)..(L,X);KUN125,TGN126..LHD..(SDC,SSC,TSC)..S;GUN126,135,KUN135..(ADC,TDC)..(L,X)..(GEN,LA);GUN126,13#,KUN135..(ASC,PDC,PSC,SDC,SSC,TSC)..(L,S,X);GUN125..LHD..(ASC,SDC,SSC,TSC)..(L,S,X)..(BZAGT,GCC,SA);GUN125,KUN126..(ADC,ASC,PDC,PSC,TDC)..(L,X)..(GCC,GEN,LA,PKN);GGN120,GUN112,122,123,KUN112,122,LAN125,TGN11#,120,121..5F,6FC

 1
53908B - EXTENSION SUB-ASSY, FRONT END PANEL, LH
53908-KK010

TGN126..L,X;TGN136..SDC;GUN125..TSC..LA;TGN136..ADC..X..LA;TGN136..(ASC,TDC,TSC)..X;GUN125..RHD..(SDC,SSC,TSC);GUN125,135..TDC..S..(GCC,PH);KUN125..(ADC,ASC,TDC)..(L,X);KUN125..RHD..(SDC,SSC,TSC,TXT);KUN125..LHD..(SDC,TSC,TXT)..(L,X);KUN125,TGN126..LHD..(SDC,SSC,TSC)..S;GUN126,135,KUN135..(ADC,TDC)..(L,X)..(GEN,LA);GUN126,13#,KUN135..(ASC,PDC,PSC,SDC,SSC,TSC)..(L,S,X);GUN125..LHD..(ASC,SDC,SSC,TSC)..(L,S,X)..(BZAGT,GCC,SA);GUN125,KUN126..(ADC,ASC,PDC,PSC,TDC)..(L,X)..(GCC,GEN,LA,PKN);GGN120,GUN112,122,123,KUN112,122,LAN125,TGN11#,120,121..5F,6FC

 1
53908B - EXTENSION SUB-ASSY, FRONT END PANEL, LH
53908-KK010

TGN126..L,X;TGN136..SDC;GUN125..TSC..LA;TGN136..ADC..X..LA;TGN136..(ASC,TDC,TSC)..X;GUN125..RHD..(SDC,SSC,TSC);GUN125,135..TDC..S..(GCC,PH);KUN125..(ADC,ASC,TDC)..(L,X);KUN125..RHD..(SDC,SSC,TSC,TXT);KUN125..LHD..(SDC,TSC,TXT)..(L,X);KUN125,TGN126..LHD..(SDC,SSC,TSC)..S;GUN126,135,KUN135..(ADC,TDC)..(L,X)..(GEN,LA);GUN126,13#,KUN135..(ASC,PDC,PSC,SDC,SSC,TSC)..(L,S,X);GUN125..LHD..(ASC,SDC,SSC,TSC)..(L,S,X)..(BZAGT,GCC,SA);GUN125,KUN126..(ADC,ASC,PDC,PSC,TDC)..(L,X)..(GCC,GEN,LA,PKN);GGN120,GUN112,122,123,KUN112,122,LAN125,TGN11#,120,121..5F,6FC

 1
Common parts
75875-0K020
90109-T0047
90119-T0004
90178-T0029
90467-10204
90904-67036
90950-T6002

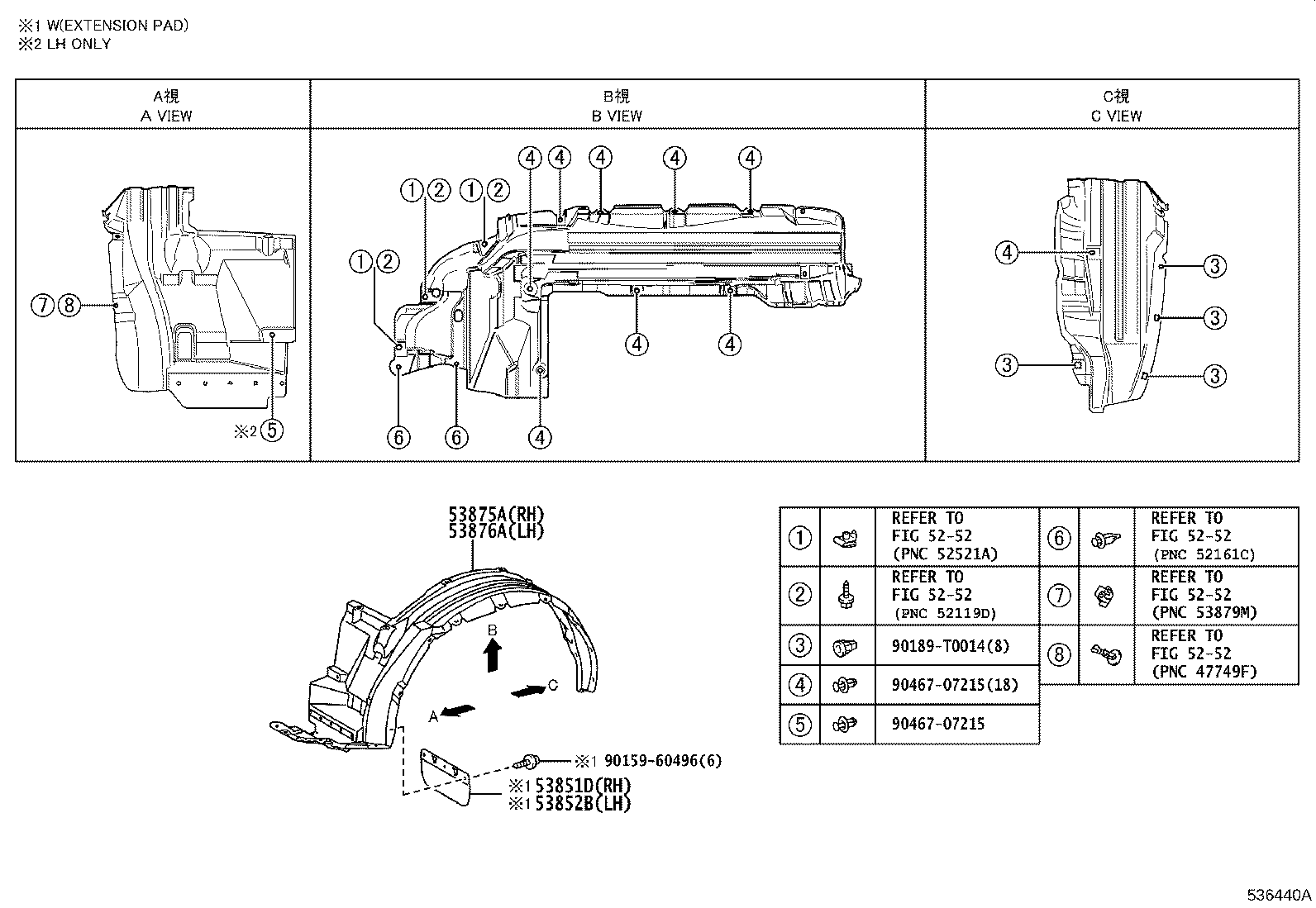

ILLUST NO. 2 OF 2(1505- )

Click highlighted areas on diagram

FENDER LINER W(RESIN BUMPER)

diagram 5252 5252 5252 5252 5252 53851D 53852B 53875A 53876A 9015960496 90189T0014 9046707215 9046707215
Part # Description Qty Price
53851D - PAD, FRONT WHEEL OPENING EXTENSION, RH
53851-0K080

TGN126..IV3;GUN125..TXT..GEN;TGN126..5F..L..GEN;KUN125..TXT..L..GEN;TGN126..TDC..(M,S,X);GUN125..TDC..6F..(M,S)..GCC;GUN125,135,KUN125..(H,X)..GEN;GUN125,126..TDC..(L,X)..(IDN,LA);GUN125..TDC..6FC..(M,X)..(ARL,GCC);KUN125..(TDC,TXT)..(M,S)..(GCC,GEN);GUN126..(PDC,PSC,TDC,TSC,TXT)..(H,L,M,S);GUN125,TGN126..(TSC,TXT)..(ARL,IDN,LA,TH);GUN125..TDC..(M,S)..(GEN,IDN,LA,PH,TH,VN);GGN125,GUN136,KUN126,13#,TGN136..PDC,PSC,TDC,TSC,TXT;GUN135,KUN125..(MDC,TDC,TSC,TXT)..(ARL,IDN,LA,MA,PH,TH,VN)

 1
53852B - PAD, FRONT WHEEL OPENING EXTENSION, LH
53851-0K080

TGN126..IV3;GUN125..TXT..GEN;TGN126..5F..L..GEN;KUN125..TXT..L..GEN;TGN126..TDC..(M,S,X);GUN125..TDC..6F..(M,S)..GCC;GUN125,135,KUN125..(H,X)..GEN;GUN125,126..TDC..(L,X)..(IDN,LA);GUN125..TDC..6FC..(M,X)..(ARL,GCC);KUN125..(TDC,TXT)..(M,S)..(GCC,GEN);GUN126..(PDC,PSC,TDC,TSC,TXT)..(H,L,M,S);GUN125,TGN126..(TSC,TXT)..(ARL,IDN,LA,TH);GUN125..TDC..(M,S)..(GEN,IDN,LA,PH,TH,VN);GGN125,GUN136,KUN126,13#,TGN136..PDC,PSC,TDC,TSC,TXT;GUN135,KUN125..(MDC,TDC,TSC,TXT)..(ARL,IDN,LA,MA,PH,TH,VN)

 1
53875A - LINER, FRONT FENDER, RH
53805-0K140

TGN126..IV3;KUN125..X..GEN;TGN136..ADC..X..LA;KUN125..TXT..L..GEN;GUN126..(L,X)..(GEN,LA);KUN125..(L,X)..(IDN,LA);GUN125,135..LHD..TDC..X;TGN136..(ASC,TDC,TSC)..X;GUN125,135..(ADC,ASC,TSC)..X;GUN125,135..TDC..6F..S..(GCC,PH);KUN126,135,TGN126..(5F,5FC,6F)..(L,X)..(GEN,LA,PKN);GUN126,136..(ASC,PDC,PSC,TSC)..(L,S,X)..(ARL,BZAGT,GCC,PKN)

 1
53876A - LINER, FRONT FENDER, LH
53806-0K140

TGN126..IV3;KUN125..X..GEN;TGN136..ADC..X..LA;KUN125..TXT..L..GEN;GUN126..(L,X)..(GEN,LA);KUN125..(L,X)..(IDN,LA);GUN125,135..LHD..TDC..X;TGN136..(ASC,TDC,TSC)..X;GUN125,135..(ADC,ASC,TSC)..X;GUN125,135..TDC..6F..S..(GCC,PH);KUN126,135,TGN126..(5F,5FC,6F)..(L,X)..(GEN,LA,PKN);GUN126,136..(ASC,PDC,PSC,TSC)..(L,S,X)..(ARL,BZAGT,GCC,PKN)

 1
Common parts
90159-60496
90189-T0014
90467-07215
Linked diagrams
5252

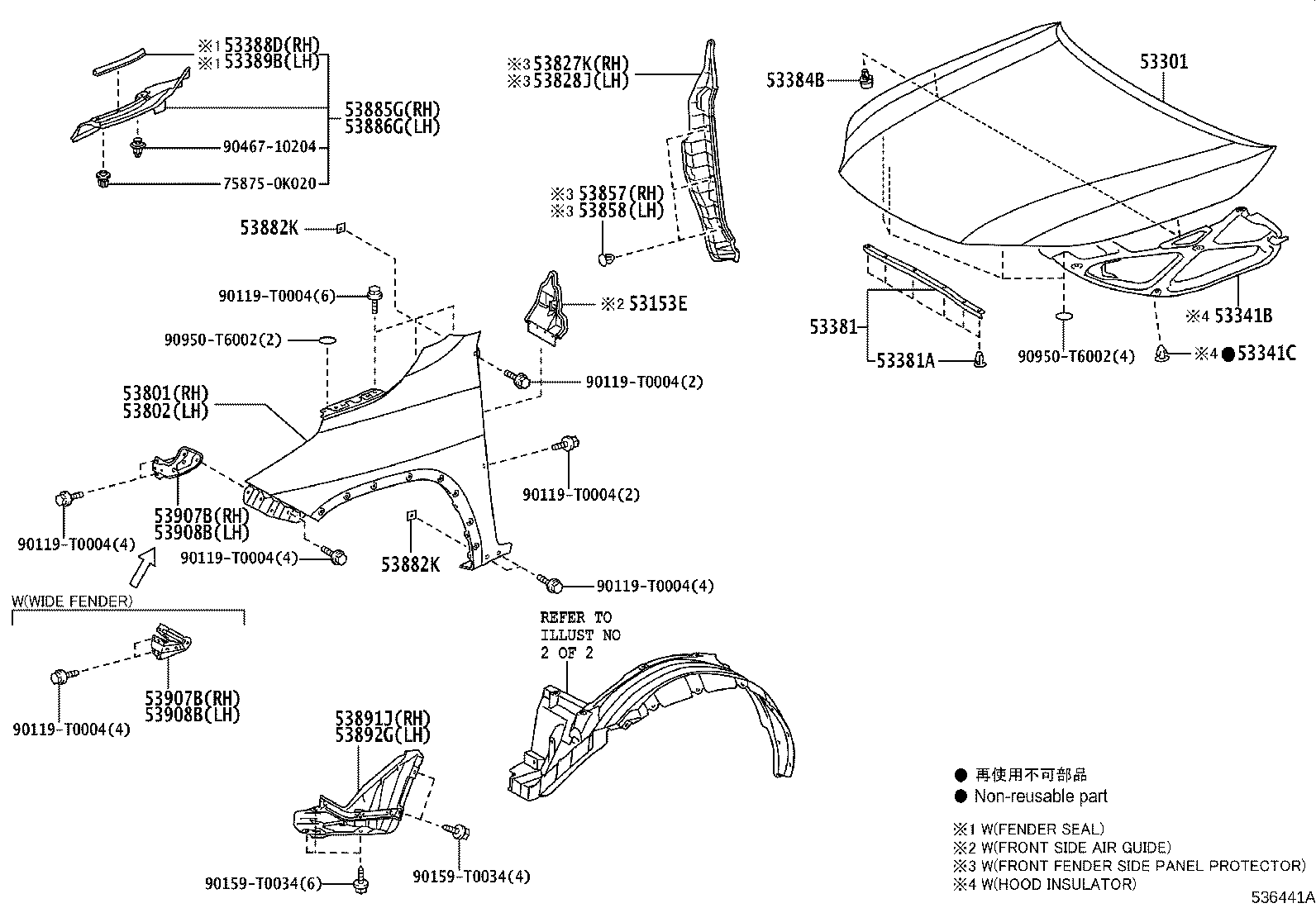

ILLUST NO. 1 OF 2(1505- )

Click highlighted areas on diagram

W(STEEL BUMPER)

diagram 53153E 53301 53341B 53341C 53381 53381A 53384B 53388D 53389B 53801 53802 53827K 53828J 53857 53858 53882K 53882K 53885G 53886G 53891J 53892G 53907B 53907B 53908B 53908B 758750K020 90119T0004 90119T0004 90119T0004 90119T0004 90119T0004 90119T0004 90119T0004 90159T0034 90159T0034 9046710204 90950T6002 90950T6002
Part # Description Qty Price
53153E - GUIDE, FRONT SIDE AIR
53153-0K090

KUN126,135..L,X;GUN135..TDC..X..LA;GUN125,136..ASC,TSC;KUN125..RHD..(TSC,TXT);GUN135..(L,S)..(GEN,PH);GUN135..(ADC,ASC,TSC)..X;GUN125..TDC..S..(GCC,PH);KUN125..(ADC,ASC,TDC)..(L,X);KUN125..LHD..(TSC,TXT)..(L,X);GUN126..(ASC,PDC,PSC,TSC)..(L,S,X);GUN125,126..(ADC,TDC)..(L,X)..(GCC,GEN,LA);GUN112,120,122,123,KUN112,122..PSC,TDC,TSC,TXT

 1
53341B - INSULATOR, HOOD
53341-0K250

GUN125..TSC,TXT;TGN121..(L,S)..TH;TGN126..M..(GCC,GEN);GUN125..TDC..6FC..ARL;KUN135..(TDC,TSC)..DCR;TGN121..(M,X)..(ARL,GCC,TH);TGN126,136..(TDC,TSC,TXT)..(LA,TH);GUN125..TDC..(GCC,GEN,IDN,LA,PH,TH,VN);GUN135,KUN125..(MDC,TDC,TSC,TXT)..(ARL,GCC,GEN,LA,MA,PH,TH,VN);GGN12#,GUN112,120,122,123,126,136,KUN112,122..PDC,PSC,TDC,TSC,TXT

 1
53341C - CLIP(FOR HOOD INSULATOR)
90467-T0014

TGN126..BZAGT,LA;TGN121..(L,S)..TH;TGN126..M..(GCC,GEN);GUN125..TDC..6FC..ARL;KUN135,TGN120..GEN,LA,SA;TGN121..(M,X)..(ARL,GCC,SA,TH);GUN125..ADC,ASC,SDC,SSC,SXT,TSC,TXT;GUN125..TDC..(GCC,GEN,IDN,LA,PH,TH,VN);GUN135,KUN125..ARL,BZAGT,GCC,GEN,LA,MA,PH,SA,TH,VN;TGN136..(ADC,ASC,SDC,TDC,TSC,TXT)..(BZAGT,LA,SA,TH);GGN12#,135,GUN112,120,122,123,126,136,KUN112,122,LAN125,TGN128,138..ADC,ASC,PDC,PSC,SDC,SSC,SXT,TDC,TSC,TXT

 12
53381 - SEAL, HOOD TO RADIATOR SUPPORT
53381-0K080

LAN125..SSC..S;GGN135,KUN12#,135;GUN125..TDC..6FC..ARL;GUN125..ADC,ASC,TSC,TXT;GUN135..ADC,ASC,MDC,TDC,TSC,TXT;GUN125..TDC..(GCC,GEN,IDN,LA,PH,TH,VN);GGN12#,GUN112,120,122,123,126,136,KUN112,136,TGN11#,120,121,126,128,13#..ADC,ASC,PDC,PSC,TDC,TSC,TXT

 1
53381A - CLIP(FOR HOOD TO RADIATOR SUPPORT SEAL)
90467-T0013

GUN125..TDC..6FC..ARL;TGN136..ADC,ASC,SDC,TDC,TSC,TXT;GUN125..ADC,ASC,SDC,SSC,SXT,TSC,TXT;GUN125..TDC..(GCC,GEN,IDN,LA,PH,TH,VN);GGN12#,135,GUN112,135..ADC,ASC,MDC,SDC,SSC,SXT,TDC,TSC,TXT;GUN120,122,123,126,136,KUN112,12#,13#,LAN125,TGN11#,120,121,126,128,138..ADC,ASC,PDC,PSC,SDC,SSC,SXT,TDC,TSC,TXT

 6
53384B - CUSHION, HOOD, CENTER
53384-0K040

GUN125..TDC..6FC..ARL;TGN136..ADC,ASC,SDC,TDC,TSC,TXT;GUN125..ADC,ASC,SDC,SSC,SXT,TSC,TXT;GUN125..TDC..(GCC,GEN,IDN,LA,PH,TH,VN);GGN12#,135,GUN112,135..ADC,ASC,MDC,SDC,SSC,SXT,TDC,TSC,TXT;GUN120,122,123,126,136,KUN112,12#,13#,LAN125,TGN11#,120,121,126,128,138..ADC,ASC,PDC,PSC,SDC,SSC,SXT,TDC,TSC,TXT

 2
53801 - FENDER SUB-ASSY, FRONT RH
53811-KK010

KUN122..L..GCC;GUN125,135..S..PH;GUN125..TSC..L..GCC;KUN122..(L,S,X)..(GEN,PKN,SA);KUN125,TGN126..LHD..(SDC,SSC)..S;KUN125..LHD..(SDC,TSC,TXT)..(L,X);GUN122..(PSC,SDC,SSC,TSC)..5F..(L,X);KUN125..RHD..(SDC,SSC,TSC,TXT)..(L,S,X);GUN122,TGN136..(ADC,TXT)..5F..X..(LA,TH);TGN121,136..(ASC,SDC,SSC,TDC,TSC)..(L,X);GGN120,GUN123,LAN125,TGN110,120..ARL,GCC,IDN,SA;GUN125,135,KUN135..(ADC,TDC)..(L,X)..(GCC,GEN,LA);GUN122,TGN136..(SDC,TDC,TSC)..S..(DCR,HTWC)..(GEN,SA);GUN112,KUN112,126,TGN111,126..(L,X)..(GCC,GEN,IDN,LA,PKN,SA);GUN122,126,KUN125..(ADC,ASC,TDC)..(L,X)..(ARL,GCC,GEN,IDN,LA,PH);GUN125,126,13#,KUN135..(ASC,PDC,PSC,SDC,SSC,TSC)..(L,S,X)..(ARL,BZAGT,GEN,IDN,LA,PKN,SA,TH)

 1
53802 - FENDER SUB-ASSY, FRONT LH
53812-KK010

KUN122..L..GCC;GUN125,135..S..PH;GUN125..TSC..L..GCC;KUN122..(L,S,X)..(GEN,PKN,SA);KUN125,TGN126..LHD..(SDC,SSC)..S;KUN125..LHD..(SDC,TSC,TXT)..(L,X);GUN122..(PSC,SDC,SSC,TSC)..5F..(L,X);KUN125..RHD..(SDC,SSC,TSC,TXT)..(L,S,X);GUN122,TGN136..(ADC,TXT)..5F..X..(LA,TH);TGN121,136..(ASC,SDC,SSC,TDC,TSC)..(L,X);GGN120,GUN123,LAN125,TGN110,120..ARL,GCC,IDN,SA;GUN125,135,KUN135..(ADC,TDC)..(L,X)..(GCC,GEN,LA);GUN122,TGN136..(SDC,TDC,TSC)..S..(DCR,HTWC)..(GEN,SA);GUN112,KUN112,126,TGN111,126..(L,X)..(GCC,GEN,IDN,LA,PKN,SA);GUN122,126,KUN125..(ADC,ASC,TDC)..(L,X)..(ARL,GCC,GEN,IDN,LA,PH);GUN125,126,13#,KUN135..(ASC,PDC,PSC,SDC,SSC,TSC)..(L,S,X)..(ARL,BZAGT,GEN,IDN,LA,PKN,SA,TH)

 1
53882K - SEAL, FRONT FENDER
53882-33060

GUN125..TDC..6FC..ARL;KUN126,135..GEN,LA,PKN,SA;TGN136..ADC,ASC,SDC,TDC,TSC,TXT;GUN125..ADC,ASC,SDC,SSC,SXT,TSC,TXT;GUN125..TDC..(GCC,GEN,IDN,LA,PH,TH,VN);GGN12#,135,GUN112,120,135..ADC,ASC,MDC,SDC,SSC,SXT,TDC,TSC,TXT;GUN122,123,126,136,KUN112,122,125,136,LAN125,TGN11#,120,121,126,128,138..ADC,ASC,PDC,PSC,SDC,SSC,SXT,TDC,TSC,TXT

 6
53882K - SEAL, FRONT FENDER
53882-33060

GUN125..TDC..6FC..ARL;KUN126,135..GEN,LA,PKN,SA;TGN136..ADC,ASC,SDC,TDC,TSC,TXT;GUN125..ADC,ASC,SDC,SSC,SXT,TSC,TXT;GUN125..TDC..(GCC,GEN,IDN,LA,PH,TH,VN);GGN12#,135,GUN112,120,135..ADC,ASC,MDC,SDC,SSC,SXT,TDC,TSC,TXT;GUN122,123,126,136,KUN112,122,125,136,LAN125,TGN11#,120,121,126,128,138..ADC,ASC,PDC,PSC,SDC,SSC,SXT,TDC,TSC,TXT

 6
53885G - SEAL SUB-ASSY, FENDER APRON MUDGUARD, RH
53807-0K110

GUN135..TXT..L;GUN125..LHD..TSC;GUN125..TDC..6FC..ARL;KUN125..LHD..(TSC,TXT)..(L,X);GUN122,KUN122,TGN121..PSC,TDC,TSC,TXT;GUN125,KUN125..RHD..(TSC,TXT)..(ARL,GEN,IDN);GUN126,13#,TGN136..(MDC,PDC,PSC,TDC,TSC)..(L,S,X);GUN125,KUN125..TDC..(L,S,X)..(GCC,GEN,IDN,LA,PH,TH,VN);GGN12#,GUN112,120,123,KUN112,126,13#,TGN11#,120,126..(PDC,PSC,TDC,TSC,TXT)..(L,S,X)

 1
53886G - SEAL, FENDER APRON MUDGUARD, LH
53808-0K110

GUN135..TXT..L;GUN125..LHD..TSC;GUN125..TDC..6FC..ARL;KUN125..LHD..(TSC,TXT)..(L,X);GUN122,KUN122,TGN121..PSC,TDC,TSC,TXT;GUN125,KUN125..RHD..(TSC,TXT)..(ARL,GEN,IDN);GUN126,13#,TGN136..(MDC,PDC,PSC,TDC,TSC)..(L,S,X);GUN125,KUN125..TDC..(L,S,X)..(GCC,GEN,IDN,LA,PH,TH,VN);GGN12#,GUN112,120,123,KUN112,126,13#,TGN11#,120,126..(PDC,PSC,TDC,TSC,TXT)..(L,S,X)

 1
53907B - EXTENSION SUB-ASSY, FRONT END PANEL, RH
53907-KK010

TGN126..L,X;TGN136..SDC;GUN125..TSC..LA;TGN136..ADC..X..LA;TGN136..(ASC,TDC,TSC)..X;GUN125..RHD..(SDC,SSC,TSC);GUN125,135..TDC..S..(GCC,PH);KUN125..(ADC,ASC,TDC)..(L,X);KUN125..RHD..(SDC,SSC,TSC,TXT);KUN125..LHD..(SDC,TSC,TXT)..(L,X);KUN125,TGN126..LHD..(SDC,SSC,TSC)..S;GUN126,135,KUN135..(ADC,TDC)..(L,X)..(GEN,LA);GUN126,13#,KUN135..(ASC,PDC,PSC,SDC,SSC,TSC)..(L,S,X);GUN125..LHD..(ASC,SDC,SSC,TSC)..(L,S,X)..(BZAGT,GCC,SA);GUN125,KUN126..(ADC,ASC,PDC,PSC,TDC)..(L,X)..(GCC,GEN,LA,PKN);GGN120,GUN112,122,123,KUN112,122,LAN125,TGN11#,120,121..5F,6FC

 1
53907B - EXTENSION SUB-ASSY, FRONT END PANEL, RH
53907-KK010

TGN126..L,X;TGN136..SDC;GUN125..TSC..LA;TGN136..ADC..X..LA;TGN136..(ASC,TDC,TSC)..X;GUN125..RHD..(SDC,SSC,TSC);GUN125,135..TDC..S..(GCC,PH);KUN125..(ADC,ASC,TDC)..(L,X);KUN125..RHD..(SDC,SSC,TSC,TXT);KUN125..LHD..(SDC,TSC,TXT)..(L,X);KUN125,TGN126..LHD..(SDC,SSC,TSC)..S;GUN126,135,KUN135..(ADC,TDC)..(L,X)..(GEN,LA);GUN126,13#,KUN135..(ASC,PDC,PSC,SDC,SSC,TSC)..(L,S,X);GUN125..LHD..(ASC,SDC,SSC,TSC)..(L,S,X)..(BZAGT,GCC,SA);GUN125,KUN126..(ADC,ASC,PDC,PSC,TDC)..(L,X)..(GCC,GEN,LA,PKN);GGN120,GUN112,122,123,KUN112,122,LAN125,TGN11#,120,121..5F,6FC

 1
53908B - EXTENSION SUB-ASSY, FRONT END PANEL, LH
53908-KK010

TGN126..L,X;TGN136..SDC;GUN125..TSC..LA;TGN136..ADC..X..LA;TGN136..(ASC,TDC,TSC)..X;GUN125..RHD..(SDC,SSC,TSC);GUN125,135..TDC..S..(GCC,PH);KUN125..(ADC,ASC,TDC)..(L,X);KUN125..RHD..(SDC,SSC,TSC,TXT);KUN125..LHD..(SDC,TSC,TXT)..(L,X);KUN125,TGN126..LHD..(SDC,SSC,TSC)..S;GUN126,135,KUN135..(ADC,TDC)..(L,X)..(GEN,LA);GUN126,13#,KUN135..(ASC,PDC,PSC,SDC,SSC,TSC)..(L,S,X);GUN125..LHD..(ASC,SDC,SSC,TSC)..(L,S,X)..(BZAGT,GCC,SA);GUN125,KUN126..(ADC,ASC,PDC,PSC,TDC)..(L,X)..(GCC,GEN,LA,PKN);GGN120,GUN112,122,123,KUN112,122,LAN125,TGN11#,120,121..5F,6FC

 1
53908B - EXTENSION SUB-ASSY, FRONT END PANEL, LH
53908-KK010

TGN126..L,X;TGN136..SDC;GUN125..TSC..LA;TGN136..ADC..X..LA;TGN136..(ASC,TDC,TSC)..X;GUN125..RHD..(SDC,SSC,TSC);GUN125,135..TDC..S..(GCC,PH);KUN125..(ADC,ASC,TDC)..(L,X);KUN125..RHD..(SDC,SSC,TSC,TXT);KUN125..LHD..(SDC,TSC,TXT)..(L,X);KUN125,TGN126..LHD..(SDC,SSC,TSC)..S;GUN126,135,KUN135..(ADC,TDC)..(L,X)..(GEN,LA);GUN126,13#,KUN135..(ASC,PDC,PSC,SDC,SSC,TSC)..(L,S,X);GUN125..LHD..(ASC,SDC,SSC,TSC)..(L,S,X)..(BZAGT,GCC,SA);GUN125,KUN126..(ADC,ASC,PDC,PSC,TDC)..(L,X)..(GCC,GEN,LA,PKN);GGN120,GUN112,122,123,KUN112,122,LAN125,TGN11#,120,121..5F,6FC

 1
Common parts
75875-0K020
90119-T0004
90159-T0034
90467-10204
90950-T6002

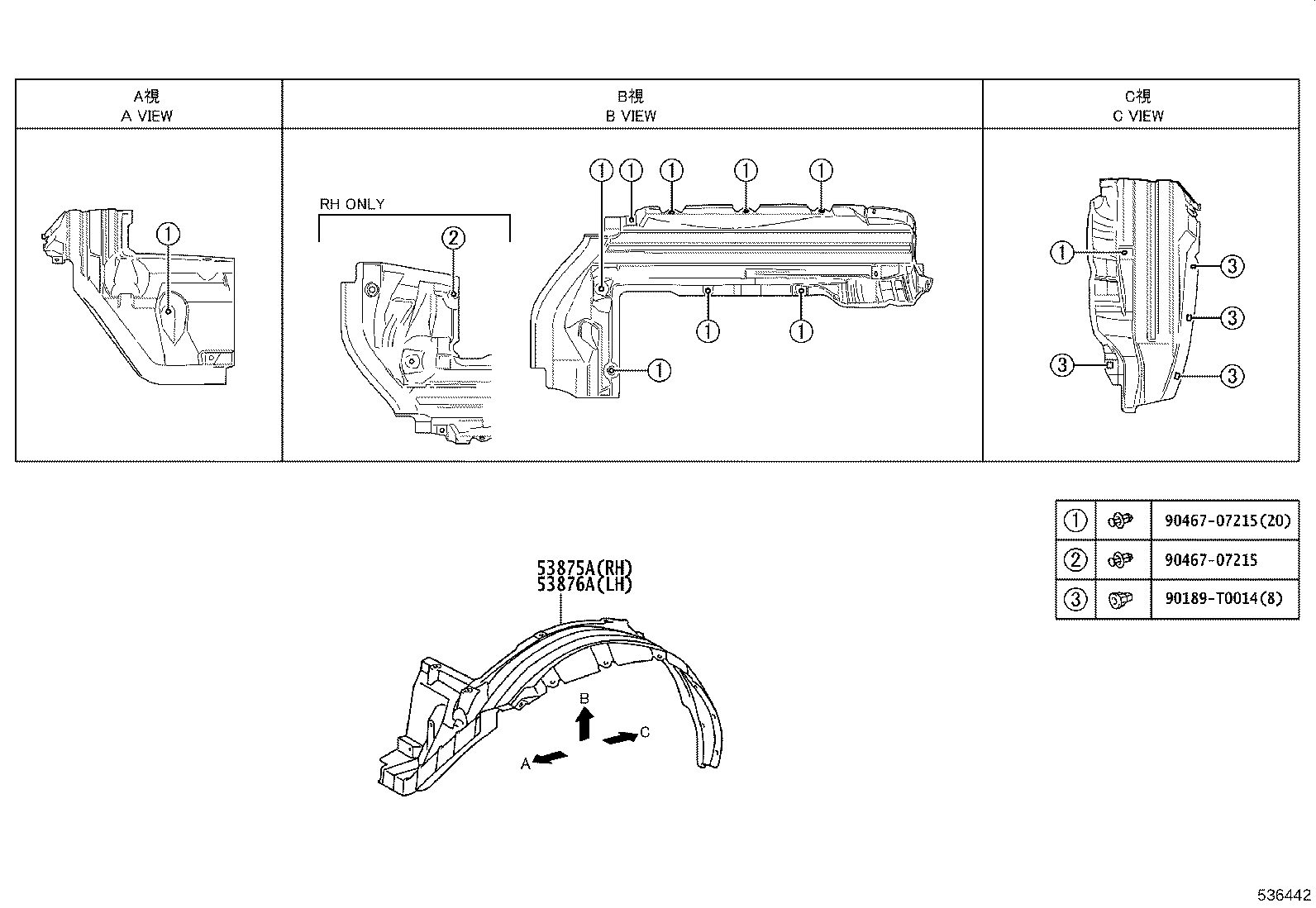

ILLUST NO. 2 OF 2(1505- )

Click highlighted areas on diagram

FENDER LINER W(STEEL BUMPER)

diagram 53875A 53876A 90189T0014 9046707215 9046707215
Part # Description Qty Price
53875A - LINER, FRONT FENDER, RH
53805-0K140

TGN126..IV3;KUN125..X..GEN;TGN136..ADC..X..LA;KUN125..TXT..L..GEN;GUN126..(L,X)..(GEN,LA);KUN125..(L,X)..(IDN,LA);GUN125,135..LHD..TDC..X;TGN136..(ASC,TDC,TSC)..X;GUN125,135..(ADC,ASC,TSC)..X;GUN125,135..TDC..6F..S..(GCC,PH);KUN126,135,TGN126..(5F,5FC,6F)..(L,X)..(GEN,LA,PKN);GUN126,136..(ASC,PDC,PSC,TSC)..(L,S,X)..(ARL,BZAGT,GCC,PKN)

 1
53876A - LINER, FRONT FENDER, LH
53806-0K140

TGN126..IV3;KUN125..X..GEN;TGN136..ADC..X..LA;KUN125..TXT..L..GEN;GUN126..(L,X)..(GEN,LA);KUN125..(L,X)..(IDN,LA);GUN125,135..LHD..TDC..X;TGN136..(ASC,TDC,TSC)..X;GUN125,135..(ADC,ASC,TSC)..X;GUN125,135..TDC..6F..S..(GCC,PH);KUN126,135,TGN126..(5F,5FC,6F)..(L,X)..(GEN,LA,PKN);GUN126,136..(ASC,PDC,PSC,TSC)..(L,S,X)..(ARL,BZAGT,GCC,PKN)

 1
Common parts
90189-T0014
90467-07215
