GUN135L-DTFMHM (2015)
Toyota Hilux
ILLUST NO. 2 OF10(1505- )
TRANSMISSION 1/2
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 33576D - BRACKET, BACK-UP LAMP SWITCH, NO.1 | ||||
| 33576-0K040 |
GUN125..(ADC,ASC,SDC,SSC,SXT,TSC,TXT)..6F;GUN13#..6F..(BZAGT,GEN,LA,MA,PH,SA,TH,VN);GUN125..TDC..6F..(GCC,GEN,IDN,LA,PH,TH,VN);GUN122,126,KUN125,126,13#..(ADC,ASC,PDC,PSC,SDC,SSC,SXT,TDC,TSC,TXT)..6F TYPE B:REFER 33-01 |
1 | ||
| 33576-0K010 |
GUN125..(ADC,ASC,SDC,SSC,SXT,TSC,TXT)..6F;GUN125..TDC..6F..(GCC,GEN,IDN,LA,PH,TH,VN);GUN122,126,13#,KUN125,126,13#..(ADC,ASC,MDC,PDC,PSC,SDC,SSC,SXT,TDC,TSC,TXT)..6F TYPE A:REFER 33-01 |
1 | ||
| 33576E - BRACKET, BACK-UP LAMP SWITCH, NO.2 | ||||
| 33576-0K020 |
GUN125..(ADC,ASC,SDC,SSC,SXT,TSC,TXT)..6F;GUN125..TDC..6F..(GCC,GEN,IDN,LA,PH,TH,VN);GUN122,126,13#,KUN125,126,13#..(ADC,ASC,MDC,PDC,PSC,SDC,SSC,SXT,TDC,TSC,TXT)..6F TYPE A:REFER 33-01 |
1 | ||
| 33576-0K050 |
GUN125..(ADC,ASC,SDC,SSC,SXT,TSC,TXT)..6F;GUN13#..6F..(BZAGT,GEN,LA,MA,PH,SA,TH,VN);GUN125..TDC..6F..(GCC,GEN,IDN,LA,PH,TH,VN);GUN122,126,KUN125,126,13#..(ADC,ASC,PDC,PSC,SDC,SSC,SXT,TDC,TSC,TXT)..6F TYPE B:REFER 33-01 |
1 | ||
| 33576F - BRACKET, BACK-UP LAMP SWITCH, NO.3 | ||||
| 33576-0K060 |
GUN125..(ADC,ASC,SDC,SSC,SXT,TSC,TXT)..6F;GUN13#..6F..(BZAGT,GEN,LA,MA,PH,SA,TH,VN);GUN125..TDC..6F..(GCC,GEN,IDN,LA,PH,TH,VN);GUN122,126,KUN125,126,13#..(ADC,ASC,PDC,PSC,SDC,SSC,SXT,TDC,TSC,TXT)..6F TYPE B:REFER 33-01 |
1 | ||
| 33576-0K030 |
GUN125..(ADC,ASC,SDC,SSC,SXT,TSC,TXT)..6F;GUN125..TDC..6F..(GCC,GEN,IDN,LA,PH,TH,VN);GUN122,126,13#,KUN125,126,13#..(ADC,ASC,MDC,PDC,PSC,SDC,SSC,SXT,TDC,TSC,TXT)..6F TYPE A:REFER 33-01 |
1 | ||
| 84210 - SWITCH ASSY, BACK-UP LAMP | ||||
| 84210-71050 |
GUN125..(ADC,ASC,SDC,SSC,SXT,TSC,TXT)..6F;GUN125..TDC..6F..(GCC,GEN,IDN,LA,PH,TH,VN);GUN122,126,13#,KUN125,126,13#..(ADC,ASC,MDC,PDC,PSC,SDC,SSC,SXT,TDC,TSC,TXT)..6F |
1 | ||
| 84210 - SWITCH ASSY, BACK-UP LAMP | ||||
| 84210-71050 |
GUN125..(ADC,ASC,SDC,SSC,SXT,TSC,TXT)..6F;GUN125..TDC..6F..(GCC,GEN,IDN,LA,PH,TH,VN);GUN122,126,13#,KUN125,126,13#..(ADC,ASC,MDC,PDC,PSC,SDC,SSC,SXT,TDC,TSC,TXT)..6F |
1 | ||
| Common parts | ||||
| 82715-0K680 | ||||
| 82715-71120 | ||||
| 90105-T0070 | ||||
| 90119-08C62 | ||||
| 90430-18008 | ||||
| Linked diagrams | ||||
| 3304 | ||||
ILLUST NO. 2 OF10(1505- )
TRANSMISSION 2/2
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 33576D - BRACKET, BACK-UP LAMP SWITCH, NO.1 | ||||
| 33576-0K040 |
GUN125..(ADC,ASC,SDC,SSC,SXT,TSC,TXT)..6F;GUN13#..6F..(BZAGT,GEN,LA,MA,PH,SA,TH,VN);GUN125..TDC..6F..(GCC,GEN,IDN,LA,PH,TH,VN);GUN122,126,KUN125,126,13#..(ADC,ASC,PDC,PSC,SDC,SSC,SXT,TDC,TSC,TXT)..6F TYPE B:REFER 33-01 |
1 | ||
| 33576-0K010 |
GUN125..(ADC,ASC,SDC,SSC,SXT,TSC,TXT)..6F;GUN125..TDC..6F..(GCC,GEN,IDN,LA,PH,TH,VN);GUN122,126,13#,KUN125,126,13#..(ADC,ASC,MDC,PDC,PSC,SDC,SSC,SXT,TDC,TSC,TXT)..6F TYPE A:REFER 33-01 |
1 | ||
| 33576E - BRACKET, BACK-UP LAMP SWITCH, NO.2 | ||||
| 33576-0K020 |
GUN125..(ADC,ASC,SDC,SSC,SXT,TSC,TXT)..6F;GUN125..TDC..6F..(GCC,GEN,IDN,LA,PH,TH,VN);GUN122,126,13#,KUN125,126,13#..(ADC,ASC,MDC,PDC,PSC,SDC,SSC,SXT,TDC,TSC,TXT)..6F TYPE A:REFER 33-01 |
1 | ||
| 33576-0K050 |
GUN125..(ADC,ASC,SDC,SSC,SXT,TSC,TXT)..6F;GUN13#..6F..(BZAGT,GEN,LA,MA,PH,SA,TH,VN);GUN125..TDC..6F..(GCC,GEN,IDN,LA,PH,TH,VN);GUN122,126,KUN125,126,13#..(ADC,ASC,PDC,PSC,SDC,SSC,SXT,TDC,TSC,TXT)..6F TYPE B:REFER 33-01 |
1 | ||
| 33576F - BRACKET, BACK-UP LAMP SWITCH, NO.3 | ||||
| 33576-0K060 |
GUN125..(ADC,ASC,SDC,SSC,SXT,TSC,TXT)..6F;GUN13#..6F..(BZAGT,GEN,LA,MA,PH,SA,TH,VN);GUN125..TDC..6F..(GCC,GEN,IDN,LA,PH,TH,VN);GUN122,126,KUN125,126,13#..(ADC,ASC,PDC,PSC,SDC,SSC,SXT,TDC,TSC,TXT)..6F TYPE B:REFER 33-01 |
1 | ||
| 33576-0K030 |
GUN125..(ADC,ASC,SDC,SSC,SXT,TSC,TXT)..6F;GUN125..TDC..6F..(GCC,GEN,IDN,LA,PH,TH,VN);GUN122,126,13#,KUN125,126,13#..(ADC,ASC,MDC,PDC,PSC,SDC,SSC,SXT,TDC,TSC,TXT)..6F TYPE A:REFER 33-01 |
1 | ||
| 84210 - SWITCH ASSY, BACK-UP LAMP | ||||
| 84210-71050 |
GUN125..(ADC,ASC,SDC,SSC,SXT,TSC,TXT)..6F;GUN125..TDC..6F..(GCC,GEN,IDN,LA,PH,TH,VN);GUN122,126,13#,KUN125,126,13#..(ADC,ASC,MDC,PDC,PSC,SDC,SSC,SXT,TDC,TSC,TXT)..6F |
1 | ||
| 84210 - SWITCH ASSY, BACK-UP LAMP | ||||
| 84210-71050 |
GUN125..(ADC,ASC,SDC,SSC,SXT,TSC,TXT)..6F;GUN125..TDC..6F..(GCC,GEN,IDN,LA,PH,TH,VN);GUN122,126,13#,KUN125,126,13#..(ADC,ASC,MDC,PDC,PSC,SDC,SSC,SXT,TDC,TSC,TXT)..6F |
1 | ||
| Common parts | ||||
| 82715-0K680 | ||||
| 82715-71120 | ||||
| 90105-T0070 | ||||
| 90119-08C62 | ||||
| 90430-18008 | ||||
| 90430-18032 | ||||
| 90461-08365 | ||||
ILLUST NO. 4 OF10(1505- )GGN12#,135,TGN11#,12#,13#
ENGINE ROOM RELAY BLOCK
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 28300 - RELAY ASSY, STARTER | ||||
| 28300-30050 |
2GDFTV..GUN125..TDC..6FC..ARL;2GDFTV..GUN125..ADC,ASC,SDC,SSC,SXT,TSC,TXT;2GDFTV..GUN125..TDC..(GCC,GEN,IDN,LA,PH,TH,VN);2GDFTV..GUN112,120,135..ADC,ASC,MDC,SDC,SSC,SXT,TDC,TSC,TXT;1GDFTV,2GDFTV,1KDFTV,2KDFTV,5LE..GUN122,123,126,136,KUN112,12#,13#,LAN125..ADC,ASC,PDC,PSC,SDC,SSC,SXT,TDC,TSC,TXT |
1 | ||
| 28610 - RELAY ASSY, INTAKE HEATER OR GLOW PLUG | ||||
| 90987-T2002 |
2GDFTV..GUN125..TDC..6FC..ARL;2GDFTV..GUN125..ADC,ASC,SDC,SSC,SXT,TSC,TXT;2GDFTV..GUN125..TDC..(GCC,GEN,IDN,LA,PH,TH,VN);2GDFTV..GUN135..ARL,BZAGT,GEN,LA,MA,PH,SA,TH,VN;1GDFTV,2GDFTV..GUN112,120,122,123,126,136..ADC,ASC,PDC,PSC,SDC,SSC,SXT,TDC,TSC,TXT (L) |
1 | ||
| 90987-02025 |
2GDFTV..GUN125..TDC..6FC..ARL;2GDFTV..GUN125..ADC,ASC,SDC,SSC,SXT,TSC,TXT;2GDFTV..GUN125..TDC..(GCC,GEN,IDN,LA,PH,TH,VN);2GDFTV..GUN135..ARL,BZAGT,GEN,LA,MA,PH,SA,TH,VN;1GDFTV,2GDFTV..GUN112,120,122,123,126,136..ADC,ASC,PDC,PSC,SDC,SSC,SXT,TDC,TSC,TXT (J) |
1 | ||
| 82210M - FUSIBLE LINK | ||||
| 90982-08286 |
GUN125..S..VN;GUN126..L,S,X;GUN126..6F..M..ARL;GUN125..TDC..6FC..ARL;GUN126..RHD..H..(GEN,PKN);GUN126..6F..H..(BZAGT,TH);GUN135..LHD..(H,L,S)..(GEN,VN);TGN136..ADC,ASC,SDC,TDC,TSC,TXT;GUN135..ARL,BZAGT,LA,MA,PH,SA,TH;GUN126..LHD..6FC..H..(BZAGT,GEN);GGN12#,TGN121..ADC,SDC,SSC,TDC,TSC;GUN125..TDC..(GCC,GEN,IDN,LA,PH,TH);GUN125..ADC,ASC,SDC,SSC,SXT,TSC,TXT;GUN126..TDC..6FC..(H,M)..(ARL,GCC,VN);GUN126..M..(BZAGT,GEN,LA,PH,PKN,SA,TAIW,TH,VN);GGN135,GUN112,120,122,123,136,KUN112,12#,13#,LAN125,TGN11#,120,126,128,138 140A,TERM.:MALE,RBR |
1 | ||
| 82210M - FUSIBLE LINK | ||||
| 90982-08286 |
GUN125..S..VN;GUN126..L,S,X;GUN126..6F..M..ARL;GUN125..TDC..6FC..ARL;GUN126..RHD..H..(GEN,PKN);GUN126..6F..H..(BZAGT,TH);GUN135..LHD..(H,L,S)..(GEN,VN);TGN136..ADC,ASC,SDC,TDC,TSC,TXT;GUN135..ARL,BZAGT,LA,MA,PH,SA,TH;GUN126..LHD..6FC..H..(BZAGT,GEN);GGN12#,TGN121..ADC,SDC,SSC,TDC,TSC;GUN125..TDC..(GCC,GEN,IDN,LA,PH,TH);GUN125..ADC,ASC,SDC,SSC,SXT,TSC,TXT;GUN126..TDC..6FC..(H,M)..(ARL,GCC,VN);GUN126..M..(BZAGT,GEN,LA,PH,PKN,SA,TAIW,TH,VN);GGN135,GUN112,120,122,123,136,KUN112,12#,13#,LAN125,TGN11#,120,126,128,138 140A,TERM.:MALE,RBR |
1 | ||
| 82210P - ENGINE ROOM FUSIBLE LINK | ||||
| 90982-08295 |
GGN12#,135,GUN112,12#,13#,KUN112,12#,13#,LAN125,TGN11#,12#,13# 30A,TERM.:FEMALE,PNK |
1 | ||
| 90982-08299 |
GGN12#,135,GUN112,12#,13#,KUN112,12#,13#,LAN125,TGN11#,12#,13# 40A-40A-40A,FEMALE |
1 | ||
| 90982-08300 |
GGN12#,135,GUN112,12#,13#,KUN112,12#,13#,LAN125,TGN11#,12#,13# 50A-30A-30A,FEMALE |
1 | ||
| 90982-08294 |
GGN12#,135,GUN112,12#,13#,KUN112,12#,13#,LAN125,TGN11#,12#,13# 40A,TERM.:FEMALE,GRN |
1 | ||
| 90982-08302 |
GGN12#,135,GUN112,12#,13#,KUN112,12#,13#,LAN125,TGN11#,12#,13# 50A-30A-50A,FEMALE |
1 | ||
| 90982-08301 |
GGN12#,135,GUN112,12#,13#,KUN112,12#,13#,LAN125,TGN11#,12#,13# 50A-30A-40A,FEMALE |
1 | ||
| 90982-08307 |
GGN12#,135,GUN112,12#,13#,KUN112,12#,13#,LAN125,TGN11#,12#,13# 50A,TERM.:FEMALE,RED,MARK=32V |
1 | ||
| 90982-08303 |
GGN12#,135,GUN112,12#,13#,KUN112,12#,13#,LAN125,TGN11#,12#,13# 50A-50A-50A,FEMALE |
1 | ||
| 90982-08305 |
GGN12#,135,GUN112,12#,13#,KUN112,12#,13#,LAN125,TGN11#,12#,13# 80A,TERM.:FEMALE,BLK |
1 | ||
| 90982-08296 |
GGN12#,135,GUN112,12#,13#,KUN112,12#,13#,LAN125,TGN11#,12#,13# 50A,TERM.:FEMALE,RED,MARK=58V |
1 | ||
| 90982-08304 |
GGN12#,135,GUN112,12#,13#,KUN112,12#,13#,LAN125,TGN11#,12#,13# 60A,TERM.:FEMALE,YEL |
1 | ||
| 90982-08308 |
GGN12#,135,GUN112,12#,13#,KUN112,12#,13#,LAN125,TGN11#,12#,13# 40A-30A-30A,FEMALE |
1 | ||
| 82600E - ENGINE ROOM FUSE | ||||
| 90982-09019 |
GGN12#,135,GUN112,12#,13#,KUN112,12#,13#,LAN125,TGN11#,12#,13# 5A,MINI FUSE,TAN |
1 | ||
| 90982-09021 |
GGN12#,135,GUN112,12#,13#,KUN112,12#,13#,LAN125,TGN11#,12#,13# 10A,MINI FUSE,RED |
1 | ||
| 90982-09020 |
GGN12#,135,GUN112,12#,13#,KUN112,12#,13#,LAN125,TGN11#,12#,13# 7.5A,MINI FUSE,BROWN |
1 | ||
| 90982-09023 |
GGN12#,135,GUN112,12#,13#,KUN112,12#,13#,LAN125,TGN11#,12#,13# 20A,MINI FUSE,YELLOW |
1 | ||
| 90982-09024 |
GGN12#,135,GUN112,12#,13#,KUN112,12#,13#,LAN125,TGN11#,12#,13# 25A,MINI FUSE |
1 | ||
| 90982-09022 |
GGN12#,135,GUN112,12#,13#,KUN112,12#,13#,LAN125,TGN11#,12#,13# 15A,MINI FUSE,BLUE |
1 | ||
| 90982-09025 |
GGN12#,135,GUN112,12#,13#,KUN112,12#,13#,LAN125,TGN11#,12#,13# 30A,MINI FUSE,GRN |
1 | ||
| 82610A - BLOCK ASSY, FUSE | ||||
| 82610-0K030 |
GUN126..L,S,X;GUN126..6F..M..ARL;GUN125..TDC..6FC..ARL;GUN125,135..(L,S)..VN;GUN126..RHD..H..(GEN,PKN);GUN126..6F..H..(BZAGT,TH);TGN136..ADC,ASC,SDC,TDC,TSC,TXT;GUN126..LHD..6FC..H..(BZAGT,GEN);GGN12#,TGN121..ADC,SDC,SSC,TDC,TSC;GUN125..TDC..(GCC,GEN,IDN,LA,PH,TH);GUN125..ADC,ASC,SDC,SSC,SXT,TSC,TXT;GUN135..ARL,BZAGT,GEN,LA,MA,PH,SA,TH;GUN126..TDC..6FC..(H,M)..(ARL,GCC,VN);GUN126..M..(BZAGT,GEN,LA,PH,PKN,SA,TAIW,TH,VN);GGN135,GUN112,120,122,123,136,KUN112,12#,13#,LAN125,TGN11#,120,126,128,138 |
1 | ||
| 82616 - PULLER, FUSE | ||||
| 82616-58010 |
GUN122..6F..(L,S,X);GUN126..6F..ARL..IV3;GUN125..TXT..(GEN,TH);GUN125..6F..(L,M)..GCC;GUN123..(TSC,TXT)..CBU;GUN125..TDC..6F..S..GCC;GUN126..TDC..6F..ARL..CBU;GUN125..(TDC,TXT)..6FC..IV3;GUN125..(TDC,TSC)..6FC..CBU;GUN135,KUN122..(L,M)..(PKN,VN);GUN126..(PDC,TDC,TSC,TXT)..6FC..(H,M,S,X);GUN122,135..(5F,6FC)..(L,S,X)..(GCC,PH,VN);GUN125..(TDC,TSC)..6F..(ARL,GEN,IDN,LA,PH,TH);GUN112,120,13#..(TDC,TSC,TXT)..(ARL,GCC,GEN,LA,PH,TH);GUN126..(PDC,PSC,TDC,TSC,TXT)..6F..(GCC,GEN,LA,PH,PKN,TH) |
1 | ||
| 82616-58010 |
GUN125..MA;GUN136..ADC..LA;GUN136..H..BZAGT;GUN136..6FC..M..BZAGT;GGN12#,135,TGN11#,12#,138;GUN135..(ASC,MDC)..(LA,MA);GUN125,126..ADC..6FC..S..LA;TGN136..ADC,ASC,SDC,TDC,TSC,TXT;GUN126..(ADC,MDC)..(H,X)..(LA,MA) |
1 | ||
| 82616-58010 |
GUN122..M..GCC;GUN126..L..GEN;GUN125..TSC..S..GCC;GUN126..(M,S)..(SA,VN);GUN126..TXT..6F..ARL..CBU;GUN122,125..6F..M..(TH,VN);GUN122..5F..(ARL,PKN,SA,TH);GUN122,135..(S,X)..HDCR..(GEN,SA);GUN125..(SDC,SSC,TSC)..6FC..(ARL,SA);GUN123,135..(TDC,TSC)..MTM..S..(ARL,VN);GUN136,KUN112,122,LAN125..GCC,GEN,IDN,SA;GUN125..(SDC,SSC,SXT,TXT)..6F..(ARL,IDN,SA);KUN125,126,13#..PDC,PSC,SDC,SSC,SXT,TDC,TSC,TXT |
1 | ||
| 82630 - HOLDER ASSY, FUSE | ||||
| 82630-0K020 |
GUN126..L,S,X;GUN126..6F..M..ARL;GUN125..TDC..6FC..ARL;GUN125,135..(L,S)..VN;GUN126..RHD..H..(GEN,PKN);GUN126..6F..H..(BZAGT,TH);TGN136..ADC,ASC,SDC,TDC,TSC,TXT;GUN126..LHD..6FC..H..(BZAGT,GEN);GGN12#,TGN121..ADC,SDC,SSC,TDC,TSC;GUN125..TDC..(GCC,GEN,IDN,LA,PH,TH);GUN125..ADC,ASC,SDC,SSC,SXT,TSC,TXT;GUN135..ARL,BZAGT,GEN,LA,MA,PH,SA,TH;GUN126..TDC..6FC..(H,M)..(ARL,GCC,VN);GUN126..M..(BZAGT,GEN,LA,PH,PKN,SA,TAIW,TH,VN);GGN135,GUN112,120,122,123,136,KUN112,12#,13#,LAN125,TGN11#,120,126,128,138 |
1 | ||
| 82661 - COVER, RELAY BLOCK, NO.1 | ||||
| 82661-0K050 |
GUN126..L,S,X;GUN122..RHD..SA;TGN121..TDC,TSC;GUN126..6F..M..ARL;GUN125..LHD..SSC..X;GUN125..TDC..6FC..ARL;GUN122..PSC,TDC,TSC,TXT;GUN126..RHD..H..(GEN,PKN);GUN126..6F..H..(BZAGT,TH);GUN125..LHD..(SXT,TSC,TXT);GUN126..LHD..6FC..H..(BZAGT,GEN);GUN125..RHD..(SDC,SSC,SXT,TSC,TXT);GUN126..TDC..6FC..(H,M)..(ARL,GCC,VN);GUN125..LHD..(SDC,TDC)..(S,X)..(SA,VN);GGN12#,TGN136..ADC,ASC,SDC,TDC,TSC,TXT;GUN126..M..(BZAGT,GEN,LA,PH,PKN,SA,TAIW,TH,VN);GUN125..(ADC,ASC,TDC)..(BZAGT,GCC,GEN,IDN,LA,PH,TH);GGN135,GUN112,120,123,13#,KUN112,12#,13#,LAN125,TGN11#,120,126,128,138..ADC,ASC,MDC,PDC,PSC,SDC,SSC,SXT,TDC,TSC,TXT |
1 | ||
| 82662A - COVER, RELAY BLOCK, UPPER, NO.1 | ||||
| 82662-0K770 |
GUN112,12#,13#..TDC,TSC,TXT MARK 82662-0K770 |
1 | ||
| 82662-0K480 |
GUN112,12#,13#,KUN112,12#,13#..PDC,PSC,TDC,TSC,TXT |
1 | ||
| 82663 - COVER, RELAY BLOCK, LOWER | ||||
| 82663-0K020 |
GUN126..L,S,X;GUN126..6F..M..ARL;GUN125..TDC..6FC..ARL;GUN125,135..(L,S)..VN;GUN126..RHD..H..(GEN,PKN);GUN126..6F..H..(BZAGT,TH);TGN136..ADC,ASC,SDC,TDC,TSC,TXT;GUN126..LHD..6FC..H..(BZAGT,GEN);GGN12#,TGN121..ADC,SDC,SSC,TDC,TSC;GUN125..TDC..(GCC,GEN,IDN,LA,PH,TH);GUN125..ADC,ASC,SDC,SSC,SXT,TSC,TXT;GUN135..ARL,BZAGT,GEN,LA,MA,PH,SA,TH;GUN126..TDC..6FC..(H,M)..(ARL,GCC,VN);GUN126..M..(BZAGT,GEN,LA,PH,PKN,SA,TAIW,TH,VN);GGN135,GUN112,120,122,123,136,KUN112,12#,13#,LAN125,TGN11#,120,126,128,138 |
1 | ||
| 82666 - HOLDER, CONNECTOR | ||||
| 82666-0K150 |
GUN126..L,S,X;GUN126..6F..M..ARL;GUN125..TDC..6FC..ARL;GUN125,135..(L,S)..VN;GUN126..RHD..H..(GEN,PKN);GUN126..6F..H..(BZAGT,TH);TGN136..ADC,ASC,SDC,TDC,TSC,TXT;GUN126..LHD..6FC..H..(BZAGT,GEN);GGN12#,TGN121..ADC,SDC,SSC,TDC,TSC;GUN125..TDC..(GCC,GEN,IDN,LA,PH,TH);GUN125..ADC,ASC,SDC,SSC,SXT,TSC,TXT;GUN135..ARL,BZAGT,GEN,LA,MA,PH,SA,TH;GUN126..TDC..6FC..(H,M)..(ARL,GCC,VN);GUN126..M..(BZAGT,GEN,LA,PH,PKN,SA,TAIW,TH,VN);GGN135,GUN112,120,122,123,136,KUN112,12#,13#,LAN125,TGN11#,120,126,128,138 |
1 | ||
| 82741 - BLOCK, ENGINE ROOM RELAY | ||||
| 82741-0K020 |
GUN126..L,S,X;GUN126..6F..M..ARL;GUN125..TDC..6FC..ARL;GUN125,135..(L,S)..VN;GUN126..RHD..H..(GEN,PKN);GUN126..6F..H..(BZAGT,TH);TGN136..ADC,ASC,SDC,TDC,TSC,TXT;GUN126..LHD..6FC..H..(BZAGT,GEN);GGN12#,TGN121..ADC,SDC,SSC,TDC,TSC;GUN125..TDC..(GCC,GEN,IDN,LA,PH,TH);GUN125..ADC,ASC,SDC,SSC,SXT,TSC,TXT;GUN135..ARL,BZAGT,GEN,LA,MA,PH,SA,TH;GUN126..TDC..6FC..(H,M)..(ARL,GCC,VN);GUN126..M..(BZAGT,GEN,LA,PH,PKN,SA,TAIW,TH,VN);GGN135,GUN112,120,122,123,136,KUN112,12#,13#,LAN125,TGN11#,120,126,128,138 |
1 | ||
| 85910E - RELAY, INJECTOR | ||||
| 90987-T2001 |
GGN12#,135 (L) |
1 | ||
| 85916P - RELAY, HEADLAMP | ||||
| 90987-T2002 |
GUN125..TDC..6FC..ARL;TGN136..ADC,ASC,SDC,TDC,TSC,TXT;GUN125..ADC,ASC,SDC,SSC,SXT,TSC,TXT;GUN125..TDC..(GCC,GEN,IDN,LA,PH,TH,VN);GGN12#,135,GUN112,135..ADC,ASC,MDC,SDC,SSC,SXT,TDC,TSC,TXT;GUN120,122,123,126,136,KUN112,12#,13#,LAN125,TGN11#,120,121,126,128,138..ADC,ASC,PDC,PSC,SDC,SSC,SXT,TDC,TSC,TXT |
1 | ||
| 85919E - RELAY, STOP LAMP | ||||
| 90987-04004 |
GUN135;KUN122..LHD;TGN136..M,X;KUN125..LHD..SDC..S;KUN122..TSC..L..GEN;KUN122..RHD..(S,X)..GEN;KUN126..(ADC,TDC)..(L,M,S,X);KUN125..(H,S,X)..(GEN,IDN,LA);GUN125,KUN126..LHD..(H,X)..GEN;GUN126..LHD..(ADC,TDC)..(L,S,X);KUN135,TGN121..GCC,GEN,LA,TH,VN;KUN125..LHD..(SSC,TDC)..(GCC,SA);KUN125..RHD..(TDC,TXT)..6F..(L,M);GUN125,TGN136..RHD..(GEN,MA,SA,TH);KUN125,126..LHD..(SDC,TXT)..(L,M,X);GUN125,TGN126..LHD..(BZAGT,GCC,LA,SA);GUN136..(ADC,SSC,TDC,TXT)..(BZAGT,SA,TH);GUN126..(ASC,SSC,TDC,TSC,TXT)..6F..(BZAGT,PH,SA,TH,VN);GUN126,KUN125..LHD..(ADC,TDC)..M..(DCR,IART)..(BZAGT,GEN);GUN112,122,123,KUN112,136,TGN11#,120,128,138..(DCR,HTWC,HTWCF)..(BZAGT,GCC,GEN,IDN,LA,PH,SA,TH) VEHICLE STABILITY CONTROL-W(*HSAC & TRAILER SWAY CONTROL) |
1 | ||
| 85926 - RELAY, HEADLAMP DIMMER | ||||
| 90987-T2002 |
GUN136..H..BZAGT;GUN126..M..(ARL,TAIW);GUN136..RHD..TDC..(H,M);GGN125..(H,M)..(ARL,BZAGT,LA);GUN125,126,135,KUN125,126,135..(ADC,PDC,TDC)..H |
1 | ||
| 90987-T2003 |
GUN126..L,S,X;GUN136..TDC..S;TGN136..ADC,ASC,SDC,TDC,TSC,TXT;GGN125,GUN125..TDC..6FC..(S,X)..ARL;GUN126..M..(BZAGT,GCC,GEN,LA,PH,PKN,SA,TH,VN);GUN135..(L,M,S,X)..(ARL,BZAGT,GEN,LA,MA,PH,SA,TH,VN);GUN125,136..(ADC,ASC,SDC,SSC,SXT,TSC,TXT)..(L,M,S,X);GUN125,136..TDC..(L,M,S,X)..(GCC,GEN,IDN,LA,PH,TH,VN);GGN125,KUN125,126,135..(L,M,S,X)..(GCC,GEN,IDN,LA,PKN,SA,VN);GGN120,135,GUN112,120,122,123,KUN112,122,136,LAN125,TGN11#,120,121,126,128,138 |
1 | ||
| 86530 - RELAY ASSY, HORN | ||||
| 90987-T2001 |
GUN125..TDC..6FC..ARL;TGN136..ADC,ASC,SDC,TDC,TSC,TXT;GUN125..ADC,ASC,SDC,SSC,SXT,TSC,TXT;GUN125..TDC..(GCC,GEN,IDN,LA,PH,TH,VN);GUN135..ARL,BZAGT,GEN,LA,MA,PH,SA,TH,VN;GUN126,136,KUN125,126,13#..ADC,ASC,PDC,PSC,SDC,SSC,SXT,TDC,TSC,TXT;GGN12#,135,GUN112,122,123,KUN112,122,LAN125,TGN11#,120,121,126,128,138..(ADC,ASC,PSC,SDC,SSC,TDC,TSC,TXT)..(5F,6FC) |
1 | ||
| Common parts | ||||
| 90119-T0313 | ||||
| Linked diagrams | ||||
| 8404 | ||||
ILLUST NO. 4 OF10(1505- )GUN112,12#,13#,KUN112,12#,13#,LAN125
ENGINE ROOM RELAY BLOCK
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 28300 - RELAY ASSY, STARTER | ||||
| 28300-30050 |
2GDFTV..GUN125..TDC..6FC..ARL;2GDFTV..GUN125..ADC,ASC,SDC,SSC,SXT,TSC,TXT;2GDFTV..GUN125..TDC..(GCC,GEN,IDN,LA,PH,TH,VN);2GDFTV..GUN112,120,135..ADC,ASC,MDC,SDC,SSC,SXT,TDC,TSC,TXT;1GDFTV,2GDFTV,1KDFTV,2KDFTV,5LE..GUN122,123,126,136,KUN112,12#,13#,LAN125..ADC,ASC,PDC,PSC,SDC,SSC,SXT,TDC,TSC,TXT |
1 | ||
| 28610 - RELAY ASSY, INTAKE HEATER OR GLOW PLUG | ||||
| 90987-T2002 |
2GDFTV..GUN125..TDC..6FC..ARL;2GDFTV..GUN125..ADC,ASC,SDC,SSC,SXT,TSC,TXT;2GDFTV..GUN125..TDC..(GCC,GEN,IDN,LA,PH,TH,VN);2GDFTV..GUN135..ARL,BZAGT,GEN,LA,MA,PH,SA,TH,VN;1GDFTV,2GDFTV..GUN112,120,122,123,126,136..ADC,ASC,PDC,PSC,SDC,SSC,SXT,TDC,TSC,TXT (L) |
1 | ||
| 90987-02025 |
2GDFTV..GUN125..TDC..6FC..ARL;2GDFTV..GUN125..ADC,ASC,SDC,SSC,SXT,TSC,TXT;2GDFTV..GUN125..TDC..(GCC,GEN,IDN,LA,PH,TH,VN);2GDFTV..GUN135..ARL,BZAGT,GEN,LA,MA,PH,SA,TH,VN;1GDFTV,2GDFTV..GUN112,120,122,123,126,136..ADC,ASC,PDC,PSC,SDC,SSC,SXT,TDC,TSC,TXT (J) |
1 | ||
| 82210M - FUSIBLE LINK | ||||
| 90982-08286 |
GUN125..S..VN;GUN126..L,S,X;GUN126..6F..M..ARL;GUN125..TDC..6FC..ARL;GUN126..RHD..H..(GEN,PKN);GUN126..6F..H..(BZAGT,TH);GUN135..LHD..(H,L,S)..(GEN,VN);TGN136..ADC,ASC,SDC,TDC,TSC,TXT;GUN135..ARL,BZAGT,LA,MA,PH,SA,TH;GUN126..LHD..6FC..H..(BZAGT,GEN);GGN12#,TGN121..ADC,SDC,SSC,TDC,TSC;GUN125..TDC..(GCC,GEN,IDN,LA,PH,TH);GUN125..ADC,ASC,SDC,SSC,SXT,TSC,TXT;GUN126..TDC..6FC..(H,M)..(ARL,GCC,VN);GUN126..M..(BZAGT,GEN,LA,PH,PKN,SA,TAIW,TH,VN);GGN135,GUN112,120,122,123,136,KUN112,12#,13#,LAN125,TGN11#,120,126,128,138 140A,TERM.:MALE,RBR |
1 | ||
| 82210M - FUSIBLE LINK | ||||
| 90982-08286 |
GUN125..S..VN;GUN126..L,S,X;GUN126..6F..M..ARL;GUN125..TDC..6FC..ARL;GUN126..RHD..H..(GEN,PKN);GUN126..6F..H..(BZAGT,TH);GUN135..LHD..(H,L,S)..(GEN,VN);TGN136..ADC,ASC,SDC,TDC,TSC,TXT;GUN135..ARL,BZAGT,LA,MA,PH,SA,TH;GUN126..LHD..6FC..H..(BZAGT,GEN);GGN12#,TGN121..ADC,SDC,SSC,TDC,TSC;GUN125..TDC..(GCC,GEN,IDN,LA,PH,TH);GUN125..ADC,ASC,SDC,SSC,SXT,TSC,TXT;GUN126..TDC..6FC..(H,M)..(ARL,GCC,VN);GUN126..M..(BZAGT,GEN,LA,PH,PKN,SA,TAIW,TH,VN);GGN135,GUN112,120,122,123,136,KUN112,12#,13#,LAN125,TGN11#,120,126,128,138 140A,TERM.:MALE,RBR |
1 | ||
| 82210P - ENGINE ROOM FUSIBLE LINK | ||||
| 90982-08295 |
GGN12#,135,GUN112,12#,13#,KUN112,12#,13#,LAN125,TGN11#,12#,13# 30A,TERM.:FEMALE,PNK |
1 | ||
| 90982-08299 |
GGN12#,135,GUN112,12#,13#,KUN112,12#,13#,LAN125,TGN11#,12#,13# 40A-40A-40A,FEMALE |
1 | ||
| 90982-08300 |
GGN12#,135,GUN112,12#,13#,KUN112,12#,13#,LAN125,TGN11#,12#,13# 50A-30A-30A,FEMALE |
1 | ||
| 90982-08294 |
GGN12#,135,GUN112,12#,13#,KUN112,12#,13#,LAN125,TGN11#,12#,13# 40A,TERM.:FEMALE,GRN |
1 | ||
| 90982-08302 |
GGN12#,135,GUN112,12#,13#,KUN112,12#,13#,LAN125,TGN11#,12#,13# 50A-30A-50A,FEMALE |
1 | ||
| 90982-08301 |
GGN12#,135,GUN112,12#,13#,KUN112,12#,13#,LAN125,TGN11#,12#,13# 50A-30A-40A,FEMALE |
1 | ||
| 90982-08307 |
GGN12#,135,GUN112,12#,13#,KUN112,12#,13#,LAN125,TGN11#,12#,13# 50A,TERM.:FEMALE,RED,MARK=32V |
1 | ||
| 90982-08303 |
GGN12#,135,GUN112,12#,13#,KUN112,12#,13#,LAN125,TGN11#,12#,13# 50A-50A-50A,FEMALE |
1 | ||
| 90982-08305 |
GGN12#,135,GUN112,12#,13#,KUN112,12#,13#,LAN125,TGN11#,12#,13# 80A,TERM.:FEMALE,BLK |
1 | ||
| 90982-08296 |
GGN12#,135,GUN112,12#,13#,KUN112,12#,13#,LAN125,TGN11#,12#,13# 50A,TERM.:FEMALE,RED,MARK=58V |
1 | ||
| 90982-08304 |
GGN12#,135,GUN112,12#,13#,KUN112,12#,13#,LAN125,TGN11#,12#,13# 60A,TERM.:FEMALE,YEL |
1 | ||
| 90982-08308 |
GGN12#,135,GUN112,12#,13#,KUN112,12#,13#,LAN125,TGN11#,12#,13# 40A-30A-30A,FEMALE |
1 | ||
| 82600E - ENGINE ROOM FUSE | ||||
| 90982-09019 |
GGN12#,135,GUN112,12#,13#,KUN112,12#,13#,LAN125,TGN11#,12#,13# 5A,MINI FUSE,TAN |
1 | ||
| 90982-09021 |
GGN12#,135,GUN112,12#,13#,KUN112,12#,13#,LAN125,TGN11#,12#,13# 10A,MINI FUSE,RED |
1 | ||
| 90982-09020 |
GGN12#,135,GUN112,12#,13#,KUN112,12#,13#,LAN125,TGN11#,12#,13# 7.5A,MINI FUSE,BROWN |
1 | ||
| 90982-09023 |
GGN12#,135,GUN112,12#,13#,KUN112,12#,13#,LAN125,TGN11#,12#,13# 20A,MINI FUSE,YELLOW |
1 | ||
| 90982-09024 |
GGN12#,135,GUN112,12#,13#,KUN112,12#,13#,LAN125,TGN11#,12#,13# 25A,MINI FUSE |
1 | ||
| 90982-09022 |
GGN12#,135,GUN112,12#,13#,KUN112,12#,13#,LAN125,TGN11#,12#,13# 15A,MINI FUSE,BLUE |
1 | ||
| 90982-09025 |
GGN12#,135,GUN112,12#,13#,KUN112,12#,13#,LAN125,TGN11#,12#,13# 30A,MINI FUSE,GRN |
1 | ||
| 82610A - BLOCK ASSY, FUSE | ||||
| 82610-0K030 |
GUN126..L,S,X;GUN126..6F..M..ARL;GUN125..TDC..6FC..ARL;GUN125,135..(L,S)..VN;GUN126..RHD..H..(GEN,PKN);GUN126..6F..H..(BZAGT,TH);TGN136..ADC,ASC,SDC,TDC,TSC,TXT;GUN126..LHD..6FC..H..(BZAGT,GEN);GGN12#,TGN121..ADC,SDC,SSC,TDC,TSC;GUN125..TDC..(GCC,GEN,IDN,LA,PH,TH);GUN125..ADC,ASC,SDC,SSC,SXT,TSC,TXT;GUN135..ARL,BZAGT,GEN,LA,MA,PH,SA,TH;GUN126..TDC..6FC..(H,M)..(ARL,GCC,VN);GUN126..M..(BZAGT,GEN,LA,PH,PKN,SA,TAIW,TH,VN);GGN135,GUN112,120,122,123,136,KUN112,12#,13#,LAN125,TGN11#,120,126,128,138 |
1 | ||
| 82616 - PULLER, FUSE | ||||
| 82616-58010 |
GUN122..6F..(L,S,X);GUN126..6F..ARL..IV3;GUN125..TXT..(GEN,TH);GUN125..6F..(L,M)..GCC;GUN123..(TSC,TXT)..CBU;GUN125..TDC..6F..S..GCC;GUN126..TDC..6F..ARL..CBU;GUN125..(TDC,TXT)..6FC..IV3;GUN125..(TDC,TSC)..6FC..CBU;GUN135,KUN122..(L,M)..(PKN,VN);GUN126..(PDC,TDC,TSC,TXT)..6FC..(H,M,S,X);GUN122,135..(5F,6FC)..(L,S,X)..(GCC,PH,VN);GUN125..(TDC,TSC)..6F..(ARL,GEN,IDN,LA,PH,TH);GUN112,120,13#..(TDC,TSC,TXT)..(ARL,GCC,GEN,LA,PH,TH);GUN126..(PDC,PSC,TDC,TSC,TXT)..6F..(GCC,GEN,LA,PH,PKN,TH) |
1 | ||
| 82616-58010 |
GUN125..MA;GUN136..ADC..LA;GUN136..H..BZAGT;GUN136..6FC..M..BZAGT;GGN12#,135,TGN11#,12#,138;GUN135..(ASC,MDC)..(LA,MA);GUN125,126..ADC..6FC..S..LA;TGN136..ADC,ASC,SDC,TDC,TSC,TXT;GUN126..(ADC,MDC)..(H,X)..(LA,MA) |
1 | ||
| 82616-58010 |
GUN122..M..GCC;GUN126..L..GEN;GUN125..TSC..S..GCC;GUN126..(M,S)..(SA,VN);GUN126..TXT..6F..ARL..CBU;GUN122,125..6F..M..(TH,VN);GUN122..5F..(ARL,PKN,SA,TH);GUN122,135..(S,X)..HDCR..(GEN,SA);GUN125..(SDC,SSC,TSC)..6FC..(ARL,SA);GUN123,135..(TDC,TSC)..MTM..S..(ARL,VN);GUN136,KUN112,122,LAN125..GCC,GEN,IDN,SA;GUN125..(SDC,SSC,SXT,TXT)..6F..(ARL,IDN,SA);KUN125,126,13#..PDC,PSC,SDC,SSC,SXT,TDC,TSC,TXT |
1 | ||
| 82630 - HOLDER ASSY, FUSE | ||||
| 82630-0K020 |
GUN126..L,S,X;GUN126..6F..M..ARL;GUN125..TDC..6FC..ARL;GUN125,135..(L,S)..VN;GUN126..RHD..H..(GEN,PKN);GUN126..6F..H..(BZAGT,TH);TGN136..ADC,ASC,SDC,TDC,TSC,TXT;GUN126..LHD..6FC..H..(BZAGT,GEN);GGN12#,TGN121..ADC,SDC,SSC,TDC,TSC;GUN125..TDC..(GCC,GEN,IDN,LA,PH,TH);GUN125..ADC,ASC,SDC,SSC,SXT,TSC,TXT;GUN135..ARL,BZAGT,GEN,LA,MA,PH,SA,TH;GUN126..TDC..6FC..(H,M)..(ARL,GCC,VN);GUN126..M..(BZAGT,GEN,LA,PH,PKN,SA,TAIW,TH,VN);GGN135,GUN112,120,122,123,136,KUN112,12#,13#,LAN125,TGN11#,120,126,128,138 |
1 | ||
| 82661 - COVER, RELAY BLOCK, NO.1 | ||||
| 82661-0K050 |
GUN126..L,S,X;GUN122..RHD..SA;TGN121..TDC,TSC;GUN126..6F..M..ARL;GUN125..LHD..SSC..X;GUN125..TDC..6FC..ARL;GUN122..PSC,TDC,TSC,TXT;GUN126..RHD..H..(GEN,PKN);GUN126..6F..H..(BZAGT,TH);GUN125..LHD..(SXT,TSC,TXT);GUN126..LHD..6FC..H..(BZAGT,GEN);GUN125..RHD..(SDC,SSC,SXT,TSC,TXT);GUN126..TDC..6FC..(H,M)..(ARL,GCC,VN);GUN125..LHD..(SDC,TDC)..(S,X)..(SA,VN);GGN12#,TGN136..ADC,ASC,SDC,TDC,TSC,TXT;GUN126..M..(BZAGT,GEN,LA,PH,PKN,SA,TAIW,TH,VN);GUN125..(ADC,ASC,TDC)..(BZAGT,GCC,GEN,IDN,LA,PH,TH);GGN135,GUN112,120,123,13#,KUN112,12#,13#,LAN125,TGN11#,120,126,128,138..ADC,ASC,MDC,PDC,PSC,SDC,SSC,SXT,TDC,TSC,TXT |
1 | ||
| 82662A - COVER, RELAY BLOCK, UPPER, NO.1 | ||||
| 82662-0K770 |
GUN112,12#,13#..TDC,TSC,TXT MARK 82662-0K770 |
1 | ||
| 82662-0K480 |
GUN112,12#,13#,KUN112,12#,13#..PDC,PSC,TDC,TSC,TXT |
1 | ||
| 82663 - COVER, RELAY BLOCK, LOWER | ||||
| 82663-0K020 |
GUN126..L,S,X;GUN126..6F..M..ARL;GUN125..TDC..6FC..ARL;GUN125,135..(L,S)..VN;GUN126..RHD..H..(GEN,PKN);GUN126..6F..H..(BZAGT,TH);TGN136..ADC,ASC,SDC,TDC,TSC,TXT;GUN126..LHD..6FC..H..(BZAGT,GEN);GGN12#,TGN121..ADC,SDC,SSC,TDC,TSC;GUN125..TDC..(GCC,GEN,IDN,LA,PH,TH);GUN125..ADC,ASC,SDC,SSC,SXT,TSC,TXT;GUN135..ARL,BZAGT,GEN,LA,MA,PH,SA,TH;GUN126..TDC..6FC..(H,M)..(ARL,GCC,VN);GUN126..M..(BZAGT,GEN,LA,PH,PKN,SA,TAIW,TH,VN);GGN135,GUN112,120,122,123,136,KUN112,12#,13#,LAN125,TGN11#,120,126,128,138 |
1 | ||
| 82666 - HOLDER, CONNECTOR | ||||
| 82666-0K150 |
GUN126..L,S,X;GUN126..6F..M..ARL;GUN125..TDC..6FC..ARL;GUN125,135..(L,S)..VN;GUN126..RHD..H..(GEN,PKN);GUN126..6F..H..(BZAGT,TH);TGN136..ADC,ASC,SDC,TDC,TSC,TXT;GUN126..LHD..6FC..H..(BZAGT,GEN);GGN12#,TGN121..ADC,SDC,SSC,TDC,TSC;GUN125..TDC..(GCC,GEN,IDN,LA,PH,TH);GUN125..ADC,ASC,SDC,SSC,SXT,TSC,TXT;GUN135..ARL,BZAGT,GEN,LA,MA,PH,SA,TH;GUN126..TDC..6FC..(H,M)..(ARL,GCC,VN);GUN126..M..(BZAGT,GEN,LA,PH,PKN,SA,TAIW,TH,VN);GGN135,GUN112,120,122,123,136,KUN112,12#,13#,LAN125,TGN11#,120,126,128,138 |
1 | ||
| 82741 - BLOCK, ENGINE ROOM RELAY | ||||
| 82741-0K020 |
GUN126..L,S,X;GUN126..6F..M..ARL;GUN125..TDC..6FC..ARL;GUN125,135..(L,S)..VN;GUN126..RHD..H..(GEN,PKN);GUN126..6F..H..(BZAGT,TH);TGN136..ADC,ASC,SDC,TDC,TSC,TXT;GUN126..LHD..6FC..H..(BZAGT,GEN);GGN12#,TGN121..ADC,SDC,SSC,TDC,TSC;GUN125..TDC..(GCC,GEN,IDN,LA,PH,TH);GUN125..ADC,ASC,SDC,SSC,SXT,TSC,TXT;GUN135..ARL,BZAGT,GEN,LA,MA,PH,SA,TH;GUN126..TDC..6FC..(H,M)..(ARL,GCC,VN);GUN126..M..(BZAGT,GEN,LA,PH,PKN,SA,TAIW,TH,VN);GGN135,GUN112,120,122,123,136,KUN112,12#,13#,LAN125,TGN11#,120,126,128,138 |
1 | ||
| 85916P - RELAY, HEADLAMP | ||||
| 90987-T2002 |
GUN125..TDC..6FC..ARL;TGN136..ADC,ASC,SDC,TDC,TSC,TXT;GUN125..ADC,ASC,SDC,SSC,SXT,TSC,TXT;GUN125..TDC..(GCC,GEN,IDN,LA,PH,TH,VN);GGN12#,135,GUN112,135..ADC,ASC,MDC,SDC,SSC,SXT,TDC,TSC,TXT;GUN120,122,123,126,136,KUN112,12#,13#,LAN125,TGN11#,120,121,126,128,138..ADC,ASC,PDC,PSC,SDC,SSC,SXT,TDC,TSC,TXT |
1 | ||
| 85919E - RELAY, STOP LAMP | ||||
| 90987-04004 |
GUN135;KUN122..LHD;TGN136..M,X;KUN125..LHD..SDC..S;KUN122..TSC..L..GEN;KUN122..RHD..(S,X)..GEN;KUN126..(ADC,TDC)..(L,M,S,X);KUN125..(H,S,X)..(GEN,IDN,LA);GUN125,KUN126..LHD..(H,X)..GEN;GUN126..LHD..(ADC,TDC)..(L,S,X);KUN135,TGN121..GCC,GEN,LA,TH,VN;KUN125..LHD..(SSC,TDC)..(GCC,SA);KUN125..RHD..(TDC,TXT)..6F..(L,M);GUN125,TGN136..RHD..(GEN,MA,SA,TH);KUN125,126..LHD..(SDC,TXT)..(L,M,X);GUN125,TGN126..LHD..(BZAGT,GCC,LA,SA);GUN136..(ADC,SSC,TDC,TXT)..(BZAGT,SA,TH);GUN126..(ASC,SSC,TDC,TSC,TXT)..6F..(BZAGT,PH,SA,TH,VN);GUN126,KUN125..LHD..(ADC,TDC)..M..(DCR,IART)..(BZAGT,GEN);GUN112,122,123,KUN112,136,TGN11#,120,128,138..(DCR,HTWC,HTWCF)..(BZAGT,GCC,GEN,IDN,LA,PH,SA,TH) VEHICLE STABILITY CONTROL-W(*HSAC & TRAILER SWAY CONTROL) |
1 | ||
| 85926 - RELAY, HEADLAMP DIMMER | ||||
| 90987-T2002 |
GUN136..H..BZAGT;GUN126..M..(ARL,TAIW);GUN136..RHD..TDC..(H,M);GGN125..(H,M)..(ARL,BZAGT,LA);GUN125,126,135,KUN125,126,135..(ADC,PDC,TDC)..H |
1 | ||
| 90987-T2003 |
GUN126..L,S,X;GUN136..TDC..S;TGN136..ADC,ASC,SDC,TDC,TSC,TXT;GGN125,GUN125..TDC..6FC..(S,X)..ARL;GUN126..M..(BZAGT,GCC,GEN,LA,PH,PKN,SA,TH,VN);GUN135..(L,M,S,X)..(ARL,BZAGT,GEN,LA,MA,PH,SA,TH,VN);GUN125,136..(ADC,ASC,SDC,SSC,SXT,TSC,TXT)..(L,M,S,X);GUN125,136..TDC..(L,M,S,X)..(GCC,GEN,IDN,LA,PH,TH,VN);GGN125,KUN125,126,135..(L,M,S,X)..(GCC,GEN,IDN,LA,PKN,SA,VN);GGN120,135,GUN112,120,122,123,KUN112,122,136,LAN125,TGN11#,120,121,126,128,138 |
1 | ||
| 86530 - RELAY ASSY, HORN | ||||
| 90987-T2001 |
GUN125..TDC..6FC..ARL;TGN136..ADC,ASC,SDC,TDC,TSC,TXT;GUN125..ADC,ASC,SDC,SSC,SXT,TSC,TXT;GUN125..TDC..(GCC,GEN,IDN,LA,PH,TH,VN);GUN135..ARL,BZAGT,GEN,LA,MA,PH,SA,TH,VN;GUN126,136,KUN125,126,13#..ADC,ASC,PDC,PSC,SDC,SSC,SXT,TDC,TSC,TXT;GGN12#,135,GUN112,122,123,KUN112,122,LAN125,TGN11#,120,121,126,128,138..(ADC,ASC,PSC,SDC,SSC,TDC,TSC,TXT)..(5F,6FC) |
1 | ||
| Common parts | ||||
| 90119-T0313 | ||||
| Linked diagrams | ||||
| 8405 | ||||
ILLUST NO. 8 OF10(1505- )
STEERING
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 84052 - SWITCH ASSY, UN-LOCK WARNING | ||||
| 84052-0K020 |
GUN13#..M..(PH,TH,VN);GUN126,TGN126..(TDC,TXT)..M..(LA,PH,TH) WIRELESS DOOR LOCK-WITH(*SES & ANSWER BACK & PANIC BUTTON) |
1 | ||
| 84052-0K020 |
GUN126..L,S,X;GUN135..L..MA;GUN136..TDC..S;KUN126..LA,PKN,SA;GGN120,135,GUN112,120,122;KUN126..(L,M,S)..(GEN,VN);GGN125,GUN125..TDC..6FC..(S,X)..ARL;GUN126..M..(BZAGT,GCC,GEN,LA,PH,PKN,SA,TH,VN);GUN125,136..(ADC,ASC,SDC,SSC,SXT,TSC,TXT)..(L,M,S,X);GUN125,136..TDC..(L,M,S,X)..(GCC,GEN,IDN,LA,PH,TH,VN);GGN125,TGN136..(ADC,ASC,SDC,TDC,TSC,TXT)..(M,S,X)..(BZAGT,GCC,GEN,LA,SA,TH);GUN123,135,KUN112,122,125,13#,LAN125,TGN11#,120,121,126,128,138..(ADC,ASC,PSC,SDC,SSC,SXT,TDC,TSC,TXT)..(L,M,S,X) |
1 | ||
| 84140 - SWITCH ASSY, HEADLAMP DIMMER | ||||
| 84140-0K460 |
GUN135..LHD..(H,M);GUN126,KUN126,135..LHD..H..GEN;GUN125,126,136,KUN126,136,TGN126,136..TDC..M..(LA,PH,VN) |
1 | ||
| 84140-0K620 |
GUN126,135..M..PH HEADLAMP-LED&HEADLAMP LEVELING DEVICE-WITH(AUTO) |
1 | ||
| 84140 - SWITCH ASSY, HEADLAMP DIMMER | ||||
| 84140-0K460 |
GUN135..LHD..(H,M);GUN126,KUN126,135..LHD..H..GEN;GUN125,126,136,KUN126,136,TGN126,136..TDC..M..(LA,PH,VN) |
1 | ||
| 84140-0K620 |
GUN126,135..M..PH HEADLAMP-LED&HEADLAMP LEVELING DEVICE-WITH(AUTO) |
1 | ||
| 84250A - SWITCH ASSY, STEERING PAD | ||||
| 84250-0K310C0 |
GUN122,126,13#,KUN125,126..(H,M)..(IDN,PH,TH,VN) BLACK,TRIM2#,4# |
1 | ||
| 84250-0K310C1 |
GUN126..(H,M)..(PH,TH);GUN126..LHD..6F..M..GEN;GUN13#..(H,M)..(PH,TH,VN);GUN125..RHD..TDC..(H,M)..GEN;GUN126,TGN126..LHD..TDC..6FC..(H,M)..(GEN,LA,VN) BLACK/SILVER 21SV85,TRIM2#,4# |
1 | ||
| 84250-0K310C1 |
GUN126..LHD..6F..M..GEN;GUN125..RHD..TDC..(H,M)..GEN;GUN126,13#..(H,M)..(PH,TH,VN);GUN126..LHD..TDC..6FC..(H,M)..(GEN,LA) BLACK/SILVER 21SV85,TRIM20,4# |
1 | ||
| 84306 - CABLE SUB-ASSY, SPIRAL | ||||
| 84308-0K010 |
TGN138..L;GUN135..L..TH;GUN125..LHD..(SXT,TXT);GUN126,KUN126..LHD..SA;GUN126..TDC..6F..(PH,TH);TGN126..(M,S)..(BZAGT,SA);GUN126..(S,X)..(GEN,SA,TH);GUN126,KUN126..LHD..H..GEN;GUN122,TGN121..RHD..5F..(SA,TH);KUN125,135..(H,S)..(GEN,IDN,LA,VN);GUN122,KUN122..LHD..(M,S)..DCR..GEN;GUN125,135,TGN136..M..(BZAGT,LA,VN);GUN125..LHD..(SDC,TDC)..S..(PH,SA,VN);KUN125,TGN138..(ADC,SDC,TDC,TXT)..MTM..M;KUN122,TGN136..RHD..(SDC,TDC,TSC,TXT)..S;GUN126..(SSC,TDC,TXT)..M..(GEN,SA,TH,VN);GUN125,136..RHD..(H,S)..(GEN,IDN,MA,SA,TH);GUN125,136..RHD..(SSC,TDC,TXT)..M..(GEN,SA,TH);GUN122,135..(6F,6FC)..(H,M,S)..(GEN,MA,PH,SA,TH);GUN135,KUN125..LHD..(SDC,SSC,TDC)..6F..S..(SA,VN);GUN126,KUN112,126..(ADC,TDC,TSC)..(5F,5FC,6F)..(M,S)..(DCR,IART);GUN112,123,136,KUN136,TGN120..(DCR,HTWC,IART)..(BZAGT,GEN,LA,SA,TH) VEHICLE STABILITY CONTROL-W(*HSAC & TRAILER SWAY CONTROL) |
1 | ||
| 84306-0K120 |
TGN138..L;GUN135..L..TH;GUN126..H..GEN;KUN125..RHD..X..SA;KUN125..6F..(H,M,S);GUN135..6F..S..(PH,VN);GUN126..TDC..6F..(PH,TH);GUN125..RHD..TDC..M..GEN;GUN135,TGN136..LHD..(H,M);GUN126..(S,X)..(GEN,SA,TH);TGN126..6FC..(L,S)..(GEN,SA);TGN126..5F..(M,S)..(BZAGT,SA);KUN122..RHD..(SSC,TSC)..(M,S,X);GUN122,TGN121..RHD..5F..(SA,TH);GUN135..RHD..(M,S,X)..(MA,SA,TH);GUN125..LHD..(SDC,TDC)..S..(PH,SA,VN);GUN122,KUN126..(H,M,S)..(GEN,LA,PKN,SA);GUN125,KUN126,TGN138..MTM..M..(BZAGT,VN);GUN126..(SSC,TDC,TXT)..M..(GEN,SA,TH,VN);GUN125..(KSC,SXT,TSC,TXT)..(M,S)..(GEN,KEN,SA);GUN126,KUN122..LHD..(SDC,TSC)..(M,S)..(GEN,SA);KUN122,TGN136..(SDC,TDC,TXT)..(H,M,S)..(GEN,SA,TH);GUN122,136..(SSC,TDC,TXT)..(6F,6FC)..(M,S)..(SA,TH);GUN112,123,KUN13#,LAN125..(H,L,M,S)..(GEN,LA,SA,TH,VN);GUN125,136..RHD..(SDC,SSC,SXT,TDC,TXT)..(H,S,X)..(GEN,IDN,SA,TH);GUN126,136,KUN112,TGN120..(ADC,SSC,TSC)..MTM..(M,S,X)..(DCR,HTWC,IART)..(BZAGT,GCC,SA) |
1 | ||
| 84306 - CABLE SUB-ASSY, SPIRAL | ||||
| 84308-0K010 |
TGN138..L;GUN135..L..TH;GUN125..LHD..(SXT,TXT);GUN126,KUN126..LHD..SA;GUN126..TDC..6F..(PH,TH);TGN126..(M,S)..(BZAGT,SA);GUN126..(S,X)..(GEN,SA,TH);GUN126,KUN126..LHD..H..GEN;GUN122,TGN121..RHD..5F..(SA,TH);KUN125,135..(H,S)..(GEN,IDN,LA,VN);GUN122,KUN122..LHD..(M,S)..DCR..GEN;GUN125,135,TGN136..M..(BZAGT,LA,VN);GUN125..LHD..(SDC,TDC)..S..(PH,SA,VN);KUN125,TGN138..(ADC,SDC,TDC,TXT)..MTM..M;KUN122,TGN136..RHD..(SDC,TDC,TSC,TXT)..S;GUN126..(SSC,TDC,TXT)..M..(GEN,SA,TH,VN);GUN125,136..RHD..(H,S)..(GEN,IDN,MA,SA,TH);GUN125,136..RHD..(SSC,TDC,TXT)..M..(GEN,SA,TH);GUN122,135..(6F,6FC)..(H,M,S)..(GEN,MA,PH,SA,TH);GUN135,KUN125..LHD..(SDC,SSC,TDC)..6F..S..(SA,VN);GUN126,KUN112,126..(ADC,TDC,TSC)..(5F,5FC,6F)..(M,S)..(DCR,IART);GUN112,123,136,KUN136,TGN120..(DCR,HTWC,IART)..(BZAGT,GEN,LA,SA,TH) VEHICLE STABILITY CONTROL-W(*HSAC & TRAILER SWAY CONTROL) |
1 | ||
| 84306-0K120 |
TGN138..L;GUN135..L..TH;GUN126..H..GEN;KUN125..RHD..X..SA;KUN125..6F..(H,M,S);GUN135..6F..S..(PH,VN);GUN126..TDC..6F..(PH,TH);GUN125..RHD..TDC..M..GEN;GUN135,TGN136..LHD..(H,M);GUN126..(S,X)..(GEN,SA,TH);TGN126..6FC..(L,S)..(GEN,SA);TGN126..5F..(M,S)..(BZAGT,SA);KUN122..RHD..(SSC,TSC)..(M,S,X);GUN122,TGN121..RHD..5F..(SA,TH);GUN135..RHD..(M,S,X)..(MA,SA,TH);GUN125..LHD..(SDC,TDC)..S..(PH,SA,VN);GUN122,KUN126..(H,M,S)..(GEN,LA,PKN,SA);GUN125,KUN126,TGN138..MTM..M..(BZAGT,VN);GUN126..(SSC,TDC,TXT)..M..(GEN,SA,TH,VN);GUN125..(KSC,SXT,TSC,TXT)..(M,S)..(GEN,KEN,SA);GUN126,KUN122..LHD..(SDC,TSC)..(M,S)..(GEN,SA);KUN122,TGN136..(SDC,TDC,TXT)..(H,M,S)..(GEN,SA,TH);GUN122,136..(SSC,TDC,TXT)..(6F,6FC)..(M,S)..(SA,TH);GUN112,123,KUN13#,LAN125..(H,L,M,S)..(GEN,LA,SA,TH,VN);GUN125,136..RHD..(SDC,SSC,SXT,TDC,TXT)..(H,S,X)..(GEN,IDN,SA,TH);GUN126,136,KUN112,TGN120..(ADC,SSC,TSC)..MTM..(M,S,X)..(DCR,HTWC,IART)..(BZAGT,GCC,SA) |
1 | ||
| 84307 - CABLE SUB-ASSY, SPIRAL W/SENSOR | ||||
| 84307-0K090 |
TGN138..L;GUN135..L..TH;GUN125..LHD..(SXT,TXT);GUN126,KUN126..LHD..SA;GUN126..TDC..6F..(PH,TH);TGN126..(M,S)..(BZAGT,SA);GUN126..(S,X)..(GEN,SA,TH);GUN126,KUN126..LHD..H..GEN;GUN122,TGN121..RHD..5F..(SA,TH);KUN125,135..(H,S)..(GEN,IDN,LA,VN);GUN122,KUN122..LHD..(M,S)..DCR..GEN;GUN125,135,TGN136..M..(BZAGT,LA,VN);GUN125..LHD..(SDC,TDC)..S..(PH,SA,VN);KUN125,TGN138..(ADC,SDC,TDC,TXT)..MTM..M;KUN122,TGN136..RHD..(SDC,TDC,TSC,TXT)..S;GUN126..(SSC,TDC,TXT)..M..(GEN,SA,TH,VN);GUN125,136..RHD..(H,S)..(GEN,IDN,MA,SA,TH);GUN125,136..RHD..(SSC,TDC,TXT)..M..(GEN,SA,TH);GUN122,135..(6F,6FC)..(H,M,S)..(GEN,MA,PH,SA,TH);GUN135,KUN125..LHD..(SDC,SSC,TDC)..6F..S..(SA,VN);GUN126,KUN112,126..(ADC,TDC,TSC)..(5F,5FC,6F)..(M,S)..(DCR,IART);GUN112,123,136,KUN136,TGN120..(DCR,HTWC,IART)..(BZAGT,GEN,LA,SA,TH) VEHICLE STABILITY CONTROL-W(*HSAC & TRAILER SWAY CONTROL) |
1 | ||
| 84450 - SWITCH ASSY, IGNITION OR STARTER | ||||
| 84450-02040 |
GUN13#..M..(PH,TH,VN);GUN126,TGN126..(TDC,TXT)..M..(LA,PH,TH) WIRELESS DOOR LOCK-WITH(*SES & ANSWER BACK & PANIC BUTTON) |
1 | ||
| 84450-02040 |
GUN126..L,S,X;GUN135..L..MA;GUN136..TDC..S;KUN126..LA,PKN,SA;GGN120,135,GUN112,120,122;KUN126..(L,M,S)..(GEN,VN);GGN125,GUN125..TDC..6FC..(S,X)..ARL;GUN126..M..(BZAGT,GCC,GEN,LA,PH,PKN,SA,TH,VN);GUN125,136..(ADC,ASC,SDC,SSC,SXT,TSC,TXT)..(L,M,S,X);GUN125,136..TDC..(L,M,S,X)..(GCC,GEN,IDN,LA,PH,TH,VN);GGN125,TGN136..(ADC,ASC,SDC,TDC,TSC,TXT)..(M,S,X)..(BZAGT,GCC,GEN,LA,SA,TH);GUN123,135,KUN112,122,125,13#,LAN125,TGN11#,120,121,126,128,138..(ADC,ASC,PSC,SDC,SSC,SXT,TDC,TSC,TXT)..(L,M,S,X) |
1 | ||
| 84650 - SWITCH ASSY, WINDSHIELD WIPER | ||||
| 84652-0K280 |
GUN125,135..S..VN;GGN125,KUN135..GCC,GEN,VN;GUN135..LHD..TDC..(H,L,M);GUN122,125,126,136,KUN12#,136,TGN121,126,136..LHD..(TDC,TXT)..(H,M) |
1 | ||
| 84652-0K290 |
GUN122..LHD..(L,S,X)..(GEN,PH)..CBU;GUN125,126,135,KUN12#,135,TGN121,126,136..LHD..(TDC,TSC,TXT)..(L,S,X)..(GEN,LA,PH) |
1 | ||
| 84650 - SWITCH ASSY, WINDSHIELD WIPER | ||||
| 84652-0K280 |
GUN125,135..S..VN;GGN125,KUN135..GCC,GEN,VN;GUN135..LHD..TDC..(H,L,M);GUN122,125,126,136,KUN12#,136,TGN121,126,136..LHD..(TDC,TXT)..(H,M) |
1 | ||
| 84652-0K290 |
GUN122..LHD..(L,S,X)..(GEN,PH)..CBU;GUN125,126,135,KUN12#,135,TGN121,126,136..LHD..(TDC,TSC,TXT)..(L,S,X)..(GEN,LA,PH) |
1 | ||
| 89245B - SENSOR, STEERING | ||||
| 8924B-0D020 |
TGN136..GEN,SA;GUN126..LHD..SA;GUN126..TDC..6F..H;GUN135..6FC..S..VN;GUN125..LHD..(SXT,TXT);GUN125..LHD..SDC..6F..S;TGN121..(L,X)..(GEN,TH);GUN126..LHD..6FC..H..GEN;GUN126..(S,X)..(GEN,SA,TH);GUN135..LHD..TDC..6F..(H,L);GUN125..RHD..TDC..6F..(L,M);GUN135..(L,M,S)..(PH,SA,TH);GUN122..TDC..(M,S,X)..DCR..GEN;GUN125..6FC..(L,S)..(GEN,MA,SA);GUN125..RHD..6F..(H,S)..(GEN,SA);GUN135..6FC..(H,L,M)..(GEN,MA,VN);GUN125..6F..(S,X)..(IDN,MA,PH,TH,VN);GUN122,126..TDC..MTM..(L,M,S)..(PH,TH);GUN125..LHD..(SSC,TDC)..(M,X)..(GEN,SA);GUN126,136..(SSC,TDC,TXT)..M..(GEN,SA,TH);GUN122..(SDC,SSC,TSC,TXT)..DCR..(GEN,PH,SA,TH);GUN112,120,123,136,TGN110,120,126..(H,L,S,X)..(IDN,SA,TH) VEHICLE STABILITY CONTROL-W(*HSAC & TRAILER SWAY CONTROL) |
1 | ||
| Common parts | ||||
| 90159-50199 | ||||
| 90168-T0004 | ||||
| Linked diagrams | ||||
| 4501 | ||||
ILLUST NO. 7 OF10(1505- )LHD
INSTRUMENT PANEL
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 83910G - CLOCK ASSY | ||||
| 83910-0K040 |
GGN12#,GUN112,12#,13#,KUN112,12#,13#,TGN11#,120,121,126,136..TDC,TSC,TXT |
1 | ||
| 83950M - LAMP ASSY, TELLTALE | ||||
| 83950-0K040 |
GUN135..(ASC,TSC)..LA;GUN122,125,KUN126,135..PH,VN;GUN126,135..(ASC,TDC)..(BZAGT,PH,VN);GUN125,KUN125,135,TGN126,136..LHD..(ASC,TSC)..X |
1 | ||
| 84970 - SWITCH ASSY, COMBINATION | ||||
| 84970-0K070 |
TGN121..5F..M;GUN135..(TDC,TXT)..L;TGN121..RHD..(TDC,TXT)..5F;GUN122..(M,X)..(ARL,GCC)..CBU;GUN125..RHD..6F..S..(MA,SA,TH);GUN125,126..LHD..6F..M..(LA,SA);GUN126,136..6F..(L,S)..(ARL,BZAGT,LA);GUN125,TGN126..LHD..(ADC,SSC,TDC)..MTM..(M,S);GUN122,135..(ADC,SDC,SSC,TDC,TSC)..MTM..S..HDCR..(GEN,LA,SA);GUN135..(ADC,MDC,SXT,TDC,TXT)..6F..(M,S,X)..(ARL,BZAGT,MA,PH,SA,TH,VN);GUN112,122,123,TGN13#..(ADC,SDC,TDC,TSC,TXT)..MTM..(L,M,S)..(ARL,BZAGT,LA,SA,TH) |
1 | ||
| 84970 - SWITCH ASSY, COMBINATION | ||||
| 84970-0K070 |
TGN121..5F..M;GUN135..(TDC,TXT)..L;TGN121..RHD..(TDC,TXT)..5F;GUN122..(M,X)..(ARL,GCC)..CBU;GUN125..RHD..6F..S..(MA,SA,TH);GUN125,126..LHD..6F..M..(LA,SA);GUN126,136..6F..(L,S)..(ARL,BZAGT,LA);GUN125,TGN126..LHD..(ADC,SSC,TDC)..MTM..(M,S);GUN122,135..(ADC,SDC,SSC,TDC,TSC)..MTM..S..HDCR..(GEN,LA,SA);GUN135..(ADC,MDC,SXT,TDC,TXT)..6F..(M,S,X)..(ARL,BZAGT,MA,PH,SA,TH,VN);GUN112,122,123,TGN13#..(ADC,SDC,TDC,TSC,TXT)..MTM..(L,M,S)..(ARL,BZAGT,LA,SA,TH) |
1 | ||
| 84970 - SWITCH ASSY, COMBINATION | ||||
| 84970-0K070 |
TGN121..5F..M;GUN135..(TDC,TXT)..L;TGN121..RHD..(TDC,TXT)..5F;GUN122..(M,X)..(ARL,GCC)..CBU;GUN125..RHD..6F..S..(MA,SA,TH);GUN125,126..LHD..6F..M..(LA,SA);GUN126,136..6F..(L,S)..(ARL,BZAGT,LA);GUN125,TGN126..LHD..(ADC,SSC,TDC)..MTM..(M,S);GUN122,135..(ADC,SDC,SSC,TDC,TSC)..MTM..S..HDCR..(GEN,LA,SA);GUN135..(ADC,MDC,SXT,TDC,TXT)..6F..(M,S,X)..(ARL,BZAGT,MA,PH,SA,TH,VN);GUN112,122,123,TGN13#..(ADC,SDC,TDC,TSC,TXT)..MTM..(L,M,S)..(ARL,BZAGT,LA,SA,TH) |
1 | ||
| 84988L - SWITCH, VSC OFF | ||||
| 84988-0K010 |
GUN125..X..GEN;TGN136..ADC..M..LA;GUN125,135..LHD..IV3;KUN122..LHD..(GEN,SA);GUN125..LHD..(SXT,TXT);GUN136..(H,S)..(SA,TH);KUN122..RHD..(S,X)..GEN;KUN125..LHD..TDC..M..GEN;GUN126,KUN126..LHD..H..GEN;GUN126..(L,S,X)..(GEN,SA,TH);KUN125..(H,S,X)..(GEN,IDN,LA);GUN122,126..TDC..MTM..(PH,TH);GUN125..6F..(IDN,MA,PH,TH,VN);GUN125,KUN125..LHD..SDC..6F..S;GUN125..6FC..(L,S)..(GEN,MA,SA);GUN122,135..TDC..(H,M,S,X)..GEN;KUN125..LHD..(SSC,TDC)..(GCC,SA);GUN125..RHD..TDC..6F..(L,M)..GEN;GUN125..RHD..6F..(H,S)..(GEN,SA);KUN125..RHD..(TDC,TXT)..6F..(L,M);GUN135..(L,M,S)..(MA,PH,SA,TH,VN);TGN136..(ASC,TDC,TSC)..(M,X)..(GEN,LA);KUN126,TGN121..(L,M,S,X)..(GEN,LA,TH,VN);KUN122,TGN138..(ADC,TSC)..L..(BZAGT,GEN);GUN126,KUN125,126..LHD..(SDC,TXT)..(L,M,X);GUN126,136..(SSC,TDC,TXT)..M..(GEN,SA,TH,VN);TGN136..(ADC,SDC,TDC,TXT)..(M,S)..(BZAGT,SA,TH);GUN126,136,KUN112..(ADC,TSC)..MTM..(M,S,X)..(DCR,IART);GUN125,TGN138..LHD..(ADC,SSC)..MTM..(M,X)..(BZAGT,SA)..CBU;GUN122,TGN126..(ADC,SDC,SSC,TSC,TXT)..(DCR,HTWC)..(BZAGT,GEN,PH,SA,TH);GUN112,120,123,KUN13#,TGN110,120..(ADC,ASC,SSC,TDC,TSC,TXT)..(GEN,IDN,LA,SA,TH,VN) VEHICLE STABILITY CONTROL-W(*HSAC & TRAILER SWAY CONTROL) |
1 | ||
| 85530 - SOCKET ASSY, POWER OUTLET, NO.1 | ||||
| 85530-0K040 |
KUN126..PKN;GUN120,122..X;TGN121..S..GCC;GUN126..(H,M)..PKN;GUN125..TDC..6FC..ARL;GUN122..(L,S)..(GCC,GEN,PH,PKN);TGN121..(SDC,SSC,TDC,TSC)..(L,X);TGN136..(ADC,ASC,SDC,TDC,TSC)..5F..(S,X);GUN125..TDC..(L,S,X)..(GCC,GEN,IDN,LA,PH,VN);GUN135,KUN126..(L,S,X)..(ARL,BZAGT,GEN,LA,PH,SA,VN);GGN12#,GUN112,123,126,136,KUN112,122,125,13#,LAN125,TGN11#,120,126,138..L,S,X;GUN125..(ADC,ASC,SDC,SSC,SXT,TSC,TXT)..(L,S,X)..(ARL,BZAGT,GCC,GEN,IDN,LA,SA) |
1 | ||
| 85530-0K040 |
GUN135..MA,TH;TGN126..M..(BZAGT,GEN,LA);GUN122,125,TGN121,136..(L,M,S)..TH;GUN126..(ADC,KDC,SDC,SSC,SXT,TDC,TXT)..(H,M);GUN122,125,135,KUN12#,TGN121,138..(H,M)..(BZAGT,GCC,GEN,IDN,LA,PH,SA,VN);GGN125,135,GUN120,136,KUN13#,TGN128,136..(ADC,SDC,SSC,SXT,TDC,TXT)..(H,L,M) |
2 | ||
| 85535B - COVER, POWER OUTLET SOCKET, NO.1 | ||||
| 85535-0K090C0 |
GUN136..LA,TH;GUN136..H..BZAGT;GUN136..6F..M..BZAGT;GUN126..LHD..6F..H..GEN;GUN126..6FC..(H,M)..GEN;GUN120,KUN13#,TGN128,136..H,L,M;GUN126,KUN122..TDC..MTM..M..GEN;GUN126..(H,M)..(BZAGT,LA,PH,TH,VN);GUN122,125,135,TGN121,136..(L,M,S)..TH;GUN122,125,135,KUN125,126,TGN126,138..(ADC,TDC)..(H,M)..(BZAGT,GEN,IDN,LA,PH,VN) BLACK,TRIM2#,4# |
2 | ||
| 85535-0K090C0 |
KUN125..TXT..L..GEN;GUN125..LHD..(L,X)..GEN;KUN125..TDC..L..(GEN,IDN);KUN125..LHD..(S,X)..(LA,SA);GUN125..LHD..(SDC,SSC,TSC)..X;GUN125..LHD..S..(BZAGT,LA,PH,SA);GUN122..TDC..(L,S,X)..(ARL,GEN,PH);GUN125,126,KUN126..RHD..TDC..ATM..(L,X);TGN136..(ADC,ASC,SDC,TDC,TSC)..5F..(S,X);GUN125..(ADC,ASC,TDC)..(L,X)..(BZAGT,IDN,LA);TGN121..(SDC,SSC,TDC,TSC)..(L,X)..(ARL,GEN,SA,TH);GUN135,KUN122,TGN126..(L,S,X)..(ARL,BZAGT,GEN,LA,PH,SA);GUN125,KUN125..RHD..(SDC,SSC,SXT,TSC,TXT)..(L,S,X)..(ARL,GEN,IDN,SA);GGN12#,GUN123,126,136,KUN126,135..(ADC,ASC,PDC,SDC,SSC,TDC,TSC,TXT)..(L,S,X)..(ARL,BZAGT,LA,PKN,SA,TH);GUN112,120,122,KUN112,LAN125,TGN110,120,138..(ADC,PSC,SDC,SSC,TSC)..(L,S,X)..(ARL,BZAGT,GEN,IDN,PH,PKN,SA,TH) BLACK,TRIM2# |
1 | ||
| 89611 - SWITCH, PUSH START | ||||
| 89611-0K010 |
GUN126..6FC..LA;GUN126,136..M..(PH,TH);GGN125,135,GUN122,135,KUN125,126,TGN126,136..(ADC,SDC,SXT,TDC,TXT)..M..(LA,PH,SA,TH,VN) WIRELESS DOOR LOCK-WITH(*SES & ANSWER BACK & PANIC BUTTON) |
1 | ||
| 89611-0K010 |
KUN12#,135..H;GUN125..S..MA;GUN136..TDC..(H,M);GUN126..H..(BZAGT,TH);GGN125,GUN126..(H,M)..(ARL,GEN,MA) |
1 | ||
| 89611-0K011 |
GUN126..M..(ARL,TAIW);GUN136..RHD..TDC..(H,M);GGN125..(H,M)..(ARL,BZAGT,LA);GUN136,KUN126..H..(BZAGT,GEN,VN);GUN125,126,135,KUN122,125,135..(ADC,PDC,TDC)..H |
1 | ||
| Common parts | ||||
| 90167-T0012 | ||||
| 93568-55014 | ||||
| Linked diagrams | ||||
| 8601 | ||||
ILLUST NO. 5 OF10(1505- )LHD
COWL 1/2
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 69065A - CYLINDER SUB-ASSY, AIR BAG CUT OFF SWITCH | ||||
| 69065-0K010 |
GUN135..L..MA;GUN126..L..BZAGT;GUN135..6F..S..MA;GUN125..RHD..6FC..(L,M);GUN125,KUN125..TSC..X..GEN;GUN136,KUN136,TGN128,13#..BZAGT,GEN,LA,TH;GUN126..(H,M,S,X)..(BZAGT,LA,PH,PKN,TH,VN);GUN135..(L,M,S,X)..(BZAGT,GEN,LA,PH,TH,VN);GUN125,TGN126..MTM..(BZAGT,IDN,LA,PH,TH,VN);GUN122,125..LHD..TDC..(5F,6FC)..HDCR..(GEN,LA);GGN125,GUN112,120,122,123,KUN112,125,126,135,TGN110,121..IDN,LA,PH,TH,VN |
1 | ||
| 82210N - INSTRUMENT PANEL FUSIBLE LINK | ||||
| 90982-08295 |
GGN12#,135,GUN112,12#,13#,KUN112,12#,13#,LAN125,TGN11#,12#,13# 30A,TERM.:FEMALE,PNK |
1 | ||
| 90982-08294 |
GGN12#,135,GUN112,12#,13#,KUN112,12#,13#,LAN125,TGN11#,12#,13# 40A,TERM.:FEMALE,GRN |
1 | ||
| 82210N - INSTRUMENT PANEL FUSIBLE LINK | ||||
| 90982-08295 |
GGN12#,135,GUN112,12#,13#,KUN112,12#,13#,LAN125,TGN11#,12#,13# 30A,TERM.:FEMALE,PNK |
1 | ||
| 90982-08294 |
GGN12#,135,GUN112,12#,13#,KUN112,12#,13#,LAN125,TGN11#,12#,13# 40A,TERM.:FEMALE,GRN |
1 | ||
| 82600D - INSTRUMENT PANEL FUSE | ||||
| 90982-09022 |
GGN12#,135,GUN112,12#,13#,KUN112,12#,13#,LAN125,TGN11#,12#,13# 15A,MINI FUSE,BLUE |
1 | ||
| 90982-09023 |
GGN12#,135,GUN112,12#,13#,KUN112,12#,13#,LAN125,TGN11#,12#,13# 20A,MINI FUSE,YELLOW |
1 | ||
| 90982-09020 |
GGN12#,135,GUN112,12#,13#,KUN112,12#,13#,LAN125,TGN11#,12#,13# 7.5A,MINI FUSE,BROWN |
1 | ||
| 90982-09019 |
GGN12#,135,GUN112,12#,13#,KUN112,12#,13#,LAN125,TGN11#,12#,13# 5A,MINI FUSE,TAN |
1 | ||
| 90982-09021 |
GGN12#,135,GUN112,12#,13#,KUN112,12#,13#,LAN125,TGN11#,12#,13# 10A,MINI FUSE,RED |
1 | ||
| 90982-09025 |
GGN12#,135,GUN112,12#,13#,KUN112,12#,13#,LAN125,TGN11#,12#,13# 30A,MINI FUSE,GRN |
1 | ||
| 90982-09024 |
GGN12#,135,GUN112,12#,13#,KUN112,12#,13#,LAN125,TGN11#,12#,13# 25A,MINI FUSE |
1 | ||
| 82600D - INSTRUMENT PANEL FUSE | ||||
| 90982-09022 |
GGN12#,135,GUN112,12#,13#,KUN112,12#,13#,LAN125,TGN11#,12#,13# 15A,MINI FUSE,BLUE |
1 | ||
| 90982-09023 |
GGN12#,135,GUN112,12#,13#,KUN112,12#,13#,LAN125,TGN11#,12#,13# 20A,MINI FUSE,YELLOW |
1 | ||
| 90982-09020 |
GGN12#,135,GUN112,12#,13#,KUN112,12#,13#,LAN125,TGN11#,12#,13# 7.5A,MINI FUSE,BROWN |
1 | ||
| 90982-09019 |
GGN12#,135,GUN112,12#,13#,KUN112,12#,13#,LAN125,TGN11#,12#,13# 5A,MINI FUSE,TAN |
1 | ||
| 90982-09021 |
GGN12#,135,GUN112,12#,13#,KUN112,12#,13#,LAN125,TGN11#,12#,13# 10A,MINI FUSE,RED |
1 | ||
| 90982-09025 |
GGN12#,135,GUN112,12#,13#,KUN112,12#,13#,LAN125,TGN11#,12#,13# 30A,MINI FUSE,GRN |
1 | ||
| 90982-09024 |
GGN12#,135,GUN112,12#,13#,KUN112,12#,13#,LAN125,TGN11#,12#,13# 25A,MINI FUSE |
1 | ||
| 82672A - COVER, JUNCTION BLOCK | ||||
| 82672-0K010 |
GUN126..6F..IV3;GUN126..L..BZAGT;GUN135..(L,M)..VN;GUN135..6FC..S..VN;GUN122..6F..(L,S,X);GUN123..(TSC,TXT)..CBU;GUN125..6F..(L,M)..GCC;GUN125..TDC..6F..S..GCC;GUN112,120,136..DCR,HDCR;GUN125..(TDC,TXT)..6FC..IV3;GUN122..(L,S,X)..(GCC,PH,SA);GUN125..(ASC,TXT)..(M,S,X)..CBU;GUN125..6FC..(ARL,GCC,GEN,LA,SA)..CBU;GUN126..(ASC,TDC)..6F..(ARL,BZAGT)..CBU;GUN135..(ARL,BZAGT,GEN,LA,PH,SA,TH)..CBU;GUN126..6F..HDCR..(BZAGT,GCC,GEN,LA,PH,PKN,SA,TH);GUN126..(ADC,PDC,SDC,SSC,SXT,TDC,TSC,TXT)..6FC..(H,M,S,X);GUN125..(ADC,SDC,SSC,SXT,TDC,TSC)..6F..(ARL,BZAGT,GEN,LA,PH,SA,TH) |
1 | ||
| 82672-0K100 |
GUN136..ADC..LA;GUN112,122..S..GCC;GUN125..LHD..TDC..M;GUN135..LHD..(H,L,S)..(GEN,LA,PH,VN);GUN125,135..LHD..(ADC,SDC,TXT)..(L,M);GUN126..LHD..(H,M,S)..(GCC,GEN,LA,SA,TAIW,VN);GUN122,126..LHD..MTM..(L,M)..(DCR,IART)..(BZAGT,GEN);GUN125..LHD..(ADC,SXT,TDC,TXT)..S..(GCC,GEN,LA,PH,SA,VN) |
2 | ||
| 82672-0K100 |
GUN126,135..M..(PH,VN) WIRELESS DOOR LOCK-WITH(*SES & ANSWER BACK & PANIC BUTTON) |
2 | ||
| 82672-0K100 |
GUN136..ADC..LA;GUN112,122..S..GCC;GUN125..LHD..TDC..M;GUN135..LHD..(H,L,S)..(GEN,LA,PH,VN);GUN125,135..LHD..(ADC,SDC,TXT)..(L,M);GUN126..LHD..(H,M,S)..(GCC,GEN,LA,SA,TAIW,VN);GUN122,126..LHD..MTM..(L,M)..(DCR,IART)..(BZAGT,GEN);GUN125..LHD..(ADC,SXT,TDC,TXT)..S..(GCC,GEN,LA,PH,SA,VN) |
1 | ||
| 82672-0K100 |
GUN126..X;GUN125..LHD..X;GUN135..LHD..(M,X);GUN122..LHD..TDC..X;GUN125..LHD..L..(GCC,GEN);GUN126,136..(M,S)..(BZAGT,PH);GUN120,122..(SDC,SSC,TSC,TXT)..X;GUN125..(ADC,SDC,SSC)..S..(BZAGT,SA);GUN122,135..(ADC,SDC,SSC,TDC,TSC)..S..(BZAGT,GEN,SA);GUN112,122,136..(PSC,TDC,TSC)..(L,M)..(GCC,LA,PH,PKN) |
1 | ||
| 82673A - BRACKET, JUNCTION BLOCK | ||||
| 82673-0K010 |
GUN135..M..PH;GUN125,135..LHD..(BZAGT,GCC,GEN,LA,SA,VN);GGN125,GUN112,122,126,136,KUN112,12#,13#,LAN125,TGN11#,12#,13#..LHD |
1 | ||
| 82673B - BRACKET, JUNCTION BLOCK | ||||
| 82673-0K020 |
GUN125..TDC..6FC..ARL;GUN125..ADC,ASC,SDC,SSC,SXT,TSC,TXT;GUN125..TDC..(GCC,GEN,IDN,LA,PH,TH,VN);GGN12#,135,GUN112,TGN136..ADC,ASC,SDC,TDC,TSC,TXT;GUN120,122,123,126,13#,KUN112,12#,13#,LAN125,TGN11#,120,121,126,128,138..ADC,ASC,PDC,PSC,SDC,SSC,SXT,TDC,TSC,TXT |
1 | ||
| 82730 - BLOCK ASSY, INSTRUMENT PANEL JUNCTION | ||||
| 82730-0K550 |
GGN125..M..ARL;KUN12#,135..TDC..H |
1 | ||
| 82730-0K150 |
GUN135..LHD..M;GUN125,13#..(M,S)..BZAGT;GUN126..(M,S)..(BZAGT,PH) |
1 | ||
| 82730-0K140 |
GUN126..PH;GUN135..LHD..M;GUN122..5F..M..TH WIRELESS DOOR LOCK-WITH(*SES & ANSWER BACK & PANIC BUTTON),MARK JA |
1 | ||
| 82730-0K520 |
GUN126..TAIW;GUN126,135..LHD..TDC..H MARK JG |
1 | ||
| 82730-0K140 |
GUN126,135..LHD..TDC..H POWER DOOR LOCK-WITH(AUTO LOCK(SPEED)) & WITH(*DCB),MARK JA |
1 | ||
| 82730-0K580 |
TGN126..S..SA;KUN122..L..GCC;TGN136..ADC..X..LA;KUN122..(L,S,X)..(GEN,PKN,SA);GGN120,LAN125,TGN110..ARL,GCC,SA;KUN125,135..(ADC,TDC,TXT)..(L,X)..DCR;KUN125,135..(ASC,SDC,SSC,TSC)..(L,S,X);TGN121,136..(ASC,SDC,SSC,TDC,TSC)..(L,X)..(ARL,BZAGT,GCC,GEN,LA,SA);KUN112,126,TGN111,120,126..(ADC,ASC,PDC,PSC,SDC,TDC,TSC)..(L,X)..(GCC,GEN,LA,PKN,SA) |
1 | ||
| 84340 - SWITCH ASSY, STOP LAMP | ||||
| 84340-09040 |
GGN12#,135,GUN112,12#,13#,KUN112,12#,13#,LAN125,TGN11#,12#,13# |
1 | ||
| 84340-09041 |
GUN125..TDC..6FC..(L,M,S);GUN126..TXT..6F..ARL..CBU;GUN125..(ADC,SDC,SSC,TSC)..6FC;GUN125..(ADC,ASC,SDC,SSC,SXT,TXT)..6F;GUN126..BZAGT,GCC,GEN,LA,PH,PKN,SA,TAIW,TH,VN;GUN13#,TGN121..BZAGT,GCC,GEN,LA,MA,PH,SA,TH,VN;GUN125..(TDC,TSC)..6F..(GCC,GEN,IDN,LA,PH,TH,VN);GGN12#,135,GUN112,120,122,123,KUN112,12#,13#,LAN125,TGN11#,120,126,128,13#..ADC,ASC,PDC,PSC,SDC,SSC,SXT,TDC,TSC,TXT |
1 | ||
| 84345 - ADJUSTER, STOP LAMP SWITCH MOUNTING | ||||
| 84345-0K010 |
GUN125..TDC..6FC..ARL;GUN125..ADC,ASC,SDC,SSC,SXT,TSC,TXT;GUN125..TDC..(GCC,GEN,IDN,LA,PH,TH,VN);GGN12#,135,GUN112,135..ADC,ASC,MDC,SDC,SSC,SXT,TDC,TSC,TXT;GUN120,122,123,126,136,KUN112,12#,13#,LAN125,TGN11#,120,121,126,128,13#..ADC,ASC,PDC,PSC,SDC,SSC,SXT,TDC,TSC,TXT |
1 | ||
| 84520 - SWITCH ASSY, CLUTCH START | ||||
| 84520-42010 |
TGN136..(ADC,ASC,SDC,TDC,TSC,TXT)..5F;GUN125..TDC..6F..(GCC,GEN,IDN,LA,PH,TH,VN);GUN112,125..(ADC,ASC,SDC,SSC,SXT,TSC,TXT)..MTM;GUN122,123,126,13#,KUN112,12#,13#,LAN125,TGN11#,120,121,126,138..(ADC,ASC,MDC,PDC,PSC,SDC,SSC,SXT,TDC,TSC,TXT)..MTM |
1 | ||
| 84550 - SWITCH ASSY, PARKING BRAKE | ||||
| 84550-02030 |
GUN125..TDC..6FC..ARL;TGN136..ADC,ASC,SDC,TDC,TSC,TXT;GUN125..ADC,ASC,SDC,SSC,SXT,TSC,TXT;GUN125..TDC..(GCC,GEN,IDN,LA,PH,TH,VN);GGN12#,135,GUN112,135..ADC,ASC,MDC,SDC,SSC,SXT,TDC,TSC,TXT;GUN120,122,123,126,136,KUN112,12#,13#,LAN125,TGN11#,120,121,126,128,138..ADC,ASC,PDC,PSC,SDC,SSC,SXT,TDC,TSC,TXT |
1 | ||
| 8598A - BATTERY, DOOR CONTROL | ||||
| 8598A-0K010 |
GUN135..M..VN;GUN135..S..BZAGT;GUN122,TGN121..5F..(L,M,S)..TH;GUN122,135..(6F,6FC)..(MA,PH,TH);GGN125,GUN112,120,123,TGN128..BZAGT,LA,TH;GUN125,126,136,TGN126,13#..(H,M,S)..(BZAGT,MA,PH,TH) |
1 | ||
| 88280A - SWITCH ASSY, CLUTCH | ||||
| 88280-42010 |
TGN136..(ADC,ASC,SDC,TDC,TSC,TXT)..5F;GUN125..(ADC,ASC,SDC,SSC,SXT,TSC,TXT)..6F;GUN125..TDC..6F..(GCC,GEN,IDN,LA,PH,TH,VN);GUN112,122,123,126,13#,KUN112,12#,13#,TGN11#,120,121,126,138..(ADC,ASC,MDC,PDC,PSC,SDC,SSC,SXT,TDC,TSC,TXT)..MTM |
1 | ||
| 89120A - SENSOR, AUTOMATIC LIGHT CONTROL | ||||
| 89121-30020 |
TGN126..M;GUN125..TDC..TH;GUN135..ARL,BZAGT,TH;GUN125..TDC..6FC..(M,X);GUN125..TDC..(H,X)..GEN;TGN121..(M,X)..(ARL,GCC,SA);GUN126,KUN12#..H..(GEN,PKN);GUN122,TGN121..5F..(L,S)..TH;GUN135..LHD..(H,M,X)..(GEN,SA,VN);GUN13#..(MDC,TDC)..(L,M)..(LA,MA,PH);GUN122,TGN126..LHD..(ASC,SSC,TSC)..X..CBU;GUN125..(ADC,ASC,TSC,TXT)..(ARL,BZAGT,TH);GUN125..LHD..(SDC,TDC)..6F..(M,X)..(GCC,SA,VN);GUN112,136,KUN135..(H,L,M)..(ARL,BZAGT,GEN,SA,TH);GUN136,TGN136..(S,X)..(HDCR,HTWC)..(ARL,BZAGT,TH);GUN126,KUN125..(ADC,SDC,SSC,TDC)..M..(GCC,IDN,LA,SA);GUN122,125..LHD..(SSC,TDC,TSC)..(M,S)..HDCR..(GEN,SA);GGN12#,135,GUN123,KUN136,TGN128..ARL,BZAGT,GCC,LA,SA,TH;GUN122,TGN138..(ADC,SDC,TDC,TSC)..5F..(S,X)..(ARL,BZAGT,SA);GUN126..(ADC,SXT,TDC,TSC,TXT)..(H,M,S)..HDCR..(ARL,BZAGT,PH,SA,TAIW,TH,VN);GUN122,126,KUN126,TGN13#..(H,M)..(DCR,HTWC,HTWCF,IART)..(BZAGT,GCC,LA,SA,TH,VN) |
1 | ||
| 89221B - COMPUTER, BODY | ||||
| 89221-0K050 |
TGN126..GCC;KUN122..TXT..L;GUN125..TSC..GCC;KUN125..LHD..S..GEN;KUN122,126..LHD..(M,S,X)..GEN;KUN126,135,TGN120..LHD..(L,X);KUN125..LHD..(L,M,X)..(GEN,LA);GUN122,125,KUN125..MTM..M..GCC;TGN121..5F..(M,S,X)..(GCC,GEN);GUN125,TGN121..6FC..(L,M)..GCC;TGN121,136..(ASC,TSC)..(L,X)..(GCC,LA);TGN121,126..(ADC,TDC)..5F..(L,X)..(GEN,LA) ANTI-THEFT SYSTEM-WITH(IMMOBILIZER) |
1 | ||
| 89221-0K060 |
GUN126,135..PH |
1 | ||
| 89221-0K090 |
GUN126,135..M..PH ANTI-THEFT SYSTEM-WITH(IMMOBILIZER & SECURITY HORN) |
1 | ||
| 89221-0K061 |
GUN126,135..M..PH |
1 | ||
| 89221-0KA21 |
GUN126,135..M..PH ANTI-THEFT SYSTEM-WITH(IMMOBILIZER & SECURITY HORN)&HEADLAMP LEVELING DEVICE-WITH(AUTO) |
1 | ||
| 89221-0K091 |
GUN126,135..M..PH ANTI-THEFT SYSTEM-WITH(IMMOBILIZER & SECURITY HORN) |
1 | ||
| 89221-0KA21 |
GUN126,135..M..PH HEADLAMP LEVELING DEVICE-WITH(AUTO) |
1 | ||
| 89960 - COMPUTER ASSY, HEADLAMP LEVELING | ||||
| 89960-71050 |
GUN135..M..PH;GUN126..6FC..PH;GUN126,TGN126,136..MTM..M..(LA,PH) HEADLAMP-LED |
1 | ||
| Common parts | ||||
| 82715-KK300 | ||||
| 90119-06915 | ||||
| 90119-T0130 | ||||
| 90119-T0313 | ||||
| 90159-T0003 | ||||
| 90170-T0005 | ||||
| 90178-T0007 | ||||
| 90178-T0018 | ||||
| 90178-W0019 | ||||
| 94151-80600 | ||||
ILLUST NO. 6 OF10(1505- )LHD
COWL 2/2
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 28371 - RELAY, IGNITION, NO.1 | ||||
| 90987-T2001 |
1GDFTV..GUN126,136..M..(PH,TH,VN);1GDFTV..GUN126..LHD..6FC..M..(LA,SA);1GRFE,2GDFTV..GGN125,135,GUN122..(5F,6FC)..M..(SA,TH);2GDFTV,1KDFTV,2KDFTV,2TRFE..GUN125,135,KUN125,126,TGN126,136..(ADC,SDC,SXT,TDC,TXT)..M..(LA,PH,SA,TH,VN) WIRELESS DOOR LOCK-WITH(*SES & ANSWER BACK & PANIC BUTTON),(L) |
2 | ||
| 90987-T2001 |
1GDFTV..GUN136..H..BZAGT;1GDFTV..GUN126..M..(ARL,TAIW);1GDFTV..GUN136..RHD..TDC..(H,M);2GDFTV..GUN135..(H,S)..(GEN,MA);1GRFE..GGN125..(H,M)..(ARL,BZAGT,LA);1GDFTV,2GDFTV,1KDFTV,2KDFTV..GUN125,126,KUN12#,135..(ADC,TDC)..H (L) |
2 | ||
| 90987-02027 |
1GDFTV..GUN136..H..BZAGT;1GDFTV..GUN126..M..(ARL,TAIW);1GDFTV..GUN136..RHD..TDC..(H,M);2GDFTV..GUN135..(H,S)..(GEN,MA);1GRFE..GGN125..(H,M)..(ARL,BZAGT,LA);1GDFTV,2GDFTV,1KDFTV,2KDFTV..GUN125,126,KUN12#,135..(ADC,TDC)..H (J) |
2 | ||
| 82600D - INSTRUMENT PANEL FUSE | ||||
| 90982-09022 |
GGN12#,135,GUN112,12#,13#,KUN112,12#,13#,LAN125,TGN11#,12#,13# 15A,MINI FUSE,BLUE |
1 | ||
| 90982-09023 |
GGN12#,135,GUN112,12#,13#,KUN112,12#,13#,LAN125,TGN11#,12#,13# 20A,MINI FUSE,YELLOW |
1 | ||
| 90982-09020 |
GGN12#,135,GUN112,12#,13#,KUN112,12#,13#,LAN125,TGN11#,12#,13# 7.5A,MINI FUSE,BROWN |
1 | ||
| 90982-09019 |
GGN12#,135,GUN112,12#,13#,KUN112,12#,13#,LAN125,TGN11#,12#,13# 5A,MINI FUSE,TAN |
1 | ||
| 90982-09021 |
GGN12#,135,GUN112,12#,13#,KUN112,12#,13#,LAN125,TGN11#,12#,13# 10A,MINI FUSE,RED |
1 | ||
| 90982-09025 |
GGN12#,135,GUN112,12#,13#,KUN112,12#,13#,LAN125,TGN11#,12#,13# 30A,MINI FUSE,GRN |
1 | ||
| 90982-09024 |
GGN12#,135,GUN112,12#,13#,KUN112,12#,13#,LAN125,TGN11#,12#,13# 25A,MINI FUSE |
1 | ||
| 82600F - FUSE, FUSE BLOCK | ||||
| 90982-09020 |
GGN12#,135,GUN112,12#,13#,KUN112,12#,13#,LAN125,TGN11#,12#,13# 7.5A,MINI FUSE,BROWN |
1 | ||
| 90982-09021 |
GGN12#,135,GUN112,12#,13#,KUN112,12#,13#,LAN125,TGN11#,12#,13# 10A,MINI FUSE,RED |
1 | ||
| 90982-09023 |
GGN12#,135,GUN112,12#,13#,KUN112,12#,13#,LAN125,TGN11#,12#,13# 20A,MINI FUSE,YELLOW |
1 | ||
| 90982-09022 |
GGN12#,135,GUN112,12#,13#,KUN112,12#,13#,LAN125,TGN11#,12#,13# 15A,MINI FUSE,BLUE |
1 | ||
| 90982-09019 |
GGN12#,135,GUN112,12#,13#,KUN112,12#,13#,LAN125,TGN11#,12#,13# 5A,MINI FUSE,TAN |
1 | ||
| 90982-09024 |
GGN12#,135,GUN112,12#,13#,KUN112,12#,13#,LAN125,TGN11#,12#,13# 25A,MINI FUSE |
1 | ||
| 90982-09025 |
GGN12#,135,GUN112,12#,13#,KUN112,12#,13#,LAN125,TGN11#,12#,13# 30A,MINI FUSE,GRN |
1 | ||
| 82610C - BLOCK ASSY, FUSE | ||||
| 82610-0K010 |
GUN126..PH;GUN125,135..M..(PH,VN) ANTI-THEFT SYSTEM-WITH(IMMOBILIZER & SECURITY HORN)&WIRELESS DOOR LOCK-WITH(*SES & ANSWER BACK & PANIC BUTTON) |
1 | ||
| 82610-0K010 |
GUN126,135..M..(PH,VN) ANTI-THEFT SYSTEM-WITH(IMMOBILIZER & SECURITY HORN)&WIRELESS DOOR LOCK-WITH(*SES & ANSWER BACK & PANIC BUTTON)&HEADLAMP-LED |
1 | ||
| 82610-0K010 |
GUN126,135..M..(PH,VN) ANTI-THEFT SYSTEM-WITH(IMMOBILIZER & SECURITY HORN)&HEADLAMP-LED |
1 | ||
| 82610-0K010 |
GUN126..PH;GUN125,135..M..(PH,VN) ANTI-THEFT SYSTEM-WITH(IMMOBILIZER & SECURITY HORN) |
1 | ||
| 82610-0K010 |
KUN122..RHD..S;GUN126..LHD..SA;GUN122..5F..IV3;KUN126..RHD..GEN;TGN126..TSC..(L,X);GUN125..TDC..L..IDN;KUN126..LA,PKN,SA,VN;GUN126..RHD..6FC..GEN;GUN126..6F..(M,S)..IART;KUN125..LHD..(GCC,LA,SA);GUN125..TSC..(L,M,S)..GEN;GUN136..6F..(ARL,BZAGT,LA);GUN126..6F..M..HDCR..BZAGT;GUN125..TDC..6F..(M,S)..GCC;GUN136..6FC..(ARL,BZAGT,TH);GUN122,KUN125..RHD..(5FC,6F);GUN120,TGN11#,120,138..L,M,X;GUN125..RHD..TDC..6FC..(L,M,X);GUN122..(ARL,GEN,PH,PKN,SA)..CBU;TGN121..(L,M,X)..(ARL,GCC,GEN,SA);GUN122,125..(5F,6FC)..M..(GCC,TH);TGN136..(ADC,ASC,SDC,TDC,TSC)..5F;TGN126..(ADC,ASC,SDC,TDC)..(L,S,X);GUN126..RHD..6F..(H,M)..(ARL,GEN,PKN);GUN125,126,KUN125,126..LHD..(H,L)..GEN;GUN135..(L,S,X)..(ARL,BZAGT,LA,MA,PH,SA,VN);GUN126..(ADC,TDC)..6F..(H,M)..(GCC,LA,TH,VN);GUN125..(TDC,TXT)..(H,S,X)..(GEN,IDN,LA,PH,VN);GUN126..(H,S,X)..HDCR..(ARL,BZAGT,GCC,LA,PKN,VN);GGN125,GUN135,TGN126..(H,M)..(ARL,BZAGT,GEN,LA,SA);GUN126..(ADC,PDC,TDC)..6FC..M..(ARL,BZAGT,GCC,LA,PKN,TAIW);GUN125..(ADC,ASC,SDC,SSC,SXT,TSC,TXT)..(ARL,BZAGT,IDN,LA,SA);GUN126,KUN122..(5F,6FC)..(H,L,X)..(DCR,IART)..(BZAGT,GEN,PKN,SA);GGN135,GUN112,123,KUN112,13#,LAN125,TGN128..ARL,BZAGT,GEN,IDN,LA,SA,VN |
1 | ||
| 82610-0K010 |
GUN125,126,135..M..(PH,VN) |
1 | ||
| 82610D - BLOCK ASSY, FUSE | ||||
| 82610-0K010 |
GUN125..TDC..6FC..ARL;TGN136..ADC,ASC,SDC,TDC,TSC,TXT;GGN12#,135,GUN123..ADC,SDC,TDC,TSC;GUN125..ADC,ASC,SDC,SSC,SXT,TSC,TXT;GUN125..TDC..(GCC,GEN,IDN,LA,PH,TH,VN);GUN135..ARL,BZAGT,GEN,LA,MA,PH,SA,TH,VN;GUN112,120,122,126,136,KUN112,12#,13#,LAN125,TGN11#,120,121,126,128,138..ADC,ASC,PDC,PSC,SDC,SSC,SXT,TDC,TSC,TXT |
1 | ||
| 82611 - COVER, FUSE BLOCK | ||||
| 82611-0K020 |
GUN125..S..GEN;TGN136..GEN,LA;TGN136..X..BZAGT;GUN122,125..M..GCC;TGN126..TSC..(L,X);GUN125..X..(BZAGT,GEN,LA);TGN121..(L,M,X)..(GCC,GEN);KUN122..LHD..(L,X)..(GCC,GEN);GUN135..(L,S,X)..(BZAGT,LA,PH);KUN112,136,TGN11#..(ADC,TSC)..(L,M);GUN122,126..LHD..(H,L,S,X)..(GEN,PH,VN);TGN126..LHD..(ADC,ASC,TDC)..(GCC,GEN,LA);GUN126,TGN120..(HDCR,HTWC)..(BZAGT,GCC,LA);GUN136,KUN125,126,135..(ADC,ASC)..(DCR,HDCR);GUN125..LHD..(ADC,SDC,TDC)..(L,M,S)..(BZAGT,LA,SA) |
1 | ||
| 82611-0K020 |
KUN126..LHD..5FC..M..GEN;GUN126,135,KUN125..LHD..TDC..M..(GEN,PH) ANTI-THEFT SYSTEM-WITH(IMMOBILIZER & SECURITY HORN) |
1 | ||
| 82611-0K020 |
GUN126,135..M..PH ANTI-THEFT SYSTEM-WITH(IMMOBILIZER & SECURITY HORN)&WIRELESS DOOR LOCK-WITH(*SES & ANSWER BACK & PANIC BUTTON) |
1 | ||
| 82611-0K040 |
GUN125,126,135..M..(PH,VN) ANTI-THEFT SYSTEM-WITH(IMMOBILIZER & SECURITY HORN)&WIRELESS DOOR LOCK-WITH(*SES & ANSWER BACK & PANIC BUTTON),W/O(MARK=IG1 NO.6) |
1 | ||
| 82611-0K040 |
GUN125,126,135..M..(PH,VN) ANTI-THEFT SYSTEM-WITH(IMMOBILIZER & SECURITY HORN),W/O(MARK=IG1 NO.6) |
1 | ||
| 82611-0K040 |
GUN126,135..M..(PH,VN) ANTI-THEFT SYSTEM-WITH(IMMOBILIZER & SECURITY HORN)&HEADLAMP-LED,W/O(MARK=IG1 NO.6) |
1 | ||
| 82611-0K040 |
GUN126,135..M..(PH,VN) ANTI-THEFT SYSTEM-WITH(IMMOBILIZER & SECURITY HORN)&WIRELESS DOOR LOCK-WITH(*SES & ANSWER BACK & PANIC BUTTON)&HEADLAMP-LED,W/O(MARK=IG1 NO.6) |
1 | ||
| 82611-0K040 |
TGN126..M..GEN;GUN125..(L,M)..GCC;GUN125..TXT..S..GEN;GUN125..TDC..S..(GCC,PH);GUN122,135,TGN126..(L,S,X)..(GCC,PH);GGN125,GUN112,126,TGN11#,120,121..GCC |
1 | ||
| 82611-0K040 |
GUN125,126,135..M..(PH,VN) W/O(MARK=IG1 NO.6) |
1 | ||
| 82642A - RELAY, RUNNING LIGHT | ||||
| 90987-T2001 |
GUN126,135..M..PH HEADLAMP LEVELING DEVICE-WITH(AUTO) |
1 | ||
| 90987-02027 |
GUN126,135..M..PH HEADLAMP LEVELING DEVICE-WITH(AUTO),(J) |
1 | ||
| 90987-T2001 |
GUN126,135..M..PH HEADLAMP LEVELING DEVICE-WITH(AUTO),(L) |
1 | ||
| 82660B - BLOCK ASSY, RELAY | ||||
| 82660-0K110 |
KUN126..LHD..SA;TGN136..X..BZAGT;KUN126..ADC,PDC,PSC;GUN125..(MDC,SDC)..(M,X);KUN125..(ADC,ASC,SDC)..(M,X);GUN122,LAN125..SDC,TDC,TSC,TXT;TGN121,126..ARL,GCC,GEN,LA,SA,TH;GUN136,KUN125..LHD..(ADC,SDC)..S;KUN112,122,136..(ADC,TSC)..(L,M,X);GUN126,136,TGN136..ARL,GEN,LA,PH,TH;GUN126,LAN125..(SSC,TDC)..(H,X)..(SA,VN);KUN122..(PSC,SDC,SSC,TDC,TXT)..(L,M,S,X);GUN122,126,KUN135..LHD..(ADC,ASC,SSC)..(DCR,IART);GUN126,KUN122..LHD..(ADC,TSC)..S..(DCR,HDCR)..(BZAGT,GCC,GEN);GGN12#,GUN112,123,125,135,TGN11#,120,128,138..(ADC,ASC,MSC,TDC,TSC,TXT)..(ARL,BZAGT,GCC,GEN,IDN,LA,MA,PH,TH) |
1 | ||
| 82660-0K160 |
GUN125..S..VN;TGN126..LA,SA;TGN138..5F..S;GUN135..LHD..CBU;TGN138..6FC..(M,S);TGN136..ADC..X..LA;GUN125..LHD..SA..IV3;GUN126,136..(S,X)..HDCR..(BZAGT,LA);GUN126,136..LHD..(H,M)..(GEN,LA,PH,SA,VN);GUN125..LHD..(ASC,SSC)..X..(BZAGT,SA)..CBU;GUN125,LAN125..LHD..(ADC,SDC,TDC)..(BZAGT,GEN,LA,PH,SA);GUN126,LAN125,TGN126,136..(ADC,ASC,SSC,TDC)..MTM..(L,X)..(BZAGT,GEN,SA);GUN122,126,TGN121,128..LHD..(ADC,SDC,SSC,TDC,TSC)..(5F,6FC)..(DCR,HTWC,HTWCF,IART)..(BZAGT,GEN,PH,SA) MARK=20A(NOX PM) |
1 | ||
| 82660-0K161 |
TGN126..LA,SA;GUN126..LHD..SA;GUN126..LHD..H..GEN;GUN126..S..HDCR..BZAGT;TGN128,13#..BZAGT,GEN,LA;GUN135..(ADC,ASC,TSC,TXT)..CBU;GUN125..LHD..TDC..(L,M,X)..GEN;GUN135..(H,M,X)..(GEN,PH,SA,VN);GUN135..TDC..(L,S,X)..(LA,PH,TH,VN);GUN122,126..LHD..(ADC,SSC)..(DCR,IART);GUN122,TGN126..LHD..TDC..5F..(L,M)..GEN;GUN126..(ASC,PDC,TDC)..(H,X)..(BZAGT,PKN,VN);GUN122..(SDC,TDC,TSC,TXT)..(L,S,X)..(GEN,PH,SA,TH);GUN125..(ADC,ASC,SDC,SSC,TDC,TSC)..(L,M,X)..(BZAGT,LA,SA);GUN125,136..LHD..(ADC,SDC,TDC)..S..(BZAGT,GEN,LA,PH,SA,VN);GUN125..RHD..(SXT,TDC,TSC,TXT)..(L,M,S,X)..(GEN,IDN,SA,TH);GUN126,136..(ADC,PDC,TDC,TSC,TXT)..(L,M,S,X)..(GEN,LA,PH,PKN,TH);GGN125,GUN112,120,123,LAN125,TGN110,121..(H,L,S,X)..(GEN,IDN,LA,SA,TH) MARK=10A(NOX PM) |
1 | ||
| 82660C - BLOCK ASSY, RELAY | ||||
| 82660-0K060 |
GUN125,126,135,KUN126..M..(PH,VN) ANTI-THEFT SYSTEM-WITH(IMMOBILIZER & SECURITY HORN)&WIRELESS DOOR LOCK-WITH(*SES & ANSWER BACK & PANIC BUTTON) |
1 | ||
| 82660-0K060 |
GUN126..PH;GUN125,135..M..(PH,VN) ANTI-THEFT SYSTEM-WITH(IMMOBILIZER & SECURITY HORN) |
1 | ||
| 82660-0K060 |
GUN126,135..M..(PH,VN) ANTI-THEFT SYSTEM-WITH(IMMOBILIZER & SECURITY HORN)&HEADLAMP-LED |
1 | ||
| 82660-0K060 |
GUN126,135..M..(PH,VN) ANTI-THEFT SYSTEM-WITH(IMMOBILIZER & SECURITY HORN)&WIRELESS DOOR LOCK-WITH(*SES & ANSWER BACK & PANIC BUTTON)&HEADLAMP-LED |
1 | ||
| 82660-0K060 |
GUN125..TXT..S..GEN;KUN125..LHD..SDC..S;TGN126..TDC..S..GCC;TGN121,126..GCC..IV3;KUN126..TDC..(S,X)..LA;GUN122,135..(L,S,X)..PH;GUN126..(M,S)..(GCC,VN);TGN126,138..5F..M..BZAGT;GUN125..TDC..6F..(M,S)..(GCC,PH);GUN122,125,TGN121..(5F,6FC)..M..GCC;KUN122,125,TGN138..LHD..L..(BZAGT,GEN);GUN122,TGN136..(M,S)..(DCR,HTWC)..(BZAGT,GEN);KUN125,135..LHD..(SSC,SXT,TDC,TSC)..(GCC,LA,SA,VN);GUN126,136,KUN126,LAN125..LHD..(ADC,SDC,SSC,TDC)..MTM..(M,S,X)..(DCR,DEFI,IART)..(BZAGT,SA,VN) |
1 | ||
| 82660D - BLOCK ASSY, RELAY | ||||
| 82660-0K080 |
GUN125,126,135,KUN126..M..(PH,VN) ANTI-THEFT SYSTEM-WITH(IMMOBILIZER & SECURITY HORN)&WIRELESS DOOR LOCK-WITH(*SES & ANSWER BACK & PANIC BUTTON) |
1 | ||
| 82660-0K080 |
GUN126..PH;GUN125,135..M..(PH,VN) ANTI-THEFT SYSTEM-WITH(IMMOBILIZER & SECURITY HORN) |
1 | ||
| 82660-0K080 |
GUN126,135..M..(PH,VN) ANTI-THEFT SYSTEM-WITH(IMMOBILIZER & SECURITY HORN)&HEADLAMP-LED |
1 | ||
| 82660-0K080 |
GUN126,135..M..(PH,VN) ANTI-THEFT SYSTEM-WITH(IMMOBILIZER & SECURITY HORN)&WIRELESS DOOR LOCK-WITH(*SES & ANSWER BACK & PANIC BUTTON)&HEADLAMP-LED |
1 | ||
| 82660-0K080 |
GUN125..TXT..S..GEN;KUN125..LHD..SDC..S;TGN126..TDC..S..GCC;TGN121,126..GCC..IV3;KUN126..TDC..(S,X)..LA;GUN122,135..(L,S,X)..PH;GUN126..(M,S)..(GCC,VN);TGN126,138..5F..M..BZAGT;GUN125..TDC..6F..(M,S)..(GCC,PH);GUN122,125,TGN121..(5F,6FC)..M..GCC;KUN122,125,TGN138..LHD..L..(BZAGT,GEN);GUN122,TGN136..(M,S)..(DCR,HTWC)..(BZAGT,GEN);KUN125,135..LHD..(SSC,SXT,TDC,TSC)..(GCC,LA,SA,VN);GUN126,136,KUN126,LAN125..LHD..(ADC,SDC,SSC,TDC)..MTM..(M,S,X)..(DCR,DEFI,IART)..(BZAGT,SA,VN) |
1 | ||
| 82660E - BLOCK ASSY, RELAY | ||||
| 82660-0K100 |
GUN126..PH;GUN125,135..M..(PH,VN) ANTI-THEFT SYSTEM-WITH(IMMOBILIZER & SECURITY HORN) |
1 | ||
| 82660-0K100 |
GUN125,126,135,KUN126..M..(PH,VN) ANTI-THEFT SYSTEM-WITH(IMMOBILIZER & SECURITY HORN)&WIRELESS DOOR LOCK-WITH(*SES & ANSWER BACK & PANIC BUTTON) |
1 | ||
| 82660-0K100 |
GUN126,135..M..(PH,VN) ANTI-THEFT SYSTEM-WITH(IMMOBILIZER & SECURITY HORN)&HEADLAMP-LED |
1 | ||
| 82660-0K100 |
GUN126,135..M..(PH,VN) ANTI-THEFT SYSTEM-WITH(IMMOBILIZER & SECURITY HORN)&WIRELESS DOOR LOCK-WITH(*SES & ANSWER BACK & PANIC BUTTON)&HEADLAMP-LED |
1 | ||
| 82660-0K100 |
GUN125..TXT..S..GEN;KUN125..LHD..SDC..S;TGN126..TDC..S..GCC;TGN121,126..GCC..IV3;KUN126..TDC..(S,X)..LA;GUN122,135..(L,S,X)..PH;GUN126..(M,S)..(GCC,VN);TGN126,138..5F..M..BZAGT;GUN125..TDC..6F..(M,S)..(GCC,PH);GUN122,125,TGN121..(5F,6FC)..M..GCC;KUN122,125,TGN138..LHD..L..(BZAGT,GEN);GUN122,TGN136..(M,S)..(DCR,HTWC)..(BZAGT,GEN);KUN125,135..LHD..(SSC,SXT,TDC,TSC)..(GCC,LA,SA,VN);GUN126,136,KUN126,LAN125..LHD..(ADC,SDC,SSC,TDC)..MTM..(M,S,X)..(DCR,DEFI,IART)..(BZAGT,SA,VN) |
1 | ||
| 82663A - COVER, RELAY BLOCK, LOWER, NO.2 | ||||
| 82663-0K060 |
GUN126..PH;GUN125,135..M..(PH,VN) ANTI-THEFT SYSTEM-WITH(IMMOBILIZER & SECURITY HORN) |
1 | ||
| 82663-0K060 |
GUN125,126,135,KUN126..M..(PH,VN) ANTI-THEFT SYSTEM-WITH(IMMOBILIZER & SECURITY HORN)&WIRELESS DOOR LOCK-WITH(*SES & ANSWER BACK & PANIC BUTTON) |
1 | ||
| 82663-0K060 |
GUN126,135..M..(PH,VN) ANTI-THEFT SYSTEM-WITH(IMMOBILIZER & SECURITY HORN)&HEADLAMP-LED |
1 | ||
| 82663-0K060 |
GUN126,135..M..(PH,VN) ANTI-THEFT SYSTEM-WITH(IMMOBILIZER & SECURITY HORN)&WIRELESS DOOR LOCK-WITH(*SES & ANSWER BACK & PANIC BUTTON)&HEADLAMP-LED |
1 | ||
| 82663-0K060 |
GUN125..TXT..S..GEN;KUN125..LHD..SDC..S;TGN126..TDC..S..GCC;TGN121,126..GCC..IV3;KUN126..TDC..(S,X)..LA;GUN122,135..(L,S,X)..PH;GUN126..(M,S)..(GCC,VN);TGN126,138..5F..M..BZAGT;GUN125..TDC..6F..(M,S)..(GCC,PH);GUN122,125,TGN121..(5F,6FC)..M..GCC;KUN122,125,TGN138..LHD..L..(BZAGT,GEN);GUN122,TGN136..(M,S)..(DCR,HTWC)..(BZAGT,GEN);KUN125,135..LHD..(SSC,SXT,TDC,TSC)..(GCC,LA,SA,VN);GUN126,136,KUN126,LAN125..LHD..(ADC,SDC,SSC,TDC)..MTM..(M,S,X)..(DCR,DEFI,IART)..(BZAGT,SA,VN) |
1 | ||
| 82663B - COVER, RELAY BLOCK, LOWER, NO.3 | ||||
| 82663-0K080 |
GUN126..PH;GUN125,135..M..(PH,VN) ANTI-THEFT SYSTEM-WITH(IMMOBILIZER & SECURITY HORN) |
1 | ||
| 82663-0K080 |
GUN125,126,135,KUN126..M..(PH,VN) ANTI-THEFT SYSTEM-WITH(IMMOBILIZER & SECURITY HORN)&WIRELESS DOOR LOCK-WITH(*SES & ANSWER BACK & PANIC BUTTON) |
1 | ||
| 82663-0K080 |
GUN126,135..M..(PH,VN) ANTI-THEFT SYSTEM-WITH(IMMOBILIZER & SECURITY HORN)&WIRELESS DOOR LOCK-WITH(*SES & ANSWER BACK & PANIC BUTTON)&HEADLAMP-LED |
1 | ||
| 82663-0K080 |
GUN126,135..M..(PH,VN) ANTI-THEFT SYSTEM-WITH(IMMOBILIZER & SECURITY HORN)&HEADLAMP-LED |
1 | ||
| 82663-0K080 |
GUN125..TXT..S..GEN;KUN125..LHD..SDC..S;TGN126..TDC..S..GCC;TGN121,126..GCC..IV3;KUN126..TDC..(S,X)..LA;GUN122,135..(L,S,X)..PH;GUN126..(M,S)..(GCC,VN);TGN126,138..5F..M..BZAGT;GUN125..TDC..6F..(M,S)..(GCC,PH);GUN122,125,TGN121..(5F,6FC)..M..GCC;KUN122,125,TGN138..LHD..L..(BZAGT,GEN);GUN122,TGN136..(M,S)..(DCR,HTWC)..(BZAGT,GEN);KUN125,135..LHD..(SSC,SXT,TDC,TSC)..(GCC,LA,SA,VN);GUN126,136,KUN126,LAN125..LHD..(ADC,SDC,SSC,TDC)..MTM..(M,S,X)..(DCR,DEFI,IART)..(BZAGT,SA,VN) |
1 | ||
| 82663C - COVER, RELAY BLOCK LOWER, NO.4 | ||||
| 82663-0K100 |
GUN126..PH;GUN125,135..M..(PH,VN) ANTI-THEFT SYSTEM-WITH(IMMOBILIZER & SECURITY HORN) |
1 | ||
| 82663-0K100 |
GUN125,126,135,KUN126..M..(PH,VN) ANTI-THEFT SYSTEM-WITH(IMMOBILIZER & SECURITY HORN)&WIRELESS DOOR LOCK-WITH(*SES & ANSWER BACK & PANIC BUTTON) |
1 | ||
| 82663-0K100 |
GUN126,135..M..(PH,VN) ANTI-THEFT SYSTEM-WITH(IMMOBILIZER & SECURITY HORN)&HEADLAMP-LED |
1 | ||
| 82663-0K100 |
GUN126,135..M..(PH,VN) ANTI-THEFT SYSTEM-WITH(IMMOBILIZER & SECURITY HORN)&WIRELESS DOOR LOCK-WITH(*SES & ANSWER BACK & PANIC BUTTON)&HEADLAMP-LED |
1 | ||
| 82663-0K100 |
GUN125..TXT..S..GEN;KUN125..LHD..SDC..S;TGN126..TDC..S..GCC;TGN121,126..GCC..IV3;KUN126..TDC..(S,X)..LA;GUN122,135..(L,S,X)..PH;GUN126..(M,S)..(GCC,VN);TGN126,138..5F..M..BZAGT;GUN125..TDC..6F..(M,S)..(GCC,PH);GUN122,125,TGN121..(5F,6FC)..M..GCC;KUN122,125,TGN138..LHD..L..(BZAGT,GEN);GUN122,TGN136..(M,S)..(DCR,HTWC)..(BZAGT,GEN);KUN125,135..LHD..(SSC,SXT,TDC,TSC)..(GCC,LA,SA,VN);GUN126,136,KUN126,LAN125..LHD..(ADC,SDC,SSC,TDC)..MTM..(M,S,X)..(DCR,DEFI,IART)..(BZAGT,SA,VN) |
1 | ||
| 84270Q - RELAY, LAMP CUT | ||||
| 90987-T2001 |
GGN12#,135,GUN112,12#,13#,KUN112,12#,13#,LAN125,TGN11#,12#,13# |
1 | ||
| 90987-02027 |
GUN125..TDC..6FC..ARL;GUN125..ADC,ASC,SDC,SSC,SXT,TSC,TXT;GUN125..TDC..(GCC,GEN,IDN,LA,PH,TH,VN);GGN12#,135,GUN112,135..ADC,ASC,MDC,SDC,SSC,SXT,TDC,TSC,TXT;GUN120,122,123,126,136,KUN112,12#,13#,LAN125,TGN11#,120,121,126,128,13#..ADC,ASC,PDC,PSC,SDC,SSC,SXT,TDC,TSC,TXT (J) |
1 | ||
| 90987-T2001 |
GUN125..TDC..6FC..ARL;GUN125..ADC,ASC,SDC,SSC,SXT,TSC,TXT;GUN125..TDC..(GCC,GEN,IDN,LA,PH,TH,VN);GGN12#,135,GUN112,135..ADC,ASC,MDC,SDC,SSC,SXT,TDC,TSC,TXT;GUN120,122,123,126,136,KUN112,12#,13#,LAN125,TGN11#,120,121,126,128,13#..ADC,ASC,PDC,PSC,SDC,SSC,SXT,TDC,TSC,TXT (L) |
1 | ||
| 84930F - RELAY, DOOR LOCK CONTOROL | ||||
| 90987-04004 |
GUN122..6F;GUN135..M..VN;GUN122..RHD..SA;GUN13#..S..BZAGT;GUN125..RHD..S..(SA,TH);GUN126..6FC..(BZAGT,PH);GUN126..RHD..(H,M)..(SA,TH);GUN136..(H,M)..(BZAGT,SA,TH);GUN135..(L,M,S)..(MA,PH,SA,TH);GUN126..6F..(H,M,S)..(BZAGT,KEN,PH);GUN125,TGN126,138..(M,S)..(BZAGT,PH);GGN125,135,GUN112,120,123,TGN120,128..BZAGT,LA,SA,TH;GUN122,TGN121,136..(ADC,SDC,TDC,TXT)..(5F,6FC)..(L,M,S)..(BZAGT,SA,TH) (J) |
1 | ||
| 90080-87009 |
GUN122..6F;GUN135..M..VN;GUN122..RHD..SA;GUN13#..S..BZAGT;GUN125..RHD..S..(SA,TH);GUN126..6FC..(BZAGT,PH);GUN126..RHD..(H,M)..(SA,TH);GUN136..(H,M)..(BZAGT,SA,TH);GUN135..(L,M,S)..(MA,PH,SA,TH);GUN126..6F..(H,M,S)..(BZAGT,KEN,PH);GUN125,TGN126,138..(M,S)..(BZAGT,PH);GGN125,135,GUN112,120,123,TGN120,128..BZAGT,LA,SA,TH;GUN122,TGN121,136..(ADC,SDC,TDC,TXT)..(5F,6FC)..(L,M,S)..(BZAGT,SA,TH) (L) |
1 | ||
| 84930G - RELAY, DOOR LOCK CONTROL, NO.2 | ||||
| 90987-04004 |
GUN122..6F;GUN135..M..VN;GUN122..RHD..SA;GUN13#..S..BZAGT;GUN125..RHD..S..(SA,TH);GUN126..6FC..(BZAGT,PH);GUN126..RHD..(H,M)..(SA,TH);GUN136..(H,M)..(BZAGT,SA,TH);GUN135..(L,M,S)..(MA,PH,SA,TH);GUN126..6F..(H,M,S)..(BZAGT,KEN,PH);GUN125,TGN126,138..(M,S)..(BZAGT,PH);GGN125,135,GUN112,120,123,TGN120,128..BZAGT,LA,SA,TH;GUN122,TGN121,136..(ADC,SDC,TDC,TXT)..(5F,6FC)..(L,M,S)..(BZAGT,SA,TH) (J) |
1 | ||
| 90080-87009 |
GUN122..6F;GUN135..M..VN;GUN122..RHD..SA;GUN13#..S..BZAGT;GUN125..RHD..S..(SA,TH);GUN126..6FC..(BZAGT,PH);GUN126..RHD..(H,M)..(SA,TH);GUN136..(H,M)..(BZAGT,SA,TH);GUN135..(L,M,S)..(MA,PH,SA,TH);GUN126..6F..(H,M,S)..(BZAGT,KEN,PH);GUN125,TGN126,138..(M,S)..(BZAGT,PH);GGN125,135,GUN112,120,123,TGN120,128..BZAGT,LA,SA,TH;GUN122,TGN121,136..(ADC,SDC,TDC,TXT)..(5F,6FC)..(L,M,S)..(BZAGT,SA,TH) (L) |
1 | ||
| 85912 - RELAY, DEFOGGER | ||||
| 90080-87009 |
GUN135..X..SA;GUN126..LHD..SA;GUN125..TDC..X..LA;KUN125..RHD..X..SA;KUN126..5FC..S..LA;GUN126..(H,L,M)..GEN;KUN126..(ADC,TDC)..6F;KUN125..RHD..TDC..GEN;KUN122..RHD..TDC..(H,M);GUN125..LHD..TDC..(L,M)..GEN;KUN122..LHD..(TDC,TXT)..(M,X);GUN125..RHD..TDC..S..(GEN,TH);KUN126..(ADC,TDC)..5FC..(H,L,M,X);GUN122,126,TGN121..X..(ARL,LA,SA);KUN122..LHD..(TSC,TXT)..(L,S)..GEN;GUN122,KUN125..LHD..TDC..(L,M,X)..GEN;KUN125..LHD..(ADC,SSC,SXT,TDC)..(LA,SA);GUN125..LHD..(ADC,SDC,TXT)..(GEN,LA,SA);GUN126,TGN121..TDC..MTM..(L,S)..(GEN,TH);GUN135,TGN136..(ADC,MDC,TDC,TXT)..(5F,6FC);GUN125..LHD..(SSC,TDC)..(M,S)..(LA,PH,SA,VN);GUN135..(ADC,TDC,TXT)..6F..(H,M,S,X)..(GEN,LA,TH);GUN135..(ADC,MDC,TDC,TSC)..6F..(ARL,BZAGT,MA,PH,VN);GUN125..(ADC,MDC,SXT,TSC,TXT)..(ARL,BZAGT,MA,SA,TH);GUN125..RHD..(SDC,SSC,TDC)..6F..(H,L,M,X)..(GEN,SA);GUN122,123,LAN125,TGN126..(5F,6FC)..(M,S)..(ARL,SA,TH);GUN125,KUN122..RHD..(SDC,SSC,TDC)..(5F,6FC)..X..(ARL,SA);GUN122,KUN125,126..LHD..(SDC,TSC,TXT)..(L,M,S)..DCR..(GEN,SA);GUN122,126..(6F,6FC)..(H,L,M,S)..(ARL,BZAGT,LA,MA,PH,TAIW,TH,VN);KUN135,TGN120,126..(ADC,SSC,TDC)..(H,M,S,X)..(BZAGT,GEN,LA,SA,VN);GGN12#,GUN120,136,KUN136,TGN128,138..(H,L,M,S)..(ARL,BZAGT,GEN,LA,TH) |
1 | ||
| 85916D - RELAY, FOG LAMP | ||||
| 90987-T2001 |
TGN136..GEN;TGN126..M..GCC;GUN125..S..IV3;TGN121..(M,S)..GCC;GUN136..S..(BZAGT,SA);KUN122..(TDC,TSC)..L..GEN;GUN135..(L,S)..(GEN,LA,PH);GUN125,TGN121..TSC..L..GCC;KUN125..LHD..(SDC,SSC,TXT)..S;GUN125..LHD..(SDC,SSC)..6F..S;GUN122,135..(5F,6FC)..(L,S)..(GEN,SA,VN);KUN125..(ADC,SXT,TDC,TSC)..(L,S)..(GEN,LA,SA);GUN125,TGN120..(5F,6FC)..(L,M,S)..(GCC,GEN,IDN,LA,SA);GUN126,TGN126..(L,S)..(HDCR,HTWC)..(BZAGT,GCC,GEN,LA,SA);GUN122,125,135,KUN125..(5F,5FC,6F)..(M,S)..(BZAGT,GCC,IDN);GUN112,126,KUN112,122,136,LAN125,TGN111,138..S..(DCR,DEFI,HTWC,HTWCF,IART)..CBU;GUN125,KUN126,135,TGN136..(ADC,SXT,TDC,TSC,TXT)..(5F,5FC,6F)..(L,S)..(GEN,LA,PH,SA) FRONT FOG LAMP-WITH |
1 | ||
| 90987-T2001 |
GUN125..TH,VN;GUN135..6F..S..VN;GUN126..(H,M)..IART;GUN135..LHD..TDC..(L,M);GUN126,KUN126..(H,M)..GEN;GUN135..(H,M,S)..(GEN,MA,TH);KUN135,TGN136..(H,S)..(GEN,TH,VN);GUN126,KUN126..(H,L,M)..(DCR,HDCR)..(ARL,BZAGT,LA,PH,PKN,SA,TAIW,TH,VN);GGN125,135,GUN122,125,136,KUN122,125,136,TGN126,128,13#..(H,M)..(ARL,BZAGT,GEN,LA,SA,TH) |
1 | ||
| 85916N - RELAY, TAIL LAMP | ||||
| 90987-T2001 |
GUN125..TDC..6FC..ARL;TGN136..ADC,ASC,SDC,TDC,TSC,TXT;GUN125..ADC,ASC,SDC,SSC,SXT,TSC,TXT;GUN125..TDC..(GCC,GEN,IDN,LA,PH,TH,VN);GGN12#,135,GUN112,135..ADC,ASC,MDC,SDC,SSC,SXT,TDC,TSC,TXT;GUN120,122,123,126,136,KUN112,12#,13#,LAN125,TGN11#,120,121,126,128,138..ADC,ASC,PDC,PSC,SDC,SSC,SXT,TDC,TSC,TXT |
1 | ||
| 85934 - RELAY, MAGNET-CLUTCH | ||||
| 90987-02028 |
KUN126..L..GEN;KUN126..H,M,S,X;KUN122..LHD..SSC;GUN126..(H,M)..PKN;KUN125..SDC..(M,S);GUN122..LHD..TDC..X;GUN135..(SDC,SSC)..S;GUN125..TDC..6FC..ARL;GUN125..ADC,ASC,TSC,TXT;GUN122..(M,S)..DCR..GEN;GUN122..LHD..(GCC,PH,SA);GUN122..RHD..(ARL,GEN,TH);GUN135,KUN125..LHD..X..SA;KUN125..ADC,ASC,SSC,SXT,TDC,TSC,TXT;GUN135..ADC,ASC,MDC,SXT,TDC,TSC,TXT;GUN125..(SDC,SSC,SXT,TDC)..(H,L,M,S);GUN125..LHD..(SDC,SSC,TDC)..X..(LA,SA);KUN122,TGN120,136..ADC,ASC,SDC,TDC,TSC,TXT;GGN12#,135,GUN112,120,123,126,136,KUN112,13#,LAN125,TGN11#,121,126,128,138..ARL,BZAGT,GCC,GEN,LA,PH,SA,TAIW,TH,VN |
1 | ||
| 86530A - RELAY, HORN | ||||
| 90987-T2001 |
GUN122..RHD..SA;GUN135..6F..S..VN;GUN126..M..HDCR..BZAGT;GUN126..RHD..6F..H..GEN;GUN135..(M,S)..(BZAGT,SA,TH);TGN126..5F..(M,S)..(BZAGT,GEN);TGN136..(M,S)..(BZAGT,LA,SA,TH);GUN135,KUN126..(H,M)..(LA,PH,PKN,VN);GUN122,125,TGN121..RHD..(M,S)..(SA,TH);GGN135,KUN135,TGN120..(HDCR,HTWC)..(SA,VN);GUN136,KUN126..LHD..(5FC,6F)..(M,S)..(BZAGT,SA);GUN125,126,TGN138..LHD..(ADC,TDC)..S..(BZAGT,GEN);GGN125,GUN125,126,136,KUN125,136,TGN126..(H,M)..(ARL,LA,PH,PKN,SA,TAIW,TH,VN) |
1 | ||
| 87299 - RELAY, HEATER | ||||
| 90987-T2003 |
TGN121..S,X;TGN126..M..LA;TGN121..L..CBU;TGN126..(L,S,X)..CBU;KUN126..RHD..(L,M,S);GUN125..LHD..SDC..(S,X);GUN125..LHD..(SSC,SXT,TSC,TXT);KUN126..LHD..(M,S,X)..(GEN,LA);GUN125..RHD..(SDC,SSC,SXT,TSC,TXT);KUN125..(SDC,TDC)..(L,S,X)..(GCC,SA);GUN125,136..RHD..(SSC,SXT,TDC)..M..(GEN,SA);TGN136..(ADC,ASC,SDC,TDC,TSC,TXT)..(GEN,LA,SA,TH);GUN125,TGN136..(ADC,ASC,TDC)..(5F,6FC)..X..(ARL,BZAGT);GUN112,120,123,KUN112,122,135,LAN125,TGN11#,120..L,M,S,X;GUN122,126..(ADC,PDC,SSC,SXT,TDC,TXT)..M..(GEN,LA,PKN,SA);GUN125..(ADC,ASC,TDC)..(L,S,X)..(BZAGT,GCC,GEN,IDN,LA,PH,TH,VN);KUN125..(ADC,ASC,SSC,SXT,TDC,TSC,TXT)..6F..(L,M,S,X)..(GEN,IDN,LA,SA);GGN12#,GUN122,126,13#,KUN136,TGN138..(L,S,X)..(ARL,BZAGT,GCC,GEN,LA,MA,PH,PKN,SA,TH,VN) |
1 | ||
| Common parts | ||||
| 82715-0KD50 | ||||
| 90119-T0313 | ||||
| 90159-70004 | ||||
| 90159-T0037 | ||||
| 90178-T0007 | ||||
| Linked diagrams | ||||
| 8404 | ||||
ILLUST NO. 3 OF10(1505- )LHD
ENGINE ROOM
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 28551 - CONTROLLER, GLOW PLUG | ||||
| 28551-0E010 |
2GDFTV..GUN125..TDC..6FC..ARL;2GDFTV..GUN125..ADC,ASC,SDC,SSC,SXT,TSC,TXT;2GDFTV..GUN125..TDC..(GCC,GEN,IDN,LA,PH,TH,VN);2GDFTV..GUN135..ARL,BZAGT,GEN,LA,MA,PH,SA,TH,VN;1GDFTV,2GDFTV,2TRFE..GUN112,120,122,123,126,136,TGN128,138..ADC,ASC,PDC,PSC,SDC,SSC,SXT,TDC,TSC,TXT (L) |
1 | ||
| 28551-30010 |
2GDFTV..GUN125..TDC..6FC..ARL;2GDFTV..GUN125..ADC,ASC,SDC,SSC,SXT,TSC,TXT;2GDFTV..GUN125..TDC..(GCC,GEN,IDN,LA,PH,TH,VN);2GDFTV..GUN135..ARL,BZAGT,GEN,LA,MA,PH,SA,TH,VN;1GDFTV,2GDFTV,2TRFE..GUN112,120,122,123,126,136,TGN128,138..ADC,ASC,PDC,PSC,SDC,SSC,SXT,TDC,TSC,TXT (J) |
1 | ||
| 28551 - CONTROLLER, GLOW PLUG | ||||
| 28551-0E010 |
2GDFTV..GUN125..TDC..6FC..ARL;2GDFTV..GUN125..ADC,ASC,SDC,SSC,SXT,TSC,TXT;2GDFTV..GUN125..TDC..(GCC,GEN,IDN,LA,PH,TH,VN);2GDFTV..GUN135..ARL,BZAGT,GEN,LA,MA,PH,SA,TH,VN;1GDFTV,2GDFTV,2TRFE..GUN112,120,122,123,126,136,TGN128,138..ADC,ASC,PDC,PSC,SDC,SSC,SXT,TDC,TSC,TXT (L) |
1 | ||
| 28551-30010 |
2GDFTV..GUN125..TDC..6FC..ARL;2GDFTV..GUN125..ADC,ASC,SDC,SSC,SXT,TSC,TXT;2GDFTV..GUN125..TDC..(GCC,GEN,IDN,LA,PH,TH,VN);2GDFTV..GUN135..ARL,BZAGT,GEN,LA,MA,PH,SA,TH,VN;1GDFTV,2GDFTV,2TRFE..GUN112,120,122,123,126,136,TGN128,138..ADC,ASC,PDC,PSC,SDC,SSC,SXT,TDC,TSC,TXT (J) |
1 | ||
| 28559 - BRACKET, GLOW PLUG CONTROLLER, NO.1 | ||||
| 28559-0L030 |
1GDFTV,2GDFTV..GUN112,122,125,126,13#..LHD |
1 | ||
| 28559 - BRACKET, GLOW PLUG CONTROLLER, NO.1 | ||||
| 28559-0L030 |
1GDFTV,2GDFTV..GUN112,122,125,126,13#..LHD |
1 | ||
| 28559A - BRACKET, GLOW PLUG CONTROLLER, NO.2 | ||||
| 28559-0L040 |
1GDFTV,2GDFTV..GUN112,122,125,126,13#..LHD |
1 | ||
| 83390 - SWITCH ASSY, VACUUM WARNING | ||||
| 83390-28120 |
GUN126..6F..H..TH;GUN125..TDC..6FC..ARL;GUN126..H..(BZAGT,GEN,PKN,VN);GUN125..ADC,ASC,SDC,SSC,SXT,TSC,TXT;GUN125..TDC..(GCC,GEN,IDN,LA,PH,TH,VN);GUN126..(ADC,ASC,PDC,PSC,SDC,SSC,SXT,TDC,TSC,TXT)..(L,M,S,X);GUN112,120,122,123,13#,KUN112,12#,13#,LAN125..ADC,ASC,MDC,PDC,PSC,SDC,SSC,SXT,TDC,TSC,TXT |
1 | ||
| Common parts | ||||
| 90105-T0066 | ||||
| 90119-T0130 | ||||
| 90119-T0279 | ||||
| 90153-T0001 | ||||
| 90178-T0056 | ||||
| 94151-80801 | ||||
ILLUST NO. 1 OF10(1505- )KUN112,12#,13#
ENGINE
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 83530 - SWITCH ASSY, OIL PRESSURE (FOR ENGINE) | ||||
| 83530-28020 |
GGN12#,135,TGN11#,12#,138;TGN136..ADC,ASC,SDC,TDC,TSC,TXT DENSO |
1 | ||
| 83530-60010 |
GUN125..TDC..6FC..ARL;GUN125..ADC,ASC,SDC,SSC,SXT,TSC,TXT;GUN125..TDC..(GCC,GEN,IDN,LA,PH,TH,VN);GUN135..ARL,BZAGT,GEN,LA,MA,PH,SA,TH,VN;GUN112,120,122,123,126,136,KUN112,12#,13#..ADC,ASC,PDC,PSC,SDC,SSC,SXT,TDC,TSC,TXT YAZAKI |
1 | ||
| 83530-28010 |
GUN125..TDC..6FC..ARL;GUN125..ADC,ASC,SDC,SSC,SXT,TSC,TXT;GUN125..TDC..(GCC,GEN,IDN,LA,PH,TH,VN);GUN135..ARL,BZAGT,GEN,LA,MA,PH,SA,TH,VN;GUN112,120,122,123,126,136,KUN112,12#,13#..ADC,ASC,PDC,PSC,SDC,SSC,SXT,TDC,TSC,TXT DENSO |
1 | ||
| 83530-60020 |
GGN12#,135,TGN11#,12#,138;TGN136..ADC,ASC,SDC,TDC,TSC,TXT YAZAKI |
1 | ||

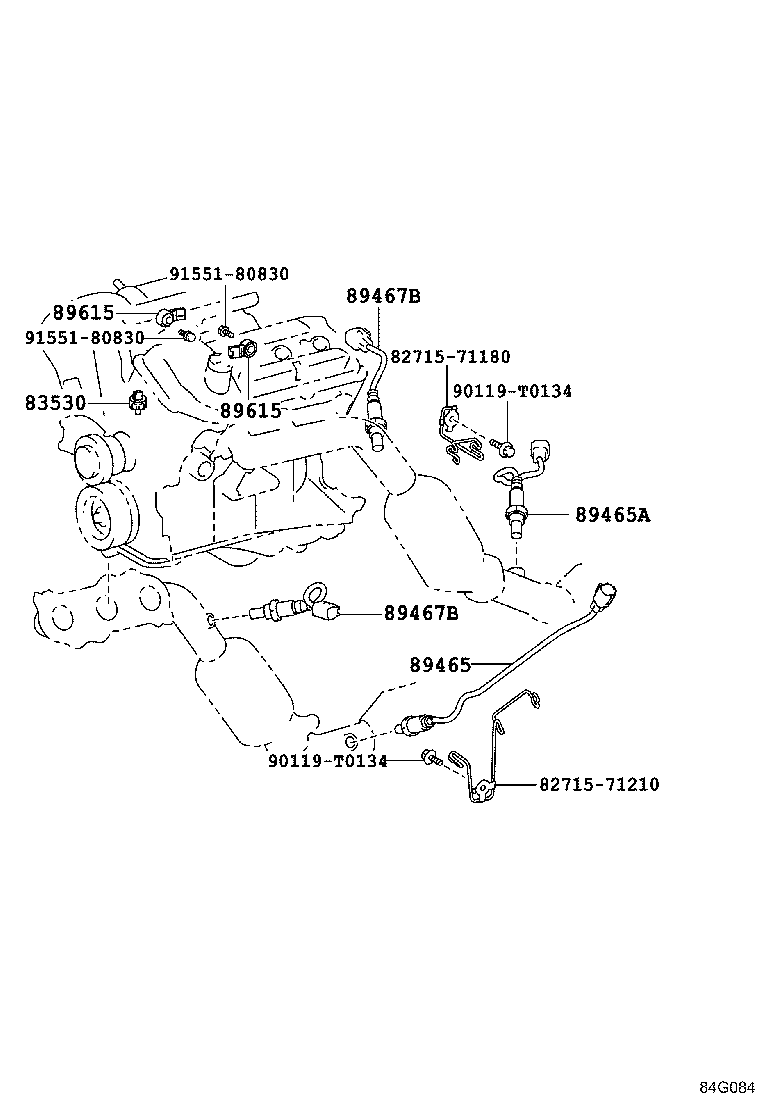

ILLUST NO. 1 OF10(1505- )GGN12#,135
ENGINE
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 83530 - SWITCH ASSY, OIL PRESSURE (FOR ENGINE) | ||||
| 83530-28020 |
GGN12#,135,TGN11#,12#,138;TGN136..ADC,ASC,SDC,TDC,TSC,TXT DENSO |
1 | ||
| 83530-60010 |
GUN125..TDC..6FC..ARL;GUN125..ADC,ASC,SDC,SSC,SXT,TSC,TXT;GUN125..TDC..(GCC,GEN,IDN,LA,PH,TH,VN);GUN135..ARL,BZAGT,GEN,LA,MA,PH,SA,TH,VN;GUN112,120,122,123,126,136,KUN112,12#,13#..ADC,ASC,PDC,PSC,SDC,SSC,SXT,TDC,TSC,TXT YAZAKI |
1 | ||
| 83530-28010 |
GUN125..TDC..6FC..ARL;GUN125..ADC,ASC,SDC,SSC,SXT,TSC,TXT;GUN125..TDC..(GCC,GEN,IDN,LA,PH,TH,VN);GUN135..ARL,BZAGT,GEN,LA,MA,PH,SA,TH,VN;GUN112,120,122,123,126,136,KUN112,12#,13#..ADC,ASC,PDC,PSC,SDC,SSC,SXT,TDC,TSC,TXT DENSO |
1 | ||
| 83530-60020 |
GGN12#,135,TGN11#,12#,138;TGN136..ADC,ASC,SDC,TDC,TSC,TXT YAZAKI |
1 | ||
| 89465 - SENSOR, OXYGEN | ||||
| 89465-0K180 |
GGN12#,135 |
1 | ||
| 89465A - SENSOR, OXYGEN NO.2 | ||||
| 89465-0K170 |
GGN12#,135 |
1 | ||
| 89467B - SENSOR, AIR FUEL RATIO | ||||
| 89467-71110 |
GGN12#,135 |
2 | ||
| 89467B - SENSOR, AIR FUEL RATIO | ||||
| 89467-71110 |
GGN12#,135 |
2 | ||
| 89615 - SENSOR, KNOCK CONTROL | ||||
| 89615-20090 |
GGN12#,135 |
2 | ||
| 89615 - SENSOR, KNOCK CONTROL | ||||
| 89615-20090 |
GGN12#,135 |
2 | ||
| Common parts | ||||
| 82715-71180 | ||||
| 82715-71210 | ||||
| 90119-T0134 | ||||
| 91551-80830 | ||||
ILLUST NO. 1 OF10(1505- )TGN11#,12#,13#
ENGINE
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 83530 - SWITCH ASSY, OIL PRESSURE (FOR ENGINE) | ||||
| 83530-28020 |
GGN12#,135,TGN11#,12#,138;TGN136..ADC,ASC,SDC,TDC,TSC,TXT DENSO |
1 | ||
| 83530-60010 |
GUN125..TDC..6FC..ARL;GUN125..ADC,ASC,SDC,SSC,SXT,TSC,TXT;GUN125..TDC..(GCC,GEN,IDN,LA,PH,TH,VN);GUN135..ARL,BZAGT,GEN,LA,MA,PH,SA,TH,VN;GUN112,120,122,123,126,136,KUN112,12#,13#..ADC,ASC,PDC,PSC,SDC,SSC,SXT,TDC,TSC,TXT YAZAKI |
1 | ||
| 83530-28010 |
GUN125..TDC..6FC..ARL;GUN125..ADC,ASC,SDC,SSC,SXT,TSC,TXT;GUN125..TDC..(GCC,GEN,IDN,LA,PH,TH,VN);GUN135..ARL,BZAGT,GEN,LA,MA,PH,SA,TH,VN;GUN112,120,122,123,126,136,KUN112,12#,13#..ADC,ASC,PDC,PSC,SDC,SSC,SXT,TDC,TSC,TXT DENSO |
1 | ||
| 83530-60020 |
GGN12#,135,TGN11#,12#,138;TGN136..ADC,ASC,SDC,TDC,TSC,TXT YAZAKI |
1 | ||
| 89465 - SENSOR, OXYGEN | ||||
| 89465-0K180 |
GGN12#,135 |
1 | ||
| 89465 - SENSOR, OXYGEN | ||||
| 89465-0K180 |
GGN12#,135 |
1 | ||
| 89467B - SENSOR, AIR FUEL RATIO | ||||
| 89467-71110 |
GGN12#,135 |
2 | ||
| 89615 - SENSOR, KNOCK CONTROL | ||||
| 89615-20090 |
GGN12#,135 |
2 | ||
| Common parts | ||||
| 82715-0K820 | ||||
| 82715-35A30 | ||||
| 82715-71220 | ||||
| 8946A-0K010 | ||||
| 90105-T0004 | ||||
| 90119-T0126 | ||||
| 90119-T0237 | ||||
ILLUST NO. 9 OF10(1505- )
SEAT
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 84921D - KNOB, POWER SEAT SWITCH, LH | ||||
| 84921-02110C0 |
GUN126..H..VN;GUN136..LHD..6F..M;KUN126..(H,M)..(LA,VN);GUN125,126,135,KUN136,TGN126,128,13#..M..(BZAGT,LA,PH,VN) SEAT COVER MATERIAL-NATURAL LEATHER,BLACK,TRIM2#,4# |
1 | ||
| 84921K - KNOB, POWER SEAT SWITCH, LH | ||||
| 84921-02070C0 |
GUN126..H..VN;GUN136..LHD..6F..M;KUN126..(H,M)..(LA,VN);GUN125,126,135,KUN136,TGN126,128,13#..M..(BZAGT,LA,PH,VN) SEAT COVER MATERIAL-NATURAL LEATHER,BLACK,TRIM2#,4# |
1 | ||
| 84922C - SWITCH, FRONT POWER SEAT, LH | ||||
| 84922-06140 |
GUN136..LHD..6F..M;GUN126..LHD..TDC..H;GUN126..LHD..M..(BZAGT,GEN,LA,PH,SA,VN);GUN122,125,135,KUN12#,13#,TGN126,128,13#..LHD..(ADC,TDC)..(H,M)..(BZAGT,GEN,LA,PH,VN) SEAT COVER MATERIAL-NATURAL LEATHER |
1 | ||
| Common parts | ||||
| 93560-14010 | ||||
ILLUST NO.10 OF10(1505- )
DOOR,ROOF,FLOOR & BACK DOOR
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 83320 - GAGE ASSY, FUEL SENDER | ||||
| 83320-0K181 |
GUN125..TDC..6FC..ARL;TGN136..ADC,ASC,SDC,TDC;GUN125..ADC,ASC,SDC,SSC,SXT,TSC,TXT;GUN125..TDC..(GCC,GEN,IDN,LA,PH,TH,VN);GUN135..ARL,BZAGT,GEN,LA,MA,PH,SA,TH,VN;GGN125,GUN120,122,123,126,136,KUN122,LAN125,TGN120,121,126..ADC,ASC,PDC,PSC,SDC,SSC,SXT,TDC,TSC,TXT MARK 0K181 |
1 | ||
| 83320-0K180 |
TGN136..ADC,ASC,SDC,TDC,TSC,TXT;GGN12#,135,GUN12#,13#,KUN12#,13#,LAN125,TGN120,121,126 MARK 0K180 |
1 | ||
| 83320 - GAGE ASSY, FUEL SENDER | ||||
| 83320-0K181 |
GUN125..TDC..6FC..ARL;TGN136..ADC,ASC,SDC,TDC;GUN125..ADC,ASC,SDC,SSC,SXT,TSC,TXT;GUN125..TDC..(GCC,GEN,IDN,LA,PH,TH,VN);GUN135..ARL,BZAGT,GEN,LA,MA,PH,SA,TH,VN;GGN125,GUN120,122,123,126,136,KUN122,LAN125,TGN120,121,126..ADC,ASC,PDC,PSC,SDC,SSC,SXT,TDC,TSC,TXT MARK 0K181 |
1 | ||
| 83320-0K180 |
TGN136..ADC,ASC,SDC,TDC,TSC,TXT;GGN12#,135,GUN12#,13#,KUN12#,13#,LAN125,TGN120,121,126 MARK 0K180 |
1 | ||
| 84233 - SWITCH ASSY, COURTESY LAMP (FOR FRONT DOOR) | ||||
| 84231-0K060 |
GUN125..TDC..6FC..ARL;TGN136..ADC,ASC,SDC,TDC,TSC,TXT;GUN125..ADC,ASC,SDC,SSC,SXT,TSC,TXT;GUN125..TDC..(GCC,GEN,IDN,LA,PH,TH,VN);GGN12#,135,GUN112,135..ADC,ASC,MDC,SDC,SSC,SXT,TDC,TSC,TXT;GUN120,122,123,126,136,KUN112,12#,13#,LAN125,TGN11#,120,121,126,128,138..ADC,ASC,PDC,PSC,SDC,SSC,SXT,TDC,TSC,TXT |
2 | ||
| 84233 - SWITCH ASSY, COURTESY LAMP (FOR FRONT DOOR) | ||||
| 84231-0K060 |
GUN125..TDC..6FC..ARL;TGN136..ADC,ASC,SDC,TDC,TSC,TXT;GUN125..ADC,ASC,SDC,SSC,SXT,TSC,TXT;GUN125..TDC..(GCC,GEN,IDN,LA,PH,TH,VN);GGN12#,135,GUN112,135..ADC,ASC,MDC,SDC,SSC,SXT,TDC,TSC,TXT;GUN120,122,123,126,136,KUN112,12#,13#,LAN125,TGN11#,120,121,126,128,138..ADC,ASC,PDC,PSC,SDC,SSC,SXT,TDC,TSC,TXT |
2 | ||
| 84234 - SWITCH ASSY, COURTESY LAMP (FOR REAR DOOR) | ||||
| 84231-0K060 |
GUN125..TDC..6FC..ARL;GUN135..ADC,MDC,SDC,TDC;GUN125..(ADC,SDC,TDC)..(BZAGT,GCC,GEN,IDN,LA,PH,SA,TH,VN);GGN12#,135,GUN120,122,123,126,136,KUN12#,13#,LAN125,TGN120,121,126,128,13#..ADC,PDC,SDC,TDC |
2 | ||
| 84234 - SWITCH ASSY, COURTESY LAMP (FOR REAR DOOR) | ||||
| 84231-0K060 |
GUN125..TDC..6FC..ARL;GUN135..ADC,MDC,SDC,TDC;GUN125..(ADC,SDC,TDC)..(BZAGT,GCC,GEN,IDN,LA,PH,SA,TH,VN);GGN12#,135,GUN120,122,123,126,136,KUN12#,13#,LAN125,TGN120,121,126,128,13#..ADC,PDC,SDC,TDC |
2 | ||
| 84810 - SWITCH ASSY, POWER WINDOW REGULATOR | ||||
| 84810-0K070 |
GUN126..S;KUN125..L..IDN;TGN121..(L,S)..TH;TGN136..LHD..(M,S);KUN126..TDC..5FC..X;KUN126..(M,S)..(GEN,VN);KUN126..(H,M,S)..(LA,PKN,SA);GUN125..RHD..(SDC,SSC,TSC,TXT);GUN125..LHD..(M,S)..(GEN,LA,SA);GUN126..M..(BZAGT,LA,PH,SA,TH,VN);GUN135..(L,M,S)..(GEN,LA,MA,PH,SA,TH,VN);GUN122,125..RHD..(SSC,TDC)..(5F,6FC)..(GEN,SA);GGN125,GUN136,TGN120,136..(S,X)..(ARL,GEN,SA,TH);GUN125..(ADC,TDC,TSC)..(M,S,X)..(ARL,BZAGT,GCC,TH)..CBU;GUN122,135,TGN121..(ADC,TDC,TSC)..(M,S,X)..(ARL,BZAGT,GCC);GGN125,GUN112,136,KUN112,122,125,TGN111,126,138..(M,S)..(BZAGT,GCC,GEN,IDN,LA,SA,TH);GGN120,135,GUN112,122,123,KUN13#,LAN125,TGN128..(L,M,S)..(ARL,BZAGT,GEN,LA,SA,TH,VN) |
1 | ||
| 84810-0K080 |
GUN122..5F..M..TH;GUN126,136..M..(PH,TH,VN);GUN126..LHD..6FC..M..(LA,SA);GGN125,135,GUN125,135,KUN125,126,TGN126,136..(ADC,SDC,SXT,TDC,TXT)..M..(LA,PH,SA,TH,VN) WIRELESS DOOR LOCK-WITH(*SES & ANSWER BACK & PANIC BUTTON) |
1 | ||
| 84810-0K080 |
GUN136..H..BZAGT;GUN126..M..(ARL,TAIW);GUN136..RHD..TDC..(H,M);GUN135..(H,S)..(GEN,MA);GGN125..(H,M)..(ARL,BZAGT,LA);GUN125,126,KUN12#,135..(ADC,TDC)..H |
1 | ||
| 84810-0D300 |
GUN135..L..MA;GUN136..TDC..S;GUN122..RHD..SA;GUN125..TDC..IV3;GUN125..TXT..GEN;GUN126..TDC..6FC..X;TGN136..LHD..5F..(M,S);GUN125..TDC..6F..(M,S)..GCC;GUN122,TGN121..5F..(L,M,S)..TH;GUN122,TGN121..(M,S,X)..(ARL,GCC);TGN136..(SDC,TDC,TXT)..(GEN,SA,TH);GGN125,GUN122..(6F,6FC)..(GCC,SA,TH);GUN125..6F..(L,M,S)..(IDN,LA,PH,SA,VN);GUN125..(TDC,TSC)..6F..(M,S)..(GEN,TH);GUN125..(SDC,TDC)..6FC..(M,S)..(GCC,SA);GUN136..(ADC,SDC,SSC,SXT,TSC,TXT)..(M,S);GUN122,136..(TDC,TSC,TXT)..(M,S)..(GEN,LA);GUN126..M..(BZAGT,GCC,GEN,LA,PH,PKN,SA,TH);GUN112,KUN12#,135,LAN125,TGN111,126,138..H,M,S;GUN125..(ADC,TSC,TXT)..(S,X)..(ARL,BZAGT,GCC,TH);GUN125..(ADC,SSC,TDC,TSC)..6FC..(ARL,GEN,IDN,LA,SA)..CBU;GUN135..(SXT,TDC,TSC,TXT)..(L,M,S,X)..(ARL,GEN,PH,SA,TH,VN);GGN120,135,GUN112,120,123,KUN136,TGN120,128..ARL,BZAGT,LA,SA,TH;GGN125,GUN126,135..(ADC,SDC,SSC,TDC,TSC,TXT)..S..(ARL,BZAGT,GCC,GEN,LA,SA) |
1 | ||
| 84810 - SWITCH ASSY, POWER WINDOW REGULATOR | ||||
| 84810-0K070 |
GUN126..S;KUN125..L..IDN;TGN121..(L,S)..TH;TGN136..LHD..(M,S);KUN126..TDC..5FC..X;KUN126..(M,S)..(GEN,VN);KUN126..(H,M,S)..(LA,PKN,SA);GUN125..RHD..(SDC,SSC,TSC,TXT);GUN125..LHD..(M,S)..(GEN,LA,SA);GUN126..M..(BZAGT,LA,PH,SA,TH,VN);GUN135..(L,M,S)..(GEN,LA,MA,PH,SA,TH,VN);GUN122,125..RHD..(SSC,TDC)..(5F,6FC)..(GEN,SA);GGN125,GUN136,TGN120,136..(S,X)..(ARL,GEN,SA,TH);GUN125..(ADC,TDC,TSC)..(M,S,X)..(ARL,BZAGT,GCC,TH)..CBU;GUN122,135,TGN121..(ADC,TDC,TSC)..(M,S,X)..(ARL,BZAGT,GCC);GGN125,GUN112,136,KUN112,122,125,TGN111,126,138..(M,S)..(BZAGT,GCC,GEN,IDN,LA,SA,TH);GGN120,135,GUN112,122,123,KUN13#,LAN125,TGN128..(L,M,S)..(ARL,BZAGT,GEN,LA,SA,TH,VN) |
1 | ||
| 84810-0K080 |
GUN122..5F..M..TH;GUN126,136..M..(PH,TH,VN);GUN126..LHD..6FC..M..(LA,SA);GGN125,135,GUN125,135,KUN125,126,TGN126,136..(ADC,SDC,SXT,TDC,TXT)..M..(LA,PH,SA,TH,VN) WIRELESS DOOR LOCK-WITH(*SES & ANSWER BACK & PANIC BUTTON) |
1 | ||
| 84810-0K080 |
GUN136..H..BZAGT;GUN126..M..(ARL,TAIW);GUN136..RHD..TDC..(H,M);GUN135..(H,S)..(GEN,MA);GGN125..(H,M)..(ARL,BZAGT,LA);GUN125,126,KUN12#,135..(ADC,TDC)..H |
1 | ||
| 84810-0D300 |
GUN135..L..MA;GUN136..TDC..S;GUN122..RHD..SA;GUN125..TDC..IV3;GUN125..TXT..GEN;GUN126..TDC..6FC..X;TGN136..LHD..5F..(M,S);GUN125..TDC..6F..(M,S)..GCC;GUN122,TGN121..5F..(L,M,S)..TH;GUN122,TGN121..(M,S,X)..(ARL,GCC);TGN136..(SDC,TDC,TXT)..(GEN,SA,TH);GGN125,GUN122..(6F,6FC)..(GCC,SA,TH);GUN125..6F..(L,M,S)..(IDN,LA,PH,SA,VN);GUN125..(TDC,TSC)..6F..(M,S)..(GEN,TH);GUN125..(SDC,TDC)..6FC..(M,S)..(GCC,SA);GUN136..(ADC,SDC,SSC,SXT,TSC,TXT)..(M,S);GUN122,136..(TDC,TSC,TXT)..(M,S)..(GEN,LA);GUN126..M..(BZAGT,GCC,GEN,LA,PH,PKN,SA,TH);GUN112,KUN12#,135,LAN125,TGN111,126,138..H,M,S;GUN125..(ADC,TSC,TXT)..(S,X)..(ARL,BZAGT,GCC,TH);GUN125..(ADC,SSC,TDC,TSC)..6FC..(ARL,GEN,IDN,LA,SA)..CBU;GUN135..(SXT,TDC,TSC,TXT)..(L,M,S,X)..(ARL,GEN,PH,SA,TH,VN);GGN120,135,GUN112,120,123,KUN136,TGN120,128..ARL,BZAGT,LA,SA,TH;GGN125,GUN126,135..(ADC,SDC,SSC,TDC,TSC,TXT)..S..(ARL,BZAGT,GCC,GEN,LA,SA) |
1 | ||
| 84810D - SWITCH ASSY, POWER WINDOW REGULATOR, REAR | ||||
| 84810-0K070 |
GUN135..S..BZAGT;KUN125..TDC..L..IDN;KUN126..TDC..5FC..X;GUN125,TGN136..LHD..(ADC,SDC,TDC)..(M,S);KUN126..(ADC,PDC,SDC,TDC)..(H,M,S)..(LA,PKN,SA);KUN126,TGN121..TDC..(M,S,X)..(ARL,GCC,GEN,TH,VN);GUN126,136..(ADC,SDC,TDC)..(M,S)..(BZAGT,LA,PH,SA,VN);GGN125,GUN125,TGN136..(SDC,TDC)..(5F,6FC)..(GEN,SA,TH);GUN135..(ADC,MDC,SDC,TDC)..(L,M,S)..(GEN,LA,MA,PH,SA,TH,VN);GGN125,GUN122,125,126,136..RHD..(SDC,TDC)..(L,S,X)..(ARL,SA,TH);GGN120,135,GUN122,123,KUN122,125,13#,LAN125,TGN126,128,138..(ADC,SDC,TDC)..(M,S)..(ARL,BZAGT,GCC,GEN,IDN,LA,SA,VN) |
2 | ||
| 84810-0K080 |
GUN126..6F..(PH,VN);GUN126..LHD..6FC..M..(LA,PH,SA);GGN125,135,GUN125,135,KUN125,126,TGN126,136..(ADC,SDC,TDC)..M..(LA,PH,SA,TH,VN) WIRELESS DOOR LOCK-WITH(*SES & ANSWER BACK & PANIC BUTTON) |
2 | ||
| 84810-0K080 |
GUN136..H..BZAGT;GUN136..RHD..TDC..(H,M);GUN135..(H,S)..(GEN,MA);GUN126..TDC..M..(ARL,TAIW);GGN125..(H,M)..(ARL,BZAGT,LA);GUN125,126,KUN12#,135..(ADC,TDC)..H |
2 | ||
| 84810-0D300 |
GUN125..TDC..L..IDN;GUN126..TDC..6FC..X;TGN121..TDC..(M,S,X);TGN136..LHD..5F..(M,S);GUN135..(ADC,SDC,TDC)..S;GUN125..RHD..TDC..6FC..(L,X);GUN125..(ADC,SDC,TDC)..(M,S);TGN136..(SDC,TDC)..(GEN,SA,TH);KUN126..(ADC,PDC,SDC)..(H,M,S);GGN125,GUN122,126,136..TDC..(L,S,X)..(ARL,TH);GUN135..(MDC,TDC)..(L,M,X)..(ARL,GEN,MA,PH,TH,VN);GGN120,135,GUN120,123,KUN125,13#,LAN125,TGN128..(ADC,SDC,TDC)..(L,M,S);GGN125,GUN122,126,136,KUN122,TGN126,138..(ADC,PDC,SDC,TDC)..(M,S)..(BZAGT,GCC,GEN,LA,PH,PKN,SA) |
2 | ||
| 84810D - SWITCH ASSY, POWER WINDOW REGULATOR, REAR | ||||
| 84810-0K070 |
GUN135..S..BZAGT;KUN125..TDC..L..IDN;KUN126..TDC..5FC..X;GUN125,TGN136..LHD..(ADC,SDC,TDC)..(M,S);KUN126..(ADC,PDC,SDC,TDC)..(H,M,S)..(LA,PKN,SA);KUN126,TGN121..TDC..(M,S,X)..(ARL,GCC,GEN,TH,VN);GUN126,136..(ADC,SDC,TDC)..(M,S)..(BZAGT,LA,PH,SA,VN);GGN125,GUN125,TGN136..(SDC,TDC)..(5F,6FC)..(GEN,SA,TH);GUN135..(ADC,MDC,SDC,TDC)..(L,M,S)..(GEN,LA,MA,PH,SA,TH,VN);GGN125,GUN122,125,126,136..RHD..(SDC,TDC)..(L,S,X)..(ARL,SA,TH);GGN120,135,GUN122,123,KUN122,125,13#,LAN125,TGN126,128,138..(ADC,SDC,TDC)..(M,S)..(ARL,BZAGT,GCC,GEN,IDN,LA,SA,VN) |
2 | ||
| 84810-0K080 |
GUN126..6F..(PH,VN);GUN126..LHD..6FC..M..(LA,PH,SA);GGN125,135,GUN125,135,KUN125,126,TGN126,136..(ADC,SDC,TDC)..M..(LA,PH,SA,TH,VN) WIRELESS DOOR LOCK-WITH(*SES & ANSWER BACK & PANIC BUTTON) |
2 | ||
| 84810-0K080 |
GUN136..H..BZAGT;GUN136..RHD..TDC..(H,M);GUN135..(H,S)..(GEN,MA);GUN126..TDC..M..(ARL,TAIW);GGN125..(H,M)..(ARL,BZAGT,LA);GUN125,126,KUN12#,135..(ADC,TDC)..H |
2 | ||
| 84810-0D300 |
GUN125..TDC..L..IDN;GUN126..TDC..6FC..X;TGN121..TDC..(M,S,X);TGN136..LHD..5F..(M,S);GUN135..(ADC,SDC,TDC)..S;GUN125..RHD..TDC..6FC..(L,X);GUN125..(ADC,SDC,TDC)..(M,S);TGN136..(SDC,TDC)..(GEN,SA,TH);KUN126..(ADC,PDC,SDC)..(H,M,S);GGN125,GUN122,126,136..TDC..(L,S,X)..(ARL,TH);GUN135..(MDC,TDC)..(L,M,X)..(ARL,GEN,MA,PH,TH,VN);GGN120,135,GUN120,123,KUN125,13#,LAN125,TGN128..(ADC,SDC,TDC)..(L,M,S);GGN125,GUN122,126,136,KUN122,TGN126,138..(ADC,PDC,SDC,TDC)..(M,S)..(BZAGT,GCC,GEN,LA,PH,PKN,SA) |
2 | ||
| 84820 - MASTER SWITCH ASSY, POWER WINDOW REGULATOR | ||||
| 84820-0K270 |
KUN125..M..SA;GUN122,125,TGN121..(5F,6FC)..M..GCC;KUN125,TGN126..LHD..(ADC,TDC)..(M,S);GUN125..LHD..(ADC,SDC,TDC)..6F..(M,S);GUN126,13#,KUN122,126,13#,TGN128,13#..LHD..(ADC,SDC,TDC)..(M,S)..(BZAGT,GEN,LA,PH,SA,VN) |
1 | ||
| 84040-0K020 |
GUN135,KUN126..LHD..M..(LA,PH,SA,VN);GUN125,126,KUN125..LHD..6F..M..(PH,SA,VN);GUN126,TGN126,136..LHD..(5F,6FC)..M..(LA,PH,SA) WIRELESS DOOR LOCK-WITH(*SES & ANSWER BACK & PANIC BUTTON) |
1 | ||
| 84040-0K020 |
GUN126,13#,KUN126,135..LHD..H |
1 | ||
| 84820 - MASTER SWITCH ASSY, POWER WINDOW REGULATOR | ||||
| 84820-0K270 |
KUN125..M..SA;GUN122,125,TGN121..(5F,6FC)..M..GCC;KUN125,TGN126..LHD..(ADC,TDC)..(M,S);GUN125..LHD..(ADC,SDC,TDC)..6F..(M,S);GUN126,13#,KUN122,126,13#,TGN128,13#..LHD..(ADC,SDC,TDC)..(M,S)..(BZAGT,GEN,LA,PH,SA,VN) |
1 | ||
| 84040-0K020 |
GUN135,KUN126..LHD..M..(LA,PH,SA,VN);GUN125,126,KUN125..LHD..6F..M..(PH,SA,VN);GUN126,TGN126,136..LHD..(5F,6FC)..M..(LA,PH,SA) WIRELESS DOOR LOCK-WITH(*SES & ANSWER BACK & PANIC BUTTON) |
1 | ||
| 84040-0K020 |
GUN126,13#,KUN126,135..LHD..H |
1 | ||
| 84870A - SWITCH ASSY, OUTER MIRROR | ||||
| 84872-0K040 |
KUN135..GEN,VN;GUN135..6F..S..VN;GUN126,KUN126..LHD..(H,M)..(BZAGT,GEN,LA,PH,SA,TAIW,VN);GGN125,GUN122,125,13#,KUN122,125,136,TGN126,128,13#..LHD..(H,M)..(BZAGT,GEN,LA,PH,SA) |
1 | ||
| 84870A - SWITCH ASSY, OUTER MIRROR | ||||
| 84872-0K040 |
KUN135..GEN,VN;GUN135..6F..S..VN;GUN126,KUN126..LHD..(H,M)..(BZAGT,GEN,LA,PH,SA,TAIW,VN);GGN125,GUN122,125,13#,KUN122,125,136,TGN126,128,13#..LHD..(H,M)..(BZAGT,GEN,LA,PH,SA) |
1 | ||
| Common parts | ||||
| 90119-06915 | ||||
| 90119-T0130 | ||||
| 90164-T0005 | ||||
| 90166-60005 | ||||
| 90166-70001 | ||||
| 90178-T0018 | ||||
ILLUST NO. 1 OF10(1505- )GUN112,12#,13#
ENGINE
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 83530 - SWITCH ASSY, OIL PRESSURE (FOR ENGINE) | ||||
| 83530-28020 |
GGN12#,135,TGN11#,12#,138;TGN136..ADC,ASC,SDC,TDC,TSC,TXT DENSO |
1 | ||
| 83530-60010 |
GUN125..TDC..6FC..ARL;GUN125..ADC,ASC,SDC,SSC,SXT,TSC,TXT;GUN125..TDC..(GCC,GEN,IDN,LA,PH,TH,VN);GUN135..ARL,BZAGT,GEN,LA,MA,PH,SA,TH,VN;GUN112,120,122,123,126,136,KUN112,12#,13#..ADC,ASC,PDC,PSC,SDC,SSC,SXT,TDC,TSC,TXT YAZAKI |
1 | ||
| 83530-28010 |
GUN125..TDC..6FC..ARL;GUN125..ADC,ASC,SDC,SSC,SXT,TSC,TXT;GUN125..TDC..(GCC,GEN,IDN,LA,PH,TH,VN);GUN135..ARL,BZAGT,GEN,LA,MA,PH,SA,TH,VN;GUN112,120,122,123,126,136,KUN112,12#,13#..ADC,ASC,PDC,PSC,SDC,SSC,SXT,TDC,TSC,TXT DENSO |
1 | ||
| 83530-60020 |
GGN12#,135,TGN11#,12#,138;TGN136..ADC,ASC,SDC,TDC,TSC,TXT YAZAKI |
1 | ||
| 89467B - SENSOR, AIR FUEL RATIO | ||||
| 89467-71110 |
GGN12#,135 |
2 | ||
| 89491 - SENSOR, ENGINE OIL LEVEL | ||||
| 89491-71010 |
GUN112,12#,13# TYPE A:REFER ILLUST. |
1 | ||
| Common parts | ||||
| 82715-71200 | ||||
| 89439-71060 | ||||
| 89439-71070 | ||||
| 89439-71080 | ||||
| 90105-T0066 | ||||
| 90119-T0126 | ||||
| 90119-T0134 | ||||
| 90119-T0260 | ||||
| 90153-50015 | ||||
| 90178-T0007 | ||||
| 90178-T0018 | ||||
| 90178-T0059 | ||||
| 90179-06274 | ||||
| 91551-80612 | ||||
| 91671-80616 | ||||
| 91673-80616 | ||||
| 91673-80820 | ||||
| 94151-80600 | ||||
| 96221-10706 | ||||
| Linked diagrams | ||||
| 1708 | ||||
Part Price Details
Loading price information...
Part Number:
Price:
