GUN135L-BGFXHG (2015)

Toyota Hilux

Production Nov 2015 - Oct 2020
Engine 2GDFTV
Transmission 6F MTM
Displacement 2500cc
Power 168 HP (125 kW)

ILLUST NO. 2 OF 2(0408- )

Click highlighted areas on diagram

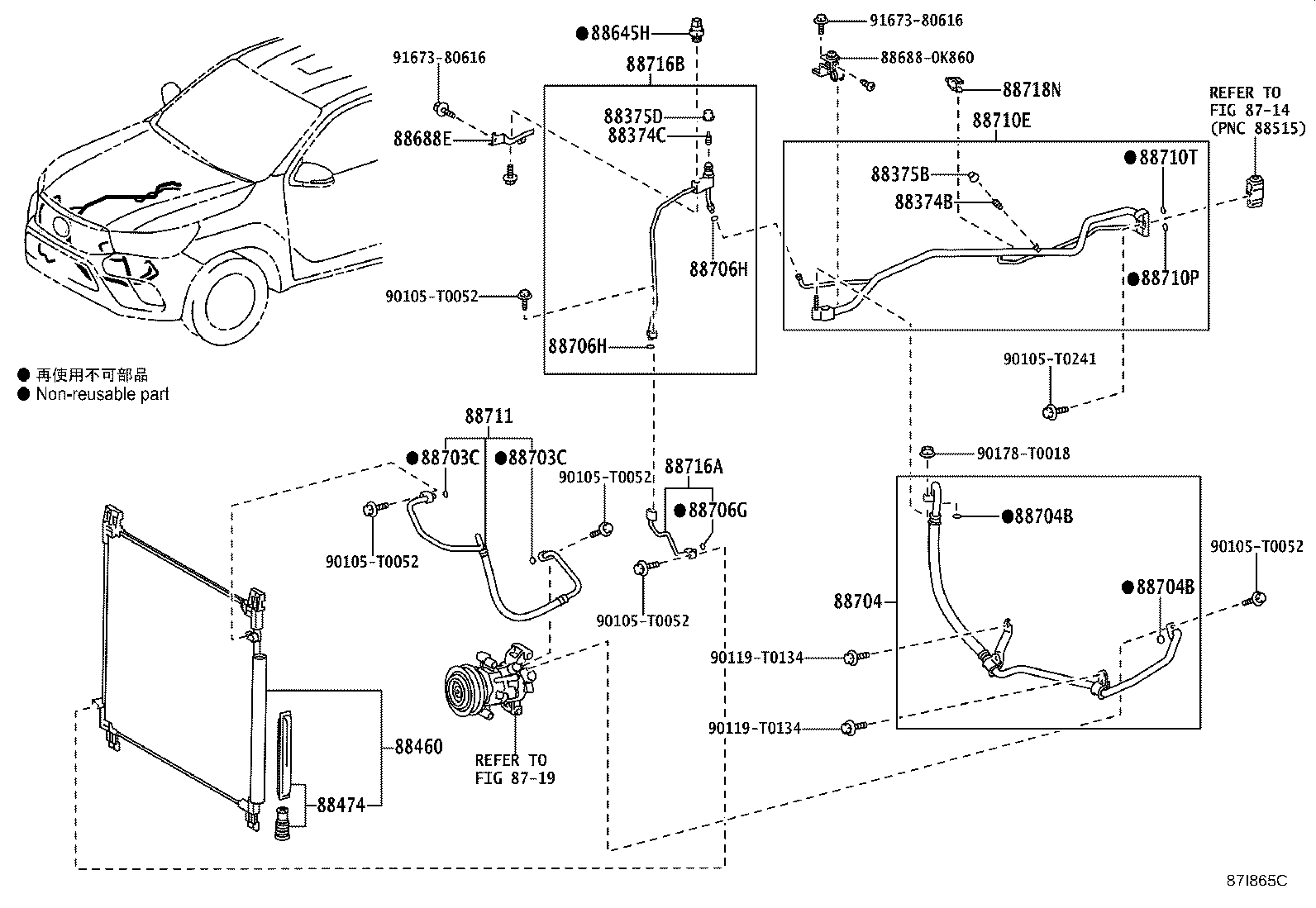

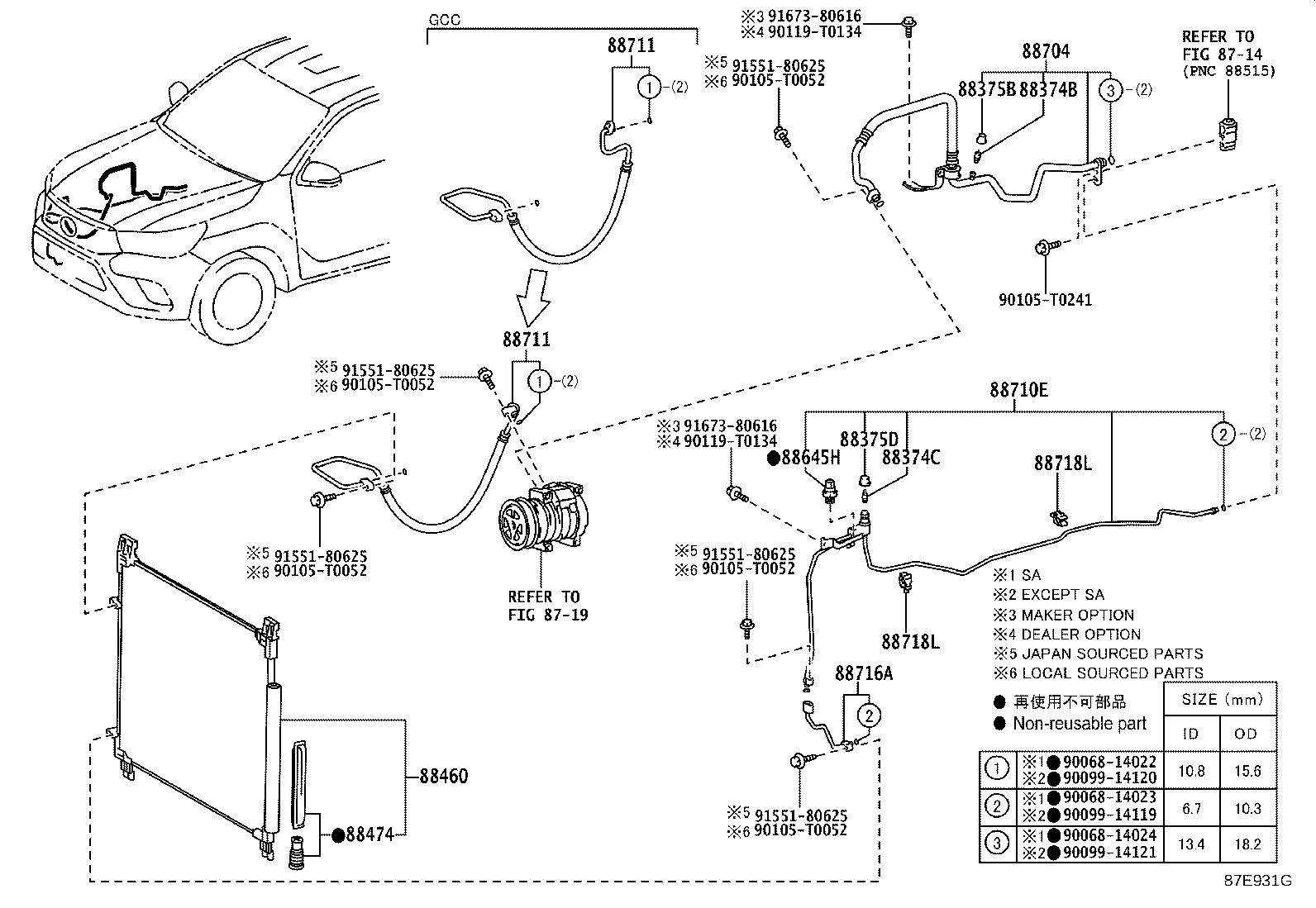

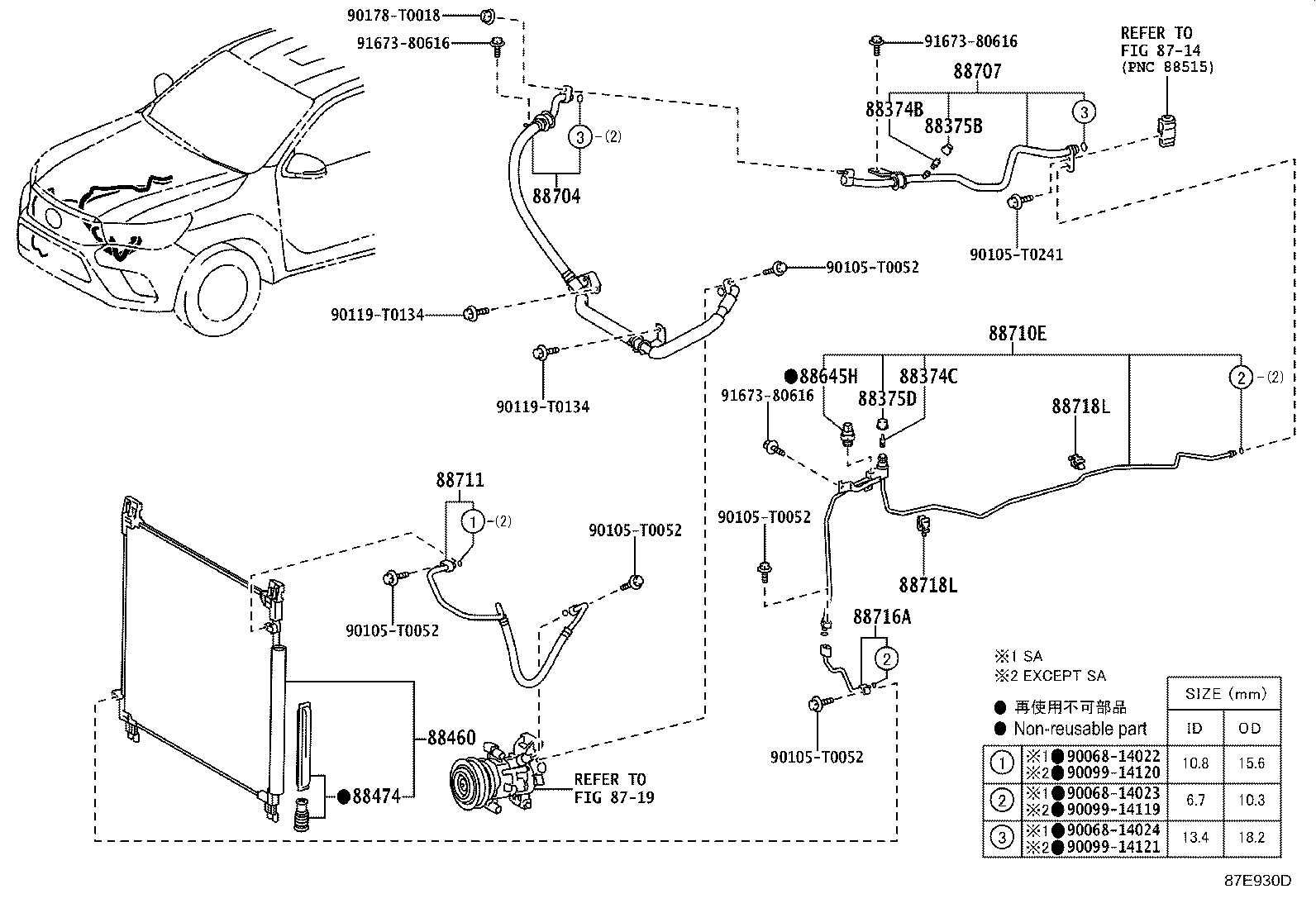

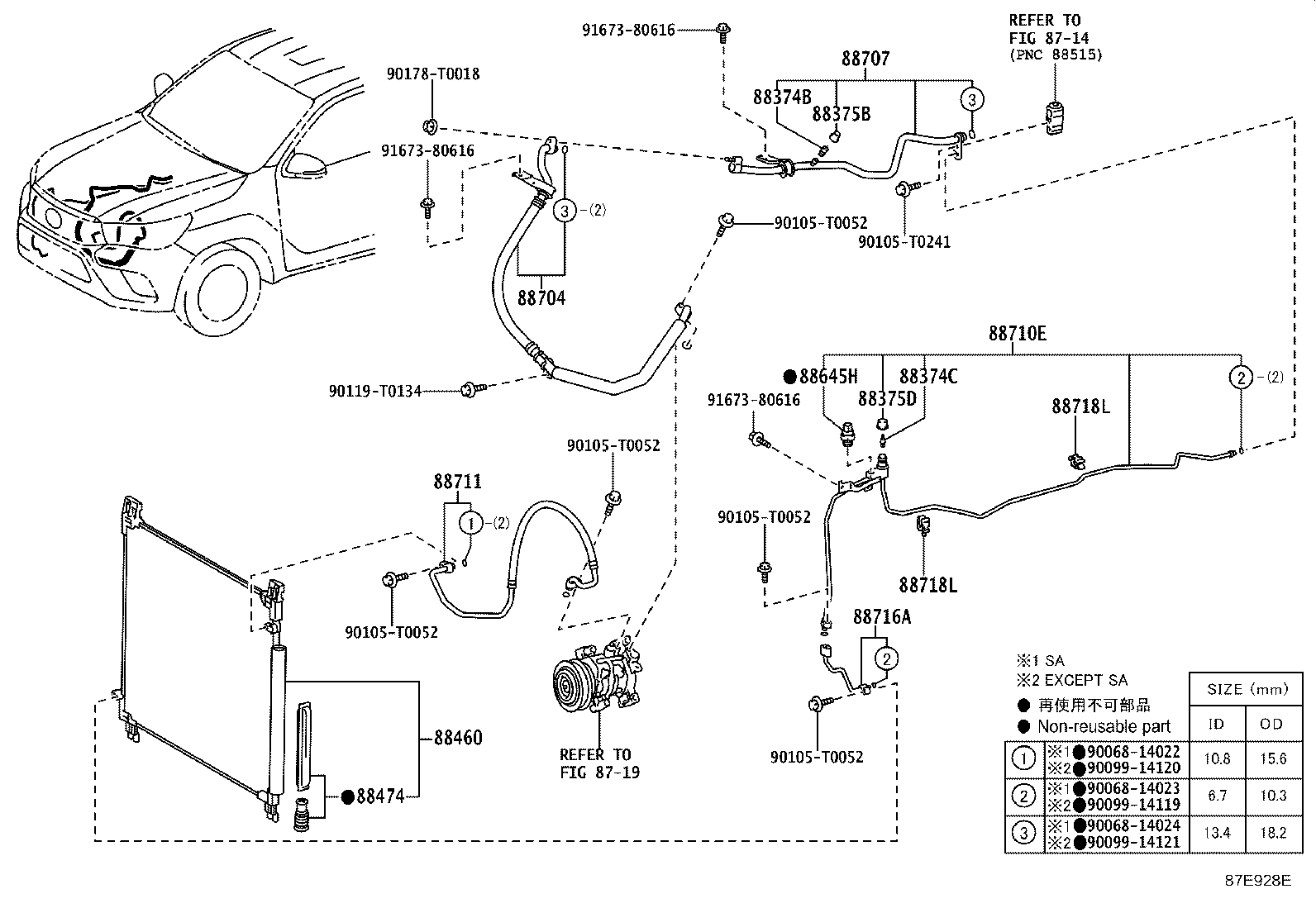

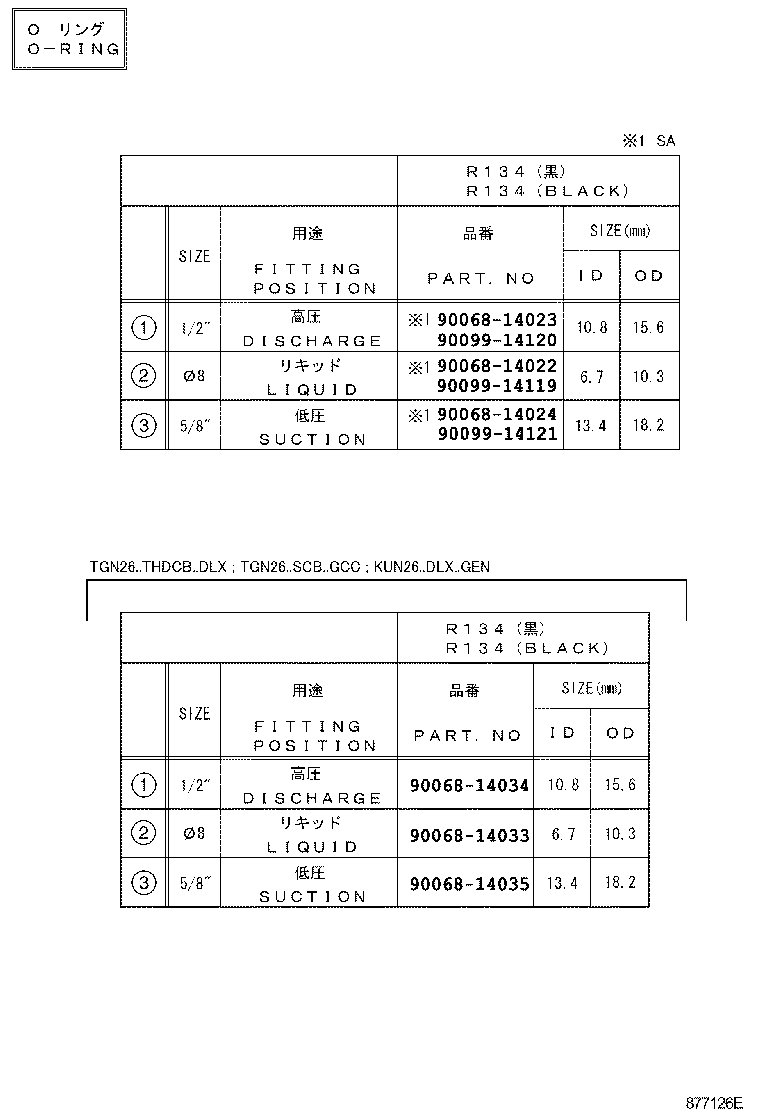

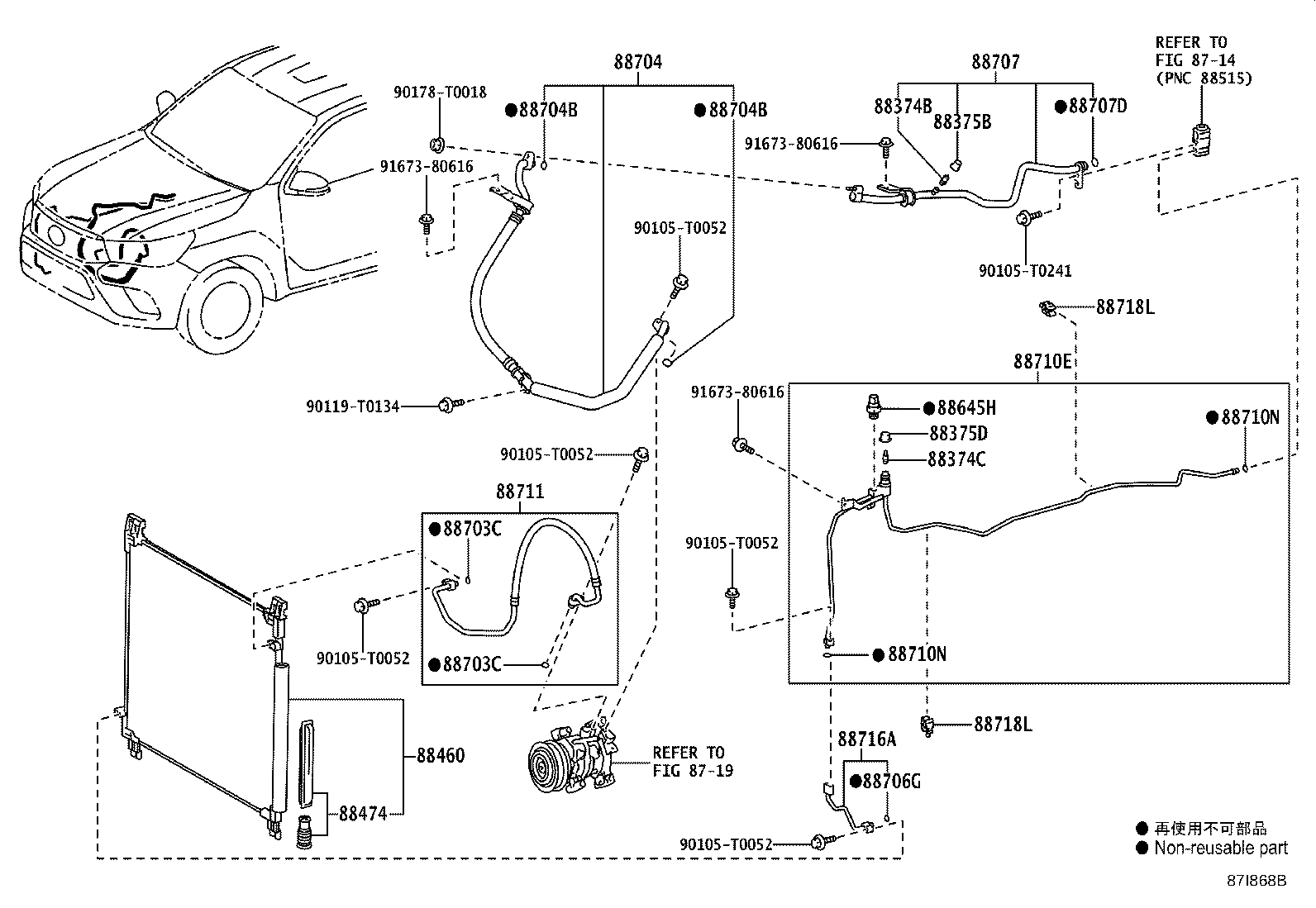

O-RING

diagram 9006814022 9006814023 9006814024 9006814033 9006814034 9006814035 9009914119 9009914120 9009914121
Part # Description Qty Price
Common parts
90068-14022
90068-14023
90068-14024
90068-14033
90068-14034
90068-14035
90099-14119
90099-14120
90099-14121

(1505- )TGN11#,12#,13#

Click highlighted areas on diagram

MAKER OPTION

diagram 8714 8719 88374B 88374C 88375B 88375D 88460 88474 88645H 88704 88707 88710E 88711 88716A 88718L 88718L 9006814022 9006814023 9006814024 9009914119 9009914120 9009914121 90105T0052 90105T0052 90105T0052 90105T0052 90105T0052 90105T0241 90119T0134 90178T0018 9167380616 9167380616 9167380616
Part # Description Qty Price
88374B - VALVE, SERVICE, NO.1
88374-02010

GUN125,126,13#..ADC,ASC

 1
88374-30010

GUN122..M..GCC;TGN136..ADC..S;GUN125..TSC..S..GCC;GGN12#,TGN121..(S,X)..ARL;GUN125,TGN126..LHD..TDC..S..GEN;KUN125,126,135..(ADC,ASC)..(S,X);GGN125,GUN122..LHD..TDC..(HDCR,HTWC);TGN136..(ASC,TDC,TSC)..(S,X)..(GEN,LA)

FRONT AIR CONDITIONER-MANUAL(DOP - PLANT INSTALL)

 1
88374-30010

GUN122..GCC,PH;GUN125..TDC..X..LA;GUN122..LHD..TDC..X;GUN125..TDC..6FC..ARL;GUN125..TDC..(H,L,M,S);GUN122..(M,S)..DCR..GEN;KUN125,126,13#..ADC,ASC;GUN125..MDC,MSC,TSC,TXT;GUN122..RHD..(ARL,GEN,TH);GUN126,13#..MDC,TDC,TSC,TXT;GGN12#,GUN112,120,123,TGN11#,12#,13#..ARL,BZAGT,GCC,GEN,LA,TH

 1
88374C - VALVE, SERVICE, NO.2
88374-02010

GGN125,GUN125,126,13#,KUN125,126,13#,TGN126,128,13#..ADC,ASC

 1
88374-30010

KUN125,135..ADC,ASC;KUN126..ADC..5FC..(S,X)

FRONT AIR CONDITIONER-MANUAL(DOP - DEALERSHIP INSTALL)

 1
88374-02010

TGN136..ADC..S;TGN136..ASC..LA;KUN125,126,135..(ADC,ASC)..(S,X)

FRONT AIR CONDITIONER-MANUAL(DOP - PLANT INSTALL)

 1
88375B - CAP, SERVICE VALVE, NO.1
88375-30290

GUN122..M..GCC;TGN136..ADC..S;GUN125..TSC..S..GCC;GGN12#,TGN121..(S,X)..ARL;GUN125,TGN126..LHD..TDC..S..GEN;KUN125,126,135..(ADC,ASC)..(S,X);GGN125,GUN122..LHD..TDC..(HDCR,HTWC);TGN136..(ASC,TDC,TSC)..(S,X)..(GEN,LA)

FRONT AIR CONDITIONER-MANUAL(DOP - PLANT INSTALL)

 1
88375-02130

GUN125,126,13#..ADC,ASC

 1
88375-30290

GUN122..GCC,PH;GUN125..TDC..X..LA;GUN122..LHD..TDC..X;GUN125..TDC..6FC..ARL;GUN125..TDC..(H,L,M,S);GUN122..(M,S)..DCR..GEN;KUN125,126,13#..ADC,ASC;GUN125..MDC,MSC,TSC,TXT;GUN122..RHD..(ARL,GEN,TH);GUN126,13#..MDC,TDC,TSC,TXT;GGN12#,GUN112,120,123,TGN11#,12#,13#..ARL,BZAGT,GCC,GEN,LA,TH

 1
88375D - CAP, SERVICE VALVE, NO.2
88375-30280

KUN125,135..ADC,ASC;KUN126..ADC..5FC..(S,X)

FRONT AIR CONDITIONER-MANUAL(DOP - DEALERSHIP INSTALL)

 1
88375-02120

GGN125,KUN125,126,13#,TGN126,128,13#..ADC,ASC

 1
88375-02120

TGN136..ADC..S;TGN136..ASC..LA;KUN125,126,135..(ADC,ASC)..(S,X)

FRONT AIR CONDITIONER-MANUAL(DOP - PLANT INSTALL)

 1
88375-30280

GUN122..GCC,PH;GUN125..TDC..X..LA;GUN122..LHD..TDC..X;KUN125..TDC,TSC,TXT;GUN125..TDC..6FC..ARL;GUN125..TDC..(H,L,M,S);GUN122..(M,S)..DCR..GEN;GUN122..RHD..(ARL,GEN,TH);GUN125..ADC,ASC,MDC,MSC,TSC,TXT;GUN126,13#..ADC,ASC,MDC,TDC,TSC,TXT;GGN12#,GUN112,120,123,KUN112,122,126,13#,TGN11#,120,121,126,136..(TDC,TSC,TXT)..(ARL,GCC,GEN,LA,TH,VN)

 1
88460 - CONDENSER ASSY, COOLER
88460-0K420

KUN125,126,13#..ADC,ASC

 1
88460-0K420

KUN125,126,135..(ADC,ASC)..(S,X)

FRONT AIR CONDITIONER-MANUAL(DOP - PLANT INSTALL)

 1
88460-0K360

KUN125,135..ADC,ASC;KUN126..ADC..5FC..(S,X)

FRONT AIR CONDITIONER-MANUAL(DOP - DEALERSHIP INSTALL)

 1
88460-0K390

GGN125,GUN125,126,13#,TGN126,128,13#..ADC,ASC

 1
88474 - DRYER, COOLER
88474-12020

KUN125,135..ADC,ASC;TGN121,126..GCC..IV3;KUN126..ADC..5FC..(S,X)

FRONT AIR CONDITIONER-MANUAL(DOP - DEALERSHIP INSTALL)

 1
88474-0K020

GGN125,GUN125,126,13#,KUN125,126,13#,TGN126,128,13#..ADC,ASC

 1
88474-0K020

TGN136..ADC..S;TGN136..ASC..LA;KUN125,126,135..(ADC,ASC)..(S,X)

FRONT AIR CONDITIONER-MANUAL(DOP - PLANT INSTALL)

 1
88645H - SWITCH, PRESSURE NO.1
88645-0K030

KUN126..L..GEN;KUN126..H,M,S,X;KUN122..LHD..SSC;GUN126..(H,M)..PKN;KUN125..SDC..(M,S);GUN122..LHD..TDC..X;GUN135..(SDC,SSC)..S;GUN125..TDC..6FC..ARL;GUN122..(M,S)..DCR..GEN;GUN122..LHD..(GCC,PH,SA);GUN122..RHD..(ARL,GEN,TH);GUN135,KUN125..LHD..X..SA;GUN135..ADC,ASC,MDC,SXT,TDC,TSC,TXT;GUN125..LHD..(SDC,SSC,TDC)..X..(LA,SA);KUN125..(ADC,ASC,SSC,SXT,TDC,TSC,TXT)..DCR;KUN122,TGN120,136..ADC,ASC,SDC,TDC,TSC,TXT;GUN125..(ADC,ASC,TSC,TXT)..(ARL,BZAGT,GCC,GEN,LA,TH);GUN125..(SDC,SSC,SXT,TDC)..(H,L,M,S)..(GCC,GEN,LA,PH,SA,TH,VN);GGN12#,135,GUN112,120,123,126,136,KUN112,13#,LAN125,TGN11#,121,126,128,138..ARL,BZAGT,GCC,GEN,LA,PH,SA,TAIW,TH,VN

 1
88704 - HOSE SUB-ASSY, SUCTION
88704-0KC70

KUN125,126,135..(ADC,ASC)..(S,X)

FRONT AIR CONDITIONER-MANUAL(DOP - PLANT INSTALL)

 1
88704-0KE50

KUN125,135..ADC,ASC;KUN126..ADC..5FC..(S,X)

FRONT AIR CONDITIONER-MANUAL(DOP - DEALERSHIP INSTALL)

 1
88704-0KC70

KUN125,126,13#..ADC,ASC

 1
88704-0KC30

TGN126,128,13#..ADC,ASC

 1
88704-0KD10

GUN125,126,13#..ADC,ASC

 1
88707 - PIPE SUB-ASSY, SUCTION
88707-0K700

GGN125,TGN126,128,13#..ADC,ASC

 1
88710E - TUBE & ACCESSORY ASSY, AIR CONDITIONER
88710-0KE50

KUN125,135..ADC,ASC;KUN126..ADC..5FC..(S,X)

FRONT AIR CONDITIONER-MANUAL(DOP - DEALERSHIP INSTALL)

 1
88710-0KF10

GGN125,KUN125,126,13#,TGN126,128,13#..ADC,ASC

 1
88710-0KF10

TGN136..ADC..S;TGN136..ASC..LA;KUN125,126,135..(ADC,ASC)..(S,X)

FRONT AIR CONDITIONER-MANUAL(DOP - PLANT INSTALL)

 1
88710-0KF30

GUN125,126,13#..ADC,ASC

 1
88711 - HOSE, COOLER REFRIGERANT DISCHARGE, NO.1
88711-0K660

KUN125,135..ADC,ASC;KUN126..ADC..5FC..(S,X)

FRONT AIR CONDITIONER-MANUAL(DOP - DEALERSHIP INSTALL)

 1
88711-0K740

KUN125,126,13#..ADC,ASC

 1
88711-0K740

KUN125,126,135..(ADC,ASC)..(S,X)

FRONT AIR CONDITIONER-MANUAL(DOP - PLANT INSTALL)

 1
88711-0KC10

GUN125,126,13#..ADC,ASC

 1
88711-0KC90

TGN126,128,13#..ADC,ASC

 1
88716A - PIPE, COOLER REFRIGERANT LIQUID, A
88716-0KQ80

KUN125,135..ADC,ASC;KUN126..ADC..5FC..(S,X)

FRONT AIR CONDITIONER-MANUAL(DOP - DEALERSHIP INSTALL)

 1
88716-0KR10

TGN136..ADC..S;TGN136..ASC..LA;KUN125,126,135..(ADC,ASC)..(S,X)

FRONT AIR CONDITIONER-MANUAL(DOP - PLANT INSTALL)

 1
88716-0KR10

GGN125,GUN125,126,13#,KUN125,126,13#,TGN126,128,13#..ADC,ASC

 1
88718L - CLAMP, PIPING
88718-0KF20

KUN125,135..ADC,ASC;KUN126..ADC..5FC..(S,X)

FRONT AIR CONDITIONER-MANUAL(DOP - DEALERSHIP INSTALL)

 2
88718-0KX00

GUN125,126,13#..ADC,ASC

 1
88718-0KX00

GGN125,KUN125,126,13#,TGN126,128,13#..ADC,ASC

 2
88718-0KX00

TGN136..ADC..S;TGN136..ASC..LA;KUN125,126,135..(ADC,ASC)..(S,X)

FRONT AIR CONDITIONER-MANUAL(DOP - PLANT INSTALL)

 2
88718L - CLAMP, PIPING
88718-0KF20

KUN125,135..ADC,ASC;KUN126..ADC..5FC..(S,X)

FRONT AIR CONDITIONER-MANUAL(DOP - DEALERSHIP INSTALL)

 2
88718-0KX00

GUN125,126,13#..ADC,ASC

 1
88718-0KX00

GGN125,KUN125,126,13#,TGN126,128,13#..ADC,ASC

 2
88718-0KX00

TGN136..ADC..S;TGN136..ASC..LA;KUN125,126,135..(ADC,ASC)..(S,X)

FRONT AIR CONDITIONER-MANUAL(DOP - PLANT INSTALL)

 2
Common parts
90068-14022
90068-14023
90068-14024
90099-14119
90099-14120
90099-14121
90105-T0052
90105-T0241
90119-T0134
90178-T0018
91673-80616
Linked diagrams
8714
8719

(1505- )GGN12#,135

Click highlighted areas on diagram

diagram 8714 8719 88374B 88374C 88375B 88375D 88460 88474 88645H 88704 88707 88710E 88711 88716A 88718L 88718L 9006814022 9006814023 9006814024 9009914119 9009914120 9009914121 90105T0052 90105T0052 90105T0052 90105T0052 90105T0052 90105T0241 90119T0134 90119T0134 90178T0018 9167380616 9167380616 9167380616
Part # Description Qty Price
88374B - VALVE, SERVICE, NO.1
88374-02010

GUN125,126,13#..ADC,ASC

 1
88374-30010

GUN122..M..GCC;TGN136..ADC..S;GUN125..TSC..S..GCC;GGN12#,TGN121..(S,X)..ARL;GUN125,TGN126..LHD..TDC..S..GEN;KUN125,126,135..(ADC,ASC)..(S,X);GGN125,GUN122..LHD..TDC..(HDCR,HTWC);TGN136..(ASC,TDC,TSC)..(S,X)..(GEN,LA)

FRONT AIR CONDITIONER-MANUAL(DOP - PLANT INSTALL)

 1
88374-30010

GUN122..GCC,PH;GUN125..TDC..X..LA;GUN122..LHD..TDC..X;GUN125..TDC..6FC..ARL;GUN125..TDC..(H,L,M,S);GUN122..(M,S)..DCR..GEN;KUN125,126,13#..ADC,ASC;GUN125..MDC,MSC,TSC,TXT;GUN122..RHD..(ARL,GEN,TH);GUN126,13#..MDC,TDC,TSC,TXT;GGN12#,GUN112,120,123,TGN11#,12#,13#..ARL,BZAGT,GCC,GEN,LA,TH

 1
88374C - VALVE, SERVICE, NO.2
88374-02010

GGN125,GUN125,126,13#,KUN125,126,13#,TGN126,128,13#..ADC,ASC

 1
88374-30010

KUN125,135..ADC,ASC;KUN126..ADC..5FC..(S,X)

FRONT AIR CONDITIONER-MANUAL(DOP - DEALERSHIP INSTALL)

 1
88374-02010

TGN136..ADC..S;TGN136..ASC..LA;KUN125,126,135..(ADC,ASC)..(S,X)

FRONT AIR CONDITIONER-MANUAL(DOP - PLANT INSTALL)

 1
88375B - CAP, SERVICE VALVE, NO.1
88375-30290

GUN122..M..GCC;TGN136..ADC..S;GUN125..TSC..S..GCC;GGN12#,TGN121..(S,X)..ARL;GUN125,TGN126..LHD..TDC..S..GEN;KUN125,126,135..(ADC,ASC)..(S,X);GGN125,GUN122..LHD..TDC..(HDCR,HTWC);TGN136..(ASC,TDC,TSC)..(S,X)..(GEN,LA)

FRONT AIR CONDITIONER-MANUAL(DOP - PLANT INSTALL)

 1
88375-02130

GUN125,126,13#..ADC,ASC

 1
88375-30290

GUN122..GCC,PH;GUN125..TDC..X..LA;GUN122..LHD..TDC..X;GUN125..TDC..6FC..ARL;GUN125..TDC..(H,L,M,S);GUN122..(M,S)..DCR..GEN;KUN125,126,13#..ADC,ASC;GUN125..MDC,MSC,TSC,TXT;GUN122..RHD..(ARL,GEN,TH);GUN126,13#..MDC,TDC,TSC,TXT;GGN12#,GUN112,120,123,TGN11#,12#,13#..ARL,BZAGT,GCC,GEN,LA,TH

 1
88375D - CAP, SERVICE VALVE, NO.2
88375-30280

KUN125,135..ADC,ASC;KUN126..ADC..5FC..(S,X)

FRONT AIR CONDITIONER-MANUAL(DOP - DEALERSHIP INSTALL)

 1
88375-02120

GGN125,KUN125,126,13#,TGN126,128,13#..ADC,ASC

 1
88375-02120

TGN136..ADC..S;TGN136..ASC..LA;KUN125,126,135..(ADC,ASC)..(S,X)

FRONT AIR CONDITIONER-MANUAL(DOP - PLANT INSTALL)

 1
88375-30280

GUN122..GCC,PH;GUN125..TDC..X..LA;GUN122..LHD..TDC..X;KUN125..TDC,TSC,TXT;GUN125..TDC..6FC..ARL;GUN125..TDC..(H,L,M,S);GUN122..(M,S)..DCR..GEN;GUN122..RHD..(ARL,GEN,TH);GUN125..ADC,ASC,MDC,MSC,TSC,TXT;GUN126,13#..ADC,ASC,MDC,TDC,TSC,TXT;GGN12#,GUN112,120,123,KUN112,122,126,13#,TGN11#,120,121,126,136..(TDC,TSC,TXT)..(ARL,GCC,GEN,LA,TH,VN)

 1
88460 - CONDENSER ASSY, COOLER
88460-0K420

KUN125,126,13#..ADC,ASC

 1
88460-0K420

KUN125,126,135..(ADC,ASC)..(S,X)

FRONT AIR CONDITIONER-MANUAL(DOP - PLANT INSTALL)

 1
88460-0K360

KUN125,135..ADC,ASC;KUN126..ADC..5FC..(S,X)

FRONT AIR CONDITIONER-MANUAL(DOP - DEALERSHIP INSTALL)

 1
88460-0K390

GGN125,GUN125,126,13#,TGN126,128,13#..ADC,ASC

 1
88474 - DRYER, COOLER
88474-12020

KUN125,135..ADC,ASC;TGN121,126..GCC..IV3;KUN126..ADC..5FC..(S,X)

FRONT AIR CONDITIONER-MANUAL(DOP - DEALERSHIP INSTALL)

 1
88474-0K020

GGN125,GUN125,126,13#,KUN125,126,13#,TGN126,128,13#..ADC,ASC

 1
88474-0K020

TGN136..ADC..S;TGN136..ASC..LA;KUN125,126,135..(ADC,ASC)..(S,X)

FRONT AIR CONDITIONER-MANUAL(DOP - PLANT INSTALL)

 1
88645H - SWITCH, PRESSURE NO.1
88645-0K030

KUN126..L..GEN;KUN126..H,M,S,X;KUN122..LHD..SSC;GUN126..(H,M)..PKN;KUN125..SDC..(M,S);GUN122..LHD..TDC..X;GUN135..(SDC,SSC)..S;GUN125..TDC..6FC..ARL;GUN122..(M,S)..DCR..GEN;GUN122..LHD..(GCC,PH,SA);GUN122..RHD..(ARL,GEN,TH);GUN135,KUN125..LHD..X..SA;GUN135..ADC,ASC,MDC,SXT,TDC,TSC,TXT;GUN125..LHD..(SDC,SSC,TDC)..X..(LA,SA);KUN125..(ADC,ASC,SSC,SXT,TDC,TSC,TXT)..DCR;KUN122,TGN120,136..ADC,ASC,SDC,TDC,TSC,TXT;GUN125..(ADC,ASC,TSC,TXT)..(ARL,BZAGT,GCC,GEN,LA,TH);GUN125..(SDC,SSC,SXT,TDC)..(H,L,M,S)..(GCC,GEN,LA,PH,SA,TH,VN);GGN12#,135,GUN112,120,123,126,136,KUN112,13#,LAN125,TGN11#,121,126,128,138..ARL,BZAGT,GCC,GEN,LA,PH,SA,TAIW,TH,VN

 1
88704 - HOSE SUB-ASSY, SUCTION
88704-0KC70

KUN125,126,135..(ADC,ASC)..(S,X)

FRONT AIR CONDITIONER-MANUAL(DOP - PLANT INSTALL)

 1
88704-0KE50

KUN125,135..ADC,ASC;KUN126..ADC..5FC..(S,X)

FRONT AIR CONDITIONER-MANUAL(DOP - DEALERSHIP INSTALL)

 1
88704-0KC70

KUN125,126,13#..ADC,ASC

 1
88704-0KC30

TGN126,128,13#..ADC,ASC

 1
88704-0KD10

GUN125,126,13#..ADC,ASC

 1
88707 - PIPE SUB-ASSY, SUCTION
88707-0K700

GGN125,TGN126,128,13#..ADC,ASC

 1
88710E - TUBE & ACCESSORY ASSY, AIR CONDITIONER
88710-0KE50

KUN125,135..ADC,ASC;KUN126..ADC..5FC..(S,X)

FRONT AIR CONDITIONER-MANUAL(DOP - DEALERSHIP INSTALL)

 1
88710-0KF10

GGN125,KUN125,126,13#,TGN126,128,13#..ADC,ASC

 1
88710-0KF10

TGN136..ADC..S;TGN136..ASC..LA;KUN125,126,135..(ADC,ASC)..(S,X)

FRONT AIR CONDITIONER-MANUAL(DOP - PLANT INSTALL)

 1
88710-0KF30

GUN125,126,13#..ADC,ASC

 1
88711 - HOSE, COOLER REFRIGERANT DISCHARGE, NO.1
88711-0K660

KUN125,135..ADC,ASC;KUN126..ADC..5FC..(S,X)

FRONT AIR CONDITIONER-MANUAL(DOP - DEALERSHIP INSTALL)

 1
88711-0K740

KUN125,126,13#..ADC,ASC

 1
88711-0K740

KUN125,126,135..(ADC,ASC)..(S,X)

FRONT AIR CONDITIONER-MANUAL(DOP - PLANT INSTALL)

 1
88711-0KC10

GUN125,126,13#..ADC,ASC

 1
88711-0KC90

TGN126,128,13#..ADC,ASC

 1
88716A - PIPE, COOLER REFRIGERANT LIQUID, A
88716-0KQ80

KUN125,135..ADC,ASC;KUN126..ADC..5FC..(S,X)

FRONT AIR CONDITIONER-MANUAL(DOP - DEALERSHIP INSTALL)

 1
88716-0KR10

TGN136..ADC..S;TGN136..ASC..LA;KUN125,126,135..(ADC,ASC)..(S,X)

FRONT AIR CONDITIONER-MANUAL(DOP - PLANT INSTALL)

 1
88716-0KR10

GGN125,GUN125,126,13#,KUN125,126,13#,TGN126,128,13#..ADC,ASC

 1
88718L - CLAMP, PIPING
88718-0KF20

KUN125,135..ADC,ASC;KUN126..ADC..5FC..(S,X)

FRONT AIR CONDITIONER-MANUAL(DOP - DEALERSHIP INSTALL)

 2
88718-0KX00

GUN125,126,13#..ADC,ASC

 1
88718-0KX00

GGN125,KUN125,126,13#,TGN126,128,13#..ADC,ASC

 2
88718-0KX00

TGN136..ADC..S;TGN136..ASC..LA;KUN125,126,135..(ADC,ASC)..(S,X)

FRONT AIR CONDITIONER-MANUAL(DOP - PLANT INSTALL)

 2
88718L - CLAMP, PIPING
88718-0KF20

KUN125,135..ADC,ASC;KUN126..ADC..5FC..(S,X)

FRONT AIR CONDITIONER-MANUAL(DOP - DEALERSHIP INSTALL)

 2
88718-0KX00

GUN125,126,13#..ADC,ASC

 1
88718-0KX00

GGN125,KUN125,126,13#,TGN126,128,13#..ADC,ASC

 2
88718-0KX00

TGN136..ADC..S;TGN136..ASC..LA;KUN125,126,135..(ADC,ASC)..(S,X)

FRONT AIR CONDITIONER-MANUAL(DOP - PLANT INSTALL)

 2
Common parts
90068-14022
90068-14023
90068-14024
90099-14119
90099-14120
90099-14121
90105-T0052
90105-T0241
90119-T0134
90178-T0018
91673-80616
Linked diagrams
8714
8719

(1505- )KUN112,12#,13#

Click highlighted areas on diagram

diagram 8714 8719 88374B 88374C 88375B 88375D 88460 88474 88645H 88704 88710E 88711 88711 88716A 88718L 88718L 9006814022 9006814023 9006814024 9009914119 9009914120 9009914121 90105T0052 90105T0052 90105T0052 90105T0052 90105T0052 90105T0241 90119T0134 90119T0134 9155180625 9155180625 9155180625 9155180625 9155180625 9167380616 9167380616
Part # Description Qty Price
88374B - VALVE, SERVICE, NO.1
88374-02010

GUN125,126,13#..ADC,ASC

 1
88374-30010

GUN122..M..GCC;TGN136..ADC..S;GUN125..TSC..S..GCC;GGN12#,TGN121..(S,X)..ARL;GUN125,TGN126..LHD..TDC..S..GEN;KUN125,126,135..(ADC,ASC)..(S,X);GGN125,GUN122..LHD..TDC..(HDCR,HTWC);TGN136..(ASC,TDC,TSC)..(S,X)..(GEN,LA)

FRONT AIR CONDITIONER-MANUAL(DOP - PLANT INSTALL)

 1
88374-30010

GUN122..GCC,PH;GUN125..TDC..X..LA;GUN122..LHD..TDC..X;GUN125..TDC..6FC..ARL;GUN125..TDC..(H,L,M,S);GUN122..(M,S)..DCR..GEN;KUN125,126,13#..ADC,ASC;GUN125..MDC,MSC,TSC,TXT;GUN122..RHD..(ARL,GEN,TH);GUN126,13#..MDC,TDC,TSC,TXT;GGN12#,GUN112,120,123,TGN11#,12#,13#..ARL,BZAGT,GCC,GEN,LA,TH

 1
88374C - VALVE, SERVICE, NO.2
88374-02010

GGN125,GUN125,126,13#,KUN125,126,13#,TGN126,128,13#..ADC,ASC

 1
88374-30010

KUN125,135..ADC,ASC;KUN126..ADC..5FC..(S,X)

FRONT AIR CONDITIONER-MANUAL(DOP - DEALERSHIP INSTALL)

 1
88374-02010

TGN136..ADC..S;TGN136..ASC..LA;KUN125,126,135..(ADC,ASC)..(S,X)

FRONT AIR CONDITIONER-MANUAL(DOP - PLANT INSTALL)

 1
88375B - CAP, SERVICE VALVE, NO.1
88375-30290

GUN122..M..GCC;TGN136..ADC..S;GUN125..TSC..S..GCC;GGN12#,TGN121..(S,X)..ARL;GUN125,TGN126..LHD..TDC..S..GEN;KUN125,126,135..(ADC,ASC)..(S,X);GGN125,GUN122..LHD..TDC..(HDCR,HTWC);TGN136..(ASC,TDC,TSC)..(S,X)..(GEN,LA)

FRONT AIR CONDITIONER-MANUAL(DOP - PLANT INSTALL)

 1
88375-02130

GUN125,126,13#..ADC,ASC

 1
88375-30290

GUN122..GCC,PH;GUN125..TDC..X..LA;GUN122..LHD..TDC..X;GUN125..TDC..6FC..ARL;GUN125..TDC..(H,L,M,S);GUN122..(M,S)..DCR..GEN;KUN125,126,13#..ADC,ASC;GUN125..MDC,MSC,TSC,TXT;GUN122..RHD..(ARL,GEN,TH);GUN126,13#..MDC,TDC,TSC,TXT;GGN12#,GUN112,120,123,TGN11#,12#,13#..ARL,BZAGT,GCC,GEN,LA,TH

 1
88375D - CAP, SERVICE VALVE, NO.2
88375-30280

KUN125,135..ADC,ASC;KUN126..ADC..5FC..(S,X)

FRONT AIR CONDITIONER-MANUAL(DOP - DEALERSHIP INSTALL)

 1
88375-02120

GGN125,KUN125,126,13#,TGN126,128,13#..ADC,ASC

 1
88375-02120

TGN136..ADC..S;TGN136..ASC..LA;KUN125,126,135..(ADC,ASC)..(S,X)

FRONT AIR CONDITIONER-MANUAL(DOP - PLANT INSTALL)

 1
88375-30280

GUN122..GCC,PH;GUN125..TDC..X..LA;GUN122..LHD..TDC..X;KUN125..TDC,TSC,TXT;GUN125..TDC..6FC..ARL;GUN125..TDC..(H,L,M,S);GUN122..(M,S)..DCR..GEN;GUN122..RHD..(ARL,GEN,TH);GUN125..ADC,ASC,MDC,MSC,TSC,TXT;GUN126,13#..ADC,ASC,MDC,TDC,TSC,TXT;GGN12#,GUN112,120,123,KUN112,122,126,13#,TGN11#,120,121,126,136..(TDC,TSC,TXT)..(ARL,GCC,GEN,LA,TH,VN)

 1
88460 - CONDENSER ASSY, COOLER
88460-0K420

KUN125,126,13#..ADC,ASC

 1
88460-0K420

KUN125,126,135..(ADC,ASC)..(S,X)

FRONT AIR CONDITIONER-MANUAL(DOP - PLANT INSTALL)

 1
88460-0K360

KUN125,135..ADC,ASC;KUN126..ADC..5FC..(S,X)

FRONT AIR CONDITIONER-MANUAL(DOP - DEALERSHIP INSTALL)

 1
88460-0K390

GGN125,GUN125,126,13#,TGN126,128,13#..ADC,ASC

 1
88474 - DRYER, COOLER
88474-12020

KUN125,135..ADC,ASC;TGN121,126..GCC..IV3;KUN126..ADC..5FC..(S,X)

FRONT AIR CONDITIONER-MANUAL(DOP - DEALERSHIP INSTALL)

 1
88474-0K020

GGN125,GUN125,126,13#,KUN125,126,13#,TGN126,128,13#..ADC,ASC

 1
88474-0K020

TGN136..ADC..S;TGN136..ASC..LA;KUN125,126,135..(ADC,ASC)..(S,X)

FRONT AIR CONDITIONER-MANUAL(DOP - PLANT INSTALL)

 1
88645H - SWITCH, PRESSURE NO.1
88645-0K030

KUN126..L..GEN;KUN126..H,M,S,X;KUN122..LHD..SSC;GUN126..(H,M)..PKN;KUN125..SDC..(M,S);GUN122..LHD..TDC..X;GUN135..(SDC,SSC)..S;GUN125..TDC..6FC..ARL;GUN122..(M,S)..DCR..GEN;GUN122..LHD..(GCC,PH,SA);GUN122..RHD..(ARL,GEN,TH);GUN135,KUN125..LHD..X..SA;GUN135..ADC,ASC,MDC,SXT,TDC,TSC,TXT;GUN125..LHD..(SDC,SSC,TDC)..X..(LA,SA);KUN125..(ADC,ASC,SSC,SXT,TDC,TSC,TXT)..DCR;KUN122,TGN120,136..ADC,ASC,SDC,TDC,TSC,TXT;GUN125..(ADC,ASC,TSC,TXT)..(ARL,BZAGT,GCC,GEN,LA,TH);GUN125..(SDC,SSC,SXT,TDC)..(H,L,M,S)..(GCC,GEN,LA,PH,SA,TH,VN);GGN12#,135,GUN112,120,123,126,136,KUN112,13#,LAN125,TGN11#,121,126,128,138..ARL,BZAGT,GCC,GEN,LA,PH,SA,TAIW,TH,VN

 1
88704 - HOSE SUB-ASSY, SUCTION
88704-0KC70

KUN125,126,135..(ADC,ASC)..(S,X)

FRONT AIR CONDITIONER-MANUAL(DOP - PLANT INSTALL)

 1
88704-0KE50

KUN125,135..ADC,ASC;KUN126..ADC..5FC..(S,X)

FRONT AIR CONDITIONER-MANUAL(DOP - DEALERSHIP INSTALL)

 1
88704-0KC70

KUN125,126,13#..ADC,ASC

 1
88704-0KC30

TGN126,128,13#..ADC,ASC

 1
88704-0KD10

GUN125,126,13#..ADC,ASC

 1
88710E - TUBE & ACCESSORY ASSY, AIR CONDITIONER
88710-0KE50

KUN125,135..ADC,ASC;KUN126..ADC..5FC..(S,X)

FRONT AIR CONDITIONER-MANUAL(DOP - DEALERSHIP INSTALL)

 1
88710-0KF10

GGN125,KUN125,126,13#,TGN126,128,13#..ADC,ASC

 1
88710-0KF10

TGN136..ADC..S;TGN136..ASC..LA;KUN125,126,135..(ADC,ASC)..(S,X)

FRONT AIR CONDITIONER-MANUAL(DOP - PLANT INSTALL)

 1
88710-0KF30

GUN125,126,13#..ADC,ASC

 1
88711 - HOSE, COOLER REFRIGERANT DISCHARGE, NO.1
88711-0K660

KUN125,135..ADC,ASC;KUN126..ADC..5FC..(S,X)

FRONT AIR CONDITIONER-MANUAL(DOP - DEALERSHIP INSTALL)

 1
88711-0K740

KUN125,126,13#..ADC,ASC

 1
88711-0K740

KUN125,126,135..(ADC,ASC)..(S,X)

FRONT AIR CONDITIONER-MANUAL(DOP - PLANT INSTALL)

 1
88711-0KC10

GUN125,126,13#..ADC,ASC

 1
88711-0KC90

TGN126,128,13#..ADC,ASC

 1
88711 - HOSE, COOLER REFRIGERANT DISCHARGE, NO.1
88711-0K660

KUN125,135..ADC,ASC;KUN126..ADC..5FC..(S,X)

FRONT AIR CONDITIONER-MANUAL(DOP - DEALERSHIP INSTALL)

 1
88711-0K740

KUN125,126,13#..ADC,ASC

 1
88711-0K740

KUN125,126,135..(ADC,ASC)..(S,X)

FRONT AIR CONDITIONER-MANUAL(DOP - PLANT INSTALL)

 1
88711-0KC10

GUN125,126,13#..ADC,ASC

 1
88711-0KC90

TGN126,128,13#..ADC,ASC

 1
88716A - PIPE, COOLER REFRIGERANT LIQUID, A
88716-0KQ80

KUN125,135..ADC,ASC;KUN126..ADC..5FC..(S,X)

FRONT AIR CONDITIONER-MANUAL(DOP - DEALERSHIP INSTALL)

 1
88716-0KR10

TGN136..ADC..S;TGN136..ASC..LA;KUN125,126,135..(ADC,ASC)..(S,X)

FRONT AIR CONDITIONER-MANUAL(DOP - PLANT INSTALL)

 1
88716-0KR10

GGN125,GUN125,126,13#,KUN125,126,13#,TGN126,128,13#..ADC,ASC

 1
88718L - CLAMP, PIPING
88718-0KF20

KUN125,135..ADC,ASC;KUN126..ADC..5FC..(S,X)

FRONT AIR CONDITIONER-MANUAL(DOP - DEALERSHIP INSTALL)

 2
88718-0KX00

GUN125,126,13#..ADC,ASC

 1
88718-0KX00

GGN125,KUN125,126,13#,TGN126,128,13#..ADC,ASC

 2
88718-0KX00

TGN136..ADC..S;TGN136..ASC..LA;KUN125,126,135..(ADC,ASC)..(S,X)

FRONT AIR CONDITIONER-MANUAL(DOP - PLANT INSTALL)

 2
88718L - CLAMP, PIPING
88718-0KF20

KUN125,135..ADC,ASC;KUN126..ADC..5FC..(S,X)

FRONT AIR CONDITIONER-MANUAL(DOP - DEALERSHIP INSTALL)

 2
88718-0KX00

GUN125,126,13#..ADC,ASC

 1
88718-0KX00

GGN125,KUN125,126,13#,TGN126,128,13#..ADC,ASC

 2
88718-0KX00

TGN136..ADC..S;TGN136..ASC..LA;KUN125,126,135..(ADC,ASC)..(S,X)

FRONT AIR CONDITIONER-MANUAL(DOP - PLANT INSTALL)

 2
Common parts
90068-14022
90068-14023
90068-14024
90099-14119
90099-14120
90099-14121
90105-T0052
90105-T0241
90119-T0134
91551-80625
91673-80616
Linked diagrams
8714
8719

(2006- )GUN112,12#,13#..ARL,BZAG,GCC,GEN,IDN,KEN,LA,MA,MMR,PH,PKN,SA,TH,TWN,VN

Click highlighted areas on diagram

W/O(SUB-COOL ACCELERATOR)

diagram 8714 8719 88374B 88374C 88375B 88375D 88460 88474 88645H 88703C 88703C 88704 88704 88704B 88704B 88704B 88704B 88706G 88710E 88710N 88710N 88710P 88711 88716A 88718L 90105T0052 90105T0052 90105T0052 90105T0052 90105T0052 90105T0241 90119T0134 90119T0134 90178T0018 9167380616 9167380616
Part # Description Qty Price
Common parts
90105-T0052
90105-T0241
90119-T0134
90178-T0018
91673-80616
Linked diagrams
8714
8719

(2006- )GUN125,126,135..ARL,BZAG,GCC,GEN,IDN,KEN,LA,MA,MMR,PH,PKN,SA,TH,TWN,VN

Click highlighted areas on diagram

W(SUB-COOL ACCELERATOR)

diagram 8714 8719 88374B 88374C 88375B 88375D 88460 88474 88645H 886880K860 88688E 88703C 88703C 88704 88704B 88704B 88706G 88706H 88706H 88710E 88710P 88710T 88711 88716A 88716B 88718N 90105T0052 90105T0052 90105T0052 90105T0052 90105T0052 90105T0241 90119T0134 90119T0134 90178T0018 9167380616 9167380616
Part # Description Qty Price
Common parts
88688-0K860
90105-T0052
90105-T0241
90119-T0134
90178-T0018
91673-80616
Linked diagrams
8714
8719

(2006- )TGN11#,12#,13#

Click highlighted areas on diagram

MAKER OPTION

diagram 8714 8719 88374B 88374C 88375B 88375D 88460 88474 88645H 88703C 88703C 88704 88704B 88704B 88706G 88707 88707D 88710E 88710N 88710N 88711 88716A 88718L 88718L 90105T0052 90105T0052 90105T0052 90105T0052 90105T0052 90105T0241 90119T0134 90178T0018 9167380616 9167380616 9167380616
Part # Description Qty Price
Common parts
90105-T0052
90105-T0241
90119-T0134
90178-T0018
91673-80616
Linked diagrams
8714
8719

(2006- )GUN112,122,125,126,135..ARL,BZAG,GCC,GEN,IDN,KEN,LA,MA,MMR,PH,PKN,SA,TH,

Click highlighted areas on diagram

DEALER OPTION

diagram 8714 8719 88374B 88374C 88375B 88375D 88460 88474 88645H 88703C 88703C 88704 88704B 88704B 88706G 88706H 88706H 88710E 88710N 88710P 88711 88716A 88716B 88718L 90105T0052 90105T0052 90105T0052 90105T0052 90105T0052 90105T0241 90119T0134 90119T0134 90119T0134 90119T0134 90178T0018 9017906156 9155180625 9155180625 9155180625 9155180625 9155180625
Part # Description Qty Price
Common parts
90105-T0052
90105-T0241
90119-T0134
90178-T0018
90179-06156
91551-80625
Linked diagrams
8714
8719
