GUN135L-BGFXHG (2015)

Toyota Hilux

Production Nov 2015 - Oct 2020
Engine 2GDFTV
Transmission 6F MTM
Displacement 2500cc
Power 168 HP (125 kW)

(0408- )

Click highlighted areas on diagram

diagram 28800 28800A 28800D 28800J 90178T0019 90178T0019
Part # Description Qty Price
Common parts
90178-T0019

(1107- )

Click highlighted areas on diagram

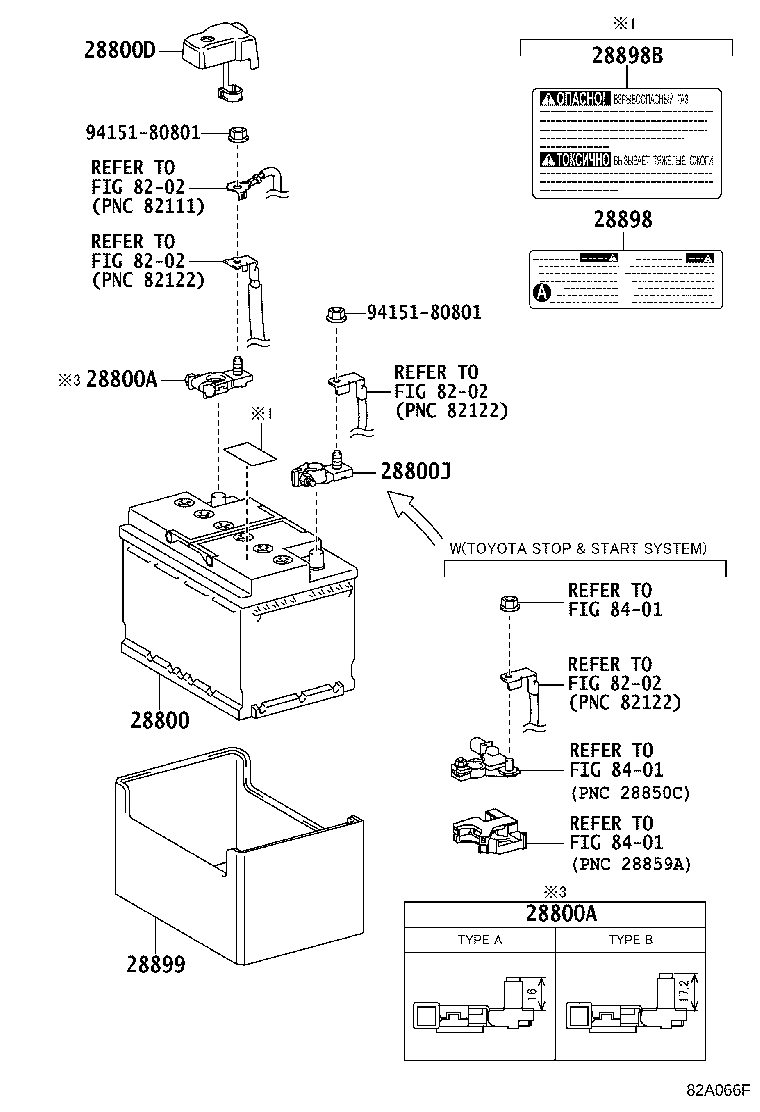

1-BATTERY

diagram 28800 28800A 28800D 28800J 90178T0019 90178T0019
Part # Description Qty Price
Common parts
90178-T0019

(1505- )

Click highlighted areas on diagram

1-BATTERY

diagram 28800 28800A 28800A 28800D 28800J 28898 28898B 28899 8202 8202 8202 8202 8401 8401 8401 9415180801 9415180801
Part # Description Qty Price
28800 - BATTERY
28800-0L600

1G#,2GDFTV,2KDFTV..GGN125,GUN125,126,13#,KUN125,135..(ADC,ASC)..(DCR,HDCR,HTWC)

LN3,UNION BATTERY

 1
28800-0L460

1G#,2GDFTV,2KDFTV..GGN125,GUN125,126,13#,KUN125,135..(ADC,ASC)..(DCR,HDCR,HTWC)

LN3,JOHNSON CONTROLS

 1
28800A - TERMINAL, BATTERY POSITIVE
90982-05054

2KDFTV..KUN122..LHD..TSC..S;2KDFTV..KUN122..TSC..(L,M,X);2TRFE..TGN121,126,136..TDC,TSC,TXT;2KDFTV..KUN125,135..ADC,ASC,SDC,SSC,SXT;2KDFTV..KUN122..(SDC,SSC,TDC,TXT)..(L,M,S,X);1GDFTV,2KDFTV,1TRFE..GUN126,KUN112,TGN120..(H,L,X)..(GCC,IDN,VN);1G#,2GDFTV,1TRFE,2TRFE..GGN12#,135,GUN112,12#,13#,TGN11#,128,138..ARL,BZAGT,GCC,GEN,IDN,LA,MA,PH,SA,TH

 1
90982-05054

2KDFTV..KUN122..GCC,GEN,SA;5LE,1TRFE..LAN125,TGN120..IV3;2GDFTV..GUN125..TDC..6FC..ARL;2GDFTV..GUN125..ADC,ASC,SDC,SSC,SXT,TSC,TXT;1TRFE,2TRFE..TGN120,121,126,136..TDC,TSC,TXT;2GDFTV..GUN125..TDC..(GCC,GEN,IDN,LA,PH,TH,VN);1GRFE,2GDFTV..GGN12#,135,GUN112,120,122,135..ADC,ASC,MDC,PSC,SDC,SSC,SXT,TDC,TSC,TXT;1GDFTV,2KDFTV,1TRFE,2TRFE..GUN123,126,136,KUN112,125,135,TGN11#,128,138..ADC,ASC,PDC,PSC,SDC,SSC,SXT,TDC,TSC,TXT

TYPE A:REFER ILLUST.

 1
90982-05061

2KDFTV..KUN122..GCC,GEN,SA;5LE,1TRFE..LAN125,TGN120..IV3;2GDFTV..GUN125..TDC..6FC..ARL;2GDFTV..GUN125..ADC,ASC,SDC,SSC,SXT,TSC,TXT;1TRFE,2TRFE..TGN120,121,126,136..TDC,TSC,TXT;2GDFTV..GUN125..TDC..(GCC,GEN,IDN,LA,PH,TH,VN);1GRFE,2GDFTV..GGN12#,135,GUN112,120,122,135..ADC,ASC,MDC,PSC,SDC,SSC,SXT,TDC,TSC,TXT;1GDFTV,2KDFTV,1TRFE,2TRFE..GUN123,126,136,KUN112,125,135,TGN11#,128,138..ADC,ASC,PDC,PSC,SDC,SSC,SXT,TDC,TSC,TXT

TYPE B:REFER ILLUST.

 1
28800A - TERMINAL, BATTERY POSITIVE
90982-05054

2KDFTV..KUN122..LHD..TSC..S;2KDFTV..KUN122..TSC..(L,M,X);2TRFE..TGN121,126,136..TDC,TSC,TXT;2KDFTV..KUN125,135..ADC,ASC,SDC,SSC,SXT;2KDFTV..KUN122..(SDC,SSC,TDC,TXT)..(L,M,S,X);1GDFTV,2KDFTV,1TRFE..GUN126,KUN112,TGN120..(H,L,X)..(GCC,IDN,VN);1G#,2GDFTV,1TRFE,2TRFE..GGN12#,135,GUN112,12#,13#,TGN11#,128,138..ARL,BZAGT,GCC,GEN,IDN,LA,MA,PH,SA,TH

 1
90982-05054

2KDFTV..KUN122..GCC,GEN,SA;5LE,1TRFE..LAN125,TGN120..IV3;2GDFTV..GUN125..TDC..6FC..ARL;2GDFTV..GUN125..ADC,ASC,SDC,SSC,SXT,TSC,TXT;1TRFE,2TRFE..TGN120,121,126,136..TDC,TSC,TXT;2GDFTV..GUN125..TDC..(GCC,GEN,IDN,LA,PH,TH,VN);1GRFE,2GDFTV..GGN12#,135,GUN112,120,122,135..ADC,ASC,MDC,PSC,SDC,SSC,SXT,TDC,TSC,TXT;1GDFTV,2KDFTV,1TRFE,2TRFE..GUN123,126,136,KUN112,125,135,TGN11#,128,138..ADC,ASC,PDC,PSC,SDC,SSC,SXT,TDC,TSC,TXT

TYPE A:REFER ILLUST.

 1
90982-05061

2KDFTV..KUN122..GCC,GEN,SA;5LE,1TRFE..LAN125,TGN120..IV3;2GDFTV..GUN125..TDC..6FC..ARL;2GDFTV..GUN125..ADC,ASC,SDC,SSC,SXT,TSC,TXT;1TRFE,2TRFE..TGN120,121,126,136..TDC,TSC,TXT;2GDFTV..GUN125..TDC..(GCC,GEN,IDN,LA,PH,TH,VN);1GRFE,2GDFTV..GGN12#,135,GUN112,120,122,135..ADC,ASC,MDC,PSC,SDC,SSC,SXT,TDC,TSC,TXT;1GDFTV,2KDFTV,1TRFE,2TRFE..GUN123,126,136,KUN112,125,135,TGN11#,128,138..ADC,ASC,PDC,PSC,SDC,SSC,SXT,TDC,TSC,TXT

TYPE B:REFER ILLUST.

 1
28800D - COVER, CONNECTOR(FOR BATTERY TERMINAL)
82821-0K160

2GDFTV..GUN125..TDC..6FC..ARL;2TRFE..TGN136..ADC,ASC,SDC,TDC,TSC,TXT;2GDFTV..GUN125..ADC,ASC,SDC,SSC,SXT,TSC,TXT;2GDFTV..GUN125..TDC..(GCC,GEN,IDN,LA,PH,TH,VN);2GDFTV..GUN135..ARL,BZAGT,GEN,LA,MA,PH,SA,TH,VN;1GDFTV,1KDFTV,2KDFTV,5LE,1TRFE,2TRFE..GUN136,KUN112,12#,13#,LAN125,TGN11#,120,121,126;1G#,2GDFTV..GGN12#,135,GUN112,120,122,123,126..ADC,ASC,PDC,PSC,SDC,SSC,SXT,TDC,TSC,TXT

 1
28800J - TERMINAL, BATTERY NEGATIVE
90982-06059

1GDFTV..GUN126..6F..H..TH;2GDFTV..GUN125..TDC..6FC..ARL;1GDFTV..GUN126..H..(BZAGT,GEN,PKN,VN);2TRFE..TGN136..ADC,ASC,SDC,TDC,TSC,TXT;2GDFTV..GUN125..ADC,ASC,SDC,SSC,SXT,TSC,TXT;2GDFTV..GUN125..TDC..(GCC,GEN,IDN,LA,PH,TH,VN);1GDFTV..GUN126..(ADC,ASC,PDC,PSC,SDC,SSC,SXT,TDC,TSC,TXT)..(L,M,S,X);1G#,2GDFTV..GGN12#,135,GUN112,120,122,123,135..ADC,ASC,MDC,PSC,SDC,SSC,SXT,TDC,TSC,TXT;1GDFTV,1KDFTV,2KDFTV,5LE,1TRFE,2TRFE..GUN136,KUN112,12#,13#,LAN125,TGN11#,120,121,126,128,138

 1
Common parts
94151-80801
Linked diagrams
8202
8401

(1505- )

Click highlighted areas on diagram

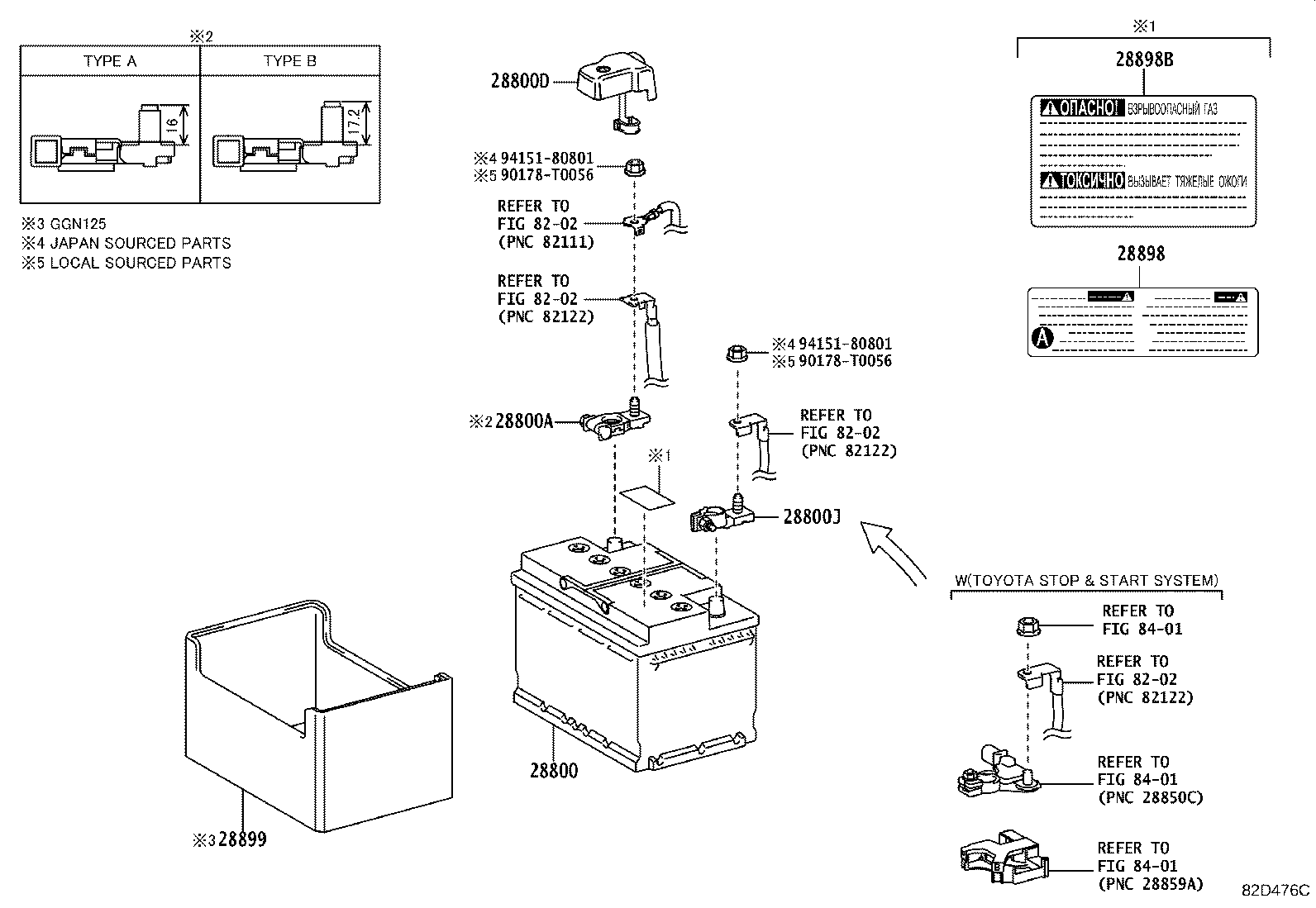

2-BATTERY

diagram 28800 28800 28800A 28800A 28800D 28800J 28800M 28800N 28800Q 28899 8202 8202 8202 8202 8202 9415180801 9415180801 9415180801 9415180801
Part # Description Qty Price
28800 - BATTERY
28800-0L600

1G#,2GDFTV,2KDFTV..GGN125,GUN125,126,13#,KUN125,135..(ADC,ASC)..(DCR,HDCR,HTWC)

LN3,UNION BATTERY

 1
28800-0L460

1G#,2GDFTV,2KDFTV..GGN125,GUN125,126,13#,KUN125,135..(ADC,ASC)..(DCR,HDCR,HTWC)

LN3,JOHNSON CONTROLS

 1
28800 - BATTERY
28800-0L600

1G#,2GDFTV,2KDFTV..GGN125,GUN125,126,13#,KUN125,135..(ADC,ASC)..(DCR,HDCR,HTWC)

LN3,UNION BATTERY

 1
28800-0L460

1G#,2GDFTV,2KDFTV..GGN125,GUN125,126,13#,KUN125,135..(ADC,ASC)..(DCR,HDCR,HTWC)

LN3,JOHNSON CONTROLS

 1
28800A - TERMINAL, BATTERY POSITIVE
90982-05054

2KDFTV..KUN122..LHD..TSC..S;2KDFTV..KUN122..TSC..(L,M,X);2TRFE..TGN121,126,136..TDC,TSC,TXT;2KDFTV..KUN125,135..ADC,ASC,SDC,SSC,SXT;2KDFTV..KUN122..(SDC,SSC,TDC,TXT)..(L,M,S,X);1GDFTV,2KDFTV,1TRFE..GUN126,KUN112,TGN120..(H,L,X)..(GCC,IDN,VN);1G#,2GDFTV,1TRFE,2TRFE..GGN12#,135,GUN112,12#,13#,TGN11#,128,138..ARL,BZAGT,GCC,GEN,IDN,LA,MA,PH,SA,TH

 1
90982-05054

2KDFTV..KUN122..GCC,GEN,SA;5LE,1TRFE..LAN125,TGN120..IV3;2GDFTV..GUN125..TDC..6FC..ARL;2GDFTV..GUN125..ADC,ASC,SDC,SSC,SXT,TSC,TXT;1TRFE,2TRFE..TGN120,121,126,136..TDC,TSC,TXT;2GDFTV..GUN125..TDC..(GCC,GEN,IDN,LA,PH,TH,VN);1GRFE,2GDFTV..GGN12#,135,GUN112,120,122,135..ADC,ASC,MDC,PSC,SDC,SSC,SXT,TDC,TSC,TXT;1GDFTV,2KDFTV,1TRFE,2TRFE..GUN123,126,136,KUN112,125,135,TGN11#,128,138..ADC,ASC,PDC,PSC,SDC,SSC,SXT,TDC,TSC,TXT

TYPE A:REFER ILLUST.

 1
90982-05061

2KDFTV..KUN122..GCC,GEN,SA;5LE,1TRFE..LAN125,TGN120..IV3;2GDFTV..GUN125..TDC..6FC..ARL;2GDFTV..GUN125..ADC,ASC,SDC,SSC,SXT,TSC,TXT;1TRFE,2TRFE..TGN120,121,126,136..TDC,TSC,TXT;2GDFTV..GUN125..TDC..(GCC,GEN,IDN,LA,PH,TH,VN);1GRFE,2GDFTV..GGN12#,135,GUN112,120,122,135..ADC,ASC,MDC,PSC,SDC,SSC,SXT,TDC,TSC,TXT;1GDFTV,2KDFTV,1TRFE,2TRFE..GUN123,126,136,KUN112,125,135,TGN11#,128,138..ADC,ASC,PDC,PSC,SDC,SSC,SXT,TDC,TSC,TXT

TYPE B:REFER ILLUST.

 1
28800A - TERMINAL, BATTERY POSITIVE
90982-05054

2KDFTV..KUN122..LHD..TSC..S;2KDFTV..KUN122..TSC..(L,M,X);2TRFE..TGN121,126,136..TDC,TSC,TXT;2KDFTV..KUN125,135..ADC,ASC,SDC,SSC,SXT;2KDFTV..KUN122..(SDC,SSC,TDC,TXT)..(L,M,S,X);1GDFTV,2KDFTV,1TRFE..GUN126,KUN112,TGN120..(H,L,X)..(GCC,IDN,VN);1G#,2GDFTV,1TRFE,2TRFE..GGN12#,135,GUN112,12#,13#,TGN11#,128,138..ARL,BZAGT,GCC,GEN,IDN,LA,MA,PH,SA,TH

 1
90982-05054

2KDFTV..KUN122..GCC,GEN,SA;5LE,1TRFE..LAN125,TGN120..IV3;2GDFTV..GUN125..TDC..6FC..ARL;2GDFTV..GUN125..ADC,ASC,SDC,SSC,SXT,TSC,TXT;1TRFE,2TRFE..TGN120,121,126,136..TDC,TSC,TXT;2GDFTV..GUN125..TDC..(GCC,GEN,IDN,LA,PH,TH,VN);1GRFE,2GDFTV..GGN12#,135,GUN112,120,122,135..ADC,ASC,MDC,PSC,SDC,SSC,SXT,TDC,TSC,TXT;1GDFTV,2KDFTV,1TRFE,2TRFE..GUN123,126,136,KUN112,125,135,TGN11#,128,138..ADC,ASC,PDC,PSC,SDC,SSC,SXT,TDC,TSC,TXT

TYPE A:REFER ILLUST.

 1
90982-05061

2KDFTV..KUN122..GCC,GEN,SA;5LE,1TRFE..LAN125,TGN120..IV3;2GDFTV..GUN125..TDC..6FC..ARL;2GDFTV..GUN125..ADC,ASC,SDC,SSC,SXT,TSC,TXT;1TRFE,2TRFE..TGN120,121,126,136..TDC,TSC,TXT;2GDFTV..GUN125..TDC..(GCC,GEN,IDN,LA,PH,TH,VN);1GRFE,2GDFTV..GGN12#,135,GUN112,120,122,135..ADC,ASC,MDC,PSC,SDC,SSC,SXT,TDC,TSC,TXT;1GDFTV,2KDFTV,1TRFE,2TRFE..GUN123,126,136,KUN112,125,135,TGN11#,128,138..ADC,ASC,PDC,PSC,SDC,SSC,SXT,TDC,TSC,TXT

TYPE B:REFER ILLUST.

 1
28800D - COVER, CONNECTOR(FOR BATTERY TERMINAL)
82821-0K160

2GDFTV..GUN125..TDC..6FC..ARL;2TRFE..TGN136..ADC,ASC,SDC,TDC,TSC,TXT;2GDFTV..GUN125..ADC,ASC,SDC,SSC,SXT,TSC,TXT;2GDFTV..GUN125..TDC..(GCC,GEN,IDN,LA,PH,TH,VN);2GDFTV..GUN135..ARL,BZAGT,GEN,LA,MA,PH,SA,TH,VN;1GDFTV,1KDFTV,2KDFTV,5LE,1TRFE,2TRFE..GUN136,KUN112,12#,13#,LAN125,TGN11#,120,121,126;1G#,2GDFTV..GGN12#,135,GUN112,120,122,123,126..ADC,ASC,PDC,PSC,SDC,SSC,SXT,TDC,TSC,TXT

 1
28800J - TERMINAL, BATTERY NEGATIVE
90982-06059

1GDFTV..GUN126..6F..H..TH;2GDFTV..GUN125..TDC..6FC..ARL;1GDFTV..GUN126..H..(BZAGT,GEN,PKN,VN);2TRFE..TGN136..ADC,ASC,SDC,TDC,TSC,TXT;2GDFTV..GUN125..ADC,ASC,SDC,SSC,SXT,TSC,TXT;2GDFTV..GUN125..TDC..(GCC,GEN,IDN,LA,PH,TH,VN);1GDFTV..GUN126..(ADC,ASC,PDC,PSC,SDC,SSC,SXT,TDC,TSC,TXT)..(L,M,S,X);1G#,2GDFTV..GGN12#,135,GUN112,120,122,123,135..ADC,ASC,MDC,PSC,SDC,SSC,SXT,TDC,TSC,TXT;1GDFTV,1KDFTV,2KDFTV,5LE,1TRFE,2TRFE..GUN136,KUN112,12#,13#,LAN125,TGN11#,120,121,126,128,138

 1
Common parts
94151-80801
Linked diagrams
8202

(2006- )ARL,BZAG,GCC,GEN,IDN,KEN,LA,MA,MMR,PH,PKN,SA,TH,TWN,VN

Click highlighted areas on diagram

diagram 28800 28800A 28800D 28800J 28898 28898B 28899 8202 8202 8202 8202 8401 8401 8401 90178T0056 90178T0056 9415180801 9415180801
Part # Description Qty Price
Common parts
90178-T0056
94151-80801
Linked diagrams
8202
8401
