GUN135L-BGFXHG (2015)

Toyota Hilux

Production Nov 2015 - Oct 2020
Engine 2GDFTV
Transmission 6F MTM
Displacement 2500cc
Power 168 HP (125 kW)

ILLUST NO. 1 OF 2(1505- )GGN125,135,GUN125,126,13#,KUN125,126,13#,LAN125,TGN126,127,128,13#

Click highlighted areas on diagram

diagram 04483A 04483B 48046 48046A 48046A 48047 48210A 48210A 48210G 48210G 48306 48516 48516 48516 48516 48517 48517 48517 48517 48530 48530B 48530B 48530C 48530C 48530H 48530H 48530H 48530H 48540 90105T0128 90105T0128 90105T0146 90178T0027 90178T0027 90178T0061 90178T0140 9017914069 90201T0006 90201T0012 90201T0014 90201T0014 9155281225 9155281225
Part # Description Qty Price
04483A - SHACKLE KIT, REAR SPRING, RH
04483-KK020

GUN125,126,13#,KUN125,126,13#,TGN126,128,13#..ADC,ASC

 1
04483-KK010

GUN125..(ADC,ASC)..6F;GUN126,13#,TGN126,128,13#..ADC,ASC

 1
04483B - SHACKLE KIT, REAR SPRING, LH
04483-KK020

GUN125,126,13#,KUN125,126,13#,TGN126,128,13#..ADC,ASC

 1
04483-KK010

GUN125..(ADC,ASC)..6F;GUN126,13#,TGN126,128,13#..ADC,ASC

 1
48046 - SEAT SUB-ASSY, SPRING U BOLT, RH
48046-KK010

GUN135..L..MA;GUN125..TDC..6FC..ARL;TGN136..ADC,ASC,SDC,TDC,TSC,TXT;GUN125..ADC,ASC,SDC,SSC,SXT,TSC,TXT;GUN125..TDC..(GCC,GEN,IDN,LA,PH,TH,VN);GGN125,135,GUN126,13#,KUN125,126,13#,LAN125,TGN126,128,138..ADC,ASC,PDC,PSC,SDC,SSC,SXT,TDC,TSC,TXT

 1
48046A - BOLT, U(FOR REAR SPRING)
90117-S0001

GGN125,GUN125,126,13#,KUN125,126,13#,TGN126,128,13#..ADC,ASC

L=180

 4
48046A - BOLT, U(FOR REAR SPRING)
90117-S0001

GGN125,GUN125,126,13#,KUN125,126,13#,TGN126,128,13#..ADC,ASC

L=180

 4
48047 - SEAT SUB-ASSY, SPRING U BOLT, LH
48046-KK010

GUN135..L..MA;GUN125..TDC..6FC..ARL;TGN136..ADC,ASC,SDC,TDC,TSC,TXT;GUN125..ADC,ASC,SDC,SSC,SXT,TSC,TXT;GUN125..TDC..(GCC,GEN,IDN,LA,PH,TH,VN);GGN125,135,GUN126,13#,KUN125,126,13#,LAN125,TGN126,128,138..ADC,ASC,PDC,PSC,SDC,SSC,SXT,TDC,TSC,TXT

 1
48210A - BUSH(FOR REAR SPRING SHACKLE UPPER)
90385-S0002

GUN125,126,13#,KUN125,126,13#,TGN126,128,13#..ADC,ASC

 4
90385-T0014

GUN125..(ADC,ASC)..6F;GUN126,13#,TGN126,128,13#..ADC,ASC

 4
48210A - BUSH(FOR REAR SPRING SHACKLE UPPER)
90385-S0002

GUN125,126,13#,KUN125,126,13#,TGN126,128,13#..ADC,ASC

 4
90385-T0014

GUN125..(ADC,ASC)..6F;GUN126,13#,TGN126,128,13#..ADC,ASC

 4
48210G - BUSH(FOR REAR SPRING SHACKLE LOWER)
90385-T0017

GUN125..(ADC,ASC)..6F;GUN126,13#,TGN126,128,13#..ADC,ASC

 4
90385-S0001

GUN125,126,13#,KUN125,126,13#,TGN126,128,13#..ADC,ASC

 4
48210G - BUSH(FOR REAR SPRING SHACKLE LOWER)
90385-T0017

GUN125..(ADC,ASC)..6F;GUN126,13#,TGN126,128,13#..ADC,ASC

 4
90385-S0001

GUN125,126,13#,KUN125,126,13#,TGN126,128,13#..ADC,ASC

 4
48306 - BUMPER SUB-ASSY, REAR SPRING
48306-0K070

GUN13#,KUN13#,TGN13#..ADC,ASC

 2
48530 - ABSORBER ASSY, SHOCK, REAR RH
48531-8Z012

GUN135,KUN135,TGN136..ASC

MARK 48531-0K800

 1
48531-8Z020

GUN135,TGN136..ASC

MARK 48531-0K800

 1
48530B - WASHER, REAR SHOCK ABSORBER CUSHION, NO.1
90948-T3001

GUN135..TDC..S;GUN125,135..TDC..6FC..ARL;GUN125..TDC..(GCC,GEN,IDN,LA,PH,TH,VN);GUN125,135..ADC,ASC,SDC,SSC,SXT,TSC,TXT;GGN12#,135,GUN112,TGN136..ADC,ASC,SDC,TDC,TSC,TXT;GUN135..(MDC,TDC)..(H,L,M,X)..(GEN,LA,MA,PH,TH,VN);GUN120,122,123,126,136,KUN112,12#,13#,LAN125,TGN11#,120,121,126,128,138..ADC,ASC,PDC,PSC,SDC,SSC,SXT,TDC,TSC,TXT

 4
48530B - WASHER, REAR SHOCK ABSORBER CUSHION, NO.1
90948-T3001

GUN135..TDC..S;GUN125,135..TDC..6FC..ARL;GUN125..TDC..(GCC,GEN,IDN,LA,PH,TH,VN);GUN125,135..ADC,ASC,SDC,SSC,SXT,TSC,TXT;GGN12#,135,GUN112,TGN136..ADC,ASC,SDC,TDC,TSC,TXT;GUN135..(MDC,TDC)..(H,L,M,X)..(GEN,LA,MA,PH,TH,VN);GUN120,122,123,126,136,KUN112,12#,13#,LAN125,TGN11#,120,121,126,128,138..ADC,ASC,PDC,PSC,SDC,SSC,SXT,TDC,TSC,TXT

 4
48530C - WASHER, REAR SHOCK ABSORBER CUSHION, NO.2
90948-T3002

GUN135..TDC..S;GUN125,135..TDC..6FC..ARL;GUN125..TDC..(GCC,GEN,IDN,LA,PH,TH,VN);GUN125,135..ADC,ASC,SDC,SSC,SXT,TSC,TXT;GGN12#,135,GUN112,TGN136..ADC,ASC,SDC,TDC,TSC,TXT;GUN135..(MDC,TDC)..(H,L,M,X)..(GEN,LA,MA,PH,TH,VN);GUN120,122,123,126,136,KUN112,12#,13#,LAN125,TGN11#,120,121,126,128,138..ADC,ASC,PDC,PSC,SDC,SSC,SXT,TDC,TSC,TXT

 4
48530C - WASHER, REAR SHOCK ABSORBER CUSHION, NO.2
90948-T3002

GUN135..TDC..S;GUN125,135..TDC..6FC..ARL;GUN125..TDC..(GCC,GEN,IDN,LA,PH,TH,VN);GUN125,135..ADC,ASC,SDC,SSC,SXT,TSC,TXT;GGN12#,135,GUN112,TGN136..ADC,ASC,SDC,TDC,TSC,TXT;GUN135..(MDC,TDC)..(H,L,M,X)..(GEN,LA,MA,PH,TH,VN);GUN120,122,123,126,136,KUN112,12#,13#,LAN125,TGN11#,120,121,126,128,138..ADC,ASC,PDC,PSC,SDC,SSC,SXT,TDC,TSC,TXT

 4
48530H - BUSH, REAR SHOCK ABSORBER
90385-T0019

GUN125..(ADC,ASC)..6F;GUN126,13#,TGN126,128,13#..ADC,ASC

 8
90385-S0003

GUN125,126,13#,KUN125,126,13#,TGN126,128,13#..ADC,ASC

 8
48530H - BUSH, REAR SHOCK ABSORBER
90385-T0019

GUN125..(ADC,ASC)..6F;GUN126,13#,TGN126,128,13#..ADC,ASC

 8
90385-S0003

GUN125,126,13#,KUN125,126,13#,TGN126,128,13#..ADC,ASC

 8
48530H - BUSH, REAR SHOCK ABSORBER
90385-T0019

GUN125..(ADC,ASC)..6F;GUN126,13#,TGN126,128,13#..ADC,ASC

 8
90385-S0003

GUN125,126,13#,KUN125,126,13#,TGN126,128,13#..ADC,ASC

 8
48530H - BUSH, REAR SHOCK ABSORBER
90385-T0019

GUN125..(ADC,ASC)..6F;GUN126,13#,TGN126,128,13#..ADC,ASC

 8
90385-S0003

GUN125,126,13#,KUN125,126,13#,TGN126,128,13#..ADC,ASC

 8
48540 - ABSORBER ASSY, SHOCK, REAR LH
48541-09350

GUN135,KUN135,TGN136..ASC

MARK 48541-0K270

 1
48541-09351

GUN135,TGN136..ASC

MARK 48541-0K270

 1
Common parts
90105-T0128
90105-T0146
90178-T0027
90178-T0061
90178-T0140
90179-14069
90201-T0006
90201-T0012
90201-T0014
91552-81225

ILLUST NO. 2 OF 2(1511- )ADC,ASC

Click highlighted areas on diagram

5-LEAF

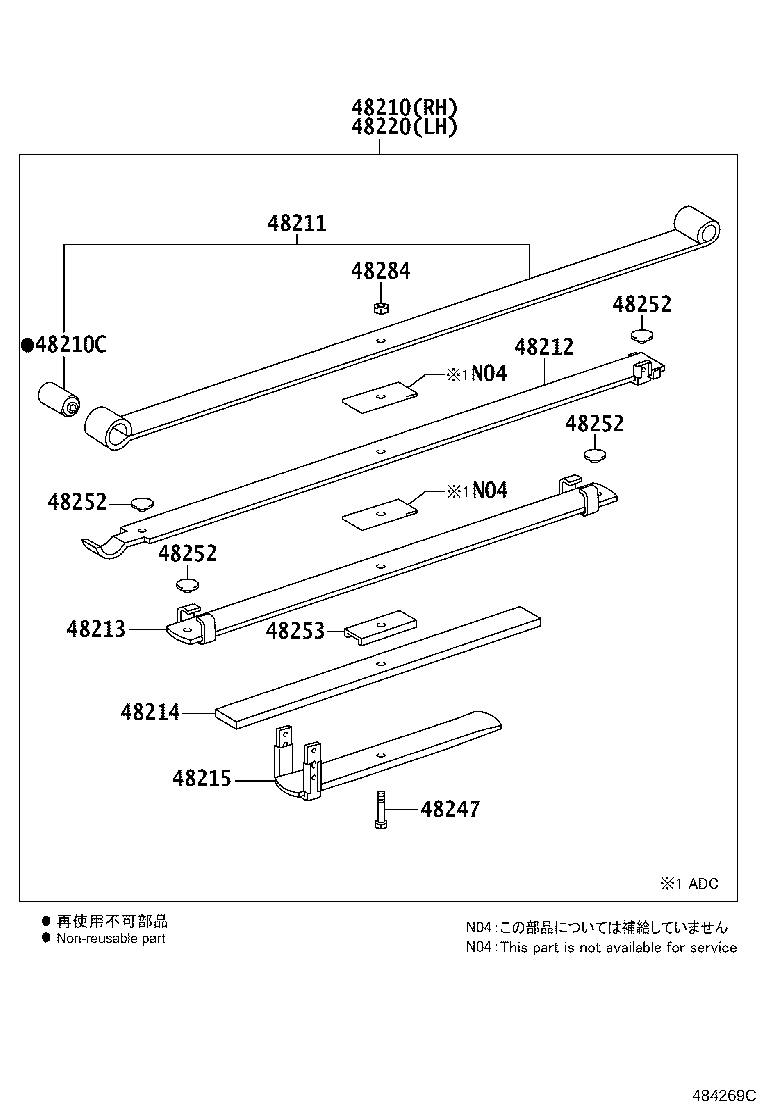

diagram 48210 48210C 48211 48212 48213 48214 48215 48220 48247 48252 48252 48252 48252 48253 48284
Part # Description Qty Price
48210 - SPRING ASSY, REAR RH
48210-0K710

GUN125,126,135,KUN125,135,TGN126,136..ASC

5-LEAF

 1
48210-0KB80

GUN125,126,135,KUN125,135,TGN126,136..ASC

5-LEAF

 1
48210C - BUSH(FOR REAR SPRING LEAF)
90389-S0003

GUN125,126,13#,KUN125,126,13#,TGN126,128,13#..(ADC,ASC)..(L,M,S,X)

 2
90389-T0005

GUN135..ADC;GUN135..X..BZAGT;GUN126..ADC..M..LA;GUN125..(ADC,ASC)..6F;GUN126..ADC..6F..S..LA;GUN136..6F..(M,S)..BZAGT;KUN125,126,13#,TGN126,128,136..ADC,ASC;GUN126,TGN138..(6F,6FC)..(L,M,S,X)..BZAGT

 2
48211 - LEAF, REAR SPRING, NO.1
48211-0K710

GUN125,126,135,KUN125,135,TGN126,136..ASC

 2
48212 - LEAF, REAR SPRING, NO.2
48212-0K710

GUN125,126,135,KUN125,135,TGN126,136..ASC

 2
48212-0KB80

GUN125,126,135,KUN125,135,TGN126,136..ASC

 2
48213 - LEAF, REAR SPRING, NO.3
48213-0K710

GUN125,126,135,KUN125,135,TGN126,136..ASC

 2
48214 - LEAF, REAR SPRING, NO.4
48214-0K710

GUN125,126,135,KUN125,135,TGN126,136..ASC

 2
48215 - LEAF, REAR SPRING, NO.5
48215-0K710

GUN125,126,135,KUN125,135,TGN126,136..ASC

 2
48220 - SPRING ASSY, REAR LH
48210-0K710

GUN125,126,135,KUN125,135,TGN126,136..ASC

5-LEAF

 1
48210-0KB80

GUN125,126,135,KUN125,135,TGN126,136..ASC

5-LEAF

 1
48247 - BOLT, REAR SPRING, CENTER
48247-0K110

GUN125,126,135,KUN125,135,TGN126,136..ASC

 2
48252 - SILENCER, REAR SPRING
48252-0K120

GGN125,GUN125,126,13#,KUN125,126,13#,TGN126,128,13#..ADC,ASC

 8
48252 - SILENCER, REAR SPRING
48252-0K120

GGN125,GUN125,126,13#,KUN125,126,13#,TGN126,128,13#..ADC,ASC

 8
48252 - SILENCER, REAR SPRING
48252-0K120

GGN125,GUN125,126,13#,KUN125,126,13#,TGN126,128,13#..ADC,ASC

 8
48252 - SILENCER, REAR SPRING
48252-0K120

GGN125,GUN125,126,13#,KUN125,126,13#,TGN126,128,13#..ADC,ASC

 8
48253 - SPACER, REAR SPRING, NO.1
48253-0K120

GGN125,GUN125,126,13#,KUN125,126,13#,TGN126,128,13#..ADC,ASC

 2
48284 - NUT, REAR SPRING CENTER BOLT
48284-0K120

GGN125,GUN125,126,13#,KUN125,126,13#,TGN126,128,13#..ADC,ASC

 2

ILLUST NO. 1 OF 2(2006- )GGN125,GUN125,126,13#,LAN125,TGN126,128,13#..ARL,BZAG,GCC,GEN,IDN,KEN,LA

Click highlighted areas on diagram

diagram 04483A 04483B 48046 48046A 48046A 48047 48210A 48210A 48210G 48210G 48306 48530 48530B 48530B 48530C 48530C 48530H 48530H 48530H 48530H 48540 90105T0128 90105T0128 90105T0146 90178T0027 90178T0027 90178T0061 90178T0140 9017914069 90201T0006 90201T0012 90201T0014 90201T0014
Part # Description Qty Price
Common parts
90105-T0128
90105-T0146
90178-T0027
90178-T0061
90178-T0140
90179-14069
90201-T0006
90201-T0012
90201-T0014

ILLUST NO. 2 OF 2(2006- )AS

Click highlighted areas on diagram

5-LEAF

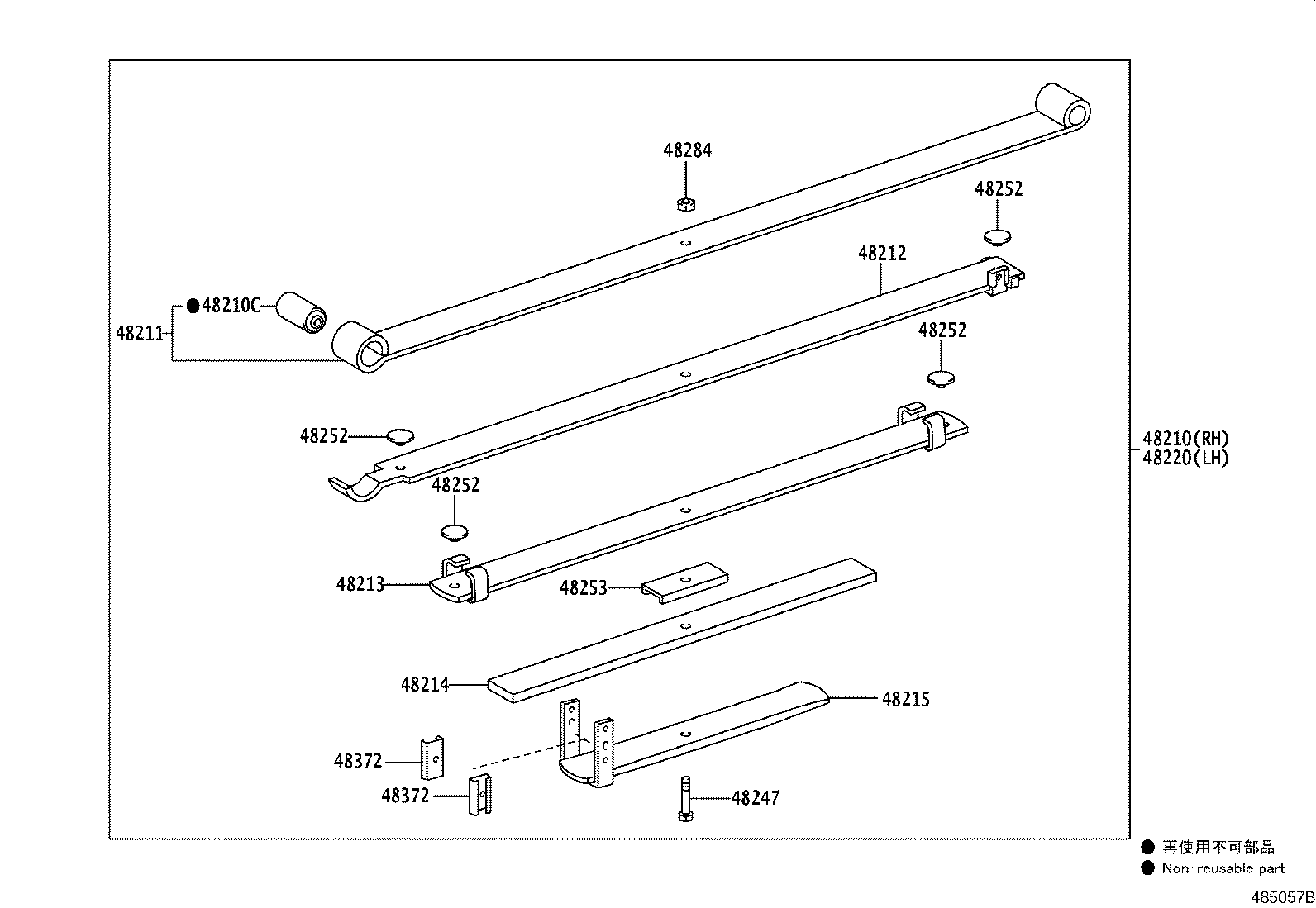

diagram 48210 48210C 48211 48212 48213 48214 48215 48220 48247 48252 48252 48252 48252 48253 48284 48372 48372
Part # Description Qty Price
