Toyota Hilux GUN135 DISC WHEEL & WHEEL CAP

Manufacturers Home
Toyota
GR
HILUX
GUN135L-BGFXHG (2015)
4103 - DISC WHEEL & WHEEL CAP

GUN135L-BGFXHG (2015)

Toyota Hilux

Production Nov 2015 - Oct 2020

Engine 2GDFTV

Transmission 6F MTM

Displacement 2500cc

Power 168 HP (125 kW)

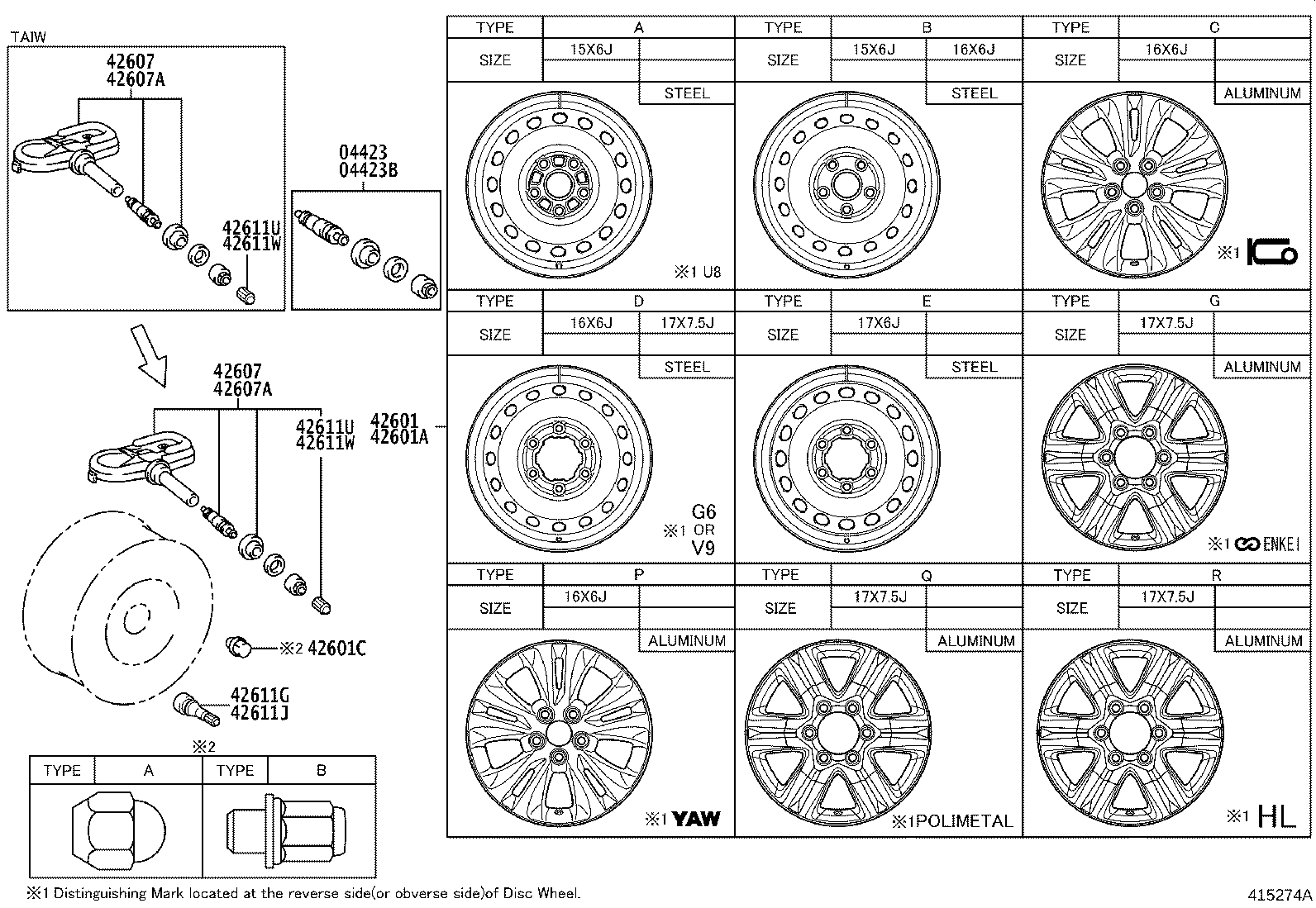

ILLUST NO. 1 OF 6(0408- )

Click highlighted areas on diagram

Part #	Description	Period	Qty	Price

ILLUST NO. 4 OF 6(0408- )

Click highlighted areas on diagram

Part #	Description	Period	Qty	Price

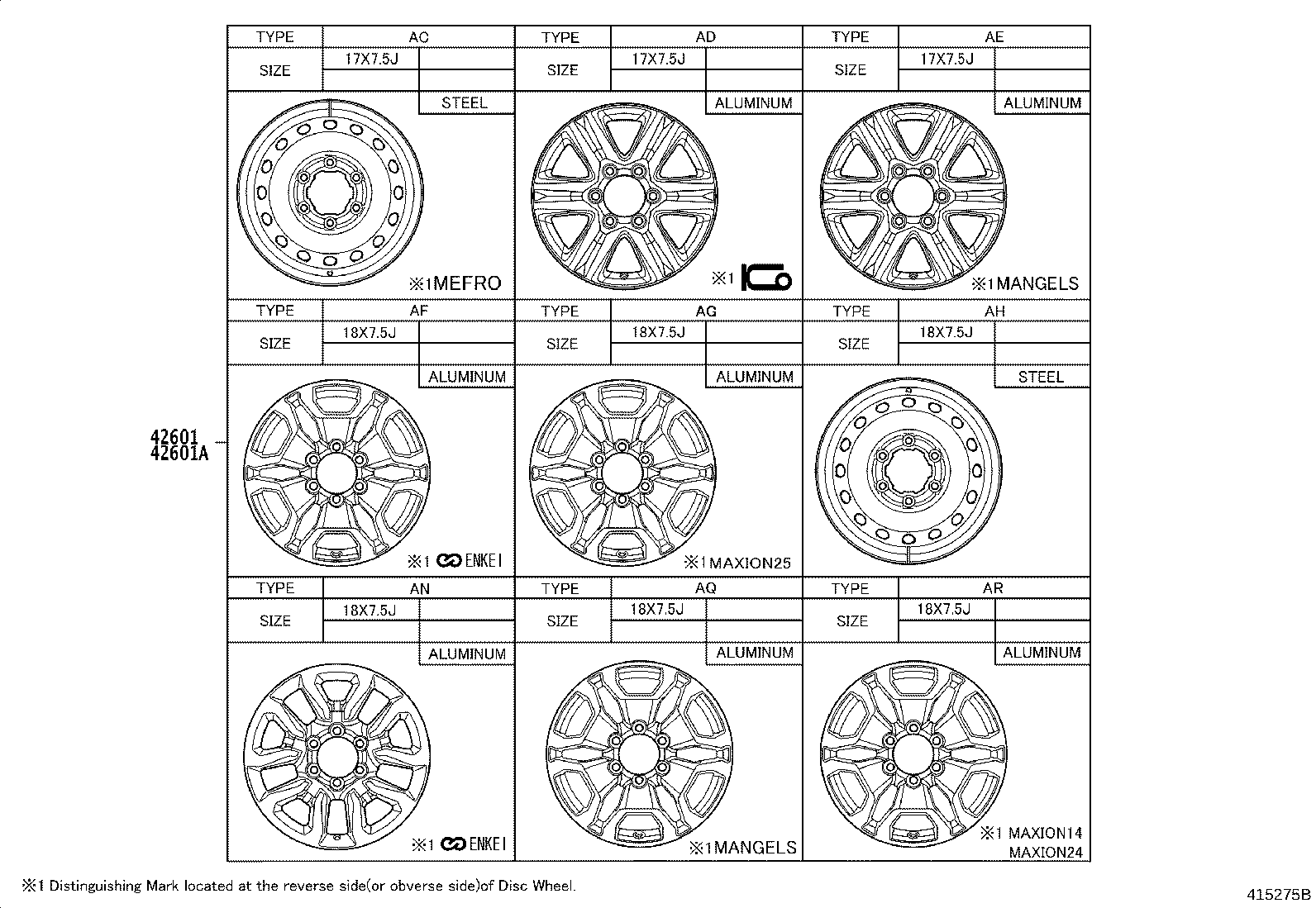

ILLUST NO. 2 OF 6(0408- )

Click highlighted areas on diagram

Part #	Description	Period	Qty	Price

ILLUST NO. 3 OF 6(0408- )

Click highlighted areas on diagram

Part #	Description	Period	Qty	Price

ILLUST NO. 5 OF 6(0408- )

Click highlighted areas on diagram

Part #	Description	Period	Qty	Price

ILLUST NO. 1 OF 5(1107- )

Click highlighted areas on diagram

DISC WHEEL

Part #	Description	Period	Qty	Price

ILLUST NO. 2 OF 5(1107- )

Click highlighted areas on diagram

DISC WHEEL

Part #	Description	Period	Qty	Price

ILLUST NO. 4 OF 5(1107- )

Click highlighted areas on diagram

WHEEL HUB ORNAMENT & WHEEL CAP

Part #	Description	Period	Qty	Price

ILLUST NO. 3 OF 5(1107- )

Click highlighted areas on diagram

DISC WHEEL

Part #	Description	Period	Qty	Price

ILLUST NO. 1 OF 3(1505- )

Click highlighted areas on diagram

DISC WHEEL

Part #	Description	Period	Qty
42601 - WHEEL, DISC
42611-0KR80	TGN136..ASC;TGN136..ADC..X..LA;GUN125,126,135,KUN125,126,135,TGN126..(ADC,ASC)..X 17X6J, #,TYPE E:REFER ILLUST.	11/2015 - 10/2020	4
42601A - WHEEL, DISC (FOR SPARE)
42611-0KR80	TGN136..ASC;TGN136..ADC..X..LA;GUN125,126,135,KUN125,126,135,TGN126..(ADC,ASC)..X 17X6J, #,TYPE E:REFER ILLUST.	11/2015 - 10/2020	1
42601C - NUT, HUB (FOR AXLE)
90942-01109	TGN136..GEN;TGN126..6FC..M;GUN125..TDC..S..LA;GUN125..RHD..TDC..S..GEN;KUN125..(ADC,SXT,TDC,TXT)..S..DCR;GUN125,KUN125..RHD..TDC..6F..L..GEN;GUN125,126,KUN126..LHD..M..(GCC,SA);GUN125,136..LHD..(ADC,SDC,SSC,SXT,TXT)..S;GUN126,135,KUN135,TGN136..S..(BZAGT,GEN,LA);KUN125..LHD..(SDC,SSC,TDC)..(M,S)..(GCC,SA);KUN126,136,LAN125,TGN126,138..(ADC,SDC,SSC,TDC)..S TIRE & DISC WHEEL-265/65R17 ALUMINUM&WHEEL CAP-FOR ALUMINUM WHEEL,(J),T/P B:REF.ILLUST	05/2015 - 10/2020	24
90942-T1005	TGN136..GEN;TGN126..6FC..M;GUN125..TDC..S..LA;GUN125..RHD..TDC..S..GEN;KUN125..(ADC,SXT,TDC,TXT)..S..DCR;GUN125,KUN125..RHD..TDC..6F..L..GEN;GUN125,126,KUN126..LHD..M..(GCC,SA);GUN125,136..LHD..(ADC,SDC,SSC,SXT,TXT)..S;GUN126,135,KUN135,TGN136..S..(BZAGT,GEN,LA);KUN125..LHD..(SDC,SSC,TDC)..(M,S)..(GCC,SA);KUN126,136,LAN125,TGN126,138..(ADC,SDC,SSC,TDC)..S TIRE & DISC WHEEL-265/65R17 ALUMINUM&WHEEL CAP-FOR ALUMINUM WHEEL,(L),T/P B:REF.ILLUST	05/2015 - 10/2020	24
90942-T1005	GUN125..VN;GUN125..TXT..M;GUN135..6FC..PH;GUN125..TDC..6FC..ARL;GUN135..LHD..TDC..6F..(L,M);KUN125..(TDC,TXT)..(H,M)..(GEN,IDN);GUN135,KUN135..(H,M,S,X)..(ARL,GEN,MA,TH,VN)..CBU;GUN126,KUN126..LHD..(H,M)..(BZAGT,GEN,LA,PH,TAIW,VN);GGN125,135,GUN136,KUN136,TGN126,128,13#..(H,M)..(ARL,BZAGT,LA,SA,TH);GUN125,KUN125,TGN136..RHD..(SXT,TDC,TXT)..(5F,6F,6FC)..(M,S,X)..(IDN,SA,TH);GUN125,126,KUN126..RHD..(PDC,SDC,SSC,SXT,TDC,TXT)..(H,M)..(ARL,GEN,PKN,SA,TH) (L),T/P B:REF.ILLUST	05/2015 - 12/2999	24
90942-01109	GUN125..VN;GUN125..TXT..M;GUN135..6FC..PH;GUN125..TDC..6FC..ARL;GUN135..LHD..TDC..6F..(L,M);KUN125..(TDC,TXT)..(H,M)..(GEN,IDN);GUN135,KUN135..(H,M,S,X)..(ARL,GEN,MA,TH,VN)..CBU;GUN126,KUN126..LHD..(H,M)..(BZAGT,GEN,LA,PH,TAIW,VN);GGN125,135,GUN136,KUN136,TGN126,128,13#..(H,M)..(ARL,BZAGT,LA,SA,TH);GUN125,KUN125,TGN136..RHD..(SXT,TDC,TXT)..(5F,6F,6FC)..(M,S,X)..(IDN,SA,TH);GUN125,126,KUN126..RHD..(PDC,SDC,SSC,SXT,TDC,TXT)..(H,M)..(ARL,GEN,PKN,SA,TH) (J),T/P B:REF.ILLUST	05/2015 - 12/2999	24
90942-01082	GUN135..TDC..X..LA;GUN135..(L,S)..(GEN,LA,PH,SA);GUN126,KUN126..LHD..M..(GCC,SA);GUN135,KUN125..(M,S)..(BZAGT,GCC);KUN125..LHD..(SDC,SSC,TSC)..(S,X);GUN125,TGN126..LHD..TDC..M..(GCC,GEN);GUN125..LHD..(SDC,SSC,SXT,TSC)..(L,S,X);GUN135..(ADC,ASC,MDC,SDC,SSC,TSC)..(L,X);TGN136..(ADC,ASC,SDC,TDC,TSC)..5F..(S,X);KUN125..(ADC,ASC,SXT,TDC,TXT)..(L,S,X)..DCR;GUN125,KUN125..(SDC,TDC)..6F..(L,M)..(IDN,SA);GUN125,KUN125..RHD..(SDC,SSC,TSC,TXT)..(ARL,GEN,IDN,SA);GUN125..(ADC,ASC,TDC,TXT)..(L,S,X)..(BZAGT,GCC,GEN,LA,PH);GGN125,GUN126,136,KUN126,13#,LAN125,TGN126,138..(L,S,X)..(ARL,BZAGT,GCC,GEN,LA,PKN,SA,TH) TYPE A:REFER ILLUST.	05/2015 - 12/2999	24
42611G - VALVE (FOR TUBELESS TIRE)
90080-94179	GUN125,126,13#,KUN125,126,13#,TGN126,136..ADC,ASC	11/2015 - 12/2015	4
90942-05009	GGN125,GUN122,125,126,13#,KUN12#,13#,TGN126,128,13#..ADC,ASC,PDC,PSC	12/2015 - 12/2999	4
42611J - VALVE (FOR TUBELESS TIRE SPARE)
90080-94179	GUN125,126,13#,KUN125,126,13#,TGN126,136..ADC,ASC	11/2015 - 12/2015	1
90942-05009	GGN125,GUN122,125,126,13#,KUN12#,13#,TGN126,128,13#..ADC,ASC,PDC,PSC	12/2015 - 12/2999	1

ILLUST NO. 2 OF 3(1505- )

Click highlighted areas on diagram

DISC WHEEL

Part #	Description	Period	Qty
42601 - WHEEL, DISC
42611-0KR80	TGN136..ASC;TGN136..ADC..X..LA;GUN125,126,135,KUN125,126,135,TGN126..(ADC,ASC)..X 17X6J, #,TYPE E:REFER ILLUST.	11/2015 - 10/2020	4
42601A - WHEEL, DISC (FOR SPARE)
42611-0KR80	TGN136..ASC;TGN136..ADC..X..LA;GUN125,126,135,KUN125,126,135,TGN126..(ADC,ASC)..X 17X6J, #,TYPE E:REFER ILLUST.	11/2015 - 10/2020	1

ILLUST NO. 3 OF 3(1505- )

Click highlighted areas on diagram

WHELL HUB ORNAMENT & WHEEL CAP

Part #	Description	Period	Qty
42603 - ORNAMENT SUB-ASSY, WHEEL HUB
4260B-0K220	GUN125,126,13#,KUN125,126,135,TGN126,13#..(ADC,ASC)..(L,S,X) *STE,TYPE C:REFER ILLUST.	11/2015 - 10/2020	4
42621 - CAP, WHEEL
42602-0K090	KUN125..TXT..S;TGN126..6FC..M;GUN125..TDC..S..LA;GUN126,KUN125..LHD..M..SA;GUN125,KUN125..RHD..TDC..S..GEN;GUN135,TGN126..(L,S)..(BZAGT,LA);GUN126,TGN136..ADC..(L,X)..BZAGT;GUN126,KUN126..S..(BZAGT,GEN,LA);GUN125..LHD..(ADC,SXT,TXT)..(L,S);KUN125..(ADC,SXT,TDC)..(M,S)..(GCC,LA,SA);GUN136,KUN13#,TGN13#..(L,S)..(BZAGT,GEN,LA);GUN125,126,KUN126..LHD..(5FC,6F)..M..(GCC,SA) WHEEL CAP-WITH(FULL CAP),TYPE B:REFER ILLUST.	05/2015 - 10/2020	4

ILLUST NO. 1 OF 4(2005- )ARL,BZAG,GCC,GEN,IDN,KEN,LA,MA,MMR,PH,PKN,SA,TH,TWN,VN

Click highlighted areas on diagram

DISC WHEEL

Part #	Description	Period	Qty	Price

ILLUST NO. 2 OF 4(2005- )ARL,BZAG,GCC,GEN,IDN,KEN,LA,MA,MMR,PH,PKN,SA,TH,TWN,VN

Click highlighted areas on diagram

DISC WHEEL

Part #	Description	Period	Qty	Price

ILLUST NO. 4 OF 4(2005- )ARL,BZAG,GCC,GEN,IDN,KEN,LA,MA,MMR,PH,PKN,SA,TH,TWN,VN

Click highlighted areas on diagram

WHEEL HUB ORNAMENT & WHEEL CAP

Part #	Description	Period	Qty	Price

ILLUST NO. 3 OF 4(2005- )ARL,BZAG,GCC,GEN,IDN,KEN,LA,MA,MMR,PH,PKN,SA,TH,TWN,VN

Click highlighted areas on diagram

DISC WHEEL

Part #	Description	Period	Qty	Price
