GUN135L-BGFXHG (2015)

Toyota Hilux

Production Nov 2015 - Oct 2020
Engine 2GDFTV
Transmission 6F MTM
Displacement 2500cc
Power 168 HP (125 kW)

(1505- )GGN12#,135

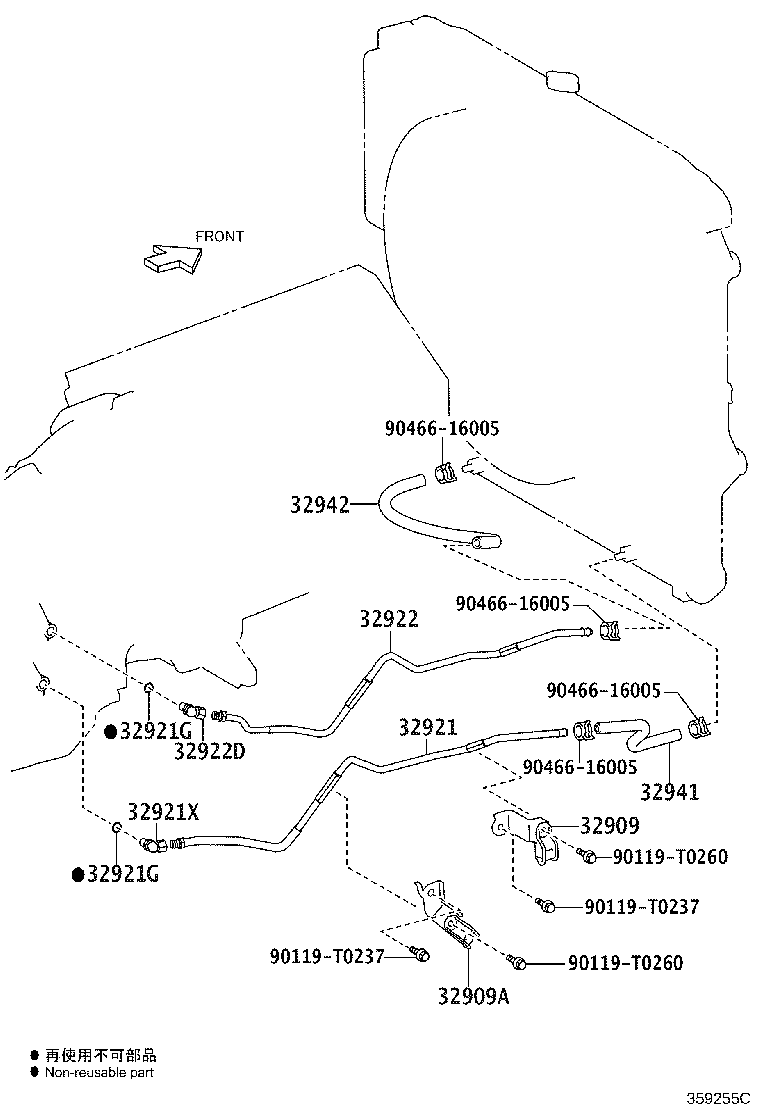

Click highlighted areas on diagram

AC60E,AC60F

diagram 32909 32909A 32921 32921G 32921G 32921X 32922 32922D 32941 32942 90119T0237 90119T0237 90119T0260 90119T0260 9046616005 9046616005 9046616005 9046616005
Part # Description Qty Price
32909 - CLAMP SUB-ASSY, TRANSMISSION OIL COOLER TUBE, NO.1
32909-KK110

GGN12#,135

 1
32909A - CLAMP SUB-ASSY, TRANSMISSION OIL COOLER TUBE, NO.2
32909-KK100

GGN12#,135

 1
32921 - TUBE, OIL COOLER INLET, NO.1
32921-0K120

GGN12#,135

 1
32922 - TUBE, OIL COOLER OUTLET, NO.1
32922-0K120

GGN12#,135

 1
32941 - HOSE, OIL COOLER INLET, NO.1
32941-0K040

GGN12#,135

 1
32942 - HOSE, OIL COOLER OUTLET, NO.1
32942-0K040

GGN12#,135

 1
Common parts
90119-T0237
90119-T0260
90466-16005
