GUN135L-BGFXHG (2015)
Toyota Hilux
(1505- )1GDFTV,2GDFTV
12V 80A,100A,130A(DENSO)
| Part # | Description | Qty | Price | |
|---|---|---|---|---|

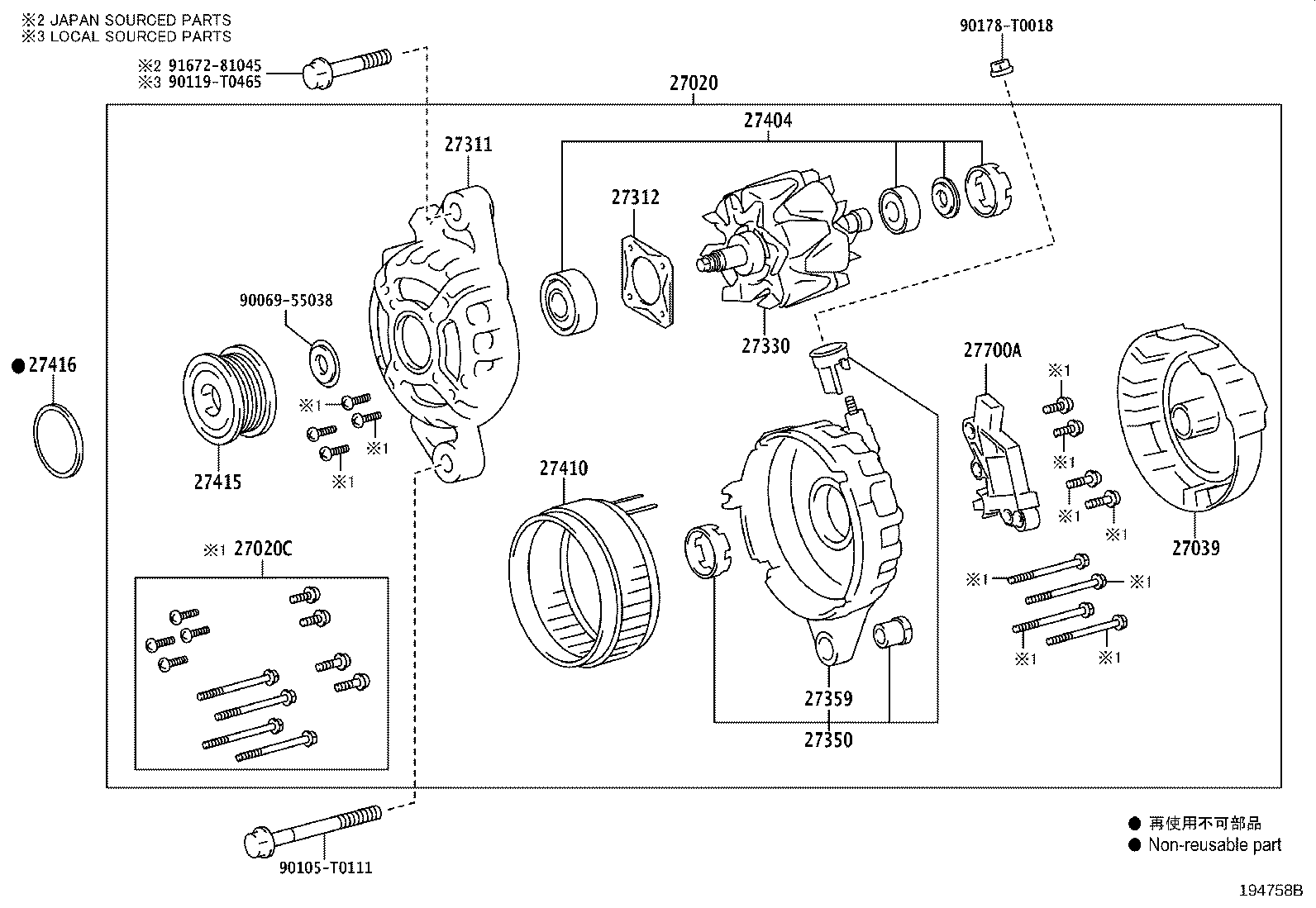

| 27020 - ALTERNATOR ASSY | ||||
| 27060-0L160 |
1GDFTV,2GDFTV..GUN125,126,13#..ADC,ASC 12V 100A,DENSO |
1 | ||
| 27060-0L150 |
1GDFTV,2GDFTV..GUN125,126,13#..ADC,ASC 12V 90A,BOSCH |
1 | ||
| 27060-0L280 |
2GDFTV..GUN135..6F..H;1GDFTV..GUN126..6F..H..TH;2GDFTV..GUN135..6FC..(H,L);1GDFTV..GUN126..H..(GEN,VN);2GDFTV..GUN125..TDC..6FC..LA;2GDFTV..GUN125..RHD..TDC..6FC..(L,M,X);2GDFTV..GUN125..(TSC,TXT)..(ARL,GEN,IDN,LA,TH);2GDFTV..GUN125..TDC..6F..(GEN,IDN,LA,PH,TH,VN);2GDFTV..GUN135..(TDC,TSC,TXT)..(ARL,LA,PH,TH,VN);1GDFTV..GUN126..(TDC,TSC,TXT)..(L,M,S,X)..(ARL,GEN,LA,PH,TAIW,TH);1GDFTV,2GDFTV..GUN112,120,122,123,136..(PSC,TDC,TSC,TXT)..(ARL,GEN,IDN,LA,PH,PKN,TH) 12V 80A |
1 | ||
| 27039 - COVER, ALTERNATOR REAR END | ||||
| 27039-0L180 |
1GDFTV,2GDFTV..GUN125,126,13#..ADC,ASC BOSCH |
1 | ||
| 27039-0T300 |
1GDFTV,2GDFTV..GUN125,126,13#..ADC,ASC DENSO |
1 | ||
| 27039B - BOLT(FOR ALTERNATOR REAR END COVER) | ||||
| 90068-04051 |
1GDFTV,2GDFTV,1KDFTV,2KDFTV..GUN125,126,13#,KUN125,126,13#..ADC,ASC |
3 | ||
| 27310 - FRAME ASSY, DRIVE END, ALTERNATOR | ||||
| 27310-0L190 |
1GDFTV,2GDFTV..GUN125,126,13#..ADC,ASC DENSO |
1 | ||
| 27310-0L310 |
2GDFTV..GUN135..6F..H;1GDFTV..GUN126..6F..H..TH;2GDFTV..GUN135..6FC..(H,L);1GDFTV..GUN126..H..(GEN,VN);2GDFTV..GUN125..TDC..6FC..LA;2GDFTV..GUN125..RHD..TDC..6FC..(L,M,X);2GDFTV..GUN125..(TSC,TXT)..(ARL,GEN,IDN,LA,TH);2GDFTV..GUN125..TDC..6F..(GEN,IDN,LA,PH,TH,VN);2GDFTV..GUN135..(TDC,TSC,TXT)..(ARL,LA,PH,TH,VN);1GDFTV..GUN126..(TDC,TSC,TXT)..(L,M,S,X)..(ARL,GEN,LA,PH,TAIW,TH);1GDFTV,2GDFTV..GUN112,120,122,123,136..(PSC,TDC,TSC,TXT)..(ARL,GEN,IDN,LA,PH,PKN,TH) |
1 | ||
| 27310B - BEARING(FOR ALTERNATOR DRIVE END FRAME) | ||||
| 90068-10047 |
2GDFTV..GUN135..6F..H;1GDFTV..GUN126..6F..H..TH;2GDFTV..GUN135..6FC..(H,L);1GDFTV..GUN126..H..(GEN,VN);2GDFTV..GUN125..TDC..6FC..LA;2GDFTV..GUN125..RHD..TDC..6FC..(L,M,X);2GDFTV..GUN125..(TSC,TXT)..(ARL,GEN,IDN,LA,TH);2GDFTV..GUN125..TDC..6F..(GEN,IDN,LA,PH,TH,VN);2GDFTV..GUN135..(TDC,TSC,TXT)..(ARL,LA,PH,TH,VN);1GDFTV..GUN126..(TDC,TSC,TXT)..(L,M,S,X)..(ARL,GEN,LA,PH,TAIW,TH);1GDFTV,2GDFTV..GUN112,120,122,123,136..(PSC,TDC,TSC,TXT)..(ARL,GEN,IDN,LA,PH,PKN,TH) |
1 | ||
| 90068-10045 |
1GDFTV,2GDFTV..GUN125,126,13#..ADC,ASC DENSO |
1 | ||
| 90068-10049 |
1GDFTV,2GDFTV..GUN125,126,13#..ADC,ASC |
1 | ||
| 27310F - SCREW(FOR ALTERNATOR DRIVE END FRAME) | ||||
| 90068-00039 |
1GDFTV,2GDFTV,1KDFTV,2KDFTV..GUN125,126,13#,KUN125,126,13#..ADC,ASC |
4 | ||
| 27312 - PLATE, RETAINER | ||||
| 27312-0T300 |
1GDFTV,2GDFTV..GUN125,126,13#..ADC,ASC DENSO |
1 | ||
| 27312-0C130 |
1GDFTV,2GDFTV..GUN125,126,13#..ADC,ASC BOSCH |
1 | ||
| 27330 - ROTOR ASSY, ALTERNATOR | ||||
| 27330-0T300 |
1GDFTV,2GDFTV..GUN125,126,13#..ADC,ASC DENSO |
1 | ||
| 27330-0L180 |
1GDFTV,2GDFTV..GUN125,126,13#..ADC,ASC BOSCH |
1 | ||
| 27360 - COIL ASSY, ALTERNATOR | ||||
| 27360-0L190 |
1GDFTV,2GDFTV..GUN125,126,13#..ADC,ASC DENSO |
1 | ||
| 27360A - BOLT(FOR ALTERNATOR COIL) | ||||
| 90068-04050 |
1GDFTV,2GDFTV,1KDFTV,2KDFTV..GUN125,126,13#,KUN125,126,13#..ADC,ASC |
4 | ||
| 27370 - HOLDER ASSY, ALTERNATOR BRUSH | ||||
| 27370-0T300 |
1GDFTV,2GDFTV..GUN125,126,13#..ADC,ASC DENSO |
1 | ||
| 27370B - SCREW(FOR ALTERNATOR BRUSH HOLDER) | ||||
| 90068-00037 |
1GDFTV,2GDFTV,1KDFTV,2KDFTV..GUN125,126,13#,KUN125,126,13#..ADC,ASC |
2 | ||
| 27387 - INSULATOR, TERMINAL | ||||
| 27387-0T300 |
1GDFTV,2GDFTV..GUN125,126,13#..ADC,ASC DENSO |
1 | ||
| 27415 - PULLEY, ALTERNATOR W/CLUTCH | ||||
| 27415-0L050 |
1GDFTV..GUN126..M..GCC;2GDFTV..GUN125..6FC..L..GCC;1GDFTV..GUN126..LHD..(ADC,ASC,TSC);2GDFTV..GUN125..6FC..(M,S)..(GCC,GEN);2GDFTV,2KDFTV..GUN112,122,125,KUN112,122,125..MTM..GCC;1GDFTV,2GDFTV,1KDFTV,2KDFTV..GUN125,13#,KUN125,126,13#..ADC,ASC |
1 | ||
| 27416 - CAP, ALTERNATOR PULLEY | ||||
| 27416-0L030 |
1GDFTV,2GDFTV..GUN122,125,126,13#..ADC,ASC,SDC,SSC,SXT DENSO |
1 | ||
| 27444 - PACKING, ALTERNATOR BEARING COVER | ||||
| 27444-0T300 |
1GDFTV,2GDFTV..GUN125,126,13#..ADC,ASC DENSO |
1 | ||
| Common parts | ||||
| 90105-T0111 | ||||
| 90119-T0465 | ||||
| 90178-T0018 | ||||
| 91672-81045 | ||||
(1511- )1GDFTV,2GDFTV..GUN125,126,13#..ADC,ASC
12V 90A(BOSCH)
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 27020 - ALTERNATOR ASSY | ||||
| 27060-0L160 |
1GDFTV,2GDFTV..GUN125,126,13#..ADC,ASC 12V 100A,DENSO |
1 | ||
| 27060-0L150 |
1GDFTV,2GDFTV..GUN125,126,13#..ADC,ASC 12V 90A,BOSCH |
1 | ||
| 27060-0L280 |
2GDFTV..GUN135..6F..H;1GDFTV..GUN126..6F..H..TH;2GDFTV..GUN135..6FC..(H,L);1GDFTV..GUN126..H..(GEN,VN);2GDFTV..GUN125..TDC..6FC..LA;2GDFTV..GUN125..RHD..TDC..6FC..(L,M,X);2GDFTV..GUN125..(TSC,TXT)..(ARL,GEN,IDN,LA,TH);2GDFTV..GUN125..TDC..6F..(GEN,IDN,LA,PH,TH,VN);2GDFTV..GUN135..(TDC,TSC,TXT)..(ARL,LA,PH,TH,VN);1GDFTV..GUN126..(TDC,TSC,TXT)..(L,M,S,X)..(ARL,GEN,LA,PH,TAIW,TH);1GDFTV,2GDFTV..GUN112,120,122,123,136..(PSC,TDC,TSC,TXT)..(ARL,GEN,IDN,LA,PH,PKN,TH) 12V 80A |
1 | ||
| 27020C - SCREW SET, ALTERNATOR | ||||
| 90069-32067 |
1GDFTV,2GDFTV,2TRFE..GUN125,126,13#,TGN126,128,13#..ADC,ASC |
1 | ||
| 27039 - COVER, ALTERNATOR REAR END | ||||
| 27039-0L180 |
1GDFTV,2GDFTV..GUN125,126,13#..ADC,ASC BOSCH |
1 | ||
| 27039-0T300 |
1GDFTV,2GDFTV..GUN125,126,13#..ADC,ASC DENSO |
1 | ||
| 27311 - FRAME, ALTERNATOR DRIVE END | ||||
| 27311-0L180 |
1GDFTV,2GDFTV..GUN125,126,13#..ADC,ASC BOSCH |
1 | ||
| 27312 - PLATE, RETAINER | ||||
| 27312-0T300 |
1GDFTV,2GDFTV..GUN125,126,13#..ADC,ASC DENSO |
1 | ||
| 27312-0C130 |
1GDFTV,2GDFTV..GUN125,126,13#..ADC,ASC BOSCH |
1 | ||
| 27330 - ROTOR ASSY, ALTERNATOR | ||||
| 27330-0T300 |
1GDFTV,2GDFTV..GUN125,126,13#..ADC,ASC DENSO |
1 | ||
| 27330-0L180 |
1GDFTV,2GDFTV..GUN125,126,13#..ADC,ASC BOSCH |
1 | ||
| 27350 - FRAME ASSY, RECTIFIER END | ||||
| 27350-0L180 |
1GDFTV,2GDFTV..GUN125,126,13#..ADC,ASC BOSCH |
1 | ||
| 27359 - FRAME, ALTERNATOR RECTIFIER END | ||||
| 27359-0L180 |
1GDFTV,2GDFTV..GUN125,126,13#..ADC,ASC BOSCH |
1 | ||
| 27404 - BEARING SET, ALTERNATOR | ||||
| 27404-0C130 |
1GDFTV,2GDFTV..GUN125,126,13#..ADC,ASC BOSCH |
1 | ||
| 27410 - STATOR ASSY, ALTERNATOR | ||||
| 27410-0L180 |
1GDFTV,2GDFTV..GUN125,126,13#..ADC,ASC BOSCH |
1 | ||
| 27415 - PULLEY, ALTERNATOR W/CLUTCH | ||||
| 27415-0L050 |
1GDFTV..GUN126..M..GCC;2GDFTV..GUN125..6FC..L..GCC;1GDFTV..GUN126..LHD..(ADC,ASC,TSC);2GDFTV..GUN125..6FC..(M,S)..(GCC,GEN);2GDFTV,2KDFTV..GUN112,122,125,KUN112,122,125..MTM..GCC;1GDFTV,2GDFTV,1KDFTV,2KDFTV..GUN125,13#,KUN125,126,13#..ADC,ASC |
1 | ||
| 27416 - CAP, ALTERNATOR PULLEY | ||||
| 27416-0L030 |
1GDFTV,2GDFTV..GUN122,125,126,13#..ADC,ASC,SDC,SSC,SXT DENSO |
1 | ||
| 27700A - REGULATOR ASSY, GENERATOR | ||||
| 27700-0L100 |
1GDFTV,2GDFTV..GUN125,126,13#..ADC,ASC BOSCH |
1 | ||
| Common parts | ||||
| 90069-55038 | ||||
| 90105-T0111 | ||||
| 90119-T0465 | ||||
| 90178-T0018 | ||||
| 91672-81045 | ||||
(2006- )1GDFTV,2GDFTV..AD,AS,TD,TS,TX ; (2009- )1GDFTV,2GDFTV..GUN122,125,126
12V 80A,100A,130A(DENSO)
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| Common parts | ||||
| 90105-T0111 | ||||
| 90119-T0465 | ||||
| 90178-T0018 | ||||
| 91672-81045 | ||||
