GUN126R-DTTSHQ3 (2015)
Toyota Hilux

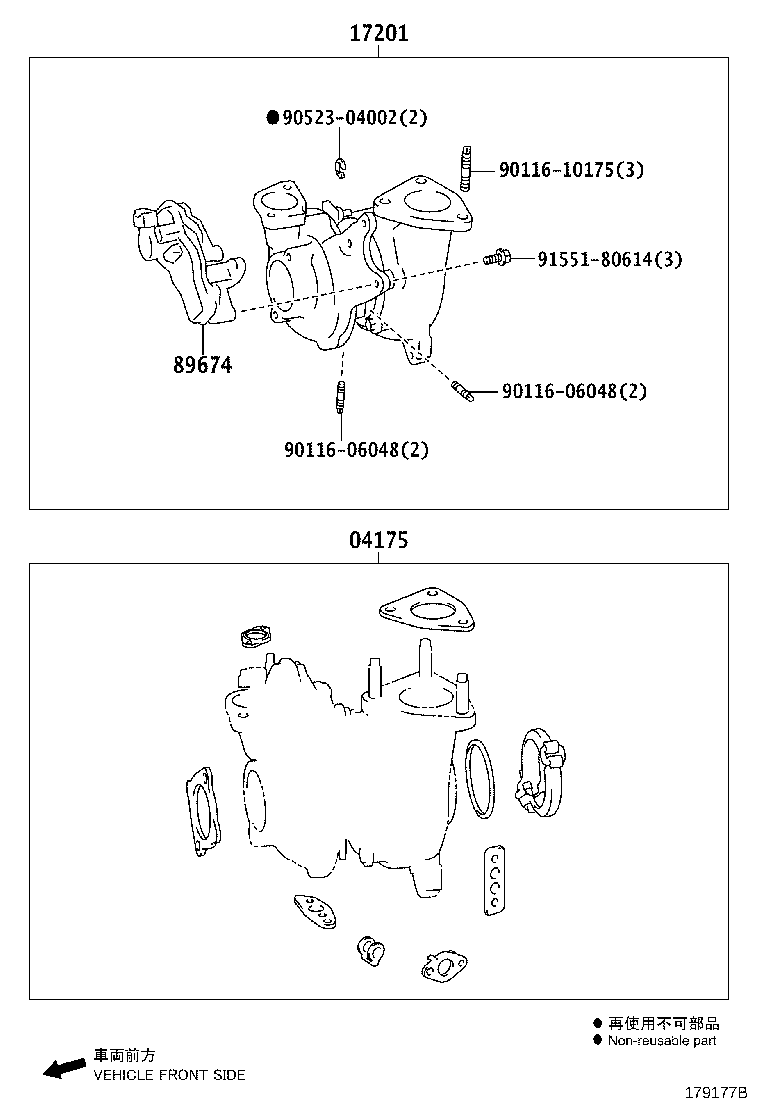

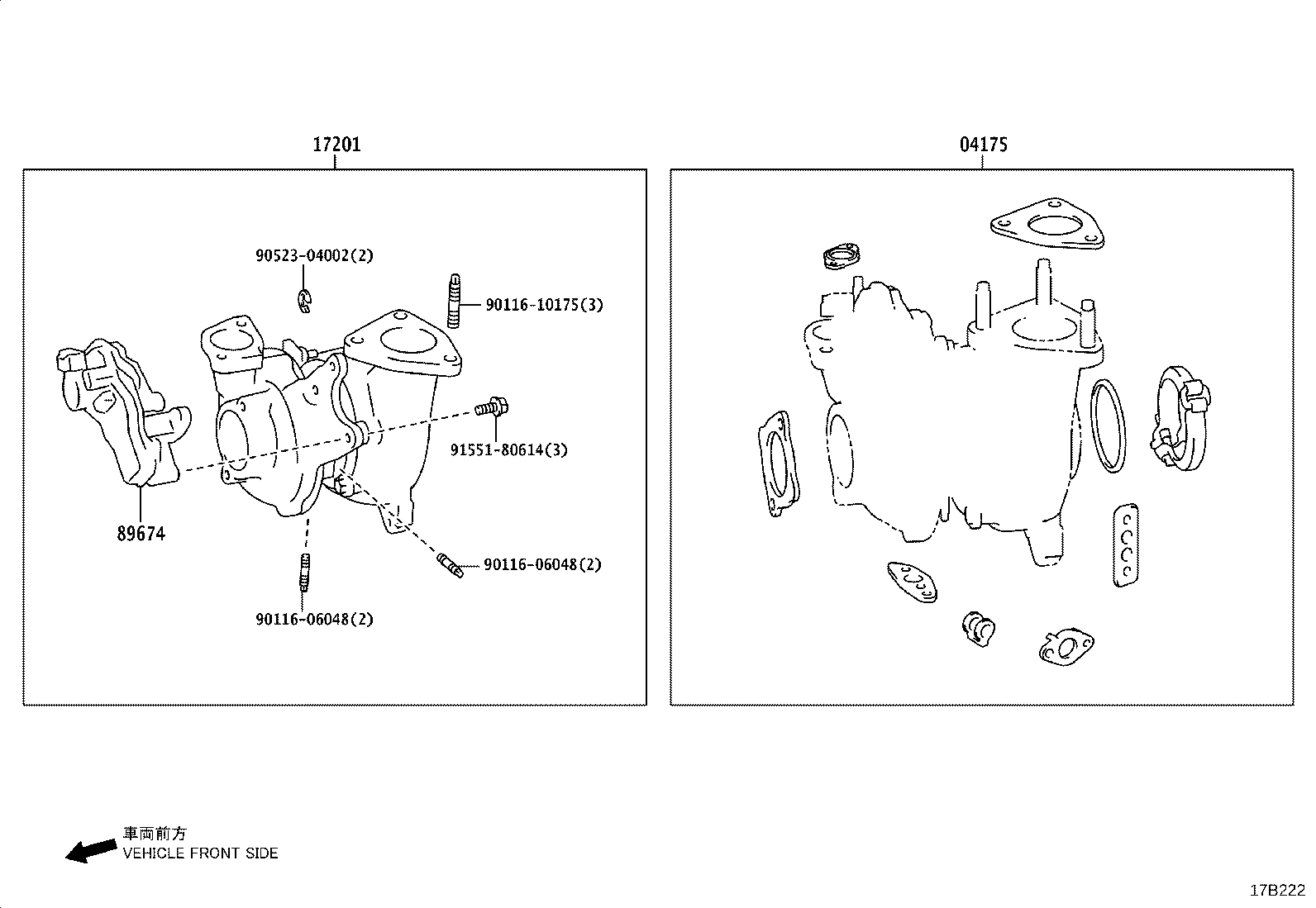

ILLUST NO. 5 OF 5(1505- )1GDFTV,2GDFTV
TURBOCHARGER
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 04175 - GASKET KIT, TURBOCHARGER | ||||
| 04175-0E021 |
2GDFTV..GUN135..BZAGT,GEN;2GDFTV..GUN125..(ASC,TSC)..LA;1GDFTV,2GDFTV..GUN12#,136..(DCR,HDCR)..(ARL,BZAGT) |
1 | ||
| 17201 - TURBOCHARGER SUB-ASSY | ||||
| 17201-11080 |
1GDFTV..GUN123,126,136..ADC,ASC,PDC,PSC,SDC,SSC,SXT,TDC,TSC,TXT |
1 | ||
| 89674 - MOTOR, TURBOCHARGER VARIABLE NOZZLE | ||||
| 89674-71021 |
GUN125..TDC..6FC..ARL;GUN125..ADC,ASC,SDC,SSC,SXT,TSC,TXT;GUN125..TDC..(GCC,GEN,IDN,LA,PH,TH,VN);GUN112,120,122,123,126,13#..ADC,ASC,PDC,PSC,SDC,SSC,SXT,TDC,TSC,TXT |
1 | ||
| 89674-71020 |
GUN135..H;GUN112,12#,136;GUN135..ARL,BZAGT,KEN,LA,MA,PH,SA,TH,VN |
1 | ||
| Common parts | ||||
| 90116-06048 | ||||
| 90116-10175 | ||||
| 90523-04002 | ||||
| 91551-80614 | ||||

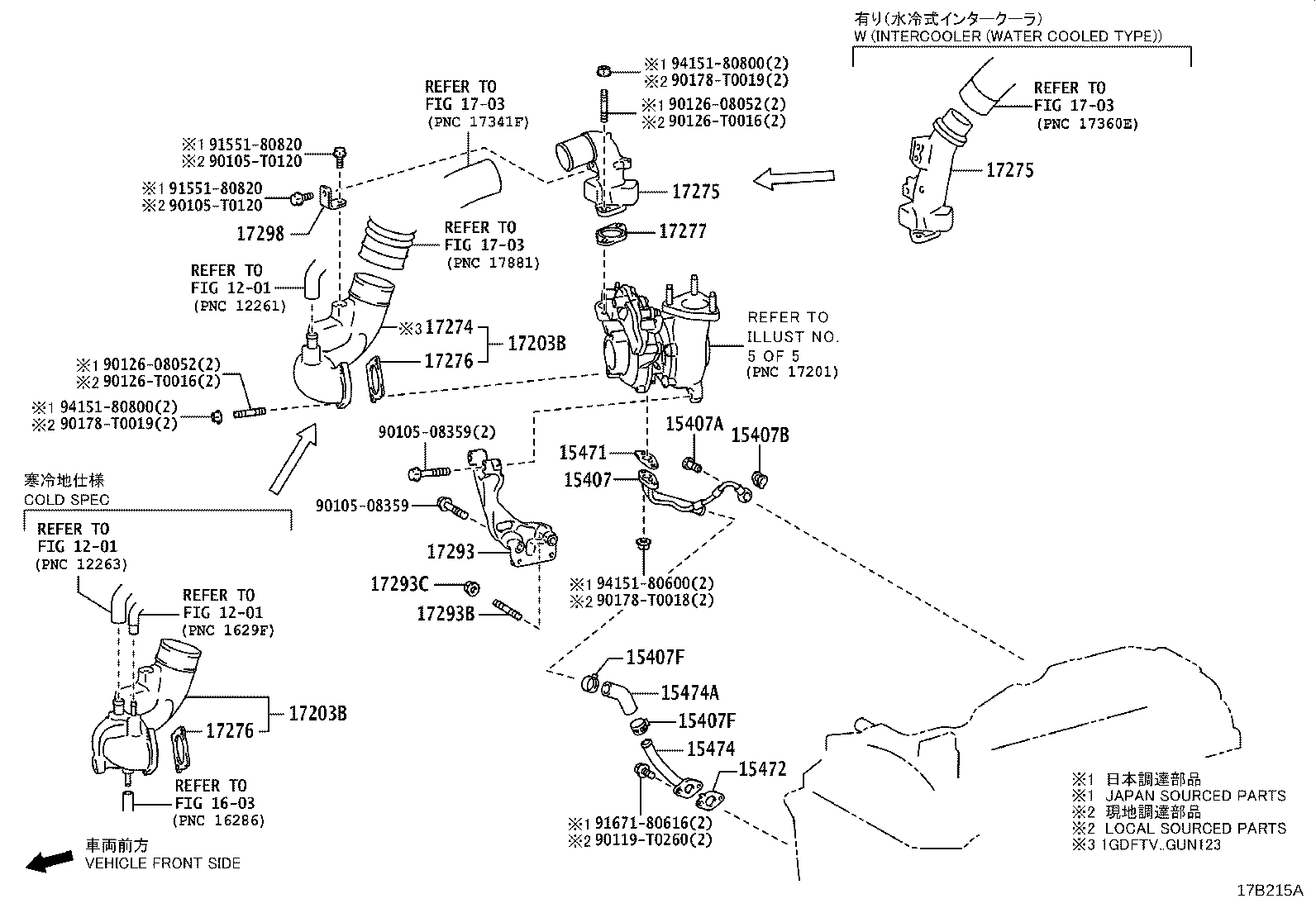

ILLUST NO. 1 OF 5(1505- )1GDFTV,2GDFTV
COMPRESSOR INLET ELBOW
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 15407 - PIPE SUB-ASSY, TURBO OIL INLET | ||||
| 15407-11030 |
1GDFTV,2GDFTV..GUN112,12#,13# *582 |
1 | ||
| 15407-11030 |
1GDFTV,2GDFTV..GUN112,12#,13# (J),*582 |
1 | ||
| 15407-11030 |
2GDFTV..GUN125..6FC..L..GEN;1GDFTV,2GDFTV..GUN12#,13#..ARL (J) |
1 | ||
| 15407-0E020 |
2GDFTV..GUN125..TDC..6FC..ARL;2GDFTV..GUN125..ADC,ASC,SDC,SSC,SXT,TSC,TXT;2GDFTV..GUN125..TDC..(GCC,GEN,IDN,LA,PH,TH,VN);2GDFTV..GUN135..ARL,BZAGT,GEN,LA,MA,PH,SA,TH,VN;1GDFTV,2GDFTV..GUN112,120,122,123,126,136..ADC,ASC,PDC,PSC,SDC,SSC,SXT,TDC,TSC,TXT (L),*582 |
1 | ||
| 15407A - BOLT, UNION(FOR TURBO OIL INLET PIPE) | ||||
| 90401-T0004 |
2GDFTV..GUN125..TDC..6FC..ARL;2GDFTV..GUN125..ADC,ASC,SDC,SSC,SXT,TSC,TXT;2GDFTV..GUN125..TDC..(GCC,GEN,IDN,LA,PH,TH,VN);2GDFTV..GUN135..ARL,BZAGT,GEN,LA,MA,PH,SA,TH,VN;1GDFTV,2GDFTV..GUN112,120,122,123,126,136..ADC,ASC,PDC,PSC,SDC,SSC,SXT,TDC,TSC,TXT *582 |
1 | ||
| 15407B - GASKET(FOR TURBO OIL INLET PIPE) | ||||
| 90430-T0006 |
2GDFTV..GUN125..TDC..6FC..ARL;2GDFTV..GUN125..ADC,ASC,SDC,SSC,SXT,TSC,TXT;2GDFTV..GUN125..TDC..(GCC,GEN,IDN,LA,PH,TH,VN);2GDFTV..GUN135..ARL,BZAGT,GEN,LA,MA,PH,SA,TH,VN;1GDFTV,2GDFTV..GUN112,120,122,123,126,136..ADC,ASC,PDC,PSC,SDC,SSC,SXT,TDC,TSC,TXT *582 |
1 | ||
| 15407F - CLAMP OR CLIP, OIL HOSE | ||||
| 96137-42501 |
2GDFTV..GUN125..TDC..6FC..ARL;2GDFTV..GUN125..ADC,ASC,SDC,SSC,SXT,TSC,TXT;2GDFTV..GUN125..TDC..(GCC,GEN,IDN,LA,PH,TH,VN);2GDFTV..GUN135..ARL,BZAGT,GEN,LA,MA,PH,SA,TH,VN;1GDFTV,2GDFTV..GUN112,120,122,123,126,136..ADC,ASC,PDC,PSC,SDC,SSC,SXT,TDC,TSC,TXT |
2 | ||
| 15407F - CLAMP OR CLIP, OIL HOSE | ||||
| 96137-42501 |
2GDFTV..GUN125..TDC..6FC..ARL;2GDFTV..GUN125..ADC,ASC,SDC,SSC,SXT,TSC,TXT;2GDFTV..GUN125..TDC..(GCC,GEN,IDN,LA,PH,TH,VN);2GDFTV..GUN135..ARL,BZAGT,GEN,LA,MA,PH,SA,TH,VN;1GDFTV,2GDFTV..GUN112,120,122,123,126,136..ADC,ASC,PDC,PSC,SDC,SSC,SXT,TDC,TSC,TXT |
2 | ||
| 15471 - GASKET, TURBO OIL INLET | ||||
| 15471-0E020 |
2GDFTV..GUN125..TSC..6FC;1GDFTV,2GDFTV..GUN122,123,125,126,13#..ARL,TAIW |
1 | ||
| 15471-0E010 |
2GDFTV..GUN125..TDC..6FC..ARL;2GDFTV..GUN125..ADC,ASC,SDC,SSC,SXT,TSC,TXT;2GDFTV..GUN125..TDC..(GCC,GEN,IDN,LA,PH,TH,VN);2GDFTV..GUN135..ARL,BZAGT,GEN,LA,MA,PH,SA,TH,VN;1GDFTV,2GDFTV..GUN112,120,122,123,126,136..ADC,ASC,PDC,PSC,SDC,SSC,SXT,TDC,TSC,TXT *582 |
1 | ||
| 15472 - GASKET, TURBO OIL OUTLET, NO.1 | ||||
| 15472-0E020 |
2GDFTV..GUN125..TSC..6FC;1GDFTV,2GDFTV..GUN122,123,125,126,13#..ARL,TAIW |
1 | ||
| 15472-0E010 |
2GDFTV..GUN125..TDC..6FC..ARL;2GDFTV..GUN125..ADC,ASC,SDC,SSC,SXT,TSC,TXT;2GDFTV..GUN125..TDC..(GCC,GEN,IDN,LA,PH,TH,VN);2GDFTV..GUN135..ARL,BZAGT,GEN,LA,MA,PH,SA,TH,VN;1GDFTV,2GDFTV..GUN112,120,122,123,126,136..ADC,ASC,PDC,PSC,SDC,SSC,SXT,TDC,TSC,TXT *582 |
1 | ||
| 15474 - PIPE, TURBO OIL OUTLET | ||||
| 15474-0E020 |
2GDFTV..GUN125..TSC..6FC;1GDFTV,2GDFTV..GUN122,123,125,126,13#..ARL,TAIW |
1 | ||
| 15474-0E010 |
2GDFTV..GUN125..TDC..6FC..ARL;2GDFTV..GUN125..ADC,ASC,SDC,SSC,SXT,TSC,TXT;2GDFTV..GUN125..TDC..(GCC,GEN,IDN,LA,PH,TH,VN);2GDFTV..GUN135..ARL,BZAGT,GEN,LA,MA,PH,SA,TH,VN;1GDFTV,2GDFTV..GUN112,120,122,123,126,136..ADC,ASC,PDC,PSC,SDC,SSC,SXT,TDC,TSC,TXT *582 |
1 | ||
| 15474A - HOSE, TURBO OIL OUTLET | ||||
| 15491-0E020 |
2GDFTV..GUN125..TSC..6FC;1GDFTV,2GDFTV..GUN122,123,125,126,13#..ARL,TAIW |
1 | ||
| 15491-0E010 |
2GDFTV..GUN125..TDC..6FC..ARL;2GDFTV..GUN125..ADC,ASC,SDC,SSC,SXT,TSC,TXT;2GDFTV..GUN125..TDC..(GCC,GEN,IDN,LA,PH,TH,VN);2GDFTV..GUN135..ARL,BZAGT,GEN,LA,MA,PH,SA,TH,VN;1GDFTV,2GDFTV..GUN112,120,122,123,126,136..ADC,ASC,PDC,PSC,SDC,SSC,SXT,TDC,TSC,TXT *582 |
1 | ||
| 17274 - ELBOW, COMPRESSOR INLET | ||||
| 17274-0E030 |
2GDFTV..GUN125..TSC..6FC;1GDFTV,2GDFTV..GUN122,123,125,126,13#..ARL,TAIW *502 |
1 | ||
| 17274-0E010 |
2GDFTV..GUN125..LHD..TDC..(L,X);2GDFTV..GUN135..TDC..6FC..(H,M,S);2GDFTV..GUN135..TDC..6F..(ARL,LA,PH,TH,VN);2GDFTV..GUN125..RHD..TDC..6F..(GEN,IDN,TH);2GDFTV..GUN125,135..LHD..TDC..6F..(H,S)..GEN;2GDFTV..GUN125..TDC..6F..(M,S)..(GCC,LA,PH,VN);2GDFTV..GUN135..ADC,ASC,MDC,SDC,SSC,SXT,TSC,TXT;2GDFTV..GUN125..6FC..(M,S,X)..(GCC,GEN,IDN,LA,SA);2GDFTV..GUN125..(ADC,ASC,SDC,SSC,SXT,TSC,TXT)..6F;1GDFTV,2GDFTV..GUN112,120,122,123,126,136..ADC,ASC,PDC,PSC,SDC,SSC,SXT,TDC,TSC,TXT *582 |
1 | ||
| 17274 - ELBOW, COMPRESSOR INLET | ||||
| 17274-0E030 |
2GDFTV..GUN125..TSC..6FC;1GDFTV,2GDFTV..GUN122,123,125,126,13#..ARL,TAIW *502 |
1 | ||
| 17274-0E010 |
2GDFTV..GUN125..LHD..TDC..(L,X);2GDFTV..GUN135..TDC..6FC..(H,M,S);2GDFTV..GUN135..TDC..6F..(ARL,LA,PH,TH,VN);2GDFTV..GUN125..RHD..TDC..6F..(GEN,IDN,TH);2GDFTV..GUN125,135..LHD..TDC..6F..(H,S)..GEN;2GDFTV..GUN125..TDC..6F..(M,S)..(GCC,LA,PH,VN);2GDFTV..GUN135..ADC,ASC,MDC,SDC,SSC,SXT,TSC,TXT;2GDFTV..GUN125..6FC..(M,S,X)..(GCC,GEN,IDN,LA,SA);2GDFTV..GUN125..(ADC,ASC,SDC,SSC,SXT,TSC,TXT)..6F;1GDFTV,2GDFTV..GUN112,120,122,123,126,136..ADC,ASC,PDC,PSC,SDC,SSC,SXT,TDC,TSC,TXT *582 |
1 | ||
| 17275 - ELBOW, COMPRESSOR OUTLET | ||||
| 17275-0E010 |
1GDFTV,2GDFTV..GUN112,12#,13# *582,PNC17293=TYPE B |
1 | ||
| 17275-0E040 |
1GDFTV..GUN136..TDC..S;2GDFTV..GUN135..TDC,TSC,TXT;1GDFTV..GUN136..(TDC,TXT)..(H,M);1GDFTV,2GDFTV..GUN125,126..TDC,TSC;1GDFTV,2GDFTV..GUN125,126..TXT..6F..CBU;1GDFTV,2GDFTV..GUN112,120,122,123..GCC,PH,TH *582,PNC17293=TYPE A |
1 | ||
| 17275-0E020 |
2GDFTV..GUN125..TSC..6FC;1GDFTV,2GDFTV..GUN122,123,125,126,13#..ARL,TAIW *502 |
1 | ||
| 17275-0E010 |
2GDFTV..GUN125..TSC;1GDFTV..GUN126..M..TH;1GDFTV..GUN126..TDC,TSC;2GDFTV..GUN135..LHD..SA;2GDFTV..GUN135..TDC,TSC,TXT;1GDFTV..GUN136..(TDC,TSC)..S;1GDFTV..GUN136..(TDC,TXT)..(H,M);2GDFTV..GUN125..(SDC,TDC)..6FC..X;2GDFTV..GUN125..(TDC,TXT)..(GCC,GEN,IDN,LA,PH,TH,VN);1GDFTV,2GDFTV..GUN112,120,122,123..GCC,GEN,IDN,PH,PKN,TH *582 |
1 | ||
| 17276 - GASKET, COMPRESSOR INLET | ||||
| 17276-0L010 |
2GDFTV..GUN125..TDC..6FC..ARL;2GDFTV..GUN125..ADC,ASC,SDC,SSC,SXT,TSC,TXT;2GDFTV..GUN125..TDC..(GCC,GEN,IDN,LA,PH,TH,VN);2GDFTV..GUN135..ARL,BZAGT,GEN,LA,MA,PH,SA,TH,VN;1GDFTV,2GDFTV..GUN112,120,122,123,126,136..ADC,ASC,PDC,PSC,SDC,SSC,SXT,TDC,TSC,TXT (L) |
1 | ||
| 17277 - GASKET, COMPRESSOR OUTLET | ||||
| 17277-0E020 |
2GDFTV..GUN125..TSC..6FC;1GDFTV,2GDFTV..GUN122,123,125,126,13#..ARL,TAIW *502 |
1 | ||
| 17277-0E010 |
2GDFTV..GUN125..TDC..6FC..ARL;2GDFTV..GUN125..ADC,ASC,SDC,SSC,SXT,TSC,TXT;2GDFTV..GUN125..TDC..(GCC,GEN,IDN,LA,PH,TH,VN);2GDFTV..GUN135..ARL,BZAGT,GEN,LA,MA,PH,SA,TH,VN;1GDFTV,2GDFTV..GUN112,120,122,123,126,136..ADC,ASC,PDC,PSC,SDC,SSC,SXT,TDC,TSC,TXT *582 |
1 | ||
| 17293 - STAY, TURBOCHARGER | ||||
| 17293-0E010 |
1GDFTV,2GDFTV..GUN112,12#,13# TYPE B,*652 |
1 | ||
| 17293-0E020 |
2GDFTV..GUN125..TSC..6FC;1GDFTV,2GDFTV..GUN122,123,125,126,13#..ARL,TAIW TYPE B,*650 |
1 | ||
| 17293-0E050 |
2GDFTV..GUN125..TSC..6FC;1GDFTV,2GDFTV..GUN125,126,13#..ARL,TAIW TYPE A,*650 |
1 | ||
| 17293-0E040 |
2GDFTV..GUN125..TDC..6FC..ARL;2GDFTV..GUN125..ADC,ASC,SDC,SSC,SXT,TSC,TXT;2GDFTV..GUN125..TDC..(GCC,GEN,IDN,LA,PH,TH,VN);2GDFTV..GUN135..ARL,BZAGT,GEN,LA,MA,PH,SA,TH,VN;1GDFTV,2GDFTV..GUN112,120,122,123,126,136..ADC,ASC,PDC,PSC,SDC,SSC,SXT,TDC,TSC,TXT TYPE A,*652 |
1 | ||
| 17293B - BOLT(FOR TURBOCHARGER STAY) | ||||
| 94151-80800 |
2GDFTV..GUN125..PH;1GDFTV..GUN126..S..SA;2GDFTV..GUN125..L..IDN;1GDFTV..GUN136..6FC..M;1GDFTV..GUN136..(H,S)..CBU;1GDFTV..GUN126..6F..M..GCC;2GDFTV..GUN125..LHD..L..GEN;2GDFTV..GUN135..(ASC,TSC)..LA;1GDFTV..GUN126..6FC..M..(GCC,SA);2GDFTV..GUN135..LHD..6F..(GEN,PH);2GDFTV..GUN135..RHD..(L,X)..(GEN,SA);1GDFTV..GUN136..(ADC,TDC,TXT)..6F..M;2GDFTV..GUN125..LHD..(SDC,SXT,TXT)..S;2GDFTV..GUN135..6FC..(ARL,GEN,MA,PH,VN);2GDFTV..GUN125..RHD..6F..(H,S)..(GEN,IDN);1GDFTV..GUN126..ARL,BZAGT,GEN,LA,PH,PKN,TH,VN;1GDFTV,2GDFTV..GUN112,122,123..ARL,GCC,PH,SA,TH;2GDFTV..GUN125..RHD..(SDC,TDC)..6F..(M,X)..(GEN,SA);2GDFTV..GUN125..(ADC,TDC,TXT)..6FC..(ARL,GEN,IDN,LA);2GDFTV..GUN125..(SSC,SXT,TSC,TXT)..(L,M,X)..(GEN,SA) TYPE A:REFER ILLUST. |
1 | ||
| 17293C - NUT(FOR TURBOCHARGER STAY) | ||||
| 92122-80855 |
2GDFTV..GUN125..PH;1GDFTV..GUN126..S..SA;2GDFTV..GUN125..L..IDN;1GDFTV..GUN136..6FC..M;1GDFTV..GUN136..(H,S)..CBU;1GDFTV..GUN126..6F..M..GCC;2GDFTV..GUN125..LHD..L..GEN;2GDFTV..GUN135..(ASC,TSC)..LA;1GDFTV..GUN126..6FC..M..(GCC,SA);2GDFTV..GUN135..LHD..6F..(GEN,PH);2GDFTV..GUN135..RHD..(L,X)..(GEN,SA);1GDFTV..GUN136..(ADC,TDC,TXT)..6F..M;2GDFTV..GUN125..LHD..(SDC,SXT,TXT)..S;2GDFTV..GUN135..6FC..(ARL,GEN,MA,PH,VN);2GDFTV..GUN125..RHD..6F..(H,S)..(GEN,IDN);1GDFTV..GUN126..ARL,BZAGT,GEN,LA,PH,PKN,TH,VN;1GDFTV,2GDFTV..GUN112,122,123..ARL,GCC,PH,SA,TH;2GDFTV..GUN125..RHD..(SDC,TDC)..6F..(M,X)..(GEN,SA);2GDFTV..GUN125..(ADC,TDC,TXT)..6FC..(ARL,GEN,IDN,LA);2GDFTV..GUN125..(SSC,SXT,TSC,TXT)..(L,M,X)..(GEN,SA) TYPE A:REFER ILLUST. |
1 | ||
| 17298 - STAY, COMPRESSOR ELBOW | ||||
| 17298-0E020 |
2GDFTV..GUN125..TSC..6FC;1GDFTV,2GDFTV..GUN122,123,125,126,13#..ARL,TAIW *502 |
1 | ||
| 17298-0E010 |
2GDFTV..GUN125..TDC..6FC..ARL;2GDFTV..GUN125..ADC,ASC,SDC,SSC,SXT,TSC,TXT;2GDFTV..GUN125..TDC..(GCC,GEN,IDN,LA,PH,TH,VN);2GDFTV..GUN135..ARL,BZAGT,GEN,LA,MA,PH,SA,TH,VN;1GDFTV,2GDFTV..GUN112,120,122,123,126,136..ADC,ASC,PDC,PSC,SDC,SSC,SXT,TDC,TSC,TXT *582 |
1 | ||
| Common parts | ||||
| 90105-08359 | ||||
| 90105-T0120 | ||||
| 90119-T0260 | ||||
| 90126-08052 | ||||
| 90126-T0016 | ||||
| 90178-T0018 | ||||
| 90178-T0019 | ||||
| 91551-80820 | ||||
| 91671-80616 | ||||
| 94151-80600 | ||||
| 94151-80800 | ||||

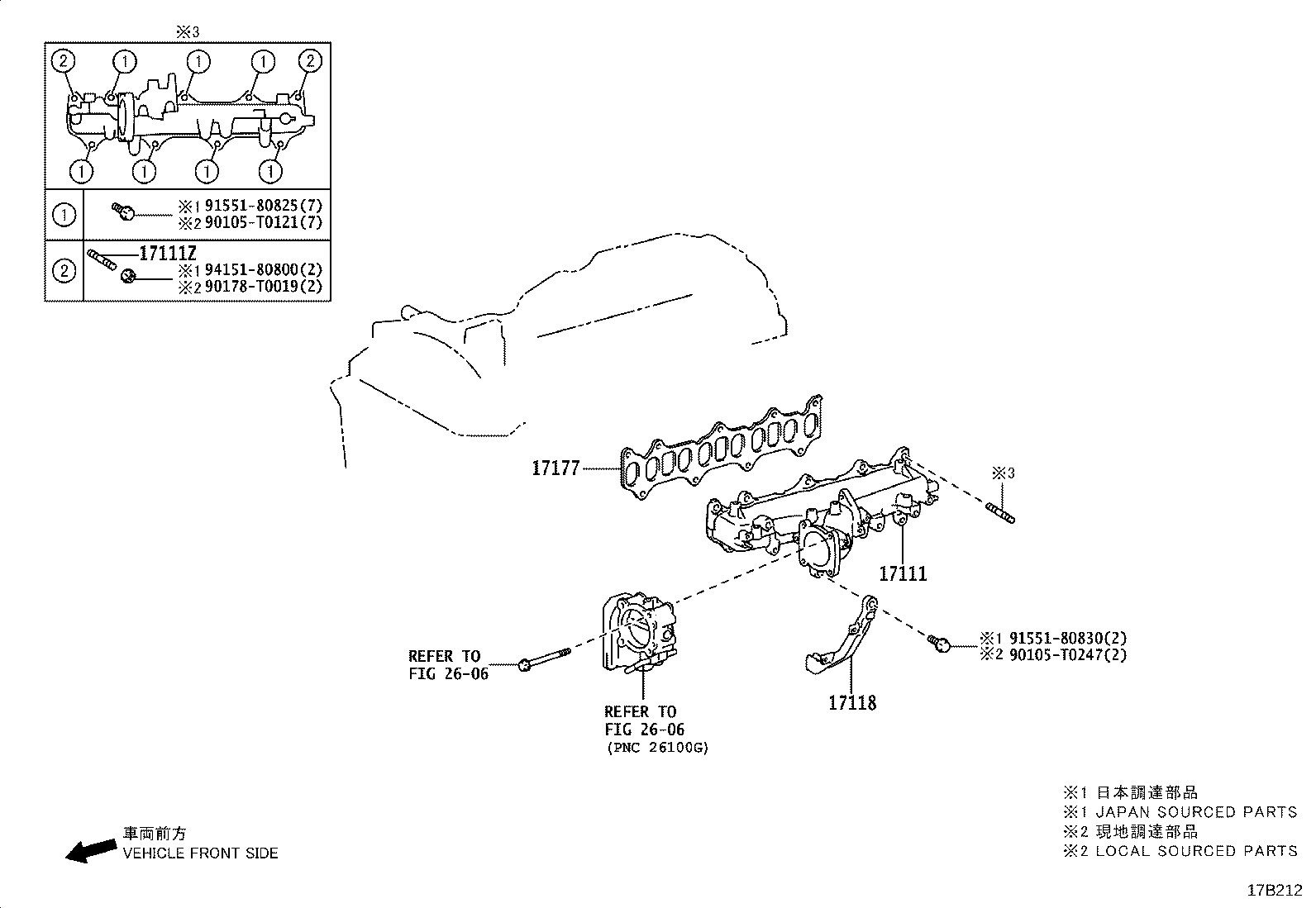

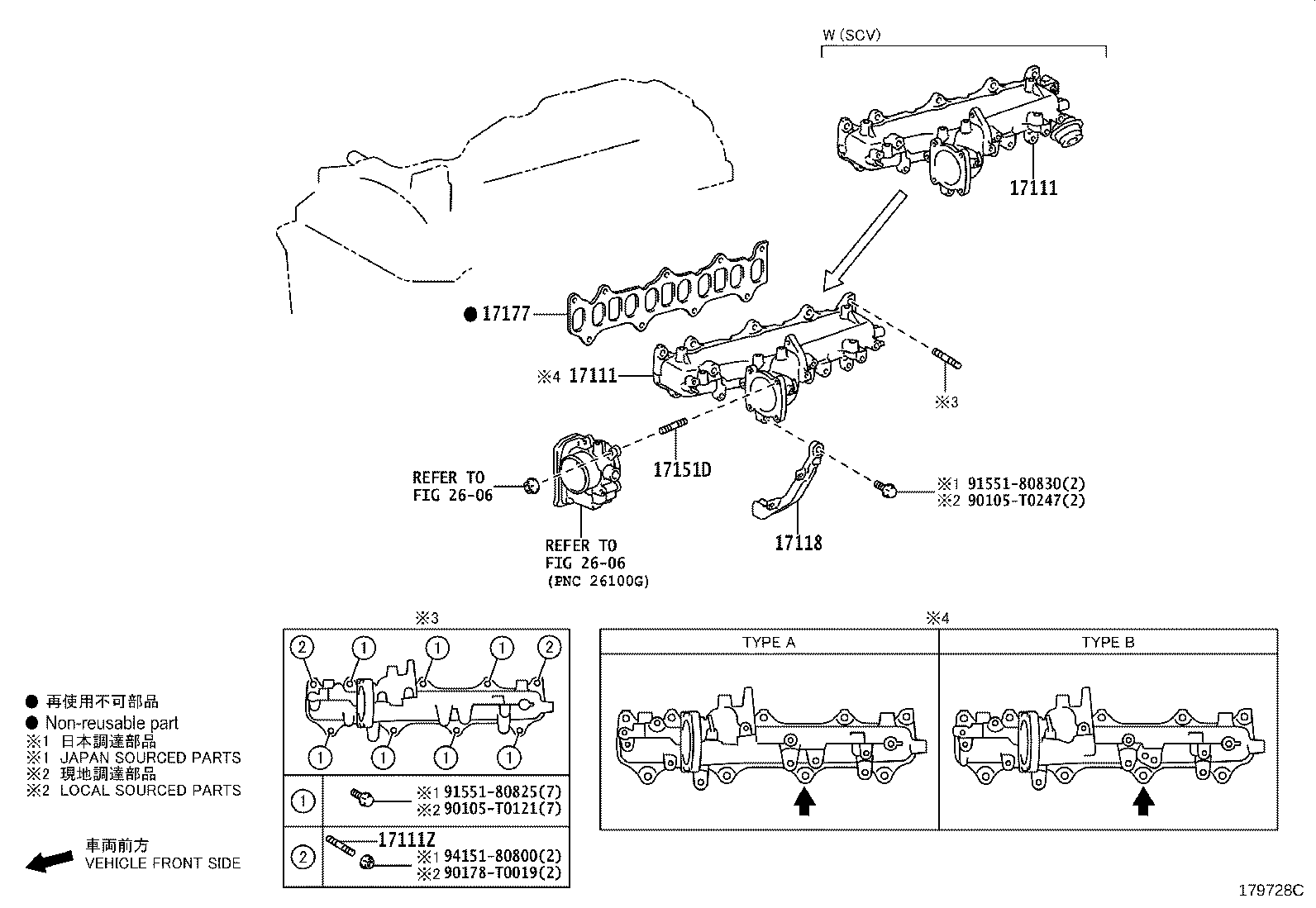

ILLUST NO. 2 OF 5(1505- )1GDFTV,2GDFTV
INTAKE MANIFOLD
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 17111 - MANIFOLD, INTAKE | ||||
| 17101-0E020 |
1GDFTV..GUN126,136..(TDC,TSC)..ARL *502 |
1 | ||
| 17101-0E020 |
1GDFTV..GUN123,126,136..ARL,BZAGT *582 |
1 | ||
| 17101-0E021 |
1GDFTV..GUN126,136..(TDC,TSC)..(ARL,TAIW) *502 |
1 | ||
| 17111 - MANIFOLD, INTAKE | ||||
| 17101-0E020 |
1GDFTV..GUN126,136..(TDC,TSC)..ARL *502 |
1 | ||
| 17101-0E020 |
1GDFTV..GUN123,126,136..ARL,BZAGT *582 |
1 | ||
| 17101-0E021 |
1GDFTV..GUN126,136..(TDC,TSC)..(ARL,TAIW) *502 |
1 | ||
| 17111Z - BOLT, STUD(FOR INTAKE MANIFOLD TO CYLINDER HEAD) | ||||
| 92122-80822 |
2GDFTV..GUN125..TDC..6FC..ARL;2GDFTV..GUN125..ADC,ASC,SDC,SSC,SXT,TSC,TXT;2GDFTV..GUN125..TDC..(GCC,GEN,IDN,LA,PH,TH,VN);2GDFTV..GUN135..ARL,BZAGT,GEN,LA,MA,PH,SA,TH,VN;1GDFTV,2GDFTV..GUN112,120,122,123,126,136..ADC,ASC,PDC,PSC,SDC,SSC,SXT,TDC,TSC,TXT (J) |
2 | ||
| 90116-T0011 |
2GDFTV..GUN125..TDC..6FC..ARL;2GDFTV..GUN125..ADC,ASC,SDC,SSC,SXT,TSC,TXT;2GDFTV..GUN125..TDC..(GCC,GEN,IDN,LA,PH,TH,VN);2GDFTV..GUN135..ARL,BZAGT,GEN,LA,MA,PH,SA,TH,VN;1GDFTV,2GDFTV..GUN112,120,122,123,126,136..ADC,ASC,PDC,PSC,SDC,SSC,SXT,TDC,TSC,TXT (L) |
2 | ||
| 17118 - STAY, MANIFOLD | ||||
| 17118-0E010 |
1GDFTV..GUN123,126,136..ARL,TAIW *502 |
1 | ||
| 17118-0E010 |
1GDFTV..GUN126,136..ARL,TAIW MADE IN THAILAND |
1 | ||
| 17118-0E040 |
1GDFTV..GUN126,136..ARL,TAIW *502 |
1 | ||
| 17118-0E010 |
2GDFTV..GUN125..TDC..6FC..ARL;2GDFTV..GUN125..ADC,ASC,SDC,SSC,SXT,TSC,TXT;2GDFTV..GUN125..TDC..(GCC,GEN,IDN,LA,PH,TH,VN);2GDFTV..GUN135..ARL,BZAGT,GEN,LA,MA,PH,SA,TH,VN;1GDFTV,2GDFTV..GUN112,120,122,123,126,136..ADC,ASC,PDC,PSC,SDC,SSC,SXT,TDC,TSC,TXT *582 |
1 | ||
| 17151D - BOLT, STUD(MANIFOLD TO THROTTLE BODY) | ||||
| 90126-06026 |
1GDFTV..GUN126..6FC..M..SA;2GDFTV..GUN125..LHD..L..GEN;2GDFTV..GUN125..LHD..SSC..X;2GDFTV..GUN135..ARL,GEN,MA,PH;1GDFTV..GUN126..(H,S)..(SA,VN);1GDFTV..GUN136..(ADC,TDC,TXT)..6F;2GDFTV..GUN125,135..LHD..6FC..(SA,VN);2GDFTV..GUN125..(MDC,TDC,TSC,TXT)..6FC;2GDFTV..GUN125..TDC..6F..(L,M)..(GCC,IDN);2GDFTV..GUN135..(ASC,SSC,TSC)..X..(LA,SA);1GDFTV,2GDFTV..GUN112,122,123,136..5F,6FC;2GDFTV..GUN125..RHD..TDC..6F..S..(GEN,IDN);1GDFTV..GUN126..ARL,BZAGT,GCC,GEN,LA,MA,PH,PKN,TH;2GDFTV..GUN125..LHD..(SDC,TDC)..6F..S..(GCC,PH,SA);2GDFTV..GUN125..RHD..(SDC,SSC,TDC)..(H,M,X)..(GEN,SA);2GDFTV..GUN125..(MDC,MSC,SXT,TSC,TXT)..6F..(GCC,GEN,IDN,MA,SA) |
2 | ||
| 90126-06026 |
1GDFTV..GUN136..H,M;2GDFTV..GUN135..SSC..X;2GDFTV..GUN125..SXT..S;1GDFTV..GUN126..6F..IV3;2GDFTV..GUN135..6F..S..SA;1GDFTV..GUN126..6FC..(H,M,S,X);2GDFTV..GUN125..(TDC,TXT)..6FC..IV3;1GDFTV..GUN136..S..HDCR..(ARL,BZAGT);2GDFTV..GUN125..(ASC,SSC,TXT)..6F..CBU;2GDFTV..GUN135..(ADC,ASC,TDC,TSC,TXT)..CBU;2GDFTV..GUN125..(ADC,MDC,MSC,SDC,TDC,TSC)..6F;1GDFTV..GUN126..(ASC,TDC)..6F..(ARL,BZAGT)..CBU;2GDFTV..GUN125..6FC..(ARL,GCC,GEN,IDN,MA,SA)..CBU;1GDFTV,2GDFTV..GUN112,122,123..(SDC,TDC,TSC,TXT)..5F..DCR;1GDFTV..GUN126..6F..HDCR..(BZAGT,GCC,GEN,LA,PH,PKN,SA,TH);1GDFTV,2GDFTV..GUN122,126..(ADC,SSC,TDC,TSC)..MTM..(L,X)..(BZAGT,GEN,SA)..CBU (J) |
2 | ||
| 90126-T0015 |
2GDFTV..GUN125..S..VN;1GDFTV..GUN126..S..GCC;2GDFTV..GUN125..ASC..LA;2GDFTV..GUN125..TDC..IV3;1GDFTV..GUN126..ADC..M..LA;2GDFTV..GUN125..ADC..(L,X);1GDFTV..GUN126..ADC..6F..S..LA;2GDFTV..GUN122..DCR..(ARL,GEN,PKN);2GDFTV..GUN135..6F..(ARL,BZAGT,MA);2GDFTV..GUN135..6FC..(S,X)..(ARL,MA);2GDFTV..GUN135..LHD..(ADC,SDC)..(LA,SA);1GDFTV,2GDFTV..GUN125,126..RHD..6FC..(L,X)..CBU;2GDFTV..GUN122,125..LHD..(ADC,TSC)..S..HDCR..(GEN,LA);1GDFTV,2GDFTV..GUN112,123,126,136..ARL,BZAGT,IDN,TAIW;2GDFTV..GUN125..(ADC,ASC,TSC,TXT)..(S,X)..(ARL,BZAGT,IDN) (L) |
2 | ||
| 90126-06026 |
1GDFTV..GUN136..TDC..S;1GDFTV..GUN126..M..(GCC,TH);1GDFTV..GUN136..(TDC,TXT)..(H,M);2GDFTV..GUN125,135..TDC..6FC..ARL;2GDFTV..GUN125..TSC..(ARL,GCC,GEN,LA);1GDFTV,2GDFTV..GUN112,120,122,123..GCC,PH,TH;1GDFTV..GUN126..(TDC,TSC)..(ARL,GEN,LA,PH,TH,VN);2GDFTV..GUN135..(TDC,TSC,TXT)..(GEN,LA,PH,TH,VN);2GDFTV..GUN125..(TDC,TXT)..(GCC,GEN,IDN,LA,PH,TH) (J) |
2 | ||
| 17177 - GASKET, INTAKE MANIFOLD TO HEAD, NO.1 | ||||
| 17177-0E020 |
1GDFTV..GUN123,126,136..ARL,TAIW *502 |
1 | ||
| 17177-0E010 |
2GDFTV..GUN125..TDC..6FC..ARL;2GDFTV..GUN125..ADC,ASC,SDC,SSC,SXT,TSC,TXT;2GDFTV..GUN125..TDC..(GCC,GEN,IDN,LA,PH,TH,VN);2GDFTV..GUN135..ARL,BZAGT,GEN,LA,MA,PH,SA,TH,VN;1GDFTV,2GDFTV..GUN112,120,122,123,126,136..ADC,ASC,PDC,PSC,SDC,SSC,SXT,TDC,TSC,TXT *582 |
1 | ||
| Common parts | ||||
| 90105-T0121 | ||||
| 90105-T0247 | ||||
| 90178-T0019 | ||||
| 91551-80825 | ||||
| 91551-80830 | ||||
| 94151-80800 | ||||
| Linked diagrams | ||||
| 2606 | ||||

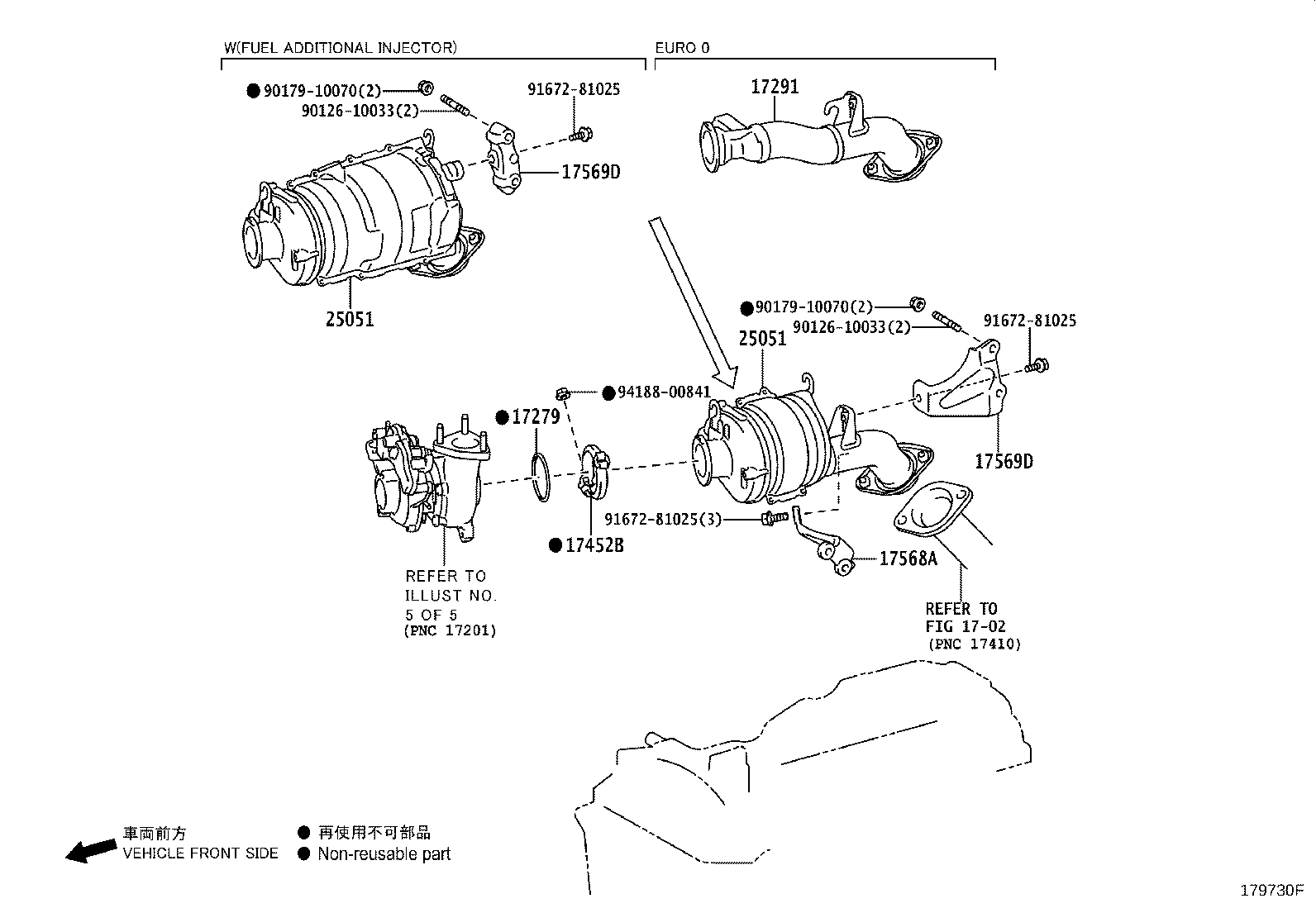

ILLUST NO. 4 OF 5(1505- )1GDFTV,2GDFTV
EXHAUST MANIFOLD CONVERTER
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 17279 - GASKET, TURBINE OUTLET ELBOW | ||||
| 17279-11020 |
2GDFTV..GUN125..TDC..6FC..ARL;2GDFTV..GUN125..ADC,ASC,SDC,SSC,SXT,TSC,TXT;2GDFTV..GUN125..TDC..(GCC,GEN,IDN,LA,PH,TH,VN);2GDFTV..GUN135..ARL,BZAGT,GEN,LA,MA,PH,SA,TH,VN;1GDFTV,2GDFTV..GUN112,120,122,123,126,136..ADC,ASC,PDC,PSC,SDC,SSC,SXT,TDC,TSC,TXT |
1 | ||
| 17279-11020 |
2GDFTV..GUN125..TSC..6FC;1GDFTV,2GDFTV..GUN122,123,125,126,13#..ARL,TAIW *502 |
1 | ||
| 17452B - CLAMP, EXHAUST PIPE | ||||
| 17452-0E010 |
2GDFTV..GUN125..TSC..6FC;1GDFTV,2GDFTV..GUN122,123,125,126,13#..ARL,TAIW *502 |
1 | ||
| 17452-0E010 |
1GDFTV..GUN126,136..IART;2GDFTV..GUN125..TDC..6FC..ARL;2GDFTV..GUN125,135..BZAGT..IV3;2GDFTV..GUN135..ARL,GEN,LA,MA,PH,SA,TH,VN;2GDFTV..GUN125..TDC..(GCC,GEN,IDN,LA,PH,TH,VN);2GDFTV..GUN125..(ADC,SDC,SSC,SXT,TSC,TXT)..(ARL,GCC,GEN,IDN,LA,SA,TH);1GDFTV,2GDFTV..GUN112,120,122,123,126,136..ARL,GCC,GEN,IDN,LA,PH,PKN,SA,TAIW,TH,VN *582 |
1 | ||
| 17568A - STAY, EXHAUST PIPE SUPPORT | ||||
| 17568-0E030 |
2GDFTV..GUN125..TSC..6FC;1GDFTV,2GDFTV..GUN125,126,13#..ARL,TAIW IND SOURCED PARTS |
1 | ||
| 17568-0E010 |
2GDFTV..GUN125..TDC..6FC..ARL;2GDFTV..GUN125..ADC,ASC,SDC,SSC,SXT,TSC,TXT;2GDFTV..GUN125..TDC..(GCC,GEN,IDN,LA,PH,TH,VN);2GDFTV..GUN135..ARL,BZAGT,GEN,LA,MA,PH,SA,TH,VN;1GDFTV,2GDFTV..GUN112,120,122,123,126,136..ADC,ASC,PDC,PSC,SDC,SSC,SXT,TDC,TSC,TXT THA SOURCED PARTS |
1 | ||
| 17569D - STAY, EXHAUST PIPE SUPPORT, NO.2 | ||||
| 17569-0E020 |
2GDFTV..GUN125..TSC..LA;1GDFTV..GUN126..6FC..ARL;1GDFTV..GUN126..6F..ARL..IV3;1GDFTV..GUN126..TDC..6F..ARL..CBU;1GDFTV,2GDFTV..GUN122,123,13#..ARL;2GDFTV..GUN125..(TDC,TSC)..6F..ARL;2GDFTV..GUN125..(TDC,TXT)..6FC..IV3;2GDFTV..GUN125..RHD..6FC..(L,X)..CBU THA SOURCED PARTS |
1 | ||
| 17569-0E050 |
2GDFTV..GUN125..TSC..6FC;1GDFTV,2GDFTV..GUN125,126,13#..ARL,TAIW IND SOURCED PARTS |
1 | ||
| 17569D - STAY, EXHAUST PIPE SUPPORT, NO.2 | ||||
| 17569-0E020 |
2GDFTV..GUN125..TSC..LA;1GDFTV..GUN126..6FC..ARL;1GDFTV..GUN126..6F..ARL..IV3;1GDFTV..GUN126..TDC..6F..ARL..CBU;1GDFTV,2GDFTV..GUN122,123,13#..ARL;2GDFTV..GUN125..(TDC,TSC)..6F..ARL;2GDFTV..GUN125..(TDC,TXT)..6FC..IV3;2GDFTV..GUN125..RHD..6FC..(L,X)..CBU THA SOURCED PARTS |
1 | ||
| 17569-0E050 |
2GDFTV..GUN125..TSC..6FC;1GDFTV,2GDFTV..GUN125,126,13#..ARL,TAIW IND SOURCED PARTS |
1 | ||
| 25051 - CONVERTER SUB-ASSY, EXHAUST MANIFOLD | ||||
| 25051-0E020 |
2GDFTV..GUN125..TSC..LA;1GDFTV..GUN126..6FC..ARL;1GDFTV..GUN126..6F..ARL..IV3;1GDFTV..GUN126..TDC..6F..ARL..CBU;1GDFTV,2GDFTV..GUN122,123,13#..ARL;2GDFTV..GUN125..(TDC,TSC)..6F..ARL;2GDFTV..GUN125..(TDC,TXT)..6FC..IV3;2GDFTV..GUN125..RHD..6FC..(L,X)..CBU *114=TOYOTA/*395/Y |
1 | ||
| 25051-0E130 |
2GDFTV..GUN125..TSC..6FC;1GDFTV,2GDFTV..GUN122,123,125,126,13#..ARL,TAIW *502 |
1 | ||
| 25051 - CONVERTER SUB-ASSY, EXHAUST MANIFOLD | ||||
| 25051-0E020 |
2GDFTV..GUN125..TSC..LA;1GDFTV..GUN126..6FC..ARL;1GDFTV..GUN126..6F..ARL..IV3;1GDFTV..GUN126..TDC..6F..ARL..CBU;1GDFTV,2GDFTV..GUN122,123,13#..ARL;2GDFTV..GUN125..(TDC,TSC)..6F..ARL;2GDFTV..GUN125..(TDC,TXT)..6FC..IV3;2GDFTV..GUN125..RHD..6FC..(L,X)..CBU *114=TOYOTA/*395/Y |
1 | ||
| 25051-0E130 |
2GDFTV..GUN125..TSC..6FC;1GDFTV,2GDFTV..GUN122,123,125,126,13#..ARL,TAIW *502 |
1 | ||
| Common parts | ||||
| 90126-10033 | ||||
| 90179-10070 | ||||
| 91672-81025 | ||||
| 94188-00841 | ||||
| Linked diagrams | ||||
| 1702 | ||||
ILLUST NO. 3 OF 5(1505- )1GDFTV,2GDFTV
EXHAUST MANIFOLD
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 17141 - MANIFOLD, EXHAUST | ||||
| 17141-0E020 |
2GDFTV..GUN125..TSC..6FC;1GDFTV,2GDFTV..GUN122,123,125,126,13#..ARL,TAIW *502 |
1 | ||
| 17141-0E020 |
2GDFTV..GUN125..ASC..LA;2GDFTV..GUN125..BZAGT..CBU;2GDFTV..GUN125..TSC..6FC..CBU;2GDFTV..GUN125..6FC..ARL..CBU;2GDFTV..GUN125..(ARL,BZAGT)..IV3;2GDFTV..GUN135..(L,S,X)..(ARL,BZAGT,GEN);1GDFTV,2GDFTV..GUN122,123,126,136..(DCR,HDCR)..(ARL,BZAGT,TAIW) *582 |
1 | ||
| 17141 - MANIFOLD, EXHAUST | ||||
| 17141-0E020 |
2GDFTV..GUN125..TSC..6FC;1GDFTV,2GDFTV..GUN122,123,125,126,13#..ARL,TAIW *502 |
1 | ||
| 17141-0E020 |
2GDFTV..GUN125..ASC..LA;2GDFTV..GUN125..BZAGT..CBU;2GDFTV..GUN125..TSC..6FC..CBU;2GDFTV..GUN125..6FC..ARL..CBU;2GDFTV..GUN125..(ARL,BZAGT)..IV3;2GDFTV..GUN135..(L,S,X)..(ARL,BZAGT,GEN);1GDFTV,2GDFTV..GUN122,123,126,136..(DCR,HDCR)..(ARL,BZAGT,TAIW) *582 |
1 | ||
| 17141K - BOLT, STUD(FOR EXHAUST MANIFOLD TO CYLINDER HEAD) | ||||
| 90126-10034 |
2GDFTV..GUN125..TSC..6FC;1GDFTV,2GDFTV..GUN122,123,125,126,13#..ARL,TAIW *502 |
8 | ||
| 90126-10034 |
2GDFTV..GUN125..TDC..6FC..ARL;2GDFTV..GUN125..ADC,ASC,SDC,SSC,SXT,TSC,TXT;2GDFTV..GUN125..TDC..(GCC,GEN,IDN,LA,PH,TH,VN);2GDFTV..GUN135..ARL,BZAGT,GEN,LA,MA,PH,SA,TH,VN;1GDFTV,2GDFTV..GUN112,120,122,123,126,136..ADC,ASC,PDC,PSC,SDC,SSC,SXT,TDC,TSC,TXT *582 |
8 | ||
| 17167 - INSULATOR, EXHAUST MANIFOLD HEAT, NO.1 | ||||
| 17167-0E020 |
2GDFTV..GUN125..TSC..6FC;1GDFTV,2GDFTV..GUN122,123,125,126,13#..ARL,TAIW *502 |
1 | ||
| 17167-0E020 |
2GDFTV..GUN125..ASC..LA;2GDFTV..GUN125..BZAGT..CBU;2GDFTV..GUN125..TSC..6FC..CBU;2GDFTV..GUN125..6FC..ARL..CBU;2GDFTV..GUN125..(ARL,BZAGT)..IV3;2GDFTV..GUN135..(L,S,X)..(ARL,BZAGT,GEN);1GDFTV,2GDFTV..GUN122,123,126,136..(DCR,HDCR)..(ARL,BZAGT,TAIW) *582 |
1 | ||
| 17167 - INSULATOR, EXHAUST MANIFOLD HEAT, NO.1 | ||||
| 17167-0E020 |
2GDFTV..GUN125..TSC..6FC;1GDFTV,2GDFTV..GUN122,123,125,126,13#..ARL,TAIW *502 |
1 | ||
| 17167-0E020 |
2GDFTV..GUN125..ASC..LA;2GDFTV..GUN125..BZAGT..CBU;2GDFTV..GUN125..TSC..6FC..CBU;2GDFTV..GUN125..6FC..ARL..CBU;2GDFTV..GUN125..(ARL,BZAGT)..IV3;2GDFTV..GUN135..(L,S,X)..(ARL,BZAGT,GEN);1GDFTV,2GDFTV..GUN122,123,126,136..(DCR,HDCR)..(ARL,BZAGT,TAIW) *582 |
1 | ||
| 17168 - INSULATOR, EXHAUST MANIFOLD HEAT, NO.2 | ||||
| 17168-0E010 |
2GDFTV..GUN125..TSC..6FC;1GDFTV,2GDFTV..GUN122,123,125,126,13#..ARL,TAIW *502 |
1 | ||
| 17168-0E010 |
2GDFTV..GUN125..ASC..LA;2GDFTV..GUN125..BZAGT..CBU;2GDFTV..GUN125..TSC..6FC..CBU;2GDFTV..GUN125..6FC..ARL..CBU;2GDFTV..GUN125..(ARL,BZAGT)..IV3;2GDFTV..GUN135..(L,S,X)..(ARL,BZAGT,GEN);1GDFTV,2GDFTV..GUN122,123,126,136..(DCR,HDCR)..(ARL,BZAGT,TAIW) *582 |
1 | ||
| 17173 - GASKET, EXHAUST MANIFOLD TO HEAD | ||||
| 17173-0E020 |
2GDFTV..GUN125..TSC..6FC;1GDFTV,2GDFTV..GUN122,123,125,126,13#..ARL,TAIW *502 |
1 | ||
| 17173-0E010 |
2GDFTV..GUN125..TDC..6FC..ARL;2GDFTV..GUN125..ADC,ASC,SDC,SSC,SXT,TSC,TXT;2GDFTV..GUN125..TDC..(GCC,GEN,IDN,LA,PH,TH,VN);2GDFTV..GUN135..ARL,BZAGT,GEN,LA,MA,PH,SA,TH,VN;1GDFTV,2GDFTV..GUN112,120,122,123,126,136..ADC,ASC,PDC,PSC,SDC,SSC,SXT,TDC,TSC,TXT *582 |
1 | ||
| 17198 - GASKET, EXHAUST MANIFOLD, NO.2 | ||||
| 17198-0E010 |
2GDFTV..GUN125..TSC..6FC;1GDFTV,2GDFTV..GUN122,123,125,126,13#..ARL,TAIW *502 |
1 | ||
| 17198-0E010 |
2GDFTV..GUN125..ASC..LA;2GDFTV..GUN125..BZAGT..CBU;2GDFTV..GUN125..TSC..6FC..CBU;2GDFTV..GUN125..6FC..ARL..CBU;2GDFTV..GUN125..(ARL,BZAGT)..IV3;2GDFTV..GUN135..(L,S,X)..(ARL,BZAGT,GEN);1GDFTV,2GDFTV..GUN122,123,126,136..(DCR,HDCR)..(ARL,BZAGT,TAIW) *582 |
1 | ||
| 17271 - INSULATOR, TURBO, NO.1 | ||||
| 17271-0E010 |
2GDFTV..GUN125..TSC..6FC;1GDFTV,2GDFTV..GUN122,123,125,126,13#..ARL,TAIW *502 |
1 | ||
| 17271-0E010 |
2GDFTV..GUN125..TDC..6FC..ARL;2GDFTV..GUN125..ADC,ASC,SDC,SSC,SXT,TSC,TXT;2GDFTV..GUN125..TDC..(GCC,GEN,IDN,LA,PH,TH,VN);2GDFTV..GUN135..ARL,BZAGT,GEN,LA,MA,PH,SA,TH,VN;1GDFTV,2GDFTV..GUN112,120,122,123,126,136..ADC,ASC,PDC,PSC,SDC,SSC,SXT,TDC,TSC,TXT *582 |
1 | ||
| 17278 - GASKET, TURBO TO EXHAUST MANIFOLD | ||||
| 17278-0E010 |
2GDFTV..GUN135..BZAGT,GEN;2GDFTV..GUN125..(ASC,TSC)..LA;1GDFTV,2GDFTV..GUN12#,136..(DCR,HDCR)..(ARL,BZAGT) *582 |
1 | ||
| 17278-0E011 |
2GDFTV..GUN125..TSC..6FC;1GDFTV,2GDFTV..GUN123,125,126,13#..ARL,TAIW *502 |
1 | ||
| 17278 - GASKET, TURBO TO EXHAUST MANIFOLD | ||||
| 17278-0E010 |
2GDFTV..GUN135..BZAGT,GEN;2GDFTV..GUN125..(ASC,TSC)..LA;1GDFTV,2GDFTV..GUN12#,136..(DCR,HDCR)..(ARL,BZAGT) *582 |
1 | ||
| 17278-0E011 |
2GDFTV..GUN125..TSC..6FC;1GDFTV,2GDFTV..GUN123,125,126,13#..ARL,TAIW *502 |
1 | ||
| 23295D - HOLDER, INJECTOR, NO.1 | ||||
| 23295-11020 |
2GDFTV..GUN125..ASC..LA;2GDFTV..GUN125..BZAGT..CBU;2GDFTV..GUN125..TSC..6FC..CBU;2GDFTV..GUN125..6FC..ARL..CBU;2GDFTV..GUN125..(ARL,BZAGT)..IV3;2GDFTV..GUN135..(L,S,X)..(ARL,BZAGT,GEN);1GDFTV,2GDFTV..GUN122,123,126,136..(DCR,HDCR)..(ARL,BZAGT,TAIW) (J),NO MARK |
1 | ||
| Common parts | ||||
| 17445-0E010 | ||||
| 17445-11060 | ||||
| 90119-T0238 | ||||
| 90126-10033 | ||||
| 90148-60053 | ||||
| 90178-T0018 | ||||
| 90179-10070 | ||||
| 90179-10167 | ||||
| 90201-10109 | ||||
| 90560-T0006 | ||||
| 91671-80825 | ||||
| 94184-01041 | ||||
ILLUST NO. 2 OF 5(2006- )1GDFTV,2GDFTV..ARL,BZAG,GCC,GEN,IDN,KEN,LA,MA,MMR,PH,PKN,SA,TH,TWN,VN
INTAKE MANIFOLD
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| Common parts | ||||
| 90105-T0121 | ||||
| 90105-T0247 | ||||
| 90178-T0019 | ||||
| 91551-80825 | ||||
| 91551-80830 | ||||
| 94151-80800 | ||||
| Linked diagrams | ||||
| 2606 | ||||
ILLUST NO. 3 OF 5(2006- )1GDFTV,2GDFTV..ARL,BZAG,GCC,GEN,IDN,KEN,LA,MA,MMR,PH,PKN,SA,TH,TWN,VN
EXHAUST MANIFOLD
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| Common parts | ||||
| 17445-0E010 | ||||
| 17445-11060 | ||||
| 90119-T0238 | ||||
| 90126-10033 | ||||
| 90148-60053 | ||||
| 90178-T0018 | ||||
| 90179-10070 | ||||
| 90179-10167 | ||||
| 90201-10109 | ||||
| 90560-T0006 | ||||
| 91671-80825 | ||||
| 94184-01041 | ||||
ILLUST NO. 4 OF 5(2006- )1GDFTV,2GDFTV..ARL,BZAG,GCC,GEN,IDN,KEN,LA,MA,MMR,PH,PKN,SA,TH,TWN,VN
EXHAUST MANIFOLD CONVERTER
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| Common parts | ||||
| 90119-T0388 | ||||
| 90126-10033 | ||||
| 90179-10070 | ||||
| 91672-81025 | ||||
| 94188-00841 | ||||
| Linked diagrams | ||||
| 1702 | ||||
ILLUST NO. 1 OF 5(2006- )1GDFTV,2GDFTV..ARL,BZAG,GCC,GEN,IDN,KEN,LA,MA,MMR,PH,PKN,SA,TH,TWN,VN
COMPRESSOR INLET ELBOW
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| Common parts | ||||
| 90105-08359 | ||||
| 90105-T0120 | ||||
| 90119-T0260 | ||||
| 90126-08052 | ||||
| 90126-T0016 | ||||
| 90178-T0018 | ||||
| 90178-T0019 | ||||
| 91551-80820 | ||||
| 91671-80616 | ||||
| 94151-80600 | ||||
| 94151-80800 | ||||
| Linked diagrams | ||||
| 1703 | ||||
ILLUST NO. 5 OF 5(2006- )1GDFTV,2GDFTV..ARL,BZAG,GCC,GEN,IDN,KEN,LA,MA,MMR,PH,PKN,SA,TH,TWN,VN
TURBOCHARGER
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| Common parts | ||||
| 90116-06048 | ||||
| 90116-10175 | ||||
| 90523-04002 | ||||
| 91551-80614 | ||||
Part Price Details
Loading price information...
Part Number:
Price:
