GUN126R-CTFSHQ3 (2015)
Toyota Hilux

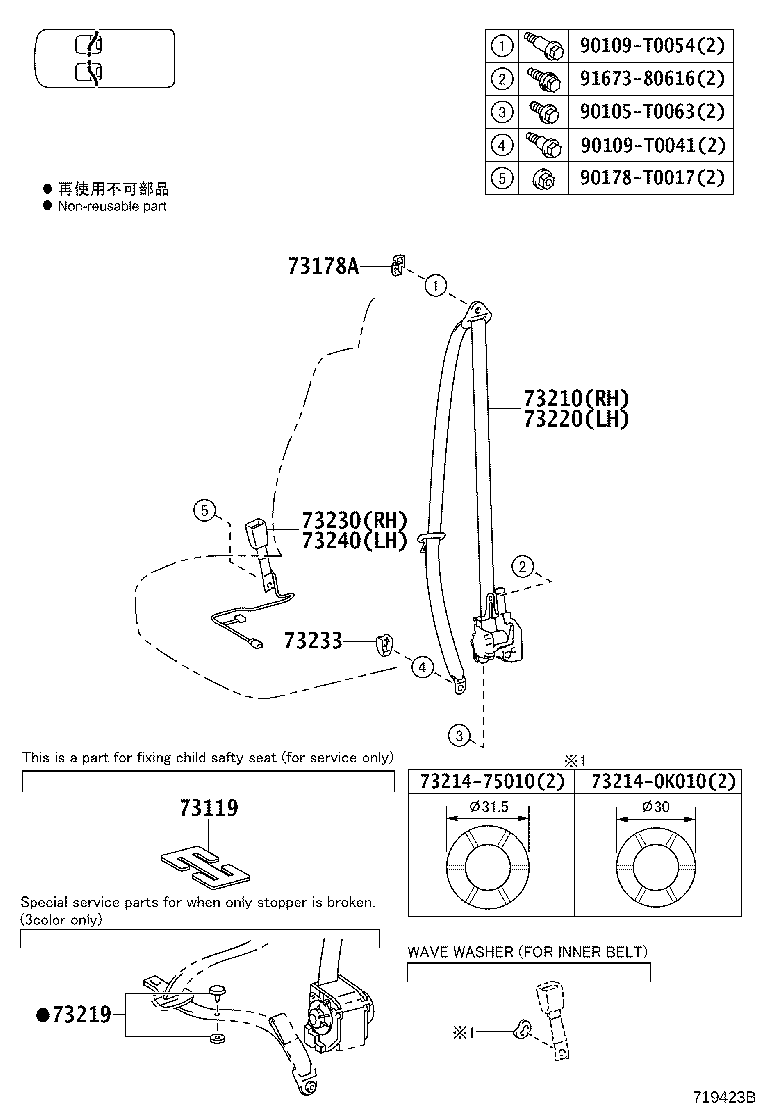

ILLUST NO. 1 OF 2(1506- )SXT,TXT
FRONT SEAT(SEPARATE TYPE)
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 73119 - PLATE, SEAT BELT WEBBING CLIP | ||||
| 73119-22010 |
GUN136..H,M;GUN135..LHD..SA;GUN135..6F..S..SA;GUN125..LHD..TDC..X;GUN125..TDC..6FC..ARL;GUN136..S..(ARL,BZAGT);GUN135..(MDC,SSC)..(L,X);GUN135..ADC,ASC,TDC,TSC,TXT;GUN125..(SXT,TDC)..(H,L,M,S);GUN125..(ADC,ASC,TSC)..6F..LA;GGN12#,135,TGN136..ADC,ASC,SDC,TDC,TSC,TXT;GUN125..(ADC,ASC,SDC,SSC,TSC,TXT)..(ARL,BZAGT,GCC,GEN,IDN,SA,TH);GUN112,120,122,123,126,KUN112,12#,13#,LAN125,TGN11#,120,121,126,128,138..ADC,ASC,PDC,PSC,SDC,SSC,SXT,TDC,TSC,TXT |
1 | ||
| 73178A - CAP, SEAT BELT ANCHOR COVER | ||||
| 73178-KK020B0 |
GUN122..TXT..GEN;GUN135..ASC,SXT,TSC;GUN123,136..(TSC,TXT)..(L,S);KUN122..(SSC,TSC,TXT)..(GEN,SA);GUN125,KUN125..LHD..(SSC,SXT)..S;GUN126..(ASC,TSC,TXT)..(ARL,BZAGT);GUN126,135..RHD..(SSC,TSC)..6F..(S,X)..CBU;GUN122..(PSC,SSC,TSC)..(ARL,GEN,PH,PKN,SA,TH);GUN125,KUN125..RHD..(SSC,SXT,TSC,TXT)..(ARL,GEN,IDN,SA);GUN125,KUN125,TGN136..LHD..(ASC,SSC,TSC,TXT)..(L,M,X)..(BZAGT,GEN,LA,SA);GUN112,120,KUN112,126,135,LAN125,TGN110,120,121,126..(ASC,SSC,SXT,TSC)..(ARL,GEN,IDN,LA,SA,TH) LT.GRAY,TRIM2# |
2 | ||
| 73210 - BELT ASSY, FRONT SEAT OUTER, RH | ||||
| 73210-0K800C0 |
GUN125,KUN125..TXT..(L,M,X);GUN122,123,126,136,KUN122..TXT..(ARL,GEN) BLACK,TRIM2# |
1 | ||
| 73219 - STOPPER, TONGUE PLATE | ||||
| 73219-33030 |
GUN136..H,M;GUN135..LHD..SA;GUN135..6F..S..SA;GUN125..LHD..TDC..X;GUN125..TDC..6FC..ARL;GUN136..S..(ARL,BZAGT);GUN135..(MDC,SSC)..(L,X);GUN135..ADC,ASC,TDC,TSC,TXT;GUN125..(SXT,TDC)..(H,L,M,S);GUN125..(ADC,ASC,TSC)..6F..LA;GGN12#,135,TGN136..ADC,ASC,SDC,TDC,TSC,TXT;GUN125..(ADC,ASC,SDC,SSC,TSC,TXT)..(ARL,BZAGT,GCC,GEN,IDN,SA,TH);GUN112,120,122,123,126,KUN112,12#,13#,LAN125,TGN11#,120,121,126,128,138..ADC,ASC,PDC,PSC,SDC,SSC,SXT,TDC,TSC,TXT BEIGE |
1 | ||
| 73219-33010 |
GUN136..H,M;GUN135..LHD..SA;GUN135..6F..S..SA;GUN125..LHD..TDC..X;GUN125..TDC..6FC..ARL;GUN136..S..(ARL,BZAGT);GUN135..(MDC,SSC)..(L,X);GUN135..ADC,ASC,TDC,TSC,TXT;GUN125..(SXT,TDC)..(H,L,M,S);GUN125..(ADC,ASC,TSC)..6F..LA;GGN12#,135,TGN136..ADC,ASC,SDC,TDC,TSC,TXT;GUN125..(ADC,ASC,SDC,SSC,TSC,TXT)..(ARL,BZAGT,GCC,GEN,IDN,SA,TH);GUN112,120,122,123,126,KUN112,12#,13#,LAN125,TGN11#,120,121,126,128,138..ADC,ASC,PDC,PSC,SDC,SSC,SXT,TDC,TSC,TXT BLACK |
1 | ||
| 73219-33020 |
GUN136..H,M;GUN135..LHD..SA;GUN135..6F..S..SA;GUN125..LHD..TDC..X;GUN125..TDC..6FC..ARL;GUN136..S..(ARL,BZAGT);GUN135..(MDC,SSC)..(L,X);GUN135..ADC,ASC,TDC,TSC,TXT;GUN125..(SXT,TDC)..(H,L,M,S);GUN125..(ADC,ASC,TSC)..6F..LA;GGN12#,135,TGN136..ADC,ASC,SDC,TDC,TSC,TXT;GUN125..(ADC,ASC,SDC,SSC,TSC,TXT)..(ARL,BZAGT,GCC,GEN,IDN,SA,TH);GUN112,120,122,123,126,KUN112,12#,13#,LAN125,TGN11#,120,121,126,128,138..ADC,ASC,PDC,PSC,SDC,SSC,SXT,TDC,TSC,TXT GRAY |
1 | ||
| 73220 - BELT ASSY, FRONT SEAT OUTER, LH | ||||
| 73220-0K520C0 |
GUN125,KUN125..TXT..(L,M,X);GUN122,123,126,136,KUN122..TXT..(ARL,GEN) BLACK,TRIM2# |
1 | ||
| 73230 - BELT ASSY, FRONT SEAT INNER, RH | ||||
| 73230-0K860C0 |
GUN122..RHD..TSC;KUN125..RHD..TDC..L;GUN125..(MDC,TDC)..(L,X)..(IDN,MA);GUN126,TGN121..RHD..(TDC,TSC)..(L,X);KUN122,126..RHD..(5F,5FC)..(L,S,X)..GEN;GUN122,125..RHD..TDC..(5F,6FC)..(L,X)..(ARL,GEN);GUN125,KUN125..RHD..(TSC,TXT)..(L,S,X)..(ARL,GEN,IDN);GUN112,135,KUN112,TGN110,126..RHD..(L,X)..(ARL,GEN,IDN,MA) BLACK,TRIM2# |
1 | ||
| 73230-0KC10C0 |
KUN122..H;GUN126,136..ARL;GUN125..6F..S..MA;GUN125,KUN125..TSC..M;GGN12#,GUN112,123..ARL,TH;GUN120,KUN122..RHD..TSC..(M,X) BLACK,TRIM2# |
1 | ||
| 73240 - BELT ASSY, FRONT SEAT INNER, LH | ||||
| 73230-0KA50C0 |
GUN126..TXT..6F..IV3;GUN125,126,136..TXT..6FC BLACK,TRIM2# |
1 | ||
| 73230-0KG20C0 |
GUN125,126,136..TXT..ARL BLACK,TRIM2# |
1 | ||
| Common parts | ||||
| 73214-0K010 | ||||
| 73214-75010 | ||||
| 90105-T0063 | ||||
| 90109-T0041 | ||||
| 90109-T0054 | ||||
| 90178-T0017 | ||||
| 91673-80616 | ||||

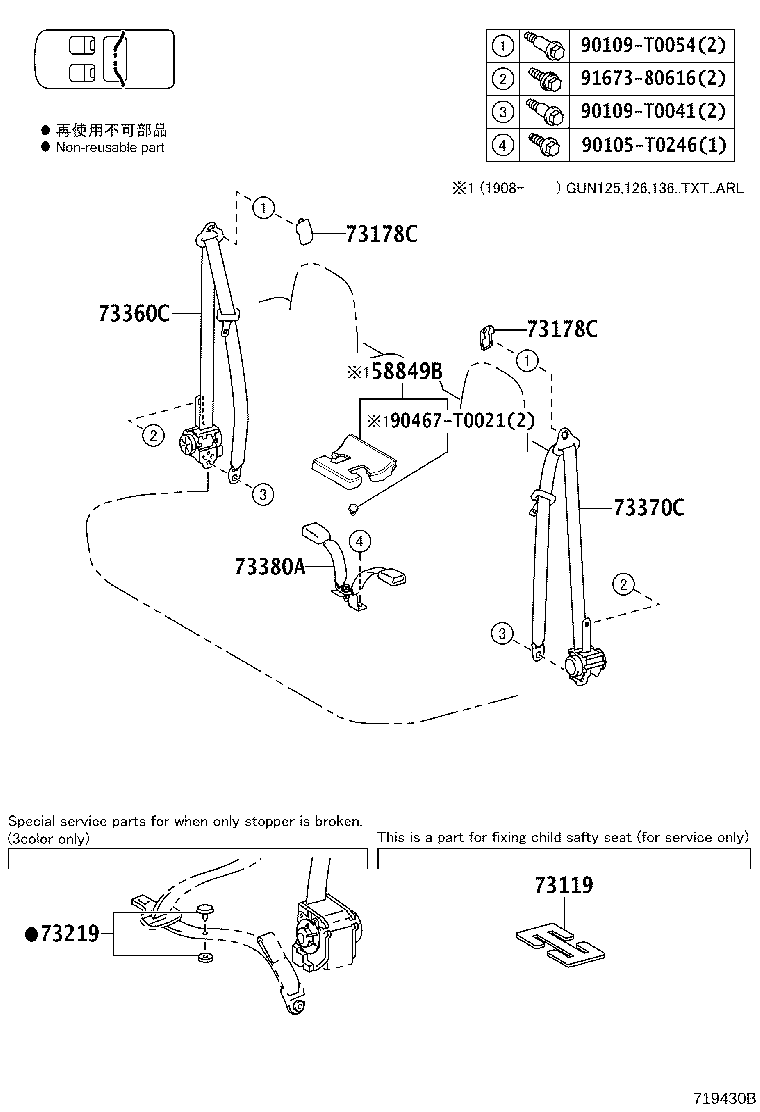

ILLUST NO. 2 OF 2(1506- )SXT,TXT
REAR SEAT
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 58849B - COVER, CONSOLE BOX HOLE, NO.2 | ||||
| 58849-0K040C1 |
GUN125,126,136..TXT..ARL BLACK,TRIM2# |
1 | ||
| 73119 - PLATE, SEAT BELT WEBBING CLIP | ||||
| 73119-22010 |
GUN136..H,M;GUN135..LHD..SA;GUN135..6F..S..SA;GUN125..LHD..TDC..X;GUN125..TDC..6FC..ARL;GUN136..S..(ARL,BZAGT);GUN135..(MDC,SSC)..(L,X);GUN135..ADC,ASC,TDC,TSC,TXT;GUN125..(SXT,TDC)..(H,L,M,S);GUN125..(ADC,ASC,TSC)..6F..LA;GGN12#,135,TGN136..ADC,ASC,SDC,TDC,TSC,TXT;GUN125..(ADC,ASC,SDC,SSC,TSC,TXT)..(ARL,BZAGT,GCC,GEN,IDN,SA,TH);GUN112,120,122,123,126,KUN112,12#,13#,LAN125,TGN11#,120,121,126,128,138..ADC,ASC,PDC,PSC,SDC,SSC,SXT,TDC,TSC,TXT |
1 | ||
| 73178C - CAP, SEAT BELT ANCHOR COVER | ||||
| 73178-KK020B0 |
KUN126..SDC;GUN126..LHD..SA;GUN126..TXT..ARL;GUN125..SDC..6FC..S;GUN136..6FC..M..BZAGT;GUN125..(TDC,TXT)..IV3;GUN125..LHD..(L,X)..GEN;GGN12#,GUN123..ARL..CBU;GUN126..RHD..6F..H..GEN;KUN125..TDC..L..(GEN,IDN);GUN126,KUN126..ATM..(L,S)..GEN;GUN125,136..TDC..6F..(L,M)..(ARL,IDN);KUN122..(SDC,TDC)..(H,L,S,X)..(GEN,SA);GUN125..RHD..(SDC,TDC)..6FC..(L,X)..CBU;GUN135..(ADC,SDC,TDC)..S..(BZAGT,LA,PH,SA);GUN125,KUN125..(ADC,SDC,TDC)..6F..(BZAGT,LA,PH,SA);GUN135..(ADC,MDC,SDC,TDC)..(L,X)..(ARL,BZAGT,GEN,LA,MA,SA);GUN126,KUN126..(ADC,PDC,SDC,TDC)..(L,S,X)..(ARL,BZAGT,LA,PKN,SA);GUN122,136,KUN135,LAN125,TGN121,126,13#..(ADC,SDC,TDC,TXT)..(L,S,X)..(ARL,BZAGT,GEN,LA,PH,SA) LT.GRAY,TRIM2# |
2 | ||
| 73178C - CAP, SEAT BELT ANCHOR COVER | ||||
| 73178-KK020B0 |
KUN126..SDC;GUN126..LHD..SA;GUN126..TXT..ARL;GUN125..SDC..6FC..S;GUN136..6FC..M..BZAGT;GUN125..(TDC,TXT)..IV3;GUN125..LHD..(L,X)..GEN;GGN12#,GUN123..ARL..CBU;GUN126..RHD..6F..H..GEN;KUN125..TDC..L..(GEN,IDN);GUN126,KUN126..ATM..(L,S)..GEN;GUN125,136..TDC..6F..(L,M)..(ARL,IDN);KUN122..(SDC,TDC)..(H,L,S,X)..(GEN,SA);GUN125..RHD..(SDC,TDC)..6FC..(L,X)..CBU;GUN135..(ADC,SDC,TDC)..S..(BZAGT,LA,PH,SA);GUN125,KUN125..(ADC,SDC,TDC)..6F..(BZAGT,LA,PH,SA);GUN135..(ADC,MDC,SDC,TDC)..(L,X)..(ARL,BZAGT,GEN,LA,MA,SA);GUN126,KUN126..(ADC,PDC,SDC,TDC)..(L,S,X)..(ARL,BZAGT,LA,PKN,SA);GUN122,136,KUN135,LAN125,TGN121,126,13#..(ADC,SDC,TDC,TXT)..(L,S,X)..(ARL,BZAGT,GEN,LA,PH,SA) LT.GRAY,TRIM2# |
2 | ||
| 73219 - STOPPER, TONGUE PLATE | ||||
| 73219-33030 |
GUN136..H,M;GUN135..LHD..SA;GUN135..6F..S..SA;GUN125..LHD..TDC..X;GUN125..TDC..6FC..ARL;GUN136..S..(ARL,BZAGT);GUN135..(MDC,SSC)..(L,X);GUN135..ADC,ASC,TDC,TSC,TXT;GUN125..(SXT,TDC)..(H,L,M,S);GUN125..(ADC,ASC,TSC)..6F..LA;GGN12#,135,TGN136..ADC,ASC,SDC,TDC,TSC,TXT;GUN125..(ADC,ASC,SDC,SSC,TSC,TXT)..(ARL,BZAGT,GCC,GEN,IDN,SA,TH);GUN112,120,122,123,126,KUN112,12#,13#,LAN125,TGN11#,120,121,126,128,138..ADC,ASC,PDC,PSC,SDC,SSC,SXT,TDC,TSC,TXT BEIGE |
1 | ||
| 73219-33010 |
GUN136..H,M;GUN135..LHD..SA;GUN135..6F..S..SA;GUN125..LHD..TDC..X;GUN125..TDC..6FC..ARL;GUN136..S..(ARL,BZAGT);GUN135..(MDC,SSC)..(L,X);GUN135..ADC,ASC,TDC,TSC,TXT;GUN125..(SXT,TDC)..(H,L,M,S);GUN125..(ADC,ASC,TSC)..6F..LA;GGN12#,135,TGN136..ADC,ASC,SDC,TDC,TSC,TXT;GUN125..(ADC,ASC,SDC,SSC,TSC,TXT)..(ARL,BZAGT,GCC,GEN,IDN,SA,TH);GUN112,120,122,123,126,KUN112,12#,13#,LAN125,TGN11#,120,121,126,128,138..ADC,ASC,PDC,PSC,SDC,SSC,SXT,TDC,TSC,TXT BLACK |
1 | ||
| 73219-33020 |
GUN136..H,M;GUN135..LHD..SA;GUN135..6F..S..SA;GUN125..LHD..TDC..X;GUN125..TDC..6FC..ARL;GUN136..S..(ARL,BZAGT);GUN135..(MDC,SSC)..(L,X);GUN135..ADC,ASC,TDC,TSC,TXT;GUN125..(SXT,TDC)..(H,L,M,S);GUN125..(ADC,ASC,TSC)..6F..LA;GGN12#,135,TGN136..ADC,ASC,SDC,TDC,TSC,TXT;GUN125..(ADC,ASC,SDC,SSC,TSC,TXT)..(ARL,BZAGT,GCC,GEN,IDN,SA,TH);GUN112,120,122,123,126,KUN112,12#,13#,LAN125,TGN11#,120,121,126,128,138..ADC,ASC,PDC,PSC,SDC,SSC,SXT,TDC,TSC,TXT GRAY |
1 | ||
| 73360C - BELT ASSY, REAR NO.1 SEAT, OUTER RH | ||||
| 73360-0K250C0 |
GUN123,125,126,136..TXT..ARL BLACK,TRIM2# |
1 | ||
| 73360-0K520C0 |
GUN125,126,136..TXT..ARL LT.GRAY,TRIM2# |
1 | ||
| 73370C - BELT ASSY, REAR NO.1 SEAT, OUTER LH | ||||
| 73360-0K520C0 |
GUN125,126,136..TXT..ARL LT.GRAY,TRIM2# |
1 | ||
| 73360-0K250C0 |
GUN123,125,126,136..TXT..ARL BLACK,TRIM2# |
1 | ||
| 73380A - BELT ASSY, REAR SEAT, INNER | ||||
| 73380-0K350C0 |
GUN123,125,126,136..TXT..ARL BLACK,TRIM2# |
1 | ||
| 73380-0K290C0 |
GUN125,126,136..TXT..ARL BLACK/BLACK,TRIM2# |
1 | ||
| Common parts | ||||
| 90105-T0246 | ||||
| 90109-T0041 | ||||
| 90109-T0054 | ||||
| 90467-T0021 | ||||
| 91673-80616 | ||||
