GUN126R-CTFSHQ3 (2015)

Toyota Hilux

Production Jun 2015 - May 2020
Engine 1GDFTV
Transmission 6F MTM
Displacement 2500cc
Power 168 HP (125 kW)

(1506- )SXT,TXT

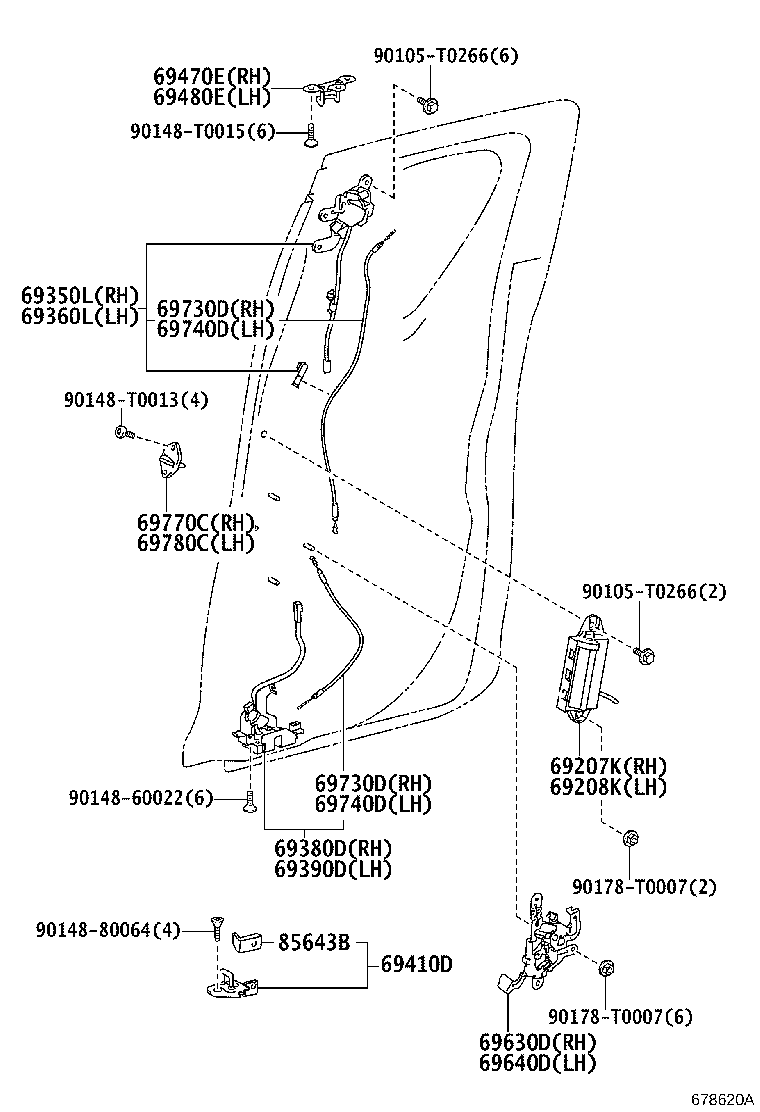

Click highlighted areas on diagram

diagram 69207K 69208K 69350L 69360L 69380D 69390D 69410D 69470E 69480E 69630D 69640D 69730D 69730D 69740D 69740D 69770C 69780C 85643B 90105T0266 90105T0266 9014860022 9014880064 90148T0013 90148T0015 90178T0007 90178T0007
Part # Description Qty Price
69350L - LOCK ASSY, ACCESS PANEL, UPPER RH
69350-0K180

GUN12#,13#,KUN122,TGN121,136..TXT

 1
69360L - LOCK ASSY, ACCESS PANEL, UPPER LH
69360-0K020

GUN12#,13#,KUN122,TGN121,136..TXT

 1
69730D - CABLE ASSY, REAR DOOR LOCK REMOTE CONTROL, RH
69704-0K020

KUN125..SXT;GUN12#,13#,KUN122,126,TGN121,136..SXT,TXT

UPPER

 1
69704-0K020

GUN12#,13#,KUN12#,TGN121,136..SXT,TXT

UPPER

 2
69730D - CABLE ASSY, REAR DOOR LOCK REMOTE CONTROL, RH
69704-0K020

KUN125..SXT;GUN12#,13#,KUN122,126,TGN121,136..SXT,TXT

UPPER

 1
69704-0K020

GUN12#,13#,KUN12#,TGN121,136..SXT,TXT

UPPER

 2
69740D - CABLE ASSY, REAR DOOR LOCK REMOTE CONTROL LH
69704-0K020

GUN12#,13#,KUN12#,TGN121,136..SXT,TXT

UPPER

 2
69704-0K020

KUN125..SXT;GUN12#,13#,KUN122,126,TGN121,136..SXT,TXT

UPPER

 1
69740D - CABLE ASSY, REAR DOOR LOCK REMOTE CONTROL LH
69704-0K020

GUN12#,13#,KUN12#,TGN121,136..SXT,TXT

UPPER

 2
69704-0K020

KUN125..SXT;GUN12#,13#,KUN122,126,TGN121,136..SXT,TXT

UPPER

 1
Common parts
90105-T0266
90148-60022
90148-80064
90148-T0013
90148-T0015
90178-T0007
