GUN126R-CTFSHQ3 (2015)
Toyota Hilux

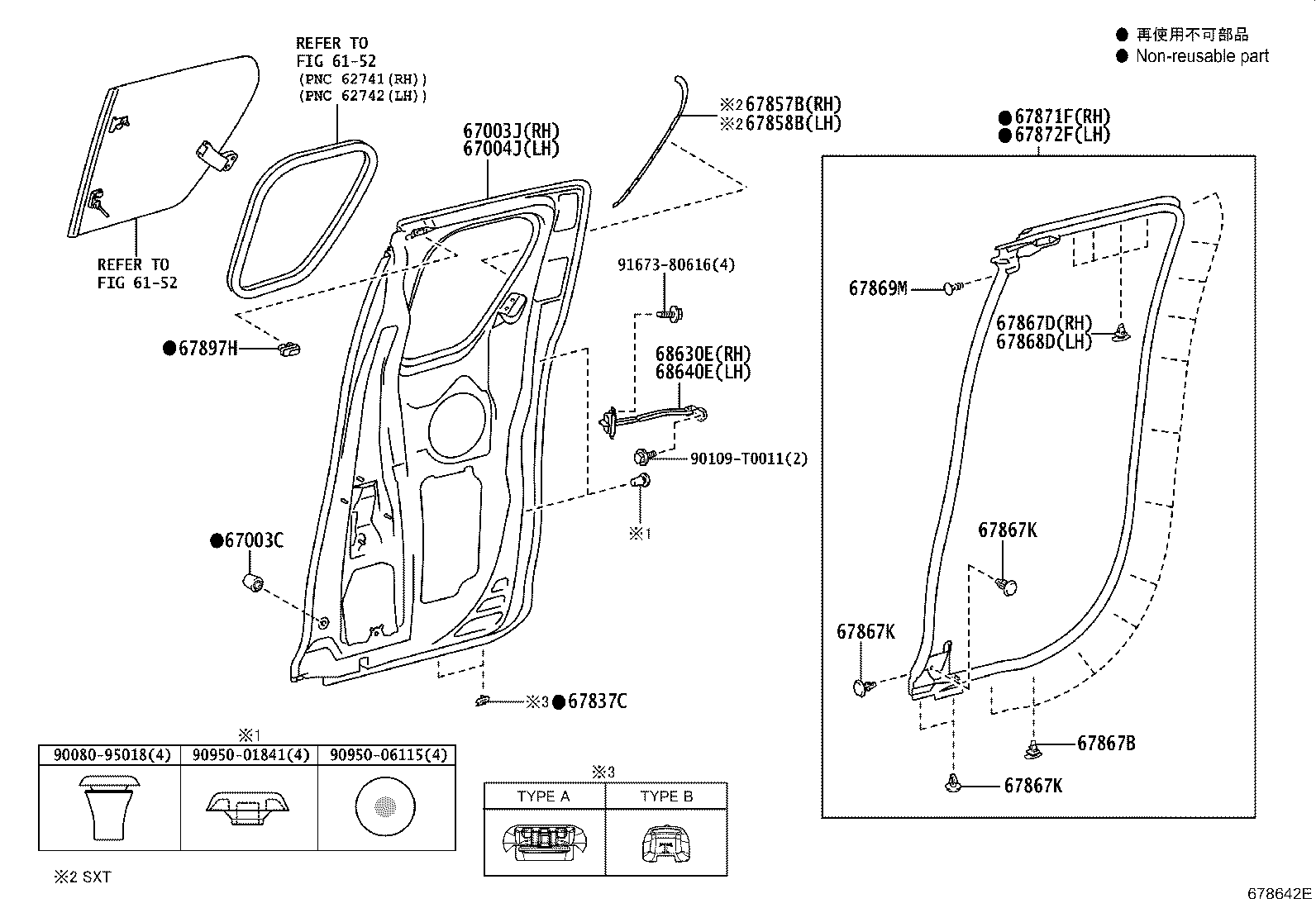

ILLUST NO. 1 OF 2(1506- )SXT,TXT
DOOR PANEL
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 67003C - CUSHION, REAR DOOR PANEL | ||||
| 90541-09131 |
GUN125..TDC..6FC..ARL;GUN125..ADC,SDC,SXT,TXT;GUN135..ADC,MDC,SDC,SXT,TDC,TXT;GUN125..TDC..(GCC,GEN,IDN,LA,PH,TH,VN);GGN12#,135,GUN120,122,123,126,136,KUN12#,13#,LAN125,TGN120,121,126,128,13#..ADC,PDC,SDC,SXT,TDC,TXT |
2 | ||
| 67003J - PANEL SUB-ASSY, ACCESS PANEL, RH | ||||
| 67003-KK020 |
GUN122..TXT..5F;GUN123,125,126,13#,KUN12#,TGN121,136..SXT,TXT |
1 | ||
| 67004J - PANEL SUB-ASSY, ACCESS PANEL, LH | ||||
| 67004-KK020 |
GUN122..TXT..5F;GUN123,125,126,13#,KUN12#,TGN121,136..SXT,TXT |
1 | ||
| 67837C - SEAL, REAR DOOR DUST PROOF | ||||
| 67837-0K090 |
GUN12#,13#,KUN122,125,TGN121,136..TXT |
4 | ||
| 67837-0K091 |
GUN12#,13#,KUN122,125,TGN121,136..TXT |
4 | ||
| 67837-0K092 |
GUN12#,13#,KUN122,125,TGN121,136..TXT |
4 | ||
| 68630E - CHECK ASSY, ACCESS PANEL, RH | ||||
| 68640-0K100 |
GUN126..TXT..6F..IV3;GUN125,126..(SXT,TXT)..6FC;GUN126..(SXT,TXT)..6F..(SA,TH);GUN120,122,125,13#,TGN121..(SXT,TXT)..CBU |
1 | ||
| 68640E - CHECK ASSY, ACCESS PANEL, LH | ||||
| 68640-0K100 |
GUN126..TXT..6F..IV3;GUN125,126..(SXT,TXT)..6FC;GUN126..(SXT,TXT)..6F..(SA,TH);GUN120,122,125,13#,TGN121..(SXT,TXT)..CBU |
1 | ||
| Common parts | ||||
| 90080-95018 | ||||
| 90109-T0011 | ||||
| 90950-01841 | ||||
| 90950-06115 | ||||
| 91673-80616 | ||||
| Linked diagrams | ||||
| 6152 | ||||

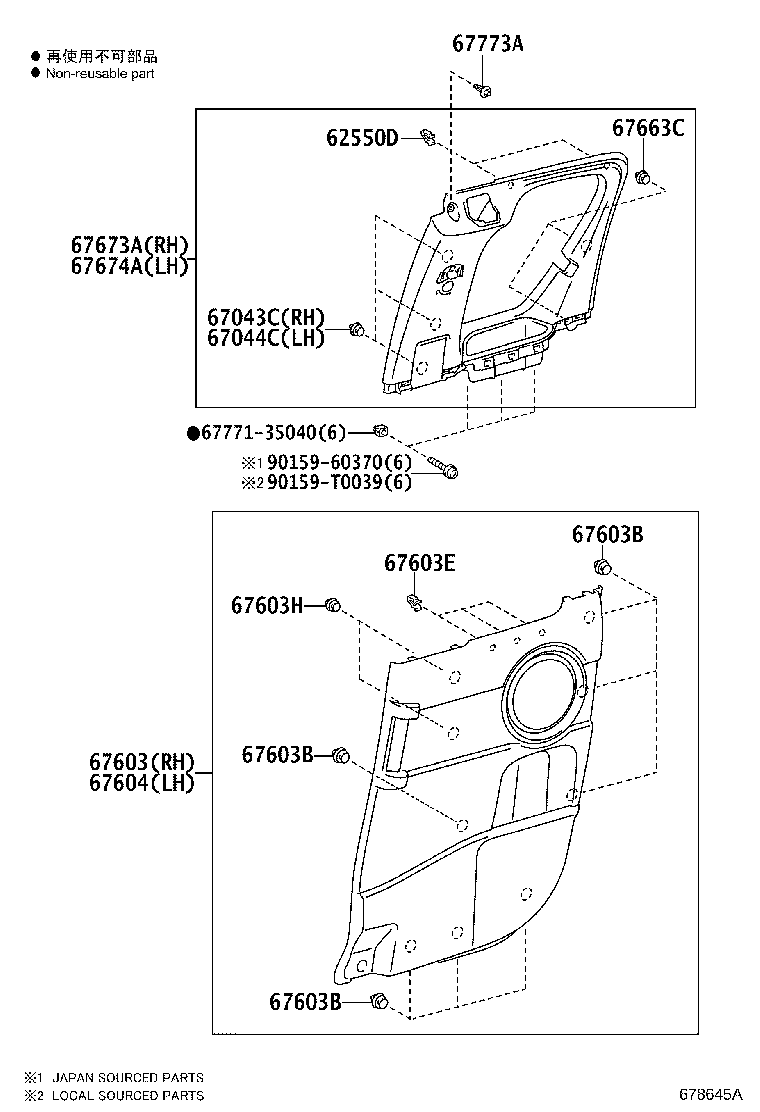

ILLUST NO. 2 OF 2(1506- )SXT,TXT
DOOR TRIM
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 67603 - BOARD SUB-ASSY, REAR DOOR TRIM, RH | ||||
| 67630-0K750C0 |
GUN125,KUN125..TXT..(L,M,X);GUN122,123,126,136,KUN122..TXT..(ARL,GEN) BLACK,TRIM2# |
1 | ||
| 67603B - CLIP(FOR REAR DOOR TRIM BOARD) | ||||
| 90467-T0019 |
GUN125..TXT;GUN135..MDC,TDC,TXT;GUN125..TDC..6F..LA;GUN125..TDC..6FC..ARL;GUN125..TDC..(GCC,GEN,IDN,PH,TH,VN);GGN12#,GUN120,122,123,126,136,KUN12#,13#,TGN120,121,126,136..PDC,TDC,TXT |
14 | ||
| 67603B - CLIP(FOR REAR DOOR TRIM BOARD) | ||||
| 90467-T0019 |
GUN125..TXT;GUN135..MDC,TDC,TXT;GUN125..TDC..6F..LA;GUN125..TDC..6FC..ARL;GUN125..TDC..(GCC,GEN,IDN,PH,TH,VN);GGN12#,GUN120,122,123,126,136,KUN12#,13#,TGN120,121,126,136..PDC,TDC,TXT |
14 | ||
| 67603B - CLIP(FOR REAR DOOR TRIM BOARD) | ||||
| 90467-T0019 |
GUN125..TXT;GUN135..MDC,TDC,TXT;GUN125..TDC..6F..LA;GUN125..TDC..6FC..ARL;GUN125..TDC..(GCC,GEN,IDN,PH,TH,VN);GGN12#,GUN120,122,123,126,136,KUN12#,13#,TGN120,121,126,136..PDC,TDC,TXT |
14 | ||
| 67603H - CLIP(FOR REAR DOOR TRIM BOARD) | ||||
| 90467-09224 |
GUN12#,13#,KUN122,125,TGN121,136..TXT |
2 | ||
| 67604 - BOARD SUB-ASSY, REAR DOOR TRIM, LH | ||||
| 67640-0K750C0 |
GUN125,KUN125..TXT..(L,M,X);GUN122,123,126,136,KUN122..TXT..(ARL,GEN) BLACK,TRIM2# |
1 | ||
| 67663C - CLIP(FOR DOOR FRAME GARNISH) | ||||
| 90467-T0019 |
GUN12#,13#,KUN122,125,TGN121,136..TXT |
4 | ||
| 67673A - GARNISH, REAR DOOR FRAME, RH | ||||
| 67655-0K020B0 |
GUN125,KUN125..TXT..(L,M,X);GUN122,123,126,136,KUN122..TXT..(ARL,GEN) LT.GRAY,TRIM2# |
1 | ||
| 67674A - GARNISH, REAR DOOR FRAME, LH | ||||
| 67656-0K020B0 |
GUN125,KUN125..TXT..(L,M,X);GUN122,123,126,136,KUN122..TXT..(ARL,GEN) LT.GRAY,TRIM2# |
1 | ||
| Common parts | ||||
| 67771-35040 | ||||
| 90159-60370 | ||||
| 90159-T0039 | ||||
