GUN126R-CTFSHQ3 (2015)

Toyota Hilux

Production Jun 2015 - May 2020
Engine 1GDFTV
Transmission 6F MTM
Displacement 2500cc
Power 168 HP (125 kW)

(1506- )SXT,TXT

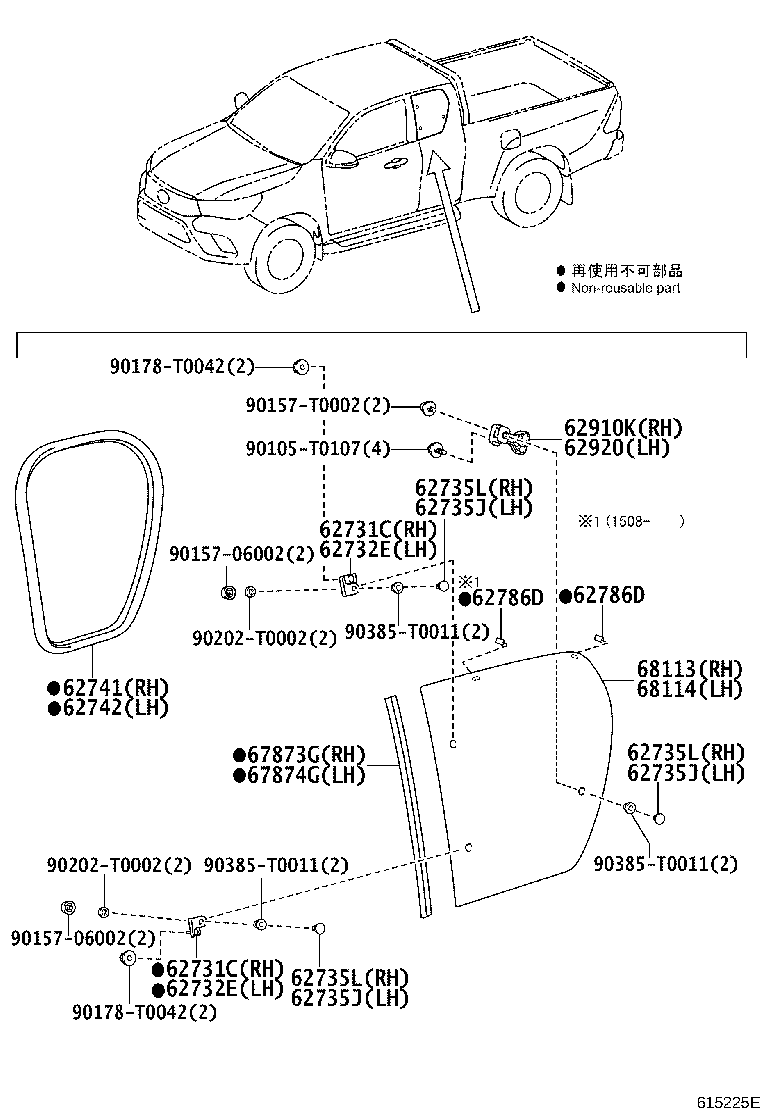

Click highlighted areas on diagram

diagram 62731C 62731C 62732E 62732E 62735J 62735J 62735J 62735L 62735L 62735L 62741 62742 62786D 62786D 62910K 62920 67873G 67874G 68113 68114 90105T0107 9015706002 9015706002 90157T0002 90178T0042 90178T0042 90202T0002 90202T0002 90385T0011 90385T0011 90385T0011
Part # Description Qty Price
62735J - RETAINER, QUARTER WINDOW HINGE, LH
62735-35010

GUN12#,13#,KUN12#,TGN121,136..SXT,TXT

 3
62735J - RETAINER, QUARTER WINDOW HINGE, LH
62735-35010

GUN12#,13#,KUN12#,TGN121,136..SXT,TXT

 3
62735J - RETAINER, QUARTER WINDOW HINGE, LH
62735-35010

GUN12#,13#,KUN12#,TGN121,136..SXT,TXT

 3
62735L - RETAINER, QUARTER WINDOW HINGE, RH
62735-35010

GUN12#,13#,KUN12#,TGN121,136..SXT,TXT

 3
62735L - RETAINER, QUARTER WINDOW HINGE, RH
62735-35010

GUN12#,13#,KUN12#,TGN121,136..SXT,TXT

 3
62735L - RETAINER, QUARTER WINDOW HINGE, RH
62735-35010

GUN12#,13#,KUN12#,TGN121,136..SXT,TXT

 3
62741 - WEATHERSTRIP, QUARTER WINDOW, RH
62741-0K030

GUN12#,13#,KUN122,125,TGN121,136..TXT

 1
62742 - WEATHERSTRIP, QUARTER WINDOW, LH
62741-0K030

GUN12#,13#,KUN122,125,TGN121,136..TXT

 1
62786D - SPACER, QUARTER WINDOW GLASS, NO.2
62786-0K010

GUN12#,13#,KUN122,125,TGN121,136..TXT

 2
62786D - SPACER, QUARTER WINDOW GLASS, NO.2
62786-0K010

GUN12#,13#,KUN122,125,TGN121,136..TXT

 2
62910K - LOCK ASSY, QUARTER WINDOW, RH
62910-0K030B0

GUN123,125,126,KUN122,125..TXT..(ARL,GEN,IDN)

LT.GRAY,TRIM2#

 1
62920 - LOCK ASSY, QUARTER WINDOW, LH
62920-0K020B0

GUN123,125,126,KUN122,125..TXT..(ARL,GEN,IDN)

LT.GRAY,TRIM2#

 1
67873G - WEATHERSTRIP, QUARTER WINDOW, FRONT RH
67865-0K030

GUN12#,13#,KUN122,125,TGN121,136..TXT

 1
67874G - WEATHERSTRIP, QUARTER WINDOW, FRONT LH
67866-0K030

GUN12#,13#,KUN122,125,TGN121,136..TXT

 1
68113 - GLASS, QUARTER WINDOW, RH
68113-0K260

GUN126..M..TH;GUN126..TXT..S;GUN120,122,123,125,13#,KUN122,125,TGN121,136..TXT

 1
68113-0K270

GUN126..TXT..M..ARL

 1
68114 - GLASS, QUARTER WINDOW, LH
68114-0K260

GUN126..M..TH;GUN126..TXT..S;GUN120,122,123,125,13#,KUN122,125,TGN121,136..TXT

 1
68114-0K270

GUN126..TXT..M..ARL

 1
Common parts
90105-T0107
90157-06002
90157-T0002
90178-T0042
90202-T0002
90385-T0011
