GUN126R-CTFSHQ3 (2015)
Toyota Hilux

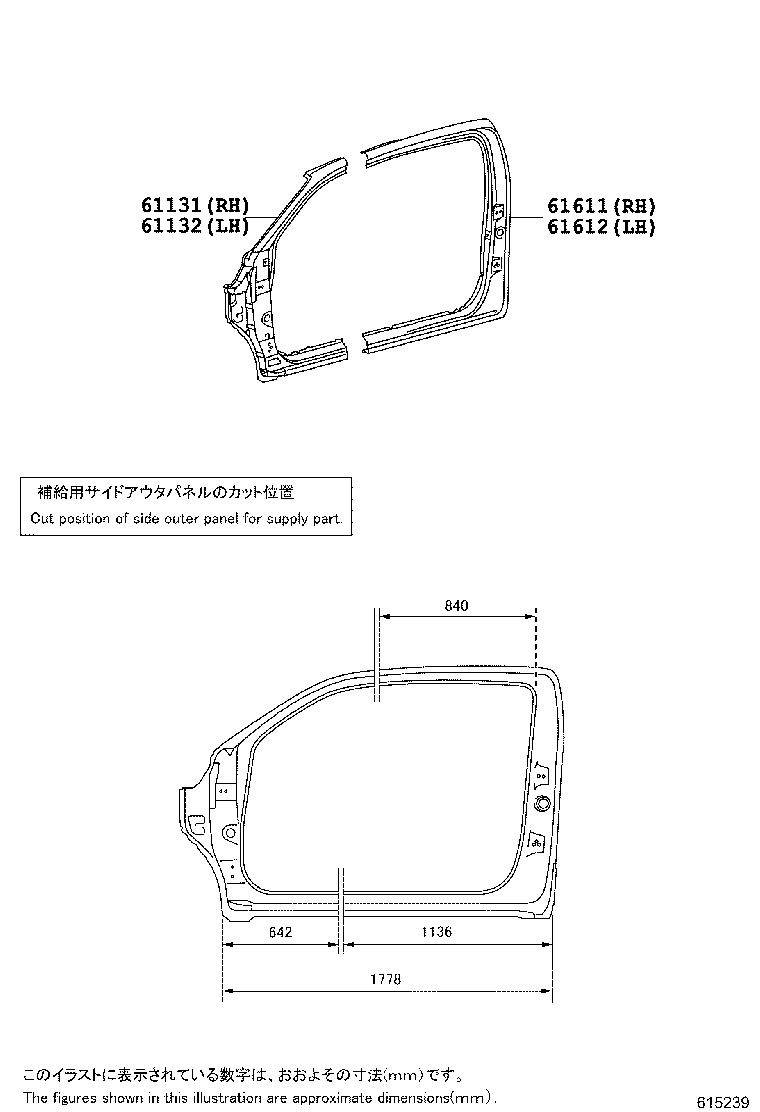

ILLUST NO. 1 OF 2(1506- )SXT,TXT
OUTER PANEL
| Part # | Description | Qty | Price |
|---|

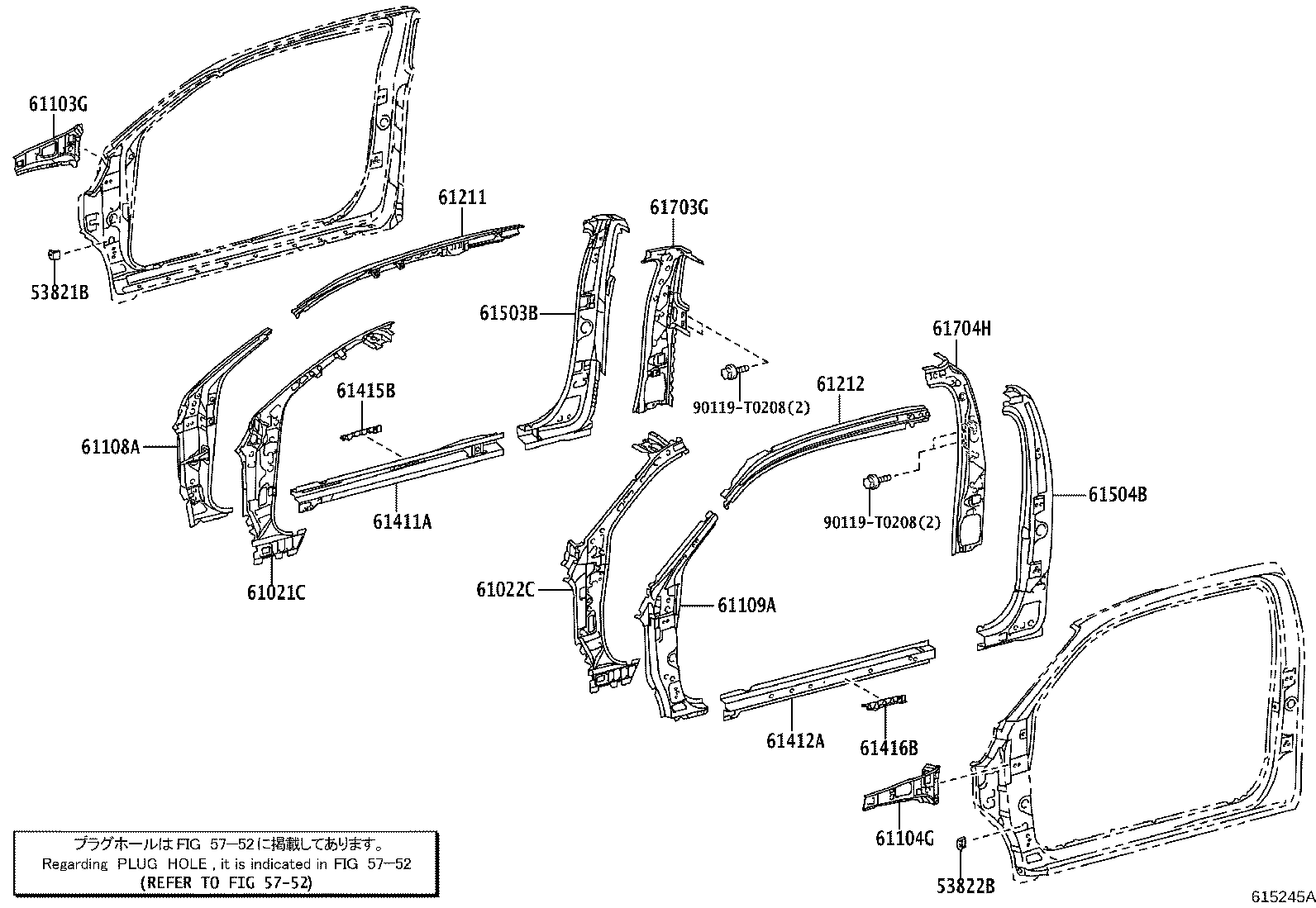

ILLUST NO. 2 OF 2(1506- )SXT,TXT
INNER PANEL
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 53821B - BRACKET, FRONT FENDER, REAR RH | ||||
| 53257-35030 |
GUN125..TDC..6FC..ARL;TGN136..ADC,ASC,SDC,TDC,TSC,TXT;GUN125..ADC,ASC,SDC,SSC,SXT,TSC,TXT;GUN125..TDC..(GCC,GEN,IDN,LA,PH,TH,VN);GUN135..ARL,BZAGT,GEN,LA,MA,PH,SA,TH,VN;GUN126,136,KUN125,126,13#..ADC,ASC,PDC,PSC,SDC,SSC,SXT,TDC,TSC,TXT;GGN12#,135,GUN112,122,123,KUN112,122,LAN125,TGN11#,120,121,126,128,138..(ADC,ASC,PSC,SDC,SSC,TDC,TSC,TXT)..(5F,6FC) |
1 | ||
| 53822B - BRACKET, FRONT FENDER, REAR LH | ||||
| 53257-35030 |
GUN135..SSC..6F;GUN125..TDC..6FC..ARL;GUN125..ADC,ASC,SDC,SSC,SXT,TSC,TXT;GUN125..TDC..(GCC,GEN,IDN,LA,PH,TH,VN);GUN135,TGN136..ADC,ASC,MDC,SDC,SXT,TDC,TSC,TXT;GUN126,136,KUN125,126,13#..ADC,ASC,PDC,PSC,SDC,SSC,SXT,TDC,TSC,TXT;GGN12#,135,GUN112,122,123,KUN112,122,LAN125,TGN11#,120,121,126,128,138..(ADC,ASC,PSC,SDC,SSC,TDC,TSC,TXT)..(5F,6FC) |
1 | ||
| 61021C - PILLAR SUB-ASSY, FRONT BODY, RH | ||||
| 61021-KK030 |
GUN122..ARL;GUN135..SSC..S;GUN125..LHD..TDC..X;GUN125..SDC,TSC,TXT;GUN125..TDC..6FC..ARL;KUN125..SDC,SSC,TDC,TSC,TXT;TGN121..(SDC,TDC,TSC)..(ARL,SA);GUN125,LAN125..(SSC,TDC)..(H,L,M,S);GUN135,LAN125,TGN136..MDC,SDC,SXT,TDC,TSC,TXT;GUN126,KUN126,TGN126..PDC,SDC,SSC,SXT,TDC,TSC,TXT;GGN12#,135,GUN123,136,KUN13#..(SDC,SSC,SXT,TDC,TSC,TXT)..(H,M,S,X) |
1 | ||
| 61022C - PILLAR SUB-ASSY, FRONT BODY, LH | ||||
| 61022-KK030 |
GUN122..ARL;GUN135..SSC..S;GUN125..LHD..TDC..X;GUN125..SDC,TSC,TXT;GUN125..TDC..6FC..ARL;KUN125..SDC,SSC,TDC,TSC,TXT;TGN121..(SDC,TDC,TSC)..(ARL,SA);GUN125,LAN125..(SSC,TDC)..(H,L,M,S);GUN135,LAN125,TGN136..MDC,SDC,SXT,TDC,TSC,TXT;GUN126,KUN126,TGN126..PDC,SDC,SSC,SXT,TDC,TSC,TXT;GGN12#,135,GUN123,136,KUN13#..(SDC,SSC,SXT,TDC,TSC,TXT)..(H,M,S,X) |
1 | ||
| 61103G - GUSSET SUB-ASSY, FRONT BODY PILLAR, LOWER RH | ||||
| 61103-KK010 |
GUN125..TDC..6FC..ARL;TGN136..ADC,ASC,SDC,TDC,TSC,TXT;GUN125..ADC,ASC,SDC,SSC,SXT,TSC,TXT;GUN125..TDC..(GCC,GEN,IDN,LA,PH,TH,VN);GUN135..ARL,BZAGT,GEN,LA,MA,PH,SA,TH,VN;GUN126,136,KUN125,126,13#..ADC,ASC,PDC,PSC,SDC,SSC,SXT,TDC,TSC,TXT;GGN12#,135,GUN112,122,123,KUN112,122,LAN125,TGN11#,120,121,126,128,138..(ADC,ASC,PSC,SDC,SSC,TDC,TSC,TXT)..(5F,6FC) |
1 | ||
| 61104G - GUSSET SUB-ASSY, FRONT BODY PILLAR, LOWER LH | ||||
| 61104-KK010 |
GUN135..SSC..6F;GUN125..TDC..6FC..ARL;GUN125..ADC,ASC,SDC,SSC,SXT,TSC,TXT;GUN125..TDC..(GCC,GEN,IDN,LA,PH,TH,VN);GUN135,TGN136..ADC,ASC,MDC,SDC,SXT,TDC,TSC,TXT;GUN126,136,KUN125,126,13#..ADC,ASC,PDC,PSC,SDC,SSC,SXT,TDC,TSC,TXT;GGN12#,135,GUN112,122,123,KUN112,122,LAN125,TGN11#,120,121,126,128,138..(ADC,ASC,PSC,SDC,SSC,TDC,TSC,TXT)..(5F,6FC) |
1 | ||
| 61108A - REINFORCE SUB-ASSY, FRONT BODY PILLAR, LOWER RH | ||||
| 61108-KK900 |
TGN138..L;KUN125,126,13#;TGN13#..ADC..5F..M;GUN125,135..BZAGT..IV3;GUN125..SDC,SSC,SXT,TSC,TXT;GUN126,136..6F..(M,S)..IART;GUN135..MDC,SDC,SSC,SXT,TDC,TSC,TXT;GUN125..TDC..(GCC,GEN,IDN,LA,PH,TH,VN);TGN136..(ASC,SDC,TDC,TSC,TXT)..(GEN,LA,SA,TH);GUN125,TGN126..(ADC,TDC)..(5F,6FC)..(ARL,BZAGT);GGN12#,135,GUN112,120,122,123,126,136,KUN112,122,LAN125,TGN11#,120,121,126..PDC,PSC,SDC,SSC,SXT,TDC,TSC,TXT |
1 | ||
| 61109A - REINFORCE SUB-ASSY, FRONT BODY PILLAR, LOWER LH | ||||
| 61109-KK900 |
GUN135..SSC..6F;GUN125..TDC..6FC..ARL;GUN125..ADC,ASC,SDC,SSC,SXT,TSC,TXT;GUN125..TDC..(GCC,GEN,IDN,LA,PH,TH,VN);GGN12#,135,GUN112,135,TGN136..ADC,ASC,MDC,SDC,SXT,TDC,TSC,TXT;GUN120,122,123,126,136,KUN112,12#,13#,LAN125,TGN11#,120,121,126,128,138..ADC,ASC,PDC,PSC,SDC,SSC,SXT,TDC,TSC,TXT |
1 | ||
| 61415B - EXTENSION, ROCKER, OUTER RH | ||||
| 61415-KK020 |
GUN122..TXT..5F;KUN125,126..SXT,TXT;GUN123,125,126,13#,KUN122,TGN121,136..TXT |
1 | ||
| 61416B - EXTENSION, ROCKER, OUTER LH | ||||
| 61416-KK020 |
GUN122..TXT..5F;KUN125,126..SXT,TXT;GUN123,125,126,13#,KUN122,TGN121,136..TXT |
1 | ||
| Common parts | ||||
| 90119-T0208 | ||||
| Linked diagrams | ||||
| 5752 | ||||
