GUN126R-CTFSHQ3 (2015)

Toyota Hilux

Production Jun 2015 - May 2020
Engine 1GDFTV
Transmission 6F MTM
Displacement 2500cc
Power 168 HP (125 kW)

(1506- )SXT,TXT

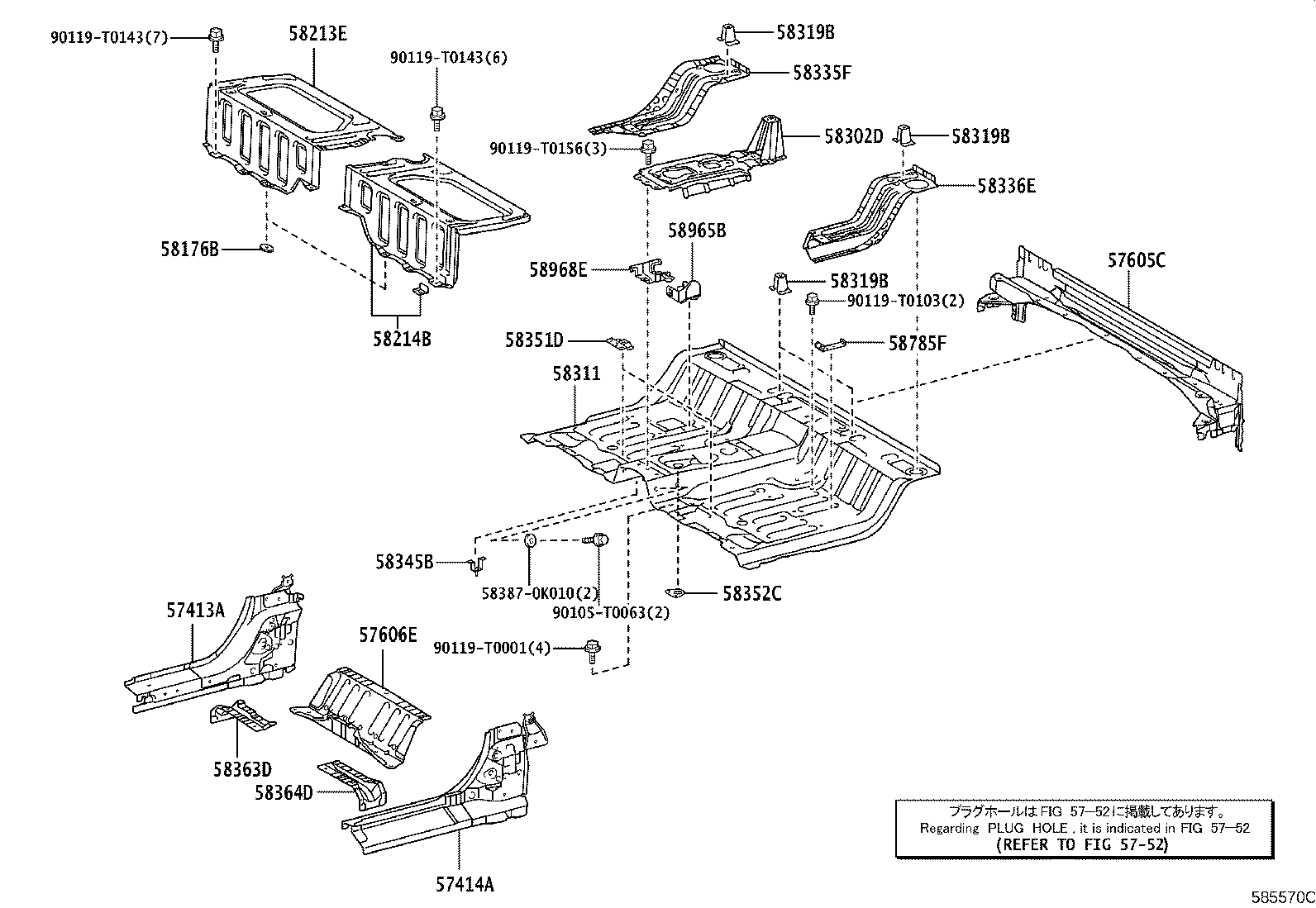

Click highlighted areas on diagram

diagram 57413A 57414A 5752 57605C 57606E 58176B 58213E 58214B 58302D 58311 58319B 58319B 58319B 58335F 58336E 58345B 58351D 58352C 58363D 58364D 583870K010 58785F 58965B 58968E 90105T0063 90119T0001 90119T0103 90119T0143 90119T0143 90119T0156
Part # Description Qty Price
58311 - PAN, REAR FLOOR
58311-KK080

GUN123,125,126,136..TXT..ARL

 1
58351D - REINFORCEMENT, REAR FLOOR PANEL
57555-KK010

GUN135..(L,M)..VN;GUN135..6FC..S..VN;GUN125..TDC..6FC..ARL;GUN125..ADC,SDC,SXT,TXT;GUN125..TDC..(GCC,GEN,IDN,LA,PH,TH,VN);GUN135..(ADC,MDC,SDC,SXT,TDC,TXT)..(ARL,BZAGT,GEN,LA,MA,PH,SA,TH);GGN12#,135,GUN120,122,123,126,136,KUN12#,13#,LAN125,TGN120,121,126,128,13#..ADC,PDC,SDC,SXT,TDC,TXT

 2
58352C - REINFORCEMENT, REAR FLOOR PANEL, NO.2
58352-KK010

GUN135..(L,M)..VN;GUN135..6FC..S..VN;GUN125..TDC..6FC..ARL;GUN125..ADC,ASC,SDC,SSC,SXT,TSC,TXT;GUN135..ARL,BZAGT,GEN,LA,MA,PH,SA,TH;GUN125..TDC..(GCC,GEN,IDN,LA,PH,TH,VN);GGN12#,135,GUN112,TGN136..ADC,ASC,SDC,TDC,TSC,TXT;GUN120,122,123,126,136,KUN112,12#,13#,LAN125,TGN11#,120,121,126,128,138..ADC,ASC,PDC,PSC,SDC,SSC,SXT,TDC,TSC,TXT

 1
Common parts
58387-0K010
90105-T0063
90119-T0001
90119-T0103
90119-T0143
90119-T0156
Linked diagrams
5752
