GUN126R-CTFSHQ3 (2015)

Toyota Hilux

Production Jun 2015 - May 2020
Engine 1GDFTV
Transmission 6F MTM
Displacement 2500cc
Power 168 HP (125 kW)

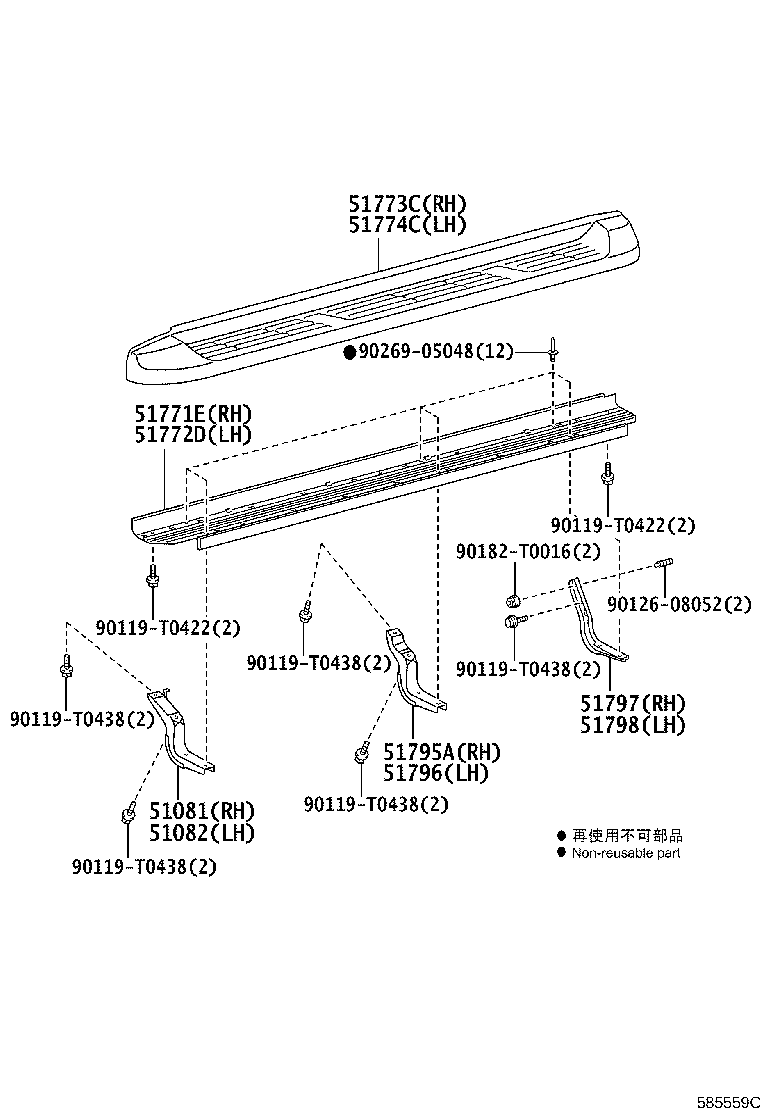

ILLUST NO. 3 OF 3(1506- )SXT,TXT

Click highlighted areas on diagram

SIDE STEP

diagram 51081 51082 51771E 51772D 51773C 51774C 51795A 51796 51797 51798 90119T0422 90119T0422 90119T0438 90119T0438 90119T0438 90119T0438 90119T0438 9012608052 90182T0016 9026905048
Part # Description Qty Price
51081 - STAY SUB-ASSY, SIDE STEP, NO.1 RH
51081-0K060

TGN126..GCC;GUN135..TDC..LA;GUN126..TDC..6FC..M..LA;GUN125..TDC..6FC..(L,X);GUN125..LHD..TDC..6F..L;GUN125..LHD..TDC..S..GEN;GUN126..6FC..(H,M,S)..GEN;TGN126..TDC..(L,M)..(GEN,LA);GUN125,KUN125..TSC..(L,M,S)..GEN;KUN125,126..(PDC,TDC,TXT)..(H,M);KUN125..LHD..TDC..(L,S)..(GCC,GEN);GUN126..TDC..6F..(H,M,X)..(GEN,LA);GUN125..(TSC,TXT)..(ARL,GCC,LA,TH);GUN135,KUN135,TGN136..ARL,GEN,MA,PH,TH,VN;GUN125,TGN136..(TDC,TXT)..(H,M)..(GEN,LA);GUN126..(H,M,S)..(ARL,GCC,PH,PKN,TAIW,TH,VN);GUN125,KUN136..TDC..(M,S,X)..(GCC,IDN,LA,PH,TH,VN);KUN126,TGN121..RHD..(5F,5FC,6FC)..(S,X)..(ARL,GEN);GGN12#,GUN136,KUN125..(TDC,TSC,TXT)..(6F,6FC)..(H,M,S)..(HDCR,HTWC)

 1
51082 - STAY SUB-ASSY, SIDE STEP, NO.1 LH
51082-0K060

TGN126..GCC;GUN135..TDC..LA;GUN126..TDC..6FC..M..LA;GUN125..TDC..6FC..(L,X);GUN125..LHD..TDC..6F..L;GUN125..LHD..TDC..S..GEN;GUN126..6FC..(H,M,S)..GEN;TGN126..TDC..(L,M)..(GEN,LA);GUN125,KUN125..TSC..(L,M,S)..GEN;KUN125,126..(PDC,TDC,TXT)..(H,M);KUN125..LHD..TDC..(L,S)..(GCC,GEN);GUN126..TDC..6F..(H,M,X)..(GEN,LA);GUN125..(TSC,TXT)..(ARL,GCC,LA,TH);GUN135,KUN135,TGN136..ARL,GEN,MA,PH,TH,VN;GUN125,TGN136..(TDC,TXT)..(H,M)..(GEN,LA);GUN126..(H,M,S)..(ARL,GCC,PH,PKN,TAIW,TH,VN);GUN125,KUN136..TDC..(M,S,X)..(GCC,IDN,LA,PH,TH,VN);KUN126,TGN121..RHD..(5F,5FC,6FC)..(S,X)..(ARL,GEN);GGN12#,GUN136,KUN125..(TDC,TSC,TXT)..(6F,6FC)..(H,M,S)..(HDCR,HTWC)

 1
51771E - PLATE, STEP, RH
51771-0K290

GUN125,KUN125..TXT..M;GUN125,126,13#,TGN136..TXT..(ARL,TH)

 1
51772D - PLATE, STEP, LH
51772-0K290

GUN125,KUN125..TXT..M;GUN125,126,13#,TGN136..TXT..(ARL,TH)

 1
51773C - COVER, STEP PLATE, RH
51701-0K080

GUN125,KUN125..TXT..M;GUN125,126,13#,TGN136..TXT..(ARL,TH)

 1
51774C - COVER, STEP PLATE, LH
51702-0K080

GUN125,KUN125..TXT..M;GUN125,126,13#,TGN136..TXT..(ARL,TH)

 1
51795A - BRACKET, SIDE STEP, NO.2 RH
51795-0K120

TGN136..GEN,TH;TGN126..TDC..GCC;GUN125..TXT..(ARL,TH);GUN126..TDC..6FC..M..LA;GUN125..TDC..6FC..(L,X);GUN125..LHD..TDC..6F..L;GUN125..LHD..TDC..S..GEN;GUN126..6FC..(H,M,S)..GEN;GGN12#,GUN13#..MDC,TDC,TXT;TGN126..TDC..(L,M)..(GEN,LA);KUN125,126..(PDC,TDC,TXT)..(H,M);GUN126..TDC..6F..(H,M,X)..(GEN,LA);KUN125,135..LHD..TDC..(H,L,S)..(GCC,GEN,VN);GUN125,KUN136,TGN136..(TDC,TXT)..(H,M)..(GEN,LA);KUN126,TGN121..TDC..(5F,5FC,6FC)..(S,X)..(ARL,GEN);GUN126..(PDC,TDC,TXT)..(H,M,S)..(ARL,GCC,PH,PKN,TAIW,TH,VN);GUN125,KUN125..TDC..(6F,6FC)..(M,S,X)..HDCR..(GCC,IDN,LA,PH,TH,VN)

 1
51796 - BRACKET, SIDE STEP, NO.2 LH
51795-0K120

TGN136..GEN,TH;TGN126..TDC..GCC;GUN125..TXT..(ARL,TH);GUN126..TDC..6FC..M..LA;GUN125..TDC..6FC..(L,X);GUN125..LHD..TDC..6F..L;GUN125..LHD..TDC..S..GEN;GUN126..6FC..(H,M,S)..GEN;GGN12#,GUN13#..MDC,TDC,TXT;TGN126..TDC..(L,M)..(GEN,LA);KUN125,126..(PDC,TDC,TXT)..(H,M);GUN126..TDC..6F..(H,M,X)..(GEN,LA);KUN125,135..LHD..TDC..(H,L,S)..(GCC,GEN,VN);GUN125,KUN136,TGN136..(TDC,TXT)..(H,M)..(GEN,LA);KUN126,TGN121..TDC..(5F,5FC,6FC)..(S,X)..(ARL,GEN);GUN126..(PDC,TDC,TXT)..(H,M,S)..(ARL,GCC,PH,PKN,TAIW,TH,VN);GUN125,KUN125..TDC..(6F,6FC)..(M,S,X)..HDCR..(GCC,IDN,LA,PH,TH,VN)

 1
51797 - BRACKET, SIDE STEP, NO.3 RH
51797-0K180

TGN136..GEN,TH;TGN126..TDC..GCC;GUN125..TXT..(ARL,TH);GUN126..TDC..6FC..M..LA;GUN125..TDC..6FC..(L,X);GUN125..LHD..TDC..6F..L;GUN125..LHD..TDC..S..GEN;GUN126..6FC..(H,M,S)..GEN;GGN12#,GUN13#..MDC,TDC,TXT;TGN126..TDC..(L,M)..(GEN,LA);KUN125,126..(PDC,TDC,TXT)..(H,M);GUN126..TDC..6F..(H,M,X)..(GEN,LA);KUN125,135..LHD..TDC..(H,L,S)..(GCC,GEN,VN);GUN125,KUN136,TGN136..(TDC,TXT)..(H,M)..(GEN,LA);KUN126,TGN121..TDC..(5F,5FC,6FC)..(S,X)..(ARL,GEN);GUN126..(PDC,TDC,TXT)..(H,M,S)..(ARL,GCC,PH,PKN,TAIW,TH,VN);GUN125,KUN125..TDC..(6F,6FC)..(M,S,X)..HDCR..(GCC,IDN,LA,PH,TH,VN)

 1
51798 - BRACKET, SIDE STEP, NO.3 LH
51798-0K180

TGN136..GEN,TH;TGN126..TDC..GCC;GUN125..TXT..(ARL,TH);GUN126..TDC..6FC..M..LA;GUN125..TDC..6FC..(L,X);GUN125..LHD..TDC..6F..L;GUN125..LHD..TDC..S..GEN;GUN126..6FC..(H,M,S)..GEN;GGN12#,GUN13#..MDC,TDC,TXT;TGN126..TDC..(L,M)..(GEN,LA);KUN125,126..(PDC,TDC,TXT)..(H,M);GUN126..TDC..6F..(H,M,X)..(GEN,LA);KUN125,135..LHD..TDC..(H,L,S)..(GCC,GEN,VN);GUN125,KUN136,TGN136..(TDC,TXT)..(H,M)..(GEN,LA);KUN126,TGN121..TDC..(5F,5FC,6FC)..(S,X)..(ARL,GEN);GUN126..(PDC,TDC,TXT)..(H,M,S)..(ARL,GCC,PH,PKN,TAIW,TH,VN);GUN125,KUN125..TDC..(6F,6FC)..(M,S,X)..HDCR..(GCC,IDN,LA,PH,TH,VN)

 1
Common parts
90119-T0422
90119-T0438
90126-08052
90182-T0016
90269-05048
