GUN126R-CTFSHQ3 (2015)

Toyota Hilux

Production Jun 2015 - May 2020
Engine 1GDFTV
Transmission 6F MTM
Displacement 2500cc
Power 168 HP (125 kW)

(1601- )1KDFTV..KUN126..ADC..5FC..M,S ; (1601- )1GDFTV,2GDFTV,1KDFTV,2KDFTV..

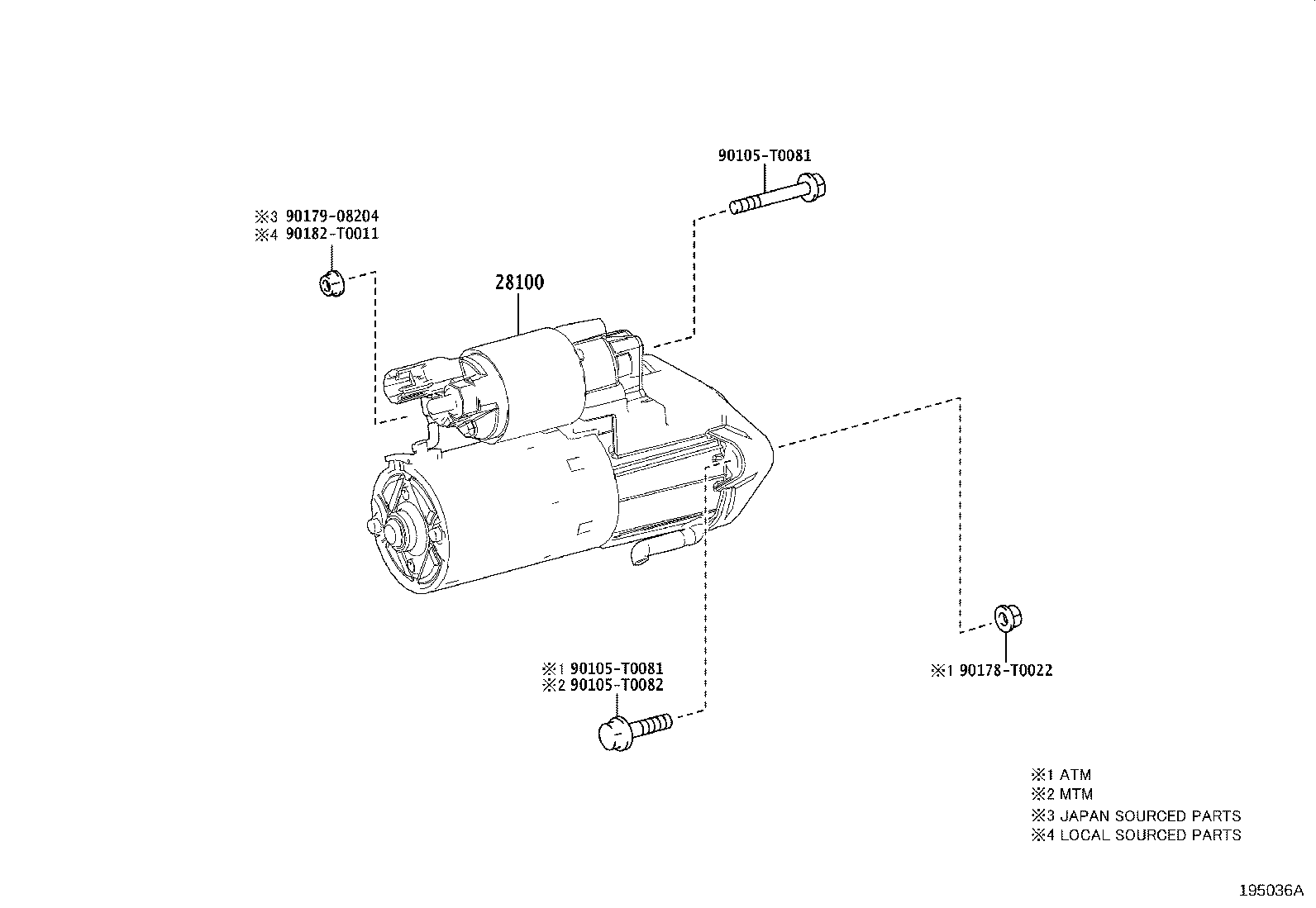

Click highlighted areas on diagram

12V 1.9KW,2.0KW(BOSCH)

diagram 28100 90105T0081 90105T0081 90105T0082 90178T0022 9017908204 90182T0011
Part # Description Qty Price
28100 - STARTER ASSY
28100-0L180

1GDFTV..GUN126..6F..H..TH;2GDFTV..GUN125..M..(GCC,VN);2GDFTV..GUN125..LHD..(TSC,TXT);2GDFTV..GUN125..LHD..TDC..(L,S,X);2KDFTV..KUN125..(TDC,TSC,TXT)..6F;2GDFTV..GUN125..RHD..(TDC,TSC,TXT);1GDFTV,2GDFTV..GUN126,135..H..(GEN,VN);1GDFTV..GUN126..(TDC,TSC,TXT)..(L,M,S,X);2GDFTV..GUN135..(TDC,TSC,TXT)..(ARL,LA,PH,TH,VN);1GDFTV,2GDFTV,1KDFTV,2KDFTV..GUN112,120,122,123,136,KUN112,122,126,13#..TDC,TSC,TXT

12V 2.0KW,DENSO

 1
28100-0L260

1GDFTV..GUN126..6F..H..TH;2GDFTV..GUN125..M..(GCC,VN);2GDFTV..GUN125..LHD..(TSC,TXT);2GDFTV..GUN125..LHD..TDC..(L,S,X);2KDFTV..KUN125..(TDC,TSC,TXT)..6F;2GDFTV..GUN125..RHD..(TDC,TSC,TXT);1GDFTV,2GDFTV..GUN126,135..H..(GEN,VN);1GDFTV..GUN126..(TDC,TSC,TXT)..(L,M,S,X);2GDFTV..GUN135..(TDC,TSC,TXT)..(ARL,LA,PH,TH,VN);1GDFTV,2GDFTV,1KDFTV,2KDFTV..GUN112,120,122,123,136,KUN112,122,126,13#..TDC,TSC,TXT

12V 2.2KW,VALEO

 1
Common parts
90105-T0081
90105-T0082
90178-T0022
90179-08204
90182-T0011
