GUN126R-CNTMHN (2017)

Toyota Hilux

Production Oct 2017 - Sep 2020
Engine 1GDFTV
Transmission 6FC ATM
Displacement 2500cc
Power 168 HP (125 kW)

ILLUST NO. 1 OF 2(2005- )SX,TX

Click highlighted areas on diagram

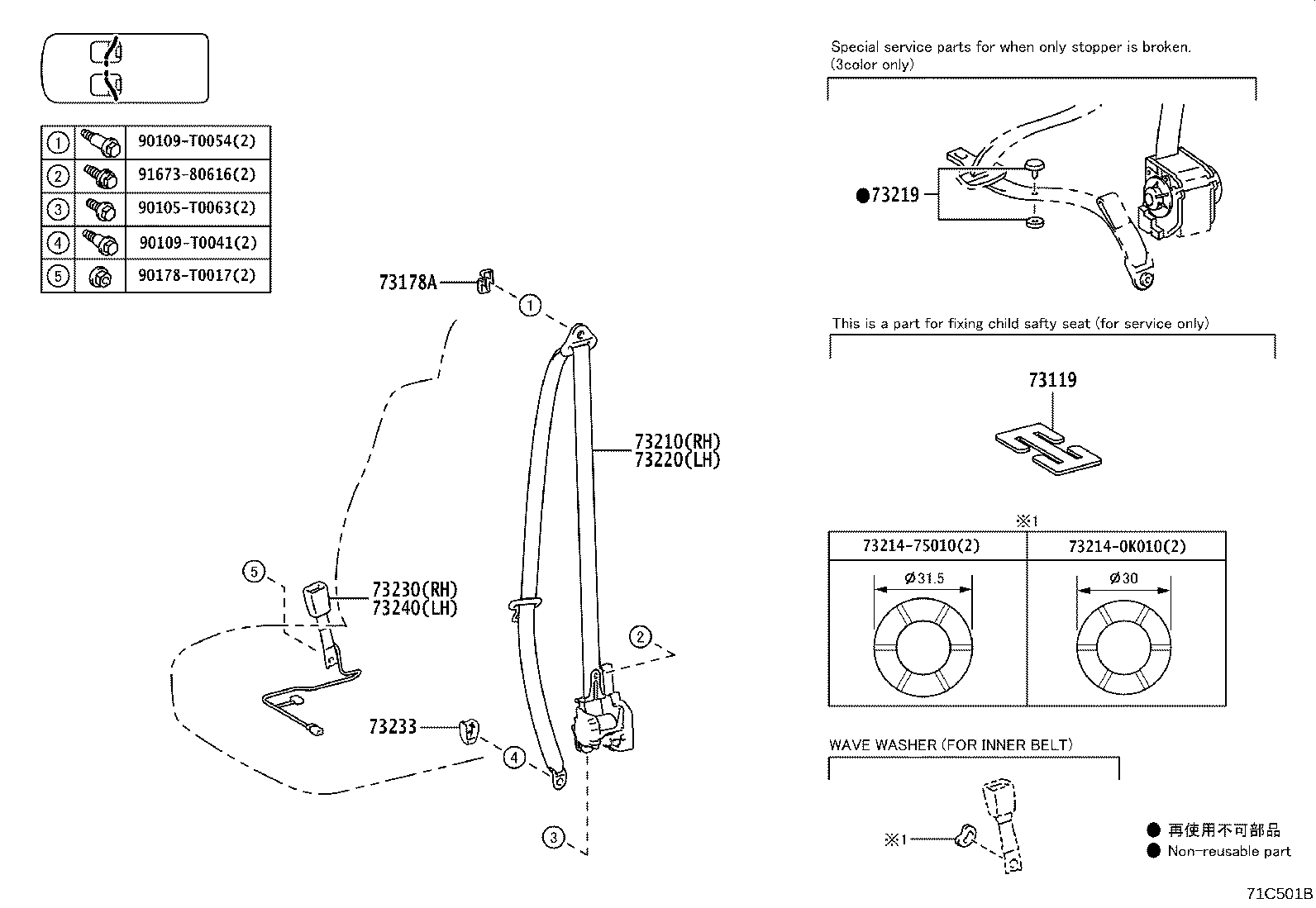

FRONT SEAT

diagram 73119 73178A 73210 732140K010 7321475010 73219 73220 73230 73233 73240 90105T0063 90109T0041 90109T0054 90178T0017 9167380616
Part # Description Qty Price
Common parts
73214-0K010
73214-75010
90105-T0063
90109-T0041
90109-T0054
90178-T0017
91673-80616

ILLUST NO. 2 OF 2(2005- )SX,TX

Click highlighted areas on diagram

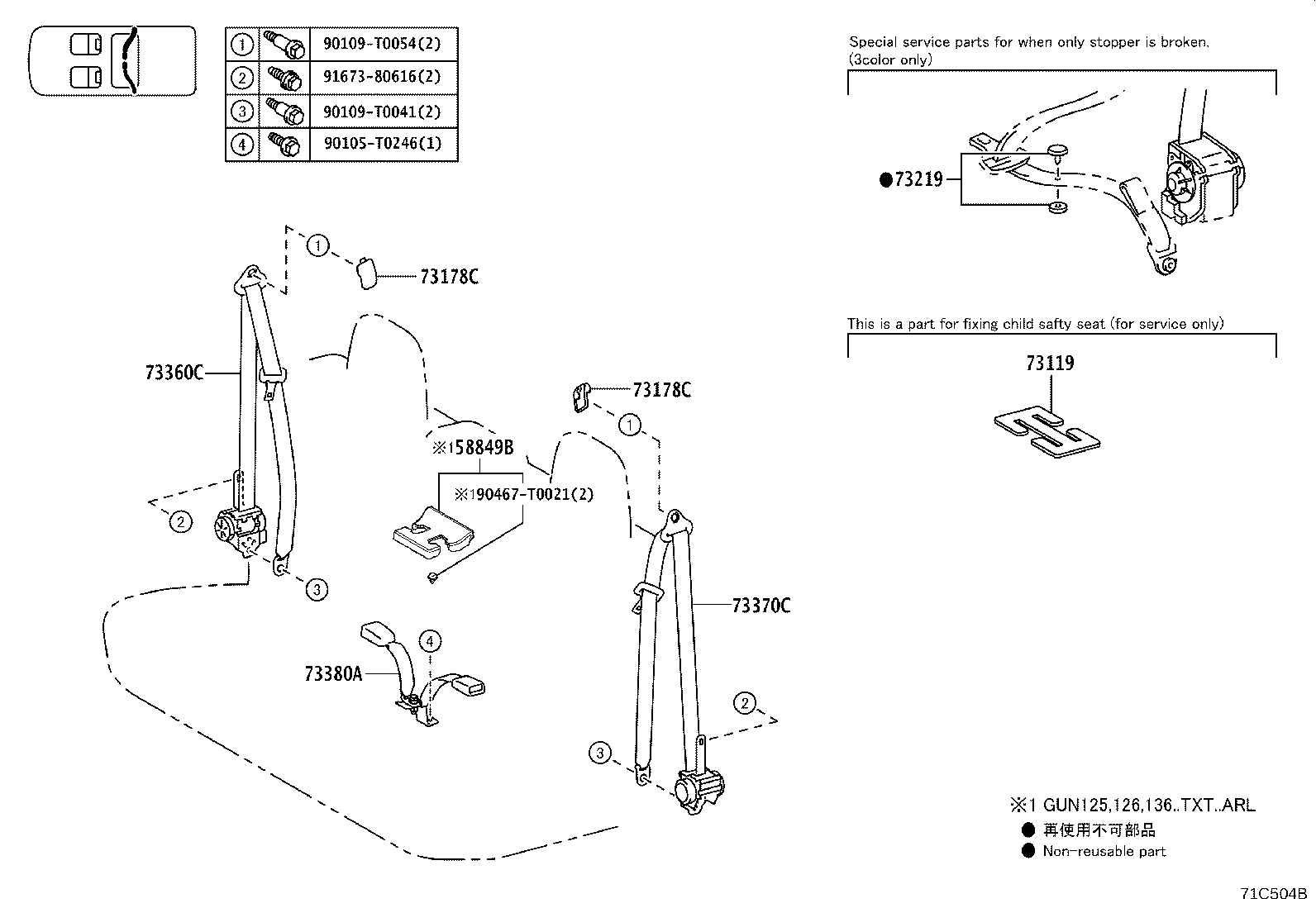

REAR SEAT

diagram 58849B 73119 73178C 73178C 73219 73360C 73370C 73380A 90105T0246 90109T0041 90109T0054 90467T0021 9167380616
Part # Description Qty Price
Common parts
90105-T0246
90109-T0041
90109-T0054
90467-T0021
91673-80616
