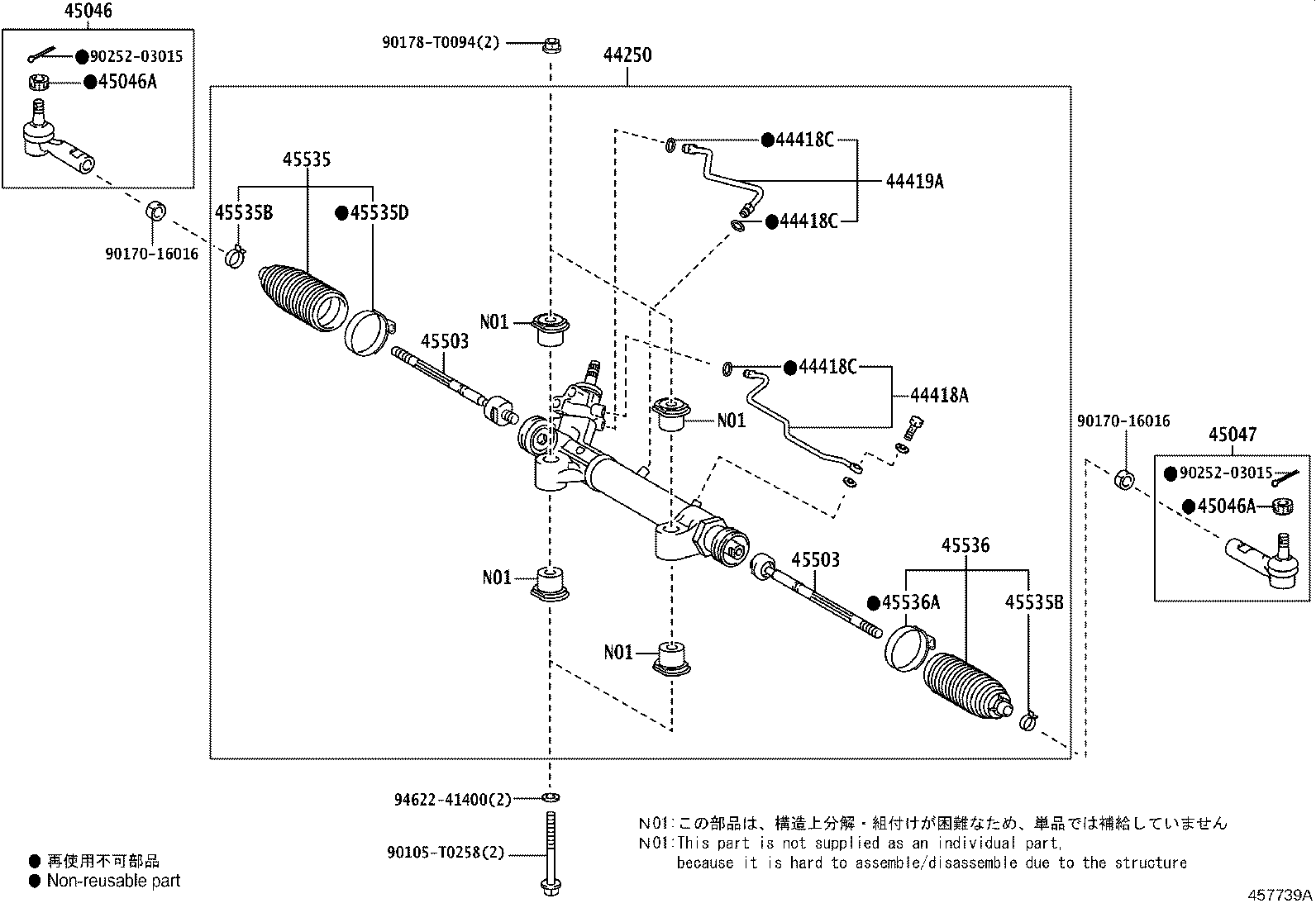

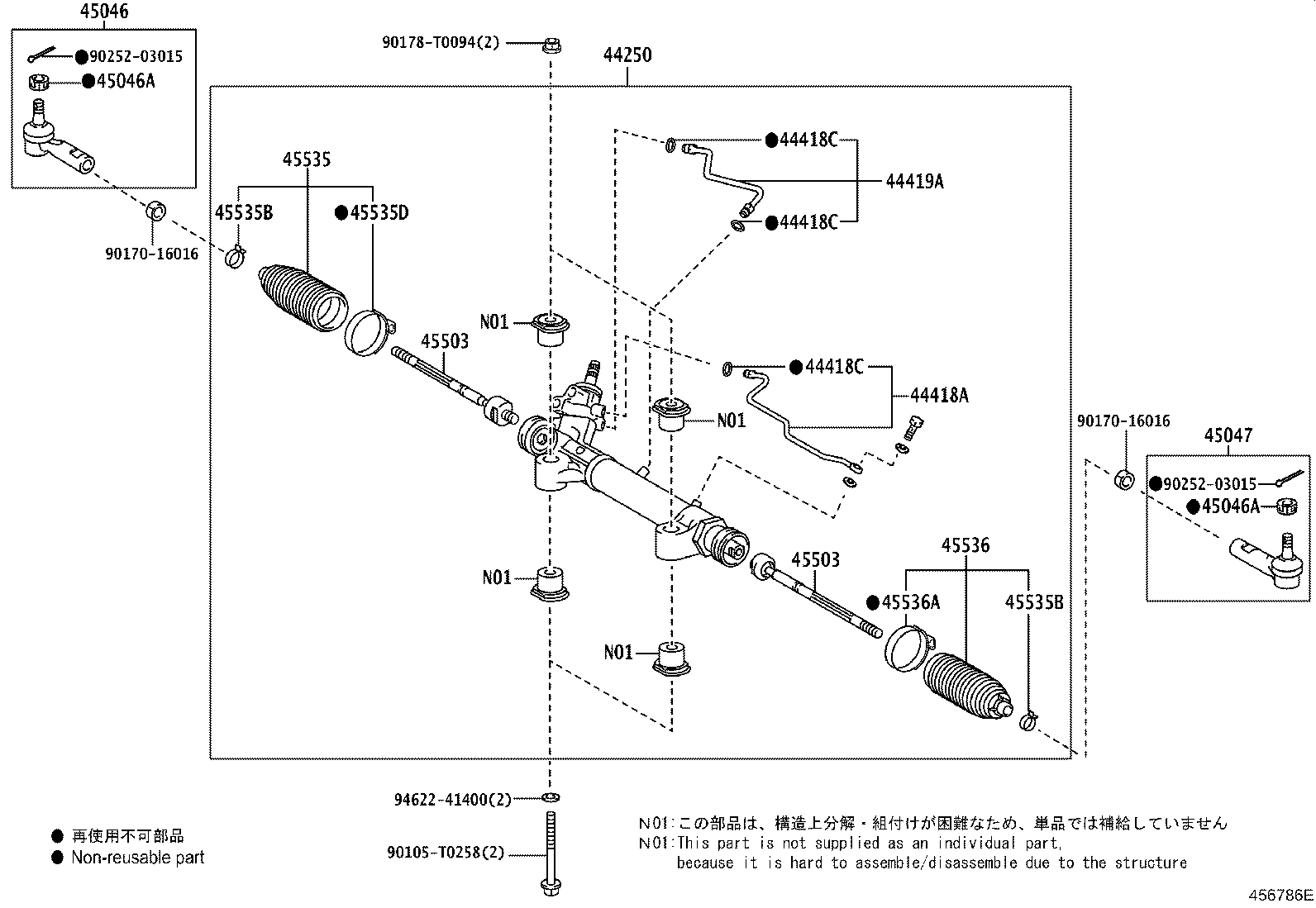

Toyota Hilux GUN126 FRONT STEERING GEAR & LINK

Part #	Description	Period	Qty
44418C - RING, O(FOR STEERING TURN PRESSURE TUBE)
90301-T0032	GUN125..TDC..6FC..ARL;TGN136..RHD..(SDC,TDC,TXT);GUN125..RHD..TDC..(GEN,IDN,TH);GUN135..RHD..(ARL,GEN,MA,SA,TH);GUN125..RHD..(SDC,SSC,SXT,TSC,TXT);GGN125,135,GUN126,136,KUN125,126,13#,TGN126..RHD..(ARL,GEN,IDN,PKN,SA,TH)	05/2015 - 12/2999	3
44418C - RING, O(FOR STEERING TURN PRESSURE TUBE)
90301-T0032	GUN125..TDC..6FC..ARL;TGN136..RHD..(SDC,TDC,TXT);GUN125..RHD..TDC..(GEN,IDN,TH);GUN135..RHD..(ARL,GEN,MA,SA,TH);GUN125..RHD..(SDC,SSC,SXT,TSC,TXT);GGN125,135,GUN126,136,KUN125,126,13#,TGN126..RHD..(ARL,GEN,IDN,PKN,SA,TH)	05/2015 - 12/2999	3
44418C - RING, O(FOR STEERING TURN PRESSURE TUBE)
90301-T0032	GUN125..TDC..6FC..ARL;TGN136..RHD..(SDC,TDC,TXT);GUN125..RHD..TDC..(GEN,IDN,TH);GUN135..RHD..(ARL,GEN,MA,SA,TH);GUN125..RHD..(SDC,SSC,SXT,TSC,TXT);GGN125,135,GUN126,136,KUN125,126,13#,TGN126..RHD..(ARL,GEN,IDN,PKN,SA,TH)	05/2015 - 12/2999	3
45046 - END SUB-ASSY, TIE ROD, RH
45046-09800	GUN125..TDC..6FC..ARL;TGN136..SDC,TDC,TSC,TXT;GUN125..SDC,SSC,SXT,TSC,TXT;GUN135..MDC,SDC,SSC,SXT,TDC,TSC,TXT;GUN125..TDC..(GCC,GEN,IDN,LA,PH,TH,VN);GGN125,135,GUN126,136,KUN125,126,13#,LAN125,TGN126..PDC,PSC,SDC,SSC,SXT,TDC,TSC,TXT	05/2015 - 12/2999	1
45046A - NUT, CASTLE(FOR TIE ROD END)
90171-T0002	KUN126..PDC..L;TGN136..ADC,ASC,SDC,TDC,TSC,TXT;GUN125..ADC,ASC,SDC,SSC,SXT,TSC,TXT;GUN125..TDC..(GCC,GEN,IDN,LA,PH,TH,VN);GUN125,KUN126..(PDC,TDC)..ATM..(ARL,PKN);GUN135,KUN126..ADC,ASC,MDC,PSC,SDC,SSC,SXT,TDC,TSC,TXT;GGN125,135,GUN126,136,KUN125,13#,LAN125,TGN126,128,138..ADC,ASC,PDC,PSC,SDC,SSC,SXT,TDC,TSC,TXT	05/2015 - 12/2999	2
45046A - NUT, CASTLE(FOR TIE ROD END)
90171-T0002	KUN126..PDC..L;TGN136..ADC,ASC,SDC,TDC,TSC,TXT;GUN125..ADC,ASC,SDC,SSC,SXT,TSC,TXT;GUN125..TDC..(GCC,GEN,IDN,LA,PH,TH,VN);GUN125,KUN126..(PDC,TDC)..ATM..(ARL,PKN);GUN135,KUN126..ADC,ASC,MDC,PSC,SDC,SSC,SXT,TDC,TSC,TXT;GGN125,135,GUN126,136,KUN125,13#,LAN125,TGN126,128,138..ADC,ASC,PDC,PSC,SDC,SSC,SXT,TDC,TSC,TXT	05/2015 - 12/2999	2
45047 - END SUB-ASSY, TIE ROD, LH
45046-09800	GUN125..TDC..6FC..ARL;TGN136..SDC,TDC,TSC,TXT;GUN125..SDC,SSC,SXT,TSC,TXT;GUN135..MDC,SDC,SSC,SXT,TDC,TSC,TXT;GUN125..TDC..(GCC,GEN,IDN,LA,PH,TH,VN);GGN125,135,GUN126,136,KUN125,126,13#,LAN125,TGN126..PDC,PSC,SDC,SSC,SXT,TDC,TSC,TXT	05/2015 - 12/2999	1
Common parts
90105-T0258
90170-16016
90178-T0094
90252-03015
94622-41400

GUN126R-CNTMHN (2017)

ILLUST NO. 2 OF 2(1107- )

(1505- )GGN125,135,GUN125,126,13#,KUN125,126,13#,TGN126,136..RHD

(2006- )GGN125,GUN125,126,13#,TGN136..RHD
