GUN126L-DTTXHF (2017)
Toyota Hilux
(1505- )ADC,KDC,MDC,PDC,SDC,TDC,VDC
| Part # | Description | Qty | Price | |
|---|---|---|---|---|

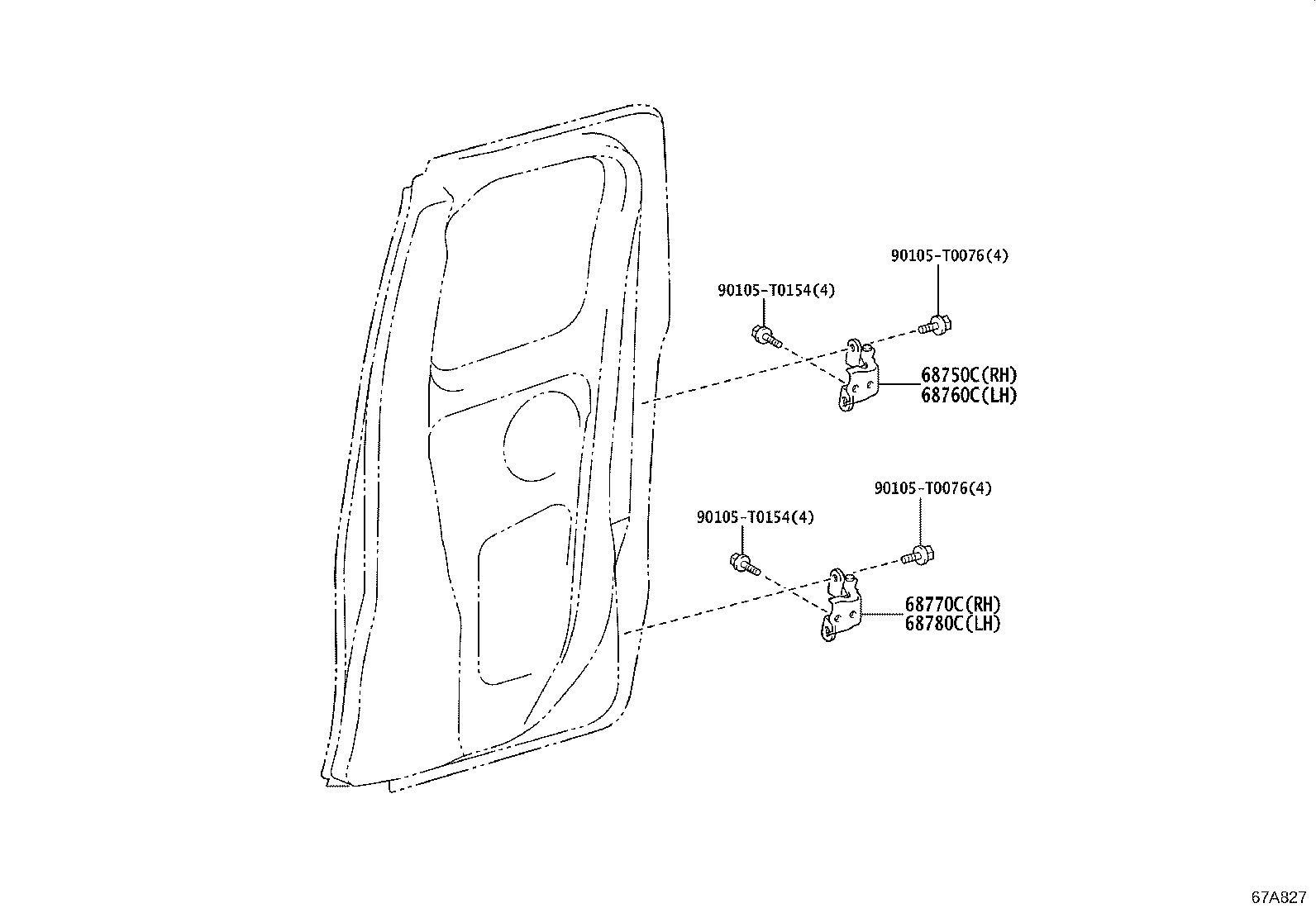

| 68750 - HINGE ASSY, REAR DOOR, UPPER RH | ||||
| 68750-0D030 |
GUN125..TDC..6FC..ARL;GUN125..(MDC,TDC)..(GCC,GEN,IDN,LA,MA,PH,TH,VN);GGN12#,GUN120,122,123,126,13#,KUN12#,13#,TGN120,121,126,136..MDC,TDC |
1 | ||
| 68760 - HINGE ASSY, REAR DOOR, UPPER LH | ||||
| 68760-0D030 |
GUN125..TDC..6FC..ARL;GUN125..(MDC,TDC)..(GCC,GEN,IDN,LA,MA,PH,TH,VN);GGN12#,GUN120,122,123,126,13#,KUN12#,13#,TGN120,121,126,136..MDC,TDC |
1 | ||
| 68770 - HINGE ASSY, REAR DOOR, LOWER RH | ||||
| 68770-0D030 |
GUN125..TDC..6FC..ARL;GUN125..(MDC,TDC)..(GCC,GEN,IDN,LA,MA,PH,TH,VN);GGN12#,GUN120,122,123,126,13#,KUN12#,13#,TGN120,121,126,136..MDC,TDC |
1 | ||
| 68780 - HINGE ASSY, REAR DOOR, LOWER LH | ||||
| 68780-0D030 |
GUN125..TDC..6FC..ARL;GUN125..(MDC,TDC)..(GCC,GEN,IDN,LA,MA,PH,TH,VN);GGN12#,GUN120,122,123,126,13#,KUN12#,13#,TGN120,121,126,136..MDC,TDC |
1 | ||
| 69260E - HANDLE ASSY, REAR DOOR WINDOW REGULATOR | ||||
| 69260-0K010C0 |
KUN126..L..GEN;KUN122,125,TGN121,126..TDC..(L,X)..(GEN,LA);GUN125,126,135,KUN126,135,TGN136..TDC..MTM..X..LA POWER DOOR LOCK-WITH & WITHOUT(AUTO LOCK(SPEED)),BLACK,TRIM2# |
2 | ||
| 69260-0K010C0 |
KUN126..L..GEN;GUN126..(PDC,TDC)..L;TGN126..TDC..(L,X)..(GEN,LA);GUN135,KUN126,TGN136..(PDC,TDC)..MTM..(L,X)..(LA,PKN);GUN122,125,126,KUN122,125,135,TGN121..TDC..MTM..(L,X)..(GEN,LA,PH) BLACK,TRIM2# |
2 | ||
| 69270B - RING, SHAFT SNAP(FOR REAR DOOR WINDOW REGULATOR HANDLE) | ||||
| 90520-01274 |
KUN126..L..GEN;KUN122,125,TGN121,126..TDC..(L,X)..(GEN,LA);GUN125,126,135,KUN126,135,TGN136..TDC..MTM..X..LA POWER DOOR LOCK-WITH & WITHOUT(AUTO LOCK(SPEED)) |
1 | ||
| 90520-01274 |
KUN126..L..GEN;TGN126..TDC..(L,X);GUN126..(PDC,TDC)..L;GUN125,TGN136..TDC..(5F,6FC)..(L,X)..(GCC,LA);GUN135,KUN126..(PDC,TDC)..6F..(L,X)..(LA,PKN);GUN122,125,126,KUN122,125,135,TGN120,121..TDC..MTM..(L,X)..(GCC,GEN,LA,PH) |
1 | ||
| 69272B - PLATE, REAR DOOR REGULATOR INSIDE HANDLE | ||||
| 69268-04020 |
KUN126..L..GEN;KUN122,125,TGN121,126..TDC..(L,X)..(GEN,LA);GUN125,126,135,KUN126,135,TGN136..TDC..MTM..X..LA POWER DOOR LOCK-WITH & WITHOUT(AUTO LOCK(SPEED)) |
2 | ||
| 69268-04020 |
KUN126..L..GEN;TGN126..TDC..(L,X);GUN126..(PDC,TDC)..L;GUN125,TGN136..TDC..(5F,6FC)..(L,X)..(GCC,LA);GUN135,KUN126..(PDC,TDC)..6F..(L,X)..(LA,PKN);GUN122,125,126,KUN122,125,135,TGN120,121..TDC..MTM..(L,X)..(GCC,GEN,LA,PH) |
2 | ||
| 69803 - REGULATOR SUB-ASSY, REAR DOOR WINDOW, RH | ||||
| 69830-0K180 |
KUN126..L..GEN;TGN126..TDC..(L,X);GUN126..(PDC,TDC)..L;GUN125,TGN136..TDC..(5F,6FC)..(L,X)..(GCC,LA);GUN135,KUN126..(PDC,TDC)..6F..(L,X)..(LA,PKN);GUN122,125,126,KUN122,125,135,TGN120,121..TDC..MTM..(L,X)..(GCC,GEN,LA,PH) |
1 | ||
| 69803-0K110 |
TGN121..TDC..(M,S,X);GUN122..TDC..(ARL,TH);GUN135..(MDC,TDC)..6F..S;GUN125,KUN125..TDC..L..IDN;GUN126,KUN126..TDC..ATM..X;GUN125..RHD..TDC..6FC..(L,X);GUN125,126..(PDC,TDC)..(H,M,S);GGN12#,GUN120,123,136,KUN13#..TDC..(H,L,M,S);GUN135,TGN136..TDC..(5F,6FC)..(S,X)..(GEN,TH,VN);GUN135..(MDC,TDC)..(H,L,M,X)..(ARL,GEN,MA,PH,TH,VN);GUN122,KUN12#,TGN126,136..(PDC,TDC)..(H,M,S)..(GCC,GEN,IDN,LA,PKN,VN) |
1 | ||
| 69803 - REGULATOR SUB-ASSY, REAR DOOR WINDOW, RH | ||||
| 69830-0K180 |
KUN126..L..GEN;TGN126..TDC..(L,X);GUN126..(PDC,TDC)..L;GUN125,TGN136..TDC..(5F,6FC)..(L,X)..(GCC,LA);GUN135,KUN126..(PDC,TDC)..6F..(L,X)..(LA,PKN);GUN122,125,126,KUN122,125,135,TGN120,121..TDC..MTM..(L,X)..(GCC,GEN,LA,PH) |
1 | ||
| 69803-0K110 |
TGN121..TDC..(M,S,X);GUN122..TDC..(ARL,TH);GUN135..(MDC,TDC)..6F..S;GUN125,KUN125..TDC..L..IDN;GUN126,KUN126..TDC..ATM..X;GUN125..RHD..TDC..6FC..(L,X);GUN125,126..(PDC,TDC)..(H,M,S);GGN12#,GUN120,123,136,KUN13#..TDC..(H,L,M,S);GUN135,TGN136..TDC..(5F,6FC)..(S,X)..(GEN,TH,VN);GUN135..(MDC,TDC)..(H,L,M,X)..(ARL,GEN,MA,PH,TH,VN);GUN122,KUN12#,TGN126,136..(PDC,TDC)..(H,M,S)..(GCC,GEN,IDN,LA,PKN,VN) |
1 | ||
| 69804 - REGULATOR SUB-ASSY, REAR DOOR WINDOW, LH | ||||
| 69804-0K110 |
TGN121..TDC..(M,S,X);GUN122..TDC..(ARL,TH);GUN135..(MDC,TDC)..6F..S;GUN125,KUN125..TDC..L..IDN;GUN126,KUN126..TDC..ATM..X;GUN125..RHD..TDC..6FC..(L,X);GUN125,126..(PDC,TDC)..(H,M,S);GGN12#,GUN120,123,136,KUN13#..TDC..(H,L,M,S);GUN135,TGN136..TDC..(5F,6FC)..(S,X)..(GEN,TH,VN);GUN135..(MDC,TDC)..(H,L,M,X)..(ARL,GEN,MA,PH,TH,VN);GUN122,KUN12#,TGN126,136..(PDC,TDC)..(H,M,S)..(GCC,GEN,IDN,LA,PKN,VN) |
1 | ||
| 69840-0K180 |
KUN126..L..GEN;TGN126..TDC..(L,X);GUN126..(PDC,TDC)..L;GUN125,TGN136..TDC..(5F,6FC)..(L,X)..(GCC,LA);GUN135,KUN126..(PDC,TDC)..6F..(L,X)..(LA,PKN);GUN122,125,126,KUN122,125,135,TGN120,121..TDC..MTM..(L,X)..(GCC,GEN,LA,PH) |
1 | ||
| 69804 - REGULATOR SUB-ASSY, REAR DOOR WINDOW, LH | ||||
| 69804-0K110 |
TGN121..TDC..(M,S,X);GUN122..TDC..(ARL,TH);GUN135..(MDC,TDC)..6F..S;GUN125,KUN125..TDC..L..IDN;GUN126,KUN126..TDC..ATM..X;GUN125..RHD..TDC..6FC..(L,X);GUN125,126..(PDC,TDC)..(H,M,S);GGN12#,GUN120,123,136,KUN13#..TDC..(H,L,M,S);GUN135,TGN136..TDC..(5F,6FC)..(S,X)..(GEN,TH,VN);GUN135..(MDC,TDC)..(H,L,M,X)..(ARL,GEN,MA,PH,TH,VN);GUN122,KUN12#,TGN126,136..(PDC,TDC)..(H,M,S)..(GCC,GEN,IDN,LA,PKN,VN) |
1 | ||
| 69840-0K180 |
KUN126..L..GEN;TGN126..TDC..(L,X);GUN126..(PDC,TDC)..L;GUN125,TGN136..TDC..(5F,6FC)..(L,X)..(GCC,LA);GUN135,KUN126..(PDC,TDC)..6F..(L,X)..(LA,PKN);GUN122,125,126,KUN122,125,135,TGN120,121..TDC..MTM..(L,X)..(GCC,GEN,LA,PH) |
1 | ||
| 69905B - CHANNEL SUB-ASSY, REAR DOOR GLASS, RH | ||||
| 69905-0K070 |
GUN135..TDC..6FC..S;GUN125..TDC..6FC..ARL;GUN135..(MDC,TDC)..6F..S;GUN135..(MDC,TDC)..(H,L,M,X);GUN125..TDC..(GCC,GEN,IDN,LA,PH,TH,VN);GGN12#,GUN120,122,123,126,136,KUN12#,13#,TGN120,121,126,136..PDC,TDC |
1 | ||
| 69906B - CHANNEL SUB-ASSY, REAR DOOR GLASS, LH | ||||
| 69906-0K070 |
GUN135..TDC..6FC..S;GUN125..TDC..6FC..ARL;GUN135..(MDC,TDC)..6F..S;GUN135..(MDC,TDC)..(H,L,M,X);GUN125..TDC..(GCC,GEN,IDN,LA,PH,TH,VN);GGN12#,GUN120,122,123,126,136,KUN12#,13#,TGN120,121,126,136..PDC,TDC |
1 | ||
| 69975A - FILLER, REAR DOOR GLASS CHANNEL | ||||
| 69975-0D130 |
GUN135..TDC..6FC..S;GUN125..TDC..6FC..ARL;GUN135..(MDC,TDC)..6F..S;GUN135..(MDC,TDC)..(H,L,M,X);GUN125..TDC..(GCC,GEN,IDN,LA,PH,TH,VN);GGN12#,GUN120,122,123,126,136,KUN12#,13#,TGN120,121,126,136..PDC,TDC |
2 | ||
| 85710F - MOTOR ASSY, POWER WINDOW REGULATOR, RH | ||||
| 85720-0K270 |
GUN126..6F..(PH,VN);GUN126..LHD..(SDC,TDC)..6FC..M..(LA,PH,SA);GGN125,135,GUN125,135,KUN125,126,TGN126,136..(SDC,TDC)..M..(LA,PH,SA,TH,VN) WIRELESS DOOR LOCK-WITH(*SES & ANSWER BACK & PANIC BUTTON) |
1 | ||
| 85720-0K180 |
GUN135..(SDC,TDC)..S;TGN136..TDC..(M,S)..LA;GUN125..(SDC,TDC)..(M,S);GUN125,KUN125..TDC..L..IDN;GUN126,KUN126..TDC..ATM..X;GUN125..RHD..TDC..6FC..(L,X);TGN136..(SDC,TDC)..(GEN,SA,TH);KUN126..(PDC,SDC,TDC)..(H,M,S)..(LA,PKN,SA);GGN125,GUN122,126,136..TDC..(L,S,X)..(ARL,TH);KUN126,TGN121..TDC..(M,S,X)..(ARL,GCC,GEN,TH,VN);GUN135..(MDC,TDC)..(L,M,X)..(ARL,GEN,MA,PH,TH,VN);GGN120,135,GUN120,123,KUN13#,LAN125..(SDC,TDC)..(L,M,S);GGN125,GUN122,126,136,KUN122,125,TGN126..(PDC,SDC,TDC)..(M,S)..(GCC,GEN,IDN,LA,PH,PKN,SA,VN) |
1 | ||
| 85720-0K270 |
GUN135..6FC..GEN;GUN136..RHD..TDC..(H,M);GUN135..6F..(H,S)..(GEN,MA);GUN125,126,KUN12#,135..TDC..H;GGN125,GUN126..TDC..M..(ARL,TAIW) |
1 | ||
| 85720G - MOTOR ASSY, POWER WINDOW REGULATOR, LH | ||||
| 85710-0K270 |
GUN126..6F..(PH,VN);GUN126..LHD..(SDC,TDC)..6FC..M..(LA,PH,SA);GGN125,135,GUN125,135,KUN125,126,TGN126,136..(SDC,TDC)..M..(LA,PH,SA,TH,VN) WIRELESS DOOR LOCK-WITH(*SES & ANSWER BACK & PANIC BUTTON) |
1 | ||
| 85710-0K180 |
GUN135..(SDC,TDC)..S;TGN136..TDC..(M,S)..LA;GUN125..(SDC,TDC)..(M,S);GUN125,KUN125..TDC..L..IDN;GUN126,KUN126..TDC..ATM..X;GUN125..RHD..TDC..6FC..(L,X);TGN136..(SDC,TDC)..(GEN,SA,TH);KUN126..(PDC,SDC,TDC)..(H,M,S)..(LA,PKN,SA);GGN125,GUN122,126,136..TDC..(L,S,X)..(ARL,TH);KUN126,TGN121..TDC..(M,S,X)..(ARL,GCC,GEN,TH,VN);GUN135..(MDC,TDC)..(L,M,X)..(ARL,GEN,MA,PH,TH,VN);GGN120,135,GUN120,123,KUN13#,LAN125..(SDC,TDC)..(L,M,S);GGN125,GUN122,126,136,KUN122,125,TGN126..(PDC,SDC,TDC)..(M,S)..(GCC,GEN,IDN,LA,PH,PKN,SA,VN) |
1 | ||
| 85710-0K270 |
GUN135..6FC..GEN;GUN136..RHD..TDC..(H,M);GUN135..6F..(H,S)..(GEN,MA);GUN125,126,KUN12#,135..TDC..H;GGN125,GUN126..TDC..M..(ARL,TAIW) |
1 | ||
| Common parts | ||||
| 90105-T0013 | ||||
| 90105-T0045 | ||||
| 90105-T0154 | ||||
| 90105-T0343 | ||||
| 90168-50040 | ||||
| Linked diagrams | ||||
| 6755 | ||||
(2006- )AD,KD,MD,MMD,PD,SD,TD
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| Common parts | ||||
| 90105-T0013 | ||||
| 90105-T0154 | ||||
| 90105-T0343 | ||||
| 90168-50040 | ||||
| Linked diagrams | ||||
| 6755 | ||||
(2006- )SX,TX
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| Common parts | ||||
| 90105-T0076 | ||||
| 90105-T0154 | ||||
