GUN126L-DTTXHF (2017)

Toyota Hilux

Production Aug 2017 - May 2020
Engine 1GDFTV
Transmission 6FC ATM
Displacement 2500cc
Power 168 HP (125 kW)

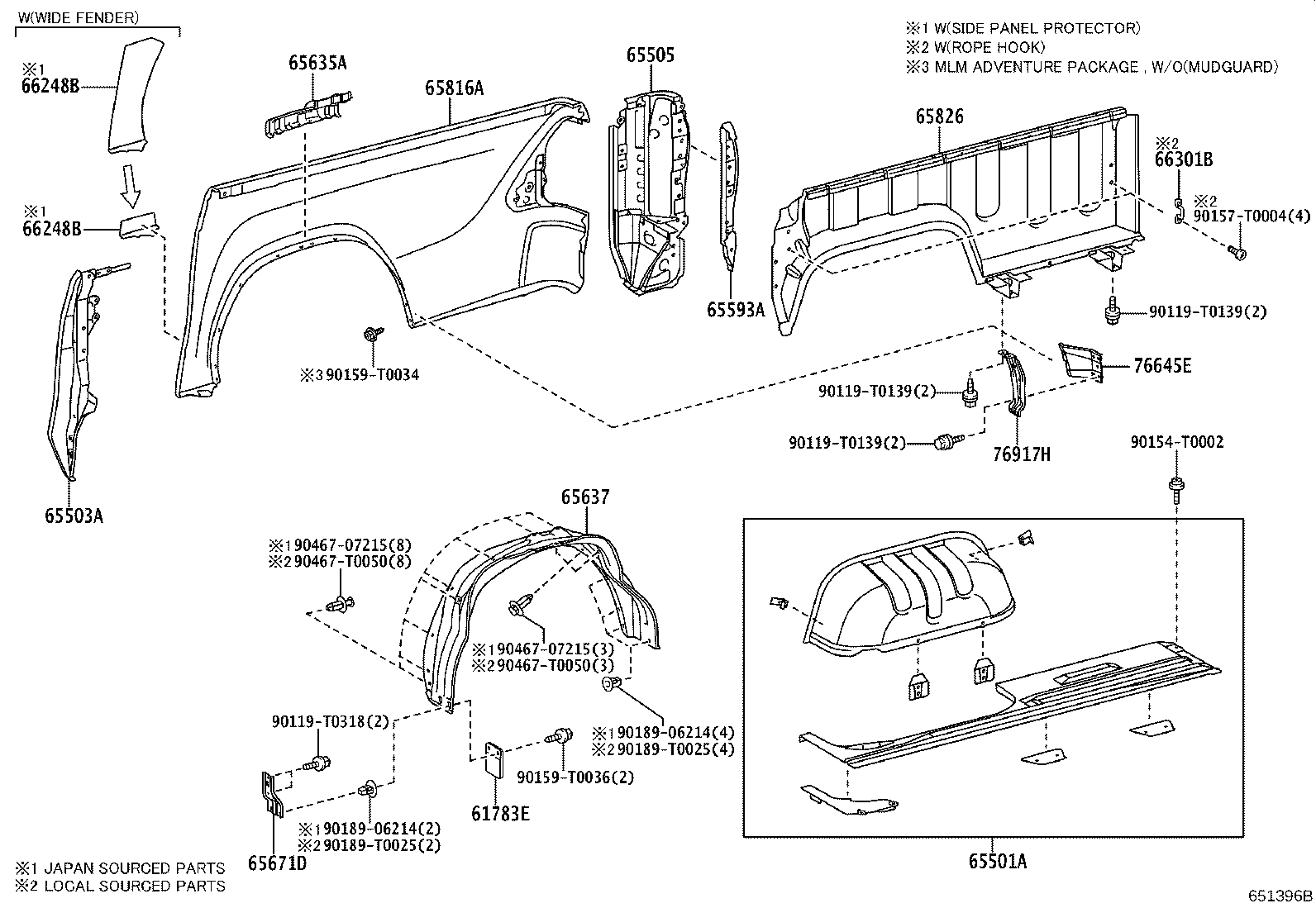

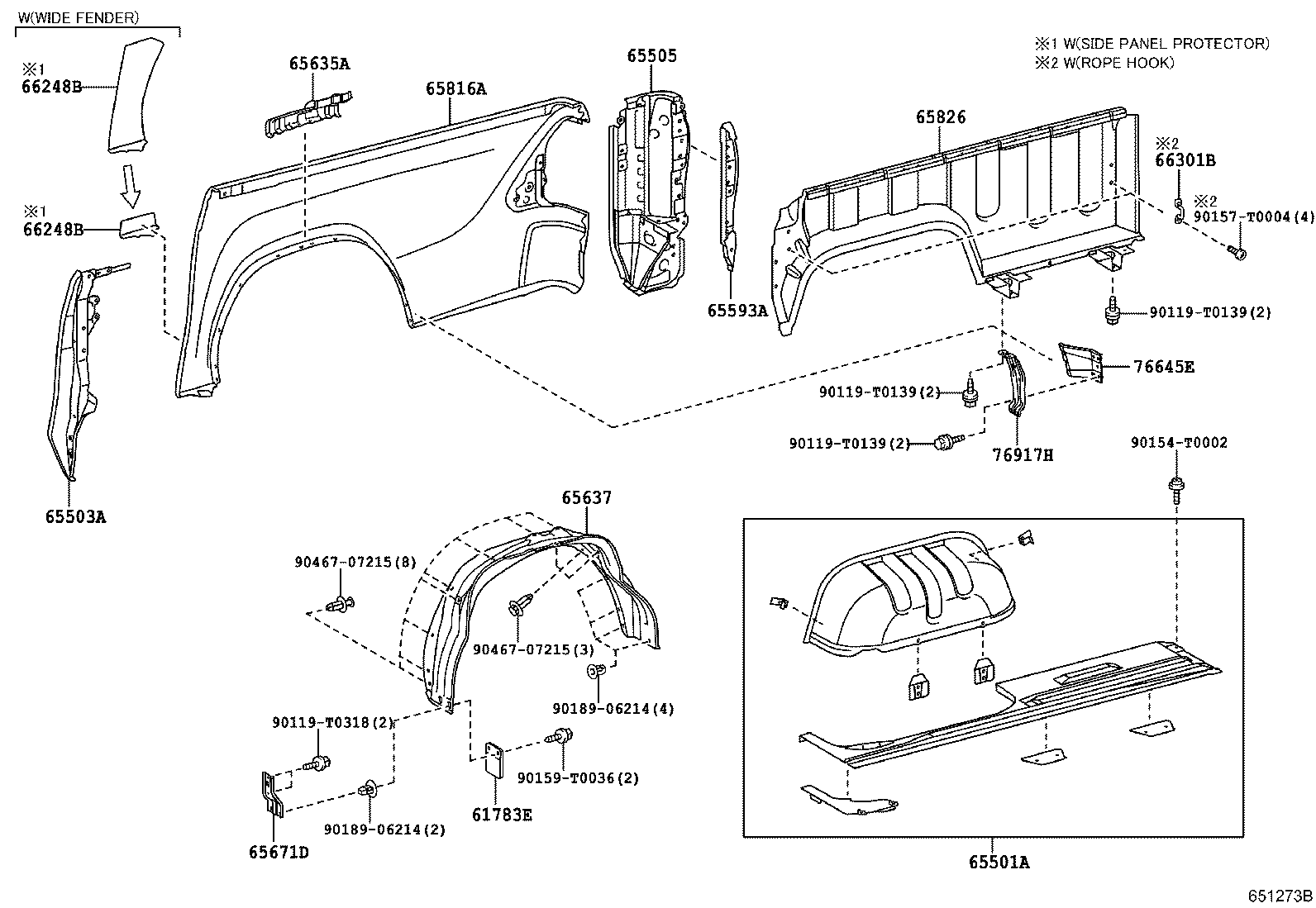

ILLUST NO. 1 OF 2(1505- )ADC,KDC,MDC,PDC,SDC,TDC,VDC..CBU

Click highlighted areas on diagram

W/O(TOP RAIL),RH

diagram 61783E 65501A 65503A 65505 65593A 65635A 65637 65671D 65816A 65826 66248B 66248B 66301B 76645E 76917H 90119T0139 90119T0139 90119T0139 90119T0318 90154T0002 90157T0004 90159T0036 9018906214 9018906214 9046707215 9046707215
Part # Description Qty Price
61783E - PAD, REAR WHEEL OPENING EXTENSION, NO.1
61783-0K160

GUN125..6FC..ARL..CBU;GUN135..(ADC,ASC,MDC,TDC,TSC,TXT)..CBU;GUN125..(BZAGT,GCC,GEN,IDN,LA,PH,TH,VN)..CBU;GGN12#,GUN112,120,122,123,126,136,KUN112,12#,13#,TGN11#,120,121,126,128,13#..(ADC,ASC,PDC,PSC,TDC,TSC,TXT)..CBU

 2
65501A - PANEL SUB-ASSY, REAR BODY SIDE, RH
65501-KK900

GUN125..6FC..ARL..CBU;GUN126..(ADC,PDC,SDC,TDC)..CBU;GUN125..(ADC,SDC,TDC)..(BZAGT,GCC,GEN,IDN,LA,PH,SA,TH,VN);GGN12#,135,GUN120,122,123,13#,KUN12#,13#,LAN125,TGN120,121,126,128,13#..ADC,MDC,PDC,SDC,TDC

 1
65503A - POST SUB-ASSY, SIDE PANEL FRONT END, RH
65503-KK010

GUN126,136..TDC..M..ARL;TGN121..(SDC,TDC)..(SA,TH);GGN125..(ADC,SDC,TDC)..(H,M);GUN122..(SDC,TDC)..5F..(GEN,PH,SA,TH);GUN135..(ADC,MDC,SDC,TDC)..(BZAGT,GEN,LA,MA,PH,SA,TH,VN);GGN135,GUN125,126,136,KUN12#,13#,LAN125,TGN126,128,13#..(ADC,PDC,SDC,TDC)..(BZAGT,GEN,IDN,LA,PH,PKN,SA,TAIW,TH,VN)

 1
65505 - POST SUB-ASSY, SIDE PANEL REAR END, RH
65505-KK010

TGN121..(L,S)..TH;GUN136..TDC..(H,M);GUN126..TDC..M..ARL;GGN125..(ADC,TDC)..(H,M);GUN126..TDC..(GEN,LA,PH,TAIW,TH,VN);GUN123,126,136..(ADC,PDC,SXT,TXT)..CBU;GUN135..(ADC,MDC,SXT,TDC,TXT)..(BZAGT,GEN,LA,MA,PH,SA,TH,VN);GUN120,122,125,KUN12#,13#,TGN126,128,13#..(ADC,PDC,SXT,TDC,TXT)..(BZAGT,GEN,IDN,LA,PH,PKN,SA,TH,VN)

EXCEPT PLANT TSAM

 1
65593A - PLATE, SIDE PANEL REAR END POST INSIDE, RH
65593-KK010

GUN136..TDC..(H,M);GUN126..TDC..M..ARL;GGN125..(ADC,SDC,TDC)..(H,M);TGN121..(SDC,TDC,TXT)..(SA,TH);GUN126..TDC..(GEN,LA,PH,TAIW,TH,VN);GUN122..(SDC,TDC,TXT)..5F..(GEN,PH,SA,TH);GUN135..(ADC,MDC,SDC,SXT,TDC,TXT)..(BZAGT,GEN,LA,MA,PH,SA,TH,VN);GGN135,GUN123,126,136,LAN125,TGN128,138..(ADC,PDC,SDC,SXT,TXT)..CBU;GUN125,KUN12#,13#,TGN126,136..(ADC,PDC,SDC,SXT,TDC,TXT)..(BZAGT,GEN,IDN,LA,PH,PKN,SA,TH,VN)

 1
65635A - PANEL, WHEEL HOUSE, REAR RH
65635-KK020

GUN125..TDC..L..GEN;GUN125..LHD..SSC..S;GUN135..(SDC,TDC)..(L,S)..(GEN,SA);GUN125,135,KUN135..(ADC,TDC)..X..LA;GUN125,TGN136..(SDC,TDC)..S..(GCC,SA);KUN125,LAN125,TGN126..LHD..(SDC,SSC)..S;GUN126,KUN125,126,TGN126,136..(ADC,TDC)..(L,X)..(GEN,LA)

TIRE & DISC WHEEL-265/65R17 STEEL

 1
65635-KK010

TGN136..SDC;GUN135..X..LA;GUN125..TSC..LA;TGN126..(L,X)..CBU;TGN136..ADC..X..LA;KUN135..(ADC,TDC)..X;GUN125..TDC..S..(GCC,PH);TGN136..(ASC,TDC,TSC)..X;KUN125..RHD..(SDC,SSC,TSC,TXT);GUN125..RHD..(SDC,SSC,TSC)..CBU;KUN125..LHD..(SDC,TSC,TXT)..(L,X);KUN125,TGN126..LHD..(SDC,SSC,TSC)..S;GUN126,KUN125..(ADC,ASC,TDC)..(L,X)..(DCR,HDCR);GUN135..(ASC,SDC,SSC,TDC)..(L,S,X)..(BZAGT,GEN,PH,SA)..CBU;GUN126,136,KUN135..(ASC,PDC,PSC,SDC,SSC,TSC)..(L,S,X)..CBU;GUN125..LHD..(ASC,SDC,SSC,TSC)..(L,S,X)..(BZAGT,GCC,SA)..CBU;GUN125,KUN126..(ADC,ASC,PDC,PSC,TDC)..(L,X)..(GCC,GEN,LA,PKN);GGN120,GUN112,122,123,KUN112,122,LAN125,TGN11#,120,121..(5F,6FC)..CBU

 1
65635-KK020

GUN136..H,M;GUN135..M..PH;GUN125..6F..M..(GCC,SA);GUN136..S..(ARL,BZAGT)..CBU;GUN126,TGN136..ADC..(L,X)..BZAGT;GUN126..(SSC,TDC)..6F..(H,M)..(SA,TH);GUN126,KUN125..(SDC,TDC,TXT)..M..(SA,TH,VN);GUN125,135..(ADC,TDC,TXT)..(H,M,S)..(GEN,LA);GUN125,TGN126..(5F,6FC)..(M,X)..(ARL,GCC)..CBU;KUN135,TGN126,136..(H,M,S)..(BZAGT,GEN,LA,TH,VN);GUN126..(ADC,PDC,SSC,SXT,TDC,TXT)..6FC..(H,M,S)..CBU;GUN125,TGN138..(ADC,SXT,TDC,TXT)..(BZAGT,IDN,SA,TH,VN);GUN135..(ADC,MDC,SXT,TDC,TXT)..(ARL,BZAGT,MA,SA,TH,VN);GGN125,135,KUN126,136,TGN128..(ADC,PDC,SDC,SSC,SXT,TDC)..(H,M,S);GUN126,KUN125..(ADC,PDC,SXT,TDC,TXT)..(5FC,6F)..(H,M,S)..(ARL,BZAGT,GCC,GEN,IDN,LA,PH,PKN,SA)..CBU

 1
65637 - LINER, REAR WHEEL HOUSE, RH
65637-0K080

GUN125..TDC..X..LA;GUN125..TDC..L..GEN;GUN125..TDC..S..GCC;KUN125,126,135..(ADC,TDC)..(L,X)..(GEN,LA);GUN126,135,TGN126,136..TDC..(L,X)..(GEN,LA)

TIRE & DISC WHEEL-265/65R17 STEEL

 1
65637-0K070

TGN126..TSC..S;KUN126,135..L,X;KUN125..RHD..(TSC,TXT);KUN125..(ADC,ASC,TDC)..(L,X);GUN125,135..TDC..S..(GCC,PH);KUN125..LHD..(TSC,TXT)..(L,X);GUN125..TDC..(L,X)..(GCC,GEN,LA);GUN125,126..TSC..(GCC,GEN,IDN,LA);GUN135..(TDC,TSC)..(L,X)..(GEN,LA);GUN126,TGN126,136..(PDC,PSC,TDC,TSC)..(L,X)..CBU;GGN120,GUN112,120,122,123,KUN112,122,TGN11#,120,121..(PSC,TDC,TSC,TXT)..CBU

 1
65637-0K080

GUN125..6F..M..GCC;GUN135..(H,M)..(GEN,PH);GUN135..(ARL,MA,TH,VN)..CBU;GUN125..(TDC,TXT)..(H,M,S)..GEN;GUN135,TGN126..TDC..(M,S)..(GEN,LA);GUN125..(TDC,TXT)..(L,M,S)..(IDN,LA,TH,VN);KUN125,126,13#..(ADC,PDC,TDC,TXT)..(H,M,S);GUN125,TGN126..(5F,6FC)..(M,X)..(ARL,GCC)..CBU;GGN125,GUN126,136,TGN136..(PDC,TDC,TXT)..(H,M,S)..CBU

 1
65671D - BRACE, SIDE PANEL SKIRT, FRONT RH
65671-KK010

GUN125..6FC..ARL..CBU;GUN126..(ADC,PDC,SDC,TDC)..CBU;GUN125..(ADC,SDC,TDC)..(BZAGT,GCC,GEN,IDN,LA,PH,SA,TH,VN);GGN12#,135,GUN120,122,123,13#,KUN12#,13#,LAN125,TGN120,121,126,128,13#..ADC,MDC,PDC,SDC,TDC

 1
65816A - PANEL, REAR BODY SIDE, RH
65816-KK010

GUN135..(ADC,TDC)..X..LA;TGN121..(SDC,TDC)..(SA,TH);GUN135..(SDC,TDC)..(L,S,X)..(GEN,PH,SA);GUN122,KUN122,LAN125..(SDC,TDC)..5F..(GEN,PH,SA,TH);KUN125,126..(ADC,PDC,SDC,TDC)..(L,X)..(GEN,IDN,LA,PKN,SA);GUN125,126,KUN135,TGN126,136..(ADC,SDC,TDC)..(L,X)..(GEN,LA,SA);GUN125,126,136,KUN125,135,TGN126,136..(PDC,SDC,TDC)..(L,S)..(PH,PKN,SA)

 1
65816-KK030

GUN125..TDC..L..GEN;KUN125..LHD..SDC..S;GUN125,LAN125,TGN126,136..SDC..S;GUN135..(SDC,TDC)..(L,S)..(GEN,SA);GUN125,135,KUN135..(ADC,TDC)..X..LA;GUN126,KUN125,126,TGN126,136..(ADC,TDC)..(L,X)..(GEN,LA)

TIRE & DISC WHEEL-265/65R17 STEEL

 1
65816-KK030

KUN125..M..SA;GGN135,KUN136,TGN128,138;GUN126,136..S..(BZAGT,GEN,LA);GUN126,TGN136..ADC..(L,X)..BZAGT;KUN126..(ADC,PDC,SDC,TDC)..(H,M,S);GUN125..(ADC,SDC,TDC)..6F..(L,M)..(BZAGT,IDN,SA);GGN125,GUN135..(H,M)..(ARL,BZAGT,GCC,GEN,LA,PH,SA);GUN135..(ADC,MDC,TDC)..(L,M,S)..(BZAGT,LA,MA,TH,VN);GUN125,KUN125,135,TGN126,136..(ADC,TDC)..(H,M,S)..(BZAGT,GEN,IDN,LA,TH,VN);GUN126,136..(ADC,PDC,SDC,TDC)..(H,M)..(ARL,BZAGT,GEN,LA,PH,PKN,SA,TAIW,TH,VN)

 1
65826 - PANEL, REAR BODY SIDE, INNER RH
65826-KK900

GUN126,136..TDC..M..ARL;TGN121..(SDC,TDC)..(SA,TH);GGN125,135..(ADC,SDC,TDC)..(H,M);GUN135..(ADC,MDC,SDC,TDC)..(BZAGT,GEN,LA,MA,PH,SA,TH,VN);GUN120,122,125,126,136,KUN12#,13#,LAN125,TGN126,128,13#..(ADC,PDC,SDC,TDC)..(BZAGT,GEN,IDN,LA,PH,PKN,SA,TAIW,TH,VN)

 1
66301B - HOOK SUB-ASSY, ROPE
66312-0K010

GUN136..TDC..(H,M);GUN126..TDC..M..ARL;GGN125..(SDC,TDC)..M;TGN121..(SDC,TDC,TXT)..(SA,TH);GUN126..TDC..(GEN,LA,PH,TAIW,TH,VN);GUN123,126,136..(PDC,SDC,SXT,TXT)..CBU;GUN135..(MDC,SDC,SXT,TDC,TXT)..(GEN,LA,MA,PH,SA,TH,VN);GGN135,GUN120,122,125,KUN12#,13#,LAN125,TGN126,136..(PDC,SDC,SXT,TDC,TXT)..(GEN,IDN,LA,PH,PKN,SA,TH,VN)

 4
76645E - BRACKET, RR BODY MUDGUARD, RH
76645-KK020

GUN125..TDC..L..GEN;GUN125..LHD..SSC..S;GUN135..(SDC,TDC)..(L,S)..(GEN,SA);GUN125,135,KUN135..(ADC,TDC)..X..LA;GUN125,TGN136..(SDC,TDC)..S..(GCC,SA);KUN125,LAN125,TGN126..LHD..(SDC,SSC)..S;GUN126,KUN125,126,TGN126,136..(ADC,TDC)..(L,X)..(GEN,LA)

TIRE & DISC WHEEL-265/65R17 STEEL

 1
76645-KK010

TGN136..SDC;GUN135..X..LA;GUN125..TSC..LA;TGN126..(L,X)..CBU;TGN136..ADC..X..LA;KUN135..(ADC,TDC)..X;GUN125..TDC..S..(GCC,PH);TGN136..(ASC,TDC,TSC)..X;KUN125..RHD..(SDC,SSC,TSC,TXT);GUN125..RHD..(SDC,SSC,TSC)..CBU;KUN125..LHD..(SDC,TSC,TXT)..(L,X);KUN125,TGN126..LHD..(SDC,SSC,TSC)..S;GUN126,KUN125..(ADC,ASC,TDC)..(L,X)..(DCR,HDCR);GUN135..(ASC,SDC,SSC,TDC)..(L,S,X)..(BZAGT,GEN,PH,SA)..CBU;GUN126,136,KUN135..(ASC,PDC,PSC,SDC,SSC,TSC)..(L,S,X)..CBU;GUN125..LHD..(ASC,SDC,SSC,TSC)..(L,S,X)..(BZAGT,GCC,SA)..CBU;GUN125,KUN126..(ADC,ASC,PDC,PSC,TDC)..(L,X)..(GCC,GEN,LA,PKN);GGN120,GUN112,122,123,KUN112,122,LAN125,TGN11#,120,121..(5F,6FC)..CBU

 1
76645-KK020

GUN136..H,M;GUN135..M..PH;GUN125..6F..M..(GCC,SA);GUN136..S..(ARL,BZAGT)..CBU;GUN126,TGN136..ADC..(L,X)..BZAGT;GUN126..(SSC,TDC)..6F..(H,M)..(SA,TH);GUN126,KUN125..(SDC,TDC,TXT)..M..(SA,TH,VN);GUN125,135..(ADC,TDC,TXT)..(H,M,S)..(GEN,LA);GUN125,TGN126..(5F,6FC)..(M,X)..(ARL,GCC)..CBU;KUN135,TGN126,136..(H,M,S)..(BZAGT,GEN,LA,TH,VN);GUN126..(ADC,PDC,SSC,SXT,TDC,TXT)..6FC..(H,M,S)..CBU;GUN125,TGN138..(ADC,SXT,TDC,TXT)..(BZAGT,IDN,SA,TH,VN);GUN135..(ADC,MDC,SXT,TDC,TXT)..(ARL,BZAGT,MA,SA,TH,VN);GGN125,135,KUN126,136,TGN128..(ADC,PDC,SDC,SSC,SXT,TDC)..(H,M,S);GUN126,KUN125..(ADC,PDC,SXT,TDC,TXT)..(5FC,6F)..(H,M,S)..(ARL,BZAGT,GCC,GEN,IDN,LA,PH,PKN,SA)..CBU

 1
76917H - MUDGUARD, SIDE, REAR RH
76607-KK010

GUN122..5F..CBU;GUN125..6FC..ARL..CBU;GGN12#,135,TGN136..ADC,ASC,SDC,TDC,TSC,TXT;GUN135..(ARL,BZAGT,GEN,LA,MA,PH,SA,TH,VN)..CBU;GUN125..(BZAGT,GCC,GEN,IDN,LA,PH,SA,TH,VN)..CBU;GUN112,123,126,136,KUN112,12#,13#,LAN125,TGN11#,120,121,126,128,138..(ADC,ASC,PDC,PSC,SDC,SSC,SXT,TDC,TSC,TXT)..CBU

 1
Common parts
90119-T0139
90119-T0318
90154-T0002
90157-T0004
90159-T0036
90189-06214
90467-07215

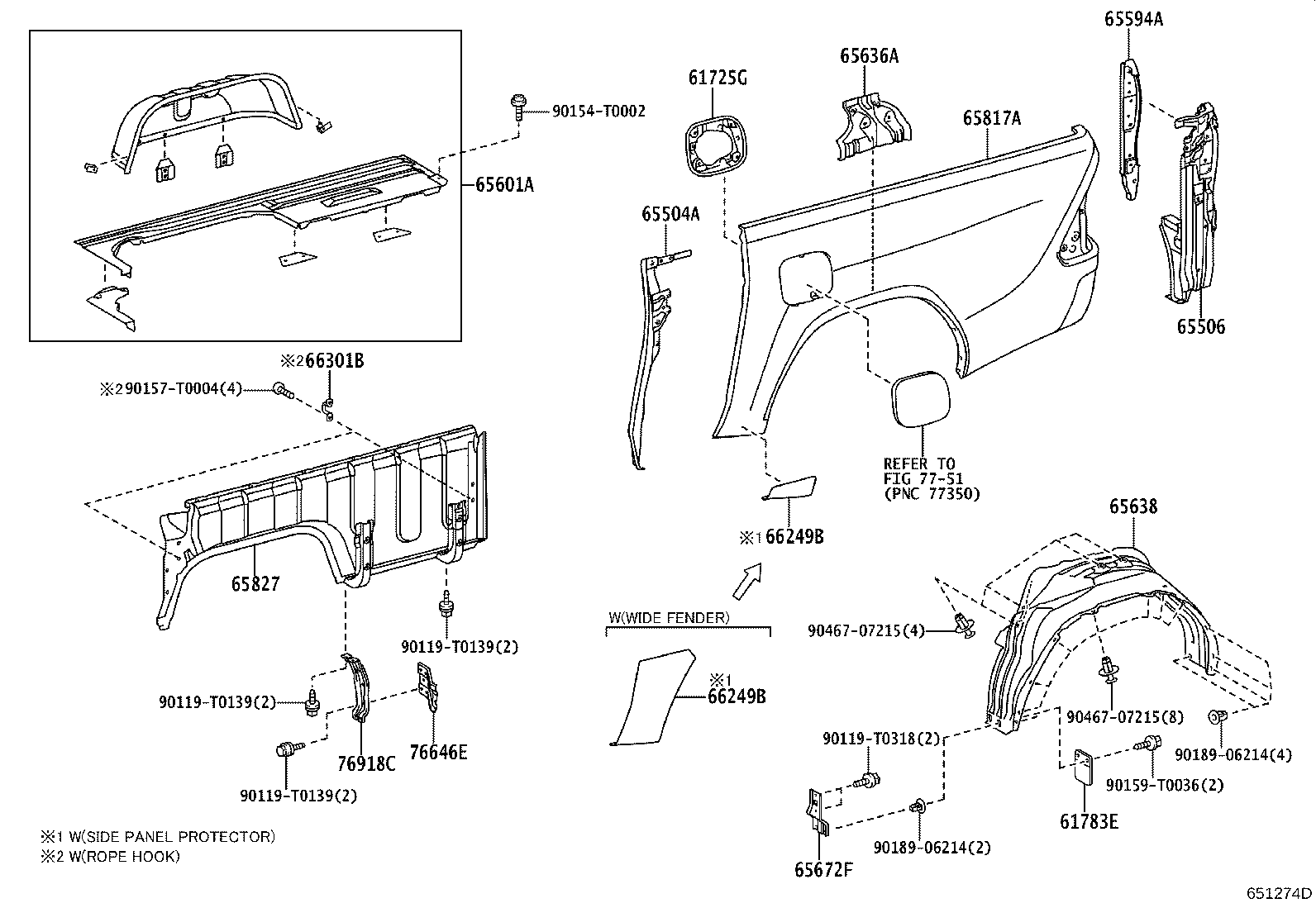

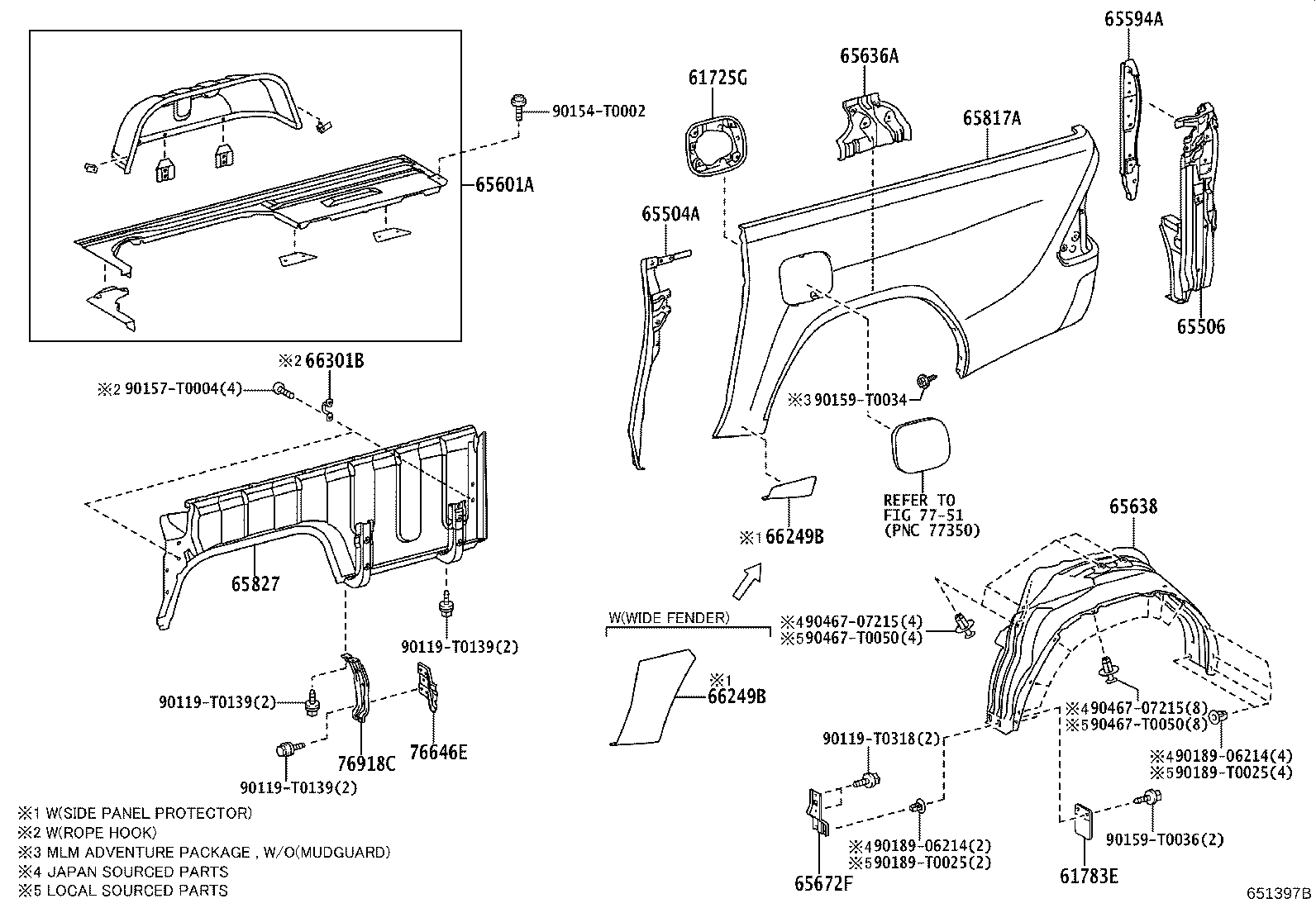

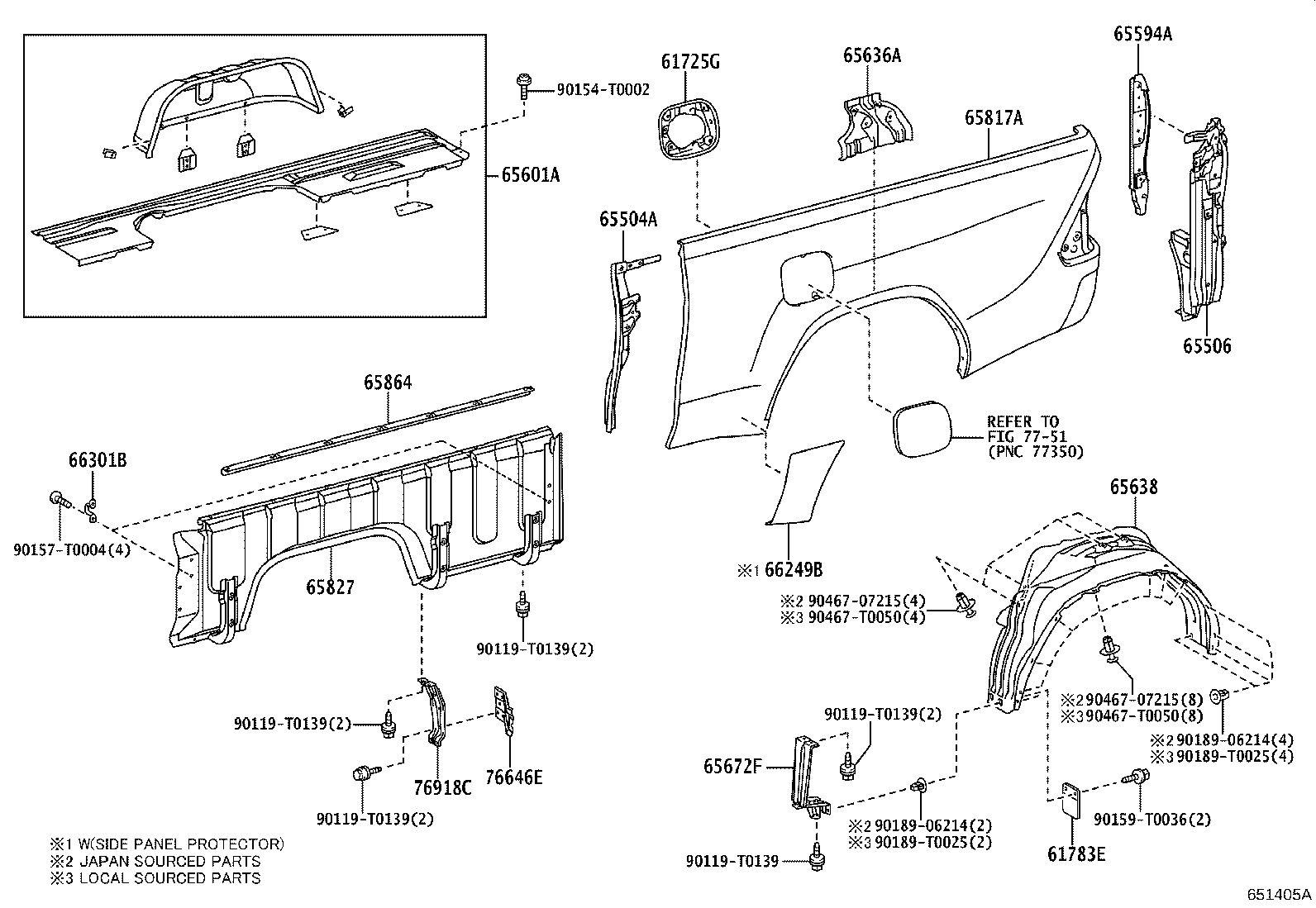

ILLUST NO. 2 OF 2(1505- )ADC,KDC,MDC,PDC,SDC,TDC,VDC..CBU

Click highlighted areas on diagram

W/O(TOP RAIL),LH

diagram 61725G 61783E 65504A 65506 65594A 65601A 65636A 65638 65672F 65817A 65827 66249B 66249B 66301B 76646E 76918C 7751 90119T0139 90119T0139 90119T0139 90119T0318 90154T0002 90157T0004 90159T0036 9018906214 9018906214 9046707215 9046707215
Part # Description Qty Price
61725G - BOX, FUEL INLET, NO.1
61725-KK020

GUN125..TDC..L..GEN;GUN125..LHD..SSC..S;GUN135..(SDC,TDC)..(L,S)..(GEN,SA);GUN125,135,KUN135..(ADC,TDC)..X..LA;GUN125,TGN136..(SDC,TDC)..S..(GCC,SA);KUN125,LAN125,TGN126..LHD..(SDC,SSC)..S;GUN126,KUN125,126,TGN126,136..(ADC,TDC)..(L,X)..(GEN,LA)

TIRE & DISC WHEEL-265/65R17 STEEL

 1
61725-KK020

GUN136..H,M;GUN135..M..PH;GUN125..6F..M..(GCC,SA);GUN136..S..(ARL,BZAGT)..CBU;GUN126,TGN136..ADC..(L,X)..BZAGT;GUN126..(SSC,TDC)..6F..(H,M)..(SA,TH);GUN126,KUN125..(SDC,TDC,TXT)..M..(SA,TH,VN);GUN125,135..(ADC,TDC,TXT)..(H,M,S)..(GEN,LA);GUN125,TGN126..(5F,6FC)..(M,X)..(ARL,GCC)..CBU;KUN135,TGN126,136..(H,M,S)..(BZAGT,GEN,LA,TH,VN);GUN126..(ADC,PDC,SSC,SXT,TDC,TXT)..6FC..(H,M,S)..CBU;GUN125,TGN138..(ADC,SXT,TDC,TXT)..(BZAGT,IDN,SA,TH,VN);GUN135..(ADC,MDC,SXT,TDC,TXT)..(ARL,BZAGT,MA,SA,TH,VN);GGN125,135,KUN126,136,TGN128..(ADC,PDC,SDC,SSC,SXT,TDC)..(H,M,S);GUN126,KUN125..(ADC,PDC,SXT,TDC,TXT)..(5FC,6F)..(H,M,S)..(ARL,BZAGT,GCC,GEN,IDN,LA,PH,PKN,SA)..CBU

 1
61725-KK010

TGN136..SDC;GUN135..X..LA;GUN125..TSC..LA;TGN126..(L,X)..CBU;TGN136..ADC..X..LA;KUN135..(ADC,TDC)..X;GUN125..TDC..S..(GCC,PH);TGN136..(ASC,TDC,TSC)..X;KUN125..RHD..(SDC,SSC,TSC,TXT);GUN125..RHD..(SDC,SSC,TSC)..CBU;KUN125..LHD..(SDC,TSC,TXT)..(L,X);KUN125,TGN126..LHD..(SDC,SSC,TSC)..S;GUN126,KUN125..(ADC,ASC,TDC)..(L,X)..(DCR,HDCR);GUN135..(ASC,SDC,SSC,TDC)..(L,S,X)..(BZAGT,GEN,PH,SA)..CBU;GUN126,136,KUN135..(ASC,PDC,PSC,SDC,SSC,TSC)..(L,S,X)..CBU;GUN125..LHD..(ASC,SDC,SSC,TSC)..(L,S,X)..(BZAGT,GCC,SA)..CBU;GUN125,KUN126..(ADC,ASC,PDC,PSC,TDC)..(L,X)..(GCC,GEN,LA,PKN);GGN120,GUN112,122,123,KUN112,122,LAN125,TGN11#,120,121..(5F,6FC)..CBU

 1
61783E - PAD, REAR WHEEL OPENING EXTENSION, NO.1
61783-0K160

GUN125..6FC..ARL..CBU;GUN135..(ADC,ASC,MDC,TDC,TSC,TXT)..CBU;GUN125..(BZAGT,GCC,GEN,IDN,LA,PH,TH,VN)..CBU;GGN12#,GUN112,120,122,123,126,136,KUN112,12#,13#,TGN11#,120,121,126,128,13#..(ADC,ASC,PDC,PSC,TDC,TSC,TXT)..CBU

 2
65504A - POST SUB-ASSY, SIDE PANEL FRONT END, LH
65504-KK010

GUN126,136..TDC..M..ARL;TGN121..(SDC,TDC)..(SA,TH);GGN125..(ADC,SDC,TDC)..(H,M);GUN122..(SDC,TDC)..5F..(GEN,PH,SA,TH);GUN135..(ADC,MDC,SDC,TDC)..(BZAGT,GEN,LA,MA,PH,SA,TH,VN);GGN135,GUN125,126,136,KUN12#,13#,LAN125,TGN126,128,13#..(ADC,PDC,SDC,TDC)..(BZAGT,GEN,IDN,LA,PH,PKN,SA,TAIW,TH,VN)

 1
65506 - POST SUB-ASSY, SIDE PANEL REAR END, LH
65506-KK010

TGN121..(L,S)..TH;GUN136..TDC..(H,M);GUN126..TDC..M..ARL;GGN125..(ADC,TDC)..(H,M);GUN126..TDC..(GEN,LA,PH,TAIW,TH,VN);GUN123,126,136..(ADC,PDC,SXT,TXT)..CBU;GUN135..(ADC,MDC,SXT,TDC,TXT)..(BZAGT,GEN,LA,MA,PH,SA,TH,VN);GUN120,122,125,KUN12#,13#,TGN126,128,13#..(ADC,PDC,SXT,TDC,TXT)..(BZAGT,GEN,IDN,LA,PH,PKN,SA,TH,VN)

EXCEPT PLANT TSAM

 1
65594A - PLATE, SIDE PANEL REAR END POST INSIDE, LH
65594-KK010

GUN136..TDC..(H,M);GUN126..TDC..M..ARL;GGN125..(ADC,SDC,TDC)..(H,M);TGN121..(SDC,TDC,TXT)..(SA,TH);GUN126..TDC..(GEN,LA,PH,TAIW,TH,VN);GUN122..(SDC,TDC,TXT)..5F..(GEN,PH,SA,TH);GUN135..(ADC,MDC,SDC,SXT,TDC,TXT)..(BZAGT,GEN,LA,MA,PH,SA,TH,VN);GGN135,GUN123,126,136,LAN125,TGN128,138..(ADC,PDC,SDC,SXT,TXT)..CBU;GUN125,KUN12#,13#,TGN126,136..(ADC,PDC,SDC,SXT,TDC,TXT)..(BZAGT,GEN,IDN,LA,PH,PKN,SA,TH,VN)

 1
65601A - PANEL SUB-ASSY, REAR BODY SIDE, LH
65601-KK900

GUN125..6FC..ARL..CBU;GUN126..(ADC,PDC,SDC,TDC)..CBU;GUN125..(ADC,SDC,TDC)..(BZAGT,GCC,GEN,IDN,LA,PH,SA,TH,VN);GGN12#,135,GUN120,122,123,13#,KUN12#,13#,LAN125,TGN120,121,126,128,13#..ADC,MDC,PDC,SDC,TDC

 1
65636A - PANEL, WHEEL HOUSE, REAR LH
65636-KK020

GUN125..TDC..L..GEN;GUN125..LHD..SSC..S;GUN135..(SDC,TDC)..(L,S)..(GEN,SA);GUN125,135,KUN135..(ADC,TDC)..X..LA;GUN125,TGN136..(SDC,TDC)..S..(GCC,SA);KUN125,LAN125,TGN126..LHD..(SDC,SSC)..S;GUN126,KUN125,126,TGN126,136..(ADC,TDC)..(L,X)..(GEN,LA)

TIRE & DISC WHEEL-265/65R17 STEEL

 1
65636-KK010

TGN136..SDC;GUN135..X..LA;GUN125..TSC..LA;TGN126..(L,X)..CBU;TGN136..ADC..X..LA;KUN135..(ADC,TDC)..X;GUN125..TDC..S..(GCC,PH);TGN136..(ASC,TDC,TSC)..X;KUN125..RHD..(SDC,SSC,TSC,TXT);GUN125..RHD..(SDC,SSC,TSC)..CBU;KUN125..LHD..(SDC,TSC,TXT)..(L,X);KUN125,TGN126..LHD..(SDC,SSC,TSC)..S;GUN126,KUN125..(ADC,ASC,TDC)..(L,X)..(DCR,HDCR);GUN135..(ASC,SDC,SSC,TDC)..(L,S,X)..(BZAGT,GEN,PH,SA)..CBU;GUN126,136,KUN135..(ASC,PDC,PSC,SDC,SSC,TSC)..(L,S,X)..CBU;GUN125..LHD..(ASC,SDC,SSC,TSC)..(L,S,X)..(BZAGT,GCC,SA)..CBU;GUN125,KUN126..(ADC,ASC,PDC,PSC,TDC)..(L,X)..(GCC,GEN,LA,PKN);GGN120,GUN112,122,123,KUN112,122,LAN125,TGN11#,120,121..(5F,6FC)..CBU

 1
65636-KK020

GUN136..H,M;GUN135..M..PH;GUN125..6F..M..(GCC,SA);GUN136..S..(ARL,BZAGT)..CBU;GUN126,TGN136..ADC..(L,X)..BZAGT;GUN126..(SSC,TDC)..6F..(H,M)..(SA,TH);GUN126,KUN125..(SDC,TDC,TXT)..M..(SA,TH,VN);GUN125,135..(ADC,TDC,TXT)..(H,M,S)..(GEN,LA);GUN125,TGN126..(5F,6FC)..(M,X)..(ARL,GCC)..CBU;KUN135,TGN126,136..(H,M,S)..(BZAGT,GEN,LA,TH,VN);GUN126..(ADC,PDC,SSC,SXT,TDC,TXT)..6FC..(H,M,S)..CBU;GUN125,TGN138..(ADC,SXT,TDC,TXT)..(BZAGT,IDN,SA,TH,VN);GUN135..(ADC,MDC,SXT,TDC,TXT)..(ARL,BZAGT,MA,SA,TH,VN);GGN125,135,KUN126,136,TGN128..(ADC,PDC,SDC,SSC,SXT,TDC)..(H,M,S);GUN126,KUN125..(ADC,PDC,SXT,TDC,TXT)..(5FC,6F)..(H,M,S)..(ARL,BZAGT,GCC,GEN,IDN,LA,PH,PKN,SA)..CBU

 1
65638 - LINER, REAR WHEEL HOUSE, LH
65638-0K080

GUN125..TDC..X..LA;GUN125..TDC..L..GEN;GUN125..TDC..S..GCC;KUN125,126,135..(ADC,TDC)..(L,X)..(GEN,LA);GUN126,135,TGN126,136..TDC..(L,X)..(GEN,LA)

TIRE & DISC WHEEL-265/65R17 STEEL

 1
65638-0K080

GUN125..6F..M..GCC;GUN135..(H,M)..(GEN,PH);GUN135..(ARL,MA,TH,VN)..CBU;GUN125..(TDC,TXT)..(H,M,S)..GEN;GUN135,TGN126..TDC..(M,S)..(GEN,LA);GUN125..(TDC,TXT)..(L,M,S)..(IDN,LA,TH,VN);KUN125,126,13#..(ADC,PDC,TDC,TXT)..(H,M,S);GUN125,TGN126..(5F,6FC)..(M,X)..(ARL,GCC)..CBU;GGN125,GUN126,136,TGN136..(PDC,TDC,TXT)..(H,M,S)..CBU

 1
65638-0K070

TGN126..TSC..S;KUN126,135..L,X;KUN125..RHD..(TSC,TXT);KUN125..(ADC,ASC,TDC)..(L,X);GUN125,135..TDC..S..(GCC,PH);KUN125..LHD..(TSC,TXT)..(L,X);GUN125..TDC..(L,X)..(GCC,GEN,LA);GUN125,126..TSC..(GCC,GEN,IDN,LA);GUN135..(TDC,TSC)..(L,X)..(GEN,LA);GUN126,TGN126,136..(PDC,PSC,TDC,TSC)..(L,X)..CBU;GGN120,GUN112,120,122,123,KUN112,122,TGN11#,120,121..(PSC,TDC,TSC,TXT)..CBU

 1
65672F - BRACE, SIDE PANEL SKIRT, FRONT LH
65672-KK010

GUN125..6FC..ARL..CBU;GUN126..(ADC,PDC,SDC,TDC)..CBU;GUN125..(ADC,SDC,TDC)..(BZAGT,GCC,GEN,IDN,LA,PH,SA,TH,VN);GGN12#,135,GUN120,122,123,13#,KUN12#,13#,LAN125,TGN120,121,126,128,13#..ADC,MDC,PDC,SDC,TDC

 1
65817A - PANEL, REAR BODY SIDE, LH
65817-KK030

GUN125..TDC..L..GEN;KUN125..LHD..SDC..S;GUN125,LAN125,TGN126,136..SDC..S;GUN135..(SDC,TDC)..(L,S)..(GEN,SA);GUN125,135,KUN135..(ADC,TDC)..X..LA;GUN126,KUN125,126,TGN126,136..(ADC,TDC)..(L,X)..(GEN,LA)

TIRE & DISC WHEEL-265/65R17 STEEL

 1
65817-KK030

KUN125..M..SA;GGN135,KUN136,TGN128,138;GUN126,136..S..(BZAGT,GEN,LA);GUN126,TGN136..ADC..(L,X)..BZAGT;KUN126..(ADC,PDC,SDC,TDC)..(H,M,S);GUN125..(ADC,SDC,TDC)..6F..(L,M)..(BZAGT,IDN,SA);GGN125,GUN135..(H,M)..(ARL,BZAGT,GCC,GEN,LA,PH,SA);GUN135..(ADC,MDC,TDC)..(L,M,S)..(BZAGT,LA,MA,TH,VN);GUN125,KUN125,135,TGN126,136..(ADC,TDC)..(H,M,S)..(BZAGT,GEN,IDN,LA,TH,VN);GUN126,136..(ADC,PDC,SDC,TDC)..(H,M)..(ARL,BZAGT,GEN,LA,PH,PKN,SA,TAIW,TH,VN)

 1
65817-KK010

GUN135..(ADC,TDC)..X..LA;TGN121..(SDC,TDC)..(SA,TH);GUN135..(SDC,TDC)..(L,S,X)..(GEN,PH,SA);GUN122,KUN122,LAN125..(SDC,TDC)..5F..(GEN,PH,SA,TH);KUN125,126..(ADC,PDC,SDC,TDC)..(L,X)..(GEN,IDN,LA,PKN,SA);GUN125,126,KUN135,TGN126,136..(ADC,SDC,TDC)..(L,X)..(GEN,LA,SA);GUN125,126,136,KUN125,135,TGN126,136..(PDC,SDC,TDC)..(L,S)..(PH,PKN,SA)

 1
65827 - PANEL, REAR BODY SIDE, INNER LH
65827-KK900

GUN126,136..TDC..M..ARL;TGN121..(SDC,TDC)..(SA,TH);GGN125,135..(ADC,SDC,TDC)..(H,M);GUN135..(ADC,MDC,SDC,TDC)..(BZAGT,GEN,LA,MA,PH,SA,TH,VN);GUN120,122,125,126,136,KUN12#,13#,LAN125,TGN126,128,13#..(ADC,PDC,SDC,TDC)..(BZAGT,GEN,IDN,LA,PH,PKN,SA,TAIW,TH,VN)

 1
66301B - HOOK SUB-ASSY, ROPE
66312-0K010

GUN136..TDC..(H,M);GUN126..TDC..M..ARL;GGN125..(SDC,TDC)..M;TGN121..(SDC,TDC,TXT)..(SA,TH);GUN126..TDC..(GEN,LA,PH,TAIW,TH,VN);GUN123,126,136..(PDC,SDC,SXT,TXT)..CBU;GUN135..(MDC,SDC,SXT,TDC,TXT)..(GEN,LA,MA,PH,SA,TH,VN);GGN135,GUN120,122,125,KUN12#,13#,LAN125,TGN126,136..(PDC,SDC,SXT,TDC,TXT)..(GEN,IDN,LA,PH,PKN,SA,TH,VN)

 4
76646E - BRACKET, RR BODY MUDGUARD, LH
76646-KK020

GUN125..TDC..L..GEN;GUN125..LHD..SSC..S;GUN135..(SDC,TDC)..(L,S)..(GEN,SA);GUN125,135,KUN135..(ADC,TDC)..X..LA;GUN125,TGN136..(SDC,TDC)..S..(GCC,SA);KUN125,LAN125,TGN126..LHD..(SDC,SSC)..S;GUN126,KUN125,126,TGN126,136..(ADC,TDC)..(L,X)..(GEN,LA)

TIRE & DISC WHEEL-265/65R17 STEEL

 1
76646-KK010

TGN136..SDC;GUN135..X..LA;GUN125..TSC..LA;TGN126..(L,X)..CBU;TGN136..ADC..X..LA;KUN135..(ADC,TDC)..X;GUN125..TDC..S..(GCC,PH);TGN136..(ASC,TDC,TSC)..X;KUN125..RHD..(SDC,SSC,TSC,TXT);GUN125..RHD..(SDC,SSC,TSC)..CBU;KUN125..LHD..(SDC,TSC,TXT)..(L,X);KUN125,TGN126..LHD..(SDC,SSC,TSC)..S;GUN126,KUN125..(ADC,ASC,TDC)..(L,X)..(DCR,HDCR);GUN135..(ASC,SDC,SSC,TDC)..(L,S,X)..(BZAGT,GEN,PH,SA)..CBU;GUN126,136,KUN135..(ASC,PDC,PSC,SDC,SSC,TSC)..(L,S,X)..CBU;GUN125..LHD..(ASC,SDC,SSC,TSC)..(L,S,X)..(BZAGT,GCC,SA)..CBU;GUN125,KUN126..(ADC,ASC,PDC,PSC,TDC)..(L,X)..(GCC,GEN,LA,PKN);GGN120,GUN112,122,123,KUN112,122,LAN125,TGN11#,120,121..(5F,6FC)..CBU

 1
76646-KK020

GUN136..H,M;GUN135..M..PH;GUN125..6F..M..(GCC,SA);GUN136..S..(ARL,BZAGT)..CBU;GUN126,TGN136..ADC..(L,X)..BZAGT;GUN126..(SSC,TDC)..6F..(H,M)..(SA,TH);GUN126,KUN125..(SDC,TDC,TXT)..M..(SA,TH,VN);GUN125,135..(ADC,TDC,TXT)..(H,M,S)..(GEN,LA);GUN125,TGN126..(5F,6FC)..(M,X)..(ARL,GCC)..CBU;KUN135,TGN126,136..(H,M,S)..(BZAGT,GEN,LA,TH,VN);GUN126..(ADC,PDC,SSC,SXT,TDC,TXT)..6FC..(H,M,S)..CBU;GUN125,TGN138..(ADC,SXT,TDC,TXT)..(BZAGT,IDN,SA,TH,VN);GUN135..(ADC,MDC,SXT,TDC,TXT)..(ARL,BZAGT,MA,SA,TH,VN);GGN125,135,KUN126,136,TGN128..(ADC,PDC,SDC,SSC,SXT,TDC)..(H,M,S);GUN126,KUN125..(ADC,PDC,SXT,TDC,TXT)..(5FC,6F)..(H,M,S)..(ARL,BZAGT,GCC,GEN,IDN,LA,PH,PKN,SA)..CBU

 1
76918C - MUDGUARD, SIDE, REAR LH
76607-KK010

GUN122..5F..CBU;GUN125..6FC..ARL..CBU;GGN12#,135,TGN136..ADC,ASC,SDC,TDC,TSC,TXT;GUN135..(ARL,BZAGT,GEN,LA,MA,PH,SA,TH,VN)..CBU;GUN125..(BZAGT,GCC,GEN,IDN,LA,PH,SA,TH,VN)..CBU;GUN112,123,126,136,KUN112,12#,13#,LAN125,TGN11#,120,121,126,128,138..(ADC,ASC,PDC,PSC,SDC,SSC,SXT,TDC,TSC,TXT)..CBU

 1
Common parts
90119-T0139
90119-T0318
90154-T0002
90157-T0004
90159-T0036
90189-06214
90467-07215
Linked diagrams
7751

ILLUST NO. 1 OF 2(1505- )ADC,KDC,MDC,PDC,SDC,TDC,VDC..CBU

Click highlighted areas on diagram

W(TOP RAIL),RH

diagram 61783E 65501A 65503A 65505 65593A 65621 65635A 65637 65671D 65816A 65826 65863 66153C 66248B 66248B 66324B 76645E 76917H 90119T0139 90119T0139 90119T0139 90119T0318 90119T0345 90119T0345 90148T0015 90154T0002 90159T0036 9018906214 9018906214 9046707215 9046707215
Part # Description Qty Price
61783E - PAD, REAR WHEEL OPENING EXTENSION, NO.1
61783-0K160

GUN125..6FC..ARL..CBU;GUN135..(ADC,ASC,MDC,TDC,TSC,TXT)..CBU;GUN125..(BZAGT,GCC,GEN,IDN,LA,PH,TH,VN)..CBU;GGN12#,GUN112,120,122,123,126,136,KUN112,12#,13#,TGN11#,120,121,126,128,13#..(ADC,ASC,PDC,PSC,TDC,TSC,TXT)..CBU

 2
65501A - PANEL SUB-ASSY, REAR BODY SIDE, RH
65501-KK900

GUN125..6FC..ARL..CBU;GUN126..(ADC,PDC,SDC,TDC)..CBU;GUN125..(ADC,SDC,TDC)..(BZAGT,GCC,GEN,IDN,LA,PH,SA,TH,VN);GGN12#,135,GUN120,122,123,13#,KUN12#,13#,LAN125,TGN120,121,126,128,13#..ADC,MDC,PDC,SDC,TDC

 1
65503A - POST SUB-ASSY, SIDE PANEL FRONT END, RH
65503-KK010

GUN126,136..TDC..M..ARL;TGN121..(SDC,TDC)..(SA,TH);GGN125..(ADC,SDC,TDC)..(H,M);GUN122..(SDC,TDC)..5F..(GEN,PH,SA,TH);GUN135..(ADC,MDC,SDC,TDC)..(BZAGT,GEN,LA,MA,PH,SA,TH,VN);GGN135,GUN125,126,136,KUN12#,13#,LAN125,TGN126,128,13#..(ADC,PDC,SDC,TDC)..(BZAGT,GEN,IDN,LA,PH,PKN,SA,TAIW,TH,VN)

 1
65505 - POST SUB-ASSY, SIDE PANEL REAR END, RH
65505-KK010

TGN121..(L,S)..TH;GUN136..TDC..(H,M);GUN126..TDC..M..ARL;GGN125..(ADC,TDC)..(H,M);GUN126..TDC..(GEN,LA,PH,TAIW,TH,VN);GUN123,126,136..(ADC,PDC,SXT,TXT)..CBU;GUN135..(ADC,MDC,SXT,TDC,TXT)..(BZAGT,GEN,LA,MA,PH,SA,TH,VN);GUN120,122,125,KUN12#,13#,TGN126,128,13#..(ADC,PDC,SXT,TDC,TXT)..(BZAGT,GEN,IDN,LA,PH,PKN,SA,TH,VN)

EXCEPT PLANT TSAM

 1
65593A - PLATE, SIDE PANEL REAR END POST INSIDE, RH
65593-KK010

GUN136..TDC..(H,M);GUN126..TDC..M..ARL;GGN125..(ADC,SDC,TDC)..(H,M);TGN121..(SDC,TDC,TXT)..(SA,TH);GUN126..TDC..(GEN,LA,PH,TAIW,TH,VN);GUN122..(SDC,TDC,TXT)..5F..(GEN,PH,SA,TH);GUN135..(ADC,MDC,SDC,SXT,TDC,TXT)..(BZAGT,GEN,LA,MA,PH,SA,TH,VN);GGN135,GUN123,126,136,LAN125,TGN128,138..(ADC,PDC,SDC,SXT,TXT)..CBU;GUN125,KUN12#,13#,TGN126,136..(ADC,PDC,SDC,SXT,TDC,TXT)..(BZAGT,GEN,IDN,LA,PH,PKN,SA,TH,VN)

 1
65635A - PANEL, WHEEL HOUSE, REAR RH
65635-KK020

GUN125..TDC..L..GEN;GUN125..LHD..SSC..S;GUN135..(SDC,TDC)..(L,S)..(GEN,SA);GUN125,135,KUN135..(ADC,TDC)..X..LA;GUN125,TGN136..(SDC,TDC)..S..(GCC,SA);KUN125,LAN125,TGN126..LHD..(SDC,SSC)..S;GUN126,KUN125,126,TGN126,136..(ADC,TDC)..(L,X)..(GEN,LA)

TIRE & DISC WHEEL-265/65R17 STEEL

 1
65635-KK010

TGN136..SDC;GUN135..X..LA;GUN125..TSC..LA;TGN126..(L,X)..CBU;TGN136..ADC..X..LA;KUN135..(ADC,TDC)..X;GUN125..TDC..S..(GCC,PH);TGN136..(ASC,TDC,TSC)..X;KUN125..RHD..(SDC,SSC,TSC,TXT);GUN125..RHD..(SDC,SSC,TSC)..CBU;KUN125..LHD..(SDC,TSC,TXT)..(L,X);KUN125,TGN126..LHD..(SDC,SSC,TSC)..S;GUN126,KUN125..(ADC,ASC,TDC)..(L,X)..(DCR,HDCR);GUN135..(ASC,SDC,SSC,TDC)..(L,S,X)..(BZAGT,GEN,PH,SA)..CBU;GUN126,136,KUN135..(ASC,PDC,PSC,SDC,SSC,TSC)..(L,S,X)..CBU;GUN125..LHD..(ASC,SDC,SSC,TSC)..(L,S,X)..(BZAGT,GCC,SA)..CBU;GUN125,KUN126..(ADC,ASC,PDC,PSC,TDC)..(L,X)..(GCC,GEN,LA,PKN);GGN120,GUN112,122,123,KUN112,122,LAN125,TGN11#,120,121..(5F,6FC)..CBU

 1
65635-KK020

GUN136..H,M;GUN135..M..PH;GUN125..6F..M..(GCC,SA);GUN136..S..(ARL,BZAGT)..CBU;GUN126,TGN136..ADC..(L,X)..BZAGT;GUN126..(SSC,TDC)..6F..(H,M)..(SA,TH);GUN126,KUN125..(SDC,TDC,TXT)..M..(SA,TH,VN);GUN125,135..(ADC,TDC,TXT)..(H,M,S)..(GEN,LA);GUN125,TGN126..(5F,6FC)..(M,X)..(ARL,GCC)..CBU;KUN135,TGN126,136..(H,M,S)..(BZAGT,GEN,LA,TH,VN);GUN126..(ADC,PDC,SSC,SXT,TDC,TXT)..6FC..(H,M,S)..CBU;GUN125,TGN138..(ADC,SXT,TDC,TXT)..(BZAGT,IDN,SA,TH,VN);GUN135..(ADC,MDC,SXT,TDC,TXT)..(ARL,BZAGT,MA,SA,TH,VN);GGN125,135,KUN126,136,TGN128..(ADC,PDC,SDC,SSC,SXT,TDC)..(H,M,S);GUN126,KUN125..(ADC,PDC,SXT,TDC,TXT)..(5FC,6F)..(H,M,S)..(ARL,BZAGT,GCC,GEN,IDN,LA,PH,PKN,SA)..CBU

 1
65637 - LINER, REAR WHEEL HOUSE, RH
65637-0K080

GUN125..TDC..X..LA;GUN125..TDC..L..GEN;GUN125..TDC..S..GCC;KUN125,126,135..(ADC,TDC)..(L,X)..(GEN,LA);GUN126,135,TGN126,136..TDC..(L,X)..(GEN,LA)

TIRE & DISC WHEEL-265/65R17 STEEL

 1
65637-0K070

TGN126..TSC..S;KUN126,135..L,X;KUN125..RHD..(TSC,TXT);KUN125..(ADC,ASC,TDC)..(L,X);GUN125,135..TDC..S..(GCC,PH);KUN125..LHD..(TSC,TXT)..(L,X);GUN125..TDC..(L,X)..(GCC,GEN,LA);GUN125,126..TSC..(GCC,GEN,IDN,LA);GUN135..(TDC,TSC)..(L,X)..(GEN,LA);GUN126,TGN126,136..(PDC,PSC,TDC,TSC)..(L,X)..CBU;GGN120,GUN112,120,122,123,KUN112,122,TGN11#,120,121..(PSC,TDC,TSC,TXT)..CBU

 1
65637-0K080

GUN125..6F..M..GCC;GUN135..(H,M)..(GEN,PH);GUN135..(ARL,MA,TH,VN)..CBU;GUN125..(TDC,TXT)..(H,M,S)..GEN;GUN135,TGN126..TDC..(M,S)..(GEN,LA);GUN125..(TDC,TXT)..(L,M,S)..(IDN,LA,TH,VN);KUN125,126,13#..(ADC,PDC,TDC,TXT)..(H,M,S);GUN125,TGN126..(5F,6FC)..(M,X)..(ARL,GCC)..CBU;GGN125,GUN126,136,TGN136..(PDC,TDC,TXT)..(H,M,S)..CBU

 1
65671D - BRACE, SIDE PANEL SKIRT, FRONT RH
65671-KK010

GUN125..6FC..ARL..CBU;GUN126..(ADC,PDC,SDC,TDC)..CBU;GUN125..(ADC,SDC,TDC)..(BZAGT,GCC,GEN,IDN,LA,PH,SA,TH,VN);GGN12#,135,GUN120,122,123,13#,KUN12#,13#,LAN125,TGN120,121,126,128,13#..ADC,MDC,PDC,SDC,TDC

 1
65816A - PANEL, REAR BODY SIDE, RH
65816-KK010

GUN135..(ADC,TDC)..X..LA;TGN121..(SDC,TDC)..(SA,TH);GUN135..(SDC,TDC)..(L,S,X)..(GEN,PH,SA);GUN122,KUN122,LAN125..(SDC,TDC)..5F..(GEN,PH,SA,TH);KUN125,126..(ADC,PDC,SDC,TDC)..(L,X)..(GEN,IDN,LA,PKN,SA);GUN125,126,KUN135,TGN126,136..(ADC,SDC,TDC)..(L,X)..(GEN,LA,SA);GUN125,126,136,KUN125,135,TGN126,136..(PDC,SDC,TDC)..(L,S)..(PH,PKN,SA)

 1
65816-KK030

GUN125..TDC..L..GEN;KUN125..LHD..SDC..S;GUN125,LAN125,TGN126,136..SDC..S;GUN135..(SDC,TDC)..(L,S)..(GEN,SA);GUN125,135,KUN135..(ADC,TDC)..X..LA;GUN126,KUN125,126,TGN126,136..(ADC,TDC)..(L,X)..(GEN,LA)

TIRE & DISC WHEEL-265/65R17 STEEL

 1
65816-KK030

KUN125..M..SA;GGN135,KUN136,TGN128,138;GUN126,136..S..(BZAGT,GEN,LA);GUN126,TGN136..ADC..(L,X)..BZAGT;KUN126..(ADC,PDC,SDC,TDC)..(H,M,S);GUN125..(ADC,SDC,TDC)..6F..(L,M)..(BZAGT,IDN,SA);GGN125,GUN135..(H,M)..(ARL,BZAGT,GCC,GEN,LA,PH,SA);GUN135..(ADC,MDC,TDC)..(L,M,S)..(BZAGT,LA,MA,TH,VN);GUN125,KUN125,135,TGN126,136..(ADC,TDC)..(H,M,S)..(BZAGT,GEN,IDN,LA,TH,VN);GUN126,136..(ADC,PDC,SDC,TDC)..(H,M)..(ARL,BZAGT,GEN,LA,PH,PKN,SA,TAIW,TH,VN)

 1
65826 - PANEL, REAR BODY SIDE, INNER RH
65826-KK900

GUN126,136..TDC..M..ARL;TGN121..(SDC,TDC)..(SA,TH);GGN125,135..(ADC,SDC,TDC)..(H,M);GUN135..(ADC,MDC,SDC,TDC)..(BZAGT,GEN,LA,MA,PH,SA,TH,VN);GUN120,122,125,126,136,KUN12#,13#,LAN125,TGN126,128,13#..(ADC,PDC,SDC,TDC)..(BZAGT,GEN,IDN,LA,PH,PKN,SA,TAIW,TH,VN)

 1
76645E - BRACKET, RR BODY MUDGUARD, RH
76645-KK020

GUN125..TDC..L..GEN;GUN125..LHD..SSC..S;GUN135..(SDC,TDC)..(L,S)..(GEN,SA);GUN125,135,KUN135..(ADC,TDC)..X..LA;GUN125,TGN136..(SDC,TDC)..S..(GCC,SA);KUN125,LAN125,TGN126..LHD..(SDC,SSC)..S;GUN126,KUN125,126,TGN126,136..(ADC,TDC)..(L,X)..(GEN,LA)

TIRE & DISC WHEEL-265/65R17 STEEL

 1
76645-KK010

TGN136..SDC;GUN135..X..LA;GUN125..TSC..LA;TGN126..(L,X)..CBU;TGN136..ADC..X..LA;KUN135..(ADC,TDC)..X;GUN125..TDC..S..(GCC,PH);TGN136..(ASC,TDC,TSC)..X;KUN125..RHD..(SDC,SSC,TSC,TXT);GUN125..RHD..(SDC,SSC,TSC)..CBU;KUN125..LHD..(SDC,TSC,TXT)..(L,X);KUN125,TGN126..LHD..(SDC,SSC,TSC)..S;GUN126,KUN125..(ADC,ASC,TDC)..(L,X)..(DCR,HDCR);GUN135..(ASC,SDC,SSC,TDC)..(L,S,X)..(BZAGT,GEN,PH,SA)..CBU;GUN126,136,KUN135..(ASC,PDC,PSC,SDC,SSC,TSC)..(L,S,X)..CBU;GUN125..LHD..(ASC,SDC,SSC,TSC)..(L,S,X)..(BZAGT,GCC,SA)..CBU;GUN125,KUN126..(ADC,ASC,PDC,PSC,TDC)..(L,X)..(GCC,GEN,LA,PKN);GGN120,GUN112,122,123,KUN112,122,LAN125,TGN11#,120,121..(5F,6FC)..CBU

 1
76645-KK020

GUN136..H,M;GUN135..M..PH;GUN125..6F..M..(GCC,SA);GUN136..S..(ARL,BZAGT)..CBU;GUN126,TGN136..ADC..(L,X)..BZAGT;GUN126..(SSC,TDC)..6F..(H,M)..(SA,TH);GUN126,KUN125..(SDC,TDC,TXT)..M..(SA,TH,VN);GUN125,135..(ADC,TDC,TXT)..(H,M,S)..(GEN,LA);GUN125,TGN126..(5F,6FC)..(M,X)..(ARL,GCC)..CBU;KUN135,TGN126,136..(H,M,S)..(BZAGT,GEN,LA,TH,VN);GUN126..(ADC,PDC,SSC,SXT,TDC,TXT)..6FC..(H,M,S)..CBU;GUN125,TGN138..(ADC,SXT,TDC,TXT)..(BZAGT,IDN,SA,TH,VN);GUN135..(ADC,MDC,SXT,TDC,TXT)..(ARL,BZAGT,MA,SA,TH,VN);GGN125,135,KUN126,136,TGN128..(ADC,PDC,SDC,SSC,SXT,TDC)..(H,M,S);GUN126,KUN125..(ADC,PDC,SXT,TDC,TXT)..(5FC,6F)..(H,M,S)..(ARL,BZAGT,GCC,GEN,IDN,LA,PH,PKN,SA)..CBU

 1
76917H - MUDGUARD, SIDE, REAR RH
76607-KK010

GUN122..5F..CBU;GUN125..6FC..ARL..CBU;GGN12#,135,TGN136..ADC,ASC,SDC,TDC,TSC,TXT;GUN135..(ARL,BZAGT,GEN,LA,MA,PH,SA,TH,VN)..CBU;GUN125..(BZAGT,GCC,GEN,IDN,LA,PH,SA,TH,VN)..CBU;GUN112,123,126,136,KUN112,12#,13#,LAN125,TGN11#,120,121,126,128,138..(ADC,ASC,PDC,PSC,SDC,SSC,SXT,TDC,TSC,TXT)..CBU

 1
Common parts
90119-T0139
90119-T0318
90119-T0345
90148-T0015
90154-T0002
90159-T0036
90189-06214
90467-07215

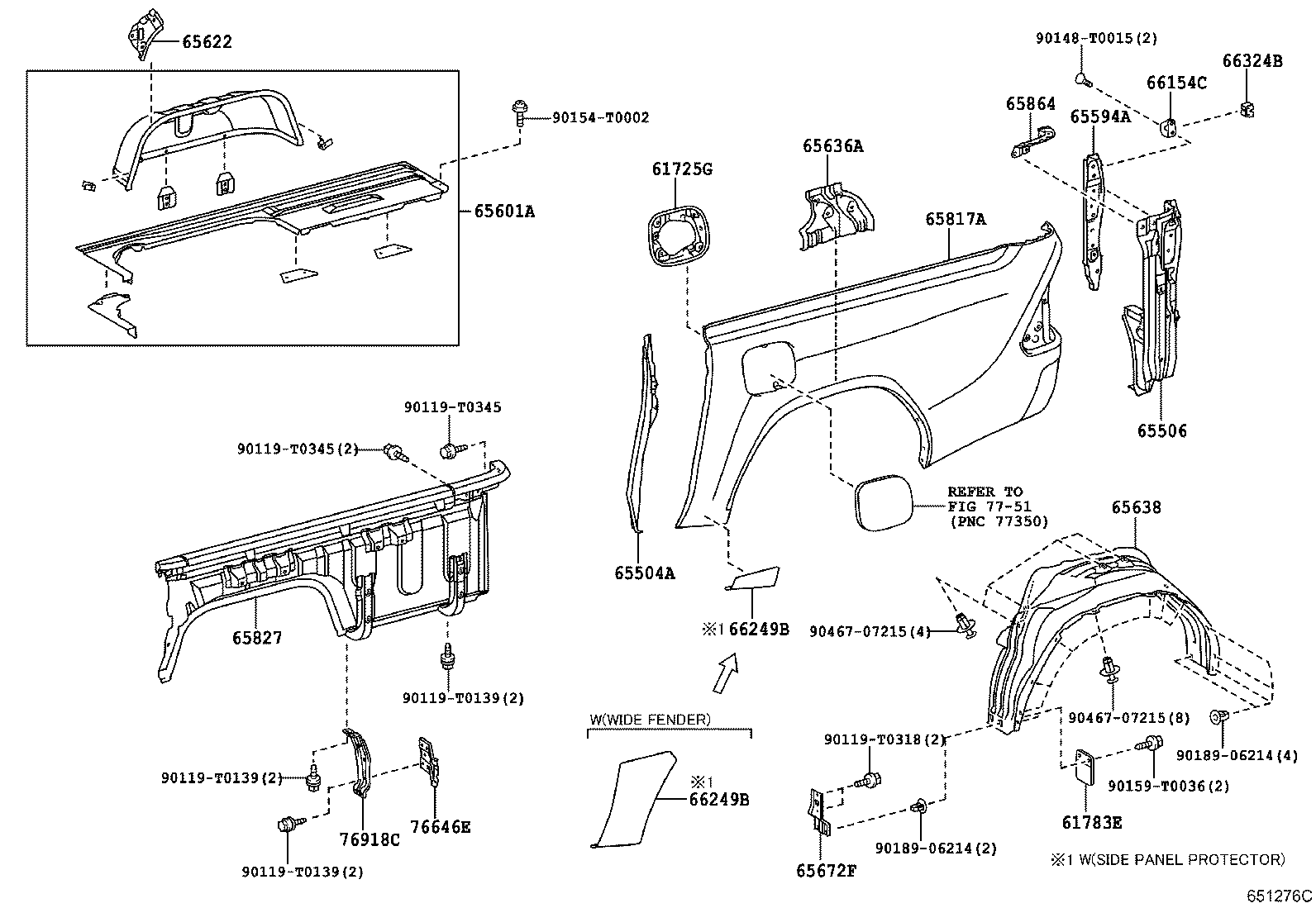

ILLUST NO. 2 OF 2(1505- )ADC,KDC,MDC,PDC,SDC,TDC,VDC..CBU

Click highlighted areas on diagram

W(TOP RAIL),LH

diagram 61725G 61783E 65504A 65506 65594A 65601A 65622 65636A 65638 65672F 65817A 65827 65864 66154C 66249B 66249B 66324B 76646E 76918C 7751 90119T0139 90119T0139 90119T0139 90119T0318 90119T0345 90119T0345 90148T0015 90154T0002 90159T0036 9018906214 9018906214 9046707215 9046707215
Part # Description Qty Price
61725G - BOX, FUEL INLET, NO.1
61725-KK020

GUN125..TDC..L..GEN;GUN125..LHD..SSC..S;GUN135..(SDC,TDC)..(L,S)..(GEN,SA);GUN125,135,KUN135..(ADC,TDC)..X..LA;GUN125,TGN136..(SDC,TDC)..S..(GCC,SA);KUN125,LAN125,TGN126..LHD..(SDC,SSC)..S;GUN126,KUN125,126,TGN126,136..(ADC,TDC)..(L,X)..(GEN,LA)

TIRE & DISC WHEEL-265/65R17 STEEL

 1
61725-KK020

GUN136..H,M;GUN135..M..PH;GUN125..6F..M..(GCC,SA);GUN136..S..(ARL,BZAGT)..CBU;GUN126,TGN136..ADC..(L,X)..BZAGT;GUN126..(SSC,TDC)..6F..(H,M)..(SA,TH);GUN126,KUN125..(SDC,TDC,TXT)..M..(SA,TH,VN);GUN125,135..(ADC,TDC,TXT)..(H,M,S)..(GEN,LA);GUN125,TGN126..(5F,6FC)..(M,X)..(ARL,GCC)..CBU;KUN135,TGN126,136..(H,M,S)..(BZAGT,GEN,LA,TH,VN);GUN126..(ADC,PDC,SSC,SXT,TDC,TXT)..6FC..(H,M,S)..CBU;GUN125,TGN138..(ADC,SXT,TDC,TXT)..(BZAGT,IDN,SA,TH,VN);GUN135..(ADC,MDC,SXT,TDC,TXT)..(ARL,BZAGT,MA,SA,TH,VN);GGN125,135,KUN126,136,TGN128..(ADC,PDC,SDC,SSC,SXT,TDC)..(H,M,S);GUN126,KUN125..(ADC,PDC,SXT,TDC,TXT)..(5FC,6F)..(H,M,S)..(ARL,BZAGT,GCC,GEN,IDN,LA,PH,PKN,SA)..CBU

 1
61725-KK010

TGN136..SDC;GUN135..X..LA;GUN125..TSC..LA;TGN126..(L,X)..CBU;TGN136..ADC..X..LA;KUN135..(ADC,TDC)..X;GUN125..TDC..S..(GCC,PH);TGN136..(ASC,TDC,TSC)..X;KUN125..RHD..(SDC,SSC,TSC,TXT);GUN125..RHD..(SDC,SSC,TSC)..CBU;KUN125..LHD..(SDC,TSC,TXT)..(L,X);KUN125,TGN126..LHD..(SDC,SSC,TSC)..S;GUN126,KUN125..(ADC,ASC,TDC)..(L,X)..(DCR,HDCR);GUN135..(ASC,SDC,SSC,TDC)..(L,S,X)..(BZAGT,GEN,PH,SA)..CBU;GUN126,136,KUN135..(ASC,PDC,PSC,SDC,SSC,TSC)..(L,S,X)..CBU;GUN125..LHD..(ASC,SDC,SSC,TSC)..(L,S,X)..(BZAGT,GCC,SA)..CBU;GUN125,KUN126..(ADC,ASC,PDC,PSC,TDC)..(L,X)..(GCC,GEN,LA,PKN);GGN120,GUN112,122,123,KUN112,122,LAN125,TGN11#,120,121..(5F,6FC)..CBU

 1
61783E - PAD, REAR WHEEL OPENING EXTENSION, NO.1
61783-0K160

GUN125..6FC..ARL..CBU;GUN135..(ADC,ASC,MDC,TDC,TSC,TXT)..CBU;GUN125..(BZAGT,GCC,GEN,IDN,LA,PH,TH,VN)..CBU;GGN12#,GUN112,120,122,123,126,136,KUN112,12#,13#,TGN11#,120,121,126,128,13#..(ADC,ASC,PDC,PSC,TDC,TSC,TXT)..CBU

 2
65504A - POST SUB-ASSY, SIDE PANEL FRONT END, LH
65504-KK010

GUN126,136..TDC..M..ARL;TGN121..(SDC,TDC)..(SA,TH);GGN125..(ADC,SDC,TDC)..(H,M);GUN122..(SDC,TDC)..5F..(GEN,PH,SA,TH);GUN135..(ADC,MDC,SDC,TDC)..(BZAGT,GEN,LA,MA,PH,SA,TH,VN);GGN135,GUN125,126,136,KUN12#,13#,LAN125,TGN126,128,13#..(ADC,PDC,SDC,TDC)..(BZAGT,GEN,IDN,LA,PH,PKN,SA,TAIW,TH,VN)

 1
65506 - POST SUB-ASSY, SIDE PANEL REAR END, LH
65506-KK010

TGN121..(L,S)..TH;GUN136..TDC..(H,M);GUN126..TDC..M..ARL;GGN125..(ADC,TDC)..(H,M);GUN126..TDC..(GEN,LA,PH,TAIW,TH,VN);GUN123,126,136..(ADC,PDC,SXT,TXT)..CBU;GUN135..(ADC,MDC,SXT,TDC,TXT)..(BZAGT,GEN,LA,MA,PH,SA,TH,VN);GUN120,122,125,KUN12#,13#,TGN126,128,13#..(ADC,PDC,SXT,TDC,TXT)..(BZAGT,GEN,IDN,LA,PH,PKN,SA,TH,VN)

EXCEPT PLANT TSAM

 1
65594A - PLATE, SIDE PANEL REAR END POST INSIDE, LH
65594-KK010

GUN136..TDC..(H,M);GUN126..TDC..M..ARL;GGN125..(ADC,SDC,TDC)..(H,M);TGN121..(SDC,TDC,TXT)..(SA,TH);GUN126..TDC..(GEN,LA,PH,TAIW,TH,VN);GUN122..(SDC,TDC,TXT)..5F..(GEN,PH,SA,TH);GUN135..(ADC,MDC,SDC,SXT,TDC,TXT)..(BZAGT,GEN,LA,MA,PH,SA,TH,VN);GGN135,GUN123,126,136,LAN125,TGN128,138..(ADC,PDC,SDC,SXT,TXT)..CBU;GUN125,KUN12#,13#,TGN126,136..(ADC,PDC,SDC,SXT,TDC,TXT)..(BZAGT,GEN,IDN,LA,PH,PKN,SA,TH,VN)

 1
65601A - PANEL SUB-ASSY, REAR BODY SIDE, LH
65601-KK900

GUN125..6FC..ARL..CBU;GUN126..(ADC,PDC,SDC,TDC)..CBU;GUN125..(ADC,SDC,TDC)..(BZAGT,GCC,GEN,IDN,LA,PH,SA,TH,VN);GGN12#,135,GUN120,122,123,13#,KUN12#,13#,LAN125,TGN120,121,126,128,13#..ADC,MDC,PDC,SDC,TDC

 1
65636A - PANEL, WHEEL HOUSE, REAR LH
65636-KK020

GUN125..TDC..L..GEN;GUN125..LHD..SSC..S;GUN135..(SDC,TDC)..(L,S)..(GEN,SA);GUN125,135,KUN135..(ADC,TDC)..X..LA;GUN125,TGN136..(SDC,TDC)..S..(GCC,SA);KUN125,LAN125,TGN126..LHD..(SDC,SSC)..S;GUN126,KUN125,126,TGN126,136..(ADC,TDC)..(L,X)..(GEN,LA)

TIRE & DISC WHEEL-265/65R17 STEEL

 1
65636-KK010

TGN136..SDC;GUN135..X..LA;GUN125..TSC..LA;TGN126..(L,X)..CBU;TGN136..ADC..X..LA;KUN135..(ADC,TDC)..X;GUN125..TDC..S..(GCC,PH);TGN136..(ASC,TDC,TSC)..X;KUN125..RHD..(SDC,SSC,TSC,TXT);GUN125..RHD..(SDC,SSC,TSC)..CBU;KUN125..LHD..(SDC,TSC,TXT)..(L,X);KUN125,TGN126..LHD..(SDC,SSC,TSC)..S;GUN126,KUN125..(ADC,ASC,TDC)..(L,X)..(DCR,HDCR);GUN135..(ASC,SDC,SSC,TDC)..(L,S,X)..(BZAGT,GEN,PH,SA)..CBU;GUN126,136,KUN135..(ASC,PDC,PSC,SDC,SSC,TSC)..(L,S,X)..CBU;GUN125..LHD..(ASC,SDC,SSC,TSC)..(L,S,X)..(BZAGT,GCC,SA)..CBU;GUN125,KUN126..(ADC,ASC,PDC,PSC,TDC)..(L,X)..(GCC,GEN,LA,PKN);GGN120,GUN112,122,123,KUN112,122,LAN125,TGN11#,120,121..(5F,6FC)..CBU

 1
65636-KK020

GUN136..H,M;GUN135..M..PH;GUN125..6F..M..(GCC,SA);GUN136..S..(ARL,BZAGT)..CBU;GUN126,TGN136..ADC..(L,X)..BZAGT;GUN126..(SSC,TDC)..6F..(H,M)..(SA,TH);GUN126,KUN125..(SDC,TDC,TXT)..M..(SA,TH,VN);GUN125,135..(ADC,TDC,TXT)..(H,M,S)..(GEN,LA);GUN125,TGN126..(5F,6FC)..(M,X)..(ARL,GCC)..CBU;KUN135,TGN126,136..(H,M,S)..(BZAGT,GEN,LA,TH,VN);GUN126..(ADC,PDC,SSC,SXT,TDC,TXT)..6FC..(H,M,S)..CBU;GUN125,TGN138..(ADC,SXT,TDC,TXT)..(BZAGT,IDN,SA,TH,VN);GUN135..(ADC,MDC,SXT,TDC,TXT)..(ARL,BZAGT,MA,SA,TH,VN);GGN125,135,KUN126,136,TGN128..(ADC,PDC,SDC,SSC,SXT,TDC)..(H,M,S);GUN126,KUN125..(ADC,PDC,SXT,TDC,TXT)..(5FC,6F)..(H,M,S)..(ARL,BZAGT,GCC,GEN,IDN,LA,PH,PKN,SA)..CBU

 1
65638 - LINER, REAR WHEEL HOUSE, LH
65638-0K080

GUN125..TDC..X..LA;GUN125..TDC..L..GEN;GUN125..TDC..S..GCC;KUN125,126,135..(ADC,TDC)..(L,X)..(GEN,LA);GUN126,135,TGN126,136..TDC..(L,X)..(GEN,LA)

TIRE & DISC WHEEL-265/65R17 STEEL

 1
65638-0K080

GUN125..6F..M..GCC;GUN135..(H,M)..(GEN,PH);GUN135..(ARL,MA,TH,VN)..CBU;GUN125..(TDC,TXT)..(H,M,S)..GEN;GUN135,TGN126..TDC..(M,S)..(GEN,LA);GUN125..(TDC,TXT)..(L,M,S)..(IDN,LA,TH,VN);KUN125,126,13#..(ADC,PDC,TDC,TXT)..(H,M,S);GUN125,TGN126..(5F,6FC)..(M,X)..(ARL,GCC)..CBU;GGN125,GUN126,136,TGN136..(PDC,TDC,TXT)..(H,M,S)..CBU

 1
65638-0K070

TGN126..TSC..S;KUN126,135..L,X;KUN125..RHD..(TSC,TXT);KUN125..(ADC,ASC,TDC)..(L,X);GUN125,135..TDC..S..(GCC,PH);KUN125..LHD..(TSC,TXT)..(L,X);GUN125..TDC..(L,X)..(GCC,GEN,LA);GUN125,126..TSC..(GCC,GEN,IDN,LA);GUN135..(TDC,TSC)..(L,X)..(GEN,LA);GUN126,TGN126,136..(PDC,PSC,TDC,TSC)..(L,X)..CBU;GGN120,GUN112,120,122,123,KUN112,122,TGN11#,120,121..(PSC,TDC,TSC,TXT)..CBU

 1
65672F - BRACE, SIDE PANEL SKIRT, FRONT LH
65672-KK010

GUN125..6FC..ARL..CBU;GUN126..(ADC,PDC,SDC,TDC)..CBU;GUN125..(ADC,SDC,TDC)..(BZAGT,GCC,GEN,IDN,LA,PH,SA,TH,VN);GGN12#,135,GUN120,122,123,13#,KUN12#,13#,LAN125,TGN120,121,126,128,13#..ADC,MDC,PDC,SDC,TDC

 1
65817A - PANEL, REAR BODY SIDE, LH
65817-KK030

GUN125..TDC..L..GEN;KUN125..LHD..SDC..S;GUN125,LAN125,TGN126,136..SDC..S;GUN135..(SDC,TDC)..(L,S)..(GEN,SA);GUN125,135,KUN135..(ADC,TDC)..X..LA;GUN126,KUN125,126,TGN126,136..(ADC,TDC)..(L,X)..(GEN,LA)

TIRE & DISC WHEEL-265/65R17 STEEL

 1
65817-KK030

KUN125..M..SA;GGN135,KUN136,TGN128,138;GUN126,136..S..(BZAGT,GEN,LA);GUN126,TGN136..ADC..(L,X)..BZAGT;KUN126..(ADC,PDC,SDC,TDC)..(H,M,S);GUN125..(ADC,SDC,TDC)..6F..(L,M)..(BZAGT,IDN,SA);GGN125,GUN135..(H,M)..(ARL,BZAGT,GCC,GEN,LA,PH,SA);GUN135..(ADC,MDC,TDC)..(L,M,S)..(BZAGT,LA,MA,TH,VN);GUN125,KUN125,135,TGN126,136..(ADC,TDC)..(H,M,S)..(BZAGT,GEN,IDN,LA,TH,VN);GUN126,136..(ADC,PDC,SDC,TDC)..(H,M)..(ARL,BZAGT,GEN,LA,PH,PKN,SA,TAIW,TH,VN)

 1
65817-KK010

GUN135..(ADC,TDC)..X..LA;TGN121..(SDC,TDC)..(SA,TH);GUN135..(SDC,TDC)..(L,S,X)..(GEN,PH,SA);GUN122,KUN122,LAN125..(SDC,TDC)..5F..(GEN,PH,SA,TH);KUN125,126..(ADC,PDC,SDC,TDC)..(L,X)..(GEN,IDN,LA,PKN,SA);GUN125,126,KUN135,TGN126,136..(ADC,SDC,TDC)..(L,X)..(GEN,LA,SA);GUN125,126,136,KUN125,135,TGN126,136..(PDC,SDC,TDC)..(L,S)..(PH,PKN,SA)

 1
65827 - PANEL, REAR BODY SIDE, INNER LH
65827-KK900

GUN126,136..TDC..M..ARL;TGN121..(SDC,TDC)..(SA,TH);GGN125,135..(ADC,SDC,TDC)..(H,M);GUN135..(ADC,MDC,SDC,TDC)..(BZAGT,GEN,LA,MA,PH,SA,TH,VN);GUN120,122,125,126,136,KUN12#,13#,LAN125,TGN126,128,13#..(ADC,PDC,SDC,TDC)..(BZAGT,GEN,IDN,LA,PH,PKN,SA,TAIW,TH,VN)

 1
76646E - BRACKET, RR BODY MUDGUARD, LH
76646-KK020

GUN125..TDC..L..GEN;GUN125..LHD..SSC..S;GUN135..(SDC,TDC)..(L,S)..(GEN,SA);GUN125,135,KUN135..(ADC,TDC)..X..LA;GUN125,TGN136..(SDC,TDC)..S..(GCC,SA);KUN125,LAN125,TGN126..LHD..(SDC,SSC)..S;GUN126,KUN125,126,TGN126,136..(ADC,TDC)..(L,X)..(GEN,LA)

TIRE & DISC WHEEL-265/65R17 STEEL

 1
76646-KK010

TGN136..SDC;GUN135..X..LA;GUN125..TSC..LA;TGN126..(L,X)..CBU;TGN136..ADC..X..LA;KUN135..(ADC,TDC)..X;GUN125..TDC..S..(GCC,PH);TGN136..(ASC,TDC,TSC)..X;KUN125..RHD..(SDC,SSC,TSC,TXT);GUN125..RHD..(SDC,SSC,TSC)..CBU;KUN125..LHD..(SDC,TSC,TXT)..(L,X);KUN125,TGN126..LHD..(SDC,SSC,TSC)..S;GUN126,KUN125..(ADC,ASC,TDC)..(L,X)..(DCR,HDCR);GUN135..(ASC,SDC,SSC,TDC)..(L,S,X)..(BZAGT,GEN,PH,SA)..CBU;GUN126,136,KUN135..(ASC,PDC,PSC,SDC,SSC,TSC)..(L,S,X)..CBU;GUN125..LHD..(ASC,SDC,SSC,TSC)..(L,S,X)..(BZAGT,GCC,SA)..CBU;GUN125,KUN126..(ADC,ASC,PDC,PSC,TDC)..(L,X)..(GCC,GEN,LA,PKN);GGN120,GUN112,122,123,KUN112,122,LAN125,TGN11#,120,121..(5F,6FC)..CBU

 1
76646-KK020

GUN136..H,M;GUN135..M..PH;GUN125..6F..M..(GCC,SA);GUN136..S..(ARL,BZAGT)..CBU;GUN126,TGN136..ADC..(L,X)..BZAGT;GUN126..(SSC,TDC)..6F..(H,M)..(SA,TH);GUN126,KUN125..(SDC,TDC,TXT)..M..(SA,TH,VN);GUN125,135..(ADC,TDC,TXT)..(H,M,S)..(GEN,LA);GUN125,TGN126..(5F,6FC)..(M,X)..(ARL,GCC)..CBU;KUN135,TGN126,136..(H,M,S)..(BZAGT,GEN,LA,TH,VN);GUN126..(ADC,PDC,SSC,SXT,TDC,TXT)..6FC..(H,M,S)..CBU;GUN125,TGN138..(ADC,SXT,TDC,TXT)..(BZAGT,IDN,SA,TH,VN);GUN135..(ADC,MDC,SXT,TDC,TXT)..(ARL,BZAGT,MA,SA,TH,VN);GGN125,135,KUN126,136,TGN128..(ADC,PDC,SDC,SSC,SXT,TDC)..(H,M,S);GUN126,KUN125..(ADC,PDC,SXT,TDC,TXT)..(5FC,6F)..(H,M,S)..(ARL,BZAGT,GCC,GEN,IDN,LA,PH,PKN,SA)..CBU

 1
76918C - MUDGUARD, SIDE, REAR LH
76607-KK010

GUN122..5F..CBU;GUN125..6FC..ARL..CBU;GGN12#,135,TGN136..ADC,ASC,SDC,TDC,TSC,TXT;GUN135..(ARL,BZAGT,GEN,LA,MA,PH,SA,TH,VN)..CBU;GUN125..(BZAGT,GCC,GEN,IDN,LA,PH,SA,TH,VN)..CBU;GUN112,123,126,136,KUN112,12#,13#,LAN125,TGN11#,120,121,126,128,138..(ADC,ASC,PDC,PSC,SDC,SSC,SXT,TDC,TSC,TXT)..CBU

 1
Common parts
90119-T0139
90119-T0318
90119-T0345
90148-T0015
90154-T0002
90159-T0036
90189-06214
90467-07215
Linked diagrams
7751

ILLUST NO. 1 OF 2(2006- )AD,KD,MD,MMD,PD,SD,TD..CBU

Click highlighted areas on diagram

W/O(TOP RAIL),RH

diagram 61783E 65501A 65503A 65505 65593A 65635A 65637 65671D 65816A 65826 66248B 66248B 66301B 76645E 76917H 90119T0139 90119T0139 90119T0139 90119T0318 90154T0002 90157T0004 90159T0034 90159T0036 9018906214 9018906214 90189T0025 90189T0025 9046707215 9046707215 90467T0050 90467T0050
Part # Description Qty Price
Common parts
90119-T0139
90119-T0318
90154-T0002
90157-T0004
90159-T0034
90159-T0036
90189-06214
90189-T0025
90467-07215
90467-T0050

ILLUST NO. 2 OF 2(2006- )AD,KD,MD,MMD,PD,SD,TD..CBU

Click highlighted areas on diagram

W/O(TOP RAIL),LH

diagram 61725G 61783E 65504A 65506 65594A 65601A 65636A 65638 65672F 65817A 65827 66249B 66249B 66301B 76646E 76918C 7751 90119T0139 90119T0139 90119T0139 90119T0318 90154T0002 90157T0004 90159T0034 90159T0036 9018906214 9018906214 90189T0025 90189T0025 9046707215 9046707215 90467T0050 90467T0050
Part # Description Qty Price
Common parts
90119-T0139
90119-T0318
90154-T0002
90157-T0004
90159-T0034
90159-T0036
90189-06214
90189-T0025
90467-07215
90467-T0050
Linked diagrams
7751

ILLUST NO. 1 OF 2(2006- )AD,KD,MD,MMD,PD,SD,TD..CBU

Click highlighted areas on diagram

W(TOP RAIL),RH

diagram 61783E 65501A 65503A 65505 65593A 65621 65635A 65637 65671D 65816A 65826 65863 66153C 66248B 66248B 66324B 76645E 76917H 90119T0139 90119T0139 90119T0139 90119T0318 90119T0345 90119T0345 90148T0015 90154T0002 90159T0034 90159T0036 9018906214 9018906214 90189T0025 90189T0025 9046707215 9046707215 90467T0050 90467T0050
Part # Description Qty Price
Common parts
90119-T0139
90119-T0318
90119-T0345
90148-T0015
90154-T0002
90159-T0034
90159-T0036
90189-06214
90189-T0025
90467-07215
90467-T0050

ILLUST NO. 2 OF 2(2006- )AD,KD,MD,MMD,PD,SD,TD..CBU

Click highlighted areas on diagram

W(TOP RAIL),LH

diagram 61725G 61783E 65504A 65506 65594A 65601A 65622 65636A 65638 65672F 65817A 65827 65864 66154C 66249B 66249B 66324B 76646E 76918C 7751 90119T0139 90119T0139 90119T0139 90119T0318 90119T0345 90119T0345 90148T0015 90154T0002 90159T0034 90159T0036 9018906214 9018906214 90189T0025 90189T0025 9046707215 9046707215 90467T0050 90467T0050
Part # Description Qty Price
Common parts
90119-T0139
90119-T0318
90119-T0345
90148-T0015
90154-T0002
90159-T0034
90159-T0036
90189-06214
90189-T0025
90467-07215
90467-T0050
Linked diagrams
7751

ILLUST NO. 1 OF 2(2006- )SX,TX..CBU

Click highlighted areas on diagram

RH

diagram 61783E 65501A 65503A 65505 65593A 65635A 65637 65671D 65816A 65826 65863 66248B 66301B 76645E 76917H 90119T0139 90119T0139 90119T0139 90119T0139 90119T0139 90154T0002 90157T0004 90159T0036 9018906214 9018906214 90189T0025 90189T0025 9046707215 9046707215 90467T0050 90467T0050
Part # Description Qty Price
Common parts
90119-T0139
90154-T0002
90157-T0004
90159-T0036
90189-06214
90189-T0025
90467-07215
90467-T0050

ILLUST NO. 2 OF 2(2006- )SX,TX..CBU

Click highlighted areas on diagram

LH

diagram 61725G 61783E 65504A 65506 65594A 65601A 65636A 65638 65672F 65817A 65827 65864 66249B 66301B 76646E 76918C 7751 90119T0139 90119T0139 90119T0139 90119T0139 90119T0139 90154T0002 90157T0004 90159T0036 9018906214 9018906214 90189T0025 90189T0025 9046707215 9046707215 90467T0050 90467T0050
Part # Description Qty Price
Common parts
90119-T0139
90154-T0002
90157-T0004
90159-T0036
90189-06214
90189-T0025
90467-07215
90467-T0050
Linked diagrams
7751
