GUN126L-DTFSXF (2020)
Toyota Hilux
ILLUST NO. 1 OF 2(0408- )KUN15,16,2#,3#,LAN15,25,35..CBU
FUEL TANK
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| Common parts | ||||
| 77644-0K010 | ||||
| 90080-54035 | ||||
| 90105-T0204 | ||||
| 90178-T0020 | ||||
| 90179-06169 | ||||
| 90179-08241 | ||||
| 90269-04059 | ||||
| 90460-46005 | ||||
| 90464-T0003 | ||||
| 90466-T0037 | ||||
| 90466-T0040 | ||||
| 90468-14039 | ||||
| 90469-T0003 | ||||
| 90959-T1001 | ||||
| Linked diagrams | ||||
| 6554 | ||||
| 8401 | ||||
ILLUST NO. 2 OF 2(0408- )KUN16,26,36 ; (0408- )KUN35..GEN,TH ; (0408- )KUN35..SR..PHL,SA ;
FUEL TUBE,W(FUEL COOLER)
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| Common parts | ||||
| 90119-T0040 | ||||
| 90182-T0001 | ||||
| 90182-T0021 | ||||
| 90464-00241 | ||||
| 90466-T0016 | ||||
| 90466-T0038 | ||||
| 90466-T0041 | ||||
| Linked diagrams | ||||
| 2202 | ||||
| 8202 | ||||
ILLUST NO. 1 OF 4(1107- )GGN15,25,35,TGN15,16,26,36..CBU
FUEL TANK(UNLEADED GASOLINE)
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| Common parts | ||||
| 77644-0K010 | ||||
| 90080-54035 | ||||
| 90105-T0204 | ||||
| 90178-T0020 | ||||
| 90179-06169 | ||||
| 90301-T0035 | ||||
| 90460-46005 | ||||
| 90464-T0004 | ||||
| 90466-T0037 | ||||
| 90466-T0040 | ||||
| 90468-14039 | ||||
| Linked diagrams | ||||
| 8401 | ||||
ILLUST NO. 3 OF 4(1107- )GGN15,25,35,TGN15,16,26,36
FUEL TUBE(UNLEADED GASOLINE)
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| Common parts | ||||
| 90105-T0059 | ||||
| 90119-T0040 | ||||
| 90182-T0001 | ||||
| 90466-T0040 | ||||
| 90469-07011 | ||||
| 90469-T0005 | ||||
| Linked diagrams | ||||
| 1708 | ||||
| 2211 | ||||
ILLUST NO. 4 OF 4(1107- )CBU
FUEL LID OPENER
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| Common parts | ||||
| 90269-04059 | ||||
| 90464-T0003 | ||||
| 90469-T0003 | ||||
| 90959-T1001 | ||||
| Linked diagrams | ||||
| 6554 | ||||
ILLUST NO. 1 OF 4(1107- )KUN1#,2#,3#,LAN15,25,35..CBU
FUEL TANK
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| Common parts | ||||
| 77644-0K010 | ||||
| 90080-54035 | ||||
| 90105-T0204 | ||||
| 90178-T0020 | ||||
| 90179-06169 | ||||
| 90460-46005 | ||||
| 90466-T0037 | ||||
| 90466-T0040 | ||||
| 90466-T0041 | ||||
| 90468-14039 | ||||
| Linked diagrams | ||||
| 8401 | ||||
ILLUST NO. 1 OF 3(1505- )GGN12#,135,TGN120,121,126,127,136..CBU
FUEL TANK
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| Common parts | ||||
| 90105-08158 | ||||
| 90105-T0195 | ||||
| 90178-T0020 | ||||
| 90179-06146 | ||||
| 90182-T0024 | ||||
| 90182-T0033 | ||||
| 90269-04059 | ||||
| 90301-T0035 | ||||
| 90466-T0037 | ||||
| 90468-14039 | ||||
| Linked diagrams | ||||
| 8401 | ||||
ILLUST NO. 2 OF 3(1505- )GGN12#,135,TGN120,121,126,127,136
FUEL TUBE
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| Common parts | ||||
| 90105-T0059 | ||||
| 90119-T0313 | ||||
| 90182-T0026 | ||||
| 90466-T0039 | ||||
| 90469-07011 | ||||
| 90469-T0005 | ||||
| 91673-80616 | ||||
| 96132-41000 | ||||
| 96132-51000 | ||||
| Linked diagrams | ||||
| 1708 | ||||
| 2211 | ||||
ILLUST NO. 1 OF 3(1505- )GUN12#,13#,KUN12#,13#,LAN125..CBU
FUEL TANK
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| Common parts | ||||
| 90105-08158 | ||||
| 90105-T0195 | ||||
| 90178-T0020 | ||||
| 90179-06146 | ||||
| 90182-T0024 | ||||
| 90269-04059 | ||||
| 90301-T0035 | ||||
| 90466-T0037 | ||||
| 90468-14039 | ||||
| Linked diagrams | ||||
| 8401 | ||||
ILLUST NO. 2 OF 3(1505- )GUN12#,13#
FUEL TUBE
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| Common parts | ||||
| 90119-T0313 | ||||
| 90182-T0026 | ||||
| 90466-T0038 | ||||
| 90466-T0041 | ||||
| Linked diagrams | ||||
| 2202 | ||||
ILLUST NO. 2 OF 3(1505- )KUN125,126,13#
FUEL TUBE, W(FUEL COOLER)
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| Common parts | ||||
| 90119-T0313 | ||||
| 90182-T0021 | ||||
| 90182-T0026 | ||||
| 90466-T0038 | ||||
| 90466-T0041 | ||||
| 96132-51300 | ||||
| Linked diagrams | ||||
| 2302 | ||||

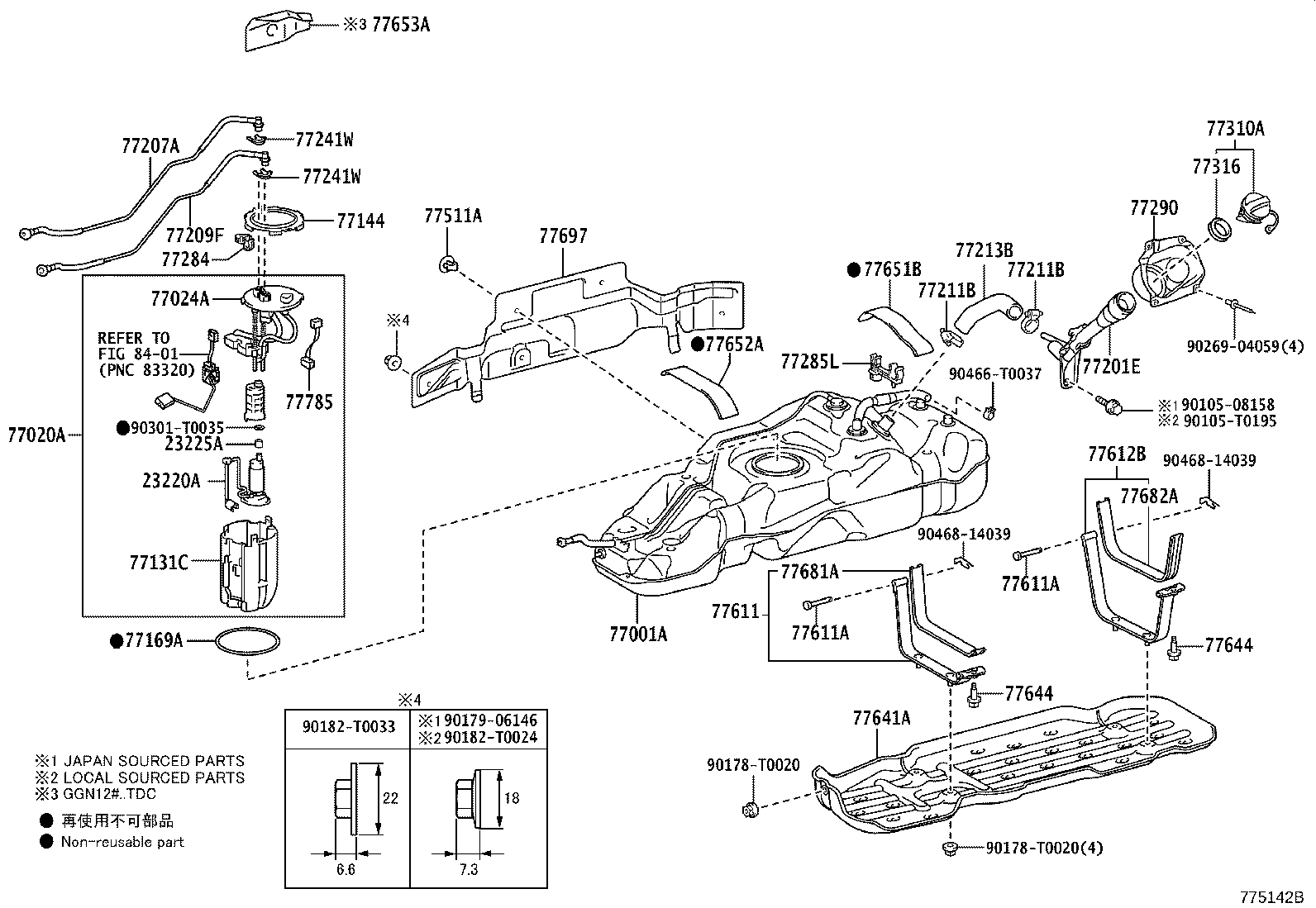

ILLUST NO. 1 OF 3(2006- )TGN121,126..CBU ; (2006- )GGN125,TGN120,136
FUEL TANK
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 77001A - TANK SUB-ASSY, FUEL | ||||
| 77001-0K400 |
GGN125,TGN120,121,126,136..TD,TS |
1 | ||
| 77001-0K470 |
GUN12#,13#..(MD,MMD,MS,TD,TS,TX)..CBU |
1 | ||
| 77020A - TUBE ASSY, FUEL SUCTION W/PUMP & GAGE | ||||
| 77020-0K391 |
TGN120,121,126,136..AD,AS,SD,SS,TD,TS |
1 | ||
| 77024A - PLATE SUB-ASSY, FUEL SUCTION | ||||
| 77024-0K190 |
GUN12#,13#,LAN125..AD,AS,KD,KS,MD,MMD,MS,SD,SS,SX,TD,TS,TX |
1 | ||
| 77024-0K170 |
GGN125,TGN120,121,126,136..AD,AS,SD,SS,TD,TS |
1 | ||
| 77131C - SUB-TANK, FUEL, NO.1 | ||||
| 77131-0K190 |
GGN125,TGN120,121,126,136..AD,AS,SD,SS,TD,TS |
1 | ||
| 77131-0K200 |
GUN12#,13#,LAN125..AD,AS,KD,KS,MD,MMD,MS,SD,SS,SX,TD,TS,TX |
1 | ||
| 77144 - RETAINER, FUEL PUMP GAUGE | ||||
| 77144-0K040 |
GGN125,GUN112,12#,13#,LAN125,TGN11#,12#,13#..AD,AS,KD,KS,MD,MMD,MS,SD,SS,SX,TD,TS,TX |
1 | ||
| 77169A - GASKET, FUEL SUCTION TUBE SET | ||||
| 77169-0K030 |
GGN125,TGN11#,12#,13#..AD,AS,SD,SS,TD,TS |
1 | ||
| 77169-0K040 |
GUN112,12#,13#,LAN125..AD,AS,KD,KS,MD,MMD,MS,SD,SS,SX,TD,TS,TX |
1 | ||
| 77201E - PIPE SUB-ASSY, FUEL TANK FILLER | ||||
| 77201-KK070 |
GUN122,125,126,13#,LAN125..(KD,KS,SD,SS,SX,TD,TS,TX)..(ARL,GCC,GEN,KEN,LA,SA)..CBU |
1 | ||
| 77207A - TUBE SUB-ASSY, FUEL RETURN | ||||
| 77204-0K140 |
GUN12#,13#,LAN125..AD,AS,KD,KS,MD,MMD,MS,SD,SS,SX,TD,TS,TX |
1 | ||
| 77209F - TUBE SUB-ASSY, FUEL TANK MAIN | ||||
| 77209-0K200 |
GUN12#,13#,LAN125..AD,AS,KD,KS,MD,MMD,MS,SD,SS,SX,TD,TS,TX |
1 | ||
| 77211B - CLAMP (FOR FUEL FILLER PIPE) | ||||
| 90460-46005 |
GGN125,GUN112,12#,13#,LAN125,TGN11#,12#,13#..AD,AS,KD,KS,MD,MMD,MS,SD,SS,SX,TD,TS,TX |
2 | ||
| 77211B - CLAMP (FOR FUEL FILLER PIPE) | ||||
| 90460-46005 |
GGN125,GUN112,12#,13#,LAN125,TGN11#,12#,13#..AD,AS,KD,KS,MD,MMD,MS,SD,SS,SX,TD,TS,TX |
2 | ||
| 77213B - HOSE, FUEL TANK TO FILLER PIPE | ||||
| 77213-KK010 |
GGN125,GUN12#,13#,LAN125,TGN12#,13#..AD,AS,KD,KS,MD,MMD,MS,SD,SS,SX,TD,TS,TX |
1 | ||
| 77241W - CLIP, TUBE JOINT | ||||
| 77241-0K010 |
GUN112,12#,13#,LAN125..AD,AS,KD,KS,MD,MMD,MS,SD,SS,SX,TD,TS,TX |
1 | ||
| 77241-0K010 |
GGN125,TGN11#,12#,13#..AD,AS,SD,SS,TD,TS |
2 | ||
| 77241W - CLIP, TUBE JOINT | ||||
| 77241-0K010 |
GUN112,12#,13#,LAN125..AD,AS,KD,KS,MD,MMD,MS,SD,SS,SX,TD,TS,TX |
1 | ||
| 77241-0K010 |
GGN125,TGN11#,12#,13#..AD,AS,SD,SS,TD,TS |
2 | ||
| 77284 - CLAMP, FUEL TUBE | ||||
| 77289-0K050 |
GGN125,GUN12#,13#,LAN125,TGN12#,13#..AD,AS,KD,KS,MD,MMD,MS,SD,SS,SX,TD,TS,TX |
1 | ||
| 77285L - CLAMP, FUEL TUBE, NO.1 | ||||
| 77285-0K250 |
GGN125,GUN12#,13#,LAN125,TGN12#,13#..AD,AS,KD,KS,MD,MMD,MS,SD,SS,SX,TD,TS,TX |
1 | ||
| 77290 - SHIELD ASSY, FUEL TANK FILLER PIPE | ||||
| 77290-0K040 |
GUN135..TD..S..LA;GUN125..TD..6FC..L..GEN;GUN135..(ARL,GEN,PH,TH,VN)..CBU;GUN126..(MD,MMD,TD,TX)..(H,S)..CBU;GUN125..(MD,TD,TX)..(ARL,IDN,MA,TH,VN)..CBU;GGN125,GUN125,136,TGN126..(TD,TX)..(H,S)..(ARL,GCC,GEN,LA) |
1 | ||
| 77290-0K040 |
GUN126,135..TD..L..LA;GUN125,TGN126,136..TD..MTM..L..(GEN,LA) TIRE & DISC WHEEL-265/65R17, STEEL |
1 | ||
| 77290-0K050 |
TGN126..TS..S;GUN122..TD..5F;GUN126..(TD,TS)..L;GUN135..(TD,TS)..L..LA;GUN120,122,125..(MS,TS)..CBU;GUN125..TD..6F..L..(GCC,GEN,LA,PH);GUN112,123,TGN11#,120,121,136..(TD,TS)..CBU;GUN125,TGN126..LHD..(TD,TS)..(5F,6FC)..L..CBU |
1 | ||
| 77310A - CAP ASSY, FUEL TANK | ||||
| 77300-0K020 |
GUN112,12#,13#,LAN125..(AD,AS,KD,KS,MD,MMD,MS,SD,SS,SX,TD,TS,TX)..CBU |
1 | ||
| 77300-0K010 |
GGN125,TGN11#,12#,13#..(AD,AS,SD,SS,TD,TS)..CBU |
1 | ||
| 77316 - GASKET, FUEL TANK CAP | ||||
| 77316-0K020 |
GGN125,GUN112,12#,13#,LAN125,TGN11#,12#,13#..(AD,AS,KD,KS,MD,MMD,MS,SD,SS,SX,TD,TS,TX)..CBU |
1 | ||
| 77511A - BRACKET, FUEL TANK | ||||
| 77644-0K010 |
TGN121,126,136..AD,AS,SD,SS;GUN122,125,126..AD,AS,KD,KS,MD,MMD,MS,SD,SS,SX,TD,TS,TX;GGN125,GUN120,123,13#,LAN125,TGN120,128,138..ARL,BZAG,GEN,KEN,LA,PH,SA,TH,VN |
4 | ||
| 77512-0K010 |
GGN125,TGN120,121,126,136..TD,TS |
4 | ||
| 77611 - BAND, FUEL TANK | ||||
| 77601-KK050 |
TGN126..5F..(H,L);GUN122,TGN120,121..GCC;TGN126..S..(GCC,LA,SA);TGN126..6FC..(H,L)..GCC;GGN125,GUN125,126,13#,LAN125,TGN128,13#..AD,AS,KD,KS,MD,MMD,MS,SD,SS,SX,TD,TS,TX |
1 | ||
| 77611A - PIN (FOR FUEL TANK BAND) | ||||
| 77653-0K041 |
GUN112,TGN110..RHD;GGN125,GUN12#,13#,LAN125,TGN12#,13#..AD,AS,KD,KS,MD,MMD,MS,SD,SS,SX,TD,TS,TX |
2 | ||
| 77611A - PIN (FOR FUEL TANK BAND) | ||||
| 77653-0K041 |
GUN112,TGN110..RHD;GGN125,GUN12#,13#,LAN125,TGN12#,13#..AD,AS,KD,KS,MD,MMD,MS,SD,SS,SX,TD,TS,TX |
2 | ||
| 77612B - BAND, FUEL TANK, NO.2 | ||||
| 77602-KK030 |
TGN126..5F..(H,L);GUN122,TGN120,121..GCC;TGN126..S..(GCC,LA,SA);TGN126..6FC..(H,L)..GCC;GGN125,GUN125,126,13#,LAN125,TGN128,13#..AD,AS,KD,KS,MD,MMD,MS,SD,SS,SX,TD,TS,TX |
1 | ||
| 77641A - PROTECTOR, FUEL TANK, NO.1 | ||||
| 77641-KK010 |
TGN121..GCC;GUN125,126,135,TGN126,136..AD,AS,MMD,TD,TS,TX;GGN125,GUN122,136,TGN120,128,138..ARL,BZAG,GCC,LA |
1 | ||
| 77644 - BOLT, FUEL TANK | ||||
| 77644-35030 |
GGN125,GUN12#,13#,LAN125,TGN12#,13#..AD,AS,KD,KS,MD,MMD,MS,SD,SS,SX,TD,TS,TX |
2 | ||
| 77644 - BOLT, FUEL TANK | ||||
| 77644-35030 |
GGN125,GUN12#,13#,LAN125,TGN12#,13#..AD,AS,KD,KS,MD,MMD,MS,SD,SS,SX,TD,TS,TX |
2 | ||
| 77651B - CUSHION, FUEL TANK | ||||
| 77651-0K070 |
GGN125,TGN120,121,126,136..TD,TS |
1 | ||
| 77651-0K080 |
GUN12#,13#..MD,MMD,MS,TD,TS,TX |
1 | ||
| 77652A - CUSHION, FUEL TANK, NO.2 | ||||
| 77652-0K140 |
TGN121,126,136..AD,AS,SD,SS;GUN122,125,126..AD,AS,KD,KS,MD,MMD,MS,SD,SS,SX,TD,TS,TX;GGN125,GUN120,123,13#,LAN125,TGN120,128,138..ARL,BZAG,GEN,KEN,LA,PH,SA,TH,VN |
1 | ||
| 77652-0K130 |
GGN125,TGN120,121,126,136..TD,TS |
1 | ||
| 77681A - SEAT, FUEL TANK BAND | ||||
| 77681-KK020 |
TGN126..5F..(H,L);TGN126..S..(GCC,LA,SA);TGN126..6FC..(H,L)..GCC;GGN125,GUN12#,13#,LAN125,TGN120,121,128,13#..AD,AS,KD,KS,MD,MMD,MS,SD,SS,SX,TD,TS,TX |
1 | ||
| 77682A - SEAT, FUEL TANK BAND, NO.2 | ||||
| 77682-KK010 |
TGN126..5F..(H,L);GUN112,TGN110..RHD;TGN126..S..(GCC,LA,SA);TGN126..6FC..(H,L)..GCC;GGN125,GUN12#,13#,LAN125,TGN120,121,128,13#..AD,AS,KD,KS,MD,MMD,MS,SD,SS,SX,TD,TS,TX |
1 | ||
| 77697 - INSULATOR, FUEL TANK HEAT, NO.1 | ||||
| 77697-0K080 |
GGN125,TGN120,121,126,136..TD,TS |
1 | ||
| 77697-0K130 |
GUN12#,13#..MD,MMD,MS,TD,TS,TX |
1 | ||
| 77785 - HARNESS, FUEL PUMP | ||||
| 77785-02110 |
GGN125,TGN11#,120,121,126,136..AD,AS,SD,SS,TD,TS |
1 | ||
| Common parts | ||||
| 90105-08158 | ||||
| 90105-T0195 | ||||
| 90178-T0020 | ||||
| 90179-06146 | ||||
| 90182-T0024 | ||||
| 90182-T0033 | ||||
| 90269-04059 | ||||
| 90301-T0035 | ||||
| 90466-T0037 | ||||
| 90468-14039 | ||||
| Linked diagrams | ||||
| 8401 | ||||

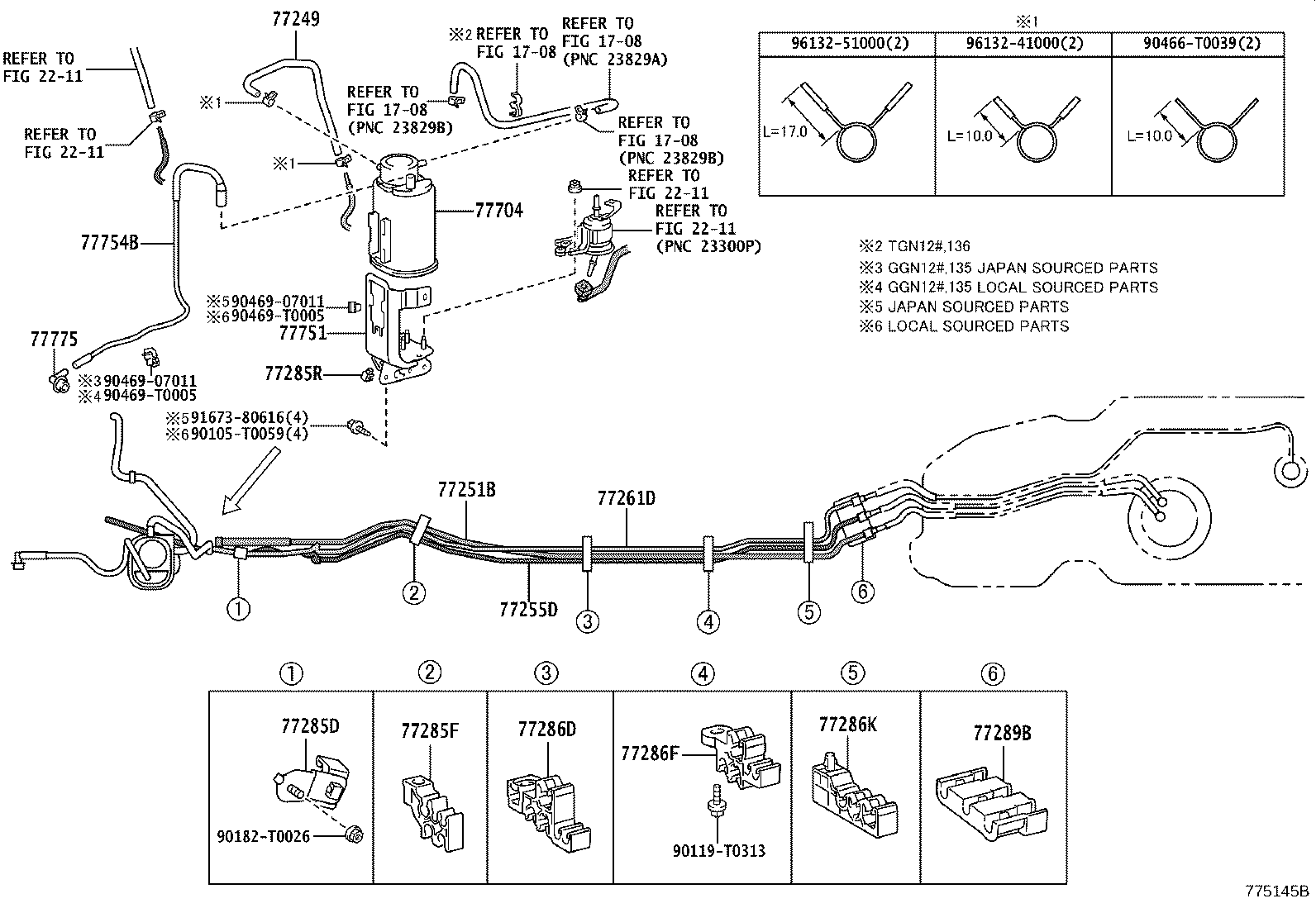

ILLUST NO. 2 OF 3(2006- )GGN125,TGN120,121,126,136
FUEL TUBE
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 77249 - HOSE, FUEL EMISSION | ||||
| 77249-KK010 |
TGN11#,120,121,126,136..AD,AS,SD,SS,TD,TS |
1 | ||
| 77251B - TUBE, FUEL MAIN | ||||
| 77251-KK110 |
GUN125,126,13#..AD,AS,KD,KS,MD,MMD,MS,SD,SS,SX,TD,TS,TX |
1 | ||
| 77255D - TUBE, FUEL RETURN | ||||
| 77255-KK150 |
GUN125,126,13#..AD,AS,KD,KS,MD,MMD,MS,SD,SS,SX,TD,TS,TX |
1 | ||
| 77285D - CLAMP, FUEL TUBE, NO.1 | ||||
| 77285-0K130 |
GGN125,TGN11#,12#,13#..AD,AS,SD,SS,TD,TS |
1 | ||
| 77285-0K160 |
GUN112,12#,13#..AD,AS,KD,KS,MD,MMD,MS,SD,SS,SX,TD,TS,TX |
1 | ||
| 77285F - CLAMP, FUEL TUBE, NO.1 | ||||
| 77285-0K230 |
GGN125,GUN112,12#,13#,LAN125,TGN11#,12#,13#..AD,AS,KD,KS,MD,MMD,MS,SD,SS,SX,TD,TS,TX |
1 | ||
| 77285R - CLAMP, FUEL TUBE, NO.1 | ||||
| 77285-0K340 |
GGN125,TGN11#,12#,13#..AD,AS,SD,SS,TD,TS |
1 | ||
| 77286D - CLAMP, FUEL TUBE, NO.2 | ||||
| 77286-0K170 |
GGN125,GUN112,12#,13#,LAN125,TGN11#,12#,13#..AD,AS,KD,KS,MD,MMD,MS,SD,SS,SX,TD,TS,TX |
1 | ||
| 77286F - CLAMP, FUEL TUBE, NO.2 | ||||
| 77286-0K150 |
GGN125,GUN12#,13#,LAN125,TGN12#,13#..AD,AS,KD,KS,MD,MMD,MS,SD,SS,SX,TD,TS,TX |
1 | ||
| 77286K - CLAMP, FUEL TUBE, NO.2 | ||||
| 77286-0K220 |
GGN125,GUN12#,13#,LAN125,TGN12#,13#..AD,AS,KD,KS,MD,MMD,MS,SD,SS,SX,TD,TS,TX |
1 | ||
| 77289B - CLAMP, FUEL TUBE, NO.3 | ||||
| 77289-0K040 |
GGN125,TGN11#,12#,13#..AD,AS,SD,SS,TD,TS |
1 | ||
| 77704 - CANISTER SUB-ASSY, CHARCOAL | ||||
| 77704-0K010 |
GGN125,TGN11#,12#,13#..AD,AS,SD,SS,TD,TS |
1 | ||
| 77751 - BRACKET, CHARCOAL CANISTER BASE | ||||
| 77751-KK010 |
GGN125,TGN11#,12#,13#..AD,AS,SD,SS,TD,TS |
1 | ||
| 77754B - HOSE, CHARCOAL CANISTER OUTLET | ||||
| 77754-0K010 |
GGN125,TGN11#,12#,13#..AD,AS,SD,SS,TD,TS |
1 | ||
| 77775 - GUIDE, CHARCOAL CANISTER OUTLET | ||||
| 77775-0K010 |
GGN125,TGN11#,12#,13#..AD,AS,SD,SS,TD,TS |
1 | ||
| Common parts | ||||
| 90105-T0059 | ||||
| 90119-T0313 | ||||
| 90182-T0026 | ||||
| 90466-T0039 | ||||
| 90469-07011 | ||||
| 90469-T0005 | ||||
| 91673-80616 | ||||
| 96132-41000 | ||||
| 96132-51000 | ||||
| Linked diagrams | ||||
| 1708 | ||||
| 2211 | ||||
ILLUST NO. 2 OF 3(2006- )GUN12#,13#..ARL,BZAG,GCC,GEN,IDN,KEN,LA,MA,MMR,PH,PKN,SA,TH,TWN,VN
FUEL TUBE
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 77251B - TUBE, FUEL MAIN | ||||
| 77251-KK110 |
GUN125,126,13#..AD,AS,KD,KS,MD,MMD,MS,SD,SS,SX,TD,TS,TX |
1 | ||
| 77255D - TUBE, FUEL RETURN | ||||
| 77255-KK150 |
GUN125,126,13#..AD,AS,KD,KS,MD,MMD,MS,SD,SS,SX,TD,TS,TX |
1 | ||
| 77259D - HOSE, FUEL, NO.1 | ||||
| 77259-71060 |
GUN12#,13#..AD,AS,KD,KS,MD,MMD,MS,SD,SS,SX,TD,TS,TX |
1 | ||
| 77278E - HOSE, FUEL | ||||
| 95338-10022 |
GUN12#,13#,LAN125..AD,AS,KD,KS,MD,MMD,MS,SD,SS,SX,TD,TS,TX |
1 | ||
| 77285D - CLAMP, FUEL TUBE, NO.1 | ||||
| 77285-0K130 |
GGN125,TGN11#,12#,13#..AD,AS,SD,SS,TD,TS |
1 | ||
| 77285-0K160 |
GUN112,12#,13#..AD,AS,KD,KS,MD,MMD,MS,SD,SS,SX,TD,TS,TX |
1 | ||
| 77285F - CLAMP, FUEL TUBE, NO.1 | ||||
| 77285-0K230 |
GGN125,GUN112,12#,13#,LAN125,TGN11#,12#,13#..AD,AS,KD,KS,MD,MMD,MS,SD,SS,SX,TD,TS,TX |
1 | ||
| 77286D - CLAMP, FUEL TUBE, NO.2 | ||||
| 77286-0K170 |
GGN125,GUN112,12#,13#,LAN125,TGN11#,12#,13#..AD,AS,KD,KS,MD,MMD,MS,SD,SS,SX,TD,TS,TX |
1 | ||
| 77286F - CLAMP, FUEL TUBE, NO.2 | ||||
| 77286-0K150 |
GGN125,GUN12#,13#,LAN125,TGN12#,13#..AD,AS,KD,KS,MD,MMD,MS,SD,SS,SX,TD,TS,TX |
1 | ||
| 77286K - CLAMP, FUEL TUBE, NO.2 | ||||
| 77286-0K220 |
GGN125,GUN12#,13#,LAN125,TGN12#,13#..AD,AS,KD,KS,MD,MMD,MS,SD,SS,SX,TD,TS,TX |
1 | ||
| Common parts | ||||
| 90119-T0313 | ||||
| 90182-T0026 | ||||
| 90466-T0038 | ||||
| 90466-T0041 | ||||
| Linked diagrams | ||||
| 2202 | ||||
ILLUST NO. 3 OF 3(2006- )AD,KD,MD,MMD,PD,SD,TD
FUEL LID OPENER
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 77035 - CABLE SUB-ASSY, FUEL LID LOCK CONTROL | ||||
| 77035-0K460 |
GGN125,GUN122,125,126,13#,TGN12#,13#..LHD..(AD,MMD,TD) |
1 | ||
| 77035 - CABLE SUB-ASSY, FUEL LID LOCK CONTROL | ||||
| 77035-0K460 |
GGN125,GUN122,125,126,13#,TGN12#,13#..LHD..(AD,MMD,TD) |
1 | ||
| 77285G - CLAMP, FUEL TUBE, NO.1 | ||||
| 77285-0K190 |
GGN125,GUN112,12#,13#,LAN125,TGN11#,12#,13#..(AD,AS,KD,KS,MD,MMD,MS,SD,SS,SX,TD,TS,TX)..CBU |
1 | ||
| 77285G - CLAMP, FUEL TUBE, NO.1 | ||||
| 77285-0K190 |
GGN125,GUN112,12#,13#,LAN125,TGN11#,12#,13#..(AD,AS,KD,KS,MD,MMD,MS,SD,SS,SX,TD,TS,TX)..CBU |
1 | ||
| 77306 - LEVER SUB-ASSY, FUEL LID LOCK OPEN | ||||
| 77306-0K100 |
GGN125,GUN112,12#,13#,TGN11#,12#,13#..(AD,AS,MD,MMD,MS,TD,TS,TX)..CBU |
1 | ||
| 77306 - LEVER SUB-ASSY, FUEL LID LOCK OPEN | ||||
| 77306-0K100 |
GGN125,GUN112,12#,13#,TGN11#,12#,13#..(AD,AS,MD,MMD,MS,TD,TS,TX)..CBU |
1 | ||
| 77350 - LID ASSY, FUEL FILLER OPENING | ||||
| 77350-KK020 |
TGN126..S..SA;TGN136..AD..L..LA;TGN136..LHD..(SD,TD);GUN126,135..(AD,TD)..L..LA;GUN125,135,LAN125..SD..MTM..S;GUN125,TGN126..(AD,TD)..MTM..L..(GEN,LA) TIRE & DISC WHEEL-265/65R17, STEEL |
1 | ||
| 77350-KK041 |
GUN135..SS..S;GUN126..(SS,SX,TX)..H;GUN136,TGN136..SS,SX,TX;GUN125,135..(SX,TX)..CBU |
1 | ||
| 77350-KK010 |
TGN126..S..SA;GUN135..SD..6F;TGN136..AD..L..LA;TGN136..LHD..(SD,TD);GUN126,135..(AD,TD)..L..LA;GUN125..(AD,TD)..6F..L..(GCC,GEN,LA);GUN125..(KD,SD,TD)..6F..(L,S)..(KEN,PH,SA);GUN125,TGN126..LHD..(AD,SD,TD)..(5F,6FC)..L;GUN122,LAN125,TGN120,121..(SD,TD)..(5F,6FC) |
1 | ||
| 77350-KK020 |
GUN125..H..SA;GUN125..SD..6FC;TGN136..RHD..SD;GUN135..6F..S..LA;GUN126..AD..L..BZAG;GUN125..TD..6FC..L..GEN;GUN135..(AD,SD,TD)..6FC..(LA,SA);GUN135..(AD,TD)..(ARL,BZAG,GEN,PH,TH,VN);GUN125,TGN126,136..(AD,TD)..(H,S)..(GCC,GEN,LA);GUN125,TGN136..(AD,MD,TD)..(ARL,BZAG,IDN,MA,TH,VN)..CBU;GGN125,GUN126,136,TGN128,138..(AD,KD,MD,MMD,SD,TD)..(H,S)..CBU |
1 | ||
| 77360A - SPRING ASSY, FUEL FILLER OPENING LID | ||||
| 77360-0K010 |
GGN125,GUN112,12#,13#,LAN125,TGN11#,12#,13#..(AD,AS,KD,KS,MD,MMD,MS,SD,SS,SX,TD,TS,TX)..CBU |
1 | ||
| 77377 - RETAINER, FUEL FILLER OPENING LID LOCK | ||||
| 77377-0D080 |
GGN125,GUN112,12#,13#,TGN11#,12#,13#..(AD,AS,MD,MMD,MS,TD,TS,TX)..CBU |
1 | ||
| 77377 - RETAINER, FUEL FILLER OPENING LID LOCK | ||||
| 77377-0D080 |
GGN125,GUN112,12#,13#,TGN11#,12#,13#..(AD,AS,MD,MMD,MS,TD,TS,TX)..CBU |
1 | ||
| Common parts | ||||
| 82711-1A750 | ||||
| 90080-54035 | ||||
| 90269-06017 | ||||
| 90469-T0003 | ||||
| 90929-01382 | ||||
| 90959-T1001 | ||||
ILLUST NO. 3 OF 3(2006- )AS,KS,MS,PS,SS,SX,TS,TX
FUEL LID OPENER
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 77035 - CABLE SUB-ASSY, FUEL LID LOCK CONTROL | ||||
| 77035-0K460 |
GGN125,GUN122,125,126,13#,TGN12#,13#..LHD..(AD,MMD,TD) |
1 | ||
| 77035 - CABLE SUB-ASSY, FUEL LID LOCK CONTROL | ||||
| 77035-0K460 |
GGN125,GUN122,125,126,13#,TGN12#,13#..LHD..(AD,MMD,TD) |
1 | ||
| 77285G - CLAMP, FUEL TUBE, NO.1 | ||||
| 77285-0K190 |
GGN125,GUN112,12#,13#,LAN125,TGN11#,12#,13#..(AD,AS,KD,KS,MD,MMD,MS,SD,SS,SX,TD,TS,TX)..CBU |
1 | ||
| 77285G - CLAMP, FUEL TUBE, NO.1 | ||||
| 77285-0K190 |
GGN125,GUN112,12#,13#,LAN125,TGN11#,12#,13#..(AD,AS,KD,KS,MD,MMD,MS,SD,SS,SX,TD,TS,TX)..CBU |
1 | ||
| 77306 - LEVER SUB-ASSY, FUEL LID LOCK OPEN | ||||
| 77306-0K100 |
GGN125,GUN112,12#,13#,TGN11#,12#,13#..(AD,AS,MD,MMD,MS,TD,TS,TX)..CBU |
1 | ||
| 77306 - LEVER SUB-ASSY, FUEL LID LOCK OPEN | ||||
| 77306-0K100 |
GGN125,GUN112,12#,13#,TGN11#,12#,13#..(AD,AS,MD,MMD,MS,TD,TS,TX)..CBU |
1 | ||
| 77350 - LID ASSY, FUEL FILLER OPENING | ||||
| 77350-KK020 |
TGN126..S..SA;TGN136..AD..L..LA;TGN136..LHD..(SD,TD);GUN126,135..(AD,TD)..L..LA;GUN125,135,LAN125..SD..MTM..S;GUN125,TGN126..(AD,TD)..MTM..L..(GEN,LA) TIRE & DISC WHEEL-265/65R17, STEEL |
1 | ||
| 77350-KK041 |
GUN135..SS..S;GUN126..(SS,SX,TX)..H;GUN136,TGN136..SS,SX,TX;GUN125,135..(SX,TX)..CBU |
1 | ||
| 77350-KK010 |
TGN126..S..SA;GUN135..SD..6F;TGN136..AD..L..LA;TGN136..LHD..(SD,TD);GUN126,135..(AD,TD)..L..LA;GUN125..(AD,TD)..6F..L..(GCC,GEN,LA);GUN125..(KD,SD,TD)..6F..(L,S)..(KEN,PH,SA);GUN125,TGN126..LHD..(AD,SD,TD)..(5F,6FC)..L;GUN122,LAN125,TGN120,121..(SD,TD)..(5F,6FC) |
1 | ||
| 77350-KK020 |
GUN125..H..SA;GUN125..SD..6FC;TGN136..RHD..SD;GUN135..6F..S..LA;GUN126..AD..L..BZAG;GUN125..TD..6FC..L..GEN;GUN135..(AD,SD,TD)..6FC..(LA,SA);GUN135..(AD,TD)..(ARL,BZAG,GEN,PH,TH,VN);GUN125,TGN126,136..(AD,TD)..(H,S)..(GCC,GEN,LA);GUN125,TGN136..(AD,MD,TD)..(ARL,BZAG,IDN,MA,TH,VN)..CBU;GGN125,GUN126,136,TGN128,138..(AD,KD,MD,MMD,SD,TD)..(H,S)..CBU |
1 | ||
| 77360A - SPRING ASSY, FUEL FILLER OPENING LID | ||||
| 77360-0K010 |
GGN125,GUN112,12#,13#,LAN125,TGN11#,12#,13#..(AD,AS,KD,KS,MD,MMD,MS,SD,SS,SX,TD,TS,TX)..CBU |
1 | ||
| 77377 - RETAINER, FUEL FILLER OPENING LID LOCK | ||||
| 77377-0D080 |
GGN125,GUN112,12#,13#,TGN11#,12#,13#..(AD,AS,MD,MMD,MS,TD,TS,TX)..CBU |
1 | ||
| 77377 - RETAINER, FUEL FILLER OPENING LID LOCK | ||||
| 77377-0D080 |
GGN125,GUN112,12#,13#,TGN11#,12#,13#..(AD,AS,MD,MMD,MS,TD,TS,TX)..CBU |
1 | ||
| Common parts | ||||
| 90080-54035 | ||||
| 90269-06017 | ||||
| 90929-01382 | ||||
| 90959-T1001 | ||||
Part Price Details
Loading price information...
Part Number:
Price:
