GUN126L-DTFSXF (2020)

Toyota Hilux

Production Jun 2020 - Aug 2021
Engine 1GDFTV
Transmission 6F MTM
Displacement 2500cc
Power 168 HP (125 kW)

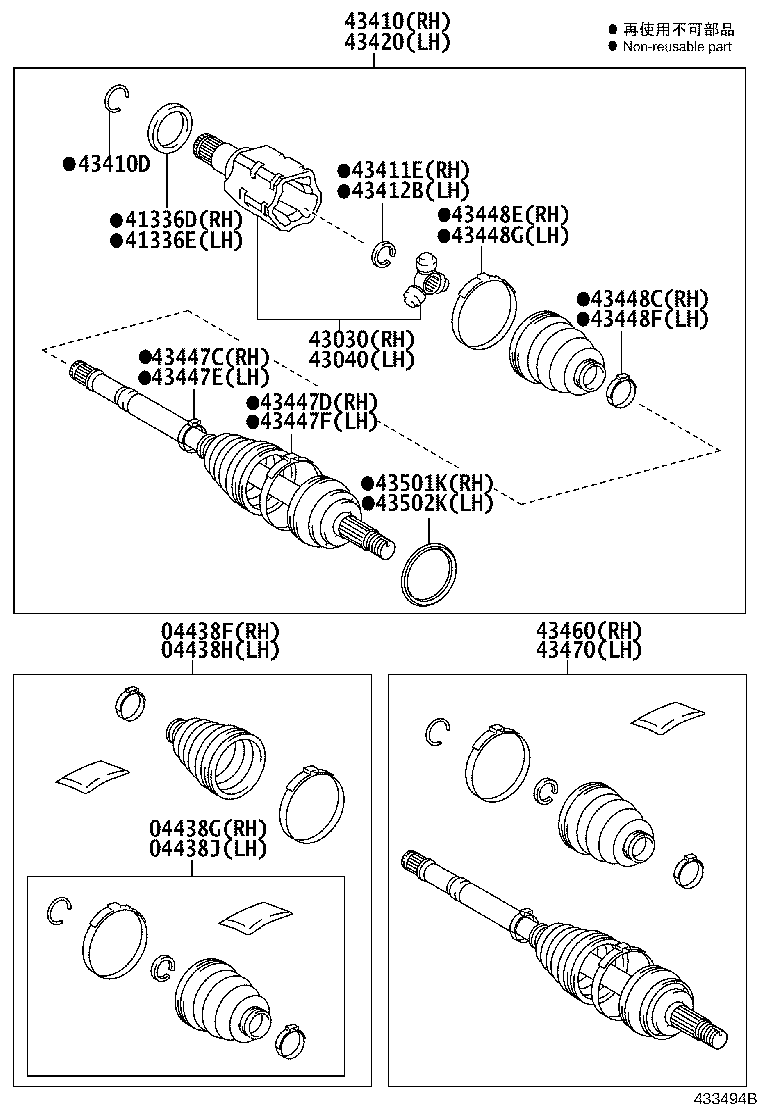

(1505- )GGN125,GUN125,126,KUN125,126,LAN125,TGN126,127,128

Click highlighted areas on diagram

diagram 04438F 04438G 04438H 04438J 41336D 41336E 43030 43040 43410 43410D 43411E 43412B 43420 43447C 43447D 43447E 43447F 43448C 43448E 43448F 43448G 43460 43470 43501K 43502K
Part # Description Qty Price

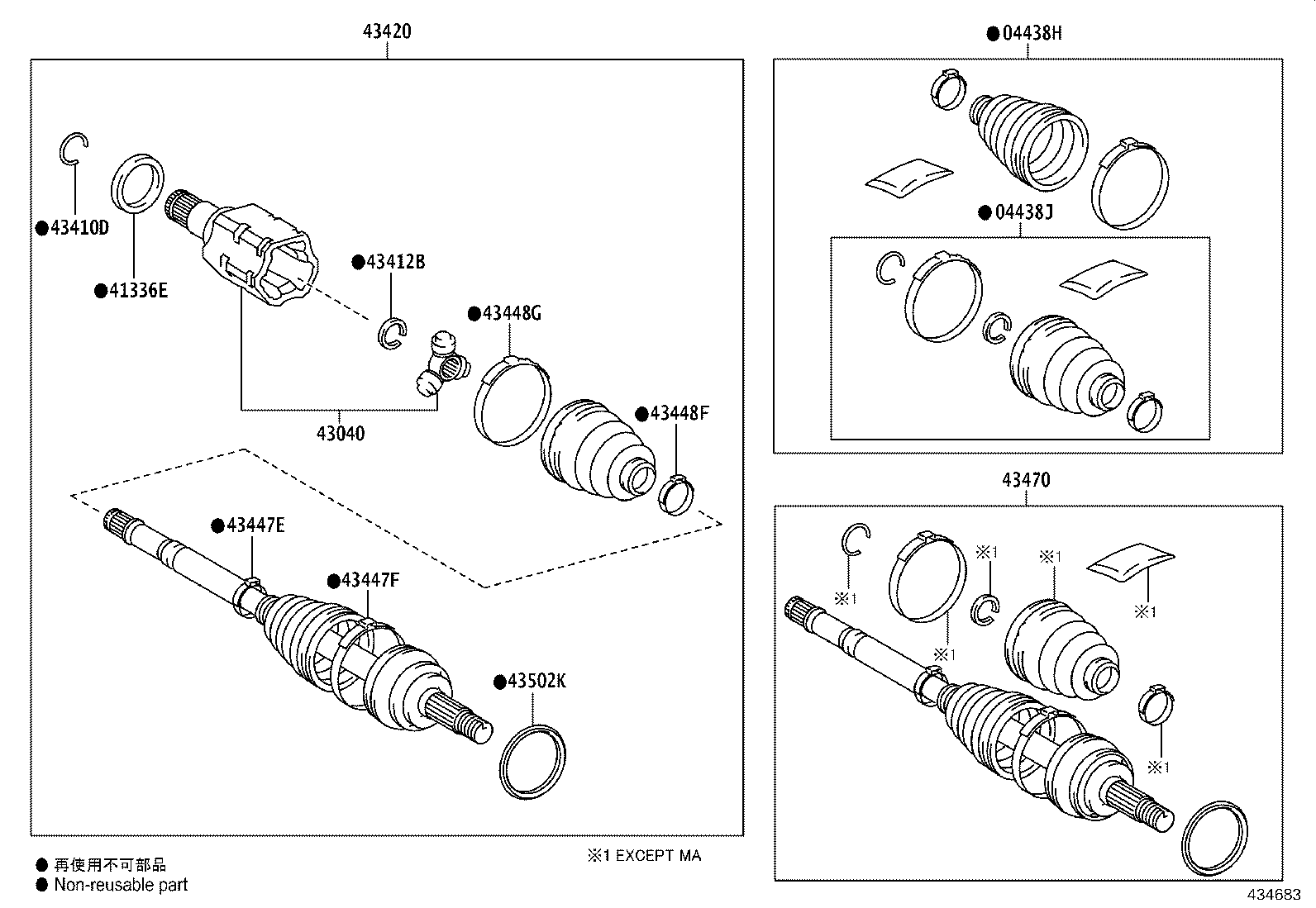

ILLUST NO. 1 OF 2(2006- )ARL,BZAG,GCC,GEN,IDN,KEN,LA,MA,MMR,PH,PKN,SA,TH,TWN,VN

Click highlighted areas on diagram

LH

diagram 04438H 04438J 41336E 43040 43410D 43412B 43420 43447E 43447F 43448F 43448G 43470 43502K
Part # Description Qty Price
04438H - BOOT KIT, FRONT DRIVE SHAFT, IN & OUTBOARD, LH
04427-0K062

GGN125,GUN125,126,TGN126..MMD,TD,TS,TX

 1
04438J - BOOT KIT, FRONT DRIVE SHAFT INBOARD JOINT, LH
04437-0K061

GGN125,GUN125,126,TGN126..MMD,TD,TS,TX

 1
41336E - COVER, FRONT DRIVE SHAFT DUST, LH
41336-0K080

GGN125,GUN125,126,TGN126..MD,MMD,MS,TD,TS,TX

 1
43040 - JOINT ASSY, FRONT DRIVE INBOARD, LH
43040-0K060

GGN125,GUN125,126,TGN126..MMD,TD,TS,TX

 1
43410D - RING, SHAFT SNAP (FOR FRONT DRIVE SHAFT)
43425-0K040

GGN125,GUN125,126,TGN126..MD,MMD,MS,TD,TS,TX

 2
43412B - RING, SHAFT SNAP (FOR FRONT DRIVE INNER SHAFT INNER LH)
43425-0K140

GGN125,GUN125,126,TGN126..MD,MMD,MS,TD,TS,TX

 1
43420 - SHAFT ASSY, FRONT DRIVE, LH
43430-0K070

GGN125,GUN125,126,TGN126..MMD,TD,TS,TX

 1
43447E - CLAMP (FOR FRONT AXLE OUTBOARD JOINT BOOT LH)
42345-0K070

GGN125,GUN125,126,TGN126..MD,MMD,MS,TD,TS,TX

 1
43447F - CLAMP, NO.2 (FOR FRONT AXLE OUTBOARD JOINT BOOT LH)
42345-0K100

GGN125,GUN125,126,TGN126..MD,MMD,MS,TD,TS,TX

 1
43448F - CLAMP (FOR FRONT AXLE INBOARD JOINT BOOT LH)
42345-0K040

GGN125,GUN125,126,TGN126..MD,MMD,MS,TD,TS,TX

 1
43448G - CLAMP, NO.2 (FOR FRONT AXLE INBOARD JOINT BOOT LH)
42345-0K010

GGN125,GUN125,126,TGN126..MD,MMD,MS,TD,TS,TX

 1
43470 - SHAFT ASSY, FRONT DRIVE OUTBOARD JOINT, LH
43460-09Y61

GGN125,GUN125,126,TGN126..MMD,TD,TS,TX

 1
43502K - SEAL, DUST (FOR FRONT AXLE HUB LH)
90304-T0001

GGN125,GUN125,126,LAN125,TGN126,128..AD,AS,KD,KS,MD,MMD,MS,SD,SS,SX,TD,TS,TX

 1

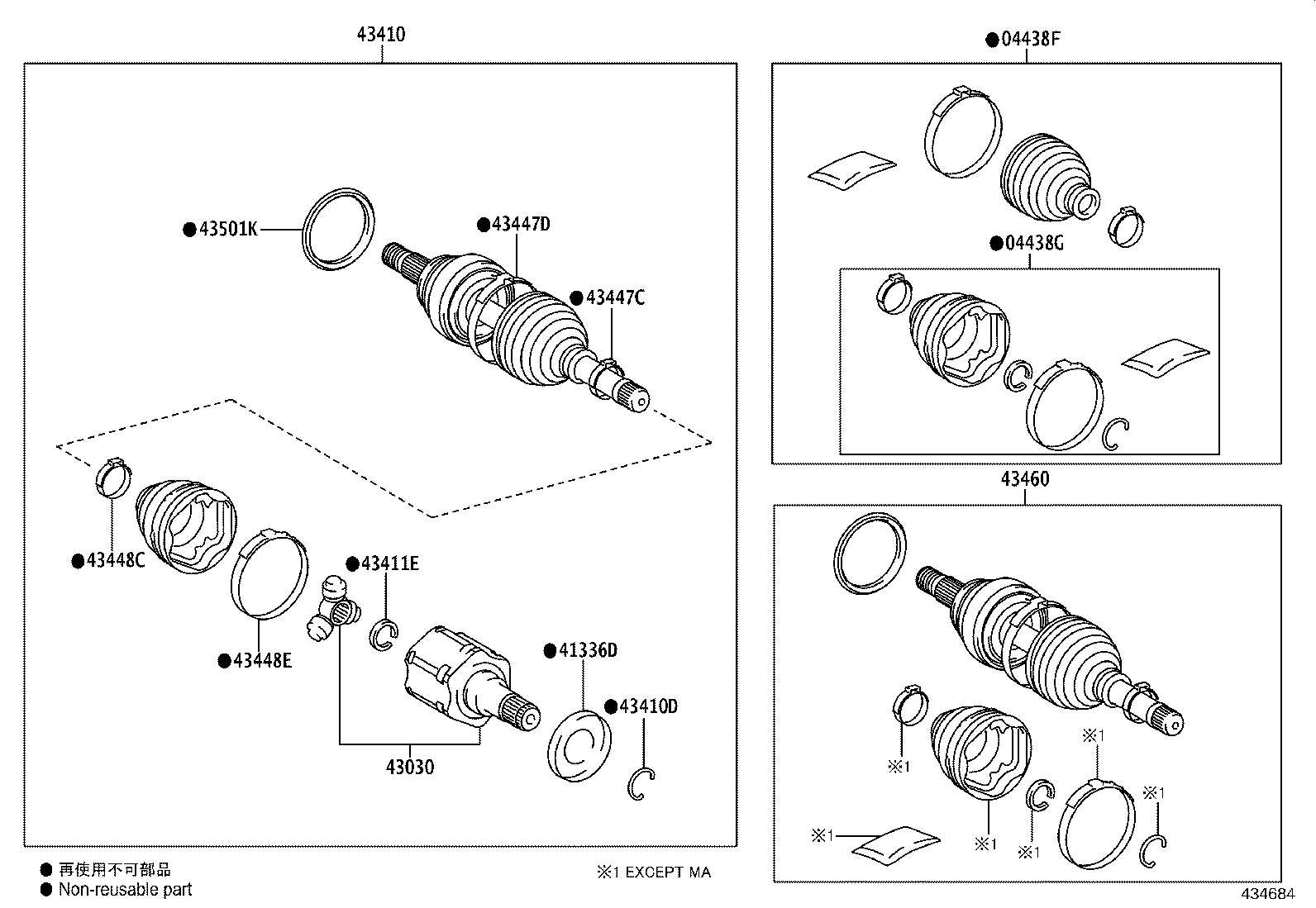

ILLUST NO. 2 OF 2(2006- )ARL,BZAG,GCC,GEN,IDN,KEN,LA,MA,MMR,PH,PKN,SA,TH,TWN,VN

Click highlighted areas on diagram

RH

diagram 04438F 04438G 41336D 43030 43410 43410D 43411E 43447C 43447D 43448C 43448E 43460 43501K
Part # Description Qty Price
04438F - BOOT KIT, FRONT DRIVE SHAFT, IN & OUTBOARD, RH
04427-0K062

GGN125,GUN125,126,TGN126..MMD,TD,TS,TX

 1
04438G - BOOT KIT, FRONT DRIVE SHAFT INBOARD JOINT, RH
04437-0K061

GGN125,GUN125,126,TGN126..MMD,TD,TS,TX

 1
41336D - COVER, FRONT DRIVE SHAFT DUST, RH
41336-0K080

GGN125,GUN125,126,TGN126..MD,MMD,MS,TD,TS,TX

 1
43030 - JOINT ASSY, FRONT DRIVE INBOARD, RH
43040-0K060

GGN125,GUN125,126,TGN126..MMD,TD,TS,TX

 1
43410 - SHAFT ASSY, FRONT DRIVE, RH
43430-0K070

GGN125,GUN125,126,TGN126..MMD,TD,TS,TX

 1
43410D - RING, SHAFT SNAP (FOR FRONT DRIVE SHAFT)
43425-0K040

GGN125,GUN125,126,TGN126..MD,MMD,MS,TD,TS,TX

 2
43411E - RING, SHAFT SNAP (FOR FRONT DRIVE INNER SHAFT INNER RH)
43425-0K140

GGN125,GUN125,126,TGN126..MD,MMD,MS,TD,TS,TX

 1
43447C - CLAMP (FOR FRONT AXLE OUTBOARD JOINT BOOT RH)
42345-0K070

GGN125,GUN125,126,TGN126..MD,MMD,MS,TD,TS,TX

 1
43447D - CLAMP, NO.2 (FOR FRONT AXLE OUTBOARD JOINT BOOT RH)
42345-0K100

GGN125,GUN125,126,TGN126..MD,MMD,MS,TD,TS,TX

 1
43448C - CLAMP (FOR FRONT AXLE INBOARD JOINT BOOT RH)
42345-0K040

GGN125,GUN125,126,TGN126..MD,MMD,MS,TD,TS,TX

 1
43448E - CLAMP, NO.2 (FOR FRONT AXLE INBOARD JOINT BOOT RH)
42345-0K010

GGN125,GUN125,126,TGN126..MD,MMD,MS,TD,TS,TX

 1
43460 - SHAFT ASSY, FRONT DRIVE OUTBOARD JOINT, RH
43460-09Y61

GGN125,GUN125,126,TGN126..MMD,TD,TS,TX

 1
43501K - SEAL, DUST (FOR FRONT AXLE HUB RH)
90304-T0001

GGN125,GUN125,126,LAN125,TGN126,128..AD,AS,KD,KS,MD,MMD,MS,SD,SS,SX,TD,TS,TX

 1
