GUN126L-DTFSXF (2020)

Toyota Hilux

Production Jun 2020 - Aug 2021
Engine 1GDFTV
Transmission 6F MTM
Displacement 2500cc
Power 168 HP (125 kW)

(1505- )1GDFTV,2GDFTV

Click highlighted areas on diagram

diagram 1104 12261 12262A 12262A 12262B 1701 90119T0260 9167180616
Part # Description Qty Price
Common parts
90119-T0260
91671-80616
Linked diagrams
1104
1701

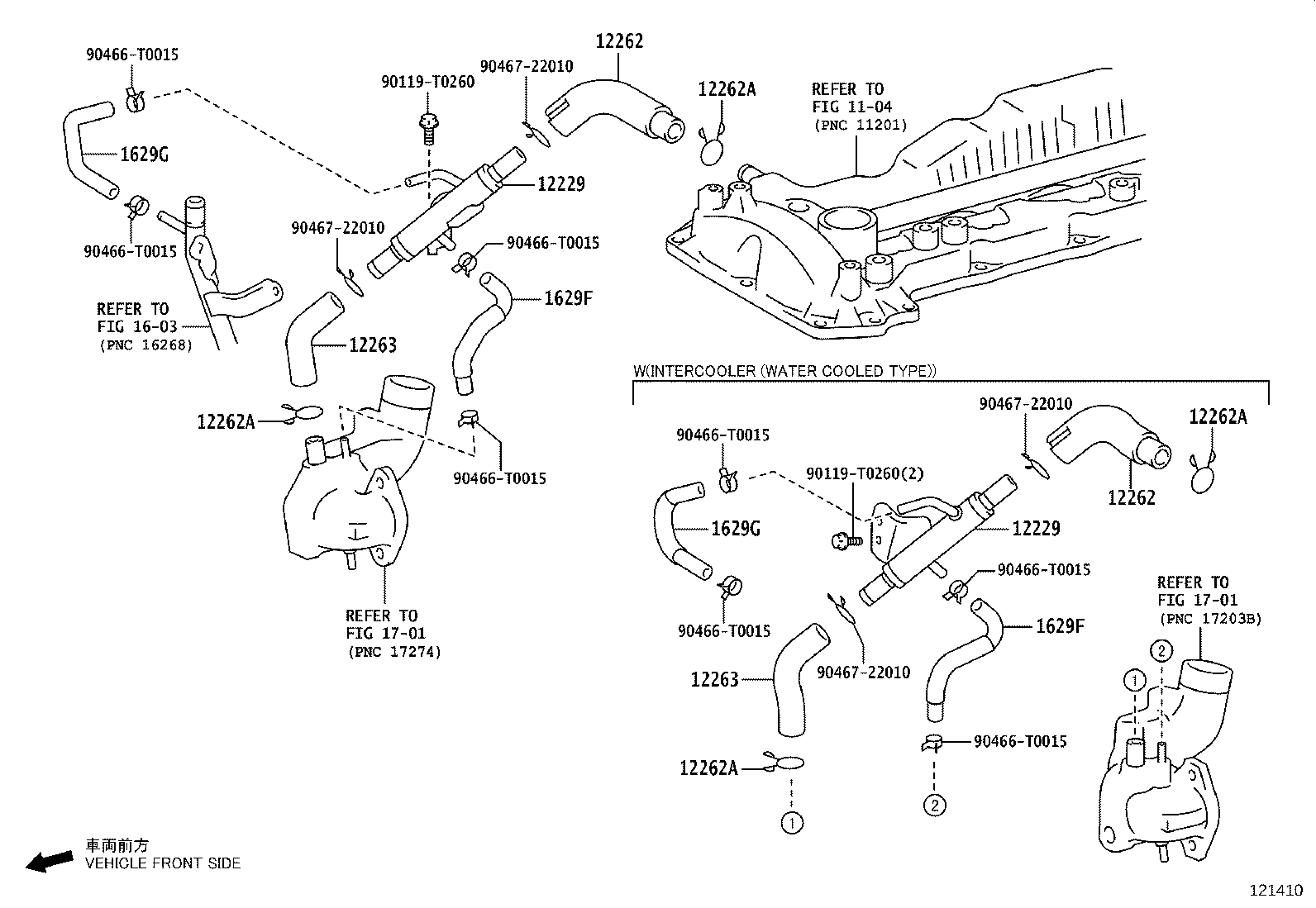

(2006- )1GDFTV..GUN126,136..LA,TWN ; (2006-)2GDFTV..GUN125..LHD..TD..H..GEN

Click highlighted areas on diagram

COLD SPEC

diagram 1104 12229 12229 12262 12262 12262A 12262A 12262A 12262A 12263 12263 1603 1629F 1629F 1629G 1629G 1701 1701 90119T0260 90119T0260 90466T0015 90466T0015 90466T0015 90466T0015 90466T0015 90466T0015 90466T0015 90466T0015 9046722010 9046722010 9046722010 9046722010
Part # Description Qty Price
12229 - PIPE, VENTILATION
12229-0E020

1GDFTV..GUN126,136..LA;2GDFTV..GUN125..TD..LA;2GDFTV..GUN135..(AD,AS,TD)..6F..LA;2GDFTV..GUN125..(AD,TX)..(L,S)..(GEN,LA)

COSTA RICA SPEC&EXHAUST EMISSION CONTROL-EURO 6C OR EURO 6D-TEMP

 1
12229-0E020

1GDFTV..GUN126,136..LA;2GDFTV..GUN125..TD..LA;2GDFTV..GUN135..(AD,AS,TD)..6F..LA;2GDFTV..GUN125..(AD,TX)..(L,S)..(GEN,LA)

COSTA RICA SPEC&EXHAUST EMISSION CONTROL-EURO 6C OR EURO 6D-TEMP

 1
12229 - PIPE, VENTILATION
12229-0E020

1GDFTV..GUN126,136..LA;2GDFTV..GUN125..TD..LA;2GDFTV..GUN135..(AD,AS,TD)..6F..LA;2GDFTV..GUN125..(AD,TX)..(L,S)..(GEN,LA)

COSTA RICA SPEC&EXHAUST EMISSION CONTROL-EURO 6C OR EURO 6D-TEMP

 1
12229-0E020

1GDFTV..GUN126,136..LA;2GDFTV..GUN125..TD..LA;2GDFTV..GUN135..(AD,AS,TD)..6F..LA;2GDFTV..GUN125..(AD,TX)..(L,S)..(GEN,LA)

COSTA RICA SPEC&EXHAUST EMISSION CONTROL-EURO 6C OR EURO 6D-TEMP

 1
12262 - HOSE, VENTILATION, NO.2
12262-0E020

1GDFTV..GUN126,136..LA;2GDFTV..GUN125..TD..LA;2GDFTV..GUN135..(AD,AS,TD)..6F..LA;2GDFTV..GUN125..(AD,TX)..(L,S)..(GEN,LA)

COSTA RICA SPEC&EXHAUST EMISSION CONTROL-EURO 6C OR EURO 6D-TEMP

 1
12262-0E020

1GDFTV..GUN126,136..LA;2GDFTV..GUN125..TD..LA;2GDFTV..GUN135..(AD,AS,TD)..6F..LA;2GDFTV..GUN125..(AD,TX)..(L,S)..(GEN,LA)

COSTA RICA SPEC&EXHAUST EMISSION CONTROL-EURO 6C OR EURO 6D-TEMP

 1
12262 - HOSE, VENTILATION, NO.2
12262-0E020

1GDFTV..GUN126,136..LA;2GDFTV..GUN125..TD..LA;2GDFTV..GUN135..(AD,AS,TD)..6F..LA;2GDFTV..GUN125..(AD,TX)..(L,S)..(GEN,LA)

COSTA RICA SPEC&EXHAUST EMISSION CONTROL-EURO 6C OR EURO 6D-TEMP

 1
12262-0E020

1GDFTV..GUN126,136..LA;2GDFTV..GUN125..TD..LA;2GDFTV..GUN135..(AD,AS,TD)..6F..LA;2GDFTV..GUN125..(AD,TX)..(L,S)..(GEN,LA)

COSTA RICA SPEC&EXHAUST EMISSION CONTROL-EURO 6C OR EURO 6D-TEMP

 1
12262A - CLIP(FOR VENTILATION HOSE NO.2)
90466-22005

1GDFTV,2GDFTV..GUN112,12#,13#..AD,AS,KD,KS,MD,MMD,MS,SD,SS,SX,TD,TS,TX

 2
90466-22005

1GDFTV,2GDFTV..GUN112,12#,13#..AD,AS,KD,KS,MD,MMD,MS,SD,SS,SX,TD,TS,TX

 2
12262A - CLIP(FOR VENTILATION HOSE NO.2)
90466-22005

1GDFTV,2GDFTV..GUN112,12#,13#..AD,AS,KD,KS,MD,MMD,MS,SD,SS,SX,TD,TS,TX

 2
90466-22005

1GDFTV,2GDFTV..GUN112,12#,13#..AD,AS,KD,KS,MD,MMD,MS,SD,SS,SX,TD,TS,TX

 2
12262A - CLIP(FOR VENTILATION HOSE NO.2)
90466-22005

1GDFTV,2GDFTV..GUN112,12#,13#..AD,AS,KD,KS,MD,MMD,MS,SD,SS,SX,TD,TS,TX

 2
90466-22005

1GDFTV,2GDFTV..GUN112,12#,13#..AD,AS,KD,KS,MD,MMD,MS,SD,SS,SX,TD,TS,TX

 2
12262A - CLIP(FOR VENTILATION HOSE NO.2)
90466-22005

1GDFTV,2GDFTV..GUN112,12#,13#..AD,AS,KD,KS,MD,MMD,MS,SD,SS,SX,TD,TS,TX

 2
90466-22005

1GDFTV,2GDFTV..GUN112,12#,13#..AD,AS,KD,KS,MD,MMD,MS,SD,SS,SX,TD,TS,TX

 2
12263 - HOSE, VENTILATION, NO.3
12263-0E020

1GDFTV..GUN126,136..LA;2GDFTV..GUN125..TD..LA;2GDFTV..GUN135..(AD,AS,TD)..6F..LA;2GDFTV..GUN125..(AD,TX)..(L,S)..(GEN,LA)

COSTA RICA SPEC&EXHAUST EMISSION CONTROL-EURO 6C OR EURO 6D-TEMP

 1
12263-0E020

1GDFTV..GUN126,136..LA;2GDFTV..GUN125..TD..LA;2GDFTV..GUN135..(AD,AS,TD)..6F..LA;2GDFTV..GUN125..(AD,TX)..(L,S)..(GEN,LA)

COSTA RICA SPEC&EXHAUST EMISSION CONTROL-EURO 6C OR EURO 6D-TEMP

 1
12263 - HOSE, VENTILATION, NO.3
12263-0E020

1GDFTV..GUN126,136..LA;2GDFTV..GUN125..TD..LA;2GDFTV..GUN135..(AD,AS,TD)..6F..LA;2GDFTV..GUN125..(AD,TX)..(L,S)..(GEN,LA)

COSTA RICA SPEC&EXHAUST EMISSION CONTROL-EURO 6C OR EURO 6D-TEMP

 1
12263-0E020

1GDFTV..GUN126,136..LA;2GDFTV..GUN125..TD..LA;2GDFTV..GUN135..(AD,AS,TD)..6F..LA;2GDFTV..GUN125..(AD,TX)..(L,S)..(GEN,LA)

COSTA RICA SPEC&EXHAUST EMISSION CONTROL-EURO 6C OR EURO 6D-TEMP

 1
1629F - HOSE, WATER BY-PASS, NO.19
1629F-0E020

1GDFTV..GUN126,136..LA;2GDFTV..GUN125..TD..LA;2GDFTV..GUN135..(AD,AS,TD)..6F..LA;2GDFTV..GUN125..(AD,TX)..(L,S)..(GEN,LA)

COSTA RICA SPEC&EXHAUST EMISSION CONTROL-EURO 6C OR EURO 6D-TEMP

 1
1629F-0E020

1GDFTV..GUN126,136..LA;2GDFTV..GUN125..TD..LA;2GDFTV..GUN135..(AD,AS,TD)..6F..LA;2GDFTV..GUN125..(AD,TX)..(L,S)..(GEN,LA)

COSTA RICA SPEC&EXHAUST EMISSION CONTROL-EURO 6C OR EURO 6D-TEMP

 1
1629F - HOSE, WATER BY-PASS, NO.19
1629F-0E020

1GDFTV..GUN126,136..LA;2GDFTV..GUN125..TD..LA;2GDFTV..GUN135..(AD,AS,TD)..6F..LA;2GDFTV..GUN125..(AD,TX)..(L,S)..(GEN,LA)

COSTA RICA SPEC&EXHAUST EMISSION CONTROL-EURO 6C OR EURO 6D-TEMP

 1
1629F-0E020

1GDFTV..GUN126,136..LA;2GDFTV..GUN125..TD..LA;2GDFTV..GUN135..(AD,AS,TD)..6F..LA;2GDFTV..GUN125..(AD,TX)..(L,S)..(GEN,LA)

COSTA RICA SPEC&EXHAUST EMISSION CONTROL-EURO 6C OR EURO 6D-TEMP

 1
1629G - HOSE, WATER BY-PASS, NO.20
1629G-0E020

1GDFTV..GUN126,136..LA;2GDFTV..GUN125..TD..LA;2GDFTV..GUN135..(AD,AS,TD)..6F..LA;2GDFTV..GUN125..(AD,TX)..(L,S)..(GEN,LA)

COSTA RICA SPEC&EXHAUST EMISSION CONTROL-EURO 6C OR EURO 6D-TEMP

 1
1629G-0E020

1GDFTV..GUN126,136..LA;2GDFTV..GUN125..TD..LA;2GDFTV..GUN135..(AD,AS,TD)..6F..LA;2GDFTV..GUN125..(AD,TX)..(L,S)..(GEN,LA)

COSTA RICA SPEC&EXHAUST EMISSION CONTROL-EURO 6C OR EURO 6D-TEMP

 1
1629G - HOSE, WATER BY-PASS, NO.20
1629G-0E020

1GDFTV..GUN126,136..LA;2GDFTV..GUN125..TD..LA;2GDFTV..GUN135..(AD,AS,TD)..6F..LA;2GDFTV..GUN125..(AD,TX)..(L,S)..(GEN,LA)

COSTA RICA SPEC&EXHAUST EMISSION CONTROL-EURO 6C OR EURO 6D-TEMP

 1
1629G-0E020

1GDFTV..GUN126,136..LA;2GDFTV..GUN125..TD..LA;2GDFTV..GUN135..(AD,AS,TD)..6F..LA;2GDFTV..GUN125..(AD,TX)..(L,S)..(GEN,LA)

COSTA RICA SPEC&EXHAUST EMISSION CONTROL-EURO 6C OR EURO 6D-TEMP

 1
Common parts
90119-T0260
90466-T0015
90467-22010
Linked diagrams
1104
1603
1701

(2006- )1GDFTV,2GDFTV..GUN112,12#,136..ARL,BZAG,GCC,GEN,IDN,KEN,LA,MA,MMR,PH,PKN

Click highlighted areas on diagram

diagram 1104 12261 12262A 12262A 12262B 1701 90119T0260 9167180616
Part # Description Qty Price
12261 - HOSE, VENTILATION
12261-0E010

2GDFTV..GUN135..H..GEN;2GDFTV..GUN125..AS..BZAG;2GDFTV..GUN135..ARL,BZAG,KEN,LA,PH,SA,TH,VN;2GDFTV..GUN125..AD,KD,KS,MD,MS,SD,SS,SX,TD,TS,TX;1GDFTV,2GDFTV..GUN112,120,122,123,126,136..ARL,BZAG,GCC,GEN,IDN,KEN,LA,MA,MMR,PH,SA,TH,VN

THA SOURCED PARTS

 1
12261-0E010

2GDFTV..GUN135..H..GEN;2GDFTV..GUN125..AS..BZAG;2GDFTV..GUN135..ARL,BZAG,KEN,LA,PH,SA,TH,VN;2GDFTV..GUN125..AD,KD,KS,MD,MS,SD,SS,SX,TD,TS,TX;1GDFTV,2GDFTV..GUN112,120,122,123,126,136..ARL,BZAG,GCC,GEN,IDN,KEN,LA,MA,MMR,PH,SA,TH,VN

THA SOURCED PARTS

 1
12262A - CLIP(FOR VENTILATION HOSE NO.2)
90466-22005

1GDFTV,2GDFTV..GUN112,12#,13#..AD,AS,KD,KS,MD,MMD,MS,SD,SS,SX,TD,TS,TX

 2
90466-22005

1GDFTV,2GDFTV..GUN112,12#,13#..AD,AS,KD,KS,MD,MMD,MS,SD,SS,SX,TD,TS,TX

 2
12262A - CLIP(FOR VENTILATION HOSE NO.2)
90466-22005

1GDFTV,2GDFTV..GUN112,12#,13#..AD,AS,KD,KS,MD,MMD,MS,SD,SS,SX,TD,TS,TX

 2
90466-22005

1GDFTV,2GDFTV..GUN112,12#,13#..AD,AS,KD,KS,MD,MMD,MS,SD,SS,SX,TD,TS,TX

 2
12262B - CLAMP(FOR VENTILATION HOSE)
16581-11040

2GDFTV..GUN135..H..GEN;2GDFTV..GUN125..AS..BZAG;2GDFTV..GUN135..ARL,BZAG,KEN,LA,PH,SA,TH,VN;2GDFTV..GUN125..AD,KD,KS,MD,MS,SD,SS,SX,TD,TS,TX;1GDFTV,2GDFTV..GUN112,120,122,123,126,136..ARL,BZAG,GCC,GEN,IDN,KEN,LA,MA,MMR,PH,SA,TH,VN

 1
16581-11040

2GDFTV..GUN135..H..GEN;2GDFTV..GUN125..AS..BZAG;2GDFTV..GUN135..ARL,BZAG,KEN,LA,PH,SA,TH,VN;2GDFTV..GUN125..AD,KD,KS,MD,MS,SD,SS,SX,TD,TS,TX;1GDFTV,2GDFTV..GUN112,120,122,123,126,136..ARL,BZAG,GCC,GEN,IDN,KEN,LA,MA,MMR,PH,SA,TH,VN

 1
Common parts
90119-T0260
91671-80616
Linked diagrams
1104
1701
