GUN125R-DTTSX (2020)

Toyota Hilux

Production Jun 2020 - Aug 2021
Engine 2GDFTV
Transmission 6FC ATM
Displacement 2500cc
Power 168 HP (125 kW)

(0408- )CBU

Click highlighted areas on diagram

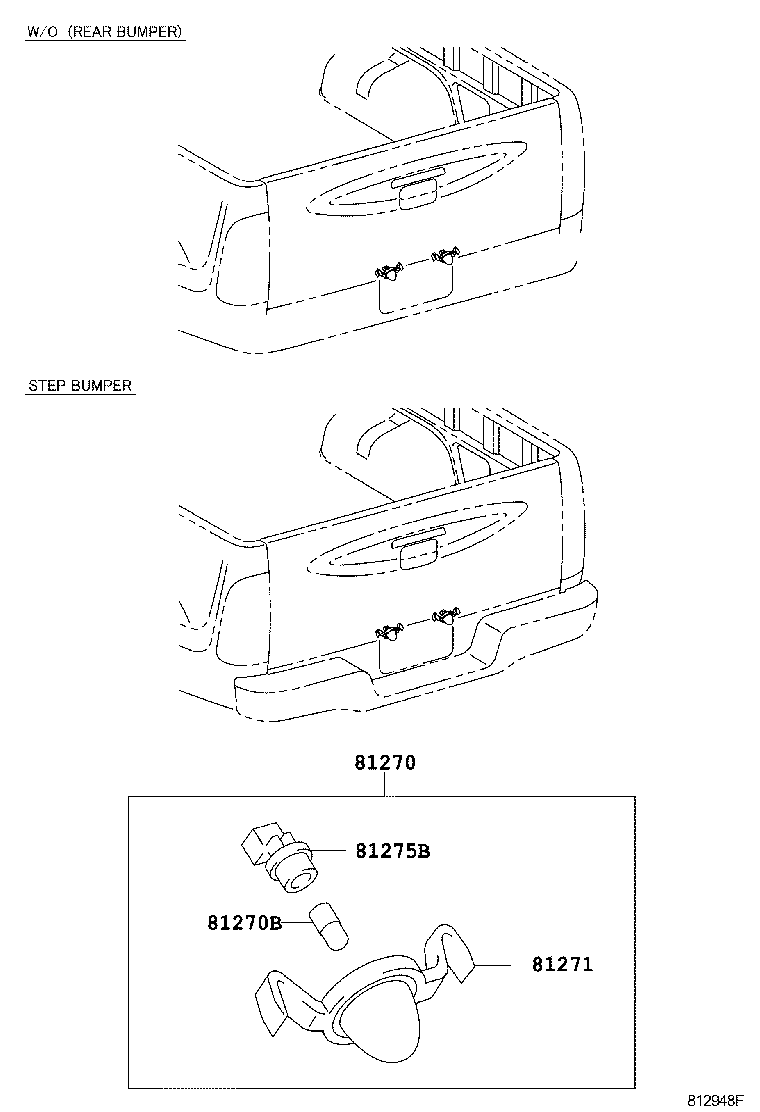

W/O(REAR BUMPER) OR STEP BUMPER

diagram 81270 81270B 81271 81275B
Part # Description Qty Price

(0408- )CBU

Click highlighted areas on diagram

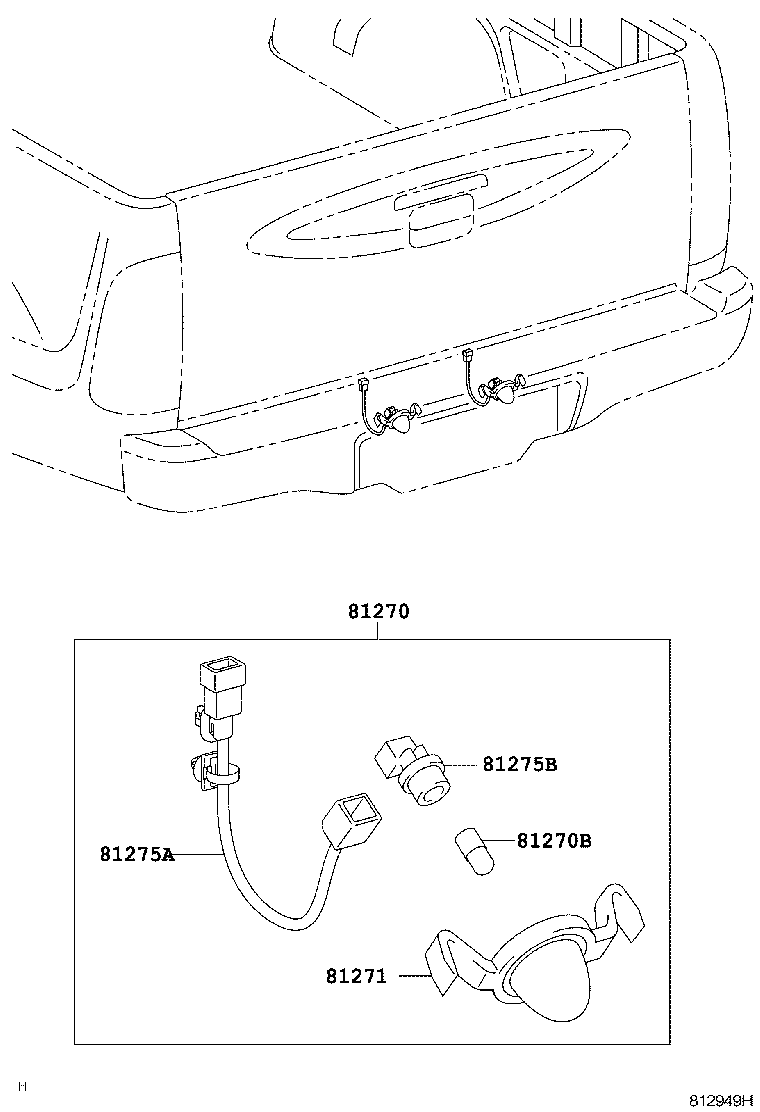

FLAT BUMPER

diagram 81270 81270B 81271 81275A 81275B
Part # Description Qty Price

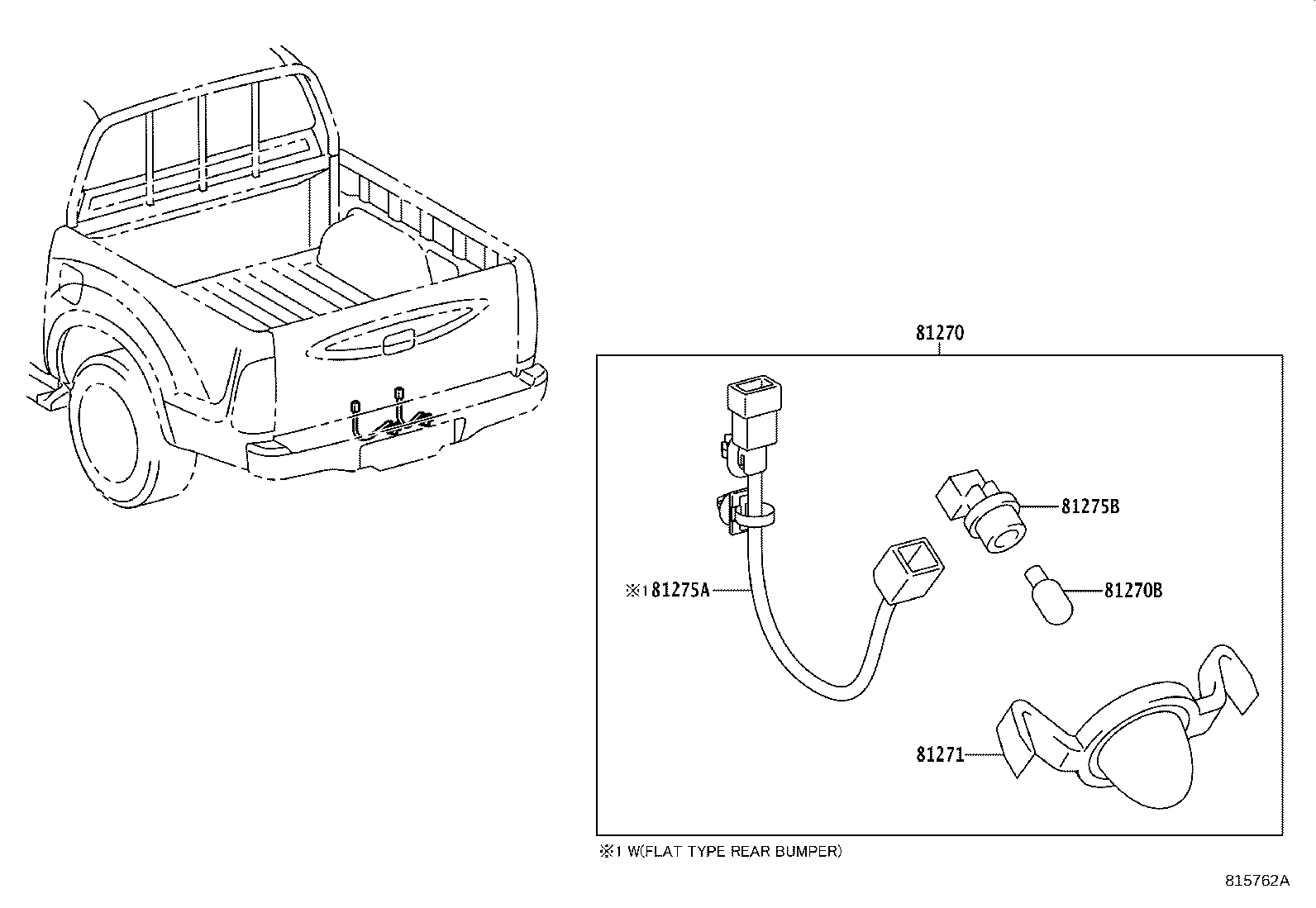

(1107- )CBU

Click highlighted areas on diagram

diagram 81270 81270B 81271 81275A 81275B
Part # Description Qty Price

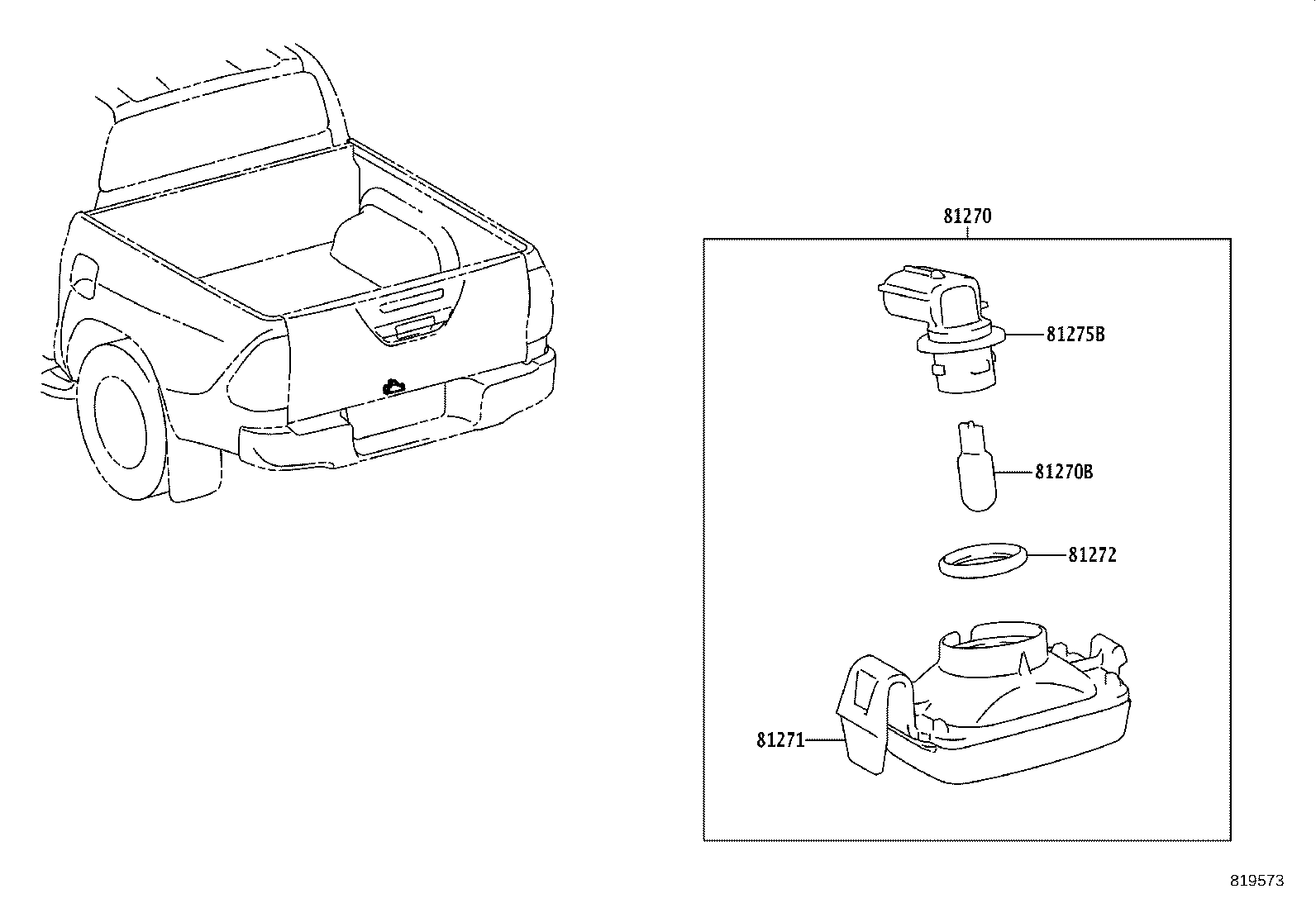

(1505- )

Click highlighted areas on diagram

diagram 81270 81270B 81271 81272 81275B
Part # Description Qty Price

(2006- )ARL,BZAG,GCC,GEN,IDN,KEN,LA,MA,MMR,PH,PKN,SA,TH,TWN,VN

Click highlighted areas on diagram

diagram 81270 81270B 81271 81272 81275B
Part # Description Qty Price
81270 - LAMP ASSY, LICENSE PLATE
81270-0K080

GGN125,GUN112,12#,13#,LAN125,TGN11#,12#,13#..AD,AS,KD,KS,MD,MMD,MS,SD,SS,SX,TD,TS,TX

 1
81270B - BULB (FOR LICENSE PLATE LAMP)
90981-TB003

GGN125,GUN112,12#,13#,LAN125,TGN11#,12#,13#..AD,AS,KD,KS,MD,MMD,MS,SD,SS,SX,TD,TS,TX

12V 5W

 1
81271 - LENS, LICENSE PLATE LAMP
81271-0K080

GGN125,GUN112,12#,13#,LAN125,TGN11#,12#,13#..AD,AS,KD,KS,MD,MMD,MS,SD,SS,SX,TD,TS,TX

 1
81272 - GASKET, LICENSE PLATE LAMP LENS
90069-38039

GGN125,GUN112,12#,13#,LAN125,TGN11#,12#,13#..AD,AS,KD,KS,MD,MMD,MS,SD,SS,SX,TD,TS,TX

 1
81275B - SOCKET PLUG, LICENSE PLATE LAMP
90069-81108

GGN125,GUN112,12#,13#,LAN125,TGN11#,12#,13#..AD,AS,KD,KS,MD,MMD,MS,SD,SS,SX,TD,TS,TX

 1
