GUN125R-DTTSX (2020)
Toyota Hilux
ILLUST NO. 1 OF 3(2006- )AD,KD,MD,MMD,PD,SD,TD
OUTER PANEL
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 61131 - PILLAR, FRONT BODY, UPPER OUTER RH | ||||
| 61131-KK030 |
GUN120,122,125,126,13#..SX,TX |
1 | ||
| 61131-KK020 |
GUN112,12#,13#,LAN125,TGN11#,120,121,126,136..AS,KS,MS,SS,TS |
1 | ||
| 61131-KK010 |
GGN125,GUN120,122,125,126,13#,LAN125,TGN12#,13#..AD,KD,MD,MMD,SD,TD |
1 | ||
| 61132 - PILLAR, FRONT BODY, UPPER OUTER LH | ||||
| 61132-KK030 |
GUN120,122,125,126,13#..SX,TX |
1 | ||
| 61132-KK020 |
GUN112,12#,13#,LAN125,TGN11#,120,121,126,136..AS,KS,MS,SS,TS |
1 | ||
| 61132-KK010 |
GGN125,GUN120,122,125,126,13#,LAN125,TGN12#,13#..AD,KD,MD,MMD,SD,TD |
1 | ||
| 61213B - RAIL, ROOF SIDE, OUTER NO.2 RH | ||||
| 61213-KK010 |
GGN125,GUN120,122,125,126,13#,LAN125,TGN12#,13#..AD,KD,MD,MMD,SD,TD |
1 | ||
| 61214B - RAIL, ROOF SIDE, OUTER NO.2 LH | ||||
| 61214-KK010 |
GGN125,GUN120,122,125,126,13#,LAN125,TGN12#,13#..AD,KD,MD,MMD,SD,TD |
1 | ||
| 61311B - PILLAR, CENTER BODY, OUTER RH | ||||
| 61311-KK010 |
GGN125,GUN120,122,125,126,13#,LAN125,TGN12#,13#..AD,KD,MD,MMD,SD,TD |
1 | ||
| 61312B - PILLAR, CENTER BODY, OUTER LH | ||||
| 61312-KK010 |
GGN125,GUN120,122,125,126,13#,LAN125,TGN12#,13#..AD,KD,MD,MMD,SD,TD |
1 | ||
| 61611 - PANEL, QUARTER, RH | ||||
| 61611-KK030 |
GUN120,122,125,126,13#..SX,TX |
1 | ||
| 61611-KK010 |
GGN125,GUN120,122,125,126,13#,LAN125,TGN12#,13#..AD,KD,MD,MMD,SD,TD |
1 | ||
| 61611-KK020 |
GUN112,12#,13#,LAN125,TGN11#,120,121,126,136..AS,KS,MS,SS,TS |
1 | ||
| 61612 - PANEL, QUARTER, LH | ||||
| 61612-KK010 |
GGN125,GUN120,122,125,126,13#,LAN125,TGN12#,13#..AD,KD,MD,MMD,SD,TD |
1 | ||
| 61612-KK020 |
GUN112,12#,13#,LAN125,TGN11#,120,121,126,136..AS,KS,MS,SS,TS |
1 | ||
| 61612-KK030 |
GUN120,122,125,126,13#..SX,TX |
1 | ||
ILLUST NO. 1 OF 3(2006- )AS,KS,MS,PS,SS,TS
OUTER PANEL
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 61131 - PILLAR, FRONT BODY, UPPER OUTER RH | ||||
| 61131-KK030 |
GUN120,122,125,126,13#..SX,TX |
1 | ||
| 61131-KK020 |
GUN112,12#,13#,LAN125,TGN11#,120,121,126,136..AS,KS,MS,SS,TS |
1 | ||
| 61131-KK010 |
GGN125,GUN120,122,125,126,13#,LAN125,TGN12#,13#..AD,KD,MD,MMD,SD,TD |
1 | ||
| 61132 - PILLAR, FRONT BODY, UPPER OUTER LH | ||||
| 61132-KK030 |
GUN120,122,125,126,13#..SX,TX |
1 | ||
| 61132-KK020 |
GUN112,12#,13#,LAN125,TGN11#,120,121,126,136..AS,KS,MS,SS,TS |
1 | ||
| 61132-KK010 |
GGN125,GUN120,122,125,126,13#,LAN125,TGN12#,13#..AD,KD,MD,MMD,SD,TD |
1 | ||
| 61611 - PANEL, QUARTER, RH | ||||
| 61611-KK030 |
GUN120,122,125,126,13#..SX,TX |
1 | ||
| 61611-KK010 |
GGN125,GUN120,122,125,126,13#,LAN125,TGN12#,13#..AD,KD,MD,MMD,SD,TD |
1 | ||
| 61611-KK020 |
GUN112,12#,13#,LAN125,TGN11#,120,121,126,136..AS,KS,MS,SS,TS |
1 | ||
| 61612 - PANEL, QUARTER, LH | ||||
| 61612-KK010 |
GGN125,GUN120,122,125,126,13#,LAN125,TGN12#,13#..AD,KD,MD,MMD,SD,TD |
1 | ||
| 61612-KK020 |
GUN112,12#,13#,LAN125,TGN11#,120,121,126,136..AS,KS,MS,SS,TS |
1 | ||
| 61612-KK030 |
GUN120,122,125,126,13#..SX,TX |
1 | ||

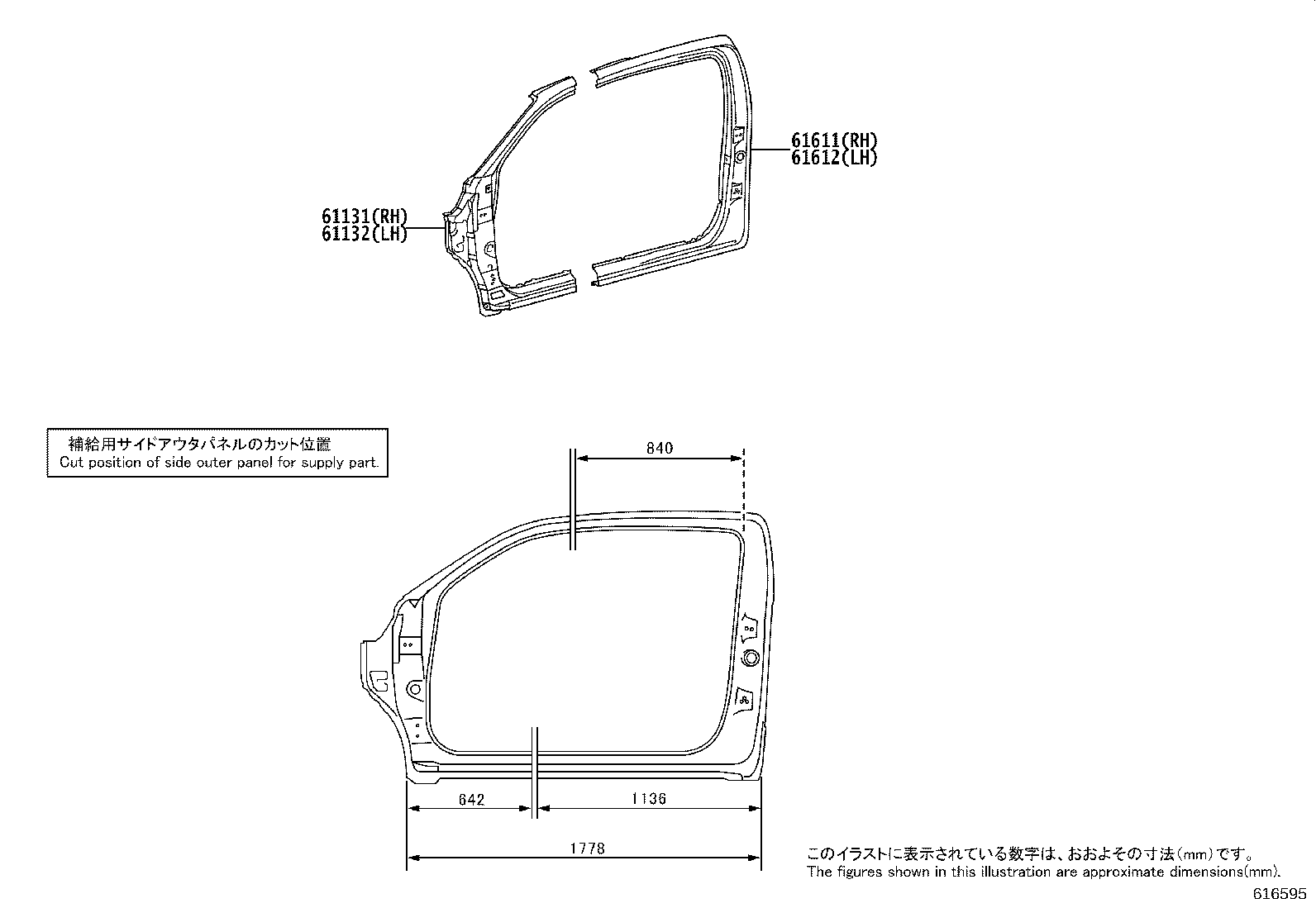

ILLUST NO. 1 OF 3(2006- )SX,TX
OUTER PANEL
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 61131 - PILLAR, FRONT BODY, UPPER OUTER RH | ||||
| 61131-KK030 |
GUN120,122,125,126,13#..SX,TX |
1 | ||
| 61131-KK020 |
GUN112,12#,13#,LAN125,TGN11#,120,121,126,136..AS,KS,MS,SS,TS |
1 | ||
| 61131-KK010 |
GGN125,GUN120,122,125,126,13#,LAN125,TGN12#,13#..AD,KD,MD,MMD,SD,TD |
1 | ||
| 61132 - PILLAR, FRONT BODY, UPPER OUTER LH | ||||
| 61132-KK030 |
GUN120,122,125,126,13#..SX,TX |
1 | ||
| 61132-KK020 |
GUN112,12#,13#,LAN125,TGN11#,120,121,126,136..AS,KS,MS,SS,TS |
1 | ||
| 61132-KK010 |
GGN125,GUN120,122,125,126,13#,LAN125,TGN12#,13#..AD,KD,MD,MMD,SD,TD |
1 | ||
| 61611 - PANEL, QUARTER, RH | ||||
| 61611-KK030 |
GUN120,122,125,126,13#..SX,TX |
1 | ||
| 61611-KK010 |
GGN125,GUN120,122,125,126,13#,LAN125,TGN12#,13#..AD,KD,MD,MMD,SD,TD |
1 | ||
| 61611-KK020 |
GUN112,12#,13#,LAN125,TGN11#,120,121,126,136..AS,KS,MS,SS,TS |
1 | ||
| 61612 - PANEL, QUARTER, LH | ||||
| 61612-KK010 |
GGN125,GUN120,122,125,126,13#,LAN125,TGN12#,13#..AD,KD,MD,MMD,SD,TD |
1 | ||
| 61612-KK020 |
GUN112,12#,13#,LAN125,TGN11#,120,121,126,136..AS,KS,MS,SS,TS |
1 | ||
| 61612-KK030 |
GUN120,122,125,126,13#..SX,TX |
1 | ||
ILLUST NO. 2 OF 3(2006- )AD,KD,MD,MMD,PD,SD,TD
INNER PANEL,RH
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 53821B - BRACKET, FRONT FENDER, REAR RH | ||||
| 53257-35030 |
GGN125,GUN112,12#,13#,LAN125,TGN11#,12#,13#..AD,AS,KD,KS,MD,MMD,MS,SD,SS,SX,TD,TS,TX |
1 | ||
| 61021C - PILLAR SUB-ASSY, FRONT BODY, RH | ||||
| 61021-KK040 |
GUN125..SX..S;GUN122..S..GEN;GUN122..RHD..GEN;GUN125,135..(KS,SS,SX)..L;GUN122..LHD..TS..L..(GEN,PH);TGN121..(SS,TD,TS)..(GCC,GEN,SA,TH);GUN112,120,122,LAN125,TGN11#,120..(SS,TD,TS,TX)..(GCC,IDN,SA,TH) |
1 | ||
| 61021-KK030 |
GUN125,135..(KS,SS)..S;GUN135..SD,SX,TD,TS,TX;TGN121..(SD,TD,TS)..(ARL,SA);GUN125,LAN125..KD,MD,MS,SD,TD,TS,TX;GUN122..LHD..(SD,TD)..L..(GEN,PH,SA);GGN125,GUN123,126,136,TGN126,136..KD,MD,MMD,SD,SS,SX,TD,TS,TX |
1 | ||
| 61103G - GUSSET SUB-ASSY, FRONT BODY PILLAR, LOWER RH | ||||
| 61103-KK010 |
GGN125,GUN112,12#,13#,LAN125,TGN11#,12#,13#..AD,AS,KD,KS,MD,MMD,MS,SD,SS,SX,TD,TS,TX |
1 | ||
| 61108A - REINFORCE SUB-ASSY, FRONT BODY PILLAR, LOWER RH | ||||
| 61108-KK900 |
GGN125,GUN112,12#,13#,LAN125,TGN11#,120,121,126,136..KD,KS,MD,MMD,MS,SD,SS,SX,TD,TS,TX |
1 | ||
| 61201 - RAIL SUB-ASSY, ROOF SIDE, RH | ||||
| 61201-KK010 |
GGN125,GUN120,122,125,126,13#,LAN125,TGN12#,13#..AD,KD,MD,MMD,SD,TD |
1 | ||
| 61211 - RAIL, ROOF SIDE, OUTER RH | ||||
| 61211-KK020 |
GUN112,12#,13#,LAN125,TGN11#,120,121,126,136..AS,KS,MS,SS,TS |
1 | ||
| 61210-KK020 |
GUN120,122,125,126,13#..SX,TX |
1 | ||
| 61211-KK010 |
GGN125,GUN120,122,125,126,13#,LAN125,TGN12#,13#..AD,KD,MD,MMD,SD,TD |
1 | ||
| 61301 - PILLAR SUB-ASSY, CENTER BODY, RH | ||||
| 61301-KK020 |
TGN121..(SD,TD)..(ARL,SA);GUN122..LHD..(SD,TD)..L..(GEN,PH,SA);GGN125,GUN125,126,13#,LAN125,TGN126,128,13#..AD,KD,MD,MMD,SD,TD |
1 | ||
| 61303 - REINFORCE SUB-ASSY, CENTER BODY PILLAR, UPPER RH | ||||
| 61303-KK010 |
GGN125,GUN120,122,125,126,13#,LAN125,TGN12#,13#..AD,KD,MD,MMD,SD,TD |
1 | ||
| 61411A - REINFORCEMENT, ROCKER PANEL, NO.1 RH | ||||
| 61401-KK901 |
GUN112,12#,13#,LAN125,TGN11#,120,121,126,136..AS,KS,MS,SS,TS |
1 | ||
| 61401-KK902 |
GUN120,122,125,126,13#..SX,TX |
1 | ||
| 61401-KK900 |
GGN125,GUN120,122,125,126,13#,LAN125,TGN12#,13#..AD,KD,MD,MMD,SD,TD |
1 | ||
| 61415B - EXTENSION, ROCKER, OUTER RH | ||||
| 61415-KK010 |
GGN125,GUN112,12#,13#,TGN11#,120,121,126,136..MMD,TD,TS |
1 | ||
| 61511 - PILLAR, QUARTER LOCK, RH | ||||
| 61501-KK010 |
TGN121..TD..GEN;GUN122..TD..5F..S;GUN125..LHD..SD..S;GUN122..TD..L..GCC;TGN126..S..(GEN,SA);TGN121..TD..5F..(H,S);GUN126..RHD..6F..S..GEN;GUN125..RHD..TD..(H,S)..GEN;GUN125..TD..6F..L..(GCC,GEN);GUN125,TGN121..(6F,6FC)..H..GCC;TGN126..(SD,TD)..(H,L)..(GCC,SA);GUN122,126..RHD..TD..(5F,6FC)..GEN;GGN125,GUN126,LAN125,TGN136..LHD..(SD,TD)..(GCC,SA) REAR HEADREST-WITH(RH/LH/CENTER) |
1 | ||
| 61501-KK010 |
GUN135..S..VN;TGN126..TD..LA;GUN126..LHD..TD..6F..S;GUN126..RHD..(SD,TD)..(ARL,SA,TH);GUN126..TD..6F..(H,L)..(GEN,LA,PH);GUN125..LHD..TD..(H,S)..(GEN,LA,VN);GUN122,TGN136..LHD..TD..L..(GEN,LA);GUN135..(SD,TD)..(ARL,GEN,LA,PH,SA,TH);GUN125..LHD..(SD,TD)..(H,L)..(LA,PH,SA);GUN125,TGN126..TD..6FC..(H,L)..(GEN,IDN);GUN126..LHD..TD..6FC..(GEN,LA,PH,TWN,VN);GUN125,TGN136..RHD..(MD,SD,TD)..(ARL,MA,SA,TH);GGN125,GUN120,122,136,TGN121..(SD,TD)..(ARL,LA,PH,SA,TH) |
1 | ||
| 61501-KK020 |
GUN125..TD..GCC;TGN121..LHD..TD;GUN125..LHD..SD..S;GUN125..LHD..L..GEN;GUN126..RHD..6FC..GEN;GUN122..TD..5F..(H,S);TGN126..6FC..(GCC,SA);GUN126..RHD..6F..S..GEN;GUN125..RHD..S..(GEN,IDN);GUN122,135..TD..L..(GCC,VN);TGN126..(SD,TD)..5F..(GCC,GEN,SA);GUN122,125..RHD..TD..MTM..(H,L)..(GEN,IDN);GGN125,GUN126,LAN125,TGN120,136..LHD..(SD,TD)..(GCC,SA) |
1 | ||
| 67873H - WEATHERSTRIP, CENTER DOOR, UPPER NO.1 | ||||
| 67873-0K040 |
GGN125,GUN120,122,125,126,13#,TGN12#,13#..AD,TD |
1 | ||
| Common parts | ||||
| 67867-12150 | ||||
| 90119-T0208 | ||||
| Linked diagrams | ||||
| 5752 | ||||

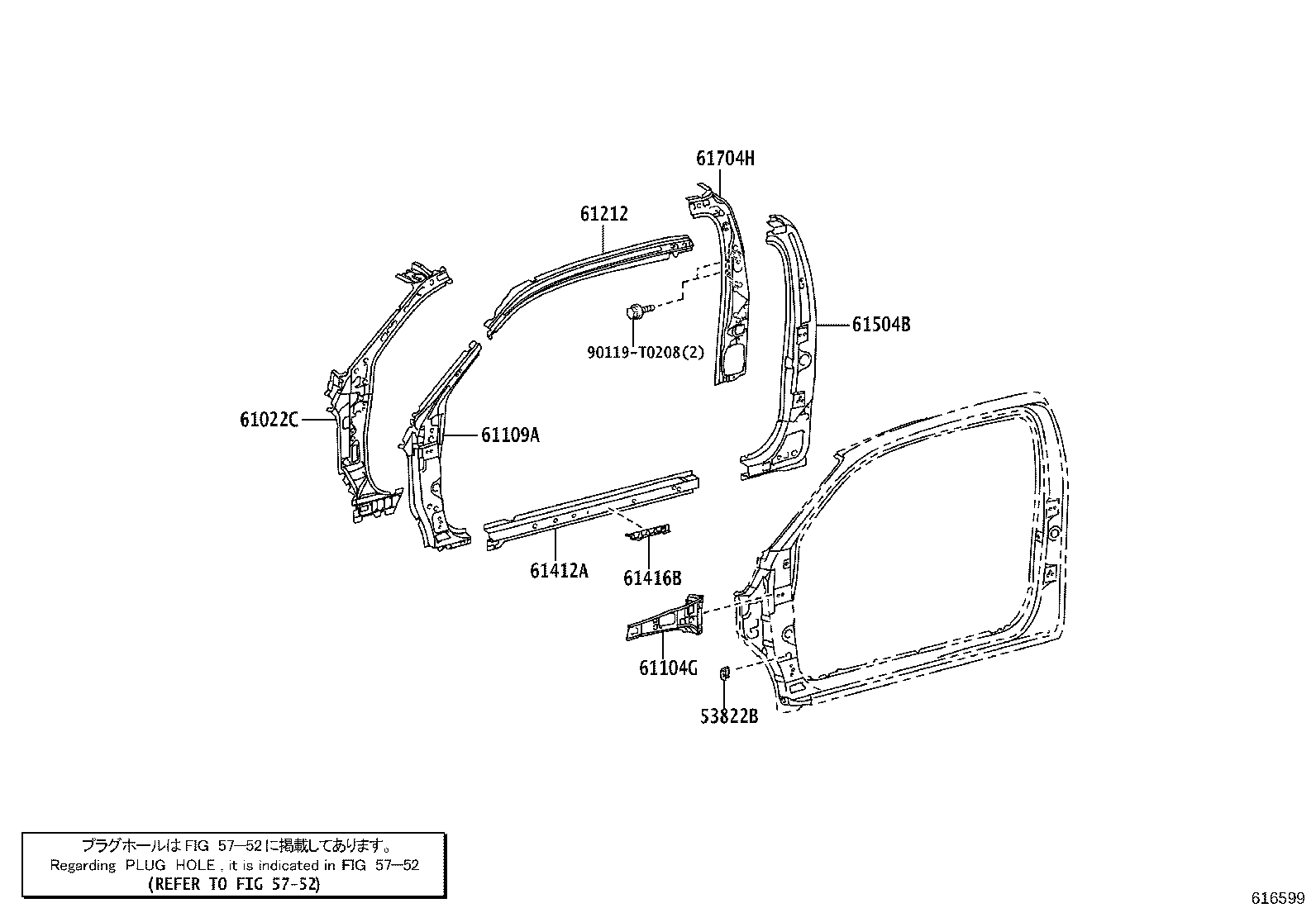

ILLUST NO. 3 OF 3(2006- )AD,KD,MD,MMD,PD,SD,TD
INNER PANEL,LH
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 53822B - BRACKET, FRONT FENDER, REAR LH | ||||
| 53257-35030 |
GGN125,GUN112,12#,13#,LAN125,TGN11#,12#,13#..AD,AS,KD,KS,MD,MMD,MS,SD,SS,SX,TD,TS,TX |
1 | ||
| 61022C - PILLAR SUB-ASSY, FRONT BODY, LH | ||||
| 61022-KK030 |
GUN125,135..(KS,SS)..S;GUN135..SD,SX,TD,TS,TX;TGN121..(SD,TD,TS)..(ARL,SA);GUN125,LAN125..KD,MD,MS,SD,TD,TS,TX;GUN122..LHD..(SD,TD)..L..(GEN,PH,SA);GGN125,GUN123,126,136,TGN126,136..KD,MD,MMD,SD,SS,SX,TD,TS,TX |
1 | ||
| 61022-KK040 |
GUN125..SX..S;GUN122..S..GEN;GUN122..RHD..GEN;GUN125,135..(KS,SS,SX)..L;GUN122..LHD..TS..L..(GEN,PH);TGN121..(SS,TD,TS)..(GCC,GEN,SA,TH);GUN112,120,122,LAN125,TGN11#,120..(SS,TD,TS,TX)..(GCC,IDN,SA,TH) |
1 | ||
| 61104G - GUSSET SUB-ASSY, FRONT BODY PILLAR, LOWER LH | ||||
| 61104-KK010 |
GGN125,GUN112,12#,13#,LAN125,TGN11#,12#,13#..AD,AS,KD,KS,MD,MMD,MS,SD,SS,SX,TD,TS,TX |
1 | ||
| 61109A - REINFORCE SUB-ASSY, FRONT BODY PILLAR, LOWER LH | ||||
| 61109-KK900 |
GGN125,GUN112,12#,13#,LAN125,TGN11#,12#,13#..AD,AS,KD,KS,MD,MMD,MS,SD,SS,SX,TD,TS,TX |
1 | ||
| 61202 - RAIL SUB-ASSY, ROOF SIDE, LH | ||||
| 61202-KK010 |
GGN125,GUN120,122,125,126,13#,LAN125,TGN12#,13#..AD,KD,MD,MMD,SD,TD |
1 | ||
| 61212 - RAIL, ROOF SIDE, OUTER LH | ||||
| 61220-KK020 |
GUN120,122,125,126,13#..SX,TX |
1 | ||
| 61212-KK010 |
GGN125,GUN120,122,125,126,13#,LAN125,TGN12#,13#..AD,KD,MD,MMD,SD,TD |
1 | ||
| 61212-KK020 |
GUN112,12#,13#,LAN125,TGN11#,120,121,126,136..AS,KS,MS,SS,TS |
1 | ||
| 61302 - PILLAR SUB-ASSY, CENTER BODY, LH | ||||
| 61302-KK020 |
TGN121..(SD,TD)..(ARL,SA);GUN122..LHD..(SD,TD)..L..(GEN,PH,SA);GGN125,GUN125,126,13#,LAN125,TGN126,128,13#..AD,KD,MD,MMD,SD,TD |
1 | ||
| 61304 - REINFORCE SUB-ASSY, CENTER BODY PILLAR, UPPER LH | ||||
| 61304-KK010 |
GGN125,GUN120,122,125,126,13#,LAN125,TGN12#,13#..AD,KD,MD,MMD,SD,TD |
1 | ||
| 61412A - REINFORCEMENT, ROCKER PANEL, NO.1 LH | ||||
| 61402-KK902 |
GUN120,122,125,126,13#..SX,TX |
1 | ||
| 61402-KK900 |
GGN125,GUN120,122,125,126,13#,LAN125,TGN12#,13#..AD,KD,MD,MMD,SD,TD |
1 | ||
| 61402-KK901 |
GUN112,12#,13#,LAN125,TGN11#,120,121,126,136..AS,KS,MS,SS,TS |
1 | ||
| 61416B - EXTENSION, ROCKER, OUTER LH | ||||
| 61416-KK010 |
GGN125,GUN112,12#,13#,TGN11#,120,121,126,136..MMD,TD,TS |
1 | ||
| 61512 - PILLAR, QUARTER LOCK, LH | ||||
| 61502-KK010 |
TGN121..TD..GEN;GUN122..TD..5F..S;GUN125..LHD..SD..S;GUN122..TD..L..GCC;TGN126..S..(GEN,SA);TGN121..TD..5F..(H,S);GUN126..RHD..6F..S..GEN;GUN125..RHD..TD..(H,S)..GEN;GUN125..TD..6F..L..(GCC,GEN);GUN125,TGN121..(6F,6FC)..H..GCC;TGN126..(SD,TD)..(H,L)..(GCC,SA);GUN122,126..RHD..TD..(5F,6FC)..GEN;GGN125,GUN126,LAN125,TGN136..LHD..(SD,TD)..(GCC,SA) REAR HEADREST-WITH(RH/LH/CENTER) |
1 | ||
| 61502-KK020 |
GUN125..TD..GCC;TGN121..LHD..TD;GUN125..LHD..SD..S;GUN125..LHD..L..GEN;GUN126..RHD..6FC..GEN;GUN122..TD..5F..(H,S);TGN126..6FC..(GCC,SA);GUN126..RHD..6F..S..GEN;GUN125..RHD..S..(GEN,IDN);GUN122,135..TD..L..(GCC,VN);TGN126..(SD,TD)..5F..(GCC,GEN,SA);GUN122,125..RHD..TD..MTM..(H,L)..(GEN,IDN);GGN125,GUN126,LAN125,TGN120,136..LHD..(SD,TD)..(GCC,SA) |
1 | ||
| 61502-KK010 |
GUN135..S..VN;GUN126..LHD..6F..S;GUN125..LHD..SD..(H,L);GUN122..LHD..TD..L..GEN;GUN125..LHD..TD..(H,S)..GEN;GUN125,TGN126..(AD,TD)..(BZAG,LA,PH,VN);GUN125,TGN126..TD..6FC..(H,L)..(GEN,IDN);GUN126..(AD,TD)..6F..(H,L)..(BZAG,GEN,LA,PH);GUN135..(AD,SD,TD)..(ARL,BZAG,GEN,LA,PH,SA,TH);GUN125,126,TGN136..RHD..(KD,MD,SD,TD)..(ARL,KEN,MA,SA,TH);GUN126,TGN136..LHD..(AD,MMD,TD)..(5F,6FC)..(BZAG,GEN,LA,MMR,PH,TWN,VN);GGN125,GUN120,122,136,TGN121,128,138..(AD,SD,TD)..(ARL,BZAG,LA,PH,SA,TH) |
1 | ||
| 67874H - WEATHERSTRIP, CENTER DOOR, UPPER NO.2 | ||||
| 67874-0K040 |
GGN125,GUN120,122,125,126,13#,TGN12#,13#..AD,TD |
1 | ||
| Common parts | ||||
| 67867-12150 | ||||
| 90119-T0208 | ||||
| Linked diagrams | ||||
| 5752 | ||||
ILLUST NO. 2 OF 3(2006- )AS,KS,MS,PS,SS,TS
INNER PANEL,RH
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 53821B - BRACKET, FRONT FENDER, REAR RH | ||||
| 53257-35030 |
GGN125,GUN112,12#,13#,LAN125,TGN11#,12#,13#..AD,AS,KD,KS,MD,MMD,MS,SD,SS,SX,TD,TS,TX |
1 | ||
| 61013C - PANEL SUB-ASSY, SIDE, INNER RH | ||||
| 61013-KK040 |
GUN112,12#,13#,LAN125,TGN11#,120,121,126,136..AS,KS,MS,SS,TS |
1 | ||
| 61021C - PILLAR SUB-ASSY, FRONT BODY, RH | ||||
| 61021-KK040 |
GUN125..SX..S;GUN122..S..GEN;GUN122..RHD..GEN;GUN125,135..(KS,SS,SX)..L;GUN122..LHD..TS..L..(GEN,PH);TGN121..(SS,TD,TS)..(GCC,GEN,SA,TH);GUN112,120,122,LAN125,TGN11#,120..(SS,TD,TS,TX)..(GCC,IDN,SA,TH) |
1 | ||
| 61021-KK030 |
GUN125,135..(KS,SS)..S;GUN135..SD,SX,TD,TS,TX;TGN121..(SD,TD,TS)..(ARL,SA);GUN125,LAN125..KD,MD,MS,SD,TD,TS,TX;GUN122..LHD..(SD,TD)..L..(GEN,PH,SA);GGN125,GUN123,126,136,TGN126,136..KD,MD,MMD,SD,SS,SX,TD,TS,TX |
1 | ||
| 61103G - GUSSET SUB-ASSY, FRONT BODY PILLAR, LOWER RH | ||||
| 61103-KK010 |
GGN125,GUN112,12#,13#,LAN125,TGN11#,12#,13#..AD,AS,KD,KS,MD,MMD,MS,SD,SS,SX,TD,TS,TX |
1 | ||
| 61108A - REINFORCE SUB-ASSY, FRONT BODY PILLAR, LOWER RH | ||||
| 61108-KK900 |
GGN125,GUN112,12#,13#,LAN125,TGN11#,120,121,126,136..KD,KS,MD,MMD,MS,SD,SS,SX,TD,TS,TX |
1 | ||
| 61211 - RAIL, ROOF SIDE, OUTER RH | ||||
| 61211-KK020 |
GUN112,12#,13#,LAN125,TGN11#,120,121,126,136..AS,KS,MS,SS,TS |
1 | ||
| 61210-KK020 |
GUN120,122,125,126,13#..SX,TX |
1 | ||
| 61211-KK010 |
GGN125,GUN120,122,125,126,13#,LAN125,TGN12#,13#..AD,KD,MD,MMD,SD,TD |
1 | ||
| 61411A - REINFORCEMENT, ROCKER PANEL, NO.1 RH | ||||
| 61401-KK901 |
GUN112,12#,13#,LAN125,TGN11#,120,121,126,136..AS,KS,MS,SS,TS |
1 | ||
| 61401-KK902 |
GUN120,122,125,126,13#..SX,TX |
1 | ||
| 61401-KK900 |
GGN125,GUN120,122,125,126,13#,LAN125,TGN12#,13#..AD,KD,MD,MMD,SD,TD |
1 | ||
| 61415B - EXTENSION, ROCKER, OUTER RH | ||||
| 61415-KK010 |
GGN125,GUN112,12#,13#,TGN11#,120,121,126,136..MMD,TD,TS |
1 | ||
| 61503B - REINFORCEMENT SUB-ASSY, QUARTER LOCK PILLAR, RH | ||||
| 61503-KK900 |
GUN112,12#,13#,LAN125,TGN11#,120,121,126,136..AS,KS,MS,SS,TS |
1 | ||
| 61503-KK901 |
GUN120,122,125,126,13#..SX,TX |
1 | ||
| Common parts | ||||
| 90119-T0208 | ||||
| Linked diagrams | ||||
| 5752 | ||||
ILLUST NO. 3 OF 3(2006- )AS,KS,MS,PS,SS,TS
INNER PANEL,LH
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 53822B - BRACKET, FRONT FENDER, REAR LH | ||||
| 53257-35030 |
GGN125,GUN112,12#,13#,LAN125,TGN11#,12#,13#..AD,AS,KD,KS,MD,MMD,MS,SD,SS,SX,TD,TS,TX |
1 | ||
| 61014C - PANEL SUB-ASSY, SIDE, INNER LH | ||||
| 61014-KK040 |
GUN112,12#,13#,LAN125,TGN11#,120,121,126,136..AS,KS,MS,SS,TS |
1 | ||
| 61022C - PILLAR SUB-ASSY, FRONT BODY, LH | ||||
| 61022-KK030 |
GUN125,135..(KS,SS)..S;GUN135..SD,SX,TD,TS,TX;TGN121..(SD,TD,TS)..(ARL,SA);GUN125,LAN125..KD,MD,MS,SD,TD,TS,TX;GUN122..LHD..(SD,TD)..L..(GEN,PH,SA);GGN125,GUN123,126,136,TGN126,136..KD,MD,MMD,SD,SS,SX,TD,TS,TX |
1 | ||
| 61022-KK040 |
GUN125..SX..S;GUN122..S..GEN;GUN122..RHD..GEN;GUN125,135..(KS,SS,SX)..L;GUN122..LHD..TS..L..(GEN,PH);TGN121..(SS,TD,TS)..(GCC,GEN,SA,TH);GUN112,120,122,LAN125,TGN11#,120..(SS,TD,TS,TX)..(GCC,IDN,SA,TH) |
1 | ||
| 61104G - GUSSET SUB-ASSY, FRONT BODY PILLAR, LOWER LH | ||||
| 61104-KK010 |
GGN125,GUN112,12#,13#,LAN125,TGN11#,12#,13#..AD,AS,KD,KS,MD,MMD,MS,SD,SS,SX,TD,TS,TX |
1 | ||
| 61109A - REINFORCE SUB-ASSY, FRONT BODY PILLAR, LOWER LH | ||||
| 61109-KK900 |
GGN125,GUN112,12#,13#,LAN125,TGN11#,12#,13#..AD,AS,KD,KS,MD,MMD,MS,SD,SS,SX,TD,TS,TX |
1 | ||
| 61212 - RAIL, ROOF SIDE, OUTER LH | ||||
| 61220-KK020 |
GUN120,122,125,126,13#..SX,TX |
1 | ||
| 61212-KK010 |
GGN125,GUN120,122,125,126,13#,LAN125,TGN12#,13#..AD,KD,MD,MMD,SD,TD |
1 | ||
| 61212-KK020 |
GUN112,12#,13#,LAN125,TGN11#,120,121,126,136..AS,KS,MS,SS,TS |
1 | ||
| 61412A - REINFORCEMENT, ROCKER PANEL, NO.1 LH | ||||
| 61402-KK902 |
GUN120,122,125,126,13#..SX,TX |
1 | ||
| 61402-KK900 |
GGN125,GUN120,122,125,126,13#,LAN125,TGN12#,13#..AD,KD,MD,MMD,SD,TD |
1 | ||
| 61402-KK901 |
GUN112,12#,13#,LAN125,TGN11#,120,121,126,136..AS,KS,MS,SS,TS |
1 | ||
| 61416B - EXTENSION, ROCKER, OUTER LH | ||||
| 61416-KK010 |
GGN125,GUN112,12#,13#,TGN11#,120,121,126,136..MMD,TD,TS |
1 | ||
| 61504B - REINFORCEMENT SUB-ASSY, QUARTER LOCK PILLAR, LH | ||||
| 61504-KK900 |
GUN112,12#,13#,LAN125,TGN11#,120,121,126,136..AS,KS,MS,SS,TS |
1 | ||
| 61504-KK901 |
GUN120,122,125,126,13#..SX,TX |
1 | ||
| Common parts | ||||
| 90119-T0208 | ||||
| Linked diagrams | ||||
| 5752 | ||||
ILLUST NO. 2 OF 3(2006- )SX,TX
INNER PANEL,RH
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 53821B - BRACKET, FRONT FENDER, REAR RH | ||||
| 53257-35030 |
GGN125,GUN112,12#,13#,LAN125,TGN11#,12#,13#..AD,AS,KD,KS,MD,MMD,MS,SD,SS,SX,TD,TS,TX |
1 | ||
| 61021C - PILLAR SUB-ASSY, FRONT BODY, RH | ||||
| 61021-KK040 |
GUN125..SX..S;GUN122..S..GEN;GUN122..RHD..GEN;GUN125,135..(KS,SS,SX)..L;GUN122..LHD..TS..L..(GEN,PH);TGN121..(SS,TD,TS)..(GCC,GEN,SA,TH);GUN112,120,122,LAN125,TGN11#,120..(SS,TD,TS,TX)..(GCC,IDN,SA,TH) |
1 | ||
| 61021-KK030 |
GUN125,135..(KS,SS)..S;GUN135..SD,SX,TD,TS,TX;TGN121..(SD,TD,TS)..(ARL,SA);GUN125,LAN125..KD,MD,MS,SD,TD,TS,TX;GUN122..LHD..(SD,TD)..L..(GEN,PH,SA);GGN125,GUN123,126,136,TGN126,136..KD,MD,MMD,SD,SS,SX,TD,TS,TX |
1 | ||
| 61103G - GUSSET SUB-ASSY, FRONT BODY PILLAR, LOWER RH | ||||
| 61103-KK010 |
GGN125,GUN112,12#,13#,LAN125,TGN11#,12#,13#..AD,AS,KD,KS,MD,MMD,MS,SD,SS,SX,TD,TS,TX |
1 | ||
| 61108A - REINFORCE SUB-ASSY, FRONT BODY PILLAR, LOWER RH | ||||
| 61108-KK900 |
GGN125,GUN112,12#,13#,LAN125,TGN11#,120,121,126,136..KD,KS,MD,MMD,MS,SD,SS,SX,TD,TS,TX |
1 | ||
| 61211 - RAIL, ROOF SIDE, OUTER RH | ||||
| 61211-KK020 |
GUN112,12#,13#,LAN125,TGN11#,120,121,126,136..AS,KS,MS,SS,TS |
1 | ||
| 61210-KK020 |
GUN120,122,125,126,13#..SX,TX |
1 | ||
| 61211-KK010 |
GGN125,GUN120,122,125,126,13#,LAN125,TGN12#,13#..AD,KD,MD,MMD,SD,TD |
1 | ||
| 61411A - REINFORCEMENT, ROCKER PANEL, NO.1 RH | ||||
| 61401-KK901 |
GUN112,12#,13#,LAN125,TGN11#,120,121,126,136..AS,KS,MS,SS,TS |
1 | ||
| 61401-KK902 |
GUN120,122,125,126,13#..SX,TX |
1 | ||
| 61401-KK900 |
GGN125,GUN120,122,125,126,13#,LAN125,TGN12#,13#..AD,KD,MD,MMD,SD,TD |
1 | ||
| 61415B - EXTENSION, ROCKER, OUTER RH | ||||
| 61415-KK010 |
GGN125,GUN112,12#,13#,TGN11#,120,121,126,136..MMD,TD,TS |
1 | ||
| 61503B - REINFORCEMENT SUB-ASSY, QUARTER LOCK PILLAR, RH | ||||
| 61503-KK900 |
GUN112,12#,13#,LAN125,TGN11#,120,121,126,136..AS,KS,MS,SS,TS |
1 | ||
| 61503-KK901 |
GUN120,122,125,126,13#..SX,TX |
1 | ||
| 61703G - PANEL SUB-ASSY, QUARTER, INNER RH | ||||
| 61703-KK040 |
GUN120,122,125,126,13#..SX,TX |
1 | ||
| Common parts | ||||
| 90119-T0208 | ||||
ILLUST NO. 3 OF 3(2006- )SX,TX
INNER PANEL,LH
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 53822B - BRACKET, FRONT FENDER, REAR LH | ||||
| 53257-35030 |
GGN125,GUN112,12#,13#,LAN125,TGN11#,12#,13#..AD,AS,KD,KS,MD,MMD,MS,SD,SS,SX,TD,TS,TX |
1 | ||
| 61022C - PILLAR SUB-ASSY, FRONT BODY, LH | ||||
| 61022-KK030 |
GUN125,135..(KS,SS)..S;GUN135..SD,SX,TD,TS,TX;TGN121..(SD,TD,TS)..(ARL,SA);GUN125,LAN125..KD,MD,MS,SD,TD,TS,TX;GUN122..LHD..(SD,TD)..L..(GEN,PH,SA);GGN125,GUN123,126,136,TGN126,136..KD,MD,MMD,SD,SS,SX,TD,TS,TX |
1 | ||
| 61022-KK040 |
GUN125..SX..S;GUN122..S..GEN;GUN122..RHD..GEN;GUN125,135..(KS,SS,SX)..L;GUN122..LHD..TS..L..(GEN,PH);TGN121..(SS,TD,TS)..(GCC,GEN,SA,TH);GUN112,120,122,LAN125,TGN11#,120..(SS,TD,TS,TX)..(GCC,IDN,SA,TH) |
1 | ||
| 61104G - GUSSET SUB-ASSY, FRONT BODY PILLAR, LOWER LH | ||||
| 61104-KK010 |
GGN125,GUN112,12#,13#,LAN125,TGN11#,12#,13#..AD,AS,KD,KS,MD,MMD,MS,SD,SS,SX,TD,TS,TX |
1 | ||
| 61109A - REINFORCE SUB-ASSY, FRONT BODY PILLAR, LOWER LH | ||||
| 61109-KK900 |
GGN125,GUN112,12#,13#,LAN125,TGN11#,12#,13#..AD,AS,KD,KS,MD,MMD,MS,SD,SS,SX,TD,TS,TX |
1 | ||
| 61212 - RAIL, ROOF SIDE, OUTER LH | ||||
| 61220-KK020 |
GUN120,122,125,126,13#..SX,TX |
1 | ||
| 61212-KK010 |
GGN125,GUN120,122,125,126,13#,LAN125,TGN12#,13#..AD,KD,MD,MMD,SD,TD |
1 | ||
| 61212-KK020 |
GUN112,12#,13#,LAN125,TGN11#,120,121,126,136..AS,KS,MS,SS,TS |
1 | ||
| 61412A - REINFORCEMENT, ROCKER PANEL, NO.1 LH | ||||
| 61402-KK902 |
GUN120,122,125,126,13#..SX,TX |
1 | ||
| 61402-KK900 |
GGN125,GUN120,122,125,126,13#,LAN125,TGN12#,13#..AD,KD,MD,MMD,SD,TD |
1 | ||
| 61402-KK901 |
GUN112,12#,13#,LAN125,TGN11#,120,121,126,136..AS,KS,MS,SS,TS |
1 | ||
| 61416B - EXTENSION, ROCKER, OUTER LH | ||||
| 61416-KK010 |
GGN125,GUN112,12#,13#,TGN11#,120,121,126,136..MMD,TD,TS |
1 | ||
| 61504B - REINFORCEMENT SUB-ASSY, QUARTER LOCK PILLAR, LH | ||||
| 61504-KK900 |
GUN112,12#,13#,LAN125,TGN11#,120,121,126,136..AS,KS,MS,SS,TS |
1 | ||
| 61504-KK901 |
GUN120,122,125,126,13#..SX,TX |
1 | ||
| 61704H - PANEL SUB-ASSY, QUARTER, INNER LH | ||||
| 61704-KK040 |
GUN120,122,125,126,13#..SX,TX |
1 | ||
| Common parts | ||||
| 90119-T0208 | ||||
Part Price Details
Loading price information...
Part Number:
Price:
