GUN125R-DTTSX (2020)
Toyota Hilux

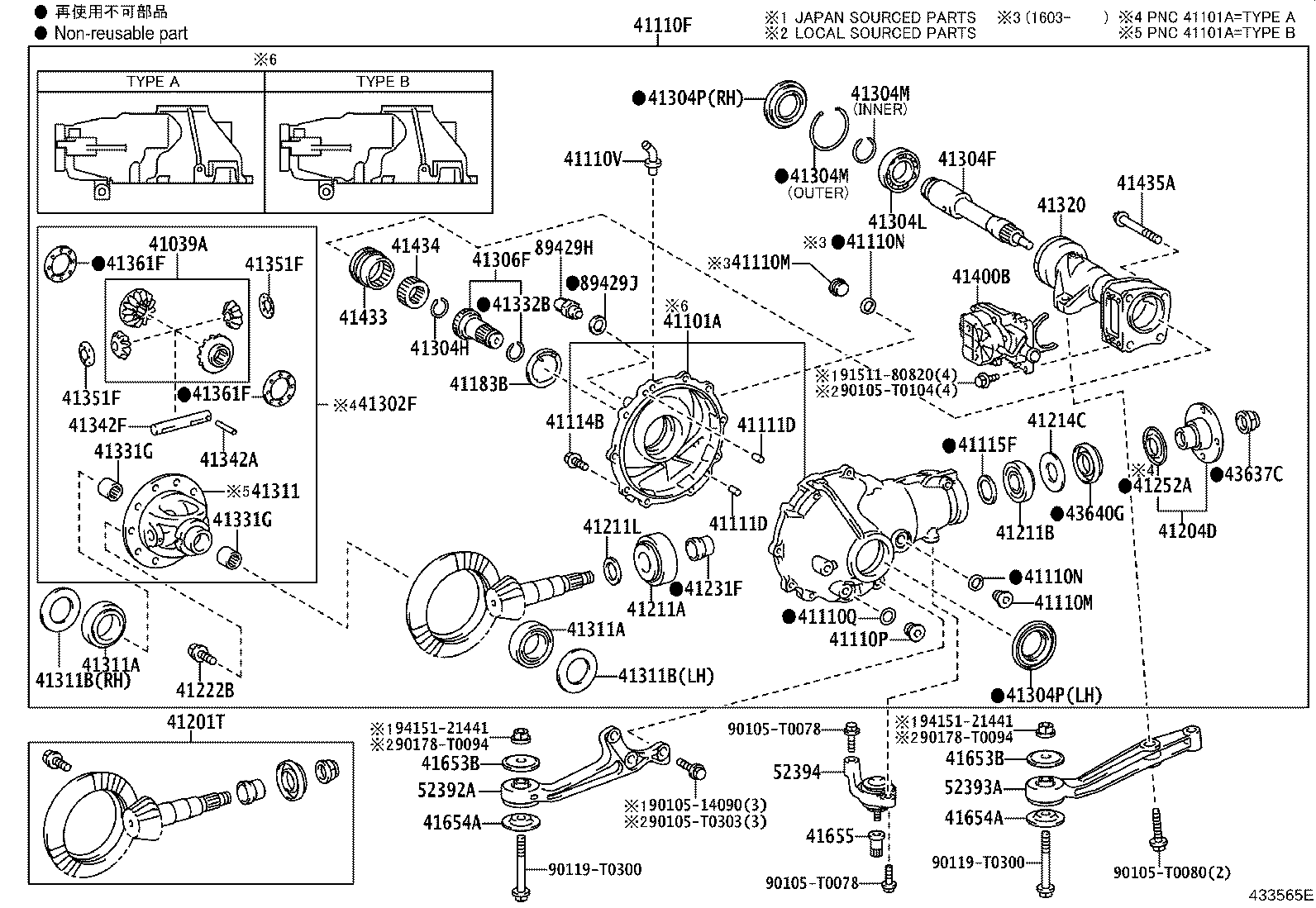

ILLUST NO. 1 OF 2(1505- )GGN125,GUN125,126,KUN125,126,LAN125,TGN126,127,128..ADC,ASC,KDC,KSC,MDC,
W(*ADD)
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| Common parts | ||||
| 90105-14090 | ||||
| 90105-T0078 | ||||
| 90105-T0080 | ||||
| 90105-T0104 | ||||
| 90105-T0303 | ||||
| 90119-T0300 | ||||
| 90178-T0094 | ||||
| 91511-80820 | ||||
| 94151-21441 | ||||

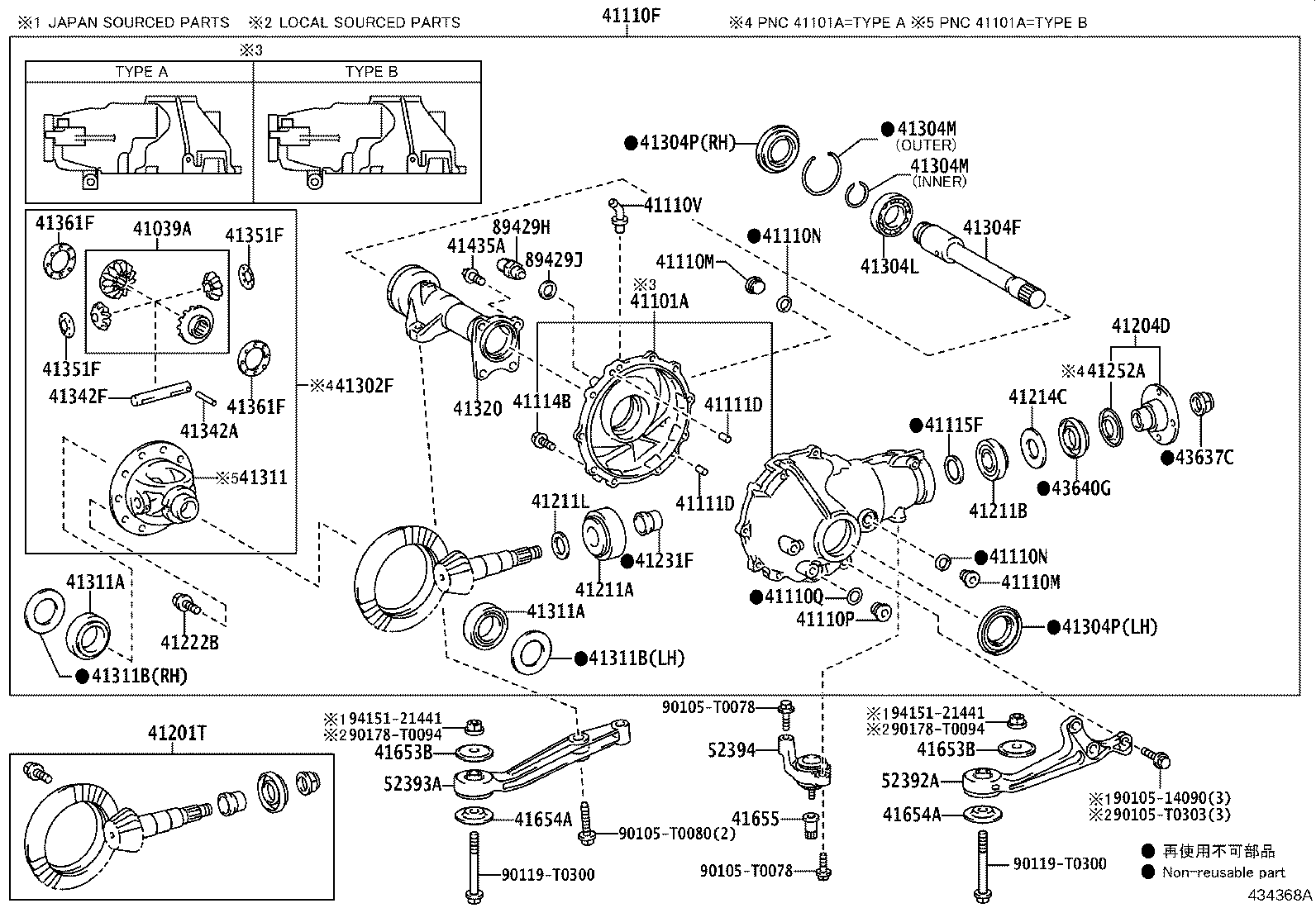

ILLUST NO. 1 OF 2(2006- )GGN125,GUN125,126,LAN125,TGN126,128..ARL,BZAG,GCC,GEN,IDN,KEN,LA,MA,MMR,
W(*ADD)
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 41039A - GEAR KIT, DIFFERENTIAL | ||||
| 41039-71040 |
GGN125,GUN125,126,LAN125,TGN126,128..AD,AS,KD,KS,MD,MMD,MS,SD,SS,SX,TD,TS,TX PNC 41101A=TYPE A,PNC 41101A=TYPE B |
1 | ||
| 41101A - CARRIER SUB-ASSY, DIFFERENTIAL, FRONT | ||||
| 41101-0K060 |
GGN125,GUN125,126,LAN125,TGN126,128..AD,AS,KD,KS,MD,MMD,MS,SD,SS,SX,TD,TS,TX TYPE B:REFER ILLUST. |
1 | ||
| 41101-71030 |
GGN125,GUN125,126,LAN125,TGN126,128..AD,AS,KD,KS,MD,MMD,MS,SD,SS,SX,TD,TS,TX TYPE A:REFER ILLUST. |
1 | ||
| 41110F - CARRIER ASSY, DIFFERENTIAL, FRONT | ||||
| 41110-0KA50 |
GUN125..TS..6FC;GUN125..6FC..L..GCC *FGR=41:10=4.100,PNC 41101A=TYPE B |
1 | ||
| 41110-71440 |
GUN125..TS..6FC;GUN125..6FC..L..GCC *FGR=41:10=4.100,PNC 41101A=TYPE A |
1 | ||
| 41110-0KB00 |
GUN125..TS..6FC *FGR=41:10=4.100,AUTOMATIC DISCONNECTING DIFFERENTIAL-WITH,PNC 41101A=TYPE B |
1 | ||
| 41110-71490 |
GUN125..TS..6FC *FGR=41:10=4.100,AUTOMATIC DISCONNECTING DIFFERENTIAL-WITH,PNC 41101A=TYPE A |
1 | ||
| 41110-0KB00 |
GUN125..6FC..(H,S)..GCC;GUN125..(AD,MD,SD,SS,TD,TX)..6FC..(ARL,GEN,IDN,LA,MA,SA) *FGR=41:10=4.100,PNC 41101A=TYPE B |
1 | ||
| 41110-0KA80 |
GUN125,126..6F..(ARL,BZAG,GCC,GEN,IDN,KEN,LA,MA,PH,SA,TH,VN) *FGR=43:12=3.583,PNC 41101A=TYPE B |
1 | ||
| 41110-71490 |
GUN125..6FC..(H,S)..GCC;GUN125..(AD,MD,SD,SS,TD,TX)..6FC..(ARL,GEN,IDN,LA,MA,SA) *FGR=41:10=4.100,PNC 41101A=TYPE A |
1 | ||
| 41110-71470 |
GUN125,126..6F..(ARL,BZAG,GCC,GEN,IDN,KEN,LA,MA,PH,SA,TH,VN) *FGR=43:12=3.583,PNC 41101A=TYPE A |
1 | ||
| 41110M - PLUG, FRONT DIFFERENTIAL FILLER | ||||
| 90341-T0002 |
GGN125,GUN125,126,LAN125,TGN126,128..AD,AS,KD,KS,MD,MMD,MS,SD,SS,SX,TD,TS,TX (L),PNC 41101A=T/P B |
2 | ||
| 90341-18032 |
GGN125,GUN125,126,LAN125,TGN126,128..AD,AS,KD,KS,MD,MMD,MS,SD,SS,SX,TD,TS,TX PNC 41101A=TYPE A,(J),PNC 41101A=T/P B |
2 | ||
| 41110M - PLUG, FRONT DIFFERENTIAL FILLER | ||||
| 90341-T0002 |
GGN125,GUN125,126,LAN125,TGN126,128..AD,AS,KD,KS,MD,MMD,MS,SD,SS,SX,TD,TS,TX (L),PNC 41101A=T/P B |
2 | ||
| 90341-18032 |
GGN125,GUN125,126,LAN125,TGN126,128..AD,AS,KD,KS,MD,MMD,MS,SD,SS,SX,TD,TS,TX PNC 41101A=TYPE A,(J),PNC 41101A=T/P B |
2 | ||
| 41110N - GASKET, FRONT DIFFERENTIAL FILLER PLUG | ||||
| 12157-10010 |
GGN125,GUN125,126,LAN125,TGN126,128..AD,AS,KD,KS,MD,MMD,MS,SD,SS,SX,TD,TS,TX PNC 41101A=TYPE A,PNC 41101A=TYPE B |
2 | ||
| 41110N - GASKET, FRONT DIFFERENTIAL FILLER PLUG | ||||
| 12157-10010 |
GGN125,GUN125,126,LAN125,TGN126,128..AD,AS,KD,KS,MD,MMD,MS,SD,SS,SX,TD,TS,TX PNC 41101A=TYPE A,PNC 41101A=TYPE B |
2 | ||
| 41110P - PLUG, FRONT DIFFERENTIAL DRAIN | ||||
| 90341-24014 |
GGN125,GUN125,126,LAN125,TGN126,128..AD,AS,KD,KS,MD,MMD,MS,SD,SS,SX,TD,TS,TX PNC 41101A=TYPE A |
1 | ||
| 90341-T0003 |
GGN125,GUN125,126,LAN125,TGN126,128..AD,AS,KD,KS,MD,MMD,MS,SD,SS,SX,TD,TS,TX PNC 41101A=TYPE B |
1 | ||
| 41110Q - GASKET, FRONT DIFFERENTIAL DRAIN PLUG | ||||
| 90430-24003 |
GGN125,GUN125,126,LAN125,TGN126,128..AD,AS,KD,KS,MD,MMD,MS,SD,SS,SX,TD,TS,TX PNC 41101A=TYPE A,PNC 41101A=TYPE B |
1 | ||
| 41110V - UNION (FOR FRONT DIFFERENTIAL) | ||||
| 90404-08004 |
GGN125,GUN125,126,LAN125,TGN126,128..AD,AS,KD,KS,MD,MMD,MS,SD,SS,SX,TD,TS,TX PNC 41101A=TYPE A,PNC 41101A=TYPE B |
1 | ||
| 41111D - PIN, STRAIGHT (FOR FRONT DIFFERENTIAL CARRIER) | ||||
| 90250-10017 |
GGN125,GUN125,126,LAN125,TGN126,128..AD,AS,KD,KS,MD,MMD,MS,SD,SS,SX,TD,TS,TX PNC 41101A=TYPE A |
2 | ||
| 90250-T0004 |
GGN125,GUN125,126,LAN125,TGN126,128..AD,AS,KD,KS,MD,MMD,MS,SD,SS,SX,TD,TS,TX PNC 41101A=TYPE B |
2 | ||
| 41111D - PIN, STRAIGHT (FOR FRONT DIFFERENTIAL CARRIER) | ||||
| 90250-10017 |
GGN125,GUN125,126,LAN125,TGN126,128..AD,AS,KD,KS,MD,MMD,MS,SD,SS,SX,TD,TS,TX PNC 41101A=TYPE A |
2 | ||
| 90250-T0004 |
GGN125,GUN125,126,LAN125,TGN126,128..AD,AS,KD,KS,MD,MMD,MS,SD,SS,SX,TD,TS,TX PNC 41101A=TYPE B |
2 | ||
| 41114B - BOLT, FRONT DIFFERENTIAL BEARING CAP | ||||
| 90105-T0101 |
GGN125,GUN125,126,LAN125,TGN126,128..AD,AS,KD,KS,MD,MMD,MS,SD,SS,SX,TD,TS,TX PNC 41101A=TYPE B |
10 | ||
| 90105-10391 |
GGN125,GUN125,126,LAN125,TGN126,128..AD,AS,KD,KS,MD,MMD,MS,SD,SS,SX,TD,TS,TX PNC 41101A=TYPE A |
10 | ||
| 41115F - RING, FRONT DIFFERENTIAL OIL STORAGE | ||||
| 41115-0K010 |
GGN125,GUN125,126,LAN125,TGN126,128..AD,AS,KD,KS,MD,MMD,MS,SD,SS,SX,TD,TS,TX PNC 41101A=TYPE B |
1 | ||
| 41115-35010 |
GGN125,GUN125,126,LAN125,TGN126,128..AD,AS,KD,KS,MD,MMD,MS,SD,SS,SX,TD,TS,TX PNC 41101A=TYPE A |
1 | ||
| 41183B - DEFLECTOR, FRONT DIFFERENTIAL SIDE BEARING RETAINER | ||||
| 41183-0K010 |
TGN126..6FC..L;GUN125..TS..6FC;TGN126..(L,S)..LA;TGN126..TD..(H,S)..GCC AUTOMATIC DISCONNECTING DIFFERENTIAL-WITH,PNC 41101A=TYPE B |
1 | ||
| 41183-0K010 |
TGN126..H..LA;TGN126..L..SA;GUN125..6FC..(H,S)..GCC;TGN126..(H,S)..(GEN,SA);GUN125..6F..(ARL,BZAG,GCC,GEN,IDN,KEN,LA,MA,PH,SA,TH,VN);GUN125..(AD,MD,SD,SS,TD,TX)..6FC..(ARL,GEN,IDN,LA,MA,SA);GGN125,GUN126,LAN125,TGN128..AD,AS,KD,MD,MMD,SD,SS,SX,TD,TS,TX PNC 41101A=TYPE B |
1 | ||
| 41183-35040 |
TGN126..6FC..L;GUN125..TS..6FC;TGN126..(L,S)..LA;TGN126..TD..(H,S)..GCC AUTOMATIC DISCONNECTING DIFFERENTIAL-WITH,PNC 41101A=TYPE A |
1 | ||
| 41183-35040 |
TGN126..H..LA;TGN126..L..SA;GUN125..6FC..(H,S)..GCC;TGN126..(H,S)..(GEN,SA);GUN125..6F..(ARL,BZAG,GCC,GEN,IDN,KEN,LA,MA,PH,SA,TH,VN);GUN125..(AD,MD,SD,SS,TD,TX)..6FC..(ARL,GEN,IDN,LA,MA,SA);GGN125,GUN126,LAN125,TGN128..AD,AS,KD,MD,MMD,SD,SS,SX,TD,TS,TX PNC 41101A=TYPE A |
1 | ||
| 41201T - FINAL GEAR KIT, DIFFERENTIAL, FRONT | ||||
| 41201-79475 |
GUN125..TS..6FC;GUN125..6FC..L..GCC *FGR=41:10=4.100,PNC 41101=TYPE A |
1 | ||
| 41201-79475 |
GUN125..TS..6FC *FGR=41:10=4.100,AUTOMATIC DISCONNECTING DIFFERENTIAL-WITH,RH,PNC 41101A=TYPE A |
1 | ||
| 41201-09C70 |
GUN125..6FC *FGR=41:10=4.100,PNC 41101A=TYPE B |
1 | ||
| 41201-79475 |
GUN125..6FC..(H,S)..GCC;GUN125..(AD,MD,SD,SS,TD,TX)..6FC..(ARL,GEN,IDN,LA,MA,SA) *FGR=41:10=4.100,RH,PNC 41101A=TYPE A |
1 | ||
| 41201-09D00 |
GUN125,126..6F..(ARL,BZAG,GCC,GEN,IDN,KEN,LA,MA,PH,SA,TH,VN) *FGR=43:12=3.583,PNC 41101A=TYPE B |
1 | ||
| 41201-79505 |
GUN125,126..6F..(ARL,BZAG,GCC,GEN,IDN,KEN,LA,MA,PH,SA,TH,VN) *FGR=43:12=3.583,RH,PNC 41101A=TYPE A |
1 | ||
| 41204D - FLANGE SUB-ASSY, FRONT DRIVE PINION COMPANION, FRONT | ||||
| 41204-0K120 |
GGN125,GUN125,126,LAN125,TGN126,128..AD,AS,KD,KS,MD,MMD,MS,SD,SS,SX,TD,TS,TX PNC 41101A=TYPE B |
1 | ||
| 41204-71030 |
GGN125,GUN125,126,LAN125,TGN126,128..AD,AS,KD,KS,MD,MMD,MS,SD,SS,SX,TD,TS,TX PNC 41101A=TYPE A |
1 | ||
| 41211A - BEARING, TAPERED ROLLER (FOR FRONT DRIVE PINION FRONT) | ||||
| 90366-35087 |
GGN125,GUN125,126,LAN125,TGN126,128..AD,AS,KD,KS,MD,MMD,MS,SD,SS,SX,TD,TS,TX PNC 41101A=TYPE A |
1 | ||
| 90366-T0016 |
GGN125,GUN125,126,LAN125,TGN126,128..AD,AS,KD,KS,MD,MMD,MS,SD,SS,SX,TD,TS,TX PNC 41101A=TYPE B |
1 | ||
| 41211B - BEARING, TAPERED ROLLER (FOR FRONT DRIVE PINION REAR) | ||||
| 90366-30067 |
GGN125,GUN125,126,LAN125,TGN126,128..AD,AS,KD,KS,MD,MMD,MS,SD,SS,SX,TD,TS,TX PNC 41101A=TYPE A |
1 | ||
| 90366-T0013 |
GGN125,GUN125,126,LAN125,TGN126,128..AD,AS,KD,KS,MD,MMD,MS,SD,SS,SX,TD,TS,TX PNC 41101A=TYPE B |
1 | ||
| 41211L - SHIM (FOR DIFFERENTIAL DRIVE PINION) | ||||
| 90201-35498 |
GGN125,GUN125,126,LAN125,TGN126,128..AD,AS,KD,KS,MD,MMD,MS,SD,SS,SX,TD,TS,TX OD=47,T=1.73,PNC41101A=T/PB,OD=47,PNC41101A=T/PA,OD=47 |
1 | ||
| 90201-35500 |
GGN125,GUN125,126,LAN125,TGN126,128..AD,AS,KD,KS,MD,MMD,MS,SD,SS,SX,TD,TS,TX OD=47,T=1.79,PNC41101A=T/PB,OD=47,PNC41101A=T/PA,OD=47 |
1 | ||
| 90201-35502 |
GGN125,GUN125,126,LAN125,TGN126,128..AD,AS,KD,KS,MD,MMD,MS,SD,SS,SX,TD,TS,TX OD=47,T=1.85,PNC41101A=T/PB,OD=47,PNC41101A=T/PA,OD=47 |
1 | ||
| 90201-35503 |
GGN125,GUN125,126,LAN125,TGN126,128..AD,AS,KD,KS,MD,MMD,MS,SD,SS,SX,TD,TS,TX OD=47,T=1.88,PNC41101A=T/PB,OD=47,PNC41101A=T/PA,OD=47 |
1 | ||
| 90201-35505 |
GGN125,GUN125,126,LAN125,TGN126,128..AD,AS,KD,KS,MD,MMD,MS,SD,SS,SX,TD,TS,TX OD=47,T=1.94,PNC41101A=T/PB,OD=47,PNC41101A=T/PA,OD=47 |
1 | ||
| 90201-35499 |
GGN125,GUN125,126,LAN125,TGN126,128..AD,AS,KD,KS,MD,MMD,MS,SD,SS,SX,TD,TS,TX OD=47,T=1.76,PNC41101A=T/PB,OD=47,PNC41101A=T/PA,OD=47 |
1 | ||
| 90201-35501 |
GGN125,GUN125,126,LAN125,TGN126,128..AD,AS,KD,KS,MD,MMD,MS,SD,SS,SX,TD,TS,TX OD=47,T=1.82,PNC41101A=T/PB,OD=47,PNC41101A=T/PA,OD=47 |
1 | ||
| 90201-35507 |
GGN125,GUN125,126,LAN125,TGN126,128..AD,AS,KD,KS,MD,MMD,MS,SD,SS,SX,TD,TS,TX OD=47,T=2.00,PNC41101A=T/PB,OD=47,PNC41101A=T/PA,OD=47 |
1 | ||
| 90201-35497 |
GGN125,GUN125,126,LAN125,TGN126,128..AD,AS,KD,KS,MD,MMD,MS,SD,SS,SX,TD,TS,TX OD=47,T=1.70,PNC41101A=T/PB,OD=47,PNC41101A=T/PA,OD=47 |
1 | ||
| 90201-35509 |
GGN125,GUN125,126,LAN125,TGN126,128..AD,AS,KD,KS,MD,MMD,MS,SD,SS,SX,TD,TS,TX OD=47,T=2.06,PNC41101A=T/PB,OD=47,PNC41101A=T/PA,OD=47 |
1 | ||
| 90201-35506 |
GGN125,GUN125,126,LAN125,TGN126,128..AD,AS,KD,KS,MD,MMD,MS,SD,SS,SX,TD,TS,TX OD=47,T=1.97,PNC41101A=T/PB,OD=47,PNC41101A=T/PA,OD=47 |
1 | ||
| 90201-35510 |
GGN125,GUN125,126,LAN125,TGN126,128..AD,AS,KD,KS,MD,MMD,MS,SD,SS,SX,TD,TS,TX OD=47,T=2.09,PNC41101A=T/PB,OD=47,PNC41101A=T/PA,OD=47 |
1 | ||
| 90201-35508 |
GGN125,GUN125,126,LAN125,TGN126,128..AD,AS,KD,KS,MD,MMD,MS,SD,SS,SX,TD,TS,TX OD=47,T=2.03,PNC41101A=T/PB,OD=47,PNC41101A=T/PA,OD=47 |
1 | ||
| 90201-35516 |
GGN125,GUN125,126,LAN125,TGN126,128..AD,AS,KD,KS,MD,MMD,MS,SD,SS,SX,TD,TS,TX OD=47,T=2.27,MARK 02,PNC41101A=T/PB,OD=47,PNC41101A=T/PA,OD=47 |
1 | ||
| 90201-35511 |
GGN125,GUN125,126,LAN125,TGN126,128..AD,AS,KD,KS,MD,MMD,MS,SD,SS,SX,TD,TS,TX OD=47,T=2.12,PNC41101A=T/PB,OD=47,PNC41101A=T/PA,OD=47 |
1 | ||
| 90201-35514 |
GGN125,GUN125,126,LAN125,TGN126,128..AD,AS,KD,KS,MD,MMD,MS,SD,SS,SX,TD,TS,TX OD=47,T=2.21,PNC41101A=T/PB,OD=47,PNC41101A=T/PA,OD=47 |
1 | ||
| 90201-35515 |
GGN125,GUN125,126,LAN125,TGN126,128..AD,AS,KD,KS,MD,MMD,MS,SD,SS,SX,TD,TS,TX OD=47,T=2.24,MARK 01,PNC41101A=T/PB,OD=47,PNC41101A=T/PA,OD=47 |
1 | ||
| 90201-35504 |
GGN125,GUN125,126,LAN125,TGN126,128..AD,AS,KD,KS,MD,MMD,MS,SD,SS,SX,TD,TS,TX OD=47,T=1.91,PNC41101A=T/PB,OD=47,PNC41101A=T/PA,OD=47 |
1 | ||
| 90564-35109 |
GGN125,GUN125,126,LAN125,TGN126,128..AD,AS,KD,KS,MD,MMD,MS,SD,SS,SX,TD,TS,TX OD=52,T=1.70,PNC41101A=T/PB,OD=52,PNC41101A=T/PA,OD=52 |
1 | ||
| 90201-35512 |
GGN125,GUN125,126,LAN125,TGN126,128..AD,AS,KD,KS,MD,MMD,MS,SD,SS,SX,TD,TS,TX OD=47,T=2.15,PNC41101A=T/PB,OD=47,PNC41101A=T/PA,OD=47 |
1 | ||
| 90564-35110 |
GGN125,GUN125,126,LAN125,TGN126,128..AD,AS,KD,KS,MD,MMD,MS,SD,SS,SX,TD,TS,TX OD=52,T=1.73,PNC41101A=T/PB,OD=52,PNC41101A=T/PA,OD=52 |
1 | ||
| 90201-35517 |
GGN125,GUN125,126,LAN125,TGN126,128..AD,AS,KD,KS,MD,MMD,MS,SD,SS,SX,TD,TS,TX OD=47,T=2.30,MARK 03,PNC41101A=T/PB,OD=47,PNC41101A=T/PA,OD=47 |
1 | ||
| 90564-35112 |
GGN125,GUN125,126,LAN125,TGN126,128..AD,AS,KD,KS,MD,MMD,MS,SD,SS,SX,TD,TS,TX OD=52,T=1.79,PNC41101A=T/PB,OD=52,PNC41101A=T/PA,OD=52 |
1 | ||
| 90564-35118 |
GGN125,GUN125,126,LAN125,TGN126,128..AD,AS,KD,KS,MD,MMD,MS,SD,SS,SX,TD,TS,TX OD=52,T=1.97,PNC41101A=T/PB,OD=52,PNC41101A=T/PA,OD=52 |
1 | ||
| 90564-35117 |
GGN125,GUN125,126,LAN125,TGN126,128..AD,AS,KD,KS,MD,MMD,MS,SD,SS,SX,TD,TS,TX OD=52,T=1.94,PNC41101A=T/PB,OD=52,PNC41101A=T/PA,OD=52 |
1 | ||
| 90564-35111 |
GGN125,GUN125,126,LAN125,TGN126,128..AD,AS,KD,KS,MD,MMD,MS,SD,SS,SX,TD,TS,TX OD=52,T=1.76,PNC41101A=T/PB,OD=52,PNC41101A=T/PA,OD=52 |
1 | ||
| 90201-35513 |
GGN125,GUN125,126,LAN125,TGN126,128..AD,AS,KD,KS,MD,MMD,MS,SD,SS,SX,TD,TS,TX OD=47,T=2.18,PNC41101A=T/PB,OD=47,PNC41101A=T/PA,OD=47 |
1 | ||
| 90564-35115 |
GGN125,GUN125,126,LAN125,TGN126,128..AD,AS,KD,KS,MD,MMD,MS,SD,SS,SX,TD,TS,TX OD=52,T=1.88,PNC41101A=T/PB,OD=52,PNC41101A=T/PA,OD=52 |
1 | ||
| 90564-35119 |
GGN125,GUN125,126,LAN125,TGN126,128..AD,AS,KD,KS,MD,MMD,MS,SD,SS,SX,TD,TS,TX OD=52,T=2.00,PNC41101A=T/PB,OD=52,PNC41101A=T/PA,OD=52 |
1 | ||
| 90564-35124 |
GGN125,GUN125,126,LAN125,TGN126,128..AD,AS,KD,KS,MD,MMD,MS,SD,SS,SX,TD,TS,TX OD=52,T=2.12,PNC41101A=T/PB,OD=52,PNC41101A=T/PA,OD=52 |
1 | ||
| 90564-35113 |
GGN125,GUN125,126,LAN125,TGN126,128..AD,AS,KD,KS,MD,MMD,MS,SD,SS,SX,TD,TS,TX OD=52,T=1.82,PNC41101A=T/PB,OD=52,PNC41101A=T/PA,OD=52 |
1 | ||
| 90564-35116 |
GGN125,GUN125,126,LAN125,TGN126,128..AD,AS,KD,KS,MD,MMD,MS,SD,SS,SX,TD,TS,TX OD=52,T=1.91,PNC41101A=T/PB,OD=52,PNC41101A=T/PA,OD=52 |
1 | ||
| 90201-35518 |
GGN125,GUN125,126,LAN125,TGN126,128..AD,AS,KD,KS,MD,MMD,MS,SD,SS,SX,TD,TS,TX OD=47,T=2.33,MARK 04,PNC41101A=T/PB,OD=47,PNC41101A=T/PA,OD=47 |
1 | ||
| 90564-35120 |
GGN125,GUN125,126,LAN125,TGN126,128..AD,AS,KD,KS,MD,MMD,MS,SD,SS,SX,TD,TS,TX OD=52,T=2.03,PNC41101A=T/PB,OD=52,PNC41101A=T/PA,OD=52 |
1 | ||
| 90564-35114 |
GGN125,GUN125,126,LAN125,TGN126,128..AD,AS,KD,KS,MD,MMD,MS,SD,SS,SX,TD,TS,TX OD=52,T=1.85,PNC41101A=T/PB,OD=52,PNC41101A=T/PA,OD=52 |
1 | ||
| 90564-35130 |
GGN125,GUN125,126,LAN125,TGN126,128..AD,AS,KD,KS,MD,MMD,MS,SD,SS,SX,TD,TS,TX OD=52,T=2.30,PNC41101A=T/PB,OD=52,PNC41101A=T/PA,OD=52 |
1 | ||
| 90564-35128 |
GGN125,GUN125,126,LAN125,TGN126,128..AD,AS,KD,KS,MD,MMD,MS,SD,SS,SX,TD,TS,TX OD=52,T=2.24,PNC41101A=T/PB,OD=52,PNC41101A=T/PA,OD=52 |
1 | ||
| 90564-35121 |
GGN125,GUN125,126,LAN125,TGN126,128..AD,AS,KD,KS,MD,MMD,MS,SD,SS,SX,TD,TS,TX OD=52,T=2.06,PNC41101A=T/PB,OD=52,PNC41101A=T/PA,OD=52 |
1 | ||
| 90564-35126 |
GGN125,GUN125,126,LAN125,TGN126,128..AD,AS,KD,KS,MD,MMD,MS,SD,SS,SX,TD,TS,TX OD=52,T=2.18,PNC41101A=T/PB,OD=52,PNC41101A=T/PA,OD=52 |
1 | ||
| 90564-35127 |
GGN125,GUN125,126,LAN125,TGN126,128..AD,AS,KD,KS,MD,MMD,MS,SD,SS,SX,TD,TS,TX OD=52,T=2.21,PNC41101A=T/PB,OD=52,PNC41101A=T/PA,OD=52 |
1 | ||
| 90564-35123 |
GGN125,GUN125,126,LAN125,TGN126,128..AD,AS,KD,KS,MD,MMD,MS,SD,SS,SX,TD,TS,TX OD=52,T=2.09,PNC41101A=T/PB,OD=52,PNC41101A=T/PA,OD=52 |
1 | ||
| 90564-35131 |
GGN125,GUN125,126,LAN125,TGN126,128..AD,AS,KD,KS,MD,MMD,MS,SD,SS,SX,TD,TS,TX OD=52,T=2.33,PNC41101A=T/PB,OD=52,PNC41101A=T/PA,OD=52 |
1 | ||
| 90564-35125 |
GGN125,GUN125,126,LAN125,TGN126,128..AD,AS,KD,KS,MD,MMD,MS,SD,SS,SX,TD,TS,TX OD=52,T=2.15,PNC41101A=T/PB,OD=52,PNC41101A=T/PA,OD=52 |
1 | ||
| 90564-35129 |
GGN125,GUN125,126,LAN125,TGN126,128..AD,AS,KD,KS,MD,MMD,MS,SD,SS,SX,TD,TS,TX OD=52,T=2.27,PNC41101A=T/PB,OD=52,PNC41101A=T/PA,OD=52 |
1 | ||
| 41214C - SLINGER, FRONT DIFFERENTIAL DRIVE PINION OIL | ||||
| 41214-26011 |
GGN125,GUN125,126,LAN125,TGN126,128..AD,AS,KD,KS,MD,MMD,MS,SD,SS,SX,TD,TS,TX PNC 41101A=TYPE A,PNC 41101A=TYPE B |
1 | ||
| 41222B - BOLT (FOR FRONT DIFFERENTIAL RING GEAR SET) | ||||
| 90105-T0310 |
GGN125,GUN125,126,LAN125,TGN126,128..AD,AS,KD,KS,MD,MMD,MS,SD,SS,SX,TD,TS,TX (L),PNC 41101A=T/P B |
10 | ||
| 90901-05002 |
GGN125,GUN125,126,LAN125,TGN126,128..AD,AS,KD,KS,MD,MMD,MS,SD,SS,SX,TD,TS,TX PNC 41101A=TYPE A,(J),PNC 41101A=T/P B |
10 | ||
| 41231F - SPACER, FRONT DIFFERENTIAL DRIVE PINION BEARING | ||||
| 41231-35040 |
GGN125,GUN125,126,LAN125,TGN126,128..AD,AS,KD,KS,MD,MMD,MS,SD,SS,SX,TD,TS,TX PNC 41101A=TYPE A,PNC 41101A=TYPE B |
1 | ||
| 41252A - DEFLECTOR, DUST (FOR FRONT DIFFERENTIAL) | ||||
| 41252-71030 |
GGN125,GUN125,126,LAN125,TGN126,128..AD,AS,KD,KS,MD,MMD,MS,SD,SS,SX,TD,TS,TX PNC 41101A=TYPE A |
1 | ||
| 41302F - CASE SUB-ASSY, FRONT DIFFERENTIAL | ||||
| 41301-71120 |
TGN126..H..LA;TGN126..L..SA;GUN125..6FC..(H,S)..GCC;TGN126..(H,S)..(GEN,SA);GUN125..(AD,MD,SD,SS,TD,TX)..6FC..(ARL,GEN,IDN,LA,MA,SA);GGN125,GUN126,LAN125,TGN128..(AD,KD,MD,MMD,SD,SS,SX,TD,TS,TX)..(5F,6FC) PNC 41101A=TYPE A |
1 | ||
| 41301-71100 |
TGN126..S..LA;GUN125..TS..6FC;TGN126..(H,S)..GCC;GUN125,TGN126..LHD..(5F,6FC)..L..(GCC,GEN,LA) PNC 41101A=TYPE A |
1 | ||
| 41301-71110 |
GUN125,126..6F..(ARL,BZAG,GCC,GEN,IDN,KEN,LA,MA,PH,SA,TH,VN) PNC 41101A=TYPE A |
1 | ||
| 41301-71120 |
TGN126..6FC..L;GUN125..TS..6FC;TGN126..(L,S)..LA;TGN126..TD..(H,S)..GCC AUTOMATIC DISCONNECTING DIFFERENTIAL-WITH,PNC 41101A=TYPE A |
1 | ||
| 41304F - SHAFT SUB-ASSY, DIFFERENTIAL SIDE GEAR, RH | ||||
| 41337-35060 |
TGN126..6FC..L;GUN125..TS..6FC;TGN126..(L,S)..LA;TGN126..TD..(H,S)..GCC AUTOMATIC DISCONNECTING DIFFERENTIAL-WITH,PNC 41101A=TYPE A,PNC 41101A=TYPE B |
1 | ||
| 41337-35050 |
TGN126..S..LA;GUN125..TS..6FC;TGN126..(H,S)..GCC;GUN125,TGN126..LHD..(5F,6FC)..L..(GCC,GEN,LA) PNC 41101A=TYPE A,PNC 41101A=TYPE B |
1 | ||
| 41337-35060 |
TGN126..H..LA;TGN126..L..SA;GUN125..6FC..(H,S)..GCC;TGN126..(H,S)..(GEN,SA);GUN125..6F..(ARL,BZAG,GCC,GEN,IDN,KEN,LA,MA,PH,SA,TH,VN);GUN125..(AD,MD,SD,SS,TD,TX)..6FC..(ARL,GEN,IDN,LA,MA,SA);GGN125,GUN126,LAN125,TGN128..AD,AS,KD,MD,MMD,SD,SS,SX,TD,TS,TX PNC 41101A=TYPE A,PNC 41101A=TYPE B |
1 | ||
| 41304H - RING, HOLE SNAP (FOR DIFFERENTIAL SIDE GEAR SHAFT) | ||||
| 90520-31011 |
TGN126..H..LA;TGN126..L..SA;GUN125..6FC..(H,S)..GCC;TGN126..(H,S)..(GEN,SA);GUN125..6F..(ARL,BZAG,GCC,GEN,IDN,KEN,LA,MA,PH,SA,TH,VN);GUN125..(AD,MD,SD,SS,TD,TX)..6FC..(ARL,GEN,IDN,LA,MA,SA);GGN125,GUN126,LAN125,TGN128..AD,AS,KD,MD,MMD,SD,SS,SX,TD,TS,TX PNC 41101A=TYPE A |
1 | ||
| 90520-31011 |
TGN126..6FC..L;GUN125..TS..6FC;TGN126..(L,S)..LA;TGN126..TD..(H,S)..GCC AUTOMATIC DISCONNECTING DIFFERENTIAL-WITH,PNC 41101A=TYPE A |
1 | ||
| 90520-T0028 |
TGN126..6FC..L;GUN125..TS..6FC;TGN126..(L,S)..LA;TGN126..TD..(H,S)..GCC AUTOMATIC DISCONNECTING DIFFERENTIAL-WITH,PNC 41101A=TYPE B |
1 | ||
| 90520-T0028 |
TGN126..H..LA;TGN126..L..SA;GUN125..6FC..(H,S)..GCC;TGN126..(H,S)..(GEN,SA);GUN125..6F..(ARL,BZAG,GCC,GEN,IDN,KEN,LA,MA,PH,SA,TH,VN);GUN125..(AD,MD,SD,SS,TD,TX)..6FC..(ARL,GEN,IDN,LA,MA,SA);GGN125,GUN126,LAN125,TGN128..AD,AS,KD,MD,MMD,SD,SS,SX,TD,TS,TX PNC 41101A=TYPE B |
1 | ||
| 41304L - BEARING (FOR FRONT DIFFERENTIAL SIDE GEAR SHAFT RH) | ||||
| 90363-T0014 |
GGN125,GUN125,126,LAN125,TGN126,128..AD,AS,KD,KS,MD,MMD,MS,SD,SS,SX,TD,TS,TX PNC 41101A=TYPE A,PNC 41101A=TYPE B |
1 | ||
| 41304M - RING, SHAFT SNAP (FOR DIFFERENTIAL SIDE GEAR SHAFT RH) | ||||
| 90520-41014 |
GGN125,GUN125,126,LAN125,TGN126,128..AD,AS,KD,KS,MD,MMD,MS,SD,SS,SX,TD,TS,TX PNC41101A=T/PA,INNER |
1 | ||
| 90520-75002 |
GGN125,GUN125,126,LAN125,TGN126,128..AD,AS,KD,KS,MD,MMD,MS,SD,SS,SX,TD,TS,TX PNC41101A=T/PA,OUTER |
1 | ||
| 90520-T0027 |
GGN125,GUN125,126,LAN125,TGN126,128..AD,AS,KD,KS,MD,MMD,MS,SD,SS,SX,TD,TS,TX PNC41101A=T/PB,INNER |
1 | ||
| 90521-T0002 |
GGN125,GUN125,126,LAN125,TGN126,128..AD,AS,KD,KS,MD,MMD,MS,SD,SS,SX,TD,TS,TX PNC41101A=T/PB,OUTER |
1 | ||
| 41304M - RING, SHAFT SNAP (FOR DIFFERENTIAL SIDE GEAR SHAFT RH) | ||||
| 90520-41014 |
GGN125,GUN125,126,LAN125,TGN126,128..AD,AS,KD,KS,MD,MMD,MS,SD,SS,SX,TD,TS,TX PNC41101A=T/PA,INNER |
1 | ||
| 90520-75002 |
GGN125,GUN125,126,LAN125,TGN126,128..AD,AS,KD,KS,MD,MMD,MS,SD,SS,SX,TD,TS,TX PNC41101A=T/PA,OUTER |
1 | ||
| 90520-T0027 |
GGN125,GUN125,126,LAN125,TGN126,128..AD,AS,KD,KS,MD,MMD,MS,SD,SS,SX,TD,TS,TX PNC41101A=T/PB,INNER |
1 | ||
| 90521-T0002 |
GGN125,GUN125,126,LAN125,TGN126,128..AD,AS,KD,KS,MD,MMD,MS,SD,SS,SX,TD,TS,TX PNC41101A=T/PB,OUTER |
1 | ||
| 41304P - SEAL, OIL (FOR DIFFERENTIAL SIDE GEAR SHAFT) | ||||
| 90311-T0101 |
GGN125,GUN125,126,LAN125,TGN126,128..AD,AS,KD,KS,MD,MMD,MS,SD,SS,SX,TD,TS,TX LH,PNC 41101A=TYPE B |
1 | ||
| 90311-47035 |
GGN125,GUN125,126,LAN125,TGN126,128..AD,AS,KD,KS,MD,MMD,MS,SD,SS,SX,TD,TS,TX LH,PNC 41101A=TYPE A |
1 | ||
| 90311-T0102 |
GGN125,GUN125,126,LAN125,TGN126,128..AD,AS,KD,KS,MD,MMD,MS,SD,SS,SX,TD,TS,TX RH,PNC 41101A=TYPE B |
1 | ||
| 90311-47038 |
GGN125,GUN125,126,LAN125,TGN126,128..AD,AS,KD,KS,MD,MMD,MS,SD,SS,SX,TD,TS,TX RH,PNC 41101A=TYPE A |
1 | ||
| 41304P - SEAL, OIL (FOR DIFFERENTIAL SIDE GEAR SHAFT) | ||||
| 90311-T0101 |
GGN125,GUN125,126,LAN125,TGN126,128..AD,AS,KD,KS,MD,MMD,MS,SD,SS,SX,TD,TS,TX LH,PNC 41101A=TYPE B |
1 | ||
| 90311-47035 |
GGN125,GUN125,126,LAN125,TGN126,128..AD,AS,KD,KS,MD,MMD,MS,SD,SS,SX,TD,TS,TX LH,PNC 41101A=TYPE A |
1 | ||
| 90311-T0102 |
GGN125,GUN125,126,LAN125,TGN126,128..AD,AS,KD,KS,MD,MMD,MS,SD,SS,SX,TD,TS,TX RH,PNC 41101A=TYPE B |
1 | ||
| 90311-47038 |
GGN125,GUN125,126,LAN125,TGN126,128..AD,AS,KD,KS,MD,MMD,MS,SD,SS,SX,TD,TS,TX RH,PNC 41101A=TYPE A |
1 | ||
| 41306F - SHAFT SUB-ASSY, DIFFERENTIAL SIDE GEAR INTER | ||||
| 41306-35060 |
TGN126..6FC..L;GUN125..TS..6FC;TGN126..(L,S)..LA;TGN126..TD..(H,S)..GCC AUTOMATIC DISCONNECTING DIFFERENTIAL-WITH,PNC 41101A=TYPE A |
1 | ||
| 41306-35060 |
TGN126..H..LA;TGN126..L..SA;GUN125..6FC..(H,S)..GCC;TGN126..(H,S)..(GEN,SA);GUN125..6F..(ARL,BZAG,GCC,GEN,IDN,KEN,LA,MA,PH,SA,TH,VN);GUN125..(AD,MD,SD,SS,TD,TX)..6FC..(ARL,GEN,IDN,LA,MA,SA);GGN125,GUN126,LAN125,TGN128..AD,AS,KD,MD,MMD,SD,SS,SX,TD,TS,TX PNC 41101A=TYPE A |
1 | ||
| 41306-0K030 |
TGN126..H..LA;TGN126..L..SA;GUN125..6FC..(H,S)..GCC;TGN126..(H,S)..(GEN,SA);GUN125..6F..(ARL,BZAG,GCC,GEN,IDN,KEN,LA,MA,PH,SA,TH,VN);GUN125..(AD,MD,SD,SS,TD,TX)..6FC..(ARL,GEN,IDN,LA,MA,SA);GGN125,GUN126,LAN125,TGN128..AD,AS,KD,MD,MMD,SD,SS,SX,TD,TS,TX PNC 41101A=TYPE B |
1 | ||
| 41306-0K030 |
TGN126..6FC..L;GUN125..TS..6FC;TGN126..(L,S)..LA;TGN126..TD..(H,S)..GCC AUTOMATIC DISCONNECTING DIFFERENTIAL-WITH,PNC 41101A=TYPE B |
1 | ||
| 41311 - CASE, FRONT DIFFERENTIAL | ||||
| 41311-0K060 |
GUN125,126..6F..(ARL,BZAG,GCC,GEN,IDN,KEN,LA,MA,PH,SA,TH,VN) PNC 41101A=TYPE B |
1 | ||
| 41311-0K040 |
TGN126..S..LA;GUN125..TS..6FC;TGN126..(H,S)..GCC;GUN125,TGN126..LHD..(5F,6FC)..L..(GCC,GEN,LA) PNC 41101A=TYPE B |
1 | ||
| 41311-0K070 |
TGN126..6FC..L;GUN125..TS..6FC;TGN126..(L,S)..LA;TGN126..TD..(H,S)..GCC AUTOMATIC DISCONNECTING DIFFERENTIAL-WITH,PNC 41101A=TYPE B |
1 | ||
| 41311-0K070 |
TGN126..H..LA;TGN126..L..SA;GUN125..6FC..(H,S)..GCC;TGN126..(H,S)..(GEN,SA);GUN125..(AD,MD,SD,SS,TD,TX)..6FC..(ARL,GEN,IDN,LA,MA,SA);GGN125,GUN126,LAN125,TGN128..(AD,KD,MD,MMD,SD,SS,SX,TD,TS,TX)..(5F,6FC) PNC 41101A=TYPE B |
1 | ||
| 41311A - BEARING (FOR FRONT DIFFERENTIAL CASE) | ||||
| 90366-T0031 |
GGN125,GUN125,126,LAN125,TGN126,128..AD,AS,KD,KS,MD,MMD,MS,SD,SS,SX,TD,TS,TX PNC 41101A=TYPE B |
2 | ||
| 90366-53004 |
GGN125,GUN125,126,LAN125,TGN126,128..AD,AS,KD,KS,MD,MMD,MS,SD,SS,SX,TD,TS,TX PNC 41101A=TYPE A |
2 | ||
| 41311A - BEARING (FOR FRONT DIFFERENTIAL CASE) | ||||
| 90366-T0031 |
GGN125,GUN125,126,LAN125,TGN126,128..AD,AS,KD,KS,MD,MMD,MS,SD,SS,SX,TD,TS,TX PNC 41101A=TYPE B |
2 | ||
| 90366-53004 |
GGN125,GUN125,126,LAN125,TGN126,128..AD,AS,KD,KS,MD,MMD,MS,SD,SS,SX,TD,TS,TX PNC 41101A=TYPE A |
2 | ||
| 41311B - WASHER, PLATE (FOR FRONT DIFFERENTIAL CASE) | ||||
| 90564-50124 |
GGN125,GUN125,126,LAN125,TGN126,128..AD,AS,KD,KS,MD,MMD,MS,SD,SS,SX,TD,TS,TX T=1.60,LH,PNC 41101A=TYPE A,LH,PNC 41101A=TYPE B |
1 | ||
| 90564-50136 |
GGN125,GUN125,126,LAN125,TGN126,128..AD,AS,KD,KS,MD,MMD,MS,SD,SS,SX,TD,TS,TX T=1.96,LH,PNC 41101A=TYPE A,LH,PNC 41101A=TYPE B |
1 | ||
| 90564-50126 |
GGN125,GUN125,126,LAN125,TGN126,128..AD,AS,KD,KS,MD,MMD,MS,SD,SS,SX,TD,TS,TX T=1.66,LH,PNC 41101A=TYPE A,LH,PNC 41101A=TYPE B |
1 | ||
| 90564-50132 |
GGN125,GUN125,126,LAN125,TGN126,128..AD,AS,KD,KS,MD,MMD,MS,SD,SS,SX,TD,TS,TX T=1.84,LH,PNC 41101A=TYPE A,LH,PNC 41101A=TYPE B |
1 | ||
| 90564-50128 |
GGN125,GUN125,126,LAN125,TGN126,128..AD,AS,KD,KS,MD,MMD,MS,SD,SS,SX,TD,TS,TX T=1.72,LH,PNC 41101A=TYPE A,LH,PNC 41101A=TYPE B |
1 | ||
| 90564-50138 |
GGN125,GUN125,126,LAN125,TGN126,128..AD,AS,KD,KS,MD,MMD,MS,SD,SS,SX,TD,TS,TX T=2.02,LH,PNC 41101A=TYPE A,LH,PNC 41101A=TYPE B |
1 | ||
| 90564-50130 |
GGN125,GUN125,126,LAN125,TGN126,128..AD,AS,KD,KS,MD,MMD,MS,SD,SS,SX,TD,TS,TX T=1.78,LH,PNC 41101A=TYPE A,LH,PNC 41101A=TYPE B |
1 | ||
| 90564-50154 |
GGN125,GUN125,126,LAN125,TGN126,128..AD,AS,KD,KS,MD,MMD,MS,SD,SS,SX,TD,TS,TX T=1.60,RH,PNC 41101A=TYPE B,RH,PNC 41101A=TYPE A |
1 | ||
| 90564-50134 |
GGN125,GUN125,126,LAN125,TGN126,128..AD,AS,KD,KS,MD,MMD,MS,SD,SS,SX,TD,TS,TX T=1.90,LH,PNC 41101A=TYPE A,LH,PNC 41101A=TYPE B |
1 | ||
| 90564-50142 |
GGN125,GUN125,126,LAN125,TGN126,128..AD,AS,KD,KS,MD,MMD,MS,SD,SS,SX,TD,TS,TX T=2.14,LH,PNC 41101A=TYPE A,LH,PNC 41101A=TYPE B |
1 | ||
| 90564-50158 |
GGN125,GUN125,126,LAN125,TGN126,128..AD,AS,KD,KS,MD,MMD,MS,SD,SS,SX,TD,TS,TX T=1.72,RH,PNC 41101A=TYPE B,RH,PNC 41101A=TYPE A |
1 | ||
| 90564-50162 |
GGN125,GUN125,126,LAN125,TGN126,128..AD,AS,KD,KS,MD,MMD,MS,SD,SS,SX,TD,TS,TX T=1.84,RH,PNC 41101A=TYPE B,RH,PNC 41101A=TYPE A |
1 | ||
| 90564-50156 |
GGN125,GUN125,126,LAN125,TGN126,128..AD,AS,KD,KS,MD,MMD,MS,SD,SS,SX,TD,TS,TX T=1.66,RH,PNC 41101A=TYPE B,RH,PNC 41101A=TYPE A |
1 | ||
| 90564-50164 |
GGN125,GUN125,126,LAN125,TGN126,128..AD,AS,KD,KS,MD,MMD,MS,SD,SS,SX,TD,TS,TX T=1.90,RH,PNC 41101A=TYPE B,RH,PNC 41101A=TYPE A |
1 | ||
| 90564-50184 |
GGN125,GUN125,126,LAN125,TGN126,128..AD,AS,KD,KS,MD,MMD,MS,SD,SS,SX,TD,TS,TX T=1.58,LH,PNC 41101A=TYPE A,LH,PNC 41101A=TYPE B |
1 | ||
| 90564-50160 |
GGN125,GUN125,126,LAN125,TGN126,128..AD,AS,KD,KS,MD,MMD,MS,SD,SS,SX,TD,TS,TX T=1.78,RH,PNC 41101A=TYPE B,RH,PNC 41101A=TYPE A |
1 | ||
| 90564-50140 |
GGN125,GUN125,126,LAN125,TGN126,128..AD,AS,KD,KS,MD,MMD,MS,SD,SS,SX,TD,TS,TX T=2.08,LH,PNC 41101A=TYPE A,LH,PNC 41101A=TYPE B |
1 | ||
| 90564-50170 |
GGN125,GUN125,126,LAN125,TGN126,128..AD,AS,KD,KS,MD,MMD,MS,SD,SS,SX,TD,TS,TX T=2.08,RH,PNC 41101A=TYPE B,RH,PNC 41101A=TYPE A |
1 | ||
| 90564-50187 |
GGN125,GUN125,126,LAN125,TGN126,128..AD,AS,KD,KS,MD,MMD,MS,SD,SS,SX,TD,TS,TX T=1.68,LH,PNC 41101A=TYPE A,LH,PNC 41101A=TYPE B |
1 | ||
| 90564-50191 |
GGN125,GUN125,126,LAN125,TGN126,128..AD,AS,KD,KS,MD,MMD,MS,SD,SS,SX,TD,TS,TX T=1.80,LH,PNC 41101A=TYPE A,LH,PNC 41101A=TYPE B |
1 | ||
| 90564-50186 |
GGN125,GUN125,126,LAN125,TGN126,128..AD,AS,KD,KS,MD,MMD,MS,SD,SS,SX,TD,TS,TX T=1.64,LH,PNC 41101A=TYPE A,LH,PNC 41101A=TYPE B |
1 | ||
| 90564-50166 |
GGN125,GUN125,126,LAN125,TGN126,128..AD,AS,KD,KS,MD,MMD,MS,SD,SS,SX,TD,TS,TX T=1.96,RH,PNC 41101A=TYPE B,RH,PNC 41101A=TYPE A |
1 | ||
| 90564-50185 |
GGN125,GUN125,126,LAN125,TGN126,128..AD,AS,KD,KS,MD,MMD,MS,SD,SS,SX,TD,TS,TX T=1.62,LH,PNC 41101A=TYPE A,LH,PNC 41101A=TYPE B |
1 | ||
| 90564-50168 |
GGN125,GUN125,126,LAN125,TGN126,128..AD,AS,KD,KS,MD,MMD,MS,SD,SS,SX,TD,TS,TX T=2.02,RH,PNC 41101A=TYPE B,RH,PNC 41101A=TYPE A |
1 | ||
| 90564-50188 |
GGN125,GUN125,126,LAN125,TGN126,128..AD,AS,KD,KS,MD,MMD,MS,SD,SS,SX,TD,TS,TX T=1.70,LH,PNC 41101A=TYPE A,LH,PNC 41101A=TYPE B |
1 | ||
| 90564-50172 |
GGN125,GUN125,126,LAN125,TGN126,128..AD,AS,KD,KS,MD,MMD,MS,SD,SS,SX,TD,TS,TX T=2.14,RH,PNC 41101A=TYPE B,RH,PNC 41101A=TYPE A |
1 | ||
| 90564-50189 |
GGN125,GUN125,126,LAN125,TGN126,128..AD,AS,KD,KS,MD,MMD,MS,SD,SS,SX,TD,TS,TX T=1.74,LH,PNC 41101A=TYPE A,LH,PNC 41101A=TYPE B |
1 | ||
| 90564-50190 |
GGN125,GUN125,126,LAN125,TGN126,128..AD,AS,KD,KS,MD,MMD,MS,SD,SS,SX,TD,TS,TX T=1.76,LH,PNC 41101A=TYPE A,LH,PNC 41101A=TYPE B |
1 | ||
| 90564-50196 |
GGN125,GUN125,126,LAN125,TGN126,128..AD,AS,KD,KS,MD,MMD,MS,SD,SS,SX,TD,TS,TX T=1.94,LH,PNC 41101A=TYPE A,LH,PNC 41101A=TYPE B |
1 | ||
| 90564-50193 |
GGN125,GUN125,126,LAN125,TGN126,128..AD,AS,KD,KS,MD,MMD,MS,SD,SS,SX,TD,TS,TX T=1.86,LH,PNC 41101A=TYPE A,LH,PNC 41101A=TYPE B |
1 | ||
| 90564-50200 |
GGN125,GUN125,126,LAN125,TGN126,128..AD,AS,KD,KS,MD,MMD,MS,SD,SS,SX,TD,TS,TX T=2.06,LH,PNC 41101A=TYPE A,LH,PNC 41101A=TYPE B |
1 | ||
| 90564-50198 |
GGN125,GUN125,126,LAN125,TGN126,128..AD,AS,KD,KS,MD,MMD,MS,SD,SS,SX,TD,TS,TX T=2.00,LH,PNC 41101A=TYPE A,LH,PNC 41101A=TYPE B |
1 | ||
| 90564-50192 |
GGN125,GUN125,126,LAN125,TGN126,128..AD,AS,KD,KS,MD,MMD,MS,SD,SS,SX,TD,TS,TX T=1.82,LH,PNC 41101A=TYPE A,LH,PNC 41101A=TYPE B |
1 | ||
| 90564-50203 |
GGN125,GUN125,126,LAN125,TGN126,128..AD,AS,KD,KS,MD,MMD,MS,SD,SS,SX,TD,TS,TX T=2.16,LH,PNC 41101A=TYPE A,LH,PNC 41101A=TYPE B |
1 | ||
| 90564-50208 |
GGN125,GUN125,126,LAN125,TGN126,128..AD,AS,KD,KS,MD,MMD,MS,SD,SS,SX,TD,TS,TX T=1.70,RH,PNC 41101A=TYPE B,RH,PNC 41101A=TYPE A |
1 | ||
| 90564-50195 |
GGN125,GUN125,126,LAN125,TGN126,128..AD,AS,KD,KS,MD,MMD,MS,SD,SS,SX,TD,TS,TX T=1.92,LH,PNC 41101A=TYPE A,LH,PNC 41101A=TYPE B |
1 | ||
| 90564-50199 |
GGN125,GUN125,126,LAN125,TGN126,128..AD,AS,KD,KS,MD,MMD,MS,SD,SS,SX,TD,TS,TX T=2.04,LH,PNC 41101A=TYPE A,LH,PNC 41101A=TYPE B |
1 | ||
| 90564-50206 |
GGN125,GUN125,126,LAN125,TGN126,128..AD,AS,KD,KS,MD,MMD,MS,SD,SS,SX,TD,TS,TX T=1.64,RH,PNC 41101A=TYPE B,RH,PNC 41101A=TYPE A |
1 | ||
| 90564-50197 |
GGN125,GUN125,126,LAN125,TGN126,128..AD,AS,KD,KS,MD,MMD,MS,SD,SS,SX,TD,TS,TX T=1.98,LH,PNC 41101A=TYPE A,LH,PNC 41101A=TYPE B |
1 | ||
| 90564-50194 |
GGN125,GUN125,126,LAN125,TGN126,128..AD,AS,KD,KS,MD,MMD,MS,SD,SS,SX,TD,TS,TX T=1.88,LH,PNC 41101A=TYPE A,LH,PNC 41101A=TYPE B |
1 | ||
| 90564-50202 |
GGN125,GUN125,126,LAN125,TGN126,128..AD,AS,KD,KS,MD,MMD,MS,SD,SS,SX,TD,TS,TX T=2.12,LH,PNC 41101A=TYPE A,LH,PNC 41101A=TYPE B |
1 | ||
| 90564-50204 |
GGN125,GUN125,126,LAN125,TGN126,128..AD,AS,KD,KS,MD,MMD,MS,SD,SS,SX,TD,TS,TX T=1.58,RH,PNC 41101A=TYPE B,RH,PNC 41101A=TYPE A |
1 | ||
| 90564-50205 |
GGN125,GUN125,126,LAN125,TGN126,128..AD,AS,KD,KS,MD,MMD,MS,SD,SS,SX,TD,TS,TX T=1.62,RH,PNC 41101A=TYPE B,RH,PNC 41101A=TYPE A |
1 | ||
| 90564-50209 |
GGN125,GUN125,126,LAN125,TGN126,128..AD,AS,KD,KS,MD,MMD,MS,SD,SS,SX,TD,TS,TX T=1.74,RH,PNC 41101A=TYPE B,RH,PNC 41101A=TYPE A |
1 | ||
| 90564-50201 |
GGN125,GUN125,126,LAN125,TGN126,128..AD,AS,KD,KS,MD,MMD,MS,SD,SS,SX,TD,TS,TX T=2.10,LH,PNC 41101A=TYPE A,LH,PNC 41101A=TYPE B |
1 | ||
| 90564-50218 |
GGN125,GUN125,126,LAN125,TGN126,128..AD,AS,KD,KS,MD,MMD,MS,SD,SS,SX,TD,TS,TX T=2.00,RH,PNC 41101A=TYPE B,RH,PNC 41101A=TYPE A |
1 | ||
| 90564-50210 |
GGN125,GUN125,126,LAN125,TGN126,128..AD,AS,KD,KS,MD,MMD,MS,SD,SS,SX,TD,TS,TX T=1.76,RH,PNC 41101A=TYPE B,RH,PNC 41101A=TYPE A |
1 | ||
| 90564-50213 |
GGN125,GUN125,126,LAN125,TGN126,128..AD,AS,KD,KS,MD,MMD,MS,SD,SS,SX,TD,TS,TX T=1.86,RH,PNC 41101A=TYPE B,RH,PNC 41101A=TYPE A |
1 | ||
| 90564-50217 |
GGN125,GUN125,126,LAN125,TGN126,128..AD,AS,KD,KS,MD,MMD,MS,SD,SS,SX,TD,TS,TX T=1.98,RH,PNC 41101A=TYPE B,RH,PNC 41101A=TYPE A |
1 | ||
| 90564-50214 |
GGN125,GUN125,126,LAN125,TGN126,128..AD,AS,KD,KS,MD,MMD,MS,SD,SS,SX,TD,TS,TX T=1.88,RH,PNC 41101A=TYPE B,RH,PNC 41101A=TYPE A |
1 | ||
| 90564-50207 |
GGN125,GUN125,126,LAN125,TGN126,128..AD,AS,KD,KS,MD,MMD,MS,SD,SS,SX,TD,TS,TX T=1.68,RH,PNC 41101A=TYPE B,RH,PNC 41101A=TYPE A |
1 | ||
| 90564-50221 |
GGN125,GUN125,126,LAN125,TGN126,128..AD,AS,KD,KS,MD,MMD,MS,SD,SS,SX,TD,TS,TX T=2.10,RH,PNC 41101A=TYPE B,RH,PNC 41101A=TYPE A |
1 | ||
| 90564-50215 |
GGN125,GUN125,126,LAN125,TGN126,128..AD,AS,KD,KS,MD,MMD,MS,SD,SS,SX,TD,TS,TX T=1.92,RH,PNC 41101A=TYPE B,RH,PNC 41101A=TYPE A |
1 | ||
| 90564-50224 |
GGN125,GUN125,126,LAN125,TGN126,128..AD,AS,KD,KS,MD,MMD,MS,SD,SS,SX,TD,TS,TX T=1.44,RH,PNC 41101A=TYPE A |
1 | ||
| 90564-50212 |
GGN125,GUN125,126,LAN125,TGN126,128..AD,AS,KD,KS,MD,MMD,MS,SD,SS,SX,TD,TS,TX T=1.82,RH,PNC 41101A=TYPE B,RH,PNC 41101A=TYPE A |
1 | ||
| 90564-50225 |
GGN125,GUN125,126,LAN125,TGN126,128..AD,AS,KD,KS,MD,MMD,MS,SD,SS,SX,TD,TS,TX T=1.46,RH,PNC 41101A=TYPE A |
1 | ||
| 90564-50228 |
GGN125,GUN125,126,LAN125,TGN126,128..AD,AS,KD,KS,MD,MMD,MS,SD,SS,SX,TD,TS,TX T=1.52,RH,PNC 41101A=TYPE A |
1 | ||
| 90564-50226 |
GGN125,GUN125,126,LAN125,TGN126,128..AD,AS,KD,KS,MD,MMD,MS,SD,SS,SX,TD,TS,TX T=1.48,RH,PNC 41101A=TYPE A |
1 | ||
| 90564-50223 |
GGN125,GUN125,126,LAN125,TGN126,128..AD,AS,KD,KS,MD,MMD,MS,SD,SS,SX,TD,TS,TX T=2.16,RH,PNC 41101A=TYPE B,RH,PNC 41101A=TYPE A |
1 | ||
| 90564-50216 |
GGN125,GUN125,126,LAN125,TGN126,128..AD,AS,KD,KS,MD,MMD,MS,SD,SS,SX,TD,TS,TX T=1.94,RH,PNC 41101A=TYPE B,RH,PNC 41101A=TYPE A |
1 | ||
| 90564-50220 |
GGN125,GUN125,126,LAN125,TGN126,128..AD,AS,KD,KS,MD,MMD,MS,SD,SS,SX,TD,TS,TX T=2.06,RH,PNC 41101A=TYPE B,RH,PNC 41101A=TYPE A |
1 | ||
| 90564-50231 |
GGN125,GUN125,126,LAN125,TGN126,128..AD,AS,KD,KS,MD,MMD,MS,SD,SS,SX,TD,TS,TX T=2.18,LH,PNC 41101A=TYPE A |
1 | ||
| 90564-50219 |
GGN125,GUN125,126,LAN125,TGN126,128..AD,AS,KD,KS,MD,MMD,MS,SD,SS,SX,TD,TS,TX T=2.04,RH,PNC 41101A=TYPE B,RH,PNC 41101A=TYPE A |
1 | ||
| 90564-50230 |
GGN125,GUN125,126,LAN125,TGN126,128..AD,AS,KD,KS,MD,MMD,MS,SD,SS,SX,TD,TS,TX T=1.56,RH,PNC 41101A=TYPE A |
1 | ||
| 90564-50233 |
GGN125,GUN125,126,LAN125,TGN126,128..AD,AS,KD,KS,MD,MMD,MS,SD,SS,SX,TD,TS,TX T=2.22,LH,PNC 41101A=TYPE A |
1 | ||
| 90564-50229 |
GGN125,GUN125,126,LAN125,TGN126,128..AD,AS,KD,KS,MD,MMD,MS,SD,SS,SX,TD,TS,TX T=1.54,RH,PNC 41101A=TYPE A |
1 | ||
| 90564-50222 |
GGN125,GUN125,126,LAN125,TGN126,128..AD,AS,KD,KS,MD,MMD,MS,SD,SS,SX,TD,TS,TX T=2.12,RH,PNC 41101A=TYPE B,RH,PNC 41101A=TYPE A |
1 | ||
| 90564-50211 |
GGN125,GUN125,126,LAN125,TGN126,128..AD,AS,KD,KS,MD,MMD,MS,SD,SS,SX,TD,TS,TX T=1.80,RH,PNC 41101A=TYPE B,RH,PNC 41101A=TYPE A |
1 | ||
| 90564-50234 |
GGN125,GUN125,126,LAN125,TGN126,128..AD,AS,KD,KS,MD,MMD,MS,SD,SS,SX,TD,TS,TX T=2.24,LH,PNC 41101A=TYPE A |
1 | ||
| 90564-50232 |
GGN125,GUN125,126,LAN125,TGN126,128..AD,AS,KD,KS,MD,MMD,MS,SD,SS,SX,TD,TS,TX T=2.20,LH,PNC 41101A=TYPE A |
1 | ||
| 90564-50236 |
GGN125,GUN125,126,LAN125,TGN126,128..AD,AS,KD,KS,MD,MMD,MS,SD,SS,SX,TD,TS,TX T=2.28,LH,PNC 41101A=TYPE A |
1 | ||
| 90564-50227 |
GGN125,GUN125,126,LAN125,TGN126,128..AD,AS,KD,KS,MD,MMD,MS,SD,SS,SX,TD,TS,TX T=1.50,RH,PNC 41101A=TYPE A |
1 | ||
| 90564-50235 |
GGN125,GUN125,126,LAN125,TGN126,128..AD,AS,KD,KS,MD,MMD,MS,SD,SS,SX,TD,TS,TX T=2.26,LH,PNC 41101A=TYPE A |
1 | ||
| 90564-50237 |
GGN125,GUN125,126,LAN125,TGN126,128..AD,AS,KD,KS,MD,MMD,MS,SD,SS,SX,TD,TS,TX T=2.30,LH,PNC 41101A=TYPE A |
1 | ||
| 41311B - WASHER, PLATE (FOR FRONT DIFFERENTIAL CASE) | ||||
| 90564-50124 |
GGN125,GUN125,126,LAN125,TGN126,128..AD,AS,KD,KS,MD,MMD,MS,SD,SS,SX,TD,TS,TX T=1.60,LH,PNC 41101A=TYPE A,LH,PNC 41101A=TYPE B |
1 | ||
| 90564-50136 |
GGN125,GUN125,126,LAN125,TGN126,128..AD,AS,KD,KS,MD,MMD,MS,SD,SS,SX,TD,TS,TX T=1.96,LH,PNC 41101A=TYPE A,LH,PNC 41101A=TYPE B |
1 | ||
| 90564-50126 |
GGN125,GUN125,126,LAN125,TGN126,128..AD,AS,KD,KS,MD,MMD,MS,SD,SS,SX,TD,TS,TX T=1.66,LH,PNC 41101A=TYPE A,LH,PNC 41101A=TYPE B |
1 | ||
| 90564-50132 |
GGN125,GUN125,126,LAN125,TGN126,128..AD,AS,KD,KS,MD,MMD,MS,SD,SS,SX,TD,TS,TX T=1.84,LH,PNC 41101A=TYPE A,LH,PNC 41101A=TYPE B |
1 | ||
| 90564-50128 |
GGN125,GUN125,126,LAN125,TGN126,128..AD,AS,KD,KS,MD,MMD,MS,SD,SS,SX,TD,TS,TX T=1.72,LH,PNC 41101A=TYPE A,LH,PNC 41101A=TYPE B |
1 | ||
| 90564-50138 |
GGN125,GUN125,126,LAN125,TGN126,128..AD,AS,KD,KS,MD,MMD,MS,SD,SS,SX,TD,TS,TX T=2.02,LH,PNC 41101A=TYPE A,LH,PNC 41101A=TYPE B |
1 | ||
| 90564-50130 |
GGN125,GUN125,126,LAN125,TGN126,128..AD,AS,KD,KS,MD,MMD,MS,SD,SS,SX,TD,TS,TX T=1.78,LH,PNC 41101A=TYPE A,LH,PNC 41101A=TYPE B |
1 | ||
| 90564-50154 |
GGN125,GUN125,126,LAN125,TGN126,128..AD,AS,KD,KS,MD,MMD,MS,SD,SS,SX,TD,TS,TX T=1.60,RH,PNC 41101A=TYPE B,RH,PNC 41101A=TYPE A |
1 | ||
| 90564-50134 |
GGN125,GUN125,126,LAN125,TGN126,128..AD,AS,KD,KS,MD,MMD,MS,SD,SS,SX,TD,TS,TX T=1.90,LH,PNC 41101A=TYPE A,LH,PNC 41101A=TYPE B |
1 | ||
| 90564-50142 |
GGN125,GUN125,126,LAN125,TGN126,128..AD,AS,KD,KS,MD,MMD,MS,SD,SS,SX,TD,TS,TX T=2.14,LH,PNC 41101A=TYPE A,LH,PNC 41101A=TYPE B |
1 | ||
| 90564-50158 |
GGN125,GUN125,126,LAN125,TGN126,128..AD,AS,KD,KS,MD,MMD,MS,SD,SS,SX,TD,TS,TX T=1.72,RH,PNC 41101A=TYPE B,RH,PNC 41101A=TYPE A |
1 | ||
| 90564-50162 |
GGN125,GUN125,126,LAN125,TGN126,128..AD,AS,KD,KS,MD,MMD,MS,SD,SS,SX,TD,TS,TX T=1.84,RH,PNC 41101A=TYPE B,RH,PNC 41101A=TYPE A |
1 | ||
| 90564-50156 |
GGN125,GUN125,126,LAN125,TGN126,128..AD,AS,KD,KS,MD,MMD,MS,SD,SS,SX,TD,TS,TX T=1.66,RH,PNC 41101A=TYPE B,RH,PNC 41101A=TYPE A |
1 | ||
| 90564-50164 |
GGN125,GUN125,126,LAN125,TGN126,128..AD,AS,KD,KS,MD,MMD,MS,SD,SS,SX,TD,TS,TX T=1.90,RH,PNC 41101A=TYPE B,RH,PNC 41101A=TYPE A |
1 | ||
| 90564-50184 |
GGN125,GUN125,126,LAN125,TGN126,128..AD,AS,KD,KS,MD,MMD,MS,SD,SS,SX,TD,TS,TX T=1.58,LH,PNC 41101A=TYPE A,LH,PNC 41101A=TYPE B |
1 | ||
| 90564-50160 |
GGN125,GUN125,126,LAN125,TGN126,128..AD,AS,KD,KS,MD,MMD,MS,SD,SS,SX,TD,TS,TX T=1.78,RH,PNC 41101A=TYPE B,RH,PNC 41101A=TYPE A |
1 | ||
| 90564-50140 |
GGN125,GUN125,126,LAN125,TGN126,128..AD,AS,KD,KS,MD,MMD,MS,SD,SS,SX,TD,TS,TX T=2.08,LH,PNC 41101A=TYPE A,LH,PNC 41101A=TYPE B |
1 | ||
| 90564-50170 |
GGN125,GUN125,126,LAN125,TGN126,128..AD,AS,KD,KS,MD,MMD,MS,SD,SS,SX,TD,TS,TX T=2.08,RH,PNC 41101A=TYPE B,RH,PNC 41101A=TYPE A |
1 | ||
| 90564-50187 |
GGN125,GUN125,126,LAN125,TGN126,128..AD,AS,KD,KS,MD,MMD,MS,SD,SS,SX,TD,TS,TX T=1.68,LH,PNC 41101A=TYPE A,LH,PNC 41101A=TYPE B |
1 | ||
| 90564-50191 |
GGN125,GUN125,126,LAN125,TGN126,128..AD,AS,KD,KS,MD,MMD,MS,SD,SS,SX,TD,TS,TX T=1.80,LH,PNC 41101A=TYPE A,LH,PNC 41101A=TYPE B |
1 | ||
| 90564-50186 |
GGN125,GUN125,126,LAN125,TGN126,128..AD,AS,KD,KS,MD,MMD,MS,SD,SS,SX,TD,TS,TX T=1.64,LH,PNC 41101A=TYPE A,LH,PNC 41101A=TYPE B |
1 | ||
| 90564-50166 |
GGN125,GUN125,126,LAN125,TGN126,128..AD,AS,KD,KS,MD,MMD,MS,SD,SS,SX,TD,TS,TX T=1.96,RH,PNC 41101A=TYPE B,RH,PNC 41101A=TYPE A |
1 | ||
| 90564-50185 |
GGN125,GUN125,126,LAN125,TGN126,128..AD,AS,KD,KS,MD,MMD,MS,SD,SS,SX,TD,TS,TX T=1.62,LH,PNC 41101A=TYPE A,LH,PNC 41101A=TYPE B |
1 | ||
| 90564-50168 |
GGN125,GUN125,126,LAN125,TGN126,128..AD,AS,KD,KS,MD,MMD,MS,SD,SS,SX,TD,TS,TX T=2.02,RH,PNC 41101A=TYPE B,RH,PNC 41101A=TYPE A |
1 | ||
| 90564-50188 |
GGN125,GUN125,126,LAN125,TGN126,128..AD,AS,KD,KS,MD,MMD,MS,SD,SS,SX,TD,TS,TX T=1.70,LH,PNC 41101A=TYPE A,LH,PNC 41101A=TYPE B |
1 | ||
| 90564-50172 |
GGN125,GUN125,126,LAN125,TGN126,128..AD,AS,KD,KS,MD,MMD,MS,SD,SS,SX,TD,TS,TX T=2.14,RH,PNC 41101A=TYPE B,RH,PNC 41101A=TYPE A |
1 | ||
| 90564-50189 |
GGN125,GUN125,126,LAN125,TGN126,128..AD,AS,KD,KS,MD,MMD,MS,SD,SS,SX,TD,TS,TX T=1.74,LH,PNC 41101A=TYPE A,LH,PNC 41101A=TYPE B |
1 | ||
| 90564-50190 |
GGN125,GUN125,126,LAN125,TGN126,128..AD,AS,KD,KS,MD,MMD,MS,SD,SS,SX,TD,TS,TX T=1.76,LH,PNC 41101A=TYPE A,LH,PNC 41101A=TYPE B |
1 | ||
| 90564-50196 |
GGN125,GUN125,126,LAN125,TGN126,128..AD,AS,KD,KS,MD,MMD,MS,SD,SS,SX,TD,TS,TX T=1.94,LH,PNC 41101A=TYPE A,LH,PNC 41101A=TYPE B |
1 | ||
| 90564-50193 |
GGN125,GUN125,126,LAN125,TGN126,128..AD,AS,KD,KS,MD,MMD,MS,SD,SS,SX,TD,TS,TX T=1.86,LH,PNC 41101A=TYPE A,LH,PNC 41101A=TYPE B |
1 | ||
| 90564-50200 |
GGN125,GUN125,126,LAN125,TGN126,128..AD,AS,KD,KS,MD,MMD,MS,SD,SS,SX,TD,TS,TX T=2.06,LH,PNC 41101A=TYPE A,LH,PNC 41101A=TYPE B |
1 | ||
| 90564-50198 |
GGN125,GUN125,126,LAN125,TGN126,128..AD,AS,KD,KS,MD,MMD,MS,SD,SS,SX,TD,TS,TX T=2.00,LH,PNC 41101A=TYPE A,LH,PNC 41101A=TYPE B |
1 | ||
| 90564-50192 |
GGN125,GUN125,126,LAN125,TGN126,128..AD,AS,KD,KS,MD,MMD,MS,SD,SS,SX,TD,TS,TX T=1.82,LH,PNC 41101A=TYPE A,LH,PNC 41101A=TYPE B |
1 | ||
| 90564-50203 |
GGN125,GUN125,126,LAN125,TGN126,128..AD,AS,KD,KS,MD,MMD,MS,SD,SS,SX,TD,TS,TX T=2.16,LH,PNC 41101A=TYPE A,LH,PNC 41101A=TYPE B |
1 | ||
| 90564-50208 |
GGN125,GUN125,126,LAN125,TGN126,128..AD,AS,KD,KS,MD,MMD,MS,SD,SS,SX,TD,TS,TX T=1.70,RH,PNC 41101A=TYPE B,RH,PNC 41101A=TYPE A |
1 | ||
| 90564-50195 |
GGN125,GUN125,126,LAN125,TGN126,128..AD,AS,KD,KS,MD,MMD,MS,SD,SS,SX,TD,TS,TX T=1.92,LH,PNC 41101A=TYPE A,LH,PNC 41101A=TYPE B |
1 | ||
| 90564-50199 |
GGN125,GUN125,126,LAN125,TGN126,128..AD,AS,KD,KS,MD,MMD,MS,SD,SS,SX,TD,TS,TX T=2.04,LH,PNC 41101A=TYPE A,LH,PNC 41101A=TYPE B |
1 | ||
| 90564-50206 |
GGN125,GUN125,126,LAN125,TGN126,128..AD,AS,KD,KS,MD,MMD,MS,SD,SS,SX,TD,TS,TX T=1.64,RH,PNC 41101A=TYPE B,RH,PNC 41101A=TYPE A |
1 | ||
| 90564-50197 |
GGN125,GUN125,126,LAN125,TGN126,128..AD,AS,KD,KS,MD,MMD,MS,SD,SS,SX,TD,TS,TX T=1.98,LH,PNC 41101A=TYPE A,LH,PNC 41101A=TYPE B |
1 | ||
| 90564-50194 |
GGN125,GUN125,126,LAN125,TGN126,128..AD,AS,KD,KS,MD,MMD,MS,SD,SS,SX,TD,TS,TX T=1.88,LH,PNC 41101A=TYPE A,LH,PNC 41101A=TYPE B |
1 | ||
| 90564-50202 |
GGN125,GUN125,126,LAN125,TGN126,128..AD,AS,KD,KS,MD,MMD,MS,SD,SS,SX,TD,TS,TX T=2.12,LH,PNC 41101A=TYPE A,LH,PNC 41101A=TYPE B |
1 | ||
| 90564-50204 |
GGN125,GUN125,126,LAN125,TGN126,128..AD,AS,KD,KS,MD,MMD,MS,SD,SS,SX,TD,TS,TX T=1.58,RH,PNC 41101A=TYPE B,RH,PNC 41101A=TYPE A |
1 | ||
| 90564-50205 |
GGN125,GUN125,126,LAN125,TGN126,128..AD,AS,KD,KS,MD,MMD,MS,SD,SS,SX,TD,TS,TX T=1.62,RH,PNC 41101A=TYPE B,RH,PNC 41101A=TYPE A |
1 | ||
| 90564-50209 |
GGN125,GUN125,126,LAN125,TGN126,128..AD,AS,KD,KS,MD,MMD,MS,SD,SS,SX,TD,TS,TX T=1.74,RH,PNC 41101A=TYPE B,RH,PNC 41101A=TYPE A |
1 | ||
| 90564-50201 |
GGN125,GUN125,126,LAN125,TGN126,128..AD,AS,KD,KS,MD,MMD,MS,SD,SS,SX,TD,TS,TX T=2.10,LH,PNC 41101A=TYPE A,LH,PNC 41101A=TYPE B |
1 | ||
| 90564-50218 |
GGN125,GUN125,126,LAN125,TGN126,128..AD,AS,KD,KS,MD,MMD,MS,SD,SS,SX,TD,TS,TX T=2.00,RH,PNC 41101A=TYPE B,RH,PNC 41101A=TYPE A |
1 | ||
| 90564-50210 |
GGN125,GUN125,126,LAN125,TGN126,128..AD,AS,KD,KS,MD,MMD,MS,SD,SS,SX,TD,TS,TX T=1.76,RH,PNC 41101A=TYPE B,RH,PNC 41101A=TYPE A |
1 | ||
| 90564-50213 |
GGN125,GUN125,126,LAN125,TGN126,128..AD,AS,KD,KS,MD,MMD,MS,SD,SS,SX,TD,TS,TX T=1.86,RH,PNC 41101A=TYPE B,RH,PNC 41101A=TYPE A |
1 | ||
| 90564-50217 |
GGN125,GUN125,126,LAN125,TGN126,128..AD,AS,KD,KS,MD,MMD,MS,SD,SS,SX,TD,TS,TX T=1.98,RH,PNC 41101A=TYPE B,RH,PNC 41101A=TYPE A |
1 | ||
| 90564-50214 |
GGN125,GUN125,126,LAN125,TGN126,128..AD,AS,KD,KS,MD,MMD,MS,SD,SS,SX,TD,TS,TX T=1.88,RH,PNC 41101A=TYPE B,RH,PNC 41101A=TYPE A |
1 | ||
| 90564-50207 |
GGN125,GUN125,126,LAN125,TGN126,128..AD,AS,KD,KS,MD,MMD,MS,SD,SS,SX,TD,TS,TX T=1.68,RH,PNC 41101A=TYPE B,RH,PNC 41101A=TYPE A |
1 | ||
| 90564-50221 |
GGN125,GUN125,126,LAN125,TGN126,128..AD,AS,KD,KS,MD,MMD,MS,SD,SS,SX,TD,TS,TX T=2.10,RH,PNC 41101A=TYPE B,RH,PNC 41101A=TYPE A |
1 | ||
| 90564-50215 |
GGN125,GUN125,126,LAN125,TGN126,128..AD,AS,KD,KS,MD,MMD,MS,SD,SS,SX,TD,TS,TX T=1.92,RH,PNC 41101A=TYPE B,RH,PNC 41101A=TYPE A |
1 | ||
| 90564-50224 |
GGN125,GUN125,126,LAN125,TGN126,128..AD,AS,KD,KS,MD,MMD,MS,SD,SS,SX,TD,TS,TX T=1.44,RH,PNC 41101A=TYPE A |
1 | ||
| 90564-50212 |
GGN125,GUN125,126,LAN125,TGN126,128..AD,AS,KD,KS,MD,MMD,MS,SD,SS,SX,TD,TS,TX T=1.82,RH,PNC 41101A=TYPE B,RH,PNC 41101A=TYPE A |
1 | ||
| 90564-50225 |
GGN125,GUN125,126,LAN125,TGN126,128..AD,AS,KD,KS,MD,MMD,MS,SD,SS,SX,TD,TS,TX T=1.46,RH,PNC 41101A=TYPE A |
1 | ||
| 90564-50228 |
GGN125,GUN125,126,LAN125,TGN126,128..AD,AS,KD,KS,MD,MMD,MS,SD,SS,SX,TD,TS,TX T=1.52,RH,PNC 41101A=TYPE A |
1 | ||
| 90564-50226 |
GGN125,GUN125,126,LAN125,TGN126,128..AD,AS,KD,KS,MD,MMD,MS,SD,SS,SX,TD,TS,TX T=1.48,RH,PNC 41101A=TYPE A |
1 | ||
| 90564-50223 |
GGN125,GUN125,126,LAN125,TGN126,128..AD,AS,KD,KS,MD,MMD,MS,SD,SS,SX,TD,TS,TX T=2.16,RH,PNC 41101A=TYPE B,RH,PNC 41101A=TYPE A |
1 | ||
| 90564-50216 |
GGN125,GUN125,126,LAN125,TGN126,128..AD,AS,KD,KS,MD,MMD,MS,SD,SS,SX,TD,TS,TX T=1.94,RH,PNC 41101A=TYPE B,RH,PNC 41101A=TYPE A |
1 | ||
| 90564-50220 |
GGN125,GUN125,126,LAN125,TGN126,128..AD,AS,KD,KS,MD,MMD,MS,SD,SS,SX,TD,TS,TX T=2.06,RH,PNC 41101A=TYPE B,RH,PNC 41101A=TYPE A |
1 | ||
| 90564-50231 |
GGN125,GUN125,126,LAN125,TGN126,128..AD,AS,KD,KS,MD,MMD,MS,SD,SS,SX,TD,TS,TX T=2.18,LH,PNC 41101A=TYPE A |
1 | ||
| 90564-50219 |
GGN125,GUN125,126,LAN125,TGN126,128..AD,AS,KD,KS,MD,MMD,MS,SD,SS,SX,TD,TS,TX T=2.04,RH,PNC 41101A=TYPE B,RH,PNC 41101A=TYPE A |
1 | ||
| 90564-50230 |
GGN125,GUN125,126,LAN125,TGN126,128..AD,AS,KD,KS,MD,MMD,MS,SD,SS,SX,TD,TS,TX T=1.56,RH,PNC 41101A=TYPE A |
1 | ||
| 90564-50233 |
GGN125,GUN125,126,LAN125,TGN126,128..AD,AS,KD,KS,MD,MMD,MS,SD,SS,SX,TD,TS,TX T=2.22,LH,PNC 41101A=TYPE A |
1 | ||
| 90564-50229 |
GGN125,GUN125,126,LAN125,TGN126,128..AD,AS,KD,KS,MD,MMD,MS,SD,SS,SX,TD,TS,TX T=1.54,RH,PNC 41101A=TYPE A |
1 | ||
| 90564-50222 |
GGN125,GUN125,126,LAN125,TGN126,128..AD,AS,KD,KS,MD,MMD,MS,SD,SS,SX,TD,TS,TX T=2.12,RH,PNC 41101A=TYPE B,RH,PNC 41101A=TYPE A |
1 | ||
| 90564-50211 |
GGN125,GUN125,126,LAN125,TGN126,128..AD,AS,KD,KS,MD,MMD,MS,SD,SS,SX,TD,TS,TX T=1.80,RH,PNC 41101A=TYPE B,RH,PNC 41101A=TYPE A |
1 | ||
| 90564-50234 |
GGN125,GUN125,126,LAN125,TGN126,128..AD,AS,KD,KS,MD,MMD,MS,SD,SS,SX,TD,TS,TX T=2.24,LH,PNC 41101A=TYPE A |
1 | ||
| 90564-50232 |
GGN125,GUN125,126,LAN125,TGN126,128..AD,AS,KD,KS,MD,MMD,MS,SD,SS,SX,TD,TS,TX T=2.20,LH,PNC 41101A=TYPE A |
1 | ||
| 90564-50236 |
GGN125,GUN125,126,LAN125,TGN126,128..AD,AS,KD,KS,MD,MMD,MS,SD,SS,SX,TD,TS,TX T=2.28,LH,PNC 41101A=TYPE A |
1 | ||
| 90564-50227 |
GGN125,GUN125,126,LAN125,TGN126,128..AD,AS,KD,KS,MD,MMD,MS,SD,SS,SX,TD,TS,TX T=1.50,RH,PNC 41101A=TYPE A |
1 | ||
| 90564-50235 |
GGN125,GUN125,126,LAN125,TGN126,128..AD,AS,KD,KS,MD,MMD,MS,SD,SS,SX,TD,TS,TX T=2.26,LH,PNC 41101A=TYPE A |
1 | ||
| 90564-50237 |
GGN125,GUN125,126,LAN125,TGN126,128..AD,AS,KD,KS,MD,MMD,MS,SD,SS,SX,TD,TS,TX T=2.30,LH,PNC 41101A=TYPE A |
1 | ||
| 41320 - TUBE ASSY, FRONT DIFFERENTIAL | ||||
| 41320-0K020 |
TGN126..H..LA;TGN126..L..SA;GUN125..6FC..(H,S)..GCC;TGN126..(H,S)..(GEN,SA);GUN125..6F..(ARL,BZAG,GCC,GEN,IDN,KEN,LA,MA,PH,SA,TH,VN);GUN125..(AD,MD,SD,SS,TD,TX)..6FC..(ARL,GEN,IDN,LA,MA,SA);GGN125,GUN126,LAN125,TGN128..AD,AS,KD,MD,MMD,SD,SS,SX,TD,TS,TX PNC 41101A=TYPE B |
1 | ||
| 41320-0K020 |
TGN126..6FC..L;GUN125..TS..6FC;TGN126..(L,S)..LA;TGN126..TD..(H,S)..GCC AUTOMATIC DISCONNECTING DIFFERENTIAL-WITH,PNC 41101A=TYPE B |
1 | ||
| 41320-71020 |
TGN126..H..LA;TGN126..L..SA;GUN125..6FC..(H,S)..GCC;TGN126..(H,S)..(GEN,SA);GUN125..6F..(ARL,BZAG,GCC,GEN,IDN,KEN,LA,MA,PH,SA,TH,VN);GUN125..(AD,MD,SD,SS,TD,TX)..6FC..(ARL,GEN,IDN,LA,MA,SA);GGN125,GUN126,LAN125,TGN128..AD,AS,KD,MD,MMD,SD,SS,SX,TD,TS,TX PNC 41101A=TYPE A |
1 | ||
| 41320-71020 |
TGN126..6FC..L;GUN125..TS..6FC;TGN126..(L,S)..LA;TGN126..TD..(H,S)..GCC AUTOMATIC DISCONNECTING DIFFERENTIAL-WITH,PNC 41101A=TYPE A |
1 | ||
| 41321-0K030 |
TGN126..S..LA;GUN125..TS..6FC;TGN126..(H,S)..GCC;GUN125,TGN126..LHD..(5F,6FC)..L..(GCC,GEN,LA) PNC 41101A=TYPE B |
1 | ||
| 41321-71030 |
TGN126..S..LA;GUN125..TS..6FC;TGN126..(H,S)..GCC;GUN125,TGN126..LHD..(5F,6FC)..L..(GCC,GEN,LA) PNC 41101A=TYPE A |
1 | ||
| 41331G - BEARING, NEEDLE ROLLER(FOR FRONT DIFFERENTIAL SIDE GEAR | ||||
| 90364-T0009 |
TGN126..6FC..L;GUN125..TS..6FC;TGN126..(L,S)..LA;TGN126..TD..(H,S)..GCC AUTOMATIC DISCONNECTING DIFFERENTIAL-WITH,PNC 41101A=TYPE B |
2 | ||
| 90364-35010 |
TGN126..H..LA;TGN126..L..SA;GUN125..6FC..(H,S)..GCC;TGN126..(H,S)..(GEN,SA);GUN125..6F..(ARL,BZAG,GCC,GEN,IDN,KEN,LA,MA,PH,SA,TH,VN);GUN125..(AD,MD,SD,SS,TD,TX)..6FC..(ARL,GEN,IDN,LA,MA,SA);GGN125,GUN126,LAN125,TGN128..AD,AS,KD,MD,MMD,SD,SS,SX,TD,TS,TX PNC 41101A=TYPE A |
2 | ||
| 90364-T0009 |
TGN126..H..LA;TGN126..L..SA;GUN125..6FC..(H,S)..GCC;TGN126..(H,S)..(GEN,SA);GUN125..6F..(ARL,BZAG,GCC,GEN,IDN,KEN,LA,MA,PH,SA,TH,VN);GUN125..(AD,MD,SD,SS,TD,TX)..6FC..(ARL,GEN,IDN,LA,MA,SA);GGN125,GUN126,LAN125,TGN128..AD,AS,KD,MD,MMD,SD,SS,SX,TD,TS,TX PNC 41101A=TYPE B |
2 | ||
| 90364-35010 |
TGN126..6FC..L;GUN125..TS..6FC;TGN126..(L,S)..LA;TGN126..TD..(H,S)..GCC AUTOMATIC DISCONNECTING DIFFERENTIAL-WITH,PNC 41101A=TYPE A |
2 | ||
| 41331G - BEARING, NEEDLE ROLLER(FOR FRONT DIFFERENTIAL SIDE GEAR | ||||
| 90364-T0009 |
TGN126..6FC..L;GUN125..TS..6FC;TGN126..(L,S)..LA;TGN126..TD..(H,S)..GCC AUTOMATIC DISCONNECTING DIFFERENTIAL-WITH,PNC 41101A=TYPE B |
2 | ||
| 90364-35010 |
TGN126..H..LA;TGN126..L..SA;GUN125..6FC..(H,S)..GCC;TGN126..(H,S)..(GEN,SA);GUN125..6F..(ARL,BZAG,GCC,GEN,IDN,KEN,LA,MA,PH,SA,TH,VN);GUN125..(AD,MD,SD,SS,TD,TX)..6FC..(ARL,GEN,IDN,LA,MA,SA);GGN125,GUN126,LAN125,TGN128..AD,AS,KD,MD,MMD,SD,SS,SX,TD,TS,TX PNC 41101A=TYPE A |
2 | ||
| 90364-T0009 |
TGN126..H..LA;TGN126..L..SA;GUN125..6FC..(H,S)..GCC;TGN126..(H,S)..(GEN,SA);GUN125..6F..(ARL,BZAG,GCC,GEN,IDN,KEN,LA,MA,PH,SA,TH,VN);GUN125..(AD,MD,SD,SS,TD,TX)..6FC..(ARL,GEN,IDN,LA,MA,SA);GGN125,GUN126,LAN125,TGN128..AD,AS,KD,MD,MMD,SD,SS,SX,TD,TS,TX PNC 41101A=TYPE B |
2 | ||
| 90364-35010 |
TGN126..6FC..L;GUN125..TS..6FC;TGN126..(L,S)..LA;TGN126..TD..(H,S)..GCC AUTOMATIC DISCONNECTING DIFFERENTIAL-WITH,PNC 41101A=TYPE A |
2 | ||
| 41332B - RING, HOLE SNAP (FOR DIFF SIDE GEAR INTERMEDDIATE SHAFT | ||||
| 90521-34003 |
TGN126..6FC..L;GUN125..TS..6FC;TGN126..(L,S)..LA;TGN126..TD..(H,S)..GCC AUTOMATIC DISCONNECTING DIFFERENTIAL-WITH,PNC 41101A=TYPE A,PNC 41101A=TYPE B |
1 | ||
| 90521-34003 |
TGN126..H..LA;TGN126..L..SA;GUN125..6FC..(H,S)..GCC;TGN126..(H,S)..(GEN,SA);GUN125..6F..(ARL,BZAG,GCC,GEN,IDN,KEN,LA,MA,PH,SA,TH,VN);GUN125..(AD,MD,SD,SS,TD,TX)..6FC..(ARL,GEN,IDN,LA,MA,SA);GGN125,GUN126,LAN125,TGN128..AD,AS,KD,MD,MMD,SD,SS,SX,TD,TS,TX PNC 41101A=TYPE A,PNC 41101A=TYPE B |
1 | ||
| 41342A - PIN, STRAIGHT (FOR FRONT DIFFERENTIAL PINION SHAFT) | ||||
| 90250-06058 |
GGN125,GUN125,126,LAN125,TGN126,128..AD,AS,KD,KS,MD,MMD,MS,SD,SS,SX,TD,TS,TX PNC 41101A=TYPE A |
1 | ||
| 90250-T0006 |
GGN125,GUN125,126,LAN125,TGN126,128..AD,AS,KD,KS,MD,MMD,MS,SD,SS,SX,TD,TS,TX PNC 41101A=TYPE B |
1 | ||
| 41342F - SHAFT, FRONT DIFFERENTIAL PINION, NO.1 | ||||
| 41342-0K040 |
GGN125,GUN125,126,LAN125,TGN126,128..AD,AS,KD,KS,MD,MMD,MS,SD,SS,SX,TD,TS,TX PNC 41101A=TYPE B |
1 | ||
| 41342-53020 |
GGN125,GUN125,126,LAN125,TGN126,128..AD,AS,KD,KS,MD,MMD,MS,SD,SS,SX,TD,TS,TX PNC 41101A=TYPE A |
1 | ||
| 41351F - WASHER, FRONT DIFFERENTIAL PINION THRUST | ||||
| 41351-35030 |
GGN125,GUN125,126,LAN125,TGN126,128..AD,AS,KD,KS,MD,MMD,MS,SD,SS,SX,TD,TS,TX PNC 41101A=TYPE A,(J),PNC 41101A=T/P B |
2 | ||
| 41351-0K010 |
GGN125,GUN125,126,LAN125,TGN126,128..AD,AS,KD,KS,MD,MMD,MS,SD,SS,SX,TD,TS,TX (L),PNC 41101A=T/P B |
2 | ||
| 41351F - WASHER, FRONT DIFFERENTIAL PINION THRUST | ||||
| 41351-35030 |
GGN125,GUN125,126,LAN125,TGN126,128..AD,AS,KD,KS,MD,MMD,MS,SD,SS,SX,TD,TS,TX PNC 41101A=TYPE A,(J),PNC 41101A=T/P B |
2 | ||
| 41351-0K010 |
GGN125,GUN125,126,LAN125,TGN126,128..AD,AS,KD,KS,MD,MMD,MS,SD,SS,SX,TD,TS,TX (L),PNC 41101A=T/P B |
2 | ||
| 41361F - WASHER, FRONT DIFFERENTIAL SIDE GEAR THRUST, NO.1 | ||||
| 41361-0K040 |
GGN125,GUN125,126,LAN125,TGN126,128..AD,AS,KD,KS,MD,MMD,MS,SD,SS,SX,TD,TS,TX T=1.65,PNC 41101A=TYPE B |
2 | ||
| 41361-0K020 |
GGN125,GUN125,126,LAN125,TGN126,128..AD,AS,KD,KS,MD,MMD,MS,SD,SS,SX,TD,TS,TX T=1.55,PNC 41101A=TYPE B |
2 | ||
| 41361-0K030 |
GGN125,GUN125,126,LAN125,TGN126,128..AD,AS,KD,KS,MD,MMD,MS,SD,SS,SX,TD,TS,TX T=1.60,PNC 41101A=TYPE B |
2 | ||
| 41361-0K090 |
GGN125,GUN125,126,LAN125,TGN126,128..AD,AS,KD,KS,MD,MMD,MS,SD,SS,SX,TD,TS,TX T=1.90,PNC 41101A=TYPE B |
2 | ||
| 41361-0K070 |
GGN125,GUN125,126,LAN125,TGN126,128..AD,AS,KD,KS,MD,MMD,MS,SD,SS,SX,TD,TS,TX T=1.80,PNC 41101A=TYPE B |
2 | ||
| 41361-34050 |
GGN125,GUN125,126,LAN125,TGN126,128..AD,AS,KD,KS,MD,MMD,MS,SD,SS,SX,TD,TS,TX T=1.70,PNC 41101A=TYPE A |
2 | ||
| 41361-34020 |
GGN125,GUN125,126,LAN125,TGN126,128..AD,AS,KD,KS,MD,MMD,MS,SD,SS,SX,TD,TS,TX T=1.55,PNC 41101A=TYPE A |
2 | ||
| 41361-0K050 |
GGN125,GUN125,126,LAN125,TGN126,128..AD,AS,KD,KS,MD,MMD,MS,SD,SS,SX,TD,TS,TX T=1.70,PNC 41101A=TYPE B |
2 | ||
| 41361-34060 |
GGN125,GUN125,126,LAN125,TGN126,128..AD,AS,KD,KS,MD,MMD,MS,SD,SS,SX,TD,TS,TX T=1.75,PNC 41101A=TYPE A |
2 | ||
| 41361-0K080 |
GGN125,GUN125,126,LAN125,TGN126,128..AD,AS,KD,KS,MD,MMD,MS,SD,SS,SX,TD,TS,TX T=1.85,PNC 41101A=TYPE B |
2 | ||
| 41361-0K060 |
GGN125,GUN125,126,LAN125,TGN126,128..AD,AS,KD,KS,MD,MMD,MS,SD,SS,SX,TD,TS,TX T=1.75,PNC 41101A=TYPE B |
2 | ||
| 41361-34010 |
GGN125,GUN125,126,LAN125,TGN126,128..AD,AS,KD,KS,MD,MMD,MS,SD,SS,SX,TD,TS,TX T=1.50,PNC 41101A=TYPE A |
2 | ||
| 41361-34030 |
GGN125,GUN125,126,LAN125,TGN126,128..AD,AS,KD,KS,MD,MMD,MS,SD,SS,SX,TD,TS,TX T=1.60,PNC 41101A=TYPE A |
2 | ||
| 41361-34070 |
GGN125,GUN125,126,LAN125,TGN126,128..AD,AS,KD,KS,MD,MMD,MS,SD,SS,SX,TD,TS,TX T=1.80,PNC 41101A=TYPE A |
2 | ||
| 41361-34080 |
GGN125,GUN125,126,LAN125,TGN126,128..AD,AS,KD,KS,MD,MMD,MS,SD,SS,SX,TD,TS,TX T=1.85,PNC 41101A=TYPE A |
2 | ||
| 41361-34090 |
GGN125,GUN125,126,LAN125,TGN126,128..AD,AS,KD,KS,MD,MMD,MS,SD,SS,SX,TD,TS,TX T=1.90,PNC 41101A=TYPE A |
2 | ||
| 41361-34040 |
GGN125,GUN125,126,LAN125,TGN126,128..AD,AS,KD,KS,MD,MMD,MS,SD,SS,SX,TD,TS,TX T=1.65,PNC 41101A=TYPE A |
2 | ||
| 41361F - WASHER, FRONT DIFFERENTIAL SIDE GEAR THRUST, NO.1 | ||||
| 41361-0K040 |
GGN125,GUN125,126,LAN125,TGN126,128..AD,AS,KD,KS,MD,MMD,MS,SD,SS,SX,TD,TS,TX T=1.65,PNC 41101A=TYPE B |
2 | ||
| 41361-0K020 |
GGN125,GUN125,126,LAN125,TGN126,128..AD,AS,KD,KS,MD,MMD,MS,SD,SS,SX,TD,TS,TX T=1.55,PNC 41101A=TYPE B |
2 | ||
| 41361-0K030 |
GGN125,GUN125,126,LAN125,TGN126,128..AD,AS,KD,KS,MD,MMD,MS,SD,SS,SX,TD,TS,TX T=1.60,PNC 41101A=TYPE B |
2 | ||
| 41361-0K090 |
GGN125,GUN125,126,LAN125,TGN126,128..AD,AS,KD,KS,MD,MMD,MS,SD,SS,SX,TD,TS,TX T=1.90,PNC 41101A=TYPE B |
2 | ||
| 41361-0K070 |
GGN125,GUN125,126,LAN125,TGN126,128..AD,AS,KD,KS,MD,MMD,MS,SD,SS,SX,TD,TS,TX T=1.80,PNC 41101A=TYPE B |
2 | ||
| 41361-34050 |
GGN125,GUN125,126,LAN125,TGN126,128..AD,AS,KD,KS,MD,MMD,MS,SD,SS,SX,TD,TS,TX T=1.70,PNC 41101A=TYPE A |
2 | ||
| 41361-34020 |
GGN125,GUN125,126,LAN125,TGN126,128..AD,AS,KD,KS,MD,MMD,MS,SD,SS,SX,TD,TS,TX T=1.55,PNC 41101A=TYPE A |
2 | ||
| 41361-0K050 |
GGN125,GUN125,126,LAN125,TGN126,128..AD,AS,KD,KS,MD,MMD,MS,SD,SS,SX,TD,TS,TX T=1.70,PNC 41101A=TYPE B |
2 | ||
| 41361-34060 |
GGN125,GUN125,126,LAN125,TGN126,128..AD,AS,KD,KS,MD,MMD,MS,SD,SS,SX,TD,TS,TX T=1.75,PNC 41101A=TYPE A |
2 | ||
| 41361-0K080 |
GGN125,GUN125,126,LAN125,TGN126,128..AD,AS,KD,KS,MD,MMD,MS,SD,SS,SX,TD,TS,TX T=1.85,PNC 41101A=TYPE B |
2 | ||
| 41361-0K060 |
GGN125,GUN125,126,LAN125,TGN126,128..AD,AS,KD,KS,MD,MMD,MS,SD,SS,SX,TD,TS,TX T=1.75,PNC 41101A=TYPE B |
2 | ||
| 41361-34010 |
GGN125,GUN125,126,LAN125,TGN126,128..AD,AS,KD,KS,MD,MMD,MS,SD,SS,SX,TD,TS,TX T=1.50,PNC 41101A=TYPE A |
2 | ||
| 41361-34030 |
GGN125,GUN125,126,LAN125,TGN126,128..AD,AS,KD,KS,MD,MMD,MS,SD,SS,SX,TD,TS,TX T=1.60,PNC 41101A=TYPE A |
2 | ||
| 41361-34070 |
GGN125,GUN125,126,LAN125,TGN126,128..AD,AS,KD,KS,MD,MMD,MS,SD,SS,SX,TD,TS,TX T=1.80,PNC 41101A=TYPE A |
2 | ||
| 41361-34080 |
GGN125,GUN125,126,LAN125,TGN126,128..AD,AS,KD,KS,MD,MMD,MS,SD,SS,SX,TD,TS,TX T=1.85,PNC 41101A=TYPE A |
2 | ||
| 41361-34090 |
GGN125,GUN125,126,LAN125,TGN126,128..AD,AS,KD,KS,MD,MMD,MS,SD,SS,SX,TD,TS,TX T=1.90,PNC 41101A=TYPE A |
2 | ||
| 41361-34040 |
GGN125,GUN125,126,LAN125,TGN126,128..AD,AS,KD,KS,MD,MMD,MS,SD,SS,SX,TD,TS,TX T=1.65,PNC 41101A=TYPE A |
2 | ||
| 41400B - ACTUATOR ASSY, DIFFERENTIAL MOTOR | ||||
| 41400-35034 |
TGN126..6FC..L;GUN125..TS..6FC;TGN126..(L,S)..LA;TGN126..TD..(H,S)..GCC AUTOMATIC DISCONNECTING DIFFERENTIAL-WITH,PNC 41101A=TYPE A,PNC 41101A=TYPE B |
1 | ||
| 41400-35034 |
TGN126..H..LA;TGN126..L..SA;GUN125..6FC..(H,S)..GCC;TGN126..(H,S)..(GEN,SA);GUN125..6F..(ARL,BZAG,GCC,GEN,IDN,KEN,LA,MA,PH,SA,TH,VN);GUN125..(AD,MD,SD,SS,TD,TX)..6FC..(ARL,GEN,IDN,LA,MA,SA);GGN125,GUN126,LAN125,TGN128..AD,AS,KD,MD,MMD,SD,SS,SX,TD,TS,TX PNC 41101A=TYPE A,PNC 41101A=TYPE B |
1 | ||
| 41433 - SLEEVE, DIFFERENTIAL CLUTCH | ||||
| 41433-35010 |
TGN126..6FC..L;GUN125..TS..6FC;TGN126..(L,S)..LA;TGN126..TD..(H,S)..GCC AUTOMATIC DISCONNECTING DIFFERENTIAL-WITH,PNC 41101A=TYPE A,PNC 41101A=TYPE B |
1 | ||
| 41433-35010 |
TGN126..H..LA;TGN126..L..SA;GUN125..6FC..(H,S)..GCC;TGN126..(H,S)..(GEN,SA);GUN125..6F..(ARL,BZAG,GCC,GEN,IDN,KEN,LA,MA,PH,SA,TH,VN);GUN125..(AD,MD,SD,SS,TD,TX)..6FC..(ARL,GEN,IDN,LA,MA,SA);GGN125,GUN126,LAN125,TGN128..AD,AS,KD,MD,MMD,SD,SS,SX,TD,TS,TX PNC 41101A=TYPE A,PNC 41101A=TYPE B |
1 | ||
| 41434 - HUB, DIFFERENTIAL CLUTCH | ||||
| 41434-35030 |
TGN126..6FC..L;GUN125..TS..6FC;TGN126..(L,S)..LA;TGN126..TD..(H,S)..GCC AUTOMATIC DISCONNECTING DIFFERENTIAL-WITH,PNC 41101A=TYPE A,PNC 41101A=TYPE B |
1 | ||
| 41434-35030 |
TGN126..H..LA;TGN126..L..SA;GUN125..6FC..(H,S)..GCC;TGN126..(H,S)..(GEN,SA);GUN125..6F..(ARL,BZAG,GCC,GEN,IDN,KEN,LA,MA,PH,SA,TH,VN);GUN125..(AD,MD,SD,SS,TD,TX)..6FC..(ARL,GEN,IDN,LA,MA,SA);GGN125,GUN126,LAN125,TGN128..AD,AS,KD,MD,MMD,SD,SS,SX,TD,TS,TX PNC 41101A=TYPE A,PNC 41101A=TYPE B |
1 | ||
| 41435A - BOLT (FOR DIFFERENTIAL CLUTCH CASE SETTING) | ||||
| 90107-12002 |
TGN126..H..LA;TGN126..L..SA;GUN125..6FC..(H,S)..GCC;TGN126..(H,S)..(GEN,SA);GUN125..6F..(ARL,BZAG,GCC,GEN,IDN,KEN,LA,MA,PH,SA,TH,VN);GUN125..(AD,MD,SD,SS,TD,TX)..6FC..(ARL,GEN,IDN,LA,MA,SA);GGN125,GUN126,LAN125,TGN128..AD,AS,KD,MD,MMD,SD,SS,SX,TD,TS,TX *12-1.25PX78-30,PNC 41101A=TYPE A |
4 | ||
| 90107-12002 |
TGN126..6FC..L;GUN125..TS..6FC;TGN126..(L,S)..LA;TGN126..TD..(H,S)..GCC *12-1.25PX78-30,AUTOMATIC DISCONNECTING DIFFERENTIAL-WITH,PNC 41101A=TYPE A |
4 | ||
| 90107-T0002 |
TGN126..S..LA;GUN125..TS..6FC;TGN126..(H,S)..GCC;GUN125,TGN126..LHD..(5F,6FC)..L..(GCC,GEN,LA) *12-1.25PX24-16.5,(L),PNC 41101A=T/P B |
4 | ||
| 90107-T0001 |
TGN126..6FC..L;GUN125..TS..6FC;TGN126..(L,S)..LA;TGN126..TD..(H,S)..GCC *12-1.25PX78-30,AUTOMATIC DISCONNECTING DIFFERENTIAL-WITH,PNC 41101A=TYPE B |
4 | ||
| 90107-T0001 |
TGN126..H..LA;TGN126..L..SA;GUN125..6FC..(H,S)..GCC;TGN126..(H,S)..(GEN,SA);GUN125..6F..(ARL,BZAG,GCC,GEN,IDN,KEN,LA,MA,PH,SA,TH,VN);GUN125..(AD,MD,SD,SS,TD,TX)..6FC..(ARL,GEN,IDN,LA,MA,SA);GGN125,GUN126,LAN125,TGN128..AD,AS,KD,MD,MMD,SD,SS,SX,TD,TS,TX *12-1.25PX78-30,PNC 41101A=TYPE B |
4 | ||
| 90107-12003 |
TGN126..S..LA;GUN125..TS..6FC;TGN126..(H,S)..GCC;GUN125,TGN126..LHD..(5F,6FC)..L..(GCC,GEN,LA) *12-1.25PX24-16.5,PNC 41101A=TYPE A,(J),PNC 41101A=T/P B |
4 | ||
| 41653B - STOPPER, DIFFERENTIAL MOUNT, UPPER | ||||
| 41653-0K010 |
GGN125,GUN125,126,LAN125,TGN126,128..AD,AS,KD,KS,MD,MMD,MS,SD,SS,SX,TD,TS,TX |
2 | ||
| 41653B - STOPPER, DIFFERENTIAL MOUNT, UPPER | ||||
| 41653-0K010 |
GGN125,GUN125,126,LAN125,TGN126,128..AD,AS,KD,KS,MD,MMD,MS,SD,SS,SX,TD,TS,TX |
2 | ||
| 41654A - STOPPER, DIFFERENTIAL MOUNT, LOWER | ||||
| 41654-0K010 |
GGN125,GUN125,126,LAN125,TGN126,128..AD,AS,KD,KS,MD,MMD,MS,SD,SS,SX,TD,TS,TX |
2 | ||
| 41654A - STOPPER, DIFFERENTIAL MOUNT, LOWER | ||||
| 41654-0K010 |
GGN125,GUN125,126,LAN125,TGN126,128..AD,AS,KD,KS,MD,MMD,MS,SD,SS,SX,TD,TS,TX |
2 | ||
| 41655 - NUT, FRONT DIFFERENTIAL MOUNT, NO.1 | ||||
| 41655-0K011 |
GGN125,GUN125,126,LAN125,TGN126,128..AD,AS,KD,KS,MD,MMD,MS,SD,SS,SX,TD,TS,TX |
1 | ||
| 43637C - NUT, CASTLE (FOR FRONT AXLE DRIVE PINION) | ||||
| 90177-22003 |
GGN125,GUN125,126,LAN125,TGN126,128..AD,AS,KD,KS,MD,MMD,MS,SD,SS,SX,TD,TS,TX PNC 41101A=TYPE A,PNC 41101A=TYPE B |
1 | ||
| 43640G - SEAL, TYPE T OIL (FOR FRONT AXLE DIFFERENTIAL CARRIER) | ||||
| 90311-41015 |
GGN125,GUN125,126,LAN125,TGN126,128..AD,AS,KD,KS,MD,MMD,MS,SD,SS,SX,TD,TS,TX PNC 41101A=TYPE A |
1 | ||
| 90311-T0064 |
GGN125,GUN125,126,LAN125,TGN126,128..AD,AS,KD,KS,MD,MMD,MS,SD,SS,SX,TD,TS,TX PNC 41101A=TYPE B |
1 | ||
| 52392A - SUPPORT, FRONT DIFFERENTIAL, NO.1 | ||||
| 52380-0K010 |
GGN125,GUN125,126,TGN126..MD,MMD,MS,TD,TS,TX |
1 | ||
| 52393A - SUPPORT, FRONT DIFFERENTIAL, NO.2 | ||||
| 52380-0K020 |
GGN125,GUN125,126,TGN126..MD,MMD,MS,TD,TS,TX |
1 | ||
| 52394 - SUPPORT, FRONT DIFFERENTIAL, NO.3 | ||||
| 52380-0K030 |
GGN125,GUN125,126,TGN126..MD,MMD,MS,TD,TS,TX |
1 | ||
| 89429H - SENSOR, TEMPERATURE | ||||
| 89429-53010 |
GGN125,GUN125,126,LAN125,TGN126,128..AD,AS,KD,KS,MD,MMD,MS,SD,SS,SX,TD,TS,TX |
1 | ||
| 89429J - GASKET(FOR TEMPERATURE SENSOR) | ||||
| 90430-14011 |
GGN125,GUN125,126,LAN125,TGN126,128..AD,AS,KD,KS,MD,MMD,MS,SD,SS,SX,TD,TS,TX |
1 | ||
| Common parts | ||||
| 90105-14090 | ||||
| 90105-T0078 | ||||
| 90105-T0080 | ||||
| 90105-T0104 | ||||
| 90105-T0303 | ||||
| 90119-T0300 | ||||
| 90178-T0094 | ||||
| 91511-80820 | ||||
| 94151-21441 | ||||
ILLUST NO. 1 OF 2(2006- )GGN125,GUN125,126,LAN125,TGN126,128..ARL,BZAG,GCC,GEN,IDN,KEN,LA,MA,MMR,
W/O(*ADD)
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 41039A - GEAR KIT, DIFFERENTIAL | ||||
| 41039-71040 |
GGN125,GUN125,126,LAN125,TGN126,128..AD,AS,KD,KS,MD,MMD,MS,SD,SS,SX,TD,TS,TX PNC 41101A=TYPE A,PNC 41101A=TYPE B |
1 | ||
| 41101A - CARRIER SUB-ASSY, DIFFERENTIAL, FRONT | ||||
| 41101-0K060 |
GGN125,GUN125,126,LAN125,TGN126,128..AD,AS,KD,KS,MD,MMD,MS,SD,SS,SX,TD,TS,TX TYPE B:REFER ILLUST. |
1 | ||
| 41101-71030 |
GGN125,GUN125,126,LAN125,TGN126,128..AD,AS,KD,KS,MD,MMD,MS,SD,SS,SX,TD,TS,TX TYPE A:REFER ILLUST. |
1 | ||
| 41110F - CARRIER ASSY, DIFFERENTIAL, FRONT | ||||
| 41110-0KA50 |
GUN125..TS..6FC;GUN125..6FC..L..GCC *FGR=41:10=4.100,PNC 41101A=TYPE B |
1 | ||
| 41110-71440 |
GUN125..TS..6FC;GUN125..6FC..L..GCC *FGR=41:10=4.100,PNC 41101A=TYPE A |
1 | ||
| 41110-0KB00 |
GUN125..TS..6FC *FGR=41:10=4.100,AUTOMATIC DISCONNECTING DIFFERENTIAL-WITH,PNC 41101A=TYPE B |
1 | ||
| 41110-71490 |
GUN125..TS..6FC *FGR=41:10=4.100,AUTOMATIC DISCONNECTING DIFFERENTIAL-WITH,PNC 41101A=TYPE A |
1 | ||
| 41110-0KB00 |
GUN125..6FC..(H,S)..GCC;GUN125..(AD,MD,SD,SS,TD,TX)..6FC..(ARL,GEN,IDN,LA,MA,SA) *FGR=41:10=4.100,PNC 41101A=TYPE B |
1 | ||
| 41110-0KA80 |
GUN125,126..6F..(ARL,BZAG,GCC,GEN,IDN,KEN,LA,MA,PH,SA,TH,VN) *FGR=43:12=3.583,PNC 41101A=TYPE B |
1 | ||
| 41110-71490 |
GUN125..6FC..(H,S)..GCC;GUN125..(AD,MD,SD,SS,TD,TX)..6FC..(ARL,GEN,IDN,LA,MA,SA) *FGR=41:10=4.100,PNC 41101A=TYPE A |
1 | ||
| 41110-71470 |
GUN125,126..6F..(ARL,BZAG,GCC,GEN,IDN,KEN,LA,MA,PH,SA,TH,VN) *FGR=43:12=3.583,PNC 41101A=TYPE A |
1 | ||
| 41110M - PLUG, FRONT DIFFERENTIAL FILLER | ||||
| 90341-T0002 |
GGN125,GUN125,126,LAN125,TGN126,128..AD,AS,KD,KS,MD,MMD,MS,SD,SS,SX,TD,TS,TX (L),PNC 41101A=T/P B |
2 | ||
| 90341-18032 |
GGN125,GUN125,126,LAN125,TGN126,128..AD,AS,KD,KS,MD,MMD,MS,SD,SS,SX,TD,TS,TX PNC 41101A=TYPE A,(J),PNC 41101A=T/P B |
2 | ||
| 41110M - PLUG, FRONT DIFFERENTIAL FILLER | ||||
| 90341-T0002 |
GGN125,GUN125,126,LAN125,TGN126,128..AD,AS,KD,KS,MD,MMD,MS,SD,SS,SX,TD,TS,TX (L),PNC 41101A=T/P B |
2 | ||
| 90341-18032 |
GGN125,GUN125,126,LAN125,TGN126,128..AD,AS,KD,KS,MD,MMD,MS,SD,SS,SX,TD,TS,TX PNC 41101A=TYPE A,(J),PNC 41101A=T/P B |
2 | ||
| 41110N - GASKET, FRONT DIFFERENTIAL FILLER PLUG | ||||
| 12157-10010 |
GGN125,GUN125,126,LAN125,TGN126,128..AD,AS,KD,KS,MD,MMD,MS,SD,SS,SX,TD,TS,TX PNC 41101A=TYPE A,PNC 41101A=TYPE B |
2 | ||
| 41110N - GASKET, FRONT DIFFERENTIAL FILLER PLUG | ||||
| 12157-10010 |
GGN125,GUN125,126,LAN125,TGN126,128..AD,AS,KD,KS,MD,MMD,MS,SD,SS,SX,TD,TS,TX PNC 41101A=TYPE A,PNC 41101A=TYPE B |
2 | ||
| 41110P - PLUG, FRONT DIFFERENTIAL DRAIN | ||||
| 90341-24014 |
GGN125,GUN125,126,LAN125,TGN126,128..AD,AS,KD,KS,MD,MMD,MS,SD,SS,SX,TD,TS,TX PNC 41101A=TYPE A |
1 | ||
| 90341-T0003 |
GGN125,GUN125,126,LAN125,TGN126,128..AD,AS,KD,KS,MD,MMD,MS,SD,SS,SX,TD,TS,TX PNC 41101A=TYPE B |
1 | ||
| 41110Q - GASKET, FRONT DIFFERENTIAL DRAIN PLUG | ||||
| 90430-24003 |
GGN125,GUN125,126,LAN125,TGN126,128..AD,AS,KD,KS,MD,MMD,MS,SD,SS,SX,TD,TS,TX PNC 41101A=TYPE A,PNC 41101A=TYPE B |
1 | ||
| 41110V - UNION (FOR FRONT DIFFERENTIAL) | ||||
| 90404-08004 |
GGN125,GUN125,126,LAN125,TGN126,128..AD,AS,KD,KS,MD,MMD,MS,SD,SS,SX,TD,TS,TX PNC 41101A=TYPE A,PNC 41101A=TYPE B |
1 | ||
| 41111D - PIN, STRAIGHT (FOR FRONT DIFFERENTIAL CARRIER) | ||||
| 90250-10017 |
GGN125,GUN125,126,LAN125,TGN126,128..AD,AS,KD,KS,MD,MMD,MS,SD,SS,SX,TD,TS,TX PNC 41101A=TYPE A |
2 | ||
| 90250-T0004 |
GGN125,GUN125,126,LAN125,TGN126,128..AD,AS,KD,KS,MD,MMD,MS,SD,SS,SX,TD,TS,TX PNC 41101A=TYPE B |
2 | ||
| 41111D - PIN, STRAIGHT (FOR FRONT DIFFERENTIAL CARRIER) | ||||
| 90250-10017 |
GGN125,GUN125,126,LAN125,TGN126,128..AD,AS,KD,KS,MD,MMD,MS,SD,SS,SX,TD,TS,TX PNC 41101A=TYPE A |
2 | ||
| 90250-T0004 |
GGN125,GUN125,126,LAN125,TGN126,128..AD,AS,KD,KS,MD,MMD,MS,SD,SS,SX,TD,TS,TX PNC 41101A=TYPE B |
2 | ||
| 41114B - BOLT, FRONT DIFFERENTIAL BEARING CAP | ||||
| 90105-T0101 |
GGN125,GUN125,126,LAN125,TGN126,128..AD,AS,KD,KS,MD,MMD,MS,SD,SS,SX,TD,TS,TX PNC 41101A=TYPE B |
10 | ||
| 90105-10391 |
GGN125,GUN125,126,LAN125,TGN126,128..AD,AS,KD,KS,MD,MMD,MS,SD,SS,SX,TD,TS,TX PNC 41101A=TYPE A |
10 | ||
| 41115F - RING, FRONT DIFFERENTIAL OIL STORAGE | ||||
| 41115-0K010 |
GGN125,GUN125,126,LAN125,TGN126,128..AD,AS,KD,KS,MD,MMD,MS,SD,SS,SX,TD,TS,TX PNC 41101A=TYPE B |
1 | ||
| 41115-35010 |
GGN125,GUN125,126,LAN125,TGN126,128..AD,AS,KD,KS,MD,MMD,MS,SD,SS,SX,TD,TS,TX PNC 41101A=TYPE A |
1 | ||
| 41201T - FINAL GEAR KIT, DIFFERENTIAL, FRONT | ||||
| 41201-79475 |
GUN125..TS..6FC;GUN125..6FC..L..GCC *FGR=41:10=4.100,PNC 41101=TYPE A |
1 | ||
| 41201-79475 |
GUN125..TS..6FC *FGR=41:10=4.100,AUTOMATIC DISCONNECTING DIFFERENTIAL-WITH,RH,PNC 41101A=TYPE A |
1 | ||
| 41201-09C70 |
GUN125..6FC *FGR=41:10=4.100,PNC 41101A=TYPE B |
1 | ||
| 41201-79475 |
GUN125..6FC..(H,S)..GCC;GUN125..(AD,MD,SD,SS,TD,TX)..6FC..(ARL,GEN,IDN,LA,MA,SA) *FGR=41:10=4.100,RH,PNC 41101A=TYPE A |
1 | ||
| 41201-09D00 |
GUN125,126..6F..(ARL,BZAG,GCC,GEN,IDN,KEN,LA,MA,PH,SA,TH,VN) *FGR=43:12=3.583,PNC 41101A=TYPE B |
1 | ||
| 41201-79505 |
GUN125,126..6F..(ARL,BZAG,GCC,GEN,IDN,KEN,LA,MA,PH,SA,TH,VN) *FGR=43:12=3.583,RH,PNC 41101A=TYPE A |
1 | ||
| 41204D - FLANGE SUB-ASSY, FRONT DRIVE PINION COMPANION, FRONT | ||||
| 41204-0K120 |
GGN125,GUN125,126,LAN125,TGN126,128..AD,AS,KD,KS,MD,MMD,MS,SD,SS,SX,TD,TS,TX PNC 41101A=TYPE B |
1 | ||
| 41204-71030 |
GGN125,GUN125,126,LAN125,TGN126,128..AD,AS,KD,KS,MD,MMD,MS,SD,SS,SX,TD,TS,TX PNC 41101A=TYPE A |
1 | ||
| 41211A - BEARING, TAPERED ROLLER (FOR FRONT DRIVE PINION FRONT) | ||||
| 90366-35087 |
GGN125,GUN125,126,LAN125,TGN126,128..AD,AS,KD,KS,MD,MMD,MS,SD,SS,SX,TD,TS,TX PNC 41101A=TYPE A |
1 | ||
| 90366-T0016 |
GGN125,GUN125,126,LAN125,TGN126,128..AD,AS,KD,KS,MD,MMD,MS,SD,SS,SX,TD,TS,TX PNC 41101A=TYPE B |
1 | ||
| 41211B - BEARING, TAPERED ROLLER (FOR FRONT DRIVE PINION REAR) | ||||
| 90366-30067 |
GGN125,GUN125,126,LAN125,TGN126,128..AD,AS,KD,KS,MD,MMD,MS,SD,SS,SX,TD,TS,TX PNC 41101A=TYPE A |
1 | ||
| 90366-T0013 |
GGN125,GUN125,126,LAN125,TGN126,128..AD,AS,KD,KS,MD,MMD,MS,SD,SS,SX,TD,TS,TX PNC 41101A=TYPE B |
1 | ||
| 41211L - SHIM (FOR DIFFERENTIAL DRIVE PINION) | ||||
| 90201-35498 |
GGN125,GUN125,126,LAN125,TGN126,128..AD,AS,KD,KS,MD,MMD,MS,SD,SS,SX,TD,TS,TX OD=47,T=1.73,PNC41101A=T/PB,OD=47,PNC41101A=T/PA,OD=47 |
1 | ||
| 90201-35500 |
GGN125,GUN125,126,LAN125,TGN126,128..AD,AS,KD,KS,MD,MMD,MS,SD,SS,SX,TD,TS,TX OD=47,T=1.79,PNC41101A=T/PB,OD=47,PNC41101A=T/PA,OD=47 |
1 | ||
| 90201-35502 |
GGN125,GUN125,126,LAN125,TGN126,128..AD,AS,KD,KS,MD,MMD,MS,SD,SS,SX,TD,TS,TX OD=47,T=1.85,PNC41101A=T/PB,OD=47,PNC41101A=T/PA,OD=47 |
1 | ||
| 90201-35503 |
GGN125,GUN125,126,LAN125,TGN126,128..AD,AS,KD,KS,MD,MMD,MS,SD,SS,SX,TD,TS,TX OD=47,T=1.88,PNC41101A=T/PB,OD=47,PNC41101A=T/PA,OD=47 |
1 | ||
| 90201-35505 |
GGN125,GUN125,126,LAN125,TGN126,128..AD,AS,KD,KS,MD,MMD,MS,SD,SS,SX,TD,TS,TX OD=47,T=1.94,PNC41101A=T/PB,OD=47,PNC41101A=T/PA,OD=47 |
1 | ||
| 90201-35499 |
GGN125,GUN125,126,LAN125,TGN126,128..AD,AS,KD,KS,MD,MMD,MS,SD,SS,SX,TD,TS,TX OD=47,T=1.76,PNC41101A=T/PB,OD=47,PNC41101A=T/PA,OD=47 |
1 | ||
| 90201-35501 |
GGN125,GUN125,126,LAN125,TGN126,128..AD,AS,KD,KS,MD,MMD,MS,SD,SS,SX,TD,TS,TX OD=47,T=1.82,PNC41101A=T/PB,OD=47,PNC41101A=T/PA,OD=47 |
1 | ||
| 90201-35507 |
GGN125,GUN125,126,LAN125,TGN126,128..AD,AS,KD,KS,MD,MMD,MS,SD,SS,SX,TD,TS,TX OD=47,T=2.00,PNC41101A=T/PB,OD=47,PNC41101A=T/PA,OD=47 |
1 | ||
| 90201-35497 |
GGN125,GUN125,126,LAN125,TGN126,128..AD,AS,KD,KS,MD,MMD,MS,SD,SS,SX,TD,TS,TX OD=47,T=1.70,PNC41101A=T/PB,OD=47,PNC41101A=T/PA,OD=47 |
1 | ||
| 90201-35509 |
GGN125,GUN125,126,LAN125,TGN126,128..AD,AS,KD,KS,MD,MMD,MS,SD,SS,SX,TD,TS,TX OD=47,T=2.06,PNC41101A=T/PB,OD=47,PNC41101A=T/PA,OD=47 |
1 | ||
| 90201-35506 |
GGN125,GUN125,126,LAN125,TGN126,128..AD,AS,KD,KS,MD,MMD,MS,SD,SS,SX,TD,TS,TX OD=47,T=1.97,PNC41101A=T/PB,OD=47,PNC41101A=T/PA,OD=47 |
1 | ||
| 90201-35510 |
GGN125,GUN125,126,LAN125,TGN126,128..AD,AS,KD,KS,MD,MMD,MS,SD,SS,SX,TD,TS,TX OD=47,T=2.09,PNC41101A=T/PB,OD=47,PNC41101A=T/PA,OD=47 |
1 | ||
| 90201-35508 |
GGN125,GUN125,126,LAN125,TGN126,128..AD,AS,KD,KS,MD,MMD,MS,SD,SS,SX,TD,TS,TX OD=47,T=2.03,PNC41101A=T/PB,OD=47,PNC41101A=T/PA,OD=47 |
1 | ||
| 90201-35516 |
GGN125,GUN125,126,LAN125,TGN126,128..AD,AS,KD,KS,MD,MMD,MS,SD,SS,SX,TD,TS,TX OD=47,T=2.27,MARK 02,PNC41101A=T/PB,OD=47,PNC41101A=T/PA,OD=47 |
1 | ||
| 90201-35511 |
GGN125,GUN125,126,LAN125,TGN126,128..AD,AS,KD,KS,MD,MMD,MS,SD,SS,SX,TD,TS,TX OD=47,T=2.12,PNC41101A=T/PB,OD=47,PNC41101A=T/PA,OD=47 |
1 | ||
| 90201-35514 |
GGN125,GUN125,126,LAN125,TGN126,128..AD,AS,KD,KS,MD,MMD,MS,SD,SS,SX,TD,TS,TX OD=47,T=2.21,PNC41101A=T/PB,OD=47,PNC41101A=T/PA,OD=47 |
1 | ||
| 90201-35515 |
GGN125,GUN125,126,LAN125,TGN126,128..AD,AS,KD,KS,MD,MMD,MS,SD,SS,SX,TD,TS,TX OD=47,T=2.24,MARK 01,PNC41101A=T/PB,OD=47,PNC41101A=T/PA,OD=47 |
1 | ||
| 90201-35504 |
GGN125,GUN125,126,LAN125,TGN126,128..AD,AS,KD,KS,MD,MMD,MS,SD,SS,SX,TD,TS,TX OD=47,T=1.91,PNC41101A=T/PB,OD=47,PNC41101A=T/PA,OD=47 |
1 | ||
| 90564-35109 |
GGN125,GUN125,126,LAN125,TGN126,128..AD,AS,KD,KS,MD,MMD,MS,SD,SS,SX,TD,TS,TX OD=52,T=1.70,PNC41101A=T/PB,OD=52,PNC41101A=T/PA,OD=52 |
1 | ||
| 90201-35512 |
GGN125,GUN125,126,LAN125,TGN126,128..AD,AS,KD,KS,MD,MMD,MS,SD,SS,SX,TD,TS,TX OD=47,T=2.15,PNC41101A=T/PB,OD=47,PNC41101A=T/PA,OD=47 |
1 | ||
| 90564-35110 |
GGN125,GUN125,126,LAN125,TGN126,128..AD,AS,KD,KS,MD,MMD,MS,SD,SS,SX,TD,TS,TX OD=52,T=1.73,PNC41101A=T/PB,OD=52,PNC41101A=T/PA,OD=52 |
1 | ||
| 90201-35517 |
GGN125,GUN125,126,LAN125,TGN126,128..AD,AS,KD,KS,MD,MMD,MS,SD,SS,SX,TD,TS,TX OD=47,T=2.30,MARK 03,PNC41101A=T/PB,OD=47,PNC41101A=T/PA,OD=47 |
1 | ||
| 90564-35112 |
GGN125,GUN125,126,LAN125,TGN126,128..AD,AS,KD,KS,MD,MMD,MS,SD,SS,SX,TD,TS,TX OD=52,T=1.79,PNC41101A=T/PB,OD=52,PNC41101A=T/PA,OD=52 |
1 | ||
| 90564-35118 |
GGN125,GUN125,126,LAN125,TGN126,128..AD,AS,KD,KS,MD,MMD,MS,SD,SS,SX,TD,TS,TX OD=52,T=1.97,PNC41101A=T/PB,OD=52,PNC41101A=T/PA,OD=52 |
1 | ||
| 90564-35117 |
GGN125,GUN125,126,LAN125,TGN126,128..AD,AS,KD,KS,MD,MMD,MS,SD,SS,SX,TD,TS,TX OD=52,T=1.94,PNC41101A=T/PB,OD=52,PNC41101A=T/PA,OD=52 |
1 | ||
| 90564-35111 |
GGN125,GUN125,126,LAN125,TGN126,128..AD,AS,KD,KS,MD,MMD,MS,SD,SS,SX,TD,TS,TX OD=52,T=1.76,PNC41101A=T/PB,OD=52,PNC41101A=T/PA,OD=52 |
1 | ||
| 90201-35513 |
GGN125,GUN125,126,LAN125,TGN126,128..AD,AS,KD,KS,MD,MMD,MS,SD,SS,SX,TD,TS,TX OD=47,T=2.18,PNC41101A=T/PB,OD=47,PNC41101A=T/PA,OD=47 |
1 | ||
| 90564-35115 |
GGN125,GUN125,126,LAN125,TGN126,128..AD,AS,KD,KS,MD,MMD,MS,SD,SS,SX,TD,TS,TX OD=52,T=1.88,PNC41101A=T/PB,OD=52,PNC41101A=T/PA,OD=52 |
1 | ||
| 90564-35119 |
GGN125,GUN125,126,LAN125,TGN126,128..AD,AS,KD,KS,MD,MMD,MS,SD,SS,SX,TD,TS,TX OD=52,T=2.00,PNC41101A=T/PB,OD=52,PNC41101A=T/PA,OD=52 |
1 | ||
| 90564-35124 |
GGN125,GUN125,126,LAN125,TGN126,128..AD,AS,KD,KS,MD,MMD,MS,SD,SS,SX,TD,TS,TX OD=52,T=2.12,PNC41101A=T/PB,OD=52,PNC41101A=T/PA,OD=52 |
1 | ||
| 90564-35113 |
GGN125,GUN125,126,LAN125,TGN126,128..AD,AS,KD,KS,MD,MMD,MS,SD,SS,SX,TD,TS,TX OD=52,T=1.82,PNC41101A=T/PB,OD=52,PNC41101A=T/PA,OD=52 |
1 | ||
| 90564-35116 |
GGN125,GUN125,126,LAN125,TGN126,128..AD,AS,KD,KS,MD,MMD,MS,SD,SS,SX,TD,TS,TX OD=52,T=1.91,PNC41101A=T/PB,OD=52,PNC41101A=T/PA,OD=52 |
1 | ||
| 90201-35518 |
GGN125,GUN125,126,LAN125,TGN126,128..AD,AS,KD,KS,MD,MMD,MS,SD,SS,SX,TD,TS,TX OD=47,T=2.33,MARK 04,PNC41101A=T/PB,OD=47,PNC41101A=T/PA,OD=47 |
1 | ||
| 90564-35120 |
GGN125,GUN125,126,LAN125,TGN126,128..AD,AS,KD,KS,MD,MMD,MS,SD,SS,SX,TD,TS,TX OD=52,T=2.03,PNC41101A=T/PB,OD=52,PNC41101A=T/PA,OD=52 |
1 | ||
| 90564-35114 |
GGN125,GUN125,126,LAN125,TGN126,128..AD,AS,KD,KS,MD,MMD,MS,SD,SS,SX,TD,TS,TX OD=52,T=1.85,PNC41101A=T/PB,OD=52,PNC41101A=T/PA,OD=52 |
1 | ||
| 90564-35130 |
GGN125,GUN125,126,LAN125,TGN126,128..AD,AS,KD,KS,MD,MMD,MS,SD,SS,SX,TD,TS,TX OD=52,T=2.30,PNC41101A=T/PB,OD=52,PNC41101A=T/PA,OD=52 |
1 | ||
| 90564-35128 |
GGN125,GUN125,126,LAN125,TGN126,128..AD,AS,KD,KS,MD,MMD,MS,SD,SS,SX,TD,TS,TX OD=52,T=2.24,PNC41101A=T/PB,OD=52,PNC41101A=T/PA,OD=52 |
1 | ||
| 90564-35121 |
GGN125,GUN125,126,LAN125,TGN126,128..AD,AS,KD,KS,MD,MMD,MS,SD,SS,SX,TD,TS,TX OD=52,T=2.06,PNC41101A=T/PB,OD=52,PNC41101A=T/PA,OD=52 |
1 | ||
| 90564-35126 |
GGN125,GUN125,126,LAN125,TGN126,128..AD,AS,KD,KS,MD,MMD,MS,SD,SS,SX,TD,TS,TX OD=52,T=2.18,PNC41101A=T/PB,OD=52,PNC41101A=T/PA,OD=52 |
1 | ||
| 90564-35127 |
GGN125,GUN125,126,LAN125,TGN126,128..AD,AS,KD,KS,MD,MMD,MS,SD,SS,SX,TD,TS,TX OD=52,T=2.21,PNC41101A=T/PB,OD=52,PNC41101A=T/PA,OD=52 |
1 | ||
| 90564-35123 |
GGN125,GUN125,126,LAN125,TGN126,128..AD,AS,KD,KS,MD,MMD,MS,SD,SS,SX,TD,TS,TX OD=52,T=2.09,PNC41101A=T/PB,OD=52,PNC41101A=T/PA,OD=52 |
1 | ||
| 90564-35131 |
GGN125,GUN125,126,LAN125,TGN126,128..AD,AS,KD,KS,MD,MMD,MS,SD,SS,SX,TD,TS,TX OD=52,T=2.33,PNC41101A=T/PB,OD=52,PNC41101A=T/PA,OD=52 |
1 | ||
| 90564-35125 |
GGN125,GUN125,126,LAN125,TGN126,128..AD,AS,KD,KS,MD,MMD,MS,SD,SS,SX,TD,TS,TX OD=52,T=2.15,PNC41101A=T/PB,OD=52,PNC41101A=T/PA,OD=52 |
1 | ||
| 90564-35129 |
GGN125,GUN125,126,LAN125,TGN126,128..AD,AS,KD,KS,MD,MMD,MS,SD,SS,SX,TD,TS,TX OD=52,T=2.27,PNC41101A=T/PB,OD=52,PNC41101A=T/PA,OD=52 |
1 | ||
| 41214C - SLINGER, FRONT DIFFERENTIAL DRIVE PINION OIL | ||||
| 41214-26011 |
GGN125,GUN125,126,LAN125,TGN126,128..AD,AS,KD,KS,MD,MMD,MS,SD,SS,SX,TD,TS,TX PNC 41101A=TYPE A,PNC 41101A=TYPE B |
1 | ||
| 41222B - BOLT (FOR FRONT DIFFERENTIAL RING GEAR SET) | ||||
| 90105-T0310 |
GGN125,GUN125,126,LAN125,TGN126,128..AD,AS,KD,KS,MD,MMD,MS,SD,SS,SX,TD,TS,TX (L),PNC 41101A=T/P B |
10 | ||
| 90901-05002 |
GGN125,GUN125,126,LAN125,TGN126,128..AD,AS,KD,KS,MD,MMD,MS,SD,SS,SX,TD,TS,TX PNC 41101A=TYPE A,(J),PNC 41101A=T/P B |
10 | ||
| 41231F - SPACER, FRONT DIFFERENTIAL DRIVE PINION BEARING | ||||
| 41231-35040 |
GGN125,GUN125,126,LAN125,TGN126,128..AD,AS,KD,KS,MD,MMD,MS,SD,SS,SX,TD,TS,TX PNC 41101A=TYPE A,PNC 41101A=TYPE B |
1 | ||
| 41252A - DEFLECTOR, DUST (FOR FRONT DIFFERENTIAL) | ||||
| 41252-71030 |
GGN125,GUN125,126,LAN125,TGN126,128..AD,AS,KD,KS,MD,MMD,MS,SD,SS,SX,TD,TS,TX PNC 41101A=TYPE A |
1 | ||
| 41302F - CASE SUB-ASSY, FRONT DIFFERENTIAL | ||||
| 41301-71120 |
TGN126..H..LA;TGN126..L..SA;GUN125..6FC..(H,S)..GCC;TGN126..(H,S)..(GEN,SA);GUN125..(AD,MD,SD,SS,TD,TX)..6FC..(ARL,GEN,IDN,LA,MA,SA);GGN125,GUN126,LAN125,TGN128..(AD,KD,MD,MMD,SD,SS,SX,TD,TS,TX)..(5F,6FC) PNC 41101A=TYPE A |
1 | ||
| 41301-71100 |
TGN126..S..LA;GUN125..TS..6FC;TGN126..(H,S)..GCC;GUN125,TGN126..LHD..(5F,6FC)..L..(GCC,GEN,LA) PNC 41101A=TYPE A |
1 | ||
| 41301-71110 |
GUN125,126..6F..(ARL,BZAG,GCC,GEN,IDN,KEN,LA,MA,PH,SA,TH,VN) PNC 41101A=TYPE A |
1 | ||
| 41301-71120 |
TGN126..6FC..L;GUN125..TS..6FC;TGN126..(L,S)..LA;TGN126..TD..(H,S)..GCC AUTOMATIC DISCONNECTING DIFFERENTIAL-WITH,PNC 41101A=TYPE A |
1 | ||
| 41304F - SHAFT SUB-ASSY, DIFFERENTIAL SIDE GEAR, RH | ||||
| 41337-35060 |
TGN126..6FC..L;GUN125..TS..6FC;TGN126..(L,S)..LA;TGN126..TD..(H,S)..GCC AUTOMATIC DISCONNECTING DIFFERENTIAL-WITH,PNC 41101A=TYPE A,PNC 41101A=TYPE B |
1 | ||
| 41337-35050 |
TGN126..S..LA;GUN125..TS..6FC;TGN126..(H,S)..GCC;GUN125,TGN126..LHD..(5F,6FC)..L..(GCC,GEN,LA) PNC 41101A=TYPE A,PNC 41101A=TYPE B |
1 | ||
| 41337-35060 |
TGN126..H..LA;TGN126..L..SA;GUN125..6FC..(H,S)..GCC;TGN126..(H,S)..(GEN,SA);GUN125..6F..(ARL,BZAG,GCC,GEN,IDN,KEN,LA,MA,PH,SA,TH,VN);GUN125..(AD,MD,SD,SS,TD,TX)..6FC..(ARL,GEN,IDN,LA,MA,SA);GGN125,GUN126,LAN125,TGN128..AD,AS,KD,MD,MMD,SD,SS,SX,TD,TS,TX PNC 41101A=TYPE A,PNC 41101A=TYPE B |
1 | ||
| 41304L - BEARING (FOR FRONT DIFFERENTIAL SIDE GEAR SHAFT RH) | ||||
| 90363-T0014 |
GGN125,GUN125,126,LAN125,TGN126,128..AD,AS,KD,KS,MD,MMD,MS,SD,SS,SX,TD,TS,TX PNC 41101A=TYPE A,PNC 41101A=TYPE B |
1 | ||
| 41304M - RING, SHAFT SNAP (FOR DIFFERENTIAL SIDE GEAR SHAFT RH) | ||||
| 90520-41014 |
GGN125,GUN125,126,LAN125,TGN126,128..AD,AS,KD,KS,MD,MMD,MS,SD,SS,SX,TD,TS,TX PNC41101A=T/PA,INNER |
1 | ||
| 90520-75002 |
GGN125,GUN125,126,LAN125,TGN126,128..AD,AS,KD,KS,MD,MMD,MS,SD,SS,SX,TD,TS,TX PNC41101A=T/PA,OUTER |
1 | ||
| 90520-T0027 |
GGN125,GUN125,126,LAN125,TGN126,128..AD,AS,KD,KS,MD,MMD,MS,SD,SS,SX,TD,TS,TX PNC41101A=T/PB,INNER |
1 | ||
| 90521-T0002 |
GGN125,GUN125,126,LAN125,TGN126,128..AD,AS,KD,KS,MD,MMD,MS,SD,SS,SX,TD,TS,TX PNC41101A=T/PB,OUTER |
1 | ||
| 41304M - RING, SHAFT SNAP (FOR DIFFERENTIAL SIDE GEAR SHAFT RH) | ||||
| 90520-41014 |
GGN125,GUN125,126,LAN125,TGN126,128..AD,AS,KD,KS,MD,MMD,MS,SD,SS,SX,TD,TS,TX PNC41101A=T/PA,INNER |
1 | ||
| 90520-75002 |
GGN125,GUN125,126,LAN125,TGN126,128..AD,AS,KD,KS,MD,MMD,MS,SD,SS,SX,TD,TS,TX PNC41101A=T/PA,OUTER |
1 | ||
| 90520-T0027 |
GGN125,GUN125,126,LAN125,TGN126,128..AD,AS,KD,KS,MD,MMD,MS,SD,SS,SX,TD,TS,TX PNC41101A=T/PB,INNER |
1 | ||
| 90521-T0002 |
GGN125,GUN125,126,LAN125,TGN126,128..AD,AS,KD,KS,MD,MMD,MS,SD,SS,SX,TD,TS,TX PNC41101A=T/PB,OUTER |
1 | ||
| 41304P - SEAL, OIL (FOR DIFFERENTIAL SIDE GEAR SHAFT) | ||||
| 90311-T0101 |
GGN125,GUN125,126,LAN125,TGN126,128..AD,AS,KD,KS,MD,MMD,MS,SD,SS,SX,TD,TS,TX LH,PNC 41101A=TYPE B |
1 | ||
| 90311-47035 |
GGN125,GUN125,126,LAN125,TGN126,128..AD,AS,KD,KS,MD,MMD,MS,SD,SS,SX,TD,TS,TX LH,PNC 41101A=TYPE A |
1 | ||
| 90311-T0102 |
GGN125,GUN125,126,LAN125,TGN126,128..AD,AS,KD,KS,MD,MMD,MS,SD,SS,SX,TD,TS,TX RH,PNC 41101A=TYPE B |
1 | ||
| 90311-47038 |
GGN125,GUN125,126,LAN125,TGN126,128..AD,AS,KD,KS,MD,MMD,MS,SD,SS,SX,TD,TS,TX RH,PNC 41101A=TYPE A |
1 | ||
| 41304P - SEAL, OIL (FOR DIFFERENTIAL SIDE GEAR SHAFT) | ||||
| 90311-T0101 |
GGN125,GUN125,126,LAN125,TGN126,128..AD,AS,KD,KS,MD,MMD,MS,SD,SS,SX,TD,TS,TX LH,PNC 41101A=TYPE B |
1 | ||
| 90311-47035 |
GGN125,GUN125,126,LAN125,TGN126,128..AD,AS,KD,KS,MD,MMD,MS,SD,SS,SX,TD,TS,TX LH,PNC 41101A=TYPE A |
1 | ||
| 90311-T0102 |
GGN125,GUN125,126,LAN125,TGN126,128..AD,AS,KD,KS,MD,MMD,MS,SD,SS,SX,TD,TS,TX RH,PNC 41101A=TYPE B |
1 | ||
| 90311-47038 |
GGN125,GUN125,126,LAN125,TGN126,128..AD,AS,KD,KS,MD,MMD,MS,SD,SS,SX,TD,TS,TX RH,PNC 41101A=TYPE A |
1 | ||
| 41311 - CASE, FRONT DIFFERENTIAL | ||||
| 41311-0K060 |
GUN125,126..6F..(ARL,BZAG,GCC,GEN,IDN,KEN,LA,MA,PH,SA,TH,VN) PNC 41101A=TYPE B |
1 | ||
| 41311-0K040 |
TGN126..S..LA;GUN125..TS..6FC;TGN126..(H,S)..GCC;GUN125,TGN126..LHD..(5F,6FC)..L..(GCC,GEN,LA) PNC 41101A=TYPE B |
1 | ||
| 41311-0K070 |
TGN126..6FC..L;GUN125..TS..6FC;TGN126..(L,S)..LA;TGN126..TD..(H,S)..GCC AUTOMATIC DISCONNECTING DIFFERENTIAL-WITH,PNC 41101A=TYPE B |
1 | ||
| 41311-0K070 |
TGN126..H..LA;TGN126..L..SA;GUN125..6FC..(H,S)..GCC;TGN126..(H,S)..(GEN,SA);GUN125..(AD,MD,SD,SS,TD,TX)..6FC..(ARL,GEN,IDN,LA,MA,SA);GGN125,GUN126,LAN125,TGN128..(AD,KD,MD,MMD,SD,SS,SX,TD,TS,TX)..(5F,6FC) PNC 41101A=TYPE B |
1 | ||
| 41311A - BEARING (FOR FRONT DIFFERENTIAL CASE) | ||||
| 90366-T0031 |
GGN125,GUN125,126,LAN125,TGN126,128..AD,AS,KD,KS,MD,MMD,MS,SD,SS,SX,TD,TS,TX PNC 41101A=TYPE B |
2 | ||
| 90366-53004 |
GGN125,GUN125,126,LAN125,TGN126,128..AD,AS,KD,KS,MD,MMD,MS,SD,SS,SX,TD,TS,TX PNC 41101A=TYPE A |
2 | ||
| 41311A - BEARING (FOR FRONT DIFFERENTIAL CASE) | ||||
| 90366-T0031 |
GGN125,GUN125,126,LAN125,TGN126,128..AD,AS,KD,KS,MD,MMD,MS,SD,SS,SX,TD,TS,TX PNC 41101A=TYPE B |
2 | ||
| 90366-53004 |
GGN125,GUN125,126,LAN125,TGN126,128..AD,AS,KD,KS,MD,MMD,MS,SD,SS,SX,TD,TS,TX PNC 41101A=TYPE A |
2 | ||
| 41311B - WASHER, PLATE (FOR FRONT DIFFERENTIAL CASE) | ||||
| 90564-50124 |
GGN125,GUN125,126,LAN125,TGN126,128..AD,AS,KD,KS,MD,MMD,MS,SD,SS,SX,TD,TS,TX T=1.60,LH,PNC 41101A=TYPE A,LH,PNC 41101A=TYPE B |
1 | ||
| 90564-50136 |
GGN125,GUN125,126,LAN125,TGN126,128..AD,AS,KD,KS,MD,MMD,MS,SD,SS,SX,TD,TS,TX T=1.96,LH,PNC 41101A=TYPE A,LH,PNC 41101A=TYPE B |
1 | ||
| 90564-50126 |
GGN125,GUN125,126,LAN125,TGN126,128..AD,AS,KD,KS,MD,MMD,MS,SD,SS,SX,TD,TS,TX T=1.66,LH,PNC 41101A=TYPE A,LH,PNC 41101A=TYPE B |
1 | ||
| 90564-50132 |
GGN125,GUN125,126,LAN125,TGN126,128..AD,AS,KD,KS,MD,MMD,MS,SD,SS,SX,TD,TS,TX T=1.84,LH,PNC 41101A=TYPE A,LH,PNC 41101A=TYPE B |
1 | ||
| 90564-50128 |
GGN125,GUN125,126,LAN125,TGN126,128..AD,AS,KD,KS,MD,MMD,MS,SD,SS,SX,TD,TS,TX T=1.72,LH,PNC 41101A=TYPE A,LH,PNC 41101A=TYPE B |
1 | ||
| 90564-50138 |
GGN125,GUN125,126,LAN125,TGN126,128..AD,AS,KD,KS,MD,MMD,MS,SD,SS,SX,TD,TS,TX T=2.02,LH,PNC 41101A=TYPE A,LH,PNC 41101A=TYPE B |
1 | ||
| 90564-50130 |
GGN125,GUN125,126,LAN125,TGN126,128..AD,AS,KD,KS,MD,MMD,MS,SD,SS,SX,TD,TS,TX T=1.78,LH,PNC 41101A=TYPE A,LH,PNC 41101A=TYPE B |
1 | ||
| 90564-50154 |
GGN125,GUN125,126,LAN125,TGN126,128..AD,AS,KD,KS,MD,MMD,MS,SD,SS,SX,TD,TS,TX T=1.60,RH,PNC 41101A=TYPE B,RH,PNC 41101A=TYPE A |
1 | ||
| 90564-50134 |
GGN125,GUN125,126,LAN125,TGN126,128..AD,AS,KD,KS,MD,MMD,MS,SD,SS,SX,TD,TS,TX T=1.90,LH,PNC 41101A=TYPE A,LH,PNC 41101A=TYPE B |
1 | ||
| 90564-50142 |
GGN125,GUN125,126,LAN125,TGN126,128..AD,AS,KD,KS,MD,MMD,MS,SD,SS,SX,TD,TS,TX T=2.14,LH,PNC 41101A=TYPE A,LH,PNC 41101A=TYPE B |
1 | ||
| 90564-50158 |
GGN125,GUN125,126,LAN125,TGN126,128..AD,AS,KD,KS,MD,MMD,MS,SD,SS,SX,TD,TS,TX T=1.72,RH,PNC 41101A=TYPE B,RH,PNC 41101A=TYPE A |
1 | ||
| 90564-50162 |
GGN125,GUN125,126,LAN125,TGN126,128..AD,AS,KD,KS,MD,MMD,MS,SD,SS,SX,TD,TS,TX T=1.84,RH,PNC 41101A=TYPE B,RH,PNC 41101A=TYPE A |
1 | ||
| 90564-50156 |
GGN125,GUN125,126,LAN125,TGN126,128..AD,AS,KD,KS,MD,MMD,MS,SD,SS,SX,TD,TS,TX T=1.66,RH,PNC 41101A=TYPE B,RH,PNC 41101A=TYPE A |
1 | ||
| 90564-50164 |
GGN125,GUN125,126,LAN125,TGN126,128..AD,AS,KD,KS,MD,MMD,MS,SD,SS,SX,TD,TS,TX T=1.90,RH,PNC 41101A=TYPE B,RH,PNC 41101A=TYPE A |
1 | ||
| 90564-50184 |
GGN125,GUN125,126,LAN125,TGN126,128..AD,AS,KD,KS,MD,MMD,MS,SD,SS,SX,TD,TS,TX T=1.58,LH,PNC 41101A=TYPE A,LH,PNC 41101A=TYPE B |
1 | ||
| 90564-50160 |
GGN125,GUN125,126,LAN125,TGN126,128..AD,AS,KD,KS,MD,MMD,MS,SD,SS,SX,TD,TS,TX T=1.78,RH,PNC 41101A=TYPE B,RH,PNC 41101A=TYPE A |
1 | ||
| 90564-50140 |
GGN125,GUN125,126,LAN125,TGN126,128..AD,AS,KD,KS,MD,MMD,MS,SD,SS,SX,TD,TS,TX T=2.08,LH,PNC 41101A=TYPE A,LH,PNC 41101A=TYPE B |
1 | ||
| 90564-50170 |
GGN125,GUN125,126,LAN125,TGN126,128..AD,AS,KD,KS,MD,MMD,MS,SD,SS,SX,TD,TS,TX T=2.08,RH,PNC 41101A=TYPE B,RH,PNC 41101A=TYPE A |
1 | ||
| 90564-50187 |
GGN125,GUN125,126,LAN125,TGN126,128..AD,AS,KD,KS,MD,MMD,MS,SD,SS,SX,TD,TS,TX T=1.68,LH,PNC 41101A=TYPE A,LH,PNC 41101A=TYPE B |
1 | ||
| 90564-50191 |
GGN125,GUN125,126,LAN125,TGN126,128..AD,AS,KD,KS,MD,MMD,MS,SD,SS,SX,TD,TS,TX T=1.80,LH,PNC 41101A=TYPE A,LH,PNC 41101A=TYPE B |
1 | ||
| 90564-50186 |
GGN125,GUN125,126,LAN125,TGN126,128..AD,AS,KD,KS,MD,MMD,MS,SD,SS,SX,TD,TS,TX T=1.64,LH,PNC 41101A=TYPE A,LH,PNC 41101A=TYPE B |
1 | ||
| 90564-50166 |
GGN125,GUN125,126,LAN125,TGN126,128..AD,AS,KD,KS,MD,MMD,MS,SD,SS,SX,TD,TS,TX T=1.96,RH,PNC 41101A=TYPE B,RH,PNC 41101A=TYPE A |
1 | ||
| 90564-50185 |
GGN125,GUN125,126,LAN125,TGN126,128..AD,AS,KD,KS,MD,MMD,MS,SD,SS,SX,TD,TS,TX T=1.62,LH,PNC 41101A=TYPE A,LH,PNC 41101A=TYPE B |
1 | ||
| 90564-50168 |
GGN125,GUN125,126,LAN125,TGN126,128..AD,AS,KD,KS,MD,MMD,MS,SD,SS,SX,TD,TS,TX T=2.02,RH,PNC 41101A=TYPE B,RH,PNC 41101A=TYPE A |
1 | ||
| 90564-50188 |
GGN125,GUN125,126,LAN125,TGN126,128..AD,AS,KD,KS,MD,MMD,MS,SD,SS,SX,TD,TS,TX T=1.70,LH,PNC 41101A=TYPE A,LH,PNC 41101A=TYPE B |
1 | ||
| 90564-50172 |
GGN125,GUN125,126,LAN125,TGN126,128..AD,AS,KD,KS,MD,MMD,MS,SD,SS,SX,TD,TS,TX T=2.14,RH,PNC 41101A=TYPE B,RH,PNC 41101A=TYPE A |
1 | ||
| 90564-50189 |
GGN125,GUN125,126,LAN125,TGN126,128..AD,AS,KD,KS,MD,MMD,MS,SD,SS,SX,TD,TS,TX T=1.74,LH,PNC 41101A=TYPE A,LH,PNC 41101A=TYPE B |
1 | ||
| 90564-50190 |
GGN125,GUN125,126,LAN125,TGN126,128..AD,AS,KD,KS,MD,MMD,MS,SD,SS,SX,TD,TS,TX T=1.76,LH,PNC 41101A=TYPE A,LH,PNC 41101A=TYPE B |
1 | ||
| 90564-50196 |
GGN125,GUN125,126,LAN125,TGN126,128..AD,AS,KD,KS,MD,MMD,MS,SD,SS,SX,TD,TS,TX T=1.94,LH,PNC 41101A=TYPE A,LH,PNC 41101A=TYPE B |
1 | ||
| 90564-50193 |
GGN125,GUN125,126,LAN125,TGN126,128..AD,AS,KD,KS,MD,MMD,MS,SD,SS,SX,TD,TS,TX T=1.86,LH,PNC 41101A=TYPE A,LH,PNC 41101A=TYPE B |
1 | ||
| 90564-50200 |
GGN125,GUN125,126,LAN125,TGN126,128..AD,AS,KD,KS,MD,MMD,MS,SD,SS,SX,TD,TS,TX T=2.06,LH,PNC 41101A=TYPE A,LH,PNC 41101A=TYPE B |
1 | ||
| 90564-50198 |
GGN125,GUN125,126,LAN125,TGN126,128..AD,AS,KD,KS,MD,MMD,MS,SD,SS,SX,TD,TS,TX T=2.00,LH,PNC 41101A=TYPE A,LH,PNC 41101A=TYPE B |
1 | ||
| 90564-50192 |
GGN125,GUN125,126,LAN125,TGN126,128..AD,AS,KD,KS,MD,MMD,MS,SD,SS,SX,TD,TS,TX T=1.82,LH,PNC 41101A=TYPE A,LH,PNC 41101A=TYPE B |
1 | ||
| 90564-50203 |
GGN125,GUN125,126,LAN125,TGN126,128..AD,AS,KD,KS,MD,MMD,MS,SD,SS,SX,TD,TS,TX T=2.16,LH,PNC 41101A=TYPE A,LH,PNC 41101A=TYPE B |
1 | ||
| 90564-50208 |
GGN125,GUN125,126,LAN125,TGN126,128..AD,AS,KD,KS,MD,MMD,MS,SD,SS,SX,TD,TS,TX T=1.70,RH,PNC 41101A=TYPE B,RH,PNC 41101A=TYPE A |
1 | ||
| 90564-50195 |
GGN125,GUN125,126,LAN125,TGN126,128..AD,AS,KD,KS,MD,MMD,MS,SD,SS,SX,TD,TS,TX T=1.92,LH,PNC 41101A=TYPE A,LH,PNC 41101A=TYPE B |
1 | ||
| 90564-50199 |
GGN125,GUN125,126,LAN125,TGN126,128..AD,AS,KD,KS,MD,MMD,MS,SD,SS,SX,TD,TS,TX T=2.04,LH,PNC 41101A=TYPE A,LH,PNC 41101A=TYPE B |
1 | ||
| 90564-50206 |
GGN125,GUN125,126,LAN125,TGN126,128..AD,AS,KD,KS,MD,MMD,MS,SD,SS,SX,TD,TS,TX T=1.64,RH,PNC 41101A=TYPE B,RH,PNC 41101A=TYPE A |
1 | ||
| 90564-50197 |
GGN125,GUN125,126,LAN125,TGN126,128..AD,AS,KD,KS,MD,MMD,MS,SD,SS,SX,TD,TS,TX T=1.98,LH,PNC 41101A=TYPE A,LH,PNC 41101A=TYPE B |
1 | ||
| 90564-50194 |
GGN125,GUN125,126,LAN125,TGN126,128..AD,AS,KD,KS,MD,MMD,MS,SD,SS,SX,TD,TS,TX T=1.88,LH,PNC 41101A=TYPE A,LH,PNC 41101A=TYPE B |
1 | ||
| 90564-50202 |
GGN125,GUN125,126,LAN125,TGN126,128..AD,AS,KD,KS,MD,MMD,MS,SD,SS,SX,TD,TS,TX T=2.12,LH,PNC 41101A=TYPE A,LH,PNC 41101A=TYPE B |
1 | ||
| 90564-50204 |
GGN125,GUN125,126,LAN125,TGN126,128..AD,AS,KD,KS,MD,MMD,MS,SD,SS,SX,TD,TS,TX T=1.58,RH,PNC 41101A=TYPE B,RH,PNC 41101A=TYPE A |
1 | ||
| 90564-50205 |
GGN125,GUN125,126,LAN125,TGN126,128..AD,AS,KD,KS,MD,MMD,MS,SD,SS,SX,TD,TS,TX T=1.62,RH,PNC 41101A=TYPE B,RH,PNC 41101A=TYPE A |
1 | ||
| 90564-50209 |
GGN125,GUN125,126,LAN125,TGN126,128..AD,AS,KD,KS,MD,MMD,MS,SD,SS,SX,TD,TS,TX T=1.74,RH,PNC 41101A=TYPE B,RH,PNC 41101A=TYPE A |
1 | ||
| 90564-50201 |
GGN125,GUN125,126,LAN125,TGN126,128..AD,AS,KD,KS,MD,MMD,MS,SD,SS,SX,TD,TS,TX T=2.10,LH,PNC 41101A=TYPE A,LH,PNC 41101A=TYPE B |
1 | ||
| 90564-50218 |
GGN125,GUN125,126,LAN125,TGN126,128..AD,AS,KD,KS,MD,MMD,MS,SD,SS,SX,TD,TS,TX T=2.00,RH,PNC 41101A=TYPE B,RH,PNC 41101A=TYPE A |
1 | ||
| 90564-50210 |
GGN125,GUN125,126,LAN125,TGN126,128..AD,AS,KD,KS,MD,MMD,MS,SD,SS,SX,TD,TS,TX T=1.76,RH,PNC 41101A=TYPE B,RH,PNC 41101A=TYPE A |
1 | ||
| 90564-50213 |
GGN125,GUN125,126,LAN125,TGN126,128..AD,AS,KD,KS,MD,MMD,MS,SD,SS,SX,TD,TS,TX T=1.86,RH,PNC 41101A=TYPE B,RH,PNC 41101A=TYPE A |
1 | ||
| 90564-50217 |
GGN125,GUN125,126,LAN125,TGN126,128..AD,AS,KD,KS,MD,MMD,MS,SD,SS,SX,TD,TS,TX T=1.98,RH,PNC 41101A=TYPE B,RH,PNC 41101A=TYPE A |
1 | ||
| 90564-50214 |
GGN125,GUN125,126,LAN125,TGN126,128..AD,AS,KD,KS,MD,MMD,MS,SD,SS,SX,TD,TS,TX T=1.88,RH,PNC 41101A=TYPE B,RH,PNC 41101A=TYPE A |
1 | ||
| 90564-50207 |
GGN125,GUN125,126,LAN125,TGN126,128..AD,AS,KD,KS,MD,MMD,MS,SD,SS,SX,TD,TS,TX T=1.68,RH,PNC 41101A=TYPE B,RH,PNC 41101A=TYPE A |
1 | ||
| 90564-50221 |
GGN125,GUN125,126,LAN125,TGN126,128..AD,AS,KD,KS,MD,MMD,MS,SD,SS,SX,TD,TS,TX T=2.10,RH,PNC 41101A=TYPE B,RH,PNC 41101A=TYPE A |
1 | ||
| 90564-50215 |
GGN125,GUN125,126,LAN125,TGN126,128..AD,AS,KD,KS,MD,MMD,MS,SD,SS,SX,TD,TS,TX T=1.92,RH,PNC 41101A=TYPE B,RH,PNC 41101A=TYPE A |
1 | ||
| 90564-50224 |
GGN125,GUN125,126,LAN125,TGN126,128..AD,AS,KD,KS,MD,MMD,MS,SD,SS,SX,TD,TS,TX T=1.44,RH,PNC 41101A=TYPE A |
1 | ||
| 90564-50212 |
GGN125,GUN125,126,LAN125,TGN126,128..AD,AS,KD,KS,MD,MMD,MS,SD,SS,SX,TD,TS,TX T=1.82,RH,PNC 41101A=TYPE B,RH,PNC 41101A=TYPE A |
1 | ||
| 90564-50225 |
GGN125,GUN125,126,LAN125,TGN126,128..AD,AS,KD,KS,MD,MMD,MS,SD,SS,SX,TD,TS,TX T=1.46,RH,PNC 41101A=TYPE A |
1 | ||
| 90564-50228 |
GGN125,GUN125,126,LAN125,TGN126,128..AD,AS,KD,KS,MD,MMD,MS,SD,SS,SX,TD,TS,TX T=1.52,RH,PNC 41101A=TYPE A |
1 | ||
| 90564-50226 |
GGN125,GUN125,126,LAN125,TGN126,128..AD,AS,KD,KS,MD,MMD,MS,SD,SS,SX,TD,TS,TX T=1.48,RH,PNC 41101A=TYPE A |
1 | ||
| 90564-50223 |
GGN125,GUN125,126,LAN125,TGN126,128..AD,AS,KD,KS,MD,MMD,MS,SD,SS,SX,TD,TS,TX T=2.16,RH,PNC 41101A=TYPE B,RH,PNC 41101A=TYPE A |
1 | ||
| 90564-50216 |
GGN125,GUN125,126,LAN125,TGN126,128..AD,AS,KD,KS,MD,MMD,MS,SD,SS,SX,TD,TS,TX T=1.94,RH,PNC 41101A=TYPE B,RH,PNC 41101A=TYPE A |
1 | ||
| 90564-50220 |
GGN125,GUN125,126,LAN125,TGN126,128..AD,AS,KD,KS,MD,MMD,MS,SD,SS,SX,TD,TS,TX T=2.06,RH,PNC 41101A=TYPE B,RH,PNC 41101A=TYPE A |
1 | ||
| 90564-50231 |
GGN125,GUN125,126,LAN125,TGN126,128..AD,AS,KD,KS,MD,MMD,MS,SD,SS,SX,TD,TS,TX T=2.18,LH,PNC 41101A=TYPE A |
1 | ||
| 90564-50219 |
GGN125,GUN125,126,LAN125,TGN126,128..AD,AS,KD,KS,MD,MMD,MS,SD,SS,SX,TD,TS,TX T=2.04,RH,PNC 41101A=TYPE B,RH,PNC 41101A=TYPE A |
1 | ||
| 90564-50230 |
GGN125,GUN125,126,LAN125,TGN126,128..AD,AS,KD,KS,MD,MMD,MS,SD,SS,SX,TD,TS,TX T=1.56,RH,PNC 41101A=TYPE A |
1 | ||
| 90564-50233 |
GGN125,GUN125,126,LAN125,TGN126,128..AD,AS,KD,KS,MD,MMD,MS,SD,SS,SX,TD,TS,TX T=2.22,LH,PNC 41101A=TYPE A |
1 | ||
| 90564-50229 |
GGN125,GUN125,126,LAN125,TGN126,128..AD,AS,KD,KS,MD,MMD,MS,SD,SS,SX,TD,TS,TX T=1.54,RH,PNC 41101A=TYPE A |
1 | ||
| 90564-50222 |
GGN125,GUN125,126,LAN125,TGN126,128..AD,AS,KD,KS,MD,MMD,MS,SD,SS,SX,TD,TS,TX T=2.12,RH,PNC 41101A=TYPE B,RH,PNC 41101A=TYPE A |
1 | ||
| 90564-50211 |
GGN125,GUN125,126,LAN125,TGN126,128..AD,AS,KD,KS,MD,MMD,MS,SD,SS,SX,TD,TS,TX T=1.80,RH,PNC 41101A=TYPE B,RH,PNC 41101A=TYPE A |
1 | ||
| 90564-50234 |
GGN125,GUN125,126,LAN125,TGN126,128..AD,AS,KD,KS,MD,MMD,MS,SD,SS,SX,TD,TS,TX T=2.24,LH,PNC 41101A=TYPE A |
1 | ||
| 90564-50232 |
GGN125,GUN125,126,LAN125,TGN126,128..AD,AS,KD,KS,MD,MMD,MS,SD,SS,SX,TD,TS,TX T=2.20,LH,PNC 41101A=TYPE A |
1 | ||
| 90564-50236 |
GGN125,GUN125,126,LAN125,TGN126,128..AD,AS,KD,KS,MD,MMD,MS,SD,SS,SX,TD,TS,TX T=2.28,LH,PNC 41101A=TYPE A |
1 | ||
| 90564-50227 |
GGN125,GUN125,126,LAN125,TGN126,128..AD,AS,KD,KS,MD,MMD,MS,SD,SS,SX,TD,TS,TX T=1.50,RH,PNC 41101A=TYPE A |
1 | ||
| 90564-50235 |
GGN125,GUN125,126,LAN125,TGN126,128..AD,AS,KD,KS,MD,MMD,MS,SD,SS,SX,TD,TS,TX T=2.26,LH,PNC 41101A=TYPE A |
1 | ||
| 90564-50237 |
GGN125,GUN125,126,LAN125,TGN126,128..AD,AS,KD,KS,MD,MMD,MS,SD,SS,SX,TD,TS,TX T=2.30,LH,PNC 41101A=TYPE A |
1 | ||
| 41311B - WASHER, PLATE (FOR FRONT DIFFERENTIAL CASE) | ||||
| 90564-50124 |
GGN125,GUN125,126,LAN125,TGN126,128..AD,AS,KD,KS,MD,MMD,MS,SD,SS,SX,TD,TS,TX T=1.60,LH,PNC 41101A=TYPE A,LH,PNC 41101A=TYPE B |
1 | ||
| 90564-50136 |
GGN125,GUN125,126,LAN125,TGN126,128..AD,AS,KD,KS,MD,MMD,MS,SD,SS,SX,TD,TS,TX T=1.96,LH,PNC 41101A=TYPE A,LH,PNC 41101A=TYPE B |
1 | ||
| 90564-50126 |
GGN125,GUN125,126,LAN125,TGN126,128..AD,AS,KD,KS,MD,MMD,MS,SD,SS,SX,TD,TS,TX T=1.66,LH,PNC 41101A=TYPE A,LH,PNC 41101A=TYPE B |
1 | ||
| 90564-50132 |
GGN125,GUN125,126,LAN125,TGN126,128..AD,AS,KD,KS,MD,MMD,MS,SD,SS,SX,TD,TS,TX T=1.84,LH,PNC 41101A=TYPE A,LH,PNC 41101A=TYPE B |
1 | ||
| 90564-50128 |
GGN125,GUN125,126,LAN125,TGN126,128..AD,AS,KD,KS,MD,MMD,MS,SD,SS,SX,TD,TS,TX T=1.72,LH,PNC 41101A=TYPE A,LH,PNC 41101A=TYPE B |
1 | ||
| 90564-50138 |
GGN125,GUN125,126,LAN125,TGN126,128..AD,AS,KD,KS,MD,MMD,MS,SD,SS,SX,TD,TS,TX T=2.02,LH,PNC 41101A=TYPE A,LH,PNC 41101A=TYPE B |
1 | ||
| 90564-50130 |
GGN125,GUN125,126,LAN125,TGN126,128..AD,AS,KD,KS,MD,MMD,MS,SD,SS,SX,TD,TS,TX T=1.78,LH,PNC 41101A=TYPE A,LH,PNC 41101A=TYPE B |
1 | ||
| 90564-50154 |
GGN125,GUN125,126,LAN125,TGN126,128..AD,AS,KD,KS,MD,MMD,MS,SD,SS,SX,TD,TS,TX T=1.60,RH,PNC 41101A=TYPE B,RH,PNC 41101A=TYPE A |
1 | ||
| 90564-50134 |
GGN125,GUN125,126,LAN125,TGN126,128..AD,AS,KD,KS,MD,MMD,MS,SD,SS,SX,TD,TS,TX T=1.90,LH,PNC 41101A=TYPE A,LH,PNC 41101A=TYPE B |
1 | ||
| 90564-50142 |
GGN125,GUN125,126,LAN125,TGN126,128..AD,AS,KD,KS,MD,MMD,MS,SD,SS,SX,TD,TS,TX T=2.14,LH,PNC 41101A=TYPE A,LH,PNC 41101A=TYPE B |
1 | ||
| 90564-50158 |
GGN125,GUN125,126,LAN125,TGN126,128..AD,AS,KD,KS,MD,MMD,MS,SD,SS,SX,TD,TS,TX T=1.72,RH,PNC 41101A=TYPE B,RH,PNC 41101A=TYPE A |
1 | ||
| 90564-50162 |
GGN125,GUN125,126,LAN125,TGN126,128..AD,AS,KD,KS,MD,MMD,MS,SD,SS,SX,TD,TS,TX T=1.84,RH,PNC 41101A=TYPE B,RH,PNC 41101A=TYPE A |
1 | ||
| 90564-50156 |
GGN125,GUN125,126,LAN125,TGN126,128..AD,AS,KD,KS,MD,MMD,MS,SD,SS,SX,TD,TS,TX T=1.66,RH,PNC 41101A=TYPE B,RH,PNC 41101A=TYPE A |
1 | ||
| 90564-50164 |
GGN125,GUN125,126,LAN125,TGN126,128..AD,AS,KD,KS,MD,MMD,MS,SD,SS,SX,TD,TS,TX T=1.90,RH,PNC 41101A=TYPE B,RH,PNC 41101A=TYPE A |
1 | ||
| 90564-50184 |
GGN125,GUN125,126,LAN125,TGN126,128..AD,AS,KD,KS,MD,MMD,MS,SD,SS,SX,TD,TS,TX T=1.58,LH,PNC 41101A=TYPE A,LH,PNC 41101A=TYPE B |
1 | ||
| 90564-50160 |
GGN125,GUN125,126,LAN125,TGN126,128..AD,AS,KD,KS,MD,MMD,MS,SD,SS,SX,TD,TS,TX T=1.78,RH,PNC 41101A=TYPE B,RH,PNC 41101A=TYPE A |
1 | ||
| 90564-50140 |
GGN125,GUN125,126,LAN125,TGN126,128..AD,AS,KD,KS,MD,MMD,MS,SD,SS,SX,TD,TS,TX T=2.08,LH,PNC 41101A=TYPE A,LH,PNC 41101A=TYPE B |
1 | ||
| 90564-50170 |
GGN125,GUN125,126,LAN125,TGN126,128..AD,AS,KD,KS,MD,MMD,MS,SD,SS,SX,TD,TS,TX T=2.08,RH,PNC 41101A=TYPE B,RH,PNC 41101A=TYPE A |
1 | ||
| 90564-50187 |
GGN125,GUN125,126,LAN125,TGN126,128..AD,AS,KD,KS,MD,MMD,MS,SD,SS,SX,TD,TS,TX T=1.68,LH,PNC 41101A=TYPE A,LH,PNC 41101A=TYPE B |
1 | ||
| 90564-50191 |
GGN125,GUN125,126,LAN125,TGN126,128..AD,AS,KD,KS,MD,MMD,MS,SD,SS,SX,TD,TS,TX T=1.80,LH,PNC 41101A=TYPE A,LH,PNC 41101A=TYPE B |
1 | ||
| 90564-50186 |
GGN125,GUN125,126,LAN125,TGN126,128..AD,AS,KD,KS,MD,MMD,MS,SD,SS,SX,TD,TS,TX T=1.64,LH,PNC 41101A=TYPE A,LH,PNC 41101A=TYPE B |
1 | ||
| 90564-50166 |
GGN125,GUN125,126,LAN125,TGN126,128..AD,AS,KD,KS,MD,MMD,MS,SD,SS,SX,TD,TS,TX T=1.96,RH,PNC 41101A=TYPE B,RH,PNC 41101A=TYPE A |
1 | ||
| 90564-50185 |
GGN125,GUN125,126,LAN125,TGN126,128..AD,AS,KD,KS,MD,MMD,MS,SD,SS,SX,TD,TS,TX T=1.62,LH,PNC 41101A=TYPE A,LH,PNC 41101A=TYPE B |
1 | ||
| 90564-50168 |
GGN125,GUN125,126,LAN125,TGN126,128..AD,AS,KD,KS,MD,MMD,MS,SD,SS,SX,TD,TS,TX T=2.02,RH,PNC 41101A=TYPE B,RH,PNC 41101A=TYPE A |
1 | ||
| 90564-50188 |
GGN125,GUN125,126,LAN125,TGN126,128..AD,AS,KD,KS,MD,MMD,MS,SD,SS,SX,TD,TS,TX T=1.70,LH,PNC 41101A=TYPE A,LH,PNC 41101A=TYPE B |
1 | ||
| 90564-50172 |
GGN125,GUN125,126,LAN125,TGN126,128..AD,AS,KD,KS,MD,MMD,MS,SD,SS,SX,TD,TS,TX T=2.14,RH,PNC 41101A=TYPE B,RH,PNC 41101A=TYPE A |
1 | ||
| 90564-50189 |
GGN125,GUN125,126,LAN125,TGN126,128..AD,AS,KD,KS,MD,MMD,MS,SD,SS,SX,TD,TS,TX T=1.74,LH,PNC 41101A=TYPE A,LH,PNC 41101A=TYPE B |
1 | ||
| 90564-50190 |
GGN125,GUN125,126,LAN125,TGN126,128..AD,AS,KD,KS,MD,MMD,MS,SD,SS,SX,TD,TS,TX T=1.76,LH,PNC 41101A=TYPE A,LH,PNC 41101A=TYPE B |
1 | ||
| 90564-50196 |
GGN125,GUN125,126,LAN125,TGN126,128..AD,AS,KD,KS,MD,MMD,MS,SD,SS,SX,TD,TS,TX T=1.94,LH,PNC 41101A=TYPE A,LH,PNC 41101A=TYPE B |
1 | ||
| 90564-50193 |
GGN125,GUN125,126,LAN125,TGN126,128..AD,AS,KD,KS,MD,MMD,MS,SD,SS,SX,TD,TS,TX T=1.86,LH,PNC 41101A=TYPE A,LH,PNC 41101A=TYPE B |
1 | ||
| 90564-50200 |
GGN125,GUN125,126,LAN125,TGN126,128..AD,AS,KD,KS,MD,MMD,MS,SD,SS,SX,TD,TS,TX T=2.06,LH,PNC 41101A=TYPE A,LH,PNC 41101A=TYPE B |
1 | ||
| 90564-50198 |
GGN125,GUN125,126,LAN125,TGN126,128..AD,AS,KD,KS,MD,MMD,MS,SD,SS,SX,TD,TS,TX T=2.00,LH,PNC 41101A=TYPE A,LH,PNC 41101A=TYPE B |
1 | ||
| 90564-50192 |
GGN125,GUN125,126,LAN125,TGN126,128..AD,AS,KD,KS,MD,MMD,MS,SD,SS,SX,TD,TS,TX T=1.82,LH,PNC 41101A=TYPE A,LH,PNC 41101A=TYPE B |
1 | ||
| 90564-50203 |
GGN125,GUN125,126,LAN125,TGN126,128..AD,AS,KD,KS,MD,MMD,MS,SD,SS,SX,TD,TS,TX T=2.16,LH,PNC 41101A=TYPE A,LH,PNC 41101A=TYPE B |
1 | ||
| 90564-50208 |
GGN125,GUN125,126,LAN125,TGN126,128..AD,AS,KD,KS,MD,MMD,MS,SD,SS,SX,TD,TS,TX T=1.70,RH,PNC 41101A=TYPE B,RH,PNC 41101A=TYPE A |
1 | ||
| 90564-50195 |
GGN125,GUN125,126,LAN125,TGN126,128..AD,AS,KD,KS,MD,MMD,MS,SD,SS,SX,TD,TS,TX T=1.92,LH,PNC 41101A=TYPE A,LH,PNC 41101A=TYPE B |
1 | ||
| 90564-50199 |
GGN125,GUN125,126,LAN125,TGN126,128..AD,AS,KD,KS,MD,MMD,MS,SD,SS,SX,TD,TS,TX T=2.04,LH,PNC 41101A=TYPE A,LH,PNC 41101A=TYPE B |
1 | ||
| 90564-50206 |
GGN125,GUN125,126,LAN125,TGN126,128..AD,AS,KD,KS,MD,MMD,MS,SD,SS,SX,TD,TS,TX T=1.64,RH,PNC 41101A=TYPE B,RH,PNC 41101A=TYPE A |
1 | ||
| 90564-50197 |
GGN125,GUN125,126,LAN125,TGN126,128..AD,AS,KD,KS,MD,MMD,MS,SD,SS,SX,TD,TS,TX T=1.98,LH,PNC 41101A=TYPE A,LH,PNC 41101A=TYPE B |
1 | ||
| 90564-50194 |
GGN125,GUN125,126,LAN125,TGN126,128..AD,AS,KD,KS,MD,MMD,MS,SD,SS,SX,TD,TS,TX T=1.88,LH,PNC 41101A=TYPE A,LH,PNC 41101A=TYPE B |
1 | ||
| 90564-50202 |
GGN125,GUN125,126,LAN125,TGN126,128..AD,AS,KD,KS,MD,MMD,MS,SD,SS,SX,TD,TS,TX T=2.12,LH,PNC 41101A=TYPE A,LH,PNC 41101A=TYPE B |
1 | ||
| 90564-50204 |
GGN125,GUN125,126,LAN125,TGN126,128..AD,AS,KD,KS,MD,MMD,MS,SD,SS,SX,TD,TS,TX T=1.58,RH,PNC 41101A=TYPE B,RH,PNC 41101A=TYPE A |
1 | ||
| 90564-50205 |
GGN125,GUN125,126,LAN125,TGN126,128..AD,AS,KD,KS,MD,MMD,MS,SD,SS,SX,TD,TS,TX T=1.62,RH,PNC 41101A=TYPE B,RH,PNC 41101A=TYPE A |
1 | ||
| 90564-50209 |
GGN125,GUN125,126,LAN125,TGN126,128..AD,AS,KD,KS,MD,MMD,MS,SD,SS,SX,TD,TS,TX T=1.74,RH,PNC 41101A=TYPE B,RH,PNC 41101A=TYPE A |
1 | ||
| 90564-50201 |
GGN125,GUN125,126,LAN125,TGN126,128..AD,AS,KD,KS,MD,MMD,MS,SD,SS,SX,TD,TS,TX T=2.10,LH,PNC 41101A=TYPE A,LH,PNC 41101A=TYPE B |
1 | ||
| 90564-50218 |
GGN125,GUN125,126,LAN125,TGN126,128..AD,AS,KD,KS,MD,MMD,MS,SD,SS,SX,TD,TS,TX T=2.00,RH,PNC 41101A=TYPE B,RH,PNC 41101A=TYPE A |
1 | ||
| 90564-50210 |
GGN125,GUN125,126,LAN125,TGN126,128..AD,AS,KD,KS,MD,MMD,MS,SD,SS,SX,TD,TS,TX T=1.76,RH,PNC 41101A=TYPE B,RH,PNC 41101A=TYPE A |
1 | ||
| 90564-50213 |
GGN125,GUN125,126,LAN125,TGN126,128..AD,AS,KD,KS,MD,MMD,MS,SD,SS,SX,TD,TS,TX T=1.86,RH,PNC 41101A=TYPE B,RH,PNC 41101A=TYPE A |
1 | ||
| 90564-50217 |
GGN125,GUN125,126,LAN125,TGN126,128..AD,AS,KD,KS,MD,MMD,MS,SD,SS,SX,TD,TS,TX T=1.98,RH,PNC 41101A=TYPE B,RH,PNC 41101A=TYPE A |
1 | ||
| 90564-50214 |
GGN125,GUN125,126,LAN125,TGN126,128..AD,AS,KD,KS,MD,MMD,MS,SD,SS,SX,TD,TS,TX T=1.88,RH,PNC 41101A=TYPE B,RH,PNC 41101A=TYPE A |
1 | ||
| 90564-50207 |
GGN125,GUN125,126,LAN125,TGN126,128..AD,AS,KD,KS,MD,MMD,MS,SD,SS,SX,TD,TS,TX T=1.68,RH,PNC 41101A=TYPE B,RH,PNC 41101A=TYPE A |
1 | ||
| 90564-50221 |
GGN125,GUN125,126,LAN125,TGN126,128..AD,AS,KD,KS,MD,MMD,MS,SD,SS,SX,TD,TS,TX T=2.10,RH,PNC 41101A=TYPE B,RH,PNC 41101A=TYPE A |
1 | ||
| 90564-50215 |
GGN125,GUN125,126,LAN125,TGN126,128..AD,AS,KD,KS,MD,MMD,MS,SD,SS,SX,TD,TS,TX T=1.92,RH,PNC 41101A=TYPE B,RH,PNC 41101A=TYPE A |
1 | ||
| 90564-50224 |
GGN125,GUN125,126,LAN125,TGN126,128..AD,AS,KD,KS,MD,MMD,MS,SD,SS,SX,TD,TS,TX T=1.44,RH,PNC 41101A=TYPE A |
1 | ||
| 90564-50212 |
GGN125,GUN125,126,LAN125,TGN126,128..AD,AS,KD,KS,MD,MMD,MS,SD,SS,SX,TD,TS,TX T=1.82,RH,PNC 41101A=TYPE B,RH,PNC 41101A=TYPE A |
1 | ||
| 90564-50225 |
GGN125,GUN125,126,LAN125,TGN126,128..AD,AS,KD,KS,MD,MMD,MS,SD,SS,SX,TD,TS,TX T=1.46,RH,PNC 41101A=TYPE A |
1 | ||
| 90564-50228 |
GGN125,GUN125,126,LAN125,TGN126,128..AD,AS,KD,KS,MD,MMD,MS,SD,SS,SX,TD,TS,TX T=1.52,RH,PNC 41101A=TYPE A |
1 | ||
| 90564-50226 |
GGN125,GUN125,126,LAN125,TGN126,128..AD,AS,KD,KS,MD,MMD,MS,SD,SS,SX,TD,TS,TX T=1.48,RH,PNC 41101A=TYPE A |
1 | ||
| 90564-50223 |
GGN125,GUN125,126,LAN125,TGN126,128..AD,AS,KD,KS,MD,MMD,MS,SD,SS,SX,TD,TS,TX T=2.16,RH,PNC 41101A=TYPE B,RH,PNC 41101A=TYPE A |
1 | ||
| 90564-50216 |
GGN125,GUN125,126,LAN125,TGN126,128..AD,AS,KD,KS,MD,MMD,MS,SD,SS,SX,TD,TS,TX T=1.94,RH,PNC 41101A=TYPE B,RH,PNC 41101A=TYPE A |
1 | ||
| 90564-50220 |
GGN125,GUN125,126,LAN125,TGN126,128..AD,AS,KD,KS,MD,MMD,MS,SD,SS,SX,TD,TS,TX T=2.06,RH,PNC 41101A=TYPE B,RH,PNC 41101A=TYPE A |
1 | ||
| 90564-50231 |
GGN125,GUN125,126,LAN125,TGN126,128..AD,AS,KD,KS,MD,MMD,MS,SD,SS,SX,TD,TS,TX T=2.18,LH,PNC 41101A=TYPE A |
1 | ||
| 90564-50219 |
GGN125,GUN125,126,LAN125,TGN126,128..AD,AS,KD,KS,MD,MMD,MS,SD,SS,SX,TD,TS,TX T=2.04,RH,PNC 41101A=TYPE B,RH,PNC 41101A=TYPE A |
1 | ||
| 90564-50230 |
GGN125,GUN125,126,LAN125,TGN126,128..AD,AS,KD,KS,MD,MMD,MS,SD,SS,SX,TD,TS,TX T=1.56,RH,PNC 41101A=TYPE A |
1 | ||
| 90564-50233 |
GGN125,GUN125,126,LAN125,TGN126,128..AD,AS,KD,KS,MD,MMD,MS,SD,SS,SX,TD,TS,TX T=2.22,LH,PNC 41101A=TYPE A |
1 | ||
| 90564-50229 |
GGN125,GUN125,126,LAN125,TGN126,128..AD,AS,KD,KS,MD,MMD,MS,SD,SS,SX,TD,TS,TX T=1.54,RH,PNC 41101A=TYPE A |
1 | ||
| 90564-50222 |
GGN125,GUN125,126,LAN125,TGN126,128..AD,AS,KD,KS,MD,MMD,MS,SD,SS,SX,TD,TS,TX T=2.12,RH,PNC 41101A=TYPE B,RH,PNC 41101A=TYPE A |
1 | ||
| 90564-50211 |
GGN125,GUN125,126,LAN125,TGN126,128..AD,AS,KD,KS,MD,MMD,MS,SD,SS,SX,TD,TS,TX T=1.80,RH,PNC 41101A=TYPE B,RH,PNC 41101A=TYPE A |
1 | ||
| 90564-50234 |
GGN125,GUN125,126,LAN125,TGN126,128..AD,AS,KD,KS,MD,MMD,MS,SD,SS,SX,TD,TS,TX T=2.24,LH,PNC 41101A=TYPE A |
1 | ||
| 90564-50232 |
GGN125,GUN125,126,LAN125,TGN126,128..AD,AS,KD,KS,MD,MMD,MS,SD,SS,SX,TD,TS,TX T=2.20,LH,PNC 41101A=TYPE A |
1 | ||
| 90564-50236 |
GGN125,GUN125,126,LAN125,TGN126,128..AD,AS,KD,KS,MD,MMD,MS,SD,SS,SX,TD,TS,TX T=2.28,LH,PNC 41101A=TYPE A |
1 | ||
| 90564-50227 |
GGN125,GUN125,126,LAN125,TGN126,128..AD,AS,KD,KS,MD,MMD,MS,SD,SS,SX,TD,TS,TX T=1.50,RH,PNC 41101A=TYPE A |
1 | ||
| 90564-50235 |
GGN125,GUN125,126,LAN125,TGN126,128..AD,AS,KD,KS,MD,MMD,MS,SD,SS,SX,TD,TS,TX T=2.26,LH,PNC 41101A=TYPE A |
1 | ||
| 90564-50237 |
GGN125,GUN125,126,LAN125,TGN126,128..AD,AS,KD,KS,MD,MMD,MS,SD,SS,SX,TD,TS,TX T=2.30,LH,PNC 41101A=TYPE A |
1 | ||
| 41320 - TUBE ASSY, FRONT DIFFERENTIAL | ||||
| 41320-0K020 |
TGN126..H..LA;TGN126..L..SA;GUN125..6FC..(H,S)..GCC;TGN126..(H,S)..(GEN,SA);GUN125..6F..(ARL,BZAG,GCC,GEN,IDN,KEN,LA,MA,PH,SA,TH,VN);GUN125..(AD,MD,SD,SS,TD,TX)..6FC..(ARL,GEN,IDN,LA,MA,SA);GGN125,GUN126,LAN125,TGN128..AD,AS,KD,MD,MMD,SD,SS,SX,TD,TS,TX PNC 41101A=TYPE B |
1 | ||
| 41320-0K020 |
TGN126..6FC..L;GUN125..TS..6FC;TGN126..(L,S)..LA;TGN126..TD..(H,S)..GCC AUTOMATIC DISCONNECTING DIFFERENTIAL-WITH,PNC 41101A=TYPE B |
1 | ||
| 41320-71020 |
TGN126..H..LA;TGN126..L..SA;GUN125..6FC..(H,S)..GCC;TGN126..(H,S)..(GEN,SA);GUN125..6F..(ARL,BZAG,GCC,GEN,IDN,KEN,LA,MA,PH,SA,TH,VN);GUN125..(AD,MD,SD,SS,TD,TX)..6FC..(ARL,GEN,IDN,LA,MA,SA);GGN125,GUN126,LAN125,TGN128..AD,AS,KD,MD,MMD,SD,SS,SX,TD,TS,TX PNC 41101A=TYPE A |
1 | ||
| 41320-71020 |
TGN126..6FC..L;GUN125..TS..6FC;TGN126..(L,S)..LA;TGN126..TD..(H,S)..GCC AUTOMATIC DISCONNECTING DIFFERENTIAL-WITH,PNC 41101A=TYPE A |
1 | ||
| 41321-0K030 |
TGN126..S..LA;GUN125..TS..6FC;TGN126..(H,S)..GCC;GUN125,TGN126..LHD..(5F,6FC)..L..(GCC,GEN,LA) PNC 41101A=TYPE B |
1 | ||
| 41321-71030 |
TGN126..S..LA;GUN125..TS..6FC;TGN126..(H,S)..GCC;GUN125,TGN126..LHD..(5F,6FC)..L..(GCC,GEN,LA) PNC 41101A=TYPE A |
1 | ||
| 41342A - PIN, STRAIGHT (FOR FRONT DIFFERENTIAL PINION SHAFT) | ||||
| 90250-06058 |
GGN125,GUN125,126,LAN125,TGN126,128..AD,AS,KD,KS,MD,MMD,MS,SD,SS,SX,TD,TS,TX PNC 41101A=TYPE A |
1 | ||
| 90250-T0006 |
GGN125,GUN125,126,LAN125,TGN126,128..AD,AS,KD,KS,MD,MMD,MS,SD,SS,SX,TD,TS,TX PNC 41101A=TYPE B |
1 | ||
| 41342F - SHAFT, FRONT DIFFERENTIAL PINION, NO.1 | ||||
| 41342-0K040 |
GGN125,GUN125,126,LAN125,TGN126,128..AD,AS,KD,KS,MD,MMD,MS,SD,SS,SX,TD,TS,TX PNC 41101A=TYPE B |
1 | ||
| 41342-53020 |
GGN125,GUN125,126,LAN125,TGN126,128..AD,AS,KD,KS,MD,MMD,MS,SD,SS,SX,TD,TS,TX PNC 41101A=TYPE A |
1 | ||
| 41351F - WASHER, FRONT DIFFERENTIAL PINION THRUST | ||||
| 41351-35030 |
GGN125,GUN125,126,LAN125,TGN126,128..AD,AS,KD,KS,MD,MMD,MS,SD,SS,SX,TD,TS,TX PNC 41101A=TYPE A,(J),PNC 41101A=T/P B |
2 | ||
| 41351-0K010 |
GGN125,GUN125,126,LAN125,TGN126,128..AD,AS,KD,KS,MD,MMD,MS,SD,SS,SX,TD,TS,TX (L),PNC 41101A=T/P B |
2 | ||
| 41351F - WASHER, FRONT DIFFERENTIAL PINION THRUST | ||||
| 41351-35030 |
GGN125,GUN125,126,LAN125,TGN126,128..AD,AS,KD,KS,MD,MMD,MS,SD,SS,SX,TD,TS,TX PNC 41101A=TYPE A,(J),PNC 41101A=T/P B |
2 | ||
| 41351-0K010 |
GGN125,GUN125,126,LAN125,TGN126,128..AD,AS,KD,KS,MD,MMD,MS,SD,SS,SX,TD,TS,TX (L),PNC 41101A=T/P B |
2 | ||
| 41361F - WASHER, FRONT DIFFERENTIAL SIDE GEAR THRUST, NO.1 | ||||
| 41361-0K040 |
GGN125,GUN125,126,LAN125,TGN126,128..AD,AS,KD,KS,MD,MMD,MS,SD,SS,SX,TD,TS,TX T=1.65,PNC 41101A=TYPE B |
2 | ||
| 41361-0K020 |
GGN125,GUN125,126,LAN125,TGN126,128..AD,AS,KD,KS,MD,MMD,MS,SD,SS,SX,TD,TS,TX T=1.55,PNC 41101A=TYPE B |
2 | ||
| 41361-0K030 |
GGN125,GUN125,126,LAN125,TGN126,128..AD,AS,KD,KS,MD,MMD,MS,SD,SS,SX,TD,TS,TX T=1.60,PNC 41101A=TYPE B |
2 | ||
| 41361-0K090 |
GGN125,GUN125,126,LAN125,TGN126,128..AD,AS,KD,KS,MD,MMD,MS,SD,SS,SX,TD,TS,TX T=1.90,PNC 41101A=TYPE B |
2 | ||
| 41361-0K070 |
GGN125,GUN125,126,LAN125,TGN126,128..AD,AS,KD,KS,MD,MMD,MS,SD,SS,SX,TD,TS,TX T=1.80,PNC 41101A=TYPE B |
2 | ||
| 41361-34050 |
GGN125,GUN125,126,LAN125,TGN126,128..AD,AS,KD,KS,MD,MMD,MS,SD,SS,SX,TD,TS,TX T=1.70,PNC 41101A=TYPE A |
2 | ||
| 41361-34020 |
GGN125,GUN125,126,LAN125,TGN126,128..AD,AS,KD,KS,MD,MMD,MS,SD,SS,SX,TD,TS,TX T=1.55,PNC 41101A=TYPE A |
2 | ||
| 41361-0K050 |
GGN125,GUN125,126,LAN125,TGN126,128..AD,AS,KD,KS,MD,MMD,MS,SD,SS,SX,TD,TS,TX T=1.70,PNC 41101A=TYPE B |
2 | ||
| 41361-34060 |
GGN125,GUN125,126,LAN125,TGN126,128..AD,AS,KD,KS,MD,MMD,MS,SD,SS,SX,TD,TS,TX T=1.75,PNC 41101A=TYPE A |
2 | ||
| 41361-0K080 |
GGN125,GUN125,126,LAN125,TGN126,128..AD,AS,KD,KS,MD,MMD,MS,SD,SS,SX,TD,TS,TX T=1.85,PNC 41101A=TYPE B |
2 | ||
| 41361-0K060 |
GGN125,GUN125,126,LAN125,TGN126,128..AD,AS,KD,KS,MD,MMD,MS,SD,SS,SX,TD,TS,TX T=1.75,PNC 41101A=TYPE B |
2 | ||
| 41361-34010 |
GGN125,GUN125,126,LAN125,TGN126,128..AD,AS,KD,KS,MD,MMD,MS,SD,SS,SX,TD,TS,TX T=1.50,PNC 41101A=TYPE A |
2 | ||
| 41361-34030 |
GGN125,GUN125,126,LAN125,TGN126,128..AD,AS,KD,KS,MD,MMD,MS,SD,SS,SX,TD,TS,TX T=1.60,PNC 41101A=TYPE A |
2 | ||
| 41361-34070 |
GGN125,GUN125,126,LAN125,TGN126,128..AD,AS,KD,KS,MD,MMD,MS,SD,SS,SX,TD,TS,TX T=1.80,PNC 41101A=TYPE A |
2 | ||
| 41361-34080 |
GGN125,GUN125,126,LAN125,TGN126,128..AD,AS,KD,KS,MD,MMD,MS,SD,SS,SX,TD,TS,TX T=1.85,PNC 41101A=TYPE A |
2 | ||
| 41361-34090 |
GGN125,GUN125,126,LAN125,TGN126,128..AD,AS,KD,KS,MD,MMD,MS,SD,SS,SX,TD,TS,TX T=1.90,PNC 41101A=TYPE A |
2 | ||
| 41361-34040 |
GGN125,GUN125,126,LAN125,TGN126,128..AD,AS,KD,KS,MD,MMD,MS,SD,SS,SX,TD,TS,TX T=1.65,PNC 41101A=TYPE A |
2 | ||
| 41361F - WASHER, FRONT DIFFERENTIAL SIDE GEAR THRUST, NO.1 | ||||
| 41361-0K040 |
GGN125,GUN125,126,LAN125,TGN126,128..AD,AS,KD,KS,MD,MMD,MS,SD,SS,SX,TD,TS,TX T=1.65,PNC 41101A=TYPE B |
2 | ||
| 41361-0K020 |
GGN125,GUN125,126,LAN125,TGN126,128..AD,AS,KD,KS,MD,MMD,MS,SD,SS,SX,TD,TS,TX T=1.55,PNC 41101A=TYPE B |
2 | ||
| 41361-0K030 |
GGN125,GUN125,126,LAN125,TGN126,128..AD,AS,KD,KS,MD,MMD,MS,SD,SS,SX,TD,TS,TX T=1.60,PNC 41101A=TYPE B |
2 | ||
| 41361-0K090 |
GGN125,GUN125,126,LAN125,TGN126,128..AD,AS,KD,KS,MD,MMD,MS,SD,SS,SX,TD,TS,TX T=1.90,PNC 41101A=TYPE B |
2 | ||
| 41361-0K070 |
GGN125,GUN125,126,LAN125,TGN126,128..AD,AS,KD,KS,MD,MMD,MS,SD,SS,SX,TD,TS,TX T=1.80,PNC 41101A=TYPE B |
2 | ||
| 41361-34050 |
GGN125,GUN125,126,LAN125,TGN126,128..AD,AS,KD,KS,MD,MMD,MS,SD,SS,SX,TD,TS,TX T=1.70,PNC 41101A=TYPE A |
2 | ||
| 41361-34020 |
GGN125,GUN125,126,LAN125,TGN126,128..AD,AS,KD,KS,MD,MMD,MS,SD,SS,SX,TD,TS,TX T=1.55,PNC 41101A=TYPE A |
2 | ||
| 41361-0K050 |
GGN125,GUN125,126,LAN125,TGN126,128..AD,AS,KD,KS,MD,MMD,MS,SD,SS,SX,TD,TS,TX T=1.70,PNC 41101A=TYPE B |
2 | ||
| 41361-34060 |
GGN125,GUN125,126,LAN125,TGN126,128..AD,AS,KD,KS,MD,MMD,MS,SD,SS,SX,TD,TS,TX T=1.75,PNC 41101A=TYPE A |
2 | ||
| 41361-0K080 |
GGN125,GUN125,126,LAN125,TGN126,128..AD,AS,KD,KS,MD,MMD,MS,SD,SS,SX,TD,TS,TX T=1.85,PNC 41101A=TYPE B |
2 | ||
| 41361-0K060 |
GGN125,GUN125,126,LAN125,TGN126,128..AD,AS,KD,KS,MD,MMD,MS,SD,SS,SX,TD,TS,TX T=1.75,PNC 41101A=TYPE B |
2 | ||
| 41361-34010 |
GGN125,GUN125,126,LAN125,TGN126,128..AD,AS,KD,KS,MD,MMD,MS,SD,SS,SX,TD,TS,TX T=1.50,PNC 41101A=TYPE A |
2 | ||
| 41361-34030 |
GGN125,GUN125,126,LAN125,TGN126,128..AD,AS,KD,KS,MD,MMD,MS,SD,SS,SX,TD,TS,TX T=1.60,PNC 41101A=TYPE A |
2 | ||
| 41361-34070 |
GGN125,GUN125,126,LAN125,TGN126,128..AD,AS,KD,KS,MD,MMD,MS,SD,SS,SX,TD,TS,TX T=1.80,PNC 41101A=TYPE A |
2 | ||
| 41361-34080 |
GGN125,GUN125,126,LAN125,TGN126,128..AD,AS,KD,KS,MD,MMD,MS,SD,SS,SX,TD,TS,TX T=1.85,PNC 41101A=TYPE A |
2 | ||
| 41361-34090 |
GGN125,GUN125,126,LAN125,TGN126,128..AD,AS,KD,KS,MD,MMD,MS,SD,SS,SX,TD,TS,TX T=1.90,PNC 41101A=TYPE A |
2 | ||
| 41361-34040 |
GGN125,GUN125,126,LAN125,TGN126,128..AD,AS,KD,KS,MD,MMD,MS,SD,SS,SX,TD,TS,TX T=1.65,PNC 41101A=TYPE A |
2 | ||
| 41435A - BOLT (FOR DIFFERENTIAL CLUTCH CASE SETTING) | ||||
| 90107-12002 |
TGN126..H..LA;TGN126..L..SA;GUN125..6FC..(H,S)..GCC;TGN126..(H,S)..(GEN,SA);GUN125..6F..(ARL,BZAG,GCC,GEN,IDN,KEN,LA,MA,PH,SA,TH,VN);GUN125..(AD,MD,SD,SS,TD,TX)..6FC..(ARL,GEN,IDN,LA,MA,SA);GGN125,GUN126,LAN125,TGN128..AD,AS,KD,MD,MMD,SD,SS,SX,TD,TS,TX *12-1.25PX78-30,PNC 41101A=TYPE A |
4 | ||
| 90107-12002 |
TGN126..6FC..L;GUN125..TS..6FC;TGN126..(L,S)..LA;TGN126..TD..(H,S)..GCC *12-1.25PX78-30,AUTOMATIC DISCONNECTING DIFFERENTIAL-WITH,PNC 41101A=TYPE A |
4 | ||
| 90107-T0002 |
TGN126..S..LA;GUN125..TS..6FC;TGN126..(H,S)..GCC;GUN125,TGN126..LHD..(5F,6FC)..L..(GCC,GEN,LA) *12-1.25PX24-16.5,(L),PNC 41101A=T/P B |
4 | ||
| 90107-T0001 |
TGN126..6FC..L;GUN125..TS..6FC;TGN126..(L,S)..LA;TGN126..TD..(H,S)..GCC *12-1.25PX78-30,AUTOMATIC DISCONNECTING DIFFERENTIAL-WITH,PNC 41101A=TYPE B |
4 | ||
| 90107-T0001 |
TGN126..H..LA;TGN126..L..SA;GUN125..6FC..(H,S)..GCC;TGN126..(H,S)..(GEN,SA);GUN125..6F..(ARL,BZAG,GCC,GEN,IDN,KEN,LA,MA,PH,SA,TH,VN);GUN125..(AD,MD,SD,SS,TD,TX)..6FC..(ARL,GEN,IDN,LA,MA,SA);GGN125,GUN126,LAN125,TGN128..AD,AS,KD,MD,MMD,SD,SS,SX,TD,TS,TX *12-1.25PX78-30,PNC 41101A=TYPE B |
4 | ||
| 90107-12003 |
TGN126..S..LA;GUN125..TS..6FC;TGN126..(H,S)..GCC;GUN125,TGN126..LHD..(5F,6FC)..L..(GCC,GEN,LA) *12-1.25PX24-16.5,PNC 41101A=TYPE A,(J),PNC 41101A=T/P B |
4 | ||
| 41653B - STOPPER, DIFFERENTIAL MOUNT, UPPER | ||||
| 41653-0K010 |
GGN125,GUN125,126,LAN125,TGN126,128..AD,AS,KD,KS,MD,MMD,MS,SD,SS,SX,TD,TS,TX |
2 | ||
| 41653B - STOPPER, DIFFERENTIAL MOUNT, UPPER | ||||
| 41653-0K010 |
GGN125,GUN125,126,LAN125,TGN126,128..AD,AS,KD,KS,MD,MMD,MS,SD,SS,SX,TD,TS,TX |
2 | ||
| 41654A - STOPPER, DIFFERENTIAL MOUNT, LOWER | ||||
| 41654-0K010 |
GGN125,GUN125,126,LAN125,TGN126,128..AD,AS,KD,KS,MD,MMD,MS,SD,SS,SX,TD,TS,TX |
2 | ||
| 41654A - STOPPER, DIFFERENTIAL MOUNT, LOWER | ||||
| 41654-0K010 |
GGN125,GUN125,126,LAN125,TGN126,128..AD,AS,KD,KS,MD,MMD,MS,SD,SS,SX,TD,TS,TX |
2 | ||
| 41655 - NUT, FRONT DIFFERENTIAL MOUNT, NO.1 | ||||
| 41655-0K011 |
GGN125,GUN125,126,LAN125,TGN126,128..AD,AS,KD,KS,MD,MMD,MS,SD,SS,SX,TD,TS,TX |
1 | ||
| 43637C - NUT, CASTLE (FOR FRONT AXLE DRIVE PINION) | ||||
| 90177-22003 |
GGN125,GUN125,126,LAN125,TGN126,128..AD,AS,KD,KS,MD,MMD,MS,SD,SS,SX,TD,TS,TX PNC 41101A=TYPE A,PNC 41101A=TYPE B |
1 | ||
| 43640G - SEAL, TYPE T OIL (FOR FRONT AXLE DIFFERENTIAL CARRIER) | ||||
| 90311-41015 |
GGN125,GUN125,126,LAN125,TGN126,128..AD,AS,KD,KS,MD,MMD,MS,SD,SS,SX,TD,TS,TX PNC 41101A=TYPE A |
1 | ||
| 90311-T0064 |
GGN125,GUN125,126,LAN125,TGN126,128..AD,AS,KD,KS,MD,MMD,MS,SD,SS,SX,TD,TS,TX PNC 41101A=TYPE B |
1 | ||
| 52392A - SUPPORT, FRONT DIFFERENTIAL, NO.1 | ||||
| 52380-0K010 |
GGN125,GUN125,126,TGN126..MD,MMD,MS,TD,TS,TX |
1 | ||
| 52393A - SUPPORT, FRONT DIFFERENTIAL, NO.2 | ||||
| 52380-0K020 |
GGN125,GUN125,126,TGN126..MD,MMD,MS,TD,TS,TX |
1 | ||
| 52394 - SUPPORT, FRONT DIFFERENTIAL, NO.3 | ||||
| 52380-0K030 |
GGN125,GUN125,126,TGN126..MD,MMD,MS,TD,TS,TX |
1 | ||
| 89429H - SENSOR, TEMPERATURE | ||||
| 89429-53010 |
GGN125,GUN125,126,LAN125,TGN126,128..AD,AS,KD,KS,MD,MMD,MS,SD,SS,SX,TD,TS,TX |
1 | ||
| 89429J - GASKET(FOR TEMPERATURE SENSOR) | ||||
| 90430-14011 |
GGN125,GUN125,126,LAN125,TGN126,128..AD,AS,KD,KS,MD,MMD,MS,SD,SS,SX,TD,TS,TX |
1 | ||
| Common parts | ||||
| 90105-14090 | ||||
| 90105-T0078 | ||||
| 90105-T0080 | ||||
| 90105-T0303 | ||||
| 90119-T0300 | ||||
| 90178-T0094 | ||||
| 94151-21441 | ||||
ILLUST NO. 2 OF 2(2006- )GUN125,126,LAN125,TGN126,128..ARL,BZAG,GCC,GEN,IDN,KEN,LA,MA,MMR,PH,PKN,
W(*ADD)
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 41110R - PLUG, BREATHER (FOR FRONT DIFFERENTIAL) | ||||
| 90930-03159 |
TGN126..6FC..L;GUN125..TS..6FC;TGN126..(L,S)..LA;TGN126..TD..(H,S)..GCC AUTOMATIC DISCONNECTING DIFFERENTIAL-WITH,NO.2:REFER ILLUST. |
1 | ||
| 90930-03219 |
TGN126..6FC..L;GUN125..TS..6FC;TGN126..(L,S)..LA;TGN126..TD..(H,S)..GCC AUTOMATIC DISCONNECTING DIFFERENTIAL-WITH,NO.1:REFER ILLUST. |
1 | ||
| 90930-03219 |
TGN126..H..LA;TGN126..L..SA;GUN125..6FC..(H,S)..GCC;TGN126..(H,S)..(GEN,SA);GUN125..6F..(ARL,BZAG,GCC,GEN,IDN,KEN,LA,MA,PH,SA,TH,VN);GUN125..(AD,MD,SD,SS,TD,TX)..6FC..(ARL,GEN,IDN,LA,MA,SA);GGN125,GUN126,LAN125,TGN128..AD,AS,KD,MD,MMD,SD,SS,SX,TD,TS,TX NO.1:REFER ILLUST. |
1 | ||
| 90930-03219 |
TGN126..S..LA;GUN125..TS..6FC;TGN126..(H,S)..GCC;GUN125,TGN126..LHD..(5F,6FC)..L..(GCC,GEN,LA) |
1 | ||
| 90930-03159 |
TGN126..H..LA;TGN126..L..SA;GUN125..6FC..(H,S)..GCC;TGN126..(H,S)..(GEN,SA);GUN125..6F..(ARL,BZAG,GCC,GEN,IDN,KEN,LA,MA,PH,SA,TH,VN);GUN125..(AD,MD,SD,SS,TD,TX)..6FC..(ARL,GEN,IDN,LA,MA,SA);GGN125,GUN126,LAN125,TGN128..AD,AS,KD,MD,MMD,SD,SS,SX,TD,TS,TX NO.2:REFER ILLUST. |
1 | ||
| 41110R - PLUG, BREATHER (FOR FRONT DIFFERENTIAL) | ||||
| 90930-03159 |
TGN126..6FC..L;GUN125..TS..6FC;TGN126..(L,S)..LA;TGN126..TD..(H,S)..GCC AUTOMATIC DISCONNECTING DIFFERENTIAL-WITH,NO.2:REFER ILLUST. |
1 | ||
| 90930-03219 |
TGN126..6FC..L;GUN125..TS..6FC;TGN126..(L,S)..LA;TGN126..TD..(H,S)..GCC AUTOMATIC DISCONNECTING DIFFERENTIAL-WITH,NO.1:REFER ILLUST. |
1 | ||
| 90930-03219 |
TGN126..H..LA;TGN126..L..SA;GUN125..6FC..(H,S)..GCC;TGN126..(H,S)..(GEN,SA);GUN125..6F..(ARL,BZAG,GCC,GEN,IDN,KEN,LA,MA,PH,SA,TH,VN);GUN125..(AD,MD,SD,SS,TD,TX)..6FC..(ARL,GEN,IDN,LA,MA,SA);GGN125,GUN126,LAN125,TGN128..AD,AS,KD,MD,MMD,SD,SS,SX,TD,TS,TX NO.1:REFER ILLUST. |
1 | ||
| 90930-03219 |
TGN126..S..LA;GUN125..TS..6FC;TGN126..(H,S)..GCC;GUN125,TGN126..LHD..(5F,6FC)..L..(GCC,GEN,LA) |
1 | ||
| 90930-03159 |
TGN126..H..LA;TGN126..L..SA;GUN125..6FC..(H,S)..GCC;TGN126..(H,S)..(GEN,SA);GUN125..6F..(ARL,BZAG,GCC,GEN,IDN,KEN,LA,MA,PH,SA,TH,VN);GUN125..(AD,MD,SD,SS,TD,TX)..6FC..(ARL,GEN,IDN,LA,MA,SA);GGN125,GUN126,LAN125,TGN128..AD,AS,KD,MD,MMD,SD,SS,SX,TD,TS,TX NO.2:REFER ILLUST. |
1 | ||
| 41507A - TUBE, FRONT DIFFERENTIAL LOCK ACTUATOR BREATHER, NO.2 | ||||
| 41507-0K090 |
TGN126..6FC..L;GUN125..TS..6FC;TGN126..(L,S)..LA;TGN126..TD..(H,S)..GCC AUTOMATIC DISCONNECTING DIFFERENTIAL-WITH |
1 | ||
| 41507-0K100 |
TGN126..S..LA;GUN125..TS..6FC;TGN126..(H,S)..GCC;GUN125,TGN126..LHD..(5F,6FC)..L..(GCC,GEN,LA) |
1 | ||
| 41507-0K090 |
TGN126..H..LA;TGN126..L..SA;GUN125..6FC..(H,S)..GCC;TGN126..(H,S)..(GEN,SA);GUN126,TGN128..AD,AS,KD,MD,MMD,SD,SS,SX,TD,TS,TX;GUN125..6F..(ARL,BZAG,GCC,GEN,IDN,KEN,LA,MA,PH,SA,TH,VN);GUN125..(AD,MD,SD,SS,TD,TX)..6FC..(ARL,GEN,IDN,LA,MA,SA) |
1 | ||
| 41507B - TUBE, FRONT DIFFERENTIAL LOCK ACTUATOR BREATHER | ||||
| 90445-T0014 |
GGN125,GUN125,126,LAN125,TGN126,128..AD,AS,KD,KS,MD,MMD,MS,SD,SS,SX,TD,TS,TX |
1 | ||
| 41533 - TUBE, FRONT DIFFERENTIAL BREATHER | ||||
| 41533-0K050 |
TGN126..6FC..L;GUN125..TS..6FC;TGN126..(L,S)..LA;TGN126..TD..(H,S)..GCC AUTOMATIC DISCONNECTING DIFFERENTIAL-WITH |
1 | ||
| 41533-0K050 |
TGN126..H..LA;TGN126..L..SA;GUN125..6FC..(H,S)..GCC;TGN126..(H,S)..(GEN,SA);GUN126,LAN125,TGN128..AD,AS,KD,MD,MMD,SD,SS,SX,TD,TS,TX;GUN125..6F..(ARL,BZAG,GCC,GEN,IDN,KEN,LA,MA,PH,SA,TH,VN);GUN125..(AD,MD,SD,SS,TD,TX)..6FC..(ARL,GEN,IDN,LA,MA,SA) |
1 | ||
| 41533-0K080 |
TGN126..S..LA;GUN125..TS..6FC;TGN126..(H,S)..GCC;GUN125,TGN126..LHD..(5F,6FC)..L..(GCC,GEN,LA) |
1 | ||
| 41534 - BRACKET, FRONT DIFFERENTIAL BREATHER | ||||
| 41534-0K030 |
GUN125,126,TGN126,128..AD,AS,MD,MMD,MS,TD,TS,TX |
1 | ||
| Common parts | ||||
| 90105-T0059 | ||||
| 90119-06935 | ||||
| 90466-T0059 | ||||
ILLUST NO. 2 OF 2(2006- )GUN125,126,LAN125,TGN126,128..ARL,BZAG,GCC,GEN,IDN,KEN,LA,MA,MMR,PH,PKN,
W/O(*ADD)
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 41110R - PLUG, BREATHER (FOR FRONT DIFFERENTIAL) | ||||
| 90930-03159 |
TGN126..6FC..L;GUN125..TS..6FC;TGN126..(L,S)..LA;TGN126..TD..(H,S)..GCC AUTOMATIC DISCONNECTING DIFFERENTIAL-WITH,NO.2:REFER ILLUST. |
1 | ||
| 90930-03219 |
TGN126..6FC..L;GUN125..TS..6FC;TGN126..(L,S)..LA;TGN126..TD..(H,S)..GCC AUTOMATIC DISCONNECTING DIFFERENTIAL-WITH,NO.1:REFER ILLUST. |
1 | ||
| 90930-03219 |
TGN126..H..LA;TGN126..L..SA;GUN125..6FC..(H,S)..GCC;TGN126..(H,S)..(GEN,SA);GUN125..6F..(ARL,BZAG,GCC,GEN,IDN,KEN,LA,MA,PH,SA,TH,VN);GUN125..(AD,MD,SD,SS,TD,TX)..6FC..(ARL,GEN,IDN,LA,MA,SA);GGN125,GUN126,LAN125,TGN128..AD,AS,KD,MD,MMD,SD,SS,SX,TD,TS,TX NO.1:REFER ILLUST. |
1 | ||
| 90930-03219 |
TGN126..S..LA;GUN125..TS..6FC;TGN126..(H,S)..GCC;GUN125,TGN126..LHD..(5F,6FC)..L..(GCC,GEN,LA) |
1 | ||
| 90930-03159 |
TGN126..H..LA;TGN126..L..SA;GUN125..6FC..(H,S)..GCC;TGN126..(H,S)..(GEN,SA);GUN125..6F..(ARL,BZAG,GCC,GEN,IDN,KEN,LA,MA,PH,SA,TH,VN);GUN125..(AD,MD,SD,SS,TD,TX)..6FC..(ARL,GEN,IDN,LA,MA,SA);GGN125,GUN126,LAN125,TGN128..AD,AS,KD,MD,MMD,SD,SS,SX,TD,TS,TX NO.2:REFER ILLUST. |
1 | ||
| 41507A - TUBE, FRONT DIFFERENTIAL LOCK ACTUATOR BREATHER, NO.2 | ||||
| 41507-0K090 |
TGN126..6FC..L;GUN125..TS..6FC;TGN126..(L,S)..LA;TGN126..TD..(H,S)..GCC AUTOMATIC DISCONNECTING DIFFERENTIAL-WITH |
1 | ||
| 41507-0K100 |
TGN126..S..LA;GUN125..TS..6FC;TGN126..(H,S)..GCC;GUN125,TGN126..LHD..(5F,6FC)..L..(GCC,GEN,LA) |
1 | ||
| 41507-0K090 |
TGN126..H..LA;TGN126..L..SA;GUN125..6FC..(H,S)..GCC;TGN126..(H,S)..(GEN,SA);GUN126,TGN128..AD,AS,KD,MD,MMD,SD,SS,SX,TD,TS,TX;GUN125..6F..(ARL,BZAG,GCC,GEN,IDN,KEN,LA,MA,PH,SA,TH,VN);GUN125..(AD,MD,SD,SS,TD,TX)..6FC..(ARL,GEN,IDN,LA,MA,SA) |
1 | ||
| 41507B - TUBE, FRONT DIFFERENTIAL LOCK ACTUATOR BREATHER | ||||
| 90445-T0014 |
GGN125,GUN125,126,LAN125,TGN126,128..AD,AS,KD,KS,MD,MMD,MS,SD,SS,SX,TD,TS,TX |
1 | ||
| 41533 - TUBE, FRONT DIFFERENTIAL BREATHER | ||||
| 41533-0K050 |
TGN126..6FC..L;GUN125..TS..6FC;TGN126..(L,S)..LA;TGN126..TD..(H,S)..GCC AUTOMATIC DISCONNECTING DIFFERENTIAL-WITH |
1 | ||
| 41533-0K050 |
TGN126..H..LA;TGN126..L..SA;GUN125..6FC..(H,S)..GCC;TGN126..(H,S)..(GEN,SA);GUN126,LAN125,TGN128..AD,AS,KD,MD,MMD,SD,SS,SX,TD,TS,TX;GUN125..6F..(ARL,BZAG,GCC,GEN,IDN,KEN,LA,MA,PH,SA,TH,VN);GUN125..(AD,MD,SD,SS,TD,TX)..6FC..(ARL,GEN,IDN,LA,MA,SA) |
1 | ||
| 41533-0K080 |
TGN126..S..LA;GUN125..TS..6FC;TGN126..(H,S)..GCC;GUN125,TGN126..LHD..(5F,6FC)..L..(GCC,GEN,LA) |
1 | ||
| 41534 - BRACKET, FRONT DIFFERENTIAL BREATHER | ||||
| 41534-0K030 |
GUN125,126,TGN126,128..AD,AS,MD,MMD,MS,TD,TS,TX |
1 | ||
| Common parts | ||||
| 90105-T0059 | ||||
| 90119-06935 | ||||
| 90466-T0059 | ||||
Part Price Details
Loading price information...
Part Number:
Price:
